Howo Fuel Tanker Truck

Home Howo Fuel Truck

Howo Fuel Tanker Truck

Product categories
New Products

Howo Fuel Tanker Truck

Howo chassis Fuel Trucks (also known as Howo mobile refueling trucks, Oil tank trucks Howo, Howo oil transport trucks, oil tankers, Howo oil loading trucks, oil hauling trucks, and edible oil transport trucks) are primarily used for transporting and storing petroleum derivatives (such as gasoline, diesel, crude oil, lubricants, and coal tar).

Our Howo fuel trucks depending on their application and operating environment, they offer a variety of refueling or oil transportation functions, including oil suction, oil pumping, and various oil distribution functions. The specialized components of an oil tanker truck consist of the tank body, power take-off (PTO), drive shaft, gear oil pump, and piping system. The piping system includes an oil pump, three-way four-position ball valve, two-way ball valve, filter, and piping.


Howo Fuel Tank Trucks--Build for Safety, Efficiency and Performance

Brand newly designed and manufactured HOWO fuel bowser trucks with fuel pump for pump in and pump out process, also equipped with fuel dispenser and hose reel for refueling work. All our fuel tankers can be customized with material Carbon steel, Stainless steel, Aluminum alloy, etc. Our fuel trucks provide efficient, on-demand refueling, helping customers maintain productivity and reduce costly equipment delays.



Grid List



Professional Design & Manufacture for Fuel Tanker Trucks

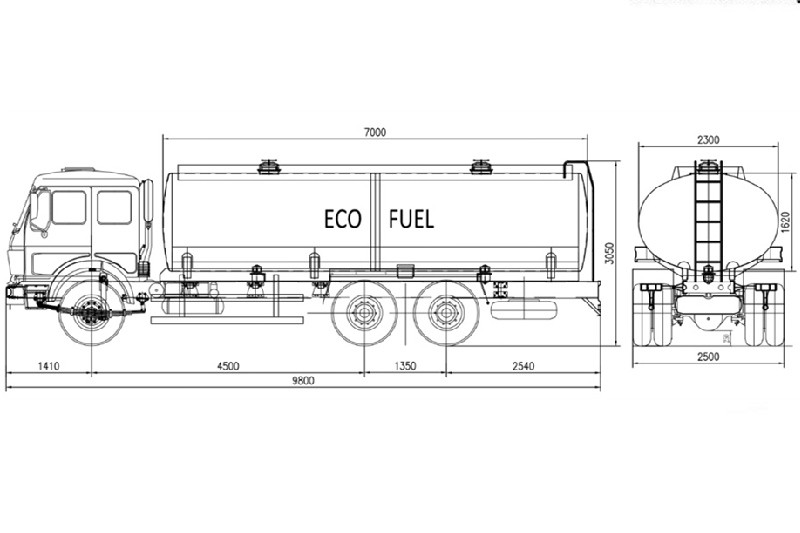

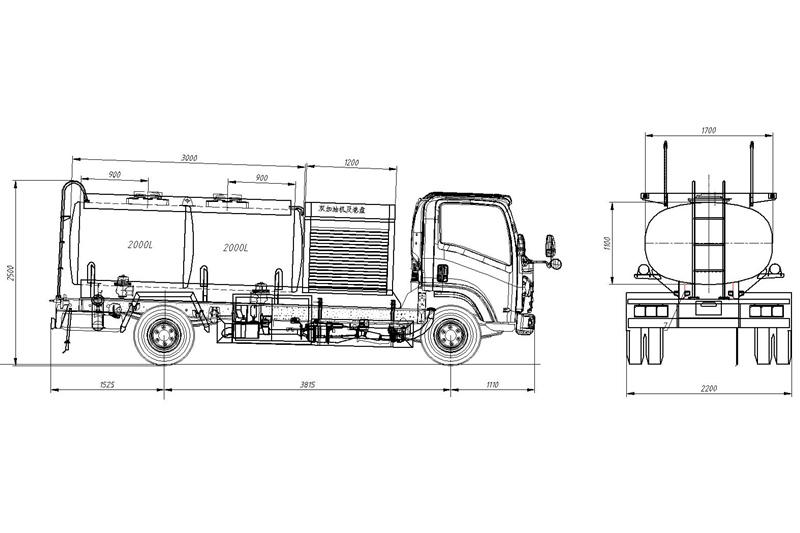

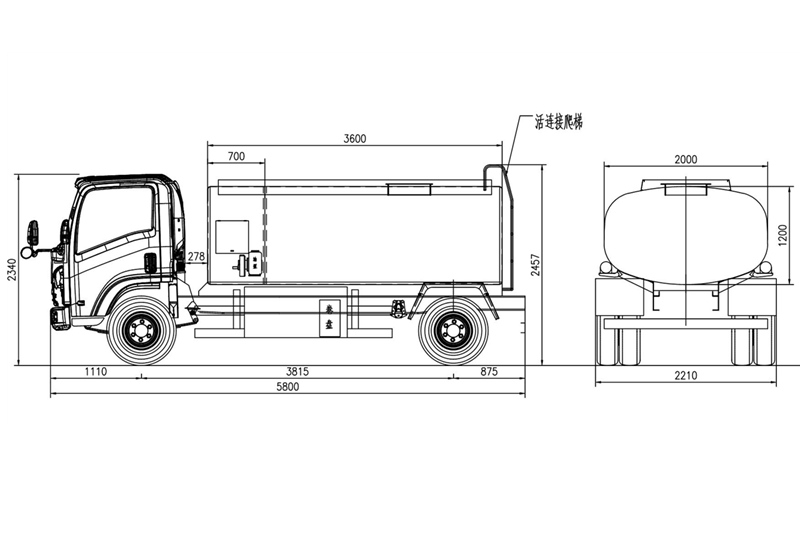

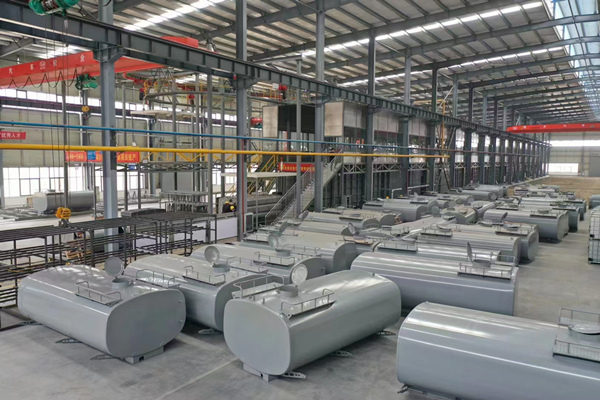

Design and modify based on HOWO truck chassis, matched with customized fuel tanker with multiple capacity range from 2000Liters to 30000Liters. 4x2 model light duty HOWO truck mounted with fuel tanker with capacity 2000L to 8000L, 4x2 model middle duty Howo truck mounted fuel bowser with capacity 10000L to 16000L, 6x4 and 8x4 model HOWO truck mounted fuel tank body kit with capacity 18000L to 30000L. Also we CS TRUCKS can customized multiple capacity fuel tanker semitrailers.



How to use and operate Howo Fuel Bowser?

Fuel Truck Pipeline System: There are mainly below 4 parts for fuel truck pipeline system.
CENSTAR Fuel Dispenser：Consists of Fuel inlet & out valve, Fuel gun and electric system
Fuel Pump: 80YHCB-60 fuel pump, provide power for fuel inlet & outlet of tank

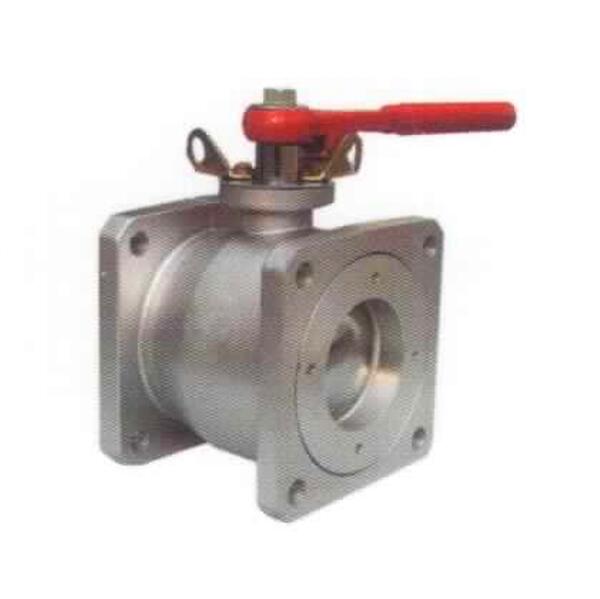

Multi-Function Valves: Fuel Inlet Valve, Fuel Outlet Valve & Three-Way Ball Valve
Fuel Pipeline: Multiply fuel pipeline service for fuel transportation

Fuel tanker truck working principle drawing

Step by Step to Operate Howo Fuel Tanker Trucks


The Schedule of Pumping-In Course: open Fuel Inlet Valve, close Fuel Outlet Valve, and the spot of Three-Way Ball Valve pointing to LEFT (Means the Three-Way Ball Valve Right Opened), close the Double-Way Valve (which connect the Fuel Dispenser), open the Submarine Emergency Valve. Then oil sucked into the pump through Fuel Inlet Valve under negative pressure of fuel pump, then into the fuel tank. Details showing as below chart.

The Schedule of Pumping-Out Course: open Fuel Outlet Valve, close Fuel Inlet Valve, and the spot of Three-Way Ball Valve pointing to RIGHT (Means the Three-Way Ball Valve Left Opened), close the Double-Way Valve (which connect the Fuel Dispenser), open the Submarine Emergency Valve. Then oil pumping-out the fuel pump through Submarine Emergency Valve under negative pressure of fuel pump, then out of the fuel tank through Fuel Outlet Valve. Details showing as below chart.

The Schedule of Refueling Course: close Fuel Inlet Valve and Fuel Outlet Valve, and the spot of Three-Way Ball Valve pointing to outside (Means left & right side is open), open the Double-Way Valve (which connect the Fuel Dispenser), open the Submarine Emergency Valve. Then oil can be pumping-into the CENSTAR Fuel Dispenser through Double-Way Valve under pressure of fuel pump. Then you can operate the Fuel Dispenser to refuel all trucks. Details showing as below chart.



Howo Fuel Tanker Truck Detailed Components & Optional Equipment

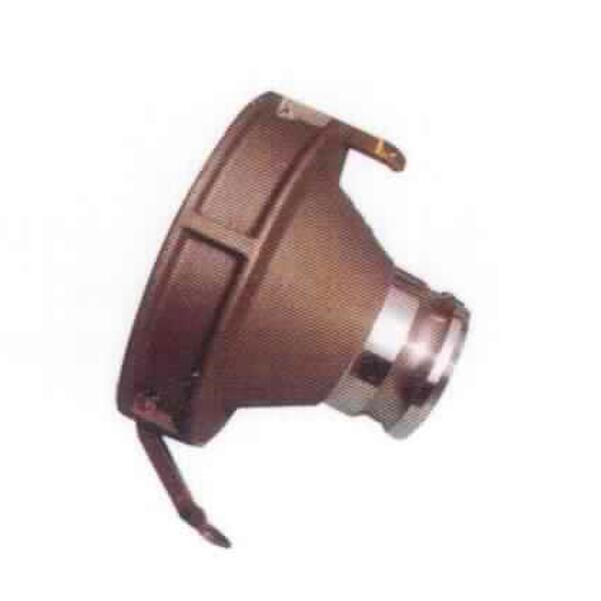

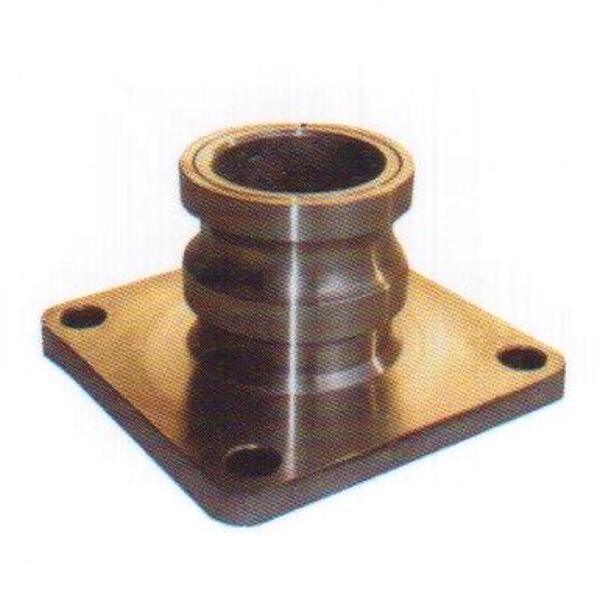

Fuel tanker bowser components







Custom-Built HOWO Fuel Oil Trucks for Every Application

Howo Fuel Trucks Classification by Transport Medium
1, HOWO Light Oil Tankers: Transport low-viscosity oils such as gasoline and diesel. Tanks are typically single-compartment designs.
2, HOWO Viscous Oil Tankers: Used for high-viscosity oils such as coal tar and heavy oil. Some models are equipped with heating devices.
3, Chemical Liquid Tankers HOWO: Transport corrosive or flammable chemical liquids such as acid and alkali solutions and alcohol. Tanks require special corrosion protection.
4, Liquefied Gas Tankers HOWO: Specialized for transporting high-pressure gases such as liquefied petroleum gas (LPG) and liquid ammonia. Tanks are constructed of stainless steel and equipped with a pressure control system.
5, HOWO Edible Oil Tankers: Tanks are made of food-grade materials (such as stainless steel or rotomolded linings) and meet hygiene standards.



Fuel tanker upper body kit 3D drawing



Reliable Fuel Bowser Component for Global Market Service

Your global supply partner CS TRUCKS are professional fuel tanker trucks and upper body kits manufacturer. Which have every fuel trucks built for durability and high-performance fueling. With efficiently refueling ability and can be up to 150gpm, electric rewind hose reels for easy usage and safety. Refueling system can be customized for gun and hose reel only, also can be equipped with fuel dispenser for trucks refuel process. Emergency stop button also equipped for safety usage.

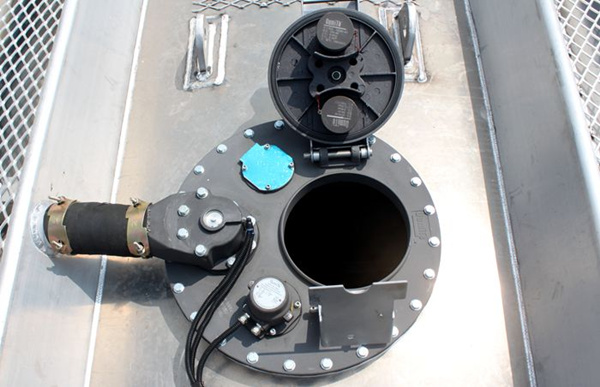

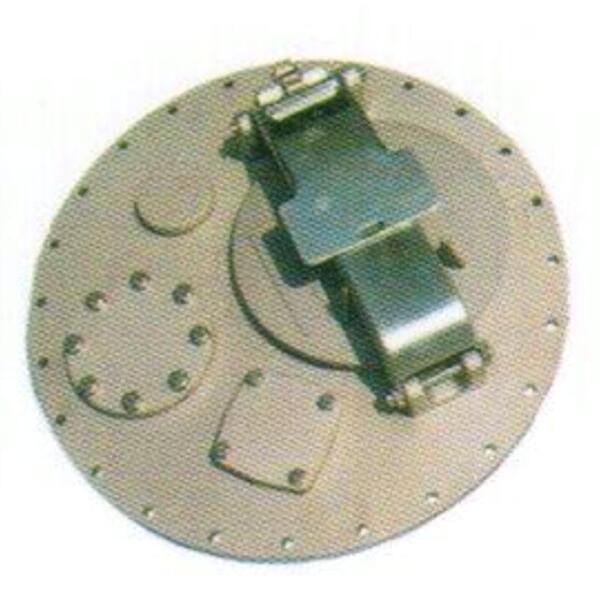

Euro Manhole with Breathe Valve

Breathe Valve



Function: Which exist on EURO Standard Manhole cover, make the fuel tanker can breathe

Breathe Valve Setting:
Exhale：When internal tanker pressure higher then outside, open at pressure 6kPa ~8kpa

Inhale：When internal tanker pressure lower then outside, open at pressure 2kPa ~3kpa
