Howo Oil refueling Truck

Home Howo Fuel Truck

Howo Oil refueling Truck

Product categories
New Products

Howo Oil refueling Truck

HOWO oil refueling truck is the customized model based on normal Howo fuel tank trucks, which also designed based on TOP Chinese brand HOWO truck chassis, matched with fuel tanker body with customized capacity, suitable fuel pump and pipeline system, to realize pump in and pump out function. Moverover, Howo refueler tanker trucks also equipped with Hose reel and gun for normal trucks refueling work, sometime can also equipped with Fuel Dispenser with English control panel, so can truck commercialized and accurately measure the added fuel and income, so CS TRUCKS produced HOWO refueling tanker bowser is an ideal tanker trucks for business.



Different customer have different requirement on HOWO oil refueling trucks, so can 100% customized the HOWO fuel bowser to meet all request:

Truck Model: Can be designed based on multiple chassis and named as HOWO light duty oil tanker truck, HOWO HW76 fuel truck, HOWO NX refueling truck, HOWO TX oil bowser, etc.

Truck Capacity: Range from 2000 Liters to 40000 Liters capacity, equal to 250 gallons to 10000 gallons.

Tanker Material: HOWO carbon steel fuel truck, HOWO Aluminium alloy oil tanker truck, HOWO Stainless steel refueling truck.



Howo Refueling Trucks--100% Customized, Durable and Reliable

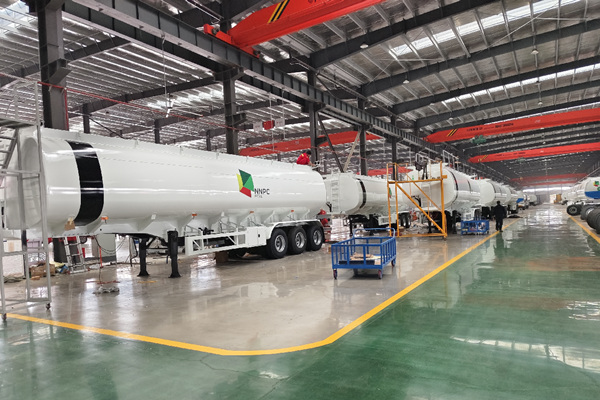

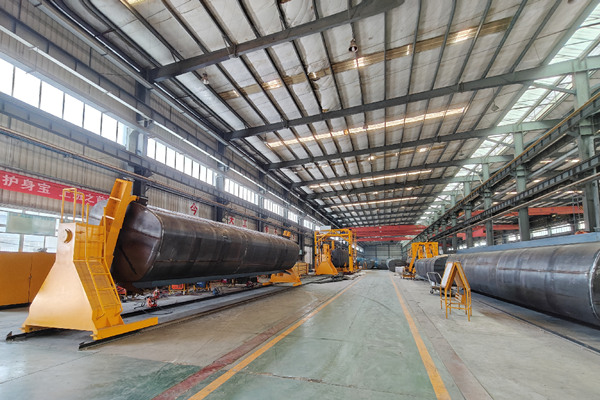

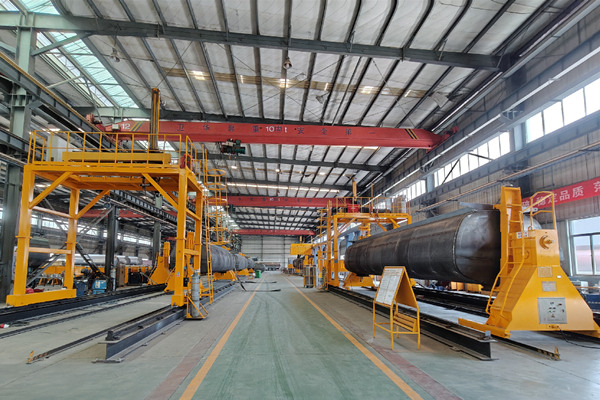

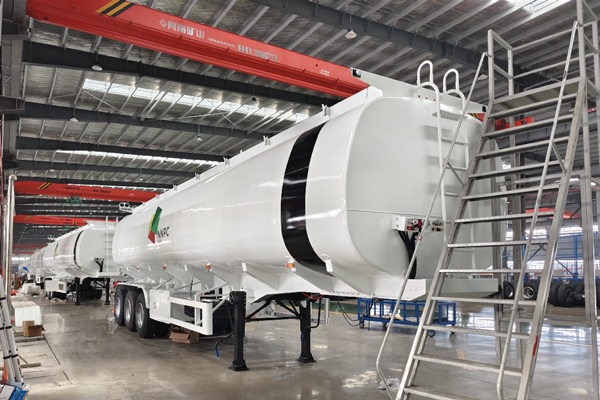

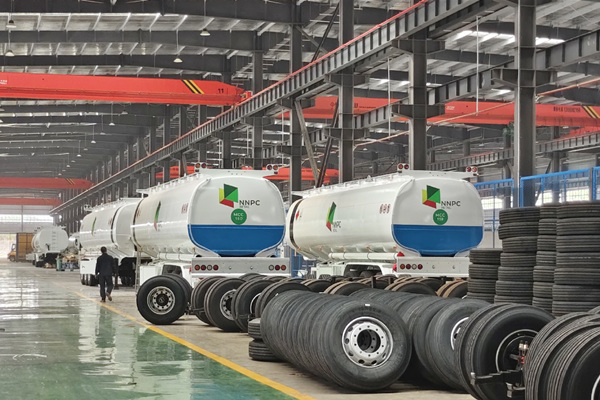

To guarantee all customers have the best and most suitable fuel tankers, we CS TRUCKS Engineer Department can design and customize Howo fuel trucks based on requirement. Automatically welding the cylindrical tanker body, and inner mounted with baffles to avoid shaking during transportation. Below are our fuel trucks manufacturer warehouse and production line for checking.



Grid List

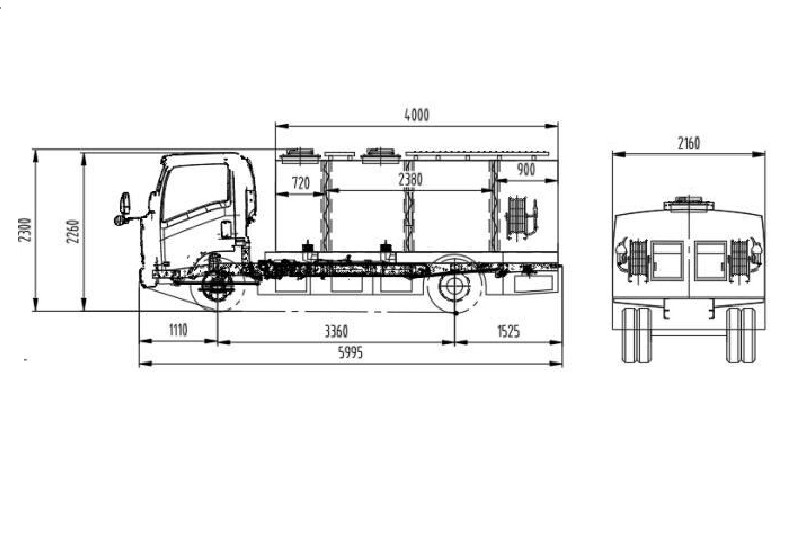

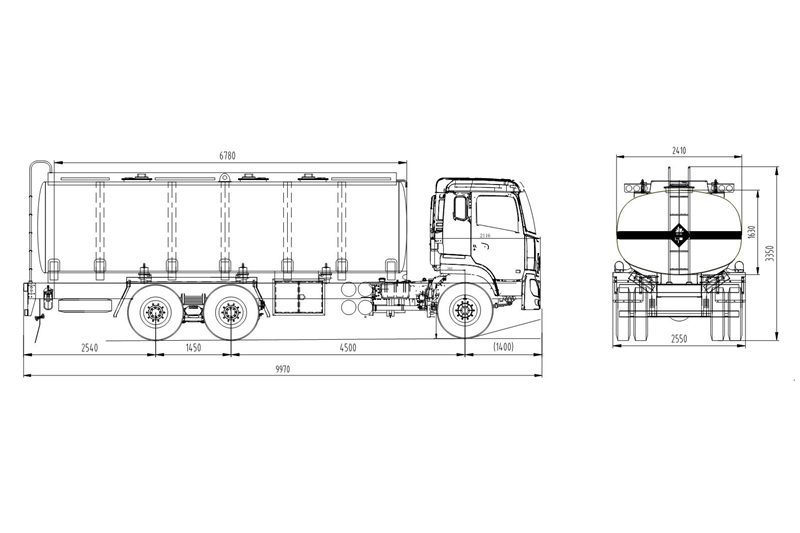

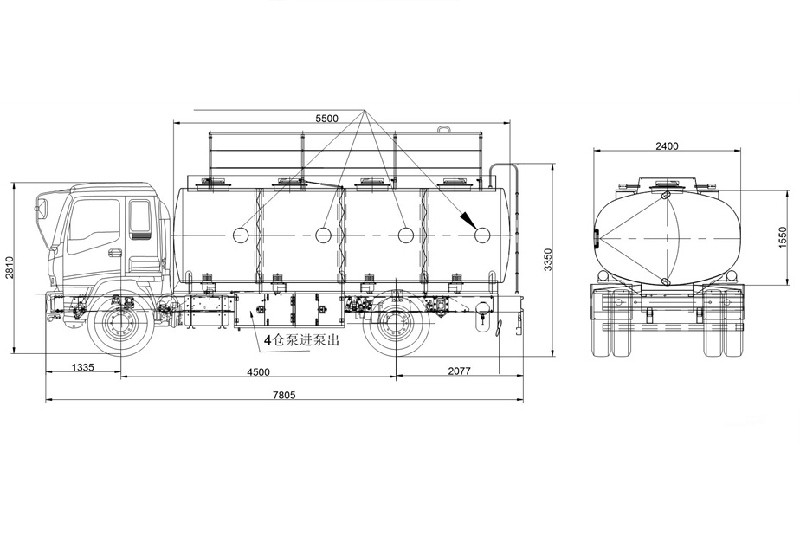

CAD drawing and design for Refueling Tanker Trucks

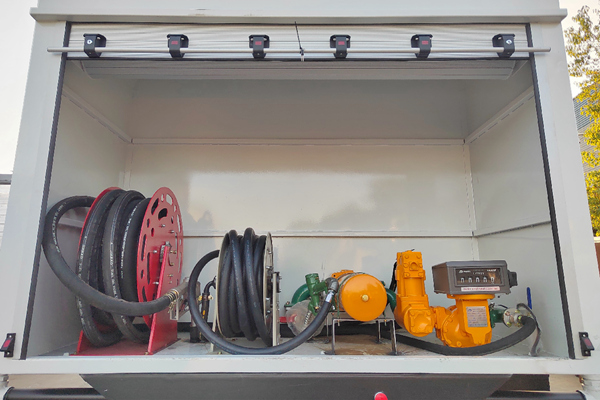

To satisfy customers requirement, our Engineer Department with 90 skilled professional Engineers can design and produce multiple capacity fuel trucks, with capacity 2000L to 40000L, and each truck equipped with refueling dispenser and hose reel and gun, hose reel length can be 15m to 50m as customized.



How to choose most suitable fuel dispenser?

Fuel Dispenser is a customized equipment to be mounted on HOWO fuel tanker trucks, which mainly used for measuring and settling the sales of refined oil products. Which development mainly go through four stages: Manual, Mechanical, Electronic and fully computerized tax control. And became more and more popular on fuel bowser usage. Below detailed introduced the working principle of Howo oil truck mounted fuel dispenser.

The pressurized fuel goes through the filter into the flow meter and drives its pistons to move in turn. The meter revolves the slotted plate of the pulser to produce pulses, which will be registered on the computer for measurement. One cycle of the pistons' movement indicates that certain quantity of fuel has been delivered. After the fuel has been measured and registered on the computer, the gasoline goes through the discharge tube and the solenoid valve into the hose and the nozzle to the customer container.

Additionally, an internal backup battery will power the displays in the case of a power failure. The main parameters, such as the last sale, the totalizing volume and totalizing money, price per liter will be saved and the last displays will last for 15 minutes.

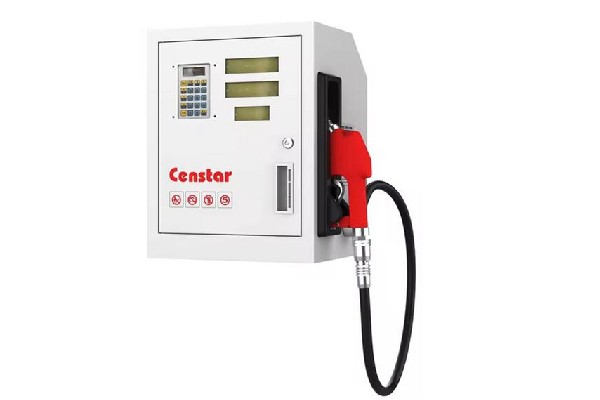

fuel dispenser

Main Parameter for Fuel Dispenser

Flow rate: ( 5~ 50)L /min
Maximum Permissible Error: 士0.25%
Minimum Measured Quantity: 5L
Noise Level: ≤72dB(A)
Applications: Gasoline, diesel oil and kerosene
Price per Liter: 1~ 9999 /L(GAL)
Single Sale: Volume: 0~ 99999.99 L(GAL)
Money: 0~ 9999999
Cumulative Total: Volume: 0~ ~ 42949672.95 L(GAL)
Money: 0^ I 42949672.95
Power Supply: DC1 0V~DC30V
Work pressure (Oil inlet): (0.18~0.20) MPa
Flow rate (Oil inlet): 50~70L/min
Filtering precision: ≤60μm
Ambient Temperature: -25°C~+55°C
Relative Humidity: 30% ~95% .
Explosion-proof Mark: ExdibmblfAT3Gb
Explosion-proof Certificate No.: CNEx13.1101
Measurement Apparatus Manufacture Licence: YUZHI00000198

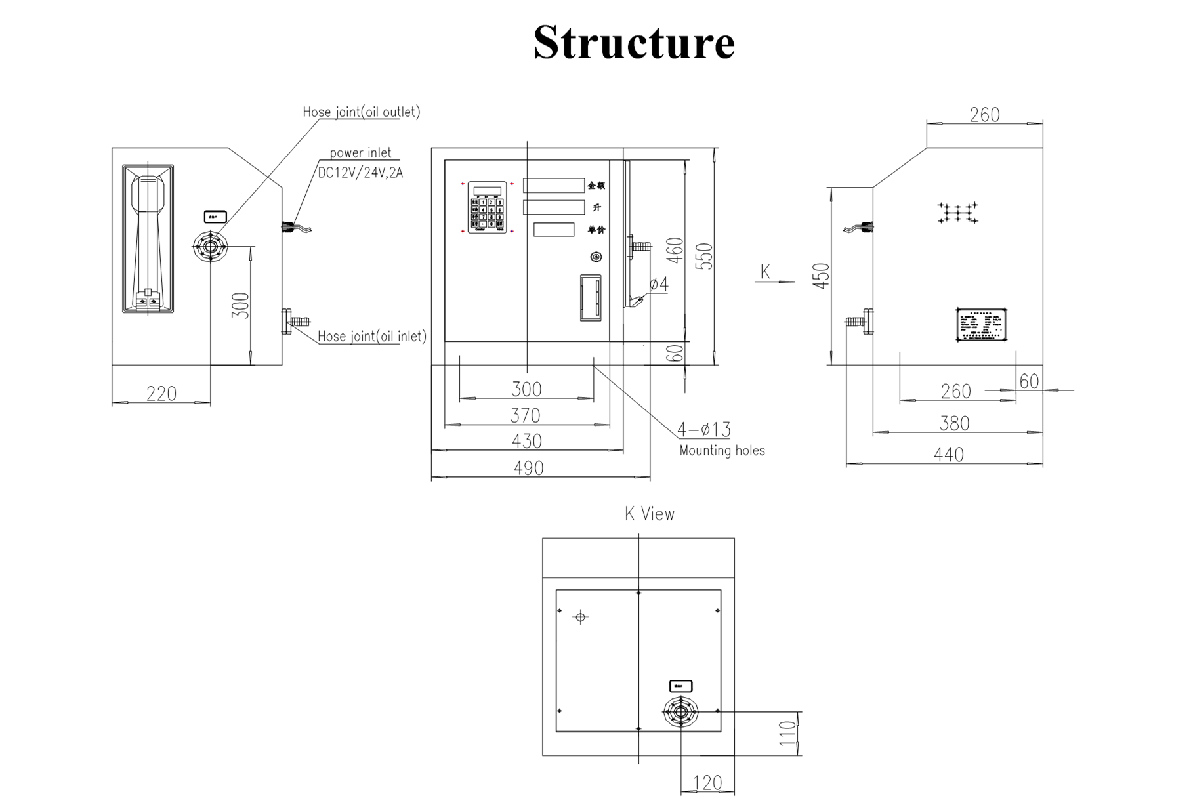

Censtar Fuel dispenser installation diagram Censtar fuel dispenser structure
Censtar Fuel dispenser installation diagram Censtar fuel dispenser structure



Fuel Dispenser Control System and Maintenance Service Schedule

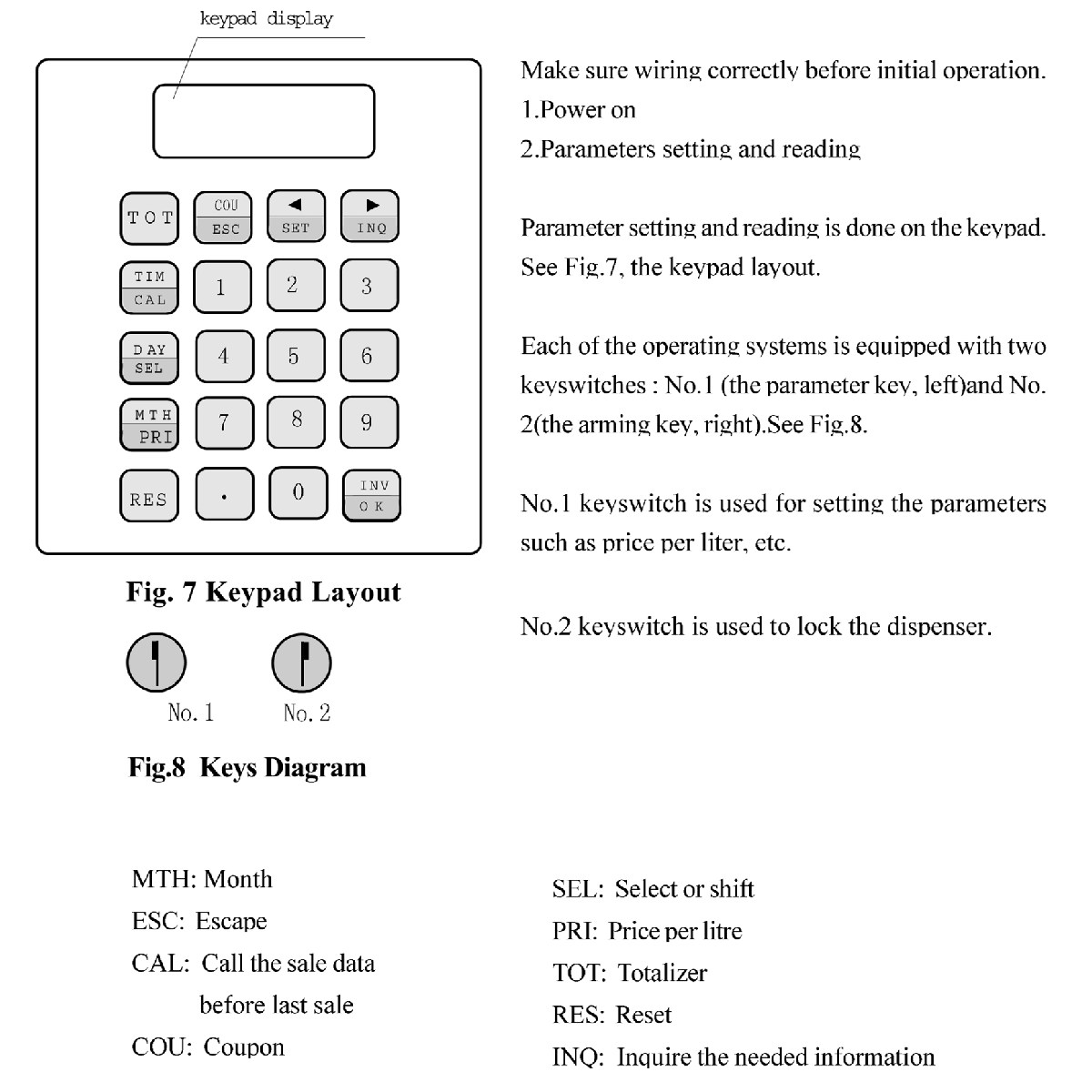

Brief introduction of the control panel

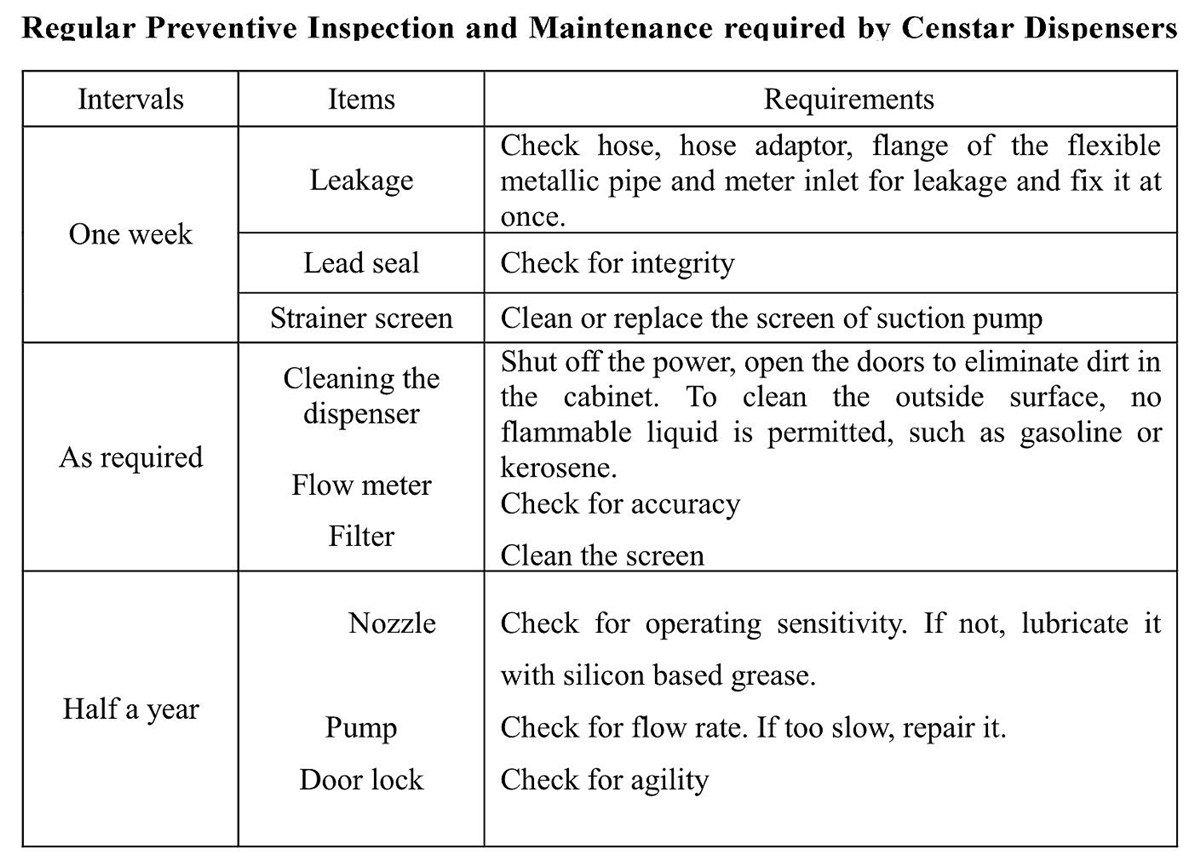

Regular inspection and maintenance for dispensers

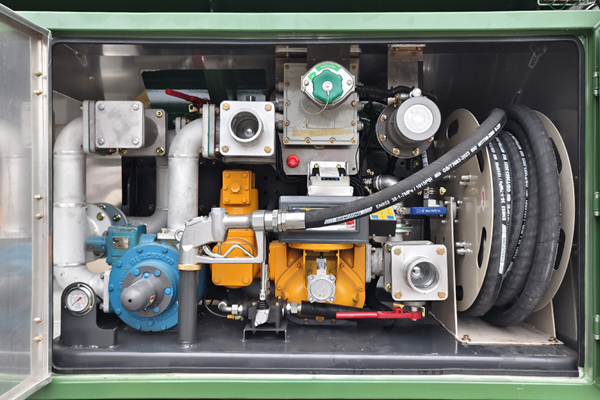

Multiple Refueling System for 100% meet customer requirement

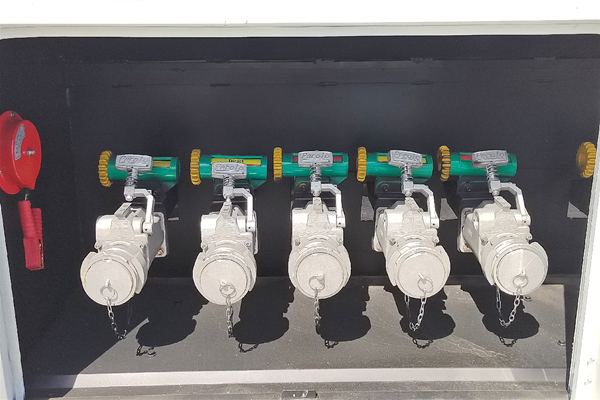

CS TRUCKS designed and produced HOWO oil refueling trucks can be customized with multiple compartment, each compartment equipped with EURO standard Manhole cover with breathing valve for safety. Also fuel pump for pump in and pump out functions. Each outlet valve can be customized to matched with flow gauge, measurement indicator or fuel dispenser. And the measurement units can be gallons, liters, cubic units, etc.
