Acid Tanker Semitrailer

Home Semitrailer

Acid Tanker Semitrailer

Product categories
New Products

Acid Tanker Semitrailer

Acid tanker semitrailer is also called chemical liquid tank semitrailer, V shape 98% sulfuric acid tanker semitrailer, which specially designed as round tanker, with internal plastic lining, matched pump system can be mounted on tractor device, the customized #50 or #90 traction pin are matched with prime mover saddle. And tanker semitrailer can be used to transport multiple chemical liquid, including hydrochloric acid, sulfuric acid, concentrated sulfuric acid, hydrogen peroxide, acetic acid, alcohol, nitric acid, dilute nitric acid, toluene, etc.



Acid tank semitrailer can be customized and made of normal carbon steel, stainless steel, carbon steel lined with plastic, carbon steel with rotational molding, fiberglass material, PP (Polypropylene), aluminum alloy, etc. Customized tanker capacity can be 20,000Litres to 60,000Liters, with baffles inside for prevention of longitudinal wave during safety transportation. Equipped with multiple valves for pump in and pump out function, also full sets LED safety warning lamps all around trailer. All make sulfuric acid tanker semitrailer an ideal trailer for acid transportation and widely export in Africa in Zambia, DR Congo, South Africa, Zimbabwe, Guinea, etc.



Model Axle System Loading Capacity Overall Dimension Application
CS9280GFW 2 21,000 Liters 9400x2500x3250 mm Sulfuric acid
CS9330GFW 2 25,000 Liters 10000x2500x3350 mm Dilute nitric acid
CS9400GFW 3 29,000 Liters 10500x2500x3850 mm 98% sulfuric acid
CS9402GFW 3 35,000 Liters 11000x2500x3900 mm Sulfuric acid, Nitric acid
CS9405GFW 3 40,000 Liters 11500x2500x3950 mm Concentrated sulfuric acid
CS9408GFW 4 45,000 Liters 11500x2500x3900 mm Acetic acid, alcohol
CS9450GFW 4 60,000 Liters 13500x2500x3950 mm Acid, alcohol

Grid List

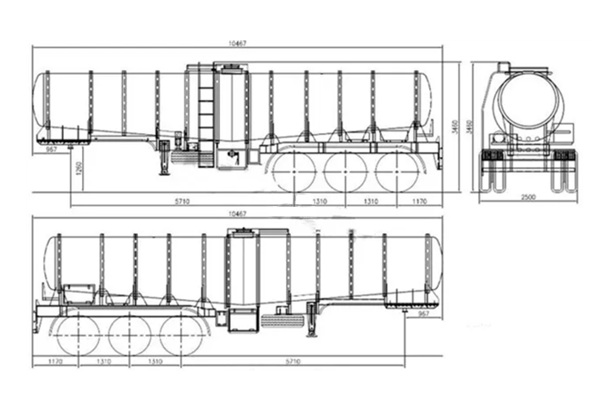

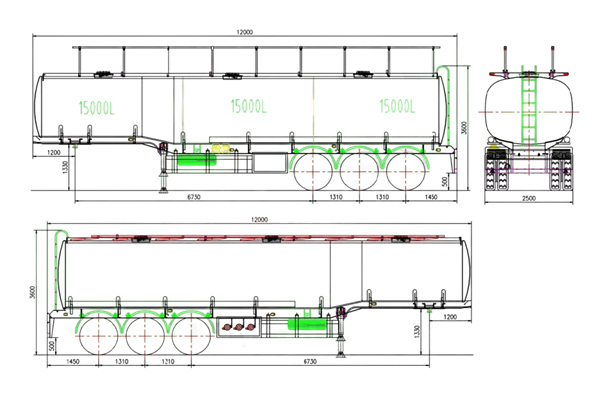

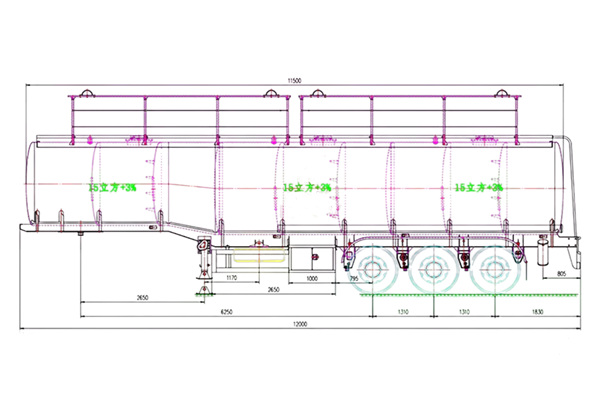

Provide customized design based on customer requirements

As a professional manufacturer of tank truck semi-trailers, CS TRUCKS is committed to providing customers with professional customized design solutions. Our tanker trailers cover a volume range from 20,000L to 50,000L, and can be further expanded to larger capacity according to customer needs. Meanwhile, core parameters such as tank shape, number of compartments, material, and discharge method all support flexible customization based on specific customer requirements.



Professional tank truck semi-trailer manufacturer

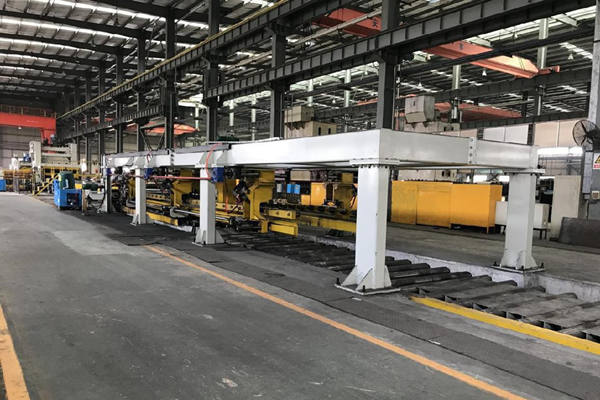

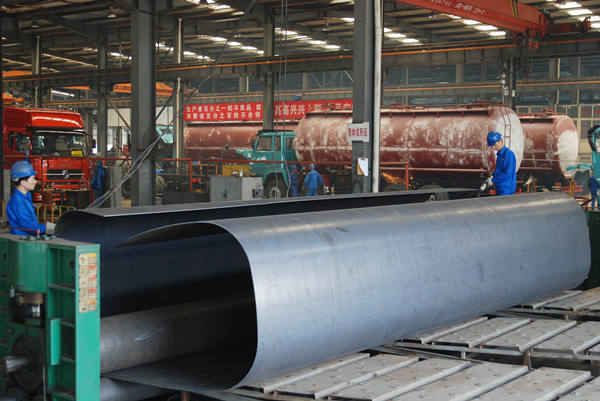

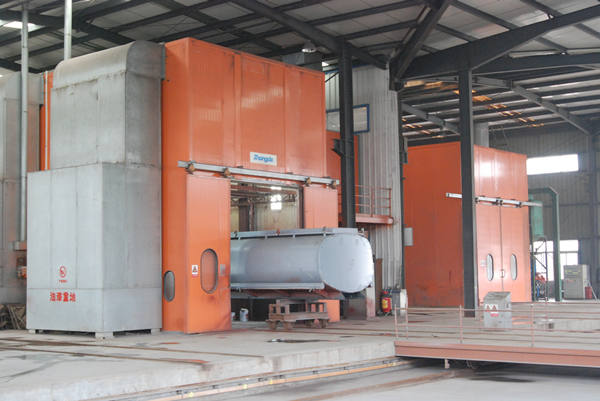

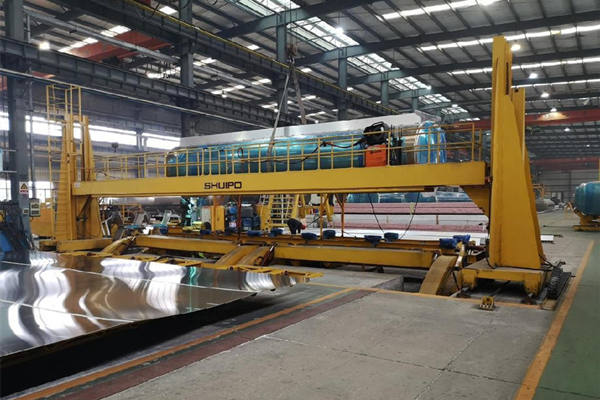

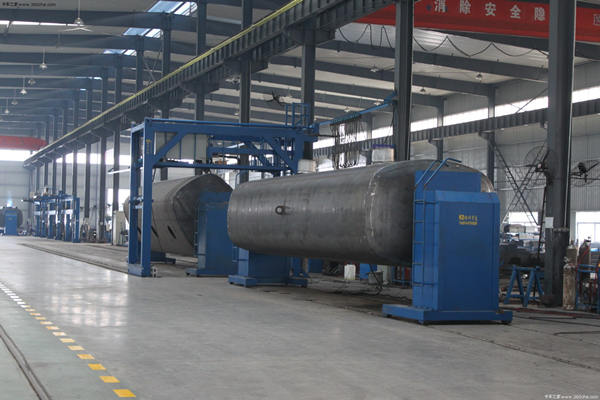

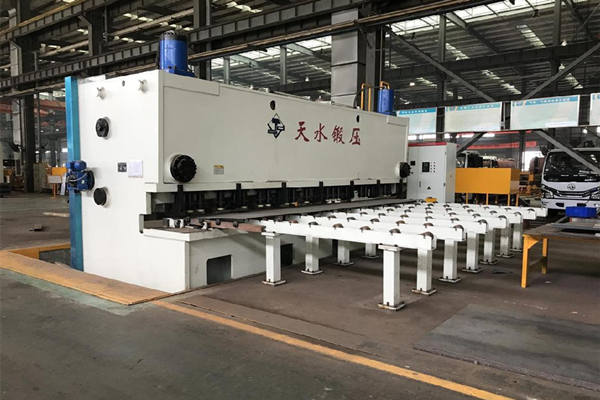

As a professional special-purpose vehicle manufacturer, CS TRUCKS currently employs over 1,000 people and boasts a R&D team with strong technical capabilities. It is equipped with more than 300 sets of advanced sproduction equipment, including plasma cutting machines, plasma edge-spinning machines, large CNC plate rolling machines, automatic welding machines, semi-trailer gantry submerged arc automatic welders, gantry longitudinal beam welding machines, cylinder automatic welders, special tooling for cylinder assembly welding, special equipment for drum rolling, and blade forming dies.

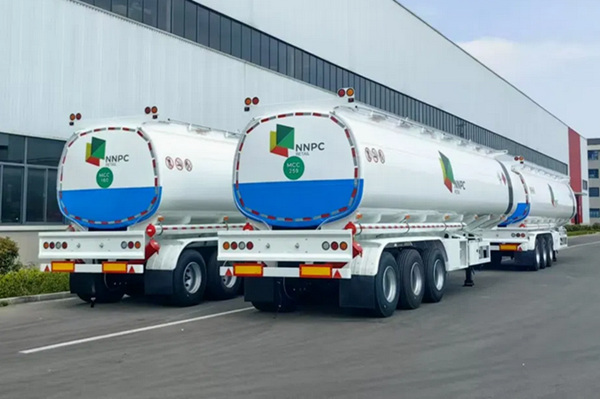

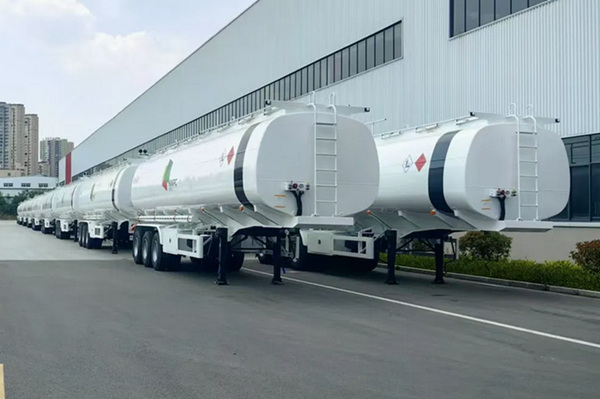

Delivery of bulk orders for acid tanker semi-trailers

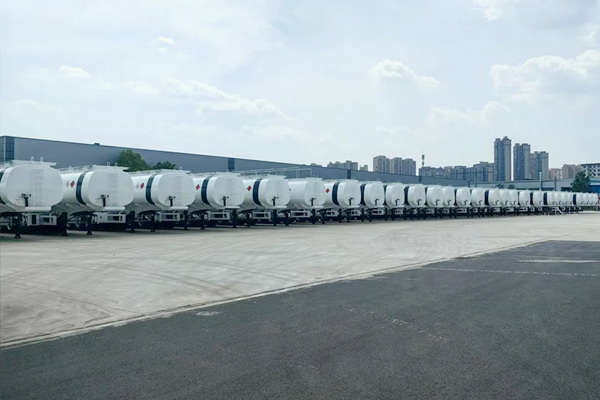

With over 20 years of experience in tank truck semi-trailer manufacturing, CS TRUCKS takes "strong production capacity + flexible customization + efficient fulfillment" as its core competitiveness, and has successfully delivered more than 100 bulk orders to customers in fields such as energy and logistics. Currently, our products have been sold to more than 50 countries and regions in Southeast Asia, the Middle East, Africa and South America, and have won wide acclaim from customers.
