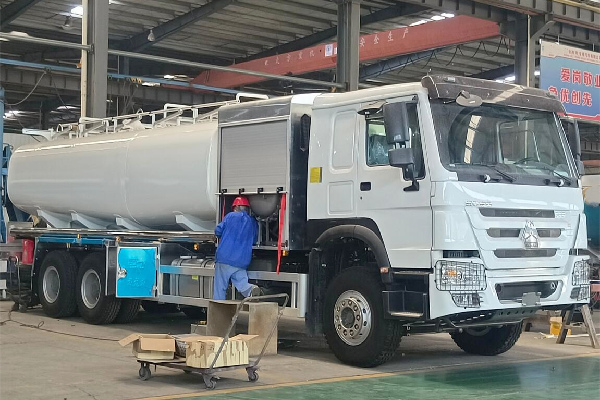

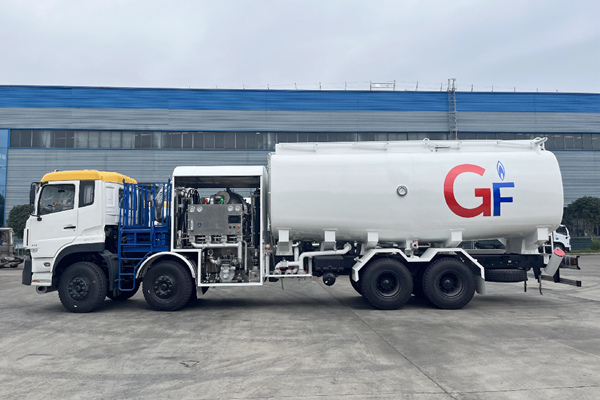

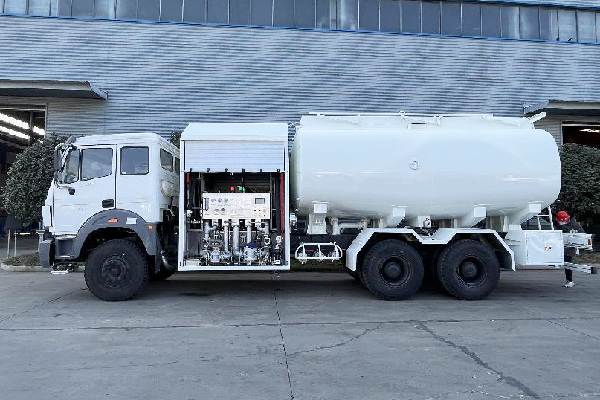

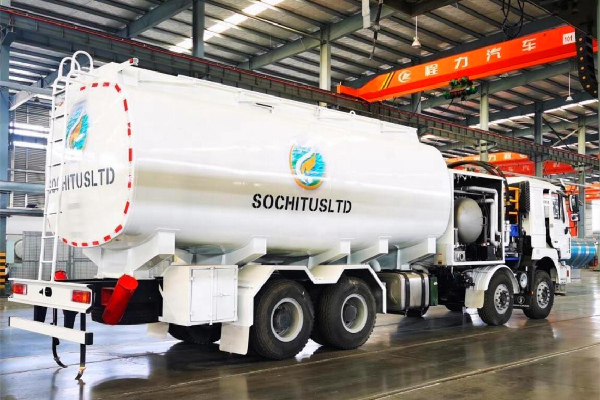

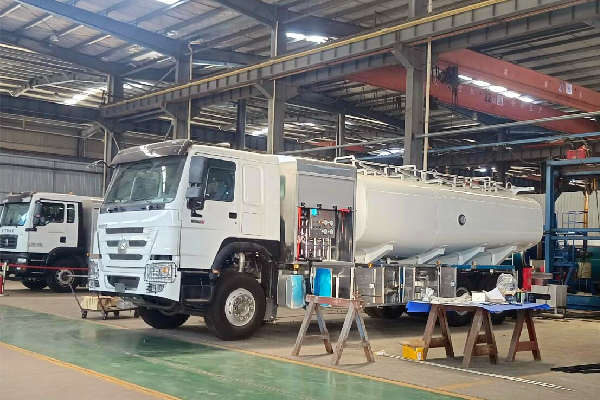

Howo Aircraft Refuel Truck

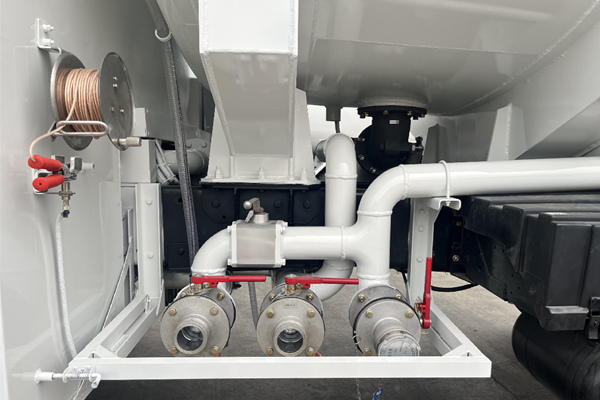

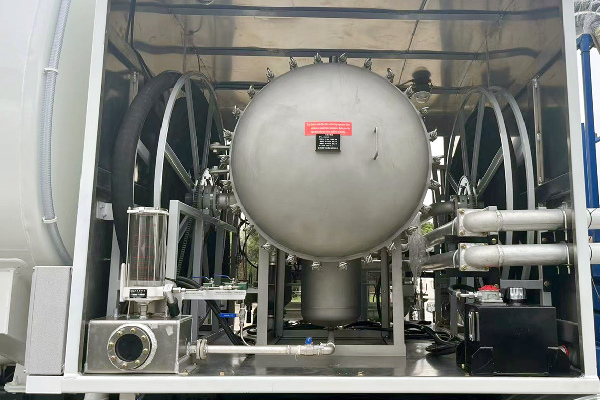

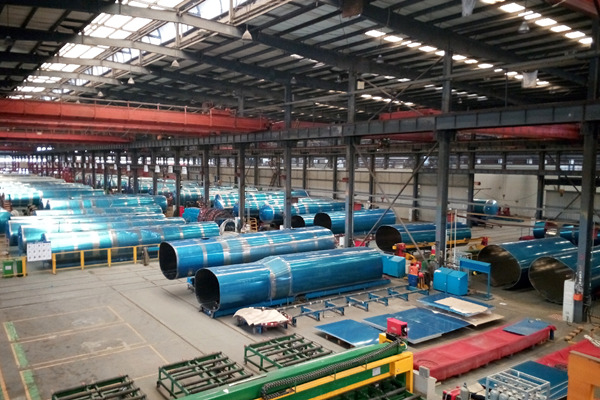

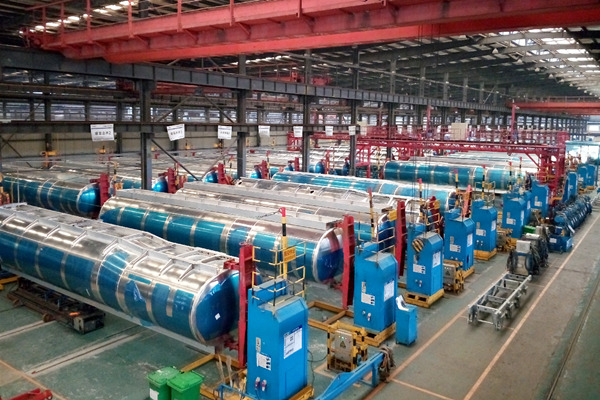

HOWO Aircraft fuel trucks are special customized with Aluminum alloy Jet Fuel tanker body thickness 5.6mm, head 5.7mm, baffle 5.7mm, single tank, dedicated tanker gun set DN38 hydraulic hose reel with length 20m, flow rate ≥ 350 L/min, optional DN50 hydraulic hose reel 20m, flow rate ≥ 500 L/min. Dedicated DN65 hydraulic hose reel 20m with aviation pressure-stabilizing connector, single pipeline flow rate ≥ 1200 L/min, with large-print flow meter class 0.2 accuracy. Equipped with explosion-proof lamp, coalescing separator 90°F/hour, Self-priming centrifugal pump with pump in and pump out function, with secondary drive shaft drive hydraulic station. 6 inch float level gauge. One set HYJ-63X connector valve, one each on the left middle and rear, with flexible connections.

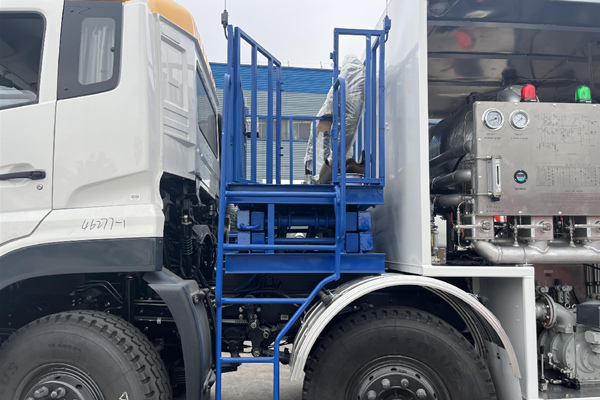

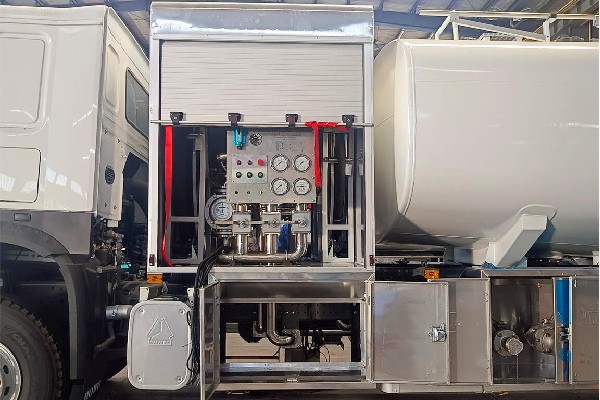

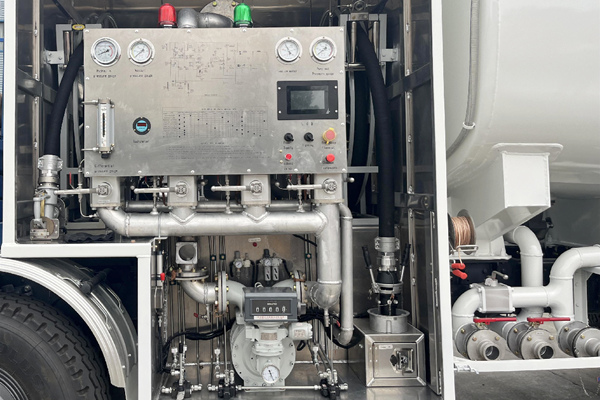

Aviation Jet Refueling Trucks operating equipment box: remote magnetic switch, hand throttle, DeadMan control system, in-line pressure control valve; Venturi tube, high-level control valve, magnetic refueling controller. Vacuum gauge, pressure gauge, differential pressure gauge, Venturi pressure gauge, hydraulic pressure gauge. Sewage sampling before and after the filter; and customized sample recovery cylinder. Optional hydraulic lifting platform installed between the equipment compartment and the cab, above the platform equipped with 2 sets of 4m DN65 hoses pipeline, connected with stainless steel joints, including pressure-stabilizing joint valves and 2 venturi tubes, matched with distance sensors, and coalescing separator 150F/hour. Labels and reflective stickers are factory-marked. Others are based on CS TRUCKS standard.
