Heavy Duty Fire Truck: Core Configuration & Performance Benefits

When it comes to tackling large-scale industrial fires, high-rise blazes, and complex emergency rescues, standard fire trucks simply aren’t enough. Heavy-duty fire trucks are the backbone of professional fire response teams, built for extreme conditions, high-volume suppression, and all-scenario rescue missions.

A top-tier heavy-duty fire truck is a fully optimized system, not just a collection of parts. Every cabin detail, tank structure, mechanical component, and electrical system is precision engineered for reliability, speed, and on-site safety.

In this article, we break down the complete professional configuration of our factory’s heavy-duty fire truck in a clear, easy-to-follow format. You’ll see exactly what makes our units robust, practical, and industry-grade for global fire safety operations.

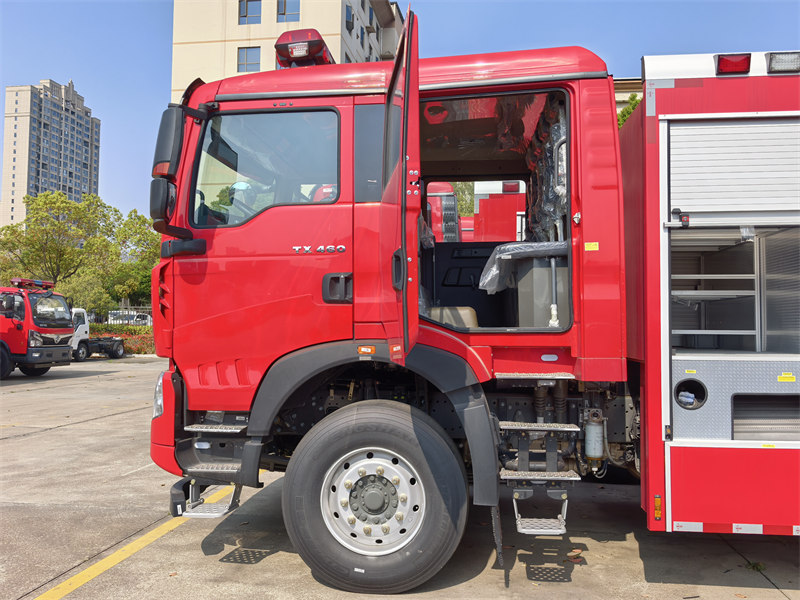

1. Crew Cabin: Ergonomic, Safe & Operation-Friendly Layout

The cabin is the on-site command center. We design it around firefighter safety and operational efficiency, with no compromise on comfort or functionality.

✅ Cabin Structure & Space

♦ Customized factory double-row 4-door design – stronger structural integrity than retrofitted cabins

♦ 6-person full team capacity – 1 driver + 1 co-pilot in front, 4 crew members in rear

♦ Open front-rear cabin layout with no barriers for fast crew movement

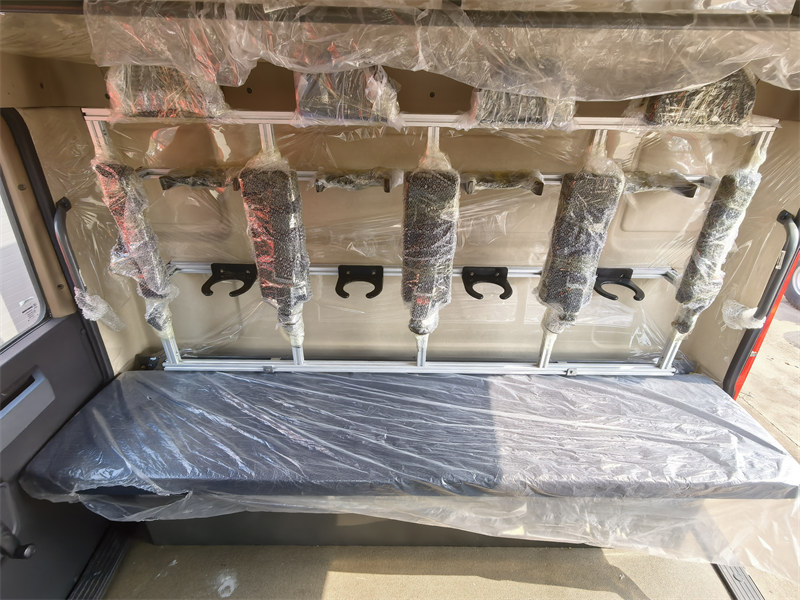

♦ 4 built-in air respirator backrests in the rear cabin with ample spare space

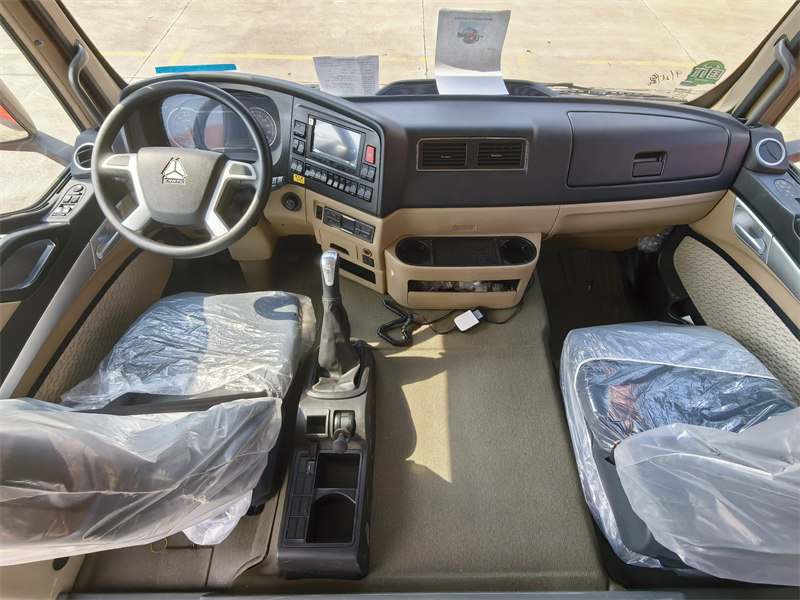

✅ On-Board Control & Communication System

♦ Dedicated fire operation dashboard + light & siren control box

♦ Integrated switches for power take-off, warning lights, strobe lights, contour lights, and alarms

♦ Professional siren system + roof loudspeaker with handheld mic

♦ Motorola vehicle radio (customizable to client fire team frequencies)

♦ 24V dedicated charging socket for continuous device power supply

✅ Comfort & Safety Assistance

♦ Independent heating, ventilation, and air conditioning for all-weather operation

♦ Full reverse assist system: rear radar + HD backup camera

♦ Automatic rear-view display and alert sound when reversing, eliminating blind spots

2. Water & Foam Tank System: Large Capacity & Anti-Corrosion Durability

Continuous fire suppression relies on stable, large-volume agent storage. Our dual-tank system delivers long-lasting performance for major fire scenarios.

✅ Tank Capacity

♦ Water tank: 6000L-12000L

♦ Foam tank: 2000L-4000L

♦ Large capacity for extended continuous firefighting

✅ Premium Material & Structural Design

♦ High-quality Q235-B carbon steel construction

♦ 4mm standard plate thickness, 6mm reinforced bottom plate for anti-deformation performance

♦ Integrated beam structure with high-strength bolted connection for overall stability

♦ One-piece rolled tank body with longitudinal welding

♦ Internal cross & vertical wave baffles to suppress liquid sloshing during driving

♦ Professional enhanced anti-corrosion treatment with official process documentation provided

✅ Standard Functional Interfaces

♦ 2 access holes, 2 overflow devices, 2 high-precision liquid level sensors

♦ 2 DN50 valve-equipped sewage outlets, 4 rapid water injection ports

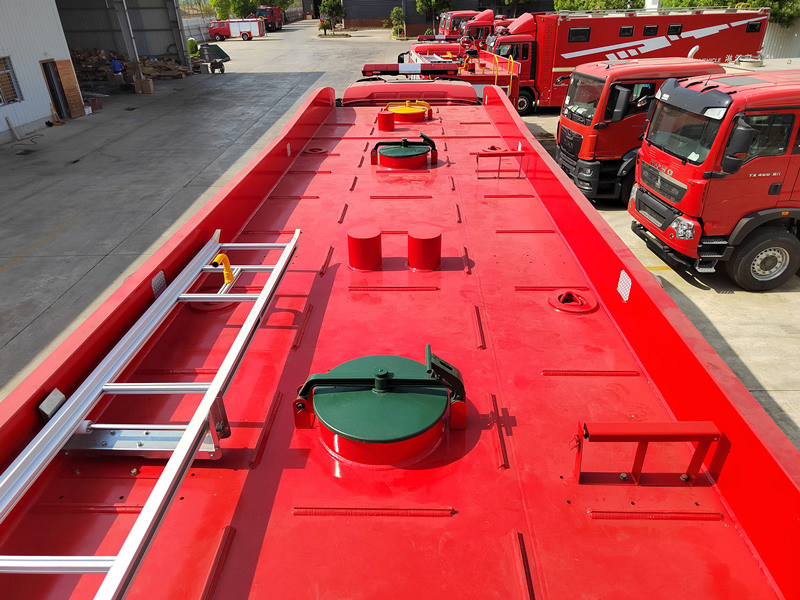

♦ 2+ DN460 large-size manholes with quick-lock, quick-open and automatic pressure relief function

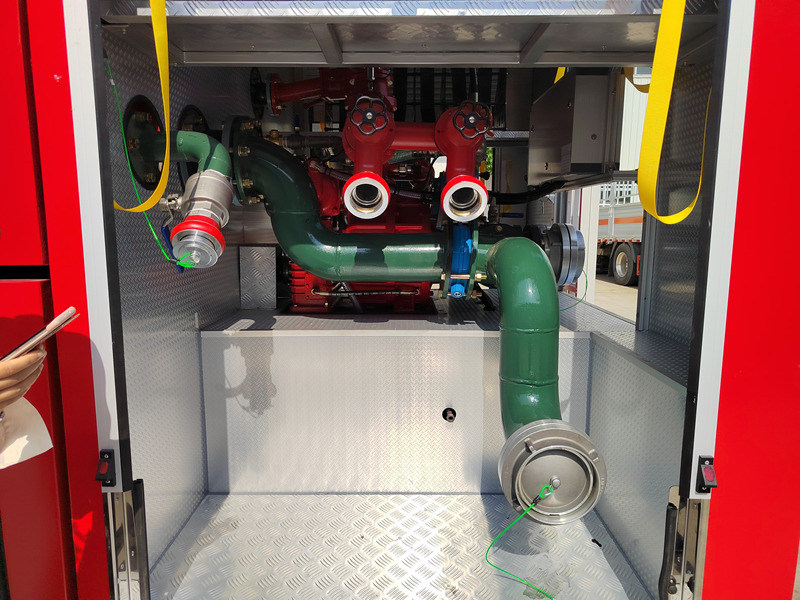

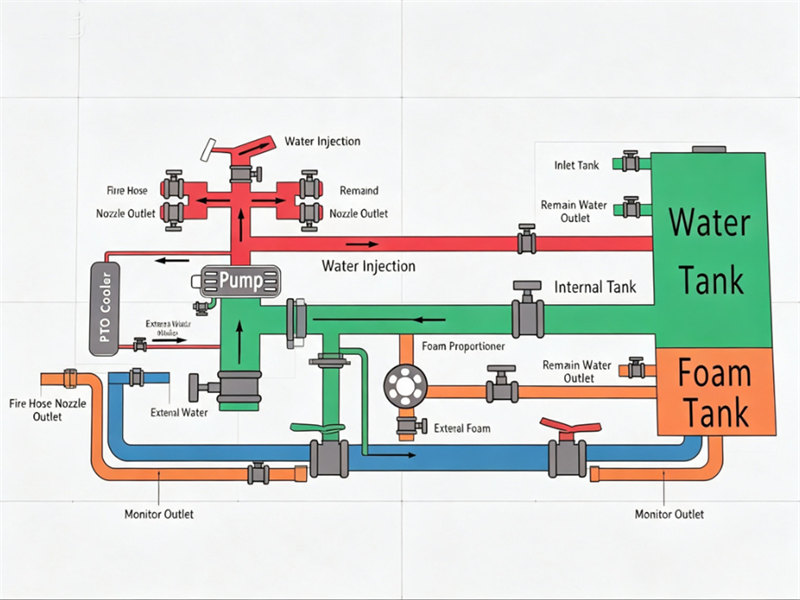

3. Pipeline Assembly: Stable, Efficient & Leak-Proof Fluid Delivery

We adopt zoned professional pipeline layout to ensure smooth water absorption, water output, foam transmission, and residual liquid discharge in all working conditions.

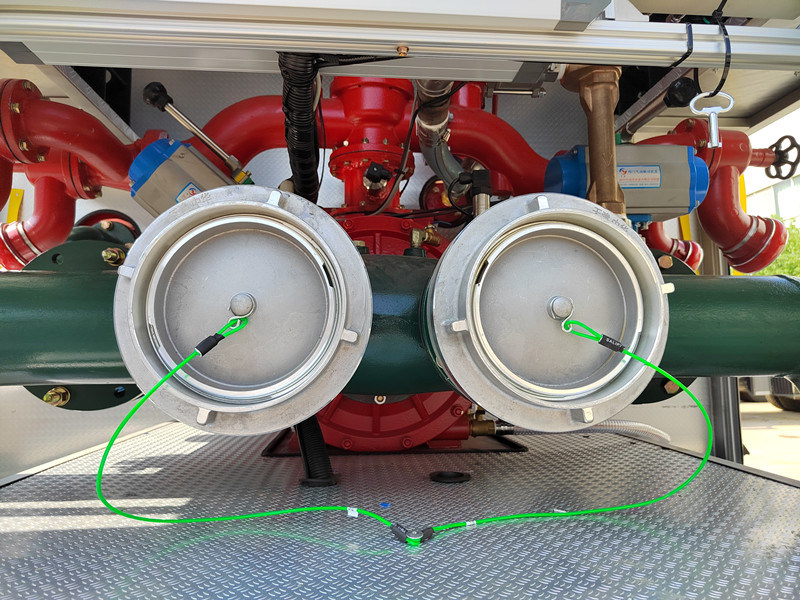

✅ Water Suction Pipeline

♦ Rear DN150 large-diameter water suction port with filter screen and dust-proof blind cover

♦ Pneumatic butterfly valve controlled DN150 tank water inlet

♦ Elastic rubber buffer connectors at key positions to resist vibration and leakage

✅ Water Outlet Pipeline

♦ 2 DN80 normal-pressure water outlets on each vehicle side for multi-point simultaneous water supply

♦ DN65 ball valve controlled tank refilling pipeline with rubber buffer section

✅ Monitor Pipeline & Residual Liquid Management

♦ DN125 large-flow monitor pipeline with supporting butterfly valve and elastic connectors

♦ Residual water & foam drain valves at the lowest pipeline positions

♦ Fast full-system draining for anti-freezing protection and daily maintenance

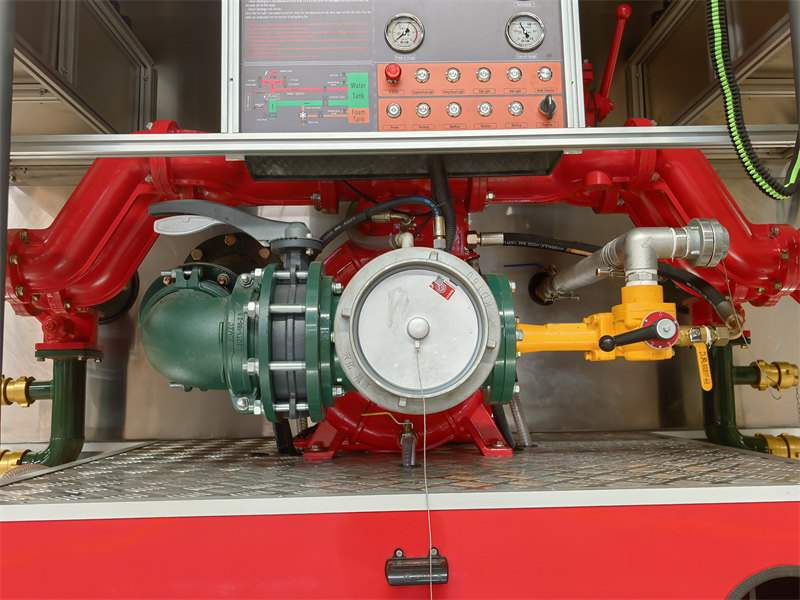

4. Core Fire Pump: High Power & Stable Suppression Performance

The fire pump defines the vehicle’s core firefighting power. We equip industry-trusted Xiongzhen brand pumps with mature and reliable parameters.

✅ Core Pump Performance Parameters

♦ Working pressure: ≥1.0MPa

♦ Maximum flow rate: ≥90L/s

♦ Maximum vacuum degree: ≥85kPa

♦ Fast water diversion time: ≤40s

♦ Maximum water absorption depth: 3m

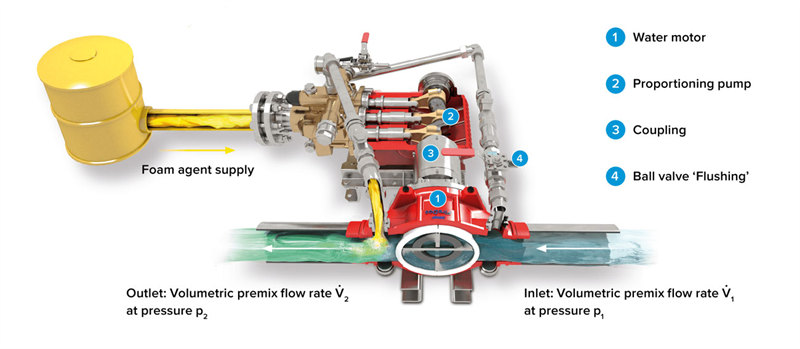

✅ Foam Proportional Mixing System

♦ Equipped with PH48*2 manual foam proportional mixer

♦ 4-speed adjustable mixing ratio, including standard 3% and 6% gears

♦ Accurate ratio matching for solid fires, oil fires, and chemical fires

5. Imported Water & Foam Dual-Purpose Monitor: Long-Range & Precision Suppression

For large-area and high-altitude fire suppression, we adopt premium American imported Amidon fire monitors with excellent flexibility and extreme range performance.

✅ Motion & Flow Performance

♦ Horizontal rotation: 348° nearly full coverage

♦ Pitch adjustment: -45° to +90° (total 135° adjustable angle)

♦ Stepless flow adjustment: 950L/Min – 3800L/Min

♦ Effective shooting range: ≥70m (under 5.5Bar inlet pressure & 3800L/Min flow)

✅ Dual Intelligent Control System

♦ Wired control box (vehicle power supply)

♦ Wireless remote controller (battery powered)

♦ Smooth stepless switch between DC jet and flowering spray

♦ Random pause at any working state + complete spare controller set

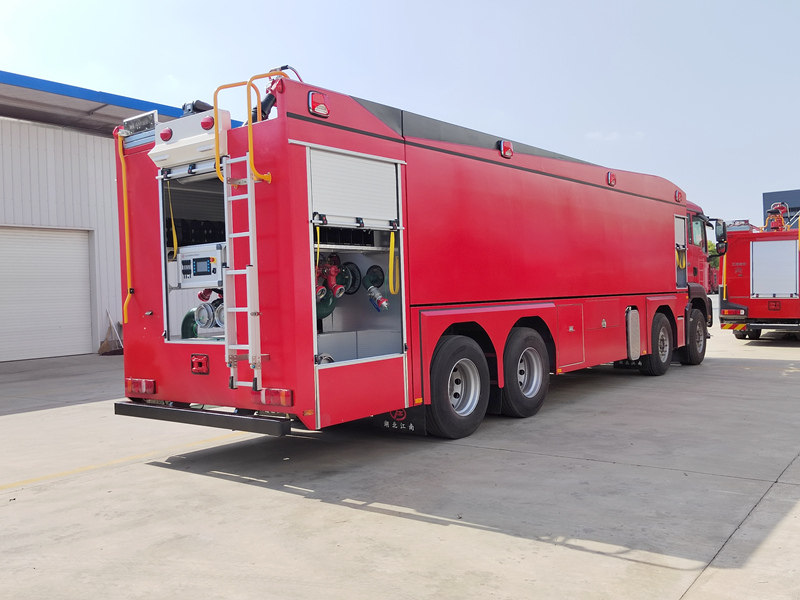

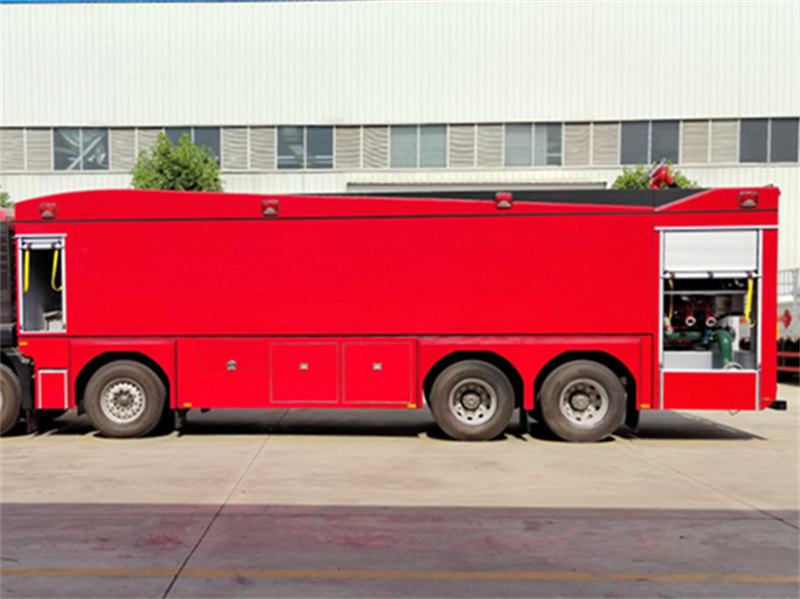

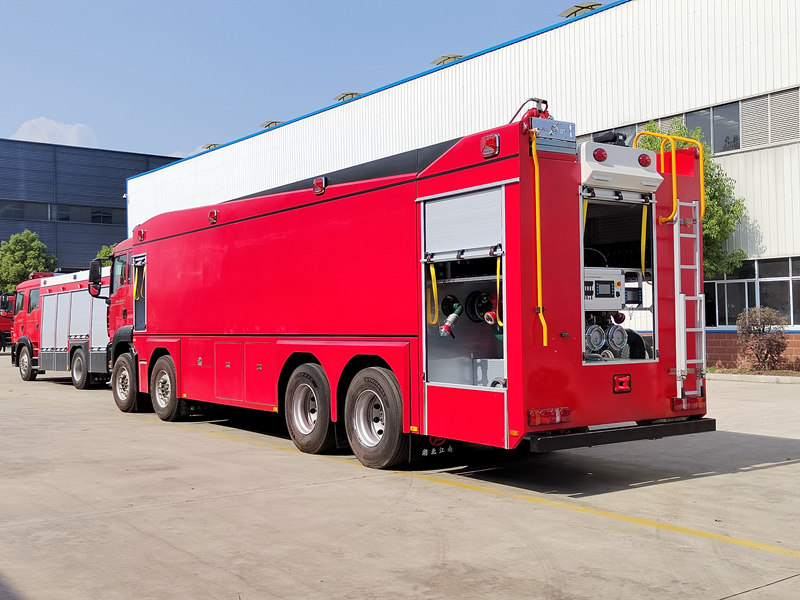

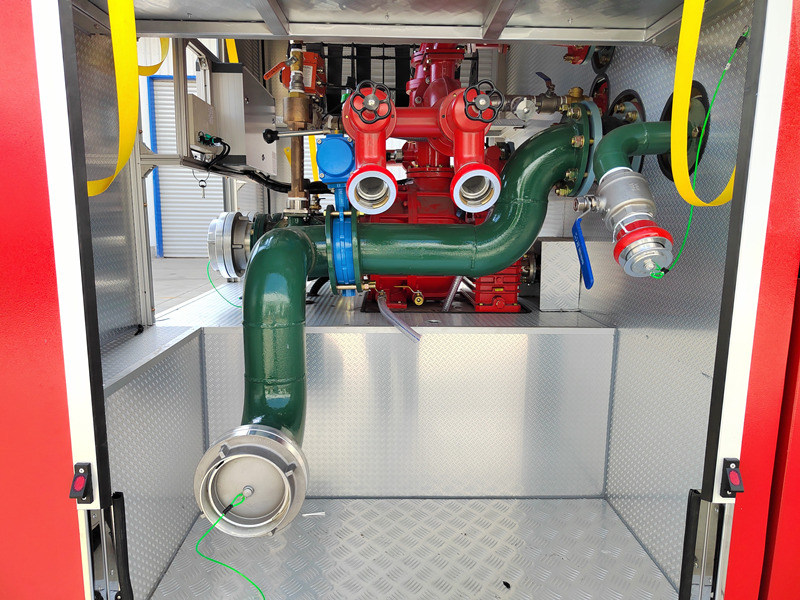

6. Equipment Cabin & Pump Room: Humanized Layout & Rapid Deployment

Every cabin design follows fire combat deployment logic and ergonomic principles, allowing firefighters to access tools quickly and operate efficiently.

✅ Cabin Material & Structure

♦ High-strength steel welded frame + anodized LF2 anti-rust aluminum panels

♦ Split layout: front equipment cabin + rear pump room for functional zoning

♦ Aluminum alloy rolling shutter doors on side cabins; large flip door for rear pump room

✅ Internal Equipment Layout

♦ Built-in LED cabin lighting system

♦ Specialized mounting plates and storage boxes for breaking and rescue tools

♦ Side skirt tool cabins for small daily equipment storage

♦ Anti-vibration, anti-fall, anti-scratch fixture design

♦ 1–2 step ground-level tool access for fast rescue deployment

✅ Auxiliary Functional Configuration

♦ Two-section flip folding aluminum alloy climbing ladder (ground clearance ≤350mm)

♦ 6-meter professional reinforced rubber water suction pipe

♦ Front filter device + airtight connection with main pump, no air leakage during operation

♦ Final Thoughts: Why Our Heavy-Duty Fire Trucks Stand Out Globally

Unlike generic assembled fire trucks on the market, our heavy-duty models are scenario-driven and precision-manufactured. Every parameter, material choice, and structural detail is optimized for real-world high-risk fire and rescue missions.

From crew safety comfort, durable tank systems, and high-power pump-monitor combinations, to humanized equipment deployment and stable intelligent electrical systems — our trucks deliver higher reliability, faster response, and longer service life.

We provide standardized high-quality heavy-duty fire trucks and support customized configuration solutions for global fire departments, industrial parks, chemical enterprises, and urban emergency rescue teams.
