The Howo off-road 10-ton cargo truck is a hardcore transport tool designed for extreme off-road conditions. With its mature all-wheel-drive technology and powerful engine, it has become a core piece of equipment for mountain exploration, mining resupply, and forestry transportation.The Howo 4x4 cargo truck is equipped with a Sinotruk WD615.95C inline six-cylinder engine, delivering 340 horsepower and 1490 N·m of peak torque. Maximum power is available in the low-speed range of 1200-1500 rpm, making heavy-load climbing effortless. It is matched with an HW19710 ten-speed gearbox, offering high transmission efficiency and smooth shifting, adapting to the power switching needs of complex road conditions.
Working capacity :
10 tonsCabin type :
Howo single cabin, with one sleeperDrive system :
4x4Wheelbase ( mm) :
4500Engine specific :
WP10.340E201Gear box :
HW19710C, 10 forwards & 2 reversesFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000The Howo off-road 10-ton cargo truck is a hardcore transport tool designed for extreme off-road conditions. With its mature all-wheel-drive technology and powerful engine, it has become a core piece of equipment for mountain exploration, mining resupply, and forestry transportation.
The Howo 4x4 cargo truck is equipped with a Sinotruk WD615.95C inline six-cylinder engine, delivering 340 horsepower and 1490 N·m of peak torque. Maximum power is available in the low-speed range of 1200-1500 rpm, making heavy-load climbing effortless. It is matched with an HW19710 ten-speed gearbox, offering high transmission efficiency and smooth shifting, adapting to the power switching needs of complex road conditions.
The drive system features an STR cast iron steering drive axle and an ST16 dual-reduction rear axle, along with multiple differential locks, ensuring even torque distribution and preventing slippage on muddy and gravel roads. The high-strength flatbed cargo box balances lightweight design with load-bearing capacity, and is equipped with a 400L large fuel tank, ensuring both endurance and operational efficiency.

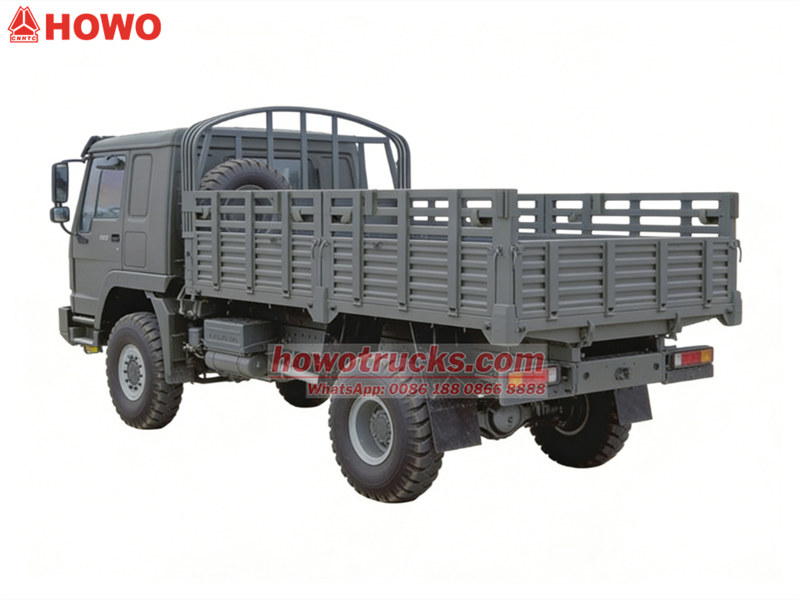

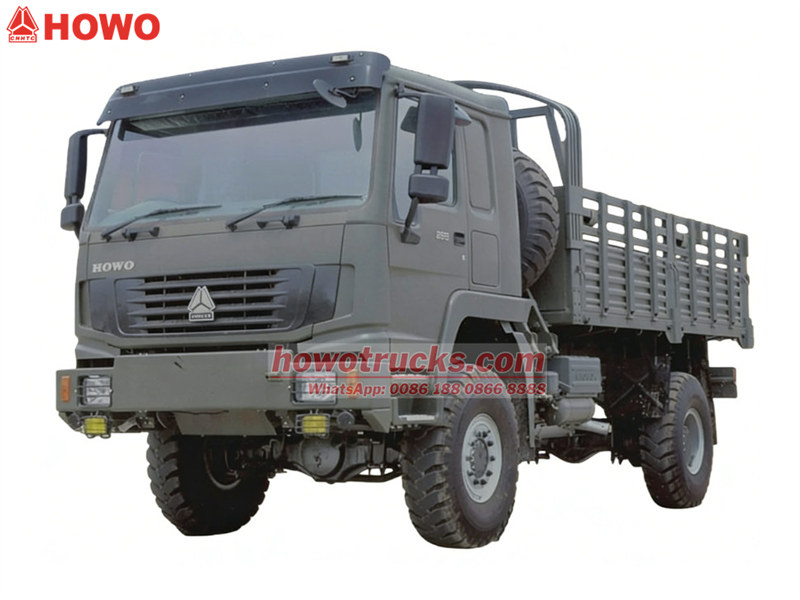

*Howo Heavy 4x4 Cargo Lorry Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Howo truck chassis, 4x4,6X6 model，WP model with 340HP and emission 9.8L.
▶ Cargo material: 4mm thick high-quality steel for prolonged service lier carbon steel, aluminum alloy or stainless steel can be choose.
▶ Optional design: such as telescopic boom, knuckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs.
✦ Ⅱ.Product Parameter For Howo 4WD Truck « « «
|
Howo 4x4 CARGO TRUCK SPECIFICATIONS |
||
|
Truck Model |
CSC52530CXY |
|
|
Truck Brand |
Howo |
|
|
Dimension (LxWxH) (unloaded)mm |
8350×2550×3250 |
|
|
Cargo body size(mm) |
5800X2400X650 |
|
|
Steel thickness of Carriage(mm) |
Floor:4mm/Side:3mm |
|
|
Approaching angle/ Departure angel (°) |
16/15 |
|
|
Overhang (front/rear) (mm) |
1500/2307 |
|
|
Wheel base (mm) |
4500 |
|
|
Max. Driving speed (km/h) |
105 |
|
|
Front axle loading capacity (kg) |
7500 |
|
|
Rear axle loading capacity(kg) |
15000 |
|
|
Curb weight (kg) |
7400 |
|
|
Gross vehicle weight |
18000 |
|
|
Cab Model |
Howo cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|
|
Engine Model |
Model |
WP10.340E201 |
|
Power |
340 hp |
|
|
Euro Ⅱ emission standard |
||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|
Parking Brake (emergency brake) |
Spring energy, compressed |
|
|
Steering system |
Model |
HW 10 speed Steering Gear Box ,hydraulic steering with power assistance. (Left/Right hand driving) |
|
Tire |
11.00R20 6pcs tyre with 1 Spare tire |
|
|
Electrical system |
Electrics Operating voltage |
24V,negative grounded |
|
Starter |
24V,7.5 Kw |
|
|
Alternator |
3 phase,28V,1500 W |
|
|
Batteries |
2x12 V,165 Ah |
|
|
horn,headlamps,fog lights,brake lights,indicators and reverse light. |
||
|
Oil Tank |
Square type 300L Aluminum alloy fuel tank |
|
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
|
Cargo Box |
carbon steel material |
|
|
Capacity |
10tons |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|

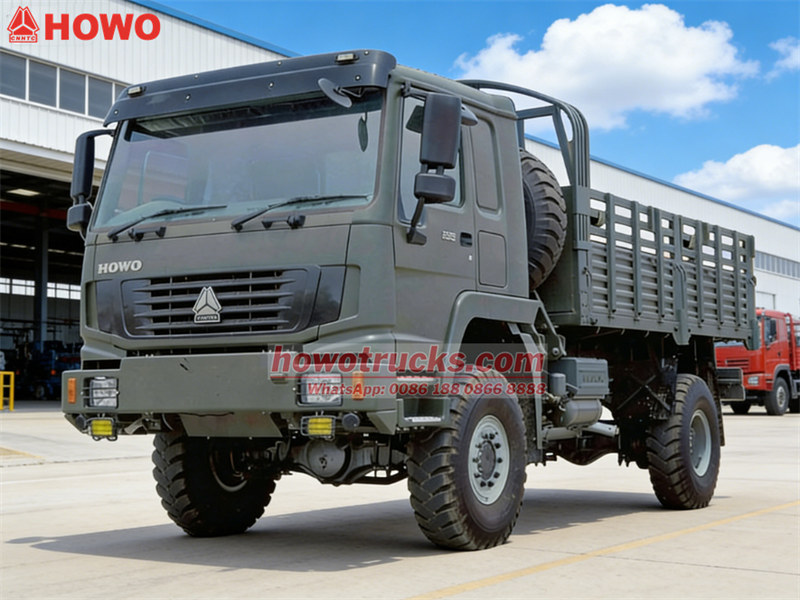

✦ Ⅲ.Feature For Howo Off Road 10tons Truck « « «
1. Powerful load capacity:
♦ Howo 4x4 flatbed cargo truck can carry up to 10 tons of cargo.
This makes it ideal for handling large cargo and important supplies.
♦ Whether it's construction materials, heavy equipment or other heavy cargo, it can handle it with ease.
2. Stable and reliable driving performance:
♦ This Howo 4x4 flatbed cargo truck is equipped with a powerful and efficient engine that can provide enough power to drive the vehicle.
♦ The Howo 4x4 flatbed cargo truck has excellent acceleration performance and stable driving performance, and can maintain good stability even in various complex road conditions.
3. Economical and efficient fuel consumption:
♦ Howo all drive flatbed cargo truck adopts an advanced fuel management system to effectively control fuel consumption.
♦ Its fuel economy enables businesses to reduce operating costs and contribute to environmental protection.
4. Comfortable driving experience:
♦ The manufacturer fully considered the driver's comfort and driving experience when designing the Howo 4x4 flatbed cargo truck.
♦ The spacious and comfortable cab and user friendly control system reduce the fatigue of long term driving, and the assisted driving system provides additional safety.
✦ Ⅳ.Application For Howo 4WD Cargo Truck « « «

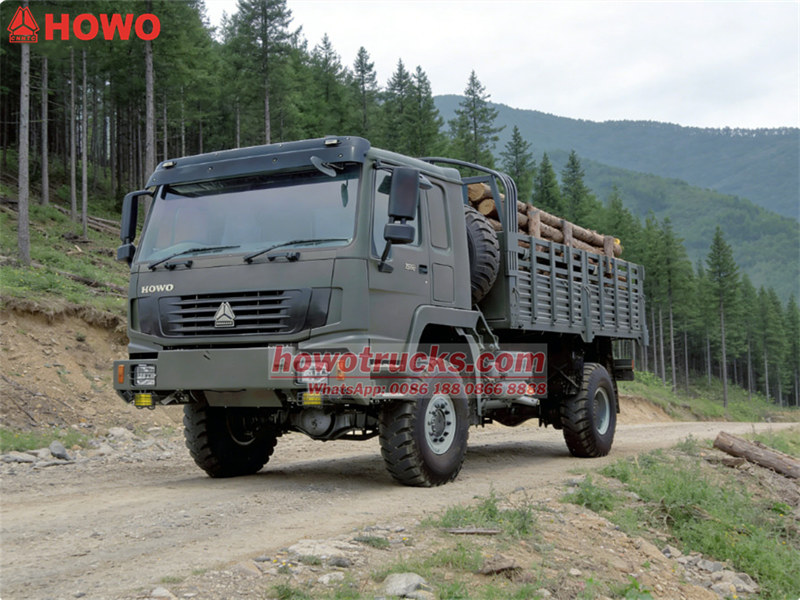

1. Log Transportation in Mountainous and Forested Areas:

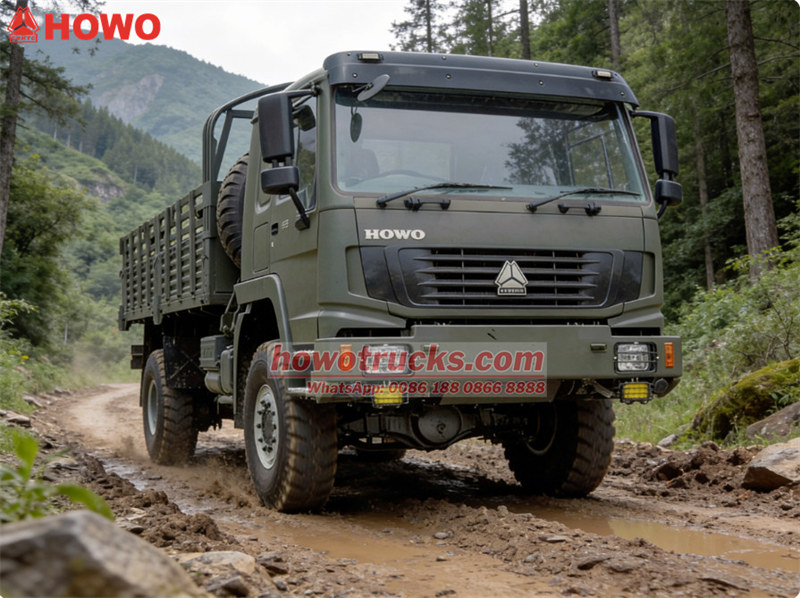

With all-wheel drive and multiple differential locks, the Howo cargo truck easily overcomes slippery and muddy sections on the muddy mountain roads and forest trails shown in the pictures. Its 340 horsepower power reserve ensures smooth passage through continuous sharp bends and steep slopes when heavily loaded with logs.
2. Heavy-Duty Material Transfer at Mining Sites:
In mining scenarios, where gravel roads are rugged and frequent inclines are necessary, the truck's high-torque engine delivers strong power at low speeds, ensuring effortless starting and acceleration during heavy-duty transport. The high-strength chassis and robust sidewalls withstand the impact and pressure of ore and building materials.
3. Emergency Rescue:
All-terrain capability + high reliability. In areas with damaged roads after disasters such as earthquakes and floods, or in the field construction and supply of power and communication base stations, the Howo cargo truck, with its all-wheel drive advantage, can overcome obstacles such as collapsed roads and ditches, and deliver relief supplies and engineering equipment to the scene as quickly as possible.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
This Howo off road cargo truck adopts the Howo single cabin design, with adjustable driver's seat and passenger seat, as well as heating and ventilation systems, stereo radio/MP3, sunroof, sun visor and adjustable steering wheel. The energy storage engine of the Howo off road Flatbed cargo truck is WP10.340E201, with 340 horsepower and excellent power performance. The Howo all drive Flatbed cargo truck has a cargo box capacity of 10 tons and is made of carbon steel material, which is durable and wear-resistant.
