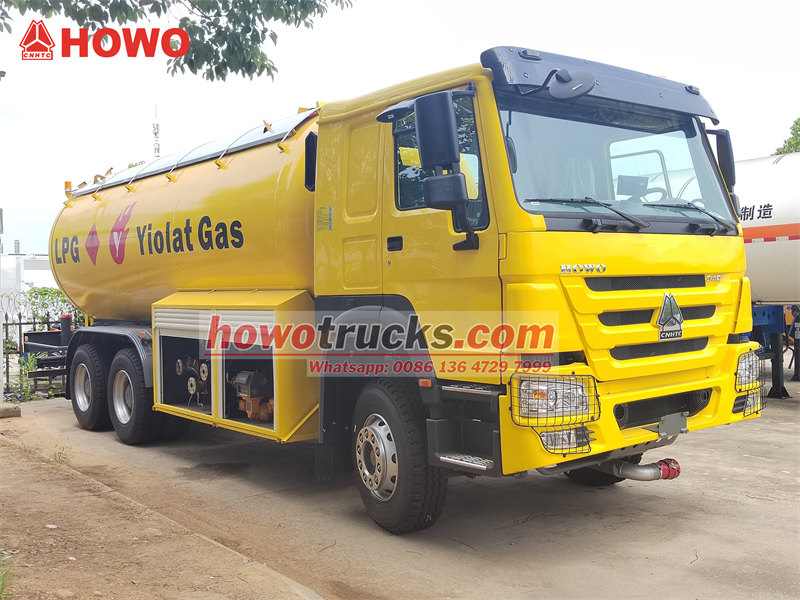

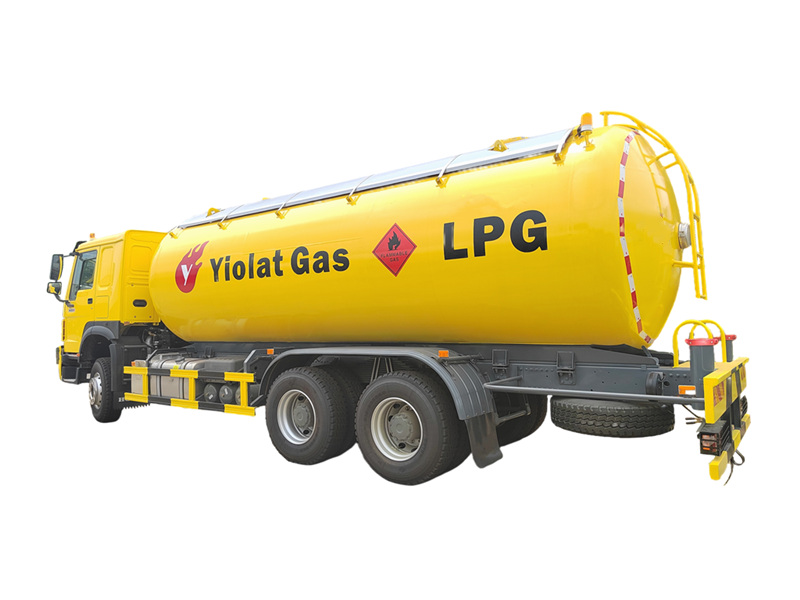

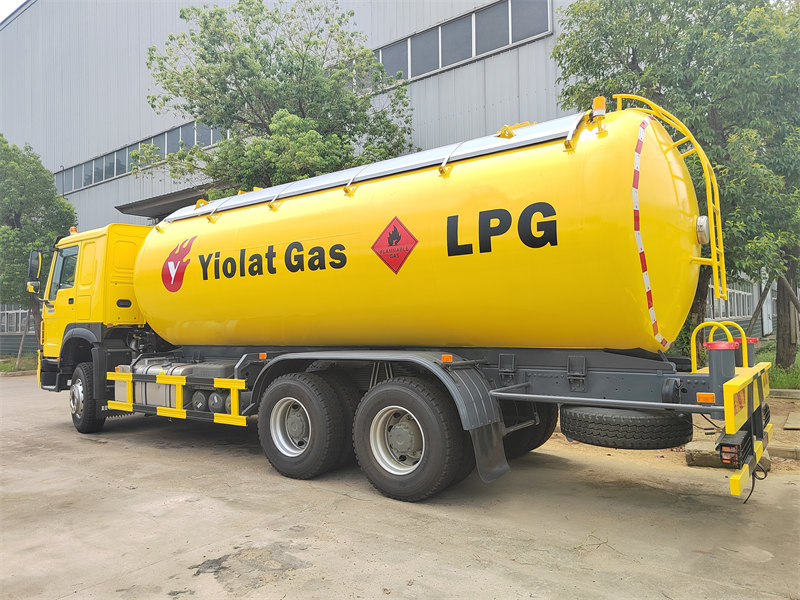

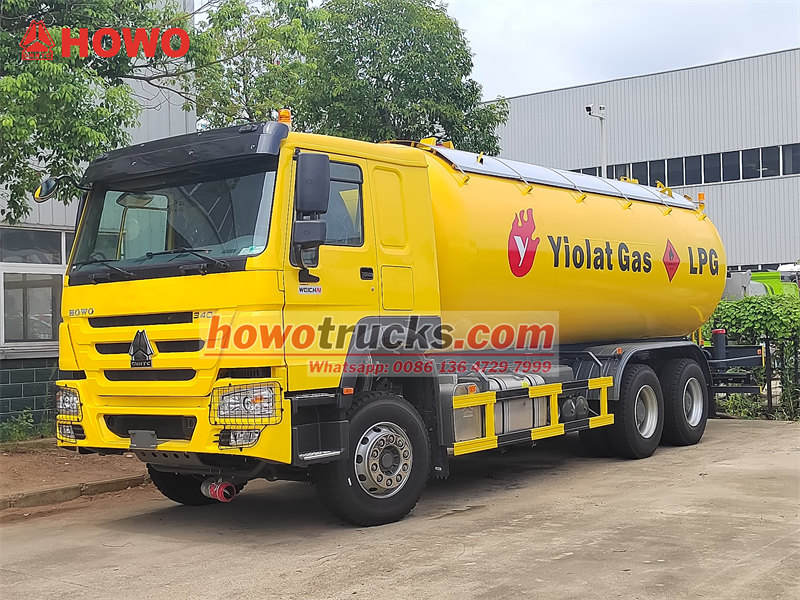

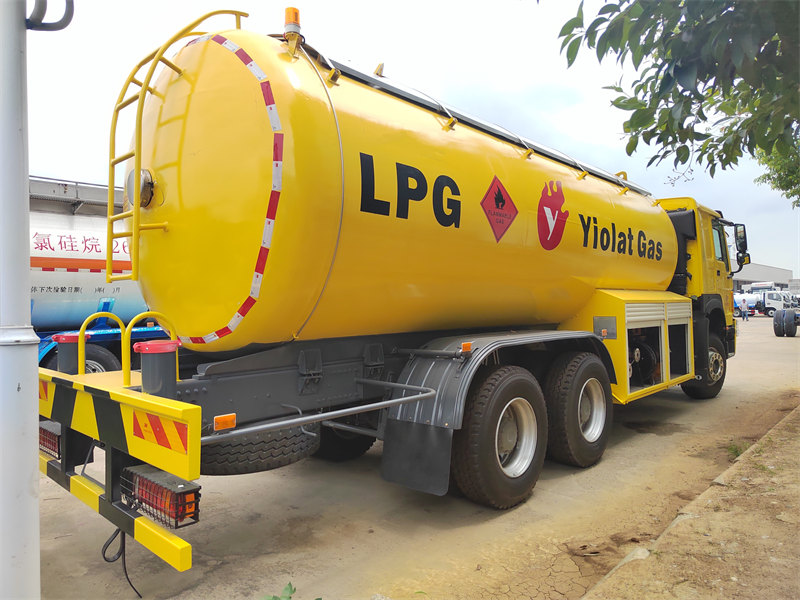

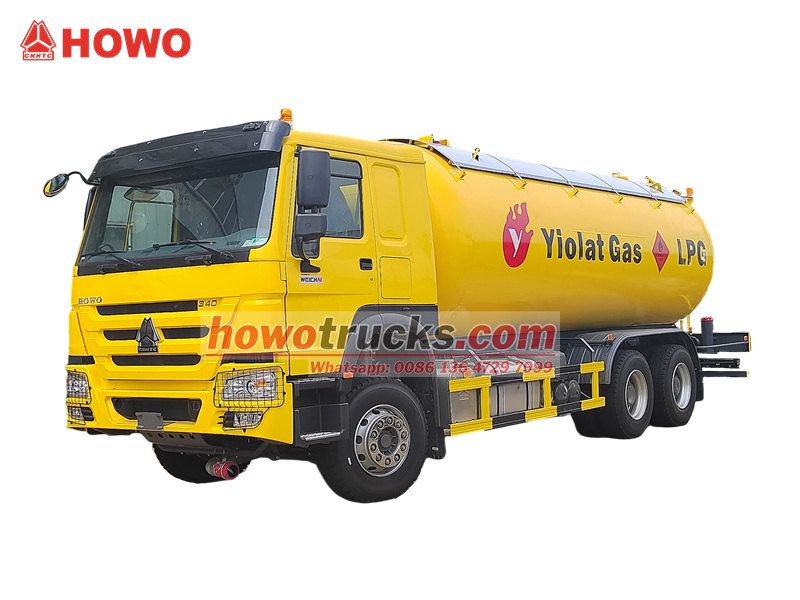

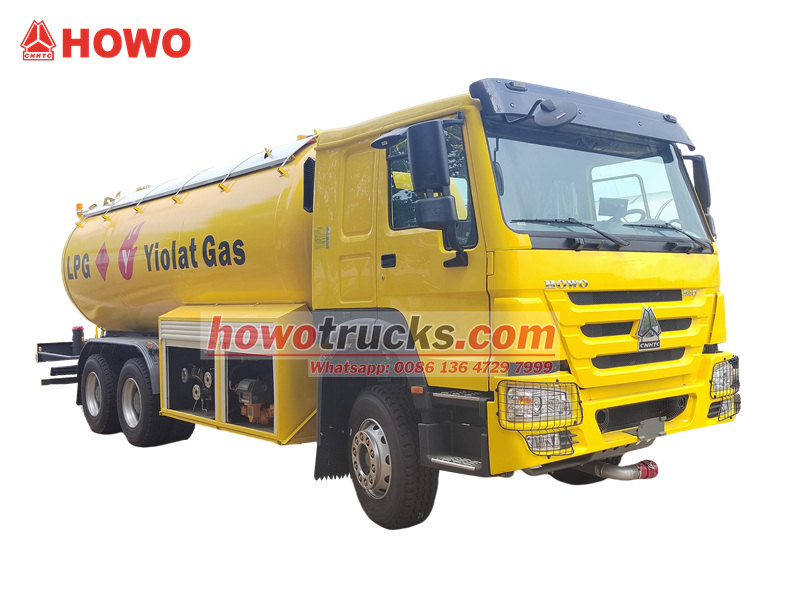

HOWO 20,000-liter LPG Tanker is a professional liquefied petroleum gas (LPG) transport vehicle, built on a HOWO 6x4 drive chassis and equipped with a 340-horsepower engine. Its core tank has a capacity of 20,000 liters and is constructed from high-strength Q345R steel, featuring multiple safety devices, including an emergency shut-off valve and an intelligent monitoring system. The vehicle undergoes rigorous quality inspections, offering excellent corrosion resistance and low-temperature stability, capable of operating in environments ranging from -40°C to 50°C, ensuring safe and efficient LPG transportation.
Working capacity :
20000 litersCabin type :
HOWO HW76 cabin, with A/CDrive system :
6×4Wheelbase ( mm) :
4325+1350Engine specific :
340HP/WD615.95CGear box :
HW19710, 10 Forward & 2 ReverseFront axle ( Kg ) :
7000Rear axle ( Kg ) :
18000HOWO 20,000-liter LPG refueling truck is a high-pressure tanker vehicle specifically designed for liquefied petroleum gas transport. It is built on HOWO 6x4 drive chassis, powered by a 340-horsepower engine compliant with Euro III emission standards. The tanker body is made of Q345R steel with 12mm thickened end plates, with a capacity of 20,000 liters. It undergoes sandblasting, rust removal, and multiple anti-corrosion treatments to ensure long-term durability.
The upper structure of the HOWO LPG tanker truck is integrated with an intelligent safety system, including pressure/temperature gauges, an emergency shut-off valve, and dual safety valves. The tank undergoes strict weld seam inspections and low-temperature shrinkage rate control to ensure stability under extreme conditions. The vehicle is equipped with a 15m³/h carbon steel pump and a 2-inch flow meter, supporting operation in temperatures from -40°C to 50°C. Optional configurations include an imported vaporizer and a metering system with ticket printing. Equipped with a 15-meter-long loading/unloading hose and a fully enclosed transfer system, it enables efficient and safe LPG transportation, fully complying with international safety standards for high-pressure vessels.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Ⅰ Product Defination and Introduction
Manufacturer: CS TRUCKS
Product Features
▲ The surface anti-corrosion coating is treated with advanced processes such as sandblasting, rust removal, spraying, and purging.
▲ High-quality domestic or imported safety accessories, vaporizers, and pumps are available for user selection, with complete supporting options.
▲ Strict adoption of scientific and advanced manufacturing processes ensures minimal shrinkage and maximum dimensional stability under low-temperature conditions.
▲ Rigorous quality inspections are conducted on the pressure-bearing components, including material quality, dimensional accuracy, weld integrity, operational performance, installation quality, internal fittings, and safety accessories.
▲ Comprehensive testing is performed on product sealing, pressure resistance, and all technical indicators that may impact safe operation.
Ⅱ Product Parameter for HOWO LPG refueling truck
|
HOWO 20000 liters LPG Tanker Truck Specifications |
||
|
Chassis brand |
SINOTRUK HOWO |
|
|
Cabin |
Driving type 6x4, left hand drive, right hand drive is optional |
|
|
Overall dimensions |
10800*2500*3100 mm (L x W x H) |
|
|
Wheelbase |
4325+1350 mm |
|
|
Gross vehicle weight |
25000 kg |
|
|
Tare weight |
11500 kg |
|
|
Max. driving speed |
90 km/h |
|
|
Engine |
Brand |
SINOTRUK |
|
Model |
WD615.95C |
|
|
Horse Power (HP) |
340HP |
|
|
Emission standard |
Euro 3 |
|
|
Displacement |
9276 ml |
|
|
Rated speed |
1900 rpm |
|
|
Max. torque |
1490 N.m |
|
|
Gearbox |
HW19710CL M,10 Forwards gear & 2 reverse gear |
|
|
Front/rear axle |
7000/18000 |
|
|
Tire |
12.00R22.5, 10 tires + one spare |
|
|

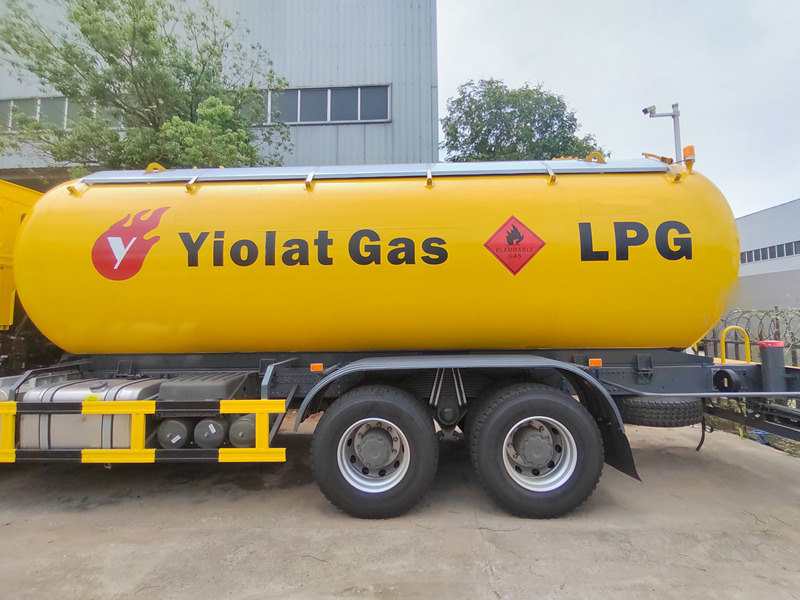

Tank |
||
|
Volume |
20000 liters |
|
|
Diameter |
2100mm |
|
|
Material |
Q345R |
|
|
Thickness of the end plate |
12mm |
|
|
Thickness of the end plate |
12mm |
|
|
Accessories for the tank |
Pressure gauge, temperature gauge, emergency cut-off valve, stop-off valve, safety valve, needle valve etc. |
|
|

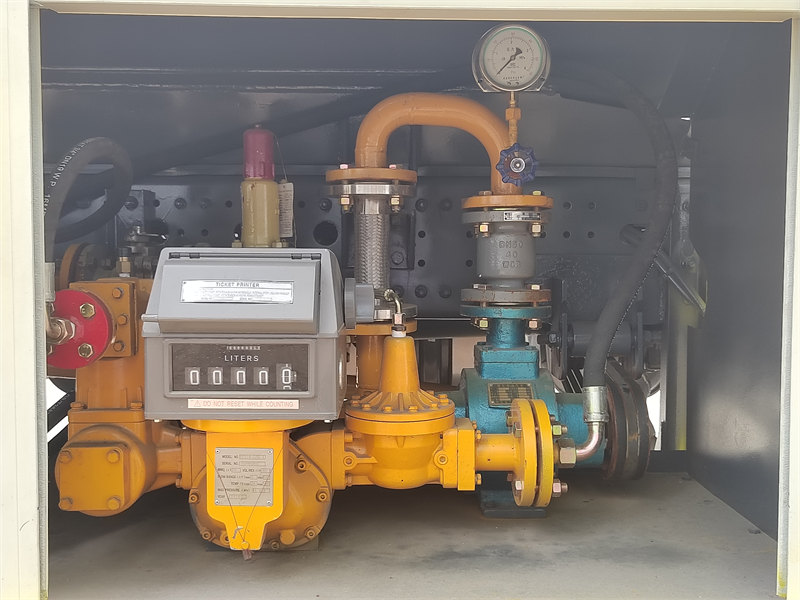

Refueling system |
||
|
Pump |
Medium: Liquid petroleum gas |
|
|
Speed:15m3/h |
||
|
Input and Output Diameter:50 mm |
||
|
Working pressure: 2.0 Mpa |
||
|
Working temperature: -40ºC- 50ºC |
||
|
Material: carbon steel |
||
|
Flow meter |
Inlet & Outlet: 2", optional 1 ½". |
|
|
Maximum Capacity: 76~380lpm |
||
|
Working Pressure:350psi/24 Bar |
||
|
With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve. |
||
|
With Ticket Printer. |
||
|
Filling gun with pipe |
1 unit filling gun, 15m filling pipe |
|
Ⅲ Product Details & Functions

Chassis: SINOTRUK HOWO heavy-duty chassis, 6×4 left hand drive, 6×6 and right hand drive is optional
Engine: SINOTRUK WD615 series engine, 290HP, 340HP and 380HP for option
Cabin: HOWO HW76 classic cabin, 2 seats with one sleeper. HOWO NX, T7H, T5G cabin can be customized

Tank body structure: Made of Q345R special steel and reinforced with 12mm thickened end plates, the tank undergoes rigorous weld inspections and pressure tests to ensure stable operation under 2.0MPa high pressure, fully compliant with international pressure vessel safety standards.
Anti-corrosion treatment: The tank surface undergoes sandblasting treatment and multi-layer anti-corrosion coating technology, effectively resisting LPG corrosive media while extending service life, capable of withstanding extreme temperatures from -40°C to 50°C.

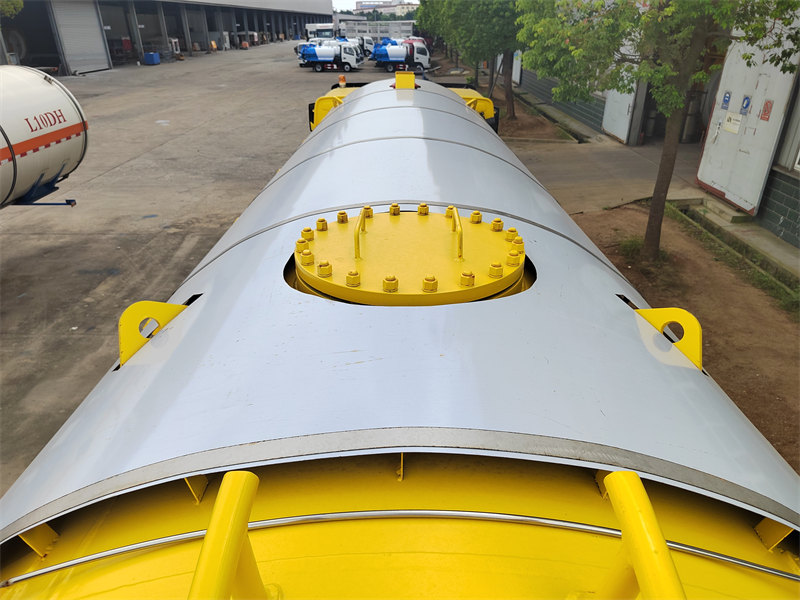

Manhole: DN400 manhole equipped on top of the tank, for easy checking and maintenance

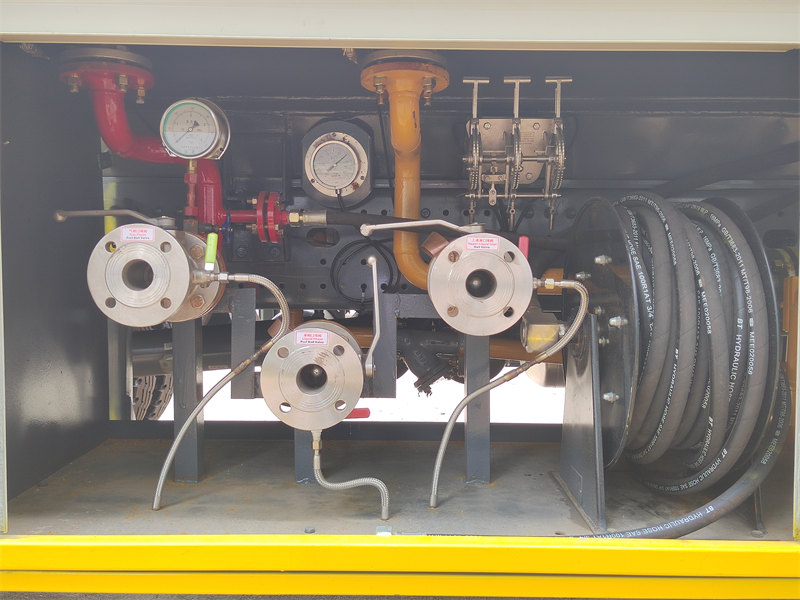

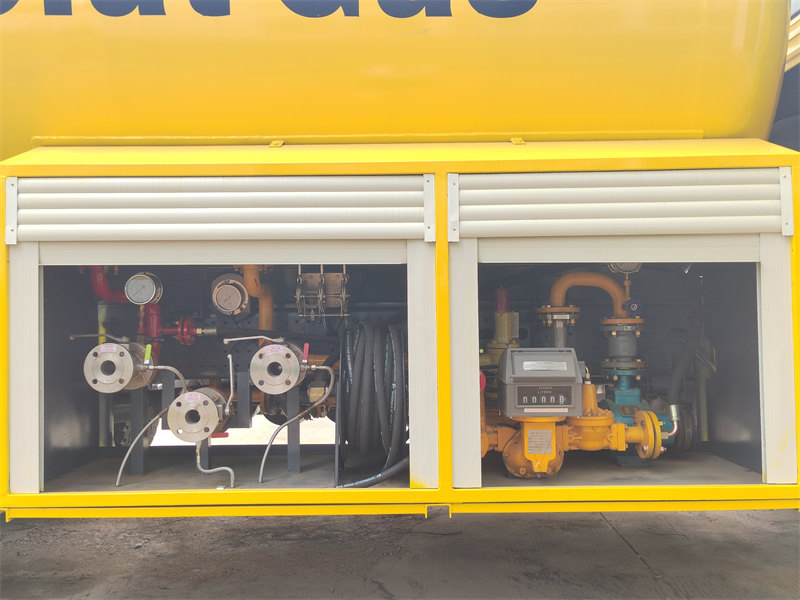

Tank fittings: HOWO LPG refueling truck is equipped with a complete filling system including pump, flow meter, hose reel, and emergency shut-off valve, along with essential safety accessories such as level gauge, thermometer, pressure gauge, and safety valve.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

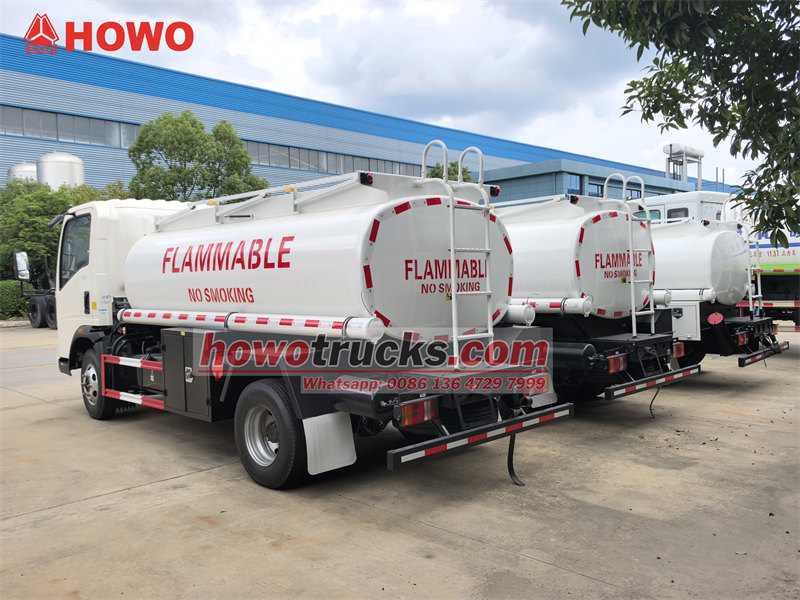

SINOTRUK HOWO fuel tanker trucks ready for shipment
