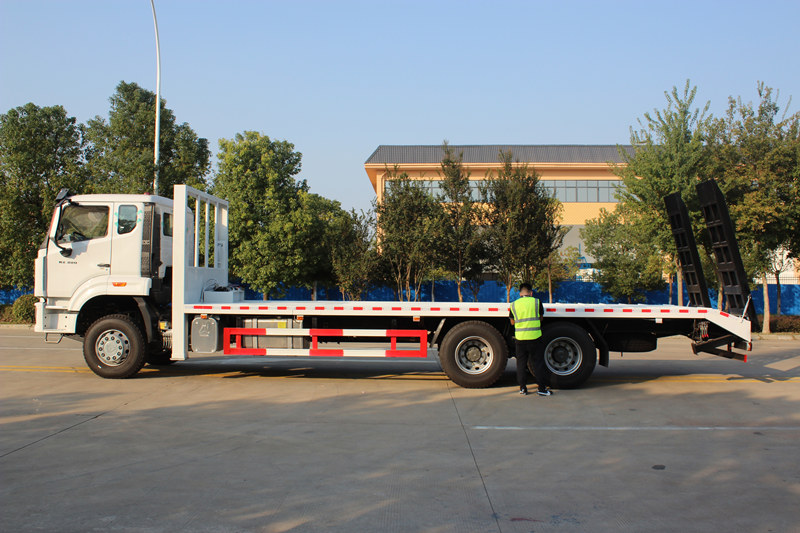

HOWO 25-ton self loader is a heavy-duty truck specifically designed for transporting non-disassembled engineering machinery such as excavators and loaders. It adopts SINOTRUK HOWO’s high-strength chassis and is powered by a Weichai WP10.380E53 diesel engine with a maximum output of 380 horsepower, meeting Euro V emission standards. Paired with a 10-speed manual transmission and a 6×4 drive configuration, it achieves a top speed of 95 km/h, offering excellent load-bearing capacity and dynamic performance.

The superstructure is the core functional part of this HOWO flatbed self loader. The flatbed measures 8,600 × 2,500 mm and can be hydraulically extended to a width of 3 meters. It is made of 10 mm thick anti-slip patterned steel plate and high-strength steel, ensuring durability and reliability. The vehicle is also equipped with a 25-ton front hydraulic telescopic support leg, an 8-ton hydraulic winch with a 20-meter-long steel cable, and 2 hydraulic ramps, significantly enhancing the stability and operational convenience of loading and unloading large equipment. It is widely used in various construction sites, mining areas, and large-scale machinery operation venues.

*HOWO 25 Ton Self Loader Truck

 SINOTRUK HOWO Flatbed Self-loading Truck*

CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.

Manufacturer: CS TRUCKS

What is a Self Loader Truck:

A self loader truck, also know as flatbed transporter, self loading truck, excavator trasnportation truck, is a specialized truck designed for carrying heavy non-disassembled construction machinery, such as excavators and loaders. Its key features include a hydraulically expandable flat deck and self-loading equipment like hydraulic support legs, winches, and ramps. Thanks to its high-load chassis and anti-slip, reinforced deck structure, it enables safe and efficient transportation and independent loading/unloading of large equipment at construction sites, mines, and logistics hubs, reducing reliance on external lifting machinery. Taking the SINOTRUK HOWO 25-ton flatbed self loader as an example, this vehicle enhances professional heavy transport capabilities with a Weichai 380 hp engine and heavy-duty drive axles. Its flatbed can be hydraulically extended to 3 meters in width, and it comes equipped with 25-ton front hydraulic outriggers and an 8-ton winch, delivering outstanding reliability, load-bearing performance, and self-loading efficiency even under challenging working conditions.

•

  Flatbed

  Hydraulic extended to 3000 mm width
•

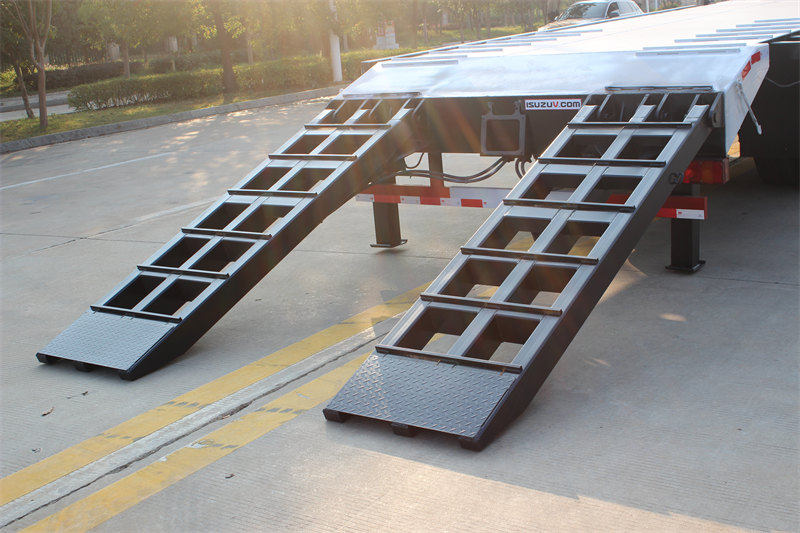

  Rear ramps

  2 hydraulic ramps with 2m length
•

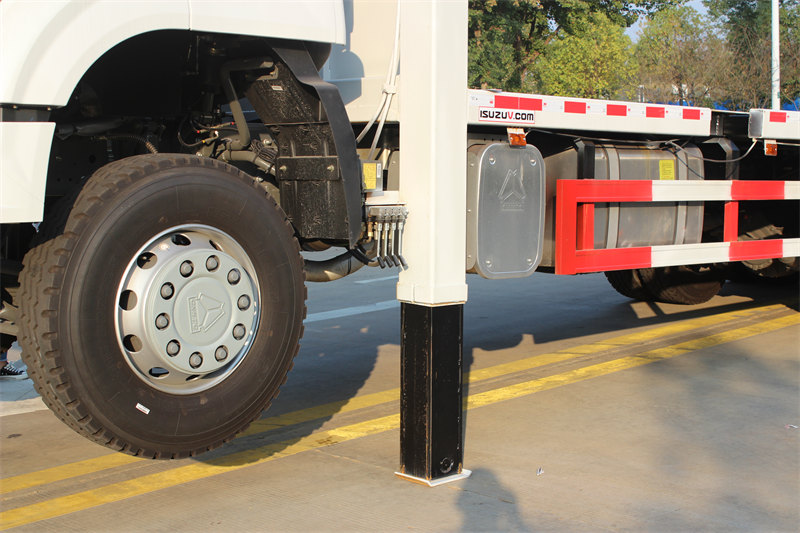

  Front outriggers

  2 front outriggers with lifting weight up to 25 tons



»» Ⅳ Product Features



1. Powerful Engine: Equipped with a Weichai WP10.380E53 inline six-cylinder diesel engine, with a displacement of 9.7 liters, delivering an output of 380 horsepower and a maximum torque of 1,460 N·m. This provides ample power for heavy-duty transportation tasks.

2. Robust Chassis & High Load Capacity: Built on the SINOTRUK HOWO heavy-duty chassis, with a front axle load capacity of 7,000 kg and rear axles capable of bearing up to 26,000 kg. It offers exceptional load-bearing performance and easily handles 25-ton heavy-duty operations.

3. Hydraulically Expandable Wide Flatbed: The flatbed can be hydraulically extended to a width of 3 meters, enabling easy transportation of large engineering machinery.

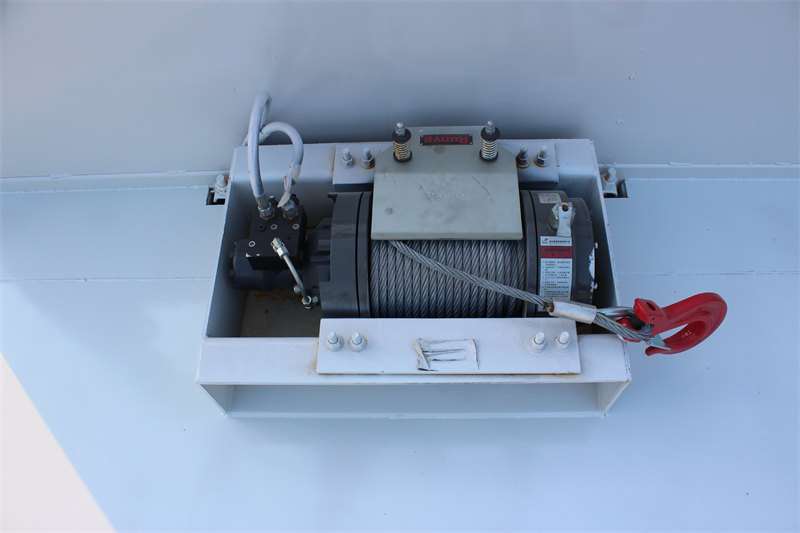

4. Efficient Self-Loading and Unloading: Features an 8-ton hydraulic winch, a 2-meter hydraulic ramp, and a 25-ton front hydraulic support leg, allowing independent loading and unloading of equipment without relying on additional machinery.

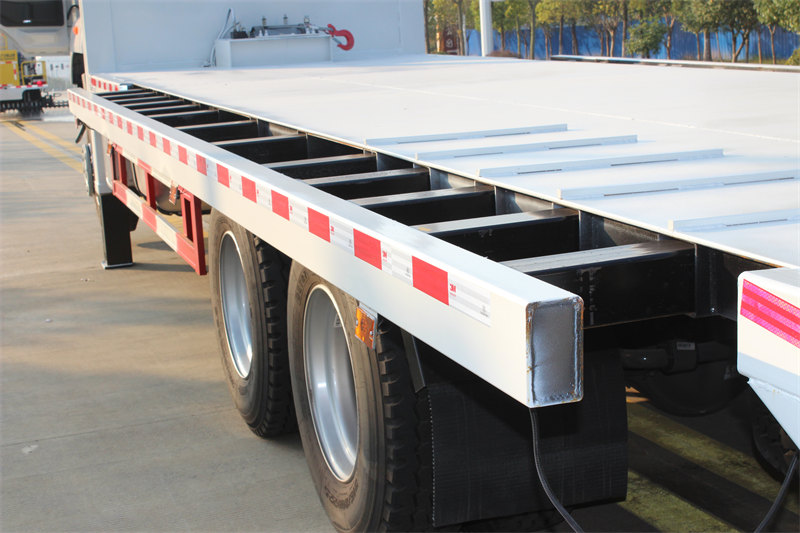

5. Durable and Sturdy Structure: Constructed with 120 mm square steel base beams and 10 mm thick steel plates, ensuring exceptional torsional resistance and long-term durability under heavy-load conditions.
