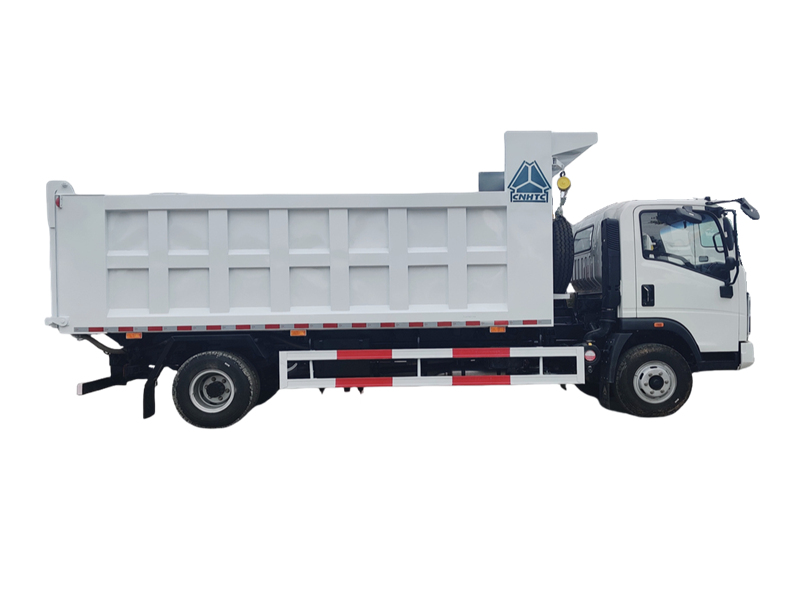

HOWO 6 ton mini tipper lorry

HOWO 6 ton mini tipper lorry

HOWO 6-ton mini dump truck is a compact medium-sized engineering vehicle built on the HOWO 4×2 chassis. It is equipped with a fuel-efficient Yuchai 130-horsepower engine and a 6-speed transmission, offering a rated load capacity of 6 tons and a 6.4-cubic-meter reinforced cargo box. With its short wheelbase and excellent maneuverability, it is well-suited for transporting construction materials, waste, and other medium-to-small-scale operations in narrow urban and rural areas, balancing both efficiency and economy.

Working capacity :
6 ton
Cabin type :
SINOTRUK
Drive system :
4×2
Wheelbase ( mm) :
3400
Engine specific :
130HP/YC4D130-33
Gear box :
WLY653H
Front axle ( Kg ) :
3000
Rear axle ( Kg ) :
9000

Product categories

New Products

Product Details
Customer Case

HOWO 6-ton mini dump truck is a medium-sized engineering dump truck built on the HOWO 4×2 chassis, with a rated load capacity of 6 tons. The vehicle features a compact design, measuring approximately 6 meters in length, and is equipped with a short 3400mm wheelbase. It includes a 3-ton front axle and a 9-ton rear axle, complemented by a rear axle ratio of 6.8 to enhance load-bearing capacity and climbing performance. The cargo box has a volume of 6.4 cubic meters, with a 5mm thick floor, and utilizes a center-mounted single-cylinder hydraulic lifting system, ensuring robust and durable structure.

The vehicle is powered by a Yuchai YC4D130-33 engine, delivering 130 horsepower, paired with a 6-speed transmission, known for its low fuel consumption. This HOWO mini tipper lorry excels in high maneuverability and flexible handling, making it ideal for medium-to-small-scale operations such as construction waste transportation and sand and gravel distribution in urban and rural areas. Its compact body offers significant advantages when working in confined spaces, making it a practical model that combines efficiency and economy.

HOWO light duty dump truck

*HOWO 4×2 Small Dump Truck

SINOTRUK HOWO Mini Tipper Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

»» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS

Product Features

★ HOWO 4×2 chassis: Front and rear axles with big loading capacity and good stability.

★ 6 Ton Payload Capacity: Suitable for small to medium transport tasks with high efficiency.

★ Compact Design: Easy to work in narrow or limited spaces, especially in urban or rural environments.

★ Reinforced Cargo Box: Durable steel construction with enhanced bottom and side thickness for longer service life.

★ Fuel-Efficient Engine: Powered by a reliable engine with low fuel consumption, reducing operating costs.

»» Ⅱ. Product Parameter for HOWO mini tipper truck:

Vehicle Name		Sinotruk HOWO mini tipper truck
Chassis model		ZZ3128F
Load Parameters
Loading capacity (kg)		6,000
Drive form		4×2, left hand drive
Max. driving speed KM/h		95KM/h
Front axle		1090N 3 Ton
Rear axle		153AS 9 TON Ratio: 6.833
Appr/Dep.:(°)		28/22(°)
Overhang (front/rear)		1260/1310 mm
Dimension Parameters
Overall Dimension(mm) (LWH)		6050×2320×2610mm
Dump box Dimension(LWH)		3850x2100X800mm, 6.4cubic Thickness: Bottom 5mm side 3mm. Hydraulic cylinder:160 single-plunger, middle lift
Wheel base(mm)		3400mm
Front/Rear wheel trace(mm)		1650/1670
Configuration Parameters
Cabin	Cabin type	1880mm Width, single and a half cabin, with one Sleeper. With A/C Color: White
	Seating capacity	2
Engine	Brand & Model	YUCHAI, YC4D130-33
	Type	4-stroke direct injection, 4-cylinder in-line turbo-charging and inter-cooling
	Emission standard	Euro 3
	Max. horsepower	96kw (130hp)
	Max. output torque	420N·m/ 1400-1800rpm
	Displacement	4.24L
	Fuel type	Diesel
Gearbox	Brand&Model	WLY653H, 6 forwarder & 1 reverse
Steering		Power steering
Brake system	Service brake	dual circuit compressed air brake
	Parking brake	Spring energy, compressed air operating on rear wheels
Fuel tank		120L, Iron
Tire size		8.25R16, 6pcs with one spare tire

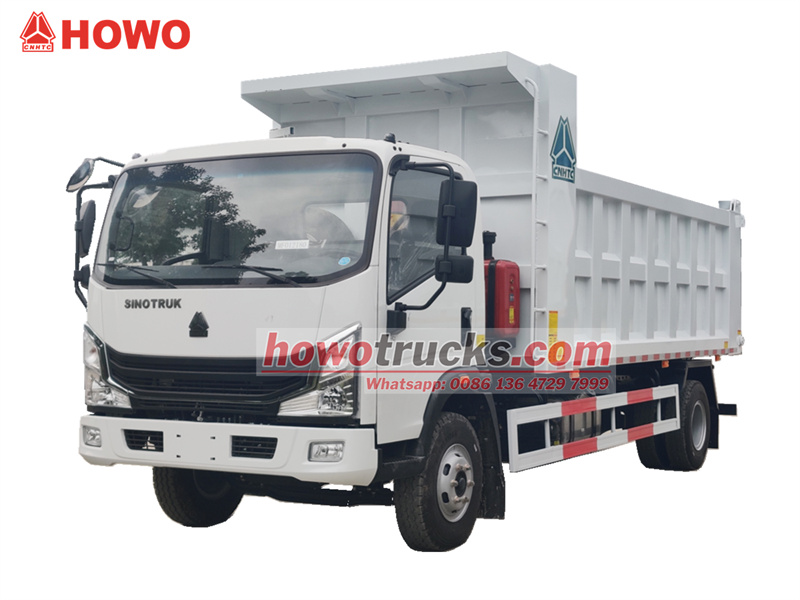

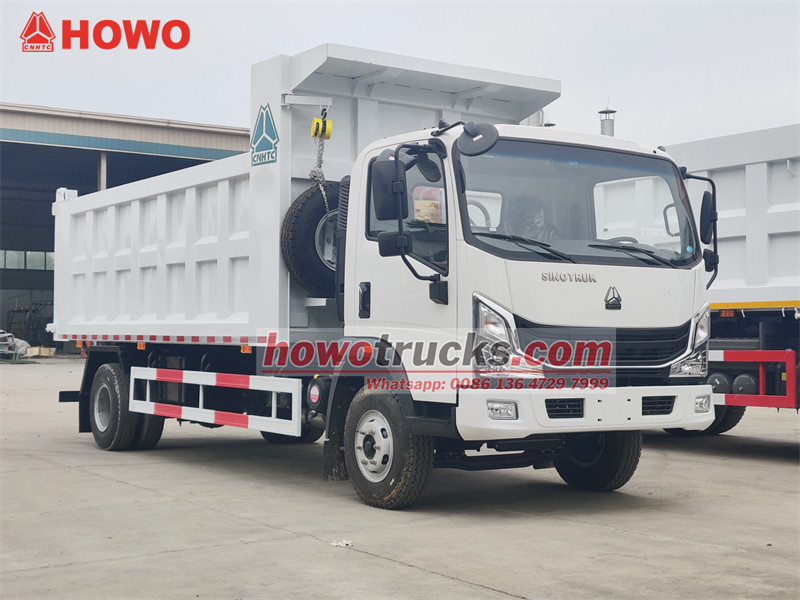

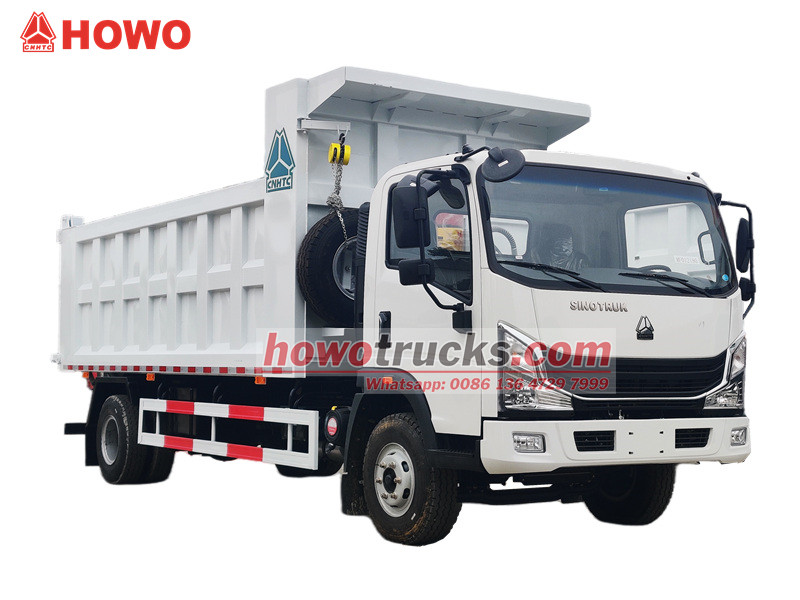

HOWO 6 ton dump truck

»» Ⅲ. Product Details & Fucntions:

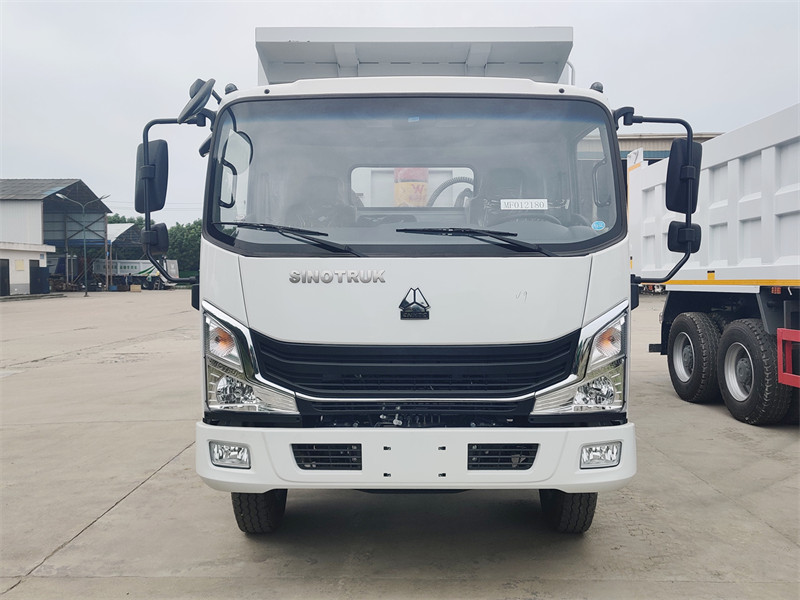

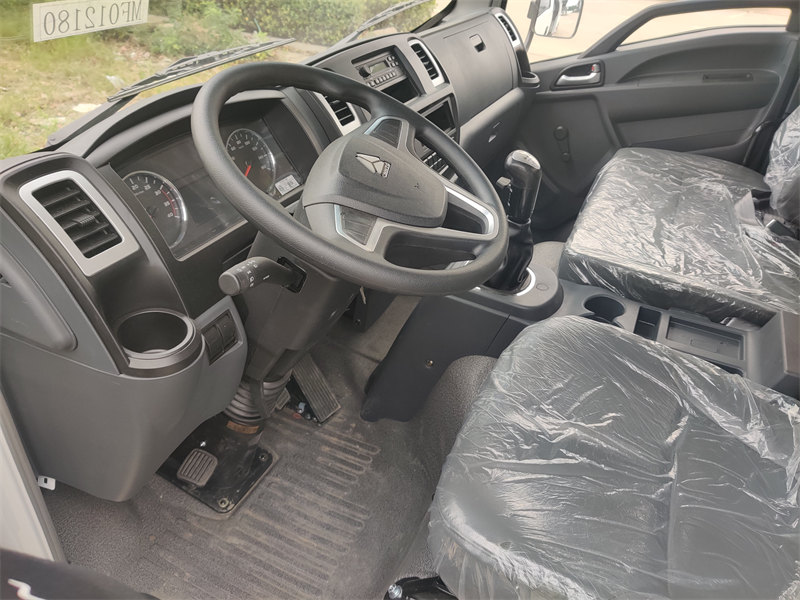

New Generation HOWO Cab

HOWO new type cabin, with 2 seats and A/C. It features a high-strength body structure, a spacious interior, and superior comfort.

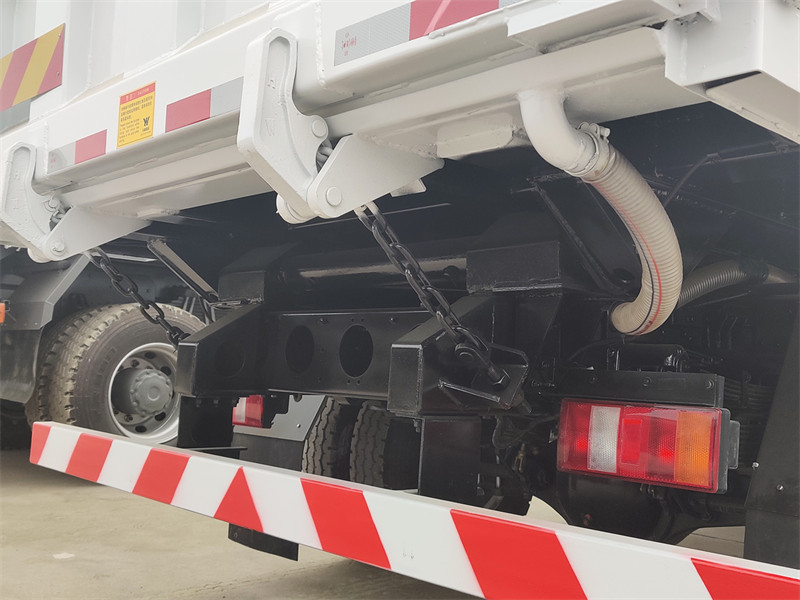

HOWO chassis

The HOWO mini dump truck is built on a 4x2 chassis, featuring a 3-ton front axle, a 9-ton rear axle, and a short wheelbase. This configuration provides robust carrying capacity and superior passing performance.

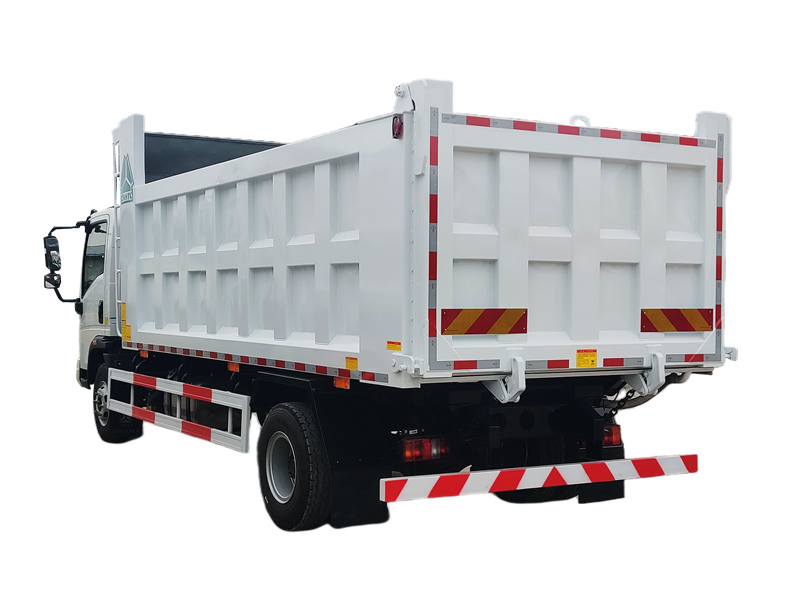

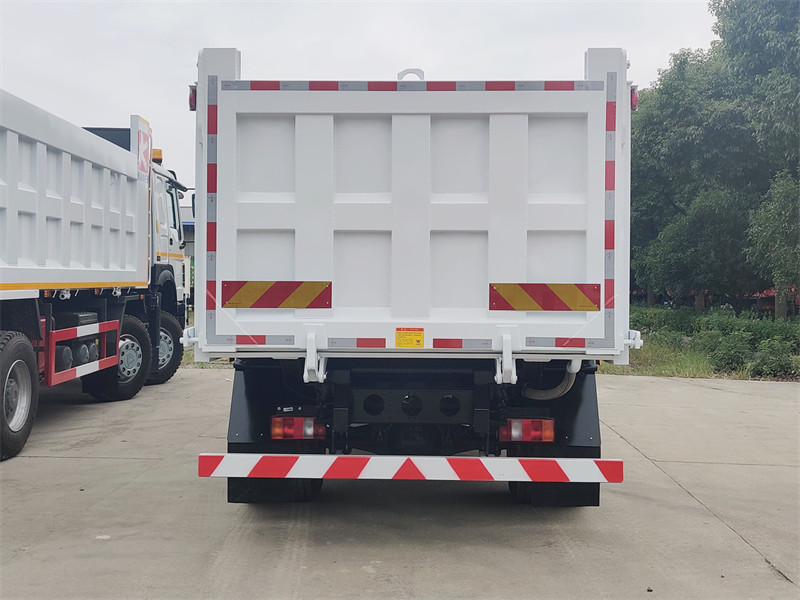

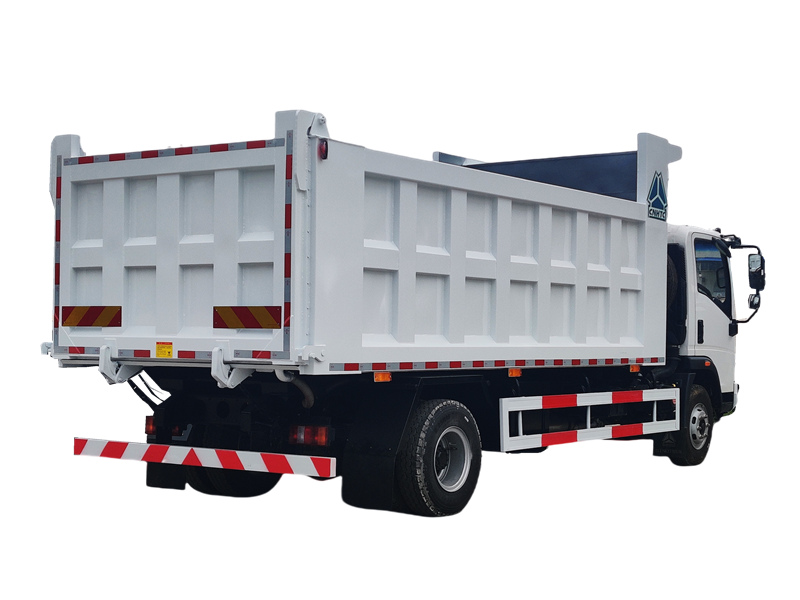

Cargo Box

Reinforced cargo box with strong load-bearing capacity, meeting the needs of urban and medium to short distance transportation.

»» Ⅳ. Product Drawing:

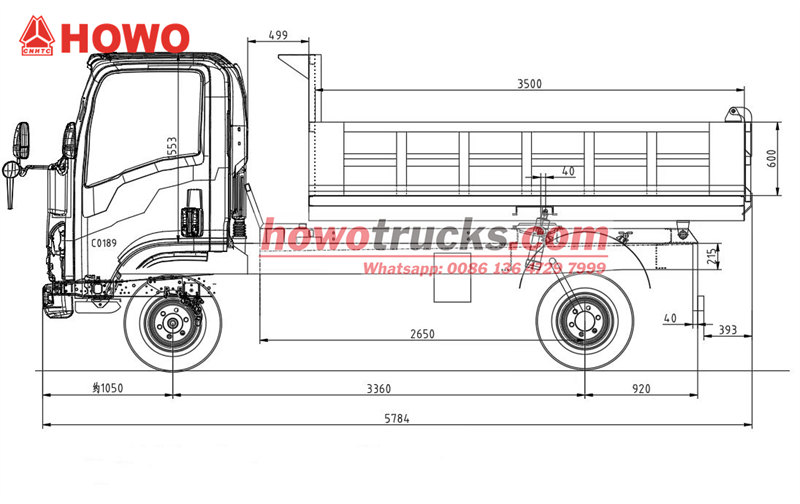

HOWO 4×2 tiiper truck drawing

HOWO tipper lorry truck drawing for reference

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

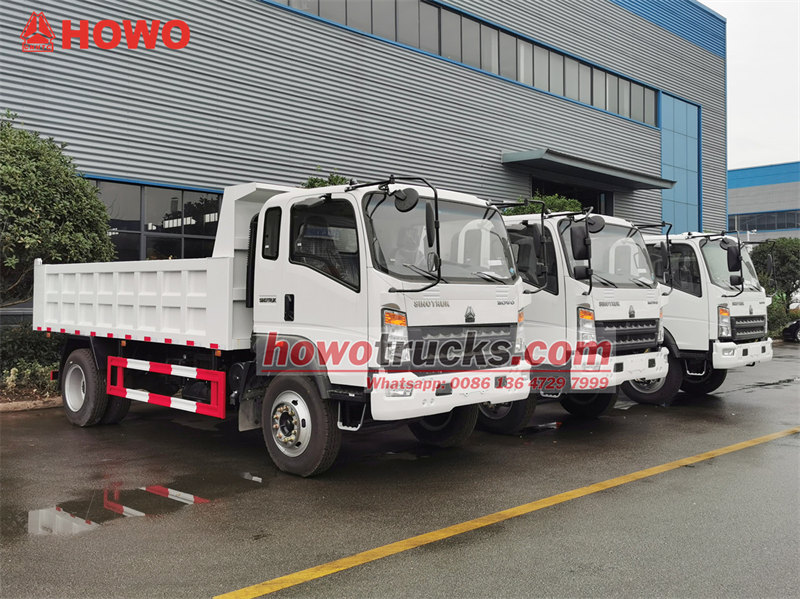

HOWO small dump trucks for export

SINOTRUK HOWO mini dump trucks for export

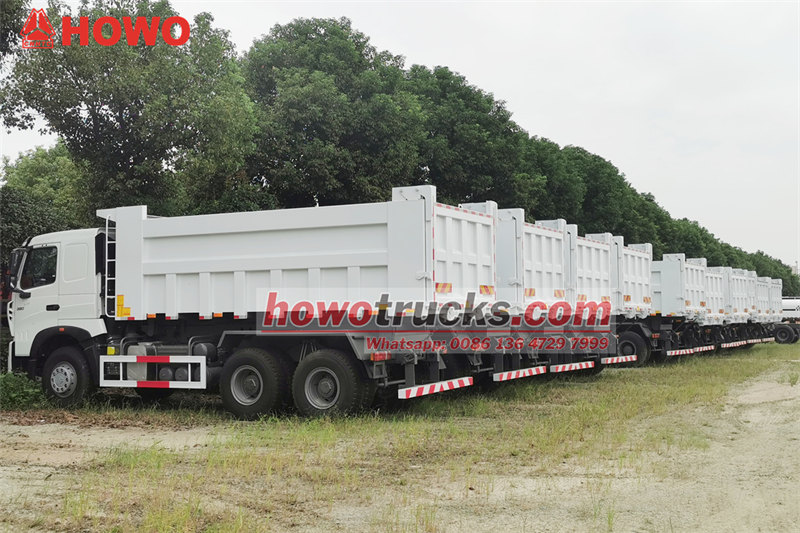

SINOTRUK HOWO heavy construction tipper trucks ready for delivery

Hot Tags :

HOWO mini dump truck

HOWO mini tipper truck

HOWO 4×2 small dump truck

HOWO 6 wheeler tipper lorry

HOWO 6 ton mini dumper truck

HOWO 6 ton small dumping truck

Leave A Message

If you are interested in howo trucks and want to know more details,please leave a message here,we will reply you withine 8 hours.

Related Products

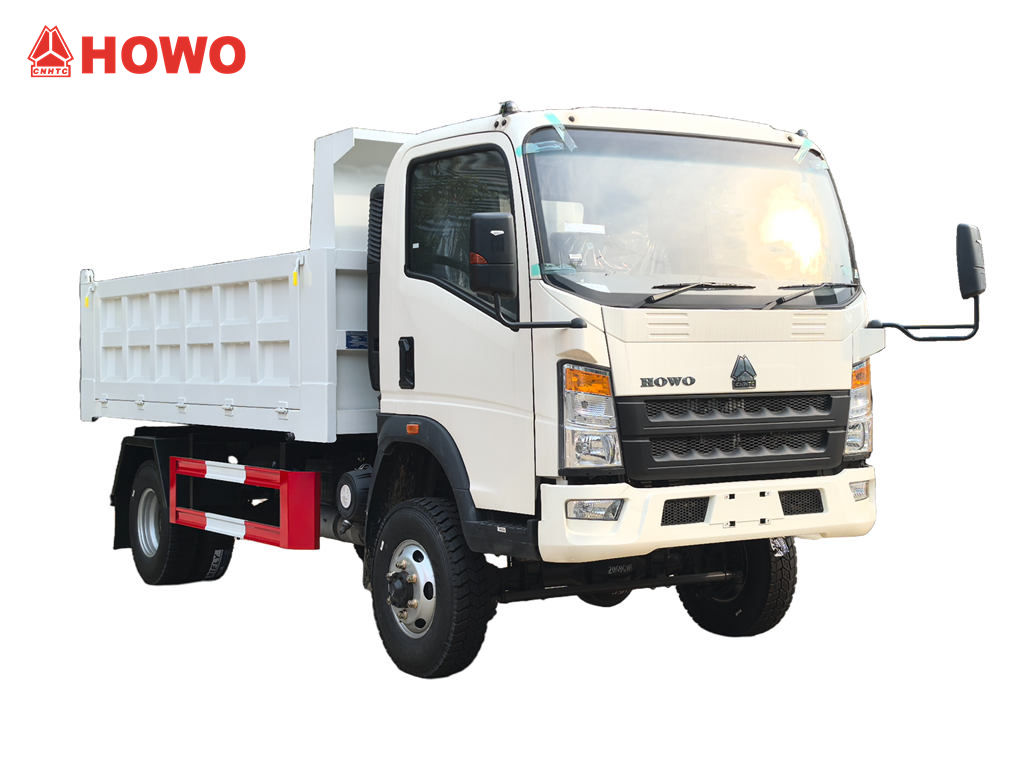

Howo 3 Ton off road mini dumper
