HOWO 6x6 police armored anti riot truck

HOWO 6x6 military explosion-proof vehicle

HOWO Explosion Proof Armored Water Sprinkler Truck

HOWO 6X6 Armored Riot Control Vehicle 10m3

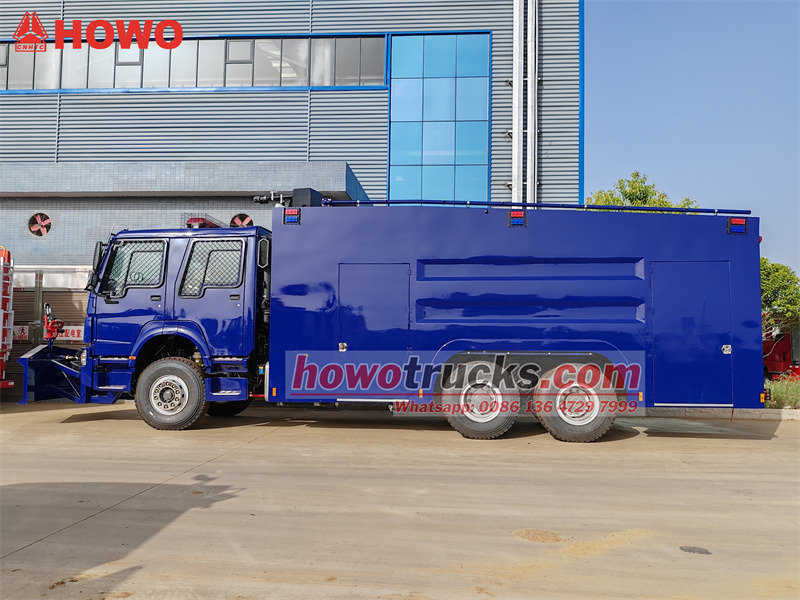

HOWO 10000L Anti Riot System Turbojet Vehicle

6x6 drive Armored Riot Control Vehicle HOWO

Military 6X6 anti-Riot Water Cannon HOWO trucks

HOWO 6x6 police armored anti riot truck

The HOWO 6x4 explosion-proof water cannon truck is modified based on the HOWO HW76 double-row cab chassis. It has a wheelbase of 4600+1350mm, is equipped with a WP12S400E201 engine, and an HW19710 gearbox. The vehicle is equipped with an explosion-proof box body, a main gun on the top, and a front-firing fixed water auxiliary gun on the front, which can achieve all-round, large-flow, and long-distance riot control. It has a double-row cab and a crew of 6 people. The water tanker is 10,000L, the foam tanker is 100L, the dye tanker is 100L, and the pepper water tank is 100L. It is equipped with a CB10/60 fire pump. The front of the vehicle is equipped with anti-riot steel plates and a powerful hydraulic obstacle clearance steel shovel.

Working capacity :
10 cbm
Cabin type :
Howo HW76 cabin
Drive system :
6x6,LHD
Wheelbase ( mm) :
4600+1350 mm
Engine specific :
400 HP / Sinotruk WP12S400E201
Gear box :
Sinotruk HW19710L, 10-speed, manual
Front axle ( Kg ) :
7000
Rear axle ( Kg ) :
18000(2 axles)

Product categories

New Products

Product Details
Customer Case

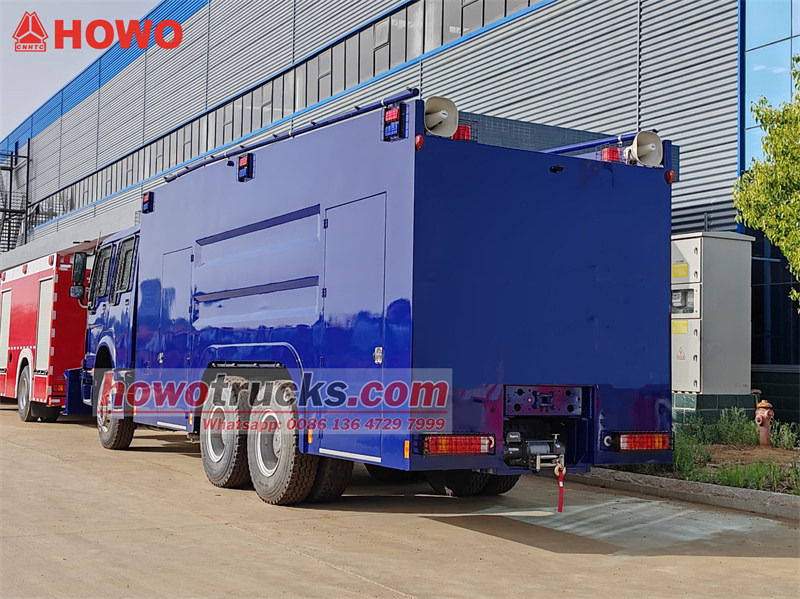

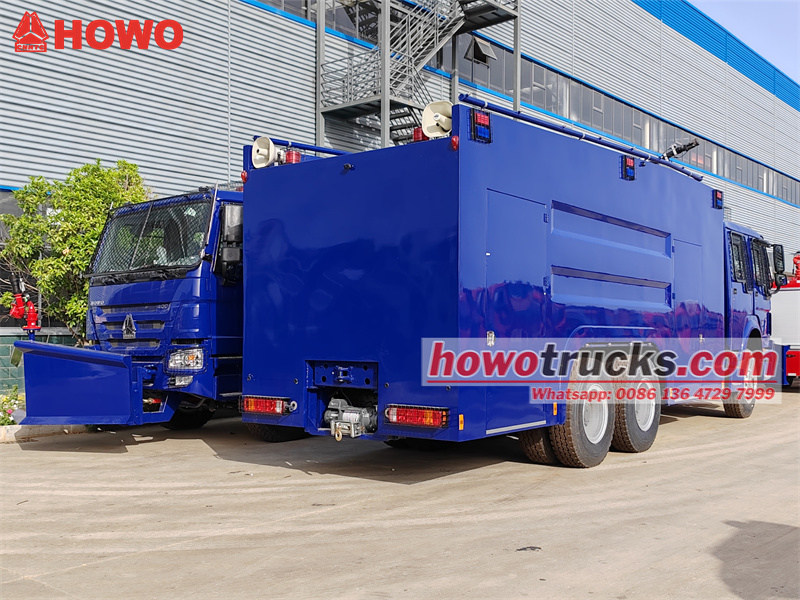

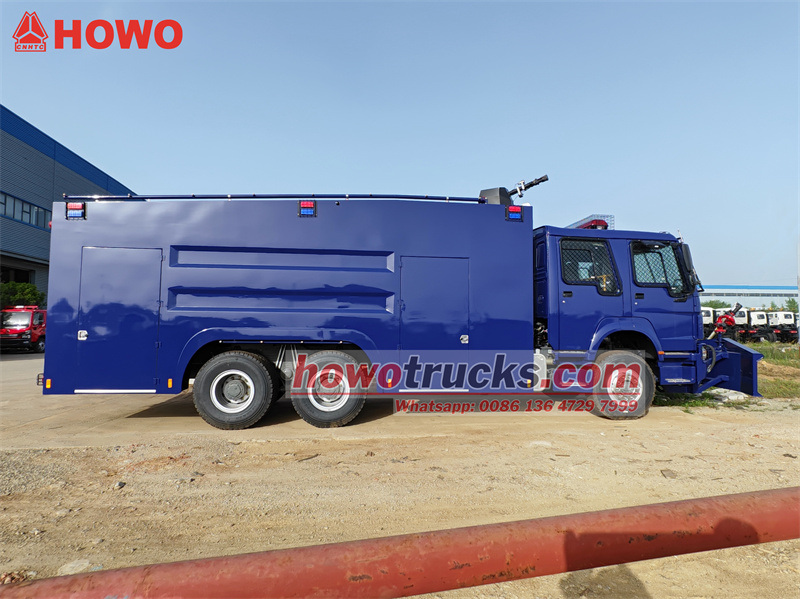

The HOWO armored crowd control riot truck is a premium 6x6 all-wheel drive, explosion-proof vehicle based on the Sinotruk HOWO HW76 double-cab heavy-duty chassis. It features an integrated explosion-proof body, a remote-controlled main cannon on top, and a fixed water cannon on the front. It supports multi-media spraying of high-pressure water, dye, and foam, with a range exceeding 70 meters, enabling three-dimensional riot control.

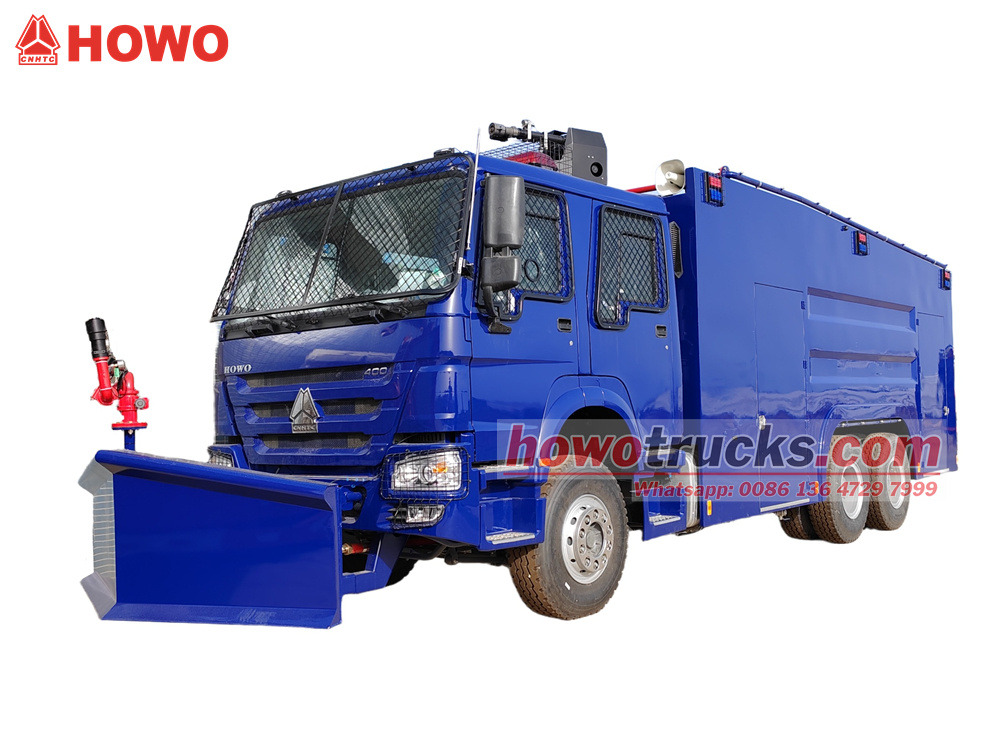

HOWO armored crowd control riot truck

The vehicle's hull is constructed of riot-resistant steel plates, bulletproof glass, and stainless steel protective mesh. A hydraulic shovel on the front allows for rapid obstacle clearance, while a roadblock system and warning lights enhance on-site control. The cab integrates water cannon control, on-site monitoring, and broadcasting systems. This comprehensive mobile platform is designed specifically for responding to extreme mass incidents and complex public security scenarios. Its powerful deterrent, protective, and response capabilities make it the ultimate weapon for maintaining social stability.

*HOWO 6x6 10000L Police Armored Anti Riot Truck

Military Explosion-proof Vehicle*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED

Features

1. Powerful: A 400-horsepower Weichai engine and a ten-speed transmission deliver both heavy loads and high-speed response.

2. Integrated Offense and Defense: A top-mounted remote-controlled main gun and a front-mounted water cannon, loaded with a variety of media, including water, foam, dye, and pepper spray, enable long-range, high-volume, and all-around spraying and dispersal.

3. Continuous Operation: A 10,000L water tank and a triple 100L liquid tank provide high capacity and long endurance.

4. Hardcore Protection: Anti-riot steel plates, bulletproof glass, and stainless steel protective netting provide strong impact resistance.

5. Efficient Obstacle Clearance: A hydraulic shovel on the front quickly demolishes obstacles and clears pathways.

6. Intelligent Control: The cab integrates water cannon control, video surveillance, and a broadcasting system.

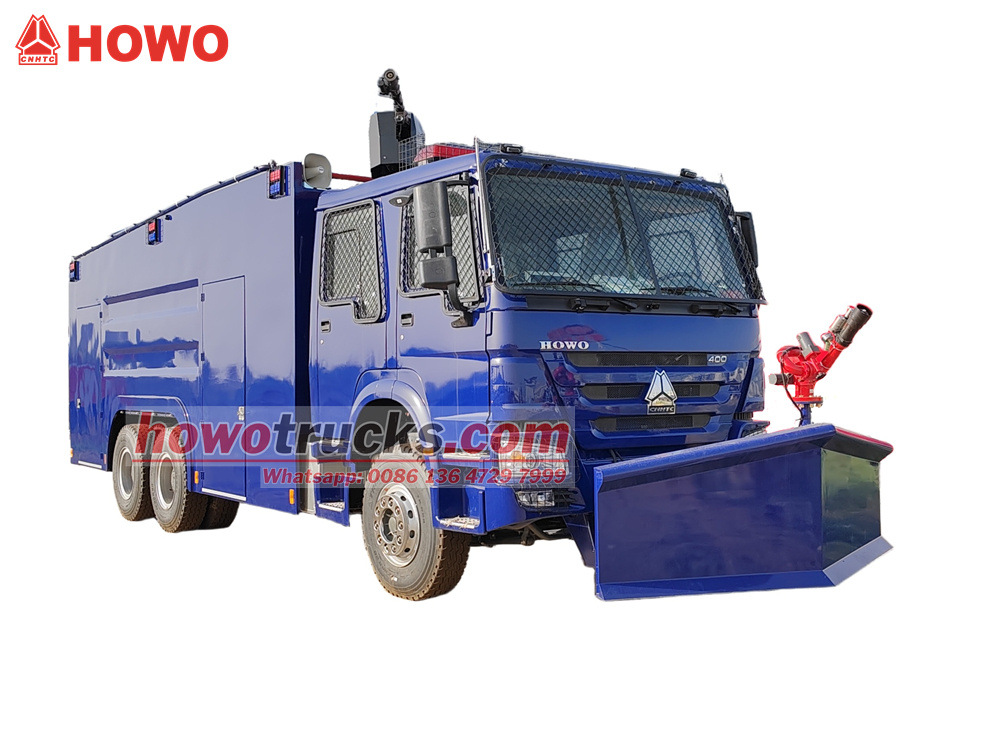

HOWO 6x6 military explosion-proof vehicle

» Ⅱ. Product Parameter for HOWO Anti Riot Water Cannon truck:

HOWO 6X6 Anti-Riot Vehicle
General	Truck Model	SINOTRUK HOWO
	Overall dimension	*1050025503950mm*
	GVW/Curb weight	25000/14450kg
Chassis parameters
Cab	SINOTRUK HW76 double-row cabin. It can accommodate 2+4 people, With Air conditioner
Drive type	6x6,LHD
Wheelbase	4600+1350mm
Clutch	Single- plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance
Brakes	Service brake: dual circuit compressed air brake . Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Axle loading	Front/Rear	7000/18000kg
Tire	12.00R20,10+1tire
Transmission	HW19710 gearbox,10 forward and 2 reverse, with PTO
Engine	Make	WEICHAI
	Model	WP12S400E201
	Description	4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling
	Horse power	400HP/ 294Kw
	Displacement	12L
	Rated speed	1900r/min
	Max torque	2200N.m
	Max torque speed	1000-1500rpm
	Emission	EURO 6
Upper & Equipment
Water Cannon	Roof riot water cannon	One, top of the pump room
		Range	≥70m
		Threat Range	≥40m
		Pitch Angle	-5°~ +45°
		Horizontal rotation angle	-90°~ +90°
	Front-firing water cannon	On the front of the truck, with direct current blooming water jet function
		PSKD40,40L/s@1.0MPa
Water tanker	Volume	10000L
	Liquid inlet	Quantity(pcs)		2
		Size(mm)		DN65
	Loading water	Water pump self-suction water
		From fire hydrant directly
	Remarks	1.Equipped with buffers inside of the tanker. 2.Equipped with access window for future inspection and after sales service. 3.Equipped with overflow, exhaust vent. 4.Equipped with electronic water level gauge.
Foam tanker	Volume	100L
	Material	Stainless steel
Dye tanker	Volume	100L
	Material	Stainless steel
Pepper water tank	Volume	100L
	Material	Stainless steel
Fire pump	Model	CB10/60
	Pressure	1MPa
	Max working pressure	1.082MPa
	Max allowable inlet pressure	0.4MPa
	Flux	60L/s
	Max suction height	7m
	Rated speed	3200±50r/min
Equipment and device	PLC control system Fire hydraulic control system Antifreeze protection system Hydraulic obstacle removal system Network protection system Video surveillance system Broadcast propaganda system Power supply system Warning light warning system;
Optional configuration:	Remote control driving system, strong light lighting lifting system Tear gas launcher, PTZ camera Special network communication, single-soldier equipment package shelf Two water cannons can be installed on the top of the pump room, one on each side

» Ⅲ. Product Details

Core Chassis Configuration: A powerful all-wheel-drive vehicle, fearless of obstacles

• Chassis Model: HOWO HW76 double-cab chassis, providing a sturdy load-bearing foundation and ample passenger space.

• Drive Type: 6x6 all-wheel drive, giving the vehicle exceptional off-road capability

• Wheelbase: 4600+1350 mm. The multi-wheelbase design ensures stability despite the vehicle's massive size

• Powertrain: Equipped with a high-power WP12S400E201 diesel engine and an HW19710 manual transmission, the vehicle boasts powerful and reliable power, providing ample power for heavy-duty vehicles and high-speed driving.

Upper System: Multi-dimensional offensive and defensive capabilities for efficient riot control

★ Riot Control and Operations System:

1. Water Tank: 10,000 liters; Foam, Dye, and Pepper Canisters: 100 liters each;

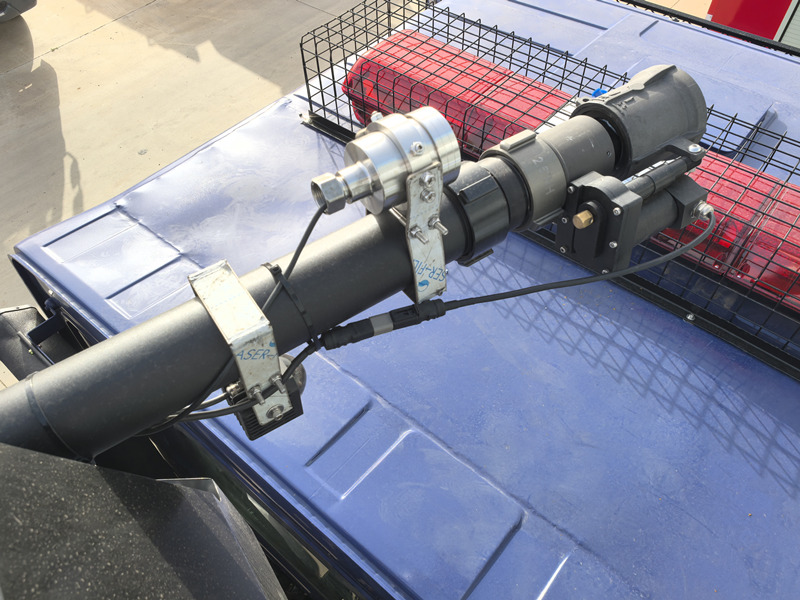

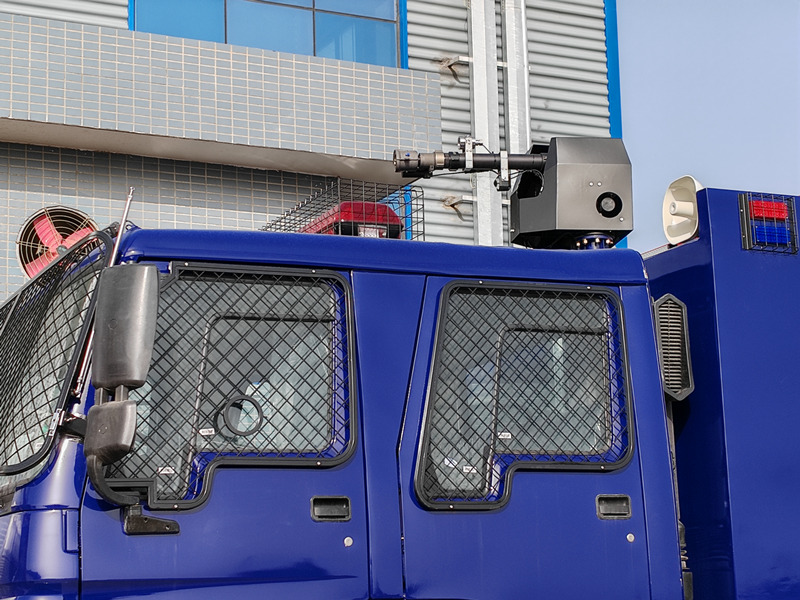

2. Water Cannon: A remote, electric, DC riot control water cannon is mounted on the vehicle's roof, with a range of 70 meters and a deterrent effect of 40 meters, capable of dispersing rioters at long distances. A forward-firing, fixed auxiliary water cannon with a flow rate of 40 L/s is mounted directly in front of the cab, forming a three-dimensional crossfire network with the main cannon on the roof.

3. CB10/60 Fire Pump Set: Equipped with a high-pressure fire pump with a rated flow rate of 60 L/s and a pressure of 1.0 MPa, it supports simultaneous operation of multiple cannons and features a self-priming function for rapid refilling from an external water source.

★ Protection and Obstacle Clearance:

• Fully Armored Protection: The cab is equipped with explosion-proof steel plates, and the lights and windows are equipped with high-strength stainless steel protective mesh to effectively protect against projectiles such as rocks and Molotov cocktails.

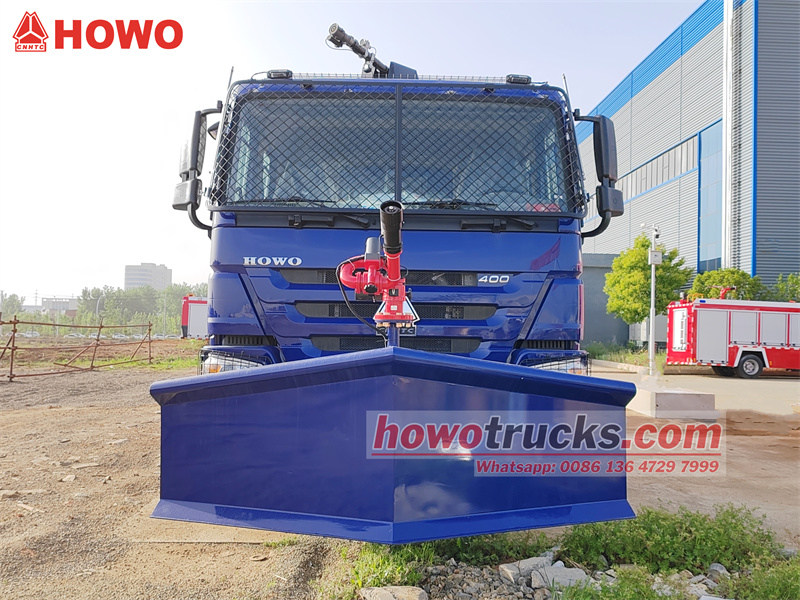

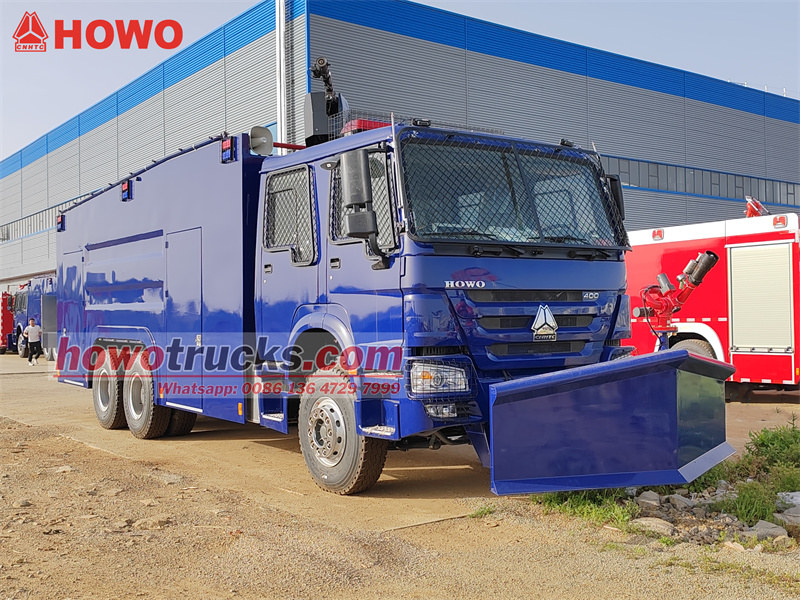

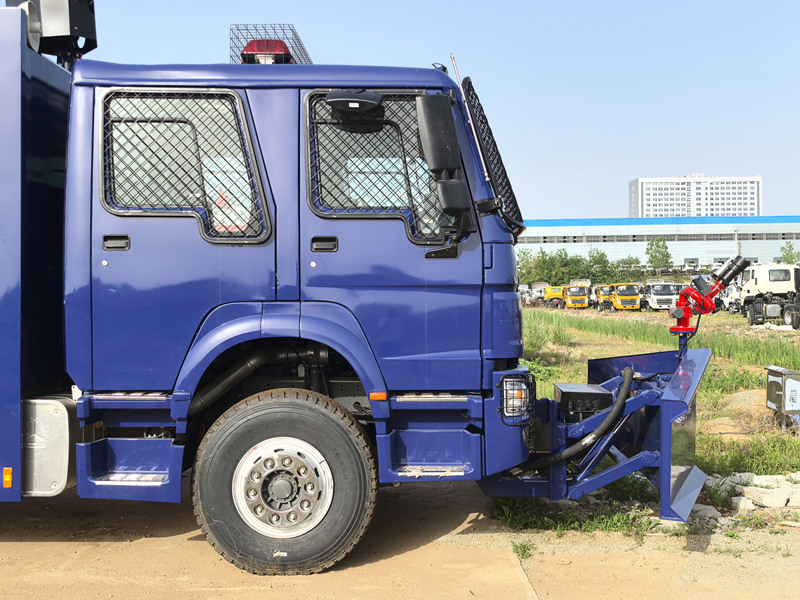

• Hydraulic Obstacle Clearance Shovel: The front of the vehicle is equipped with a powerful hydraulic obstacle clearance shovel, which can quickly clear obstacles, vehicles, and roadblocks on the road, clearing a path for the team.

• Roadblock System: The deployment width is approximately 9 meters and the height is ≥ 2.5 meters; it uses automatic hydraulic control.

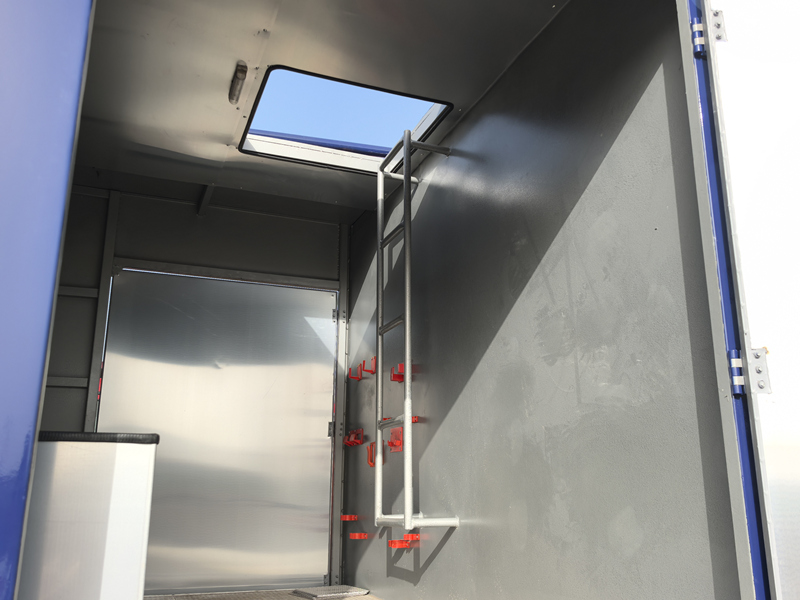

• Roof Access: A ladder is installed at the rear of the vehicle, allowing personnel to safely and conveniently access the roof.

★ Monitoring and Command System:

• An integrated broadcast propaganda system enables on-site announcements and policy promotion.

• A rearview video system and image monitoring system provide occupants with a 360-degree, unobstructed view of the outside world, ensuring safe operation and facilitating on-site intelligence gathering.

• Integrated Controls in the Cab: A built-in fire hydraulic control system, water cannon joystick, and remote control allow the driver and commander to operate the vehicle from within the safety of the armored enclosure.

• Sound and light alarm system: High-decibel sirens and strong warning lights provide a powerful warning and deterrent effect.

★ Other Standard Features:

• Spray System: Deter rioters.

• Self Fire Extinguishing System: Roof and underbody self-extinguishing systems prevent vehicle fires.

• Military Gas Masks: 6 pairs.

Structural diagram

» Ⅳ. Application Scenarios:

This vehicle is designed specifically for public security, armed police, and special police departments. It is suitable for:

• Dispersing and maintaining order at mass incidents

• Closing down terrorist attack sites and marking suspects

• Clearing roadblocks and suppressing fire in urban counter-terrorism operations

• Dynamic patrols and emergency response for major event security

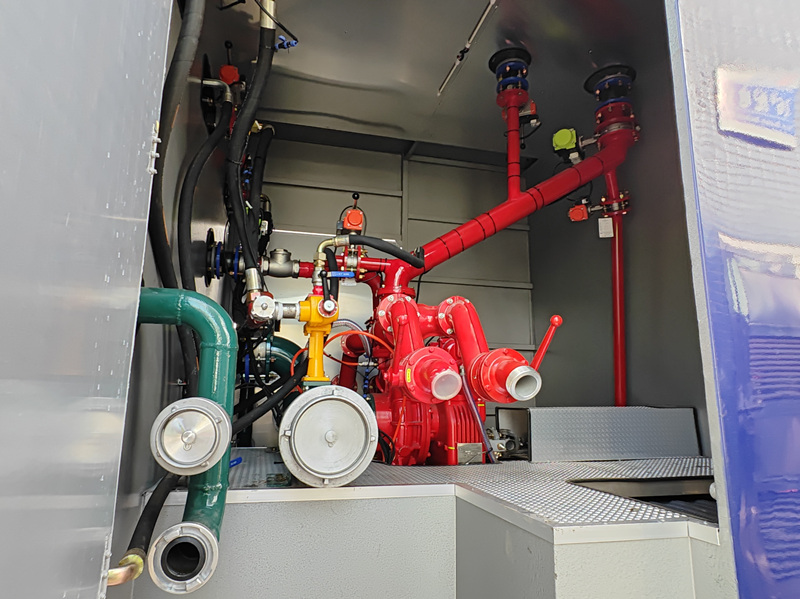

cb10/60 fire pump

CS trucks 5000 square meters workshop for military trucks.china best armored anti riot truck manufacturer. We are China best sanitation trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, crane truck, fire trucks. and other special purpose vehicles.
