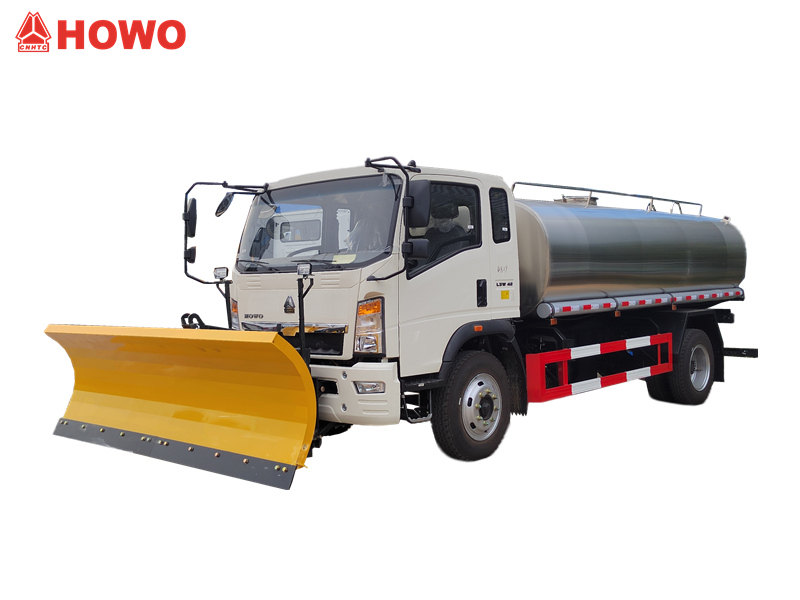

HOWO 8000L Drinking Water Truck is a versatile special-purpose vehicle designed for the transportation of drinking water. Built on a HOWO 4×2 chassis and powered by a 154HP engine, it delivers reliable performance and adaptability to complex road conditions. The vehicle features an 8000-liter food-grade stainless steel tank and a high-efficiency self-priming pump to ensure water safety. Additionally, it is equipped with a 3-meter adjustable snowplow at the front, capable of ±30° deflection, providing dual functionality for snow removal. Suitable for urban and rural water supply, sanitation, and snow-clearing operations, this truck offers multifunctional utility.
Working capacity :
8000 litersCabin type :
HOWO 2080 cabin, with A/CDrive system :
4×2Wheelbase ( mm) :
4200Engine specific :
154HP/ISF3.8S3154Gear box :
WLY, 6 Forward & 1 ReverseFront axle ( Kg ) :
2700Rear axle ( Kg ) :

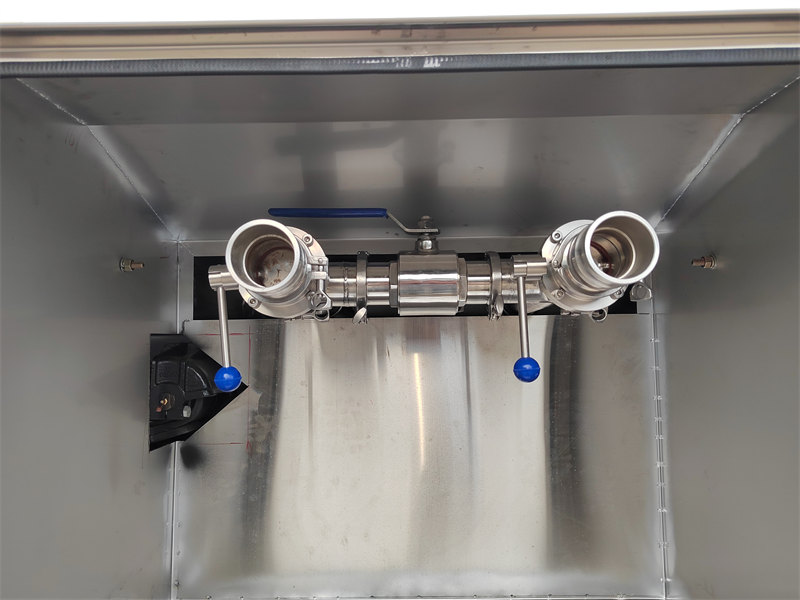

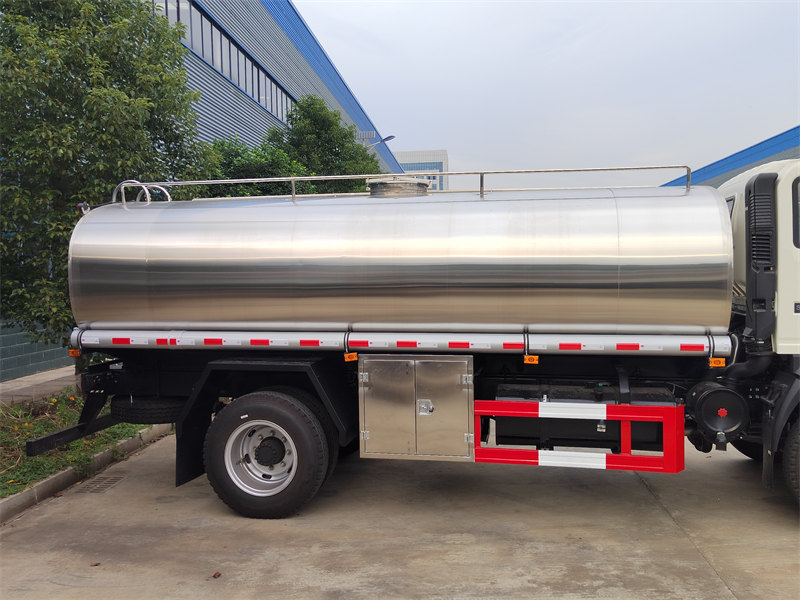

7200HOWO 8000L Stainless Steel Water Truck is a specialized vehicle designed for the safe transportation of drinking water while also serving as an efficient snowplow in winter. Built on the HOWO ZZ1107G42 chassis with a 4×2 drive configuration and a 154-horsepower engine, it ensures excellent off-road capability. The truck is equipped with an 8000-liter food-grade stainless steel water tank, constructed from 4mm-thick 304 stainless steel with a smooth, seamless interior, fully compliant with drinking water hygiene standards. It also features a 65QZ-40/45 stainless steel self-priming pump, delivering a high flow rate of 40m³/h and a lift of 45 meters, enabling rapid filling and drainage. Ideal for urban and rural drinking water distribution, emergency water supply, and other scenarios.

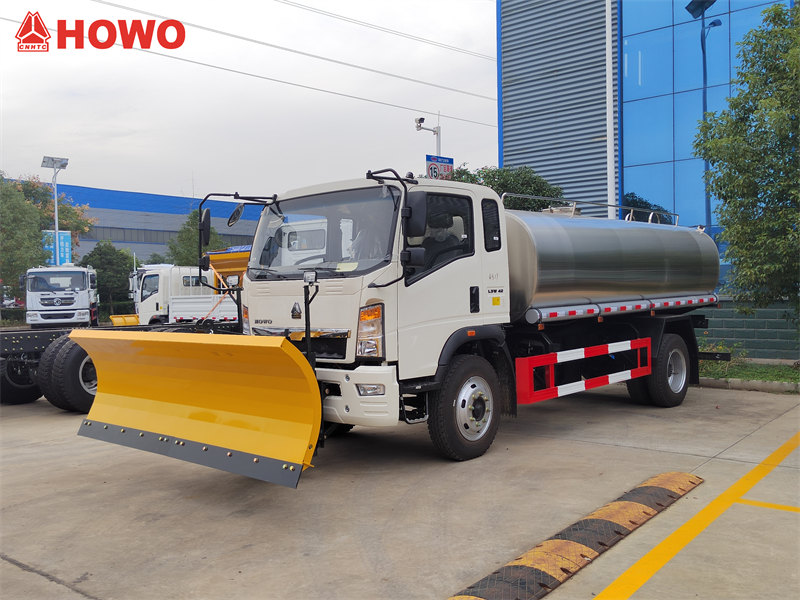

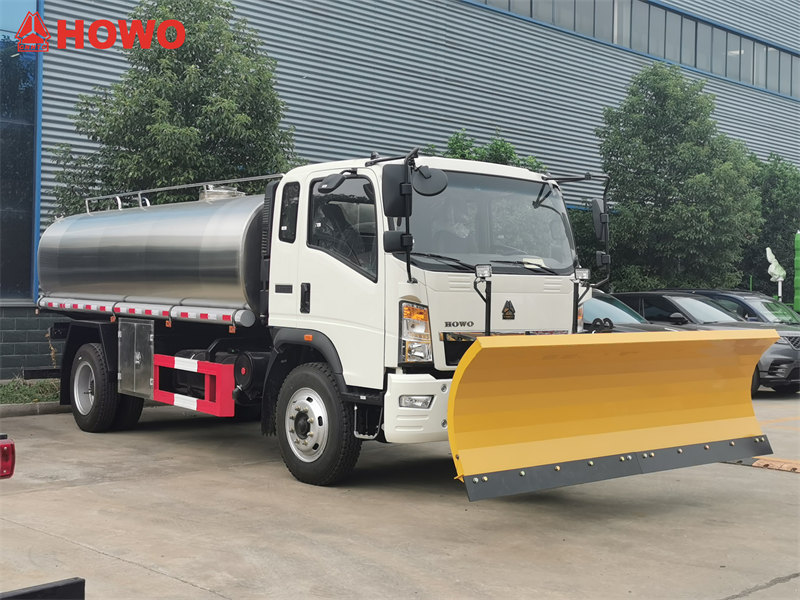

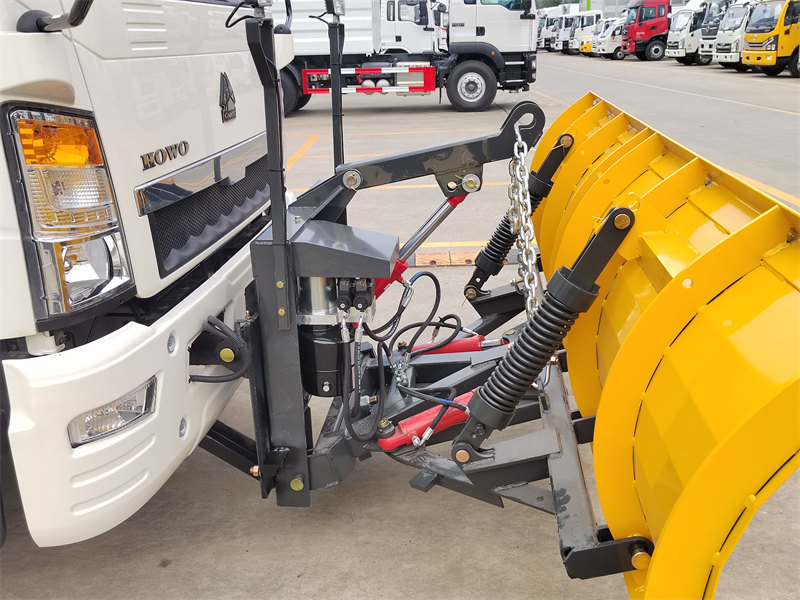

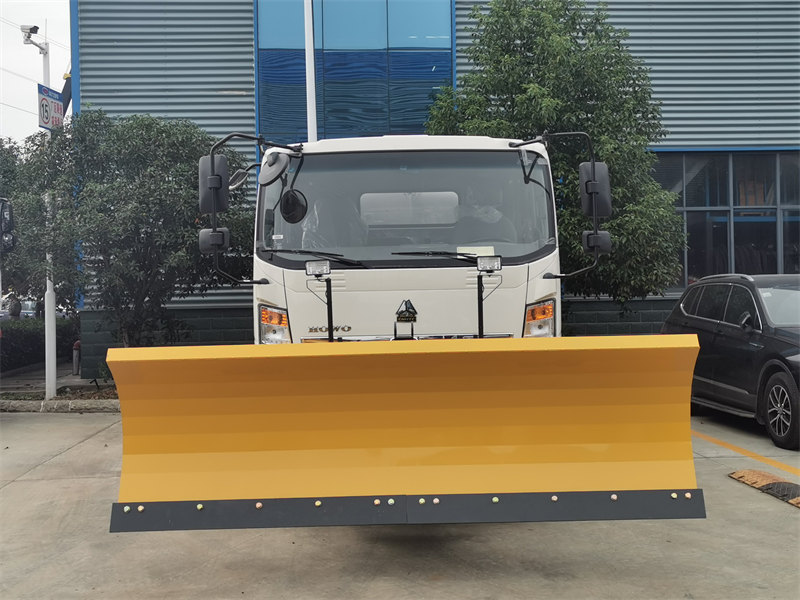

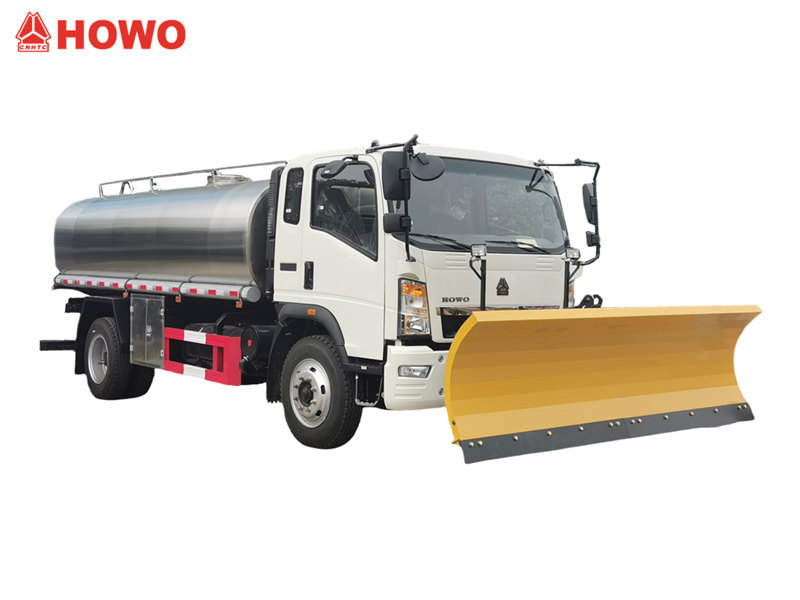

This HOWO drinking water truck is innovatively equipped with a front-mounted snowplow, capable of ±30° lateral deflection and clearing snow up to 200mm deep at a working speed of 30-50km/h, making it a multifunctional solution. It efficiently meets daily drinking water transportation needs while performing snow removal tasks in winter, making it an ideal choice for municipal sanitation services and extreme cold regions.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
★ Built on HOWO 4×2 chassis, with CUMMINS 154HP diesel engine, durable and reliable.
★ 304-2B food grade stainless steel tank body, with stainless steel water pump, complies with drinking water hygiene standards to ensure safe and contamination-free water transportation.
★ Equipped with a 3-meter adjustable snowplow at the front, has dual functionality for both drinking water delivery and winter road snow removal.
※ Ⅱ. Product Parameter for HOWO potable water truck:
|
Vehicle Description |
||
|
Overall dimension |
7600*2350*2900mm |
|
|
GVW |
9900kg |
|
|
Curb weight |
5200kg |
|
|
Chassis brand |
Sinotruk Howo |
|
|
Traction type |
4*2, left-hand drive |
|
|
Chassis Description |
||
|
Chassis model |
ZZ1107G42 |
|
|
Cab |
Single row and a half cab, forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, manual windows, manual lock, air conditioner. |
|
|
Wheelbase |
4200 mm |
|
|
Tire specification |
8.25R16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Brand |
CUMMINS |
|
Model |
ISF3.8S3154 |
|
|
Emission standard |
Euro 3 |
|
|
Output |
115KW |
|
|
Displacement |
3760 ml |
|
|
Horsepower |
154HP |
|
|
Rated speed |
2600 rpm |
|
|
Max. torque |
500 N.m |
|
|
Gearbox |
Brand |
WLY |
|
Number of gears |
6 forward gears & 1 reverse, synchronized |
|
|
Brake system |
Full air brake system split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake |
|
|
Axle |
Front |
2.7 Ton |
|
Rear |
7.2 Ton |
|
|
Suspension |
Front |
9- Leaf spring with shock absorber |
|
Rear |
12+9-Leaf spring |
|
|
Fuel tanker |
Type |
Aluminum alloy fuel tank, with lockable cap |
|
Capacity |
120L |
|
|
Upper-body Description |
||
|
Water tank |
Capacity |
8000 liters |
|
Material |
Stainless steel |
|
|
Thickness |
4 mm |
|
|
Water pump |
Model |
65QZ-40/45 |
|
Flow rate |
40 m3/h |
|
|
Head |
45 m |
|
|
Self-suction height |
6.5 m |
|
|
Snowplow |
Size |
3000 mm |
|
Working width |
2700~3000 mm |
|
|
Left and right deflection angle |
±30° |
|
|
Max ground clearance |
300~400 mm |
|
|
Snow removal thickness |
≤200mm |
|
|
Working speed |
30~50 km/h |
|
※ Ⅲ. Product Details & Fucntions:
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

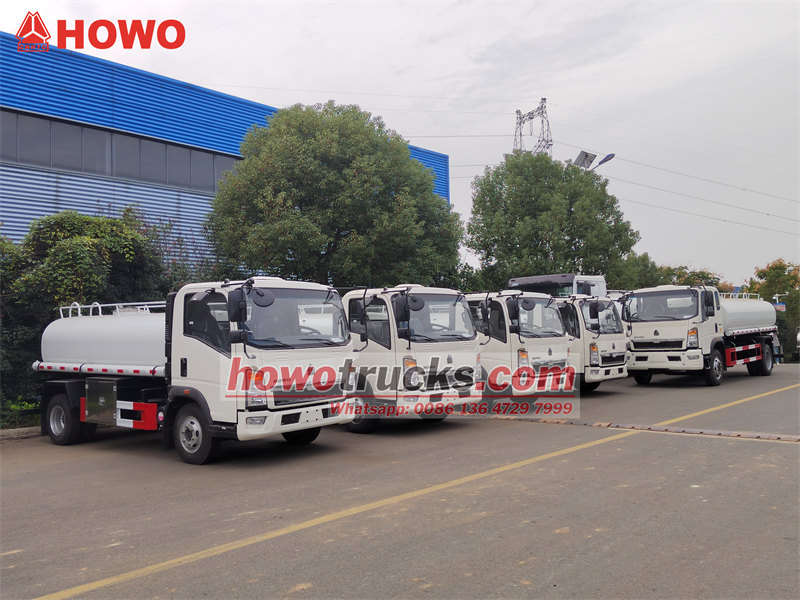

SINOTRUK HOWO stainless steel water trucks exported

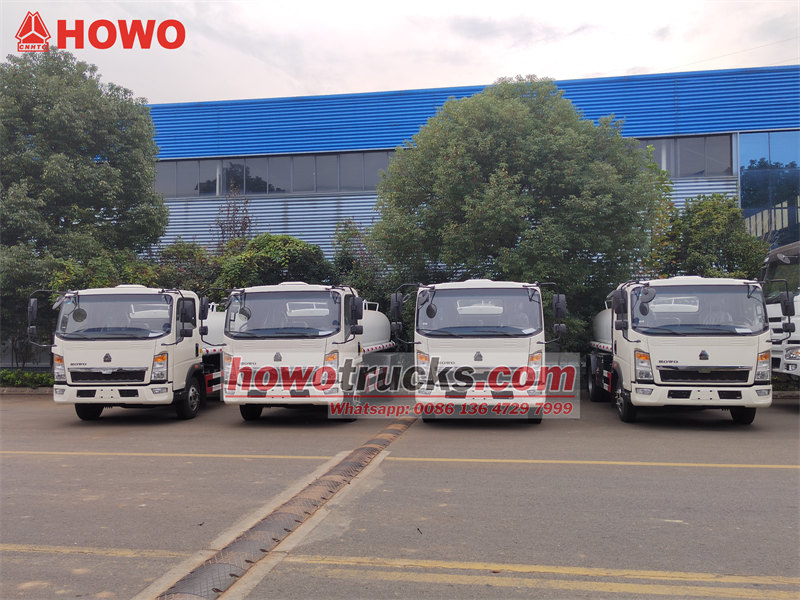

SINOTRUK HOWO stainless steel drinking water trucks for export
