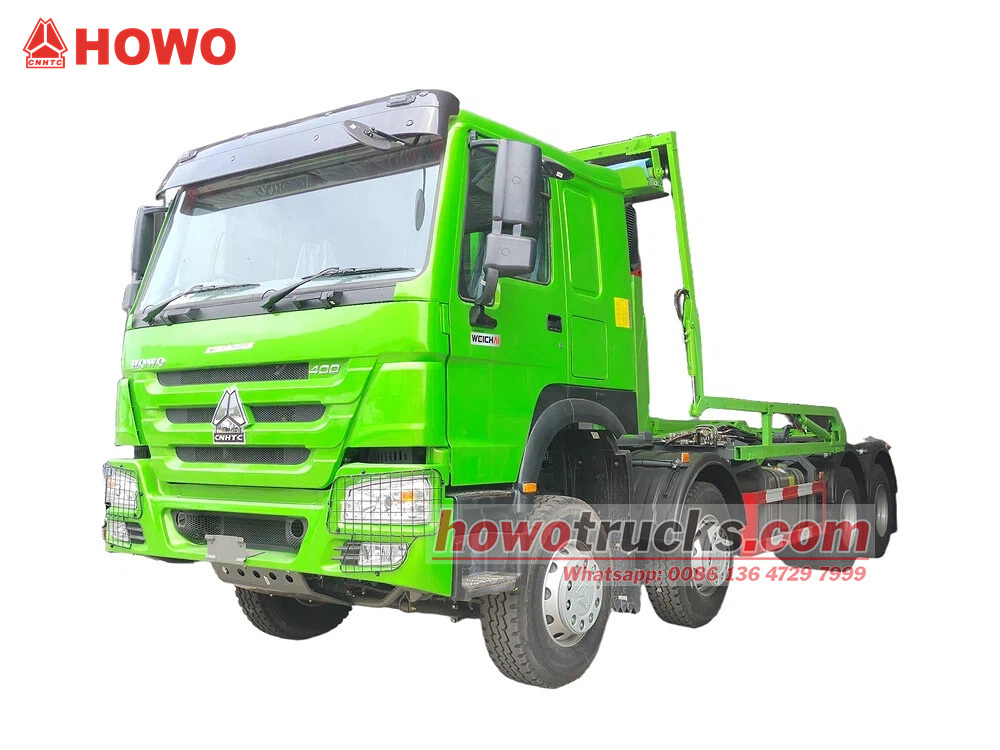

HOWO Hook Loader with Tarp System

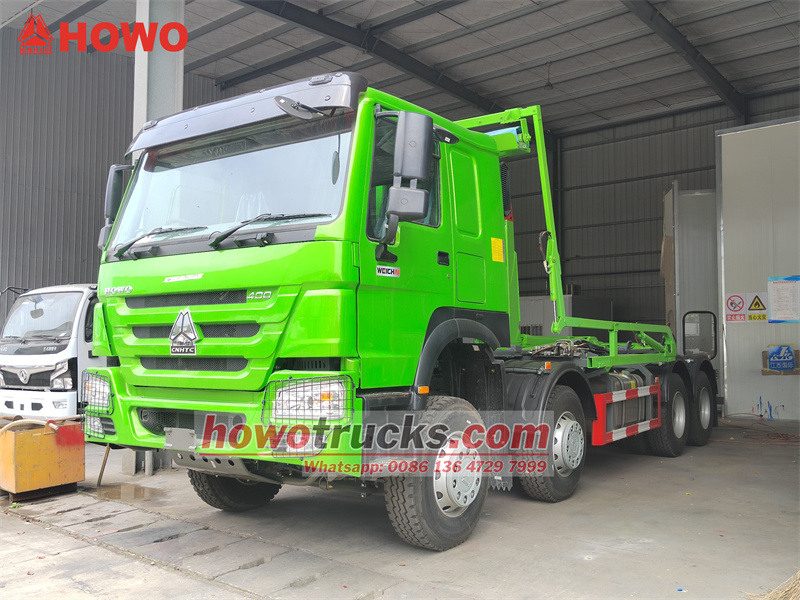

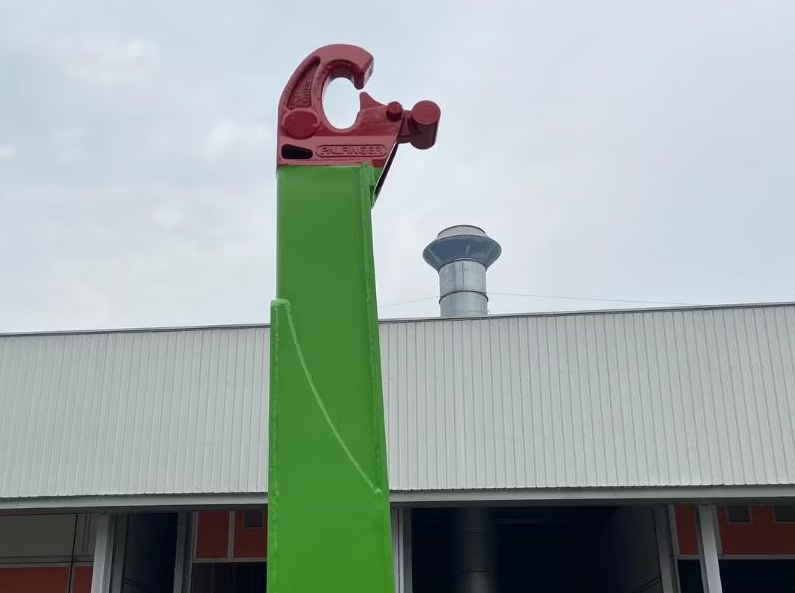

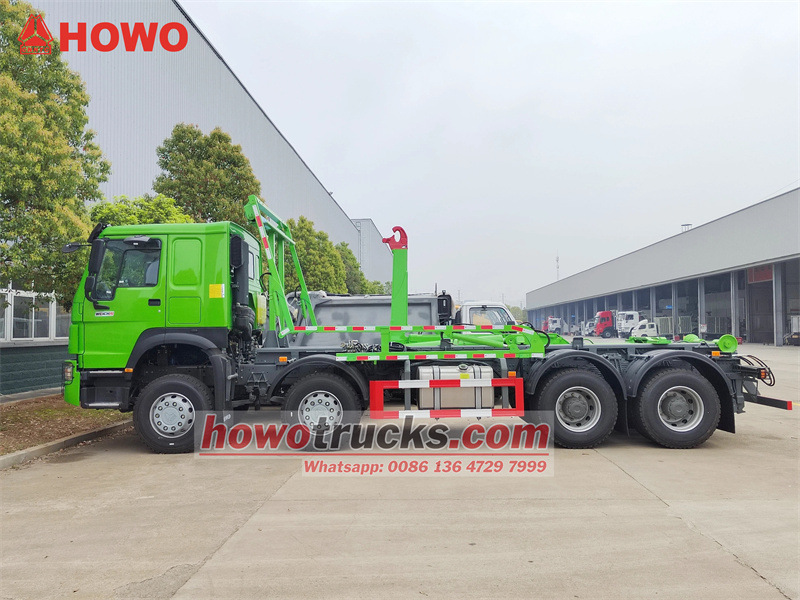

Sinotruk HOWO Hooklift is designed and produced as 26tons hook loader garbage truck, with telescopic main arm, mechanical hook security, twin lifting cylinder and external hydraulic locking. Also matched with CE standard electric control box, which make operation in side of cabin are safety and reliable. Customized 26tons hook loader are mounted on HOWO 8x4 truck chassis, matched working with 7m garbage bins. The Howo 26tons hooklift equipment is suitable for heavy goods loading, unloading, transportation, also can matched working with container.

Customized HOWO heavy duty 20tons Skip refuse trucks are used to transport dumpsters to local landfills, empty the garbage, and then return them to designated garbage collection points. They are widely used in commercial and rural, small town waste management. Large skip lift garbage trucks can carry up to 20 tons of garbage at a time. They used hydraulic arms to lift the dumpster onto the back of the truck. The hydraulic arm design eliminates the need for operators to manually connect and disconnect the hook from the waste container.

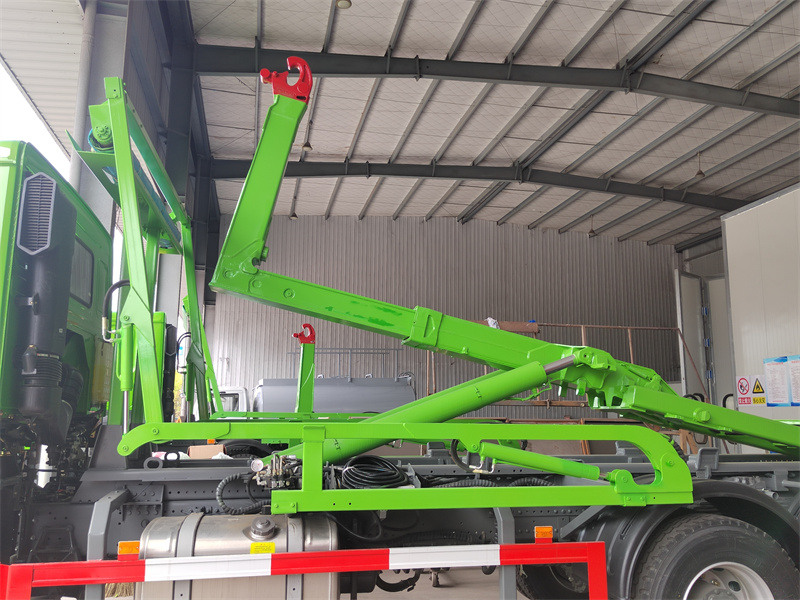

The HOWO 6x4 hook loader garbage truck is a modified version of the Sinotruk HOWO T7H440 chassis. It features a 4325+1350mm wheelbase and is equipped with a Sinotruk MC11.44-60 engine and HW19710 gearbox. The truck is topped with a 20-cubic-meter trash can measuring 6000x2300x1500mm, with a 5mm side and 6mm bottom thickness. It's equipped with a hook arm, which allows for 40-50 seconds of unloading, a 50° lift, rear hydraulic outriggers, a tailgate locking device, and operating levers on the left side of the cab and the truck body that control the forward and backward movement of the outrigger, the lifting and retraction of the rear hydraulic outriggers, and the locking/release of the hook head.

The HOWO 8×4 Hook Lift Garbage Truck is a large-scale sanitation vehicle that integrates loading, unloading, and self-dumping functions. Built on the robust HOWO heavy-duty chassis, it features a core 20-ton hydraulic hook-arm system capable of efficiently handling 15–20 cubic meter compacted garbage containers, with a single operational cycle completed in no more than 45 seconds. Powered by a Weichai 400-horsepower engine and boasting a total mass of 31 tons, the truck demonstrates strong performance. Key components are constructed from high-strength cast steel and imported hydraulic parts. Through precision manufacturing and rigorous testing, the vehicle ensures exceptional reliability and long service life, even under high-intensity cyclic operations.

The HOWO 20-ton Hooklift Refuse Truck is a high-efficiency heavy-duty sanitation equipment, featuring a powerful hook-arm system as its core. It enables rapid self-loading, transportation, and unloading of garbage containers, achieving a cyclic operation of "one vehicle with multiple containers." Powered by a 336-horsepower engine and built on a robust chassis, the vehicle offers strong load-bearing capacity. Its hydraulic system integrates multiple safety valves, ensuring simple and reliable operation, with a single work cycle completed in under 45 seconds. This significantly enhances the mechanization level and economic efficiency of waste collection and transportation.

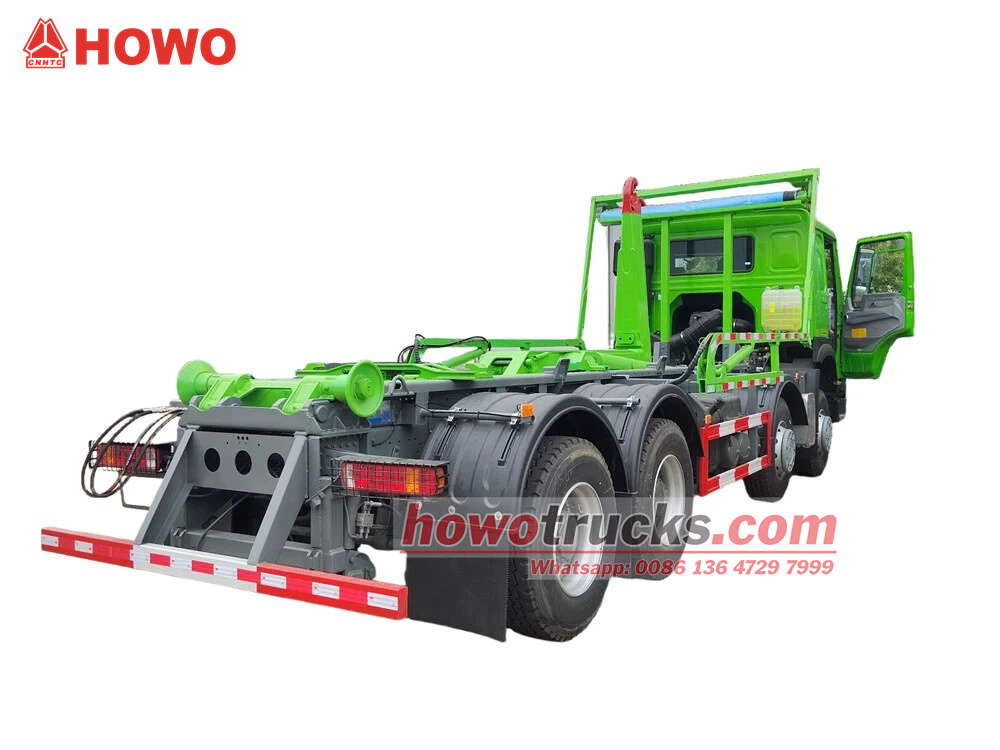

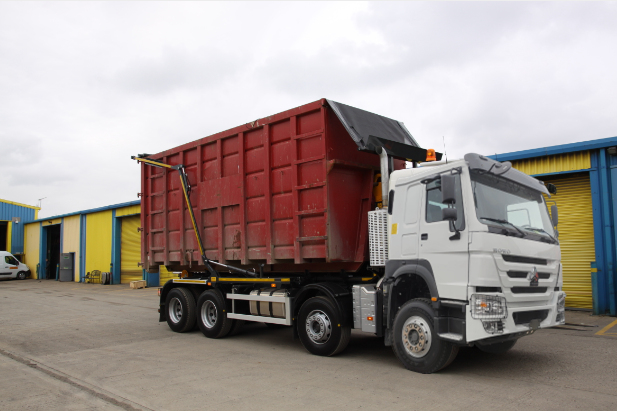

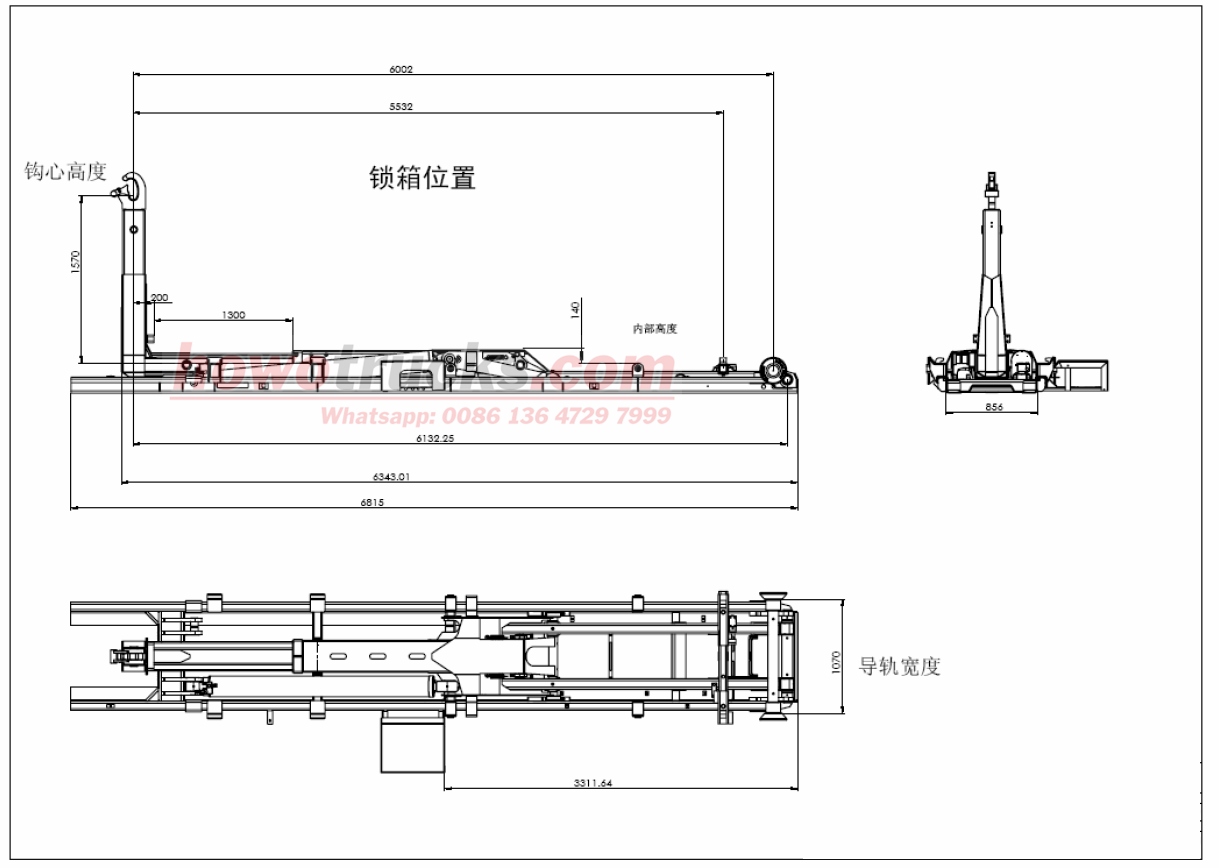

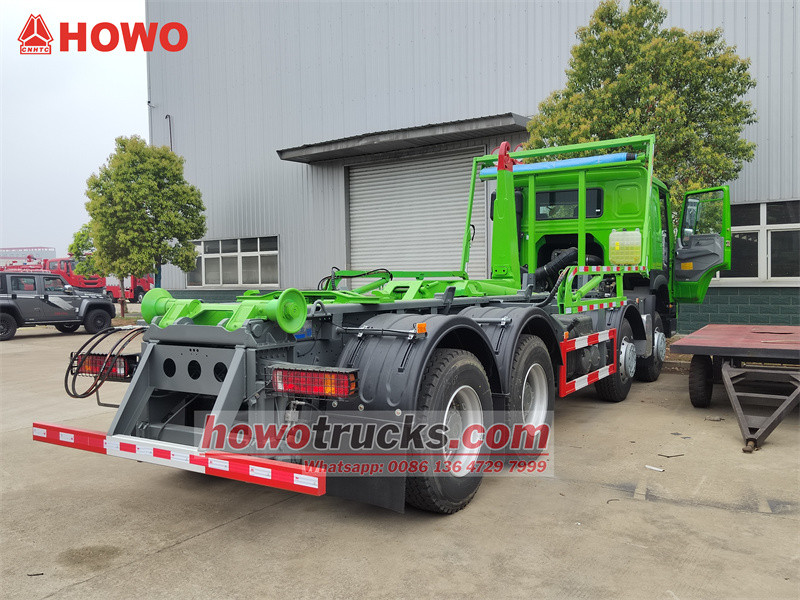

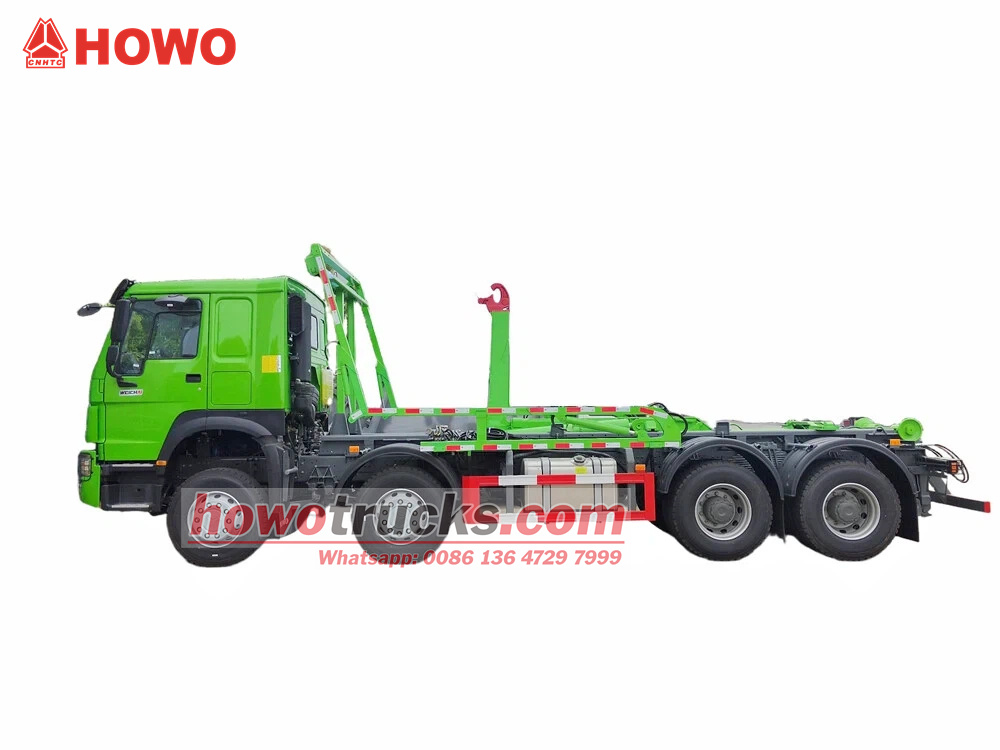

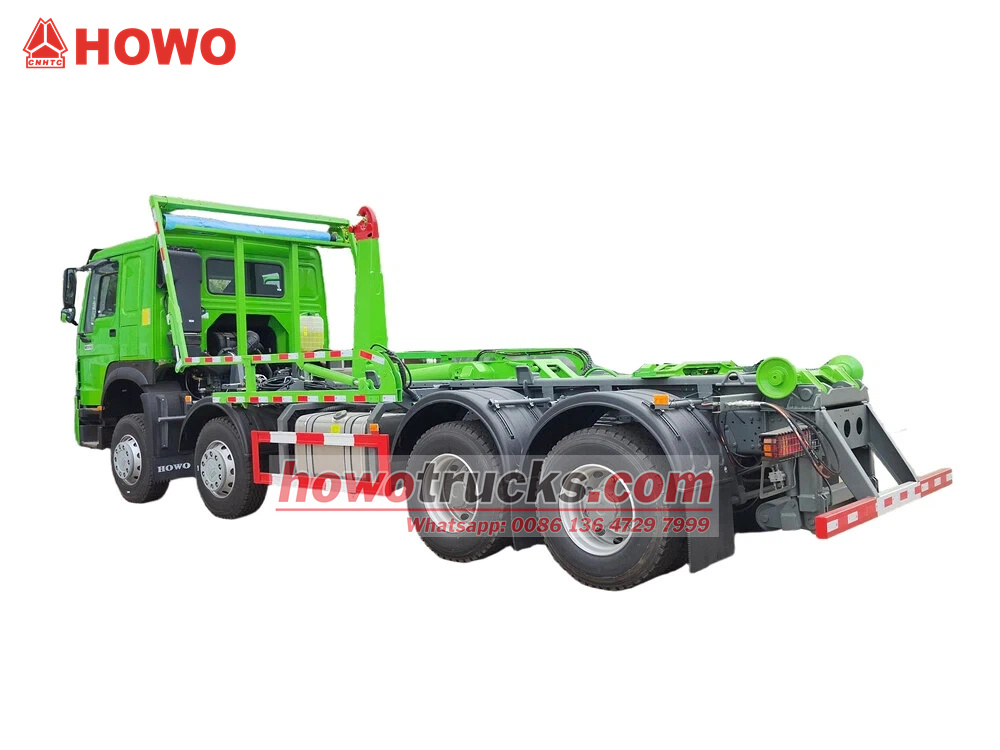

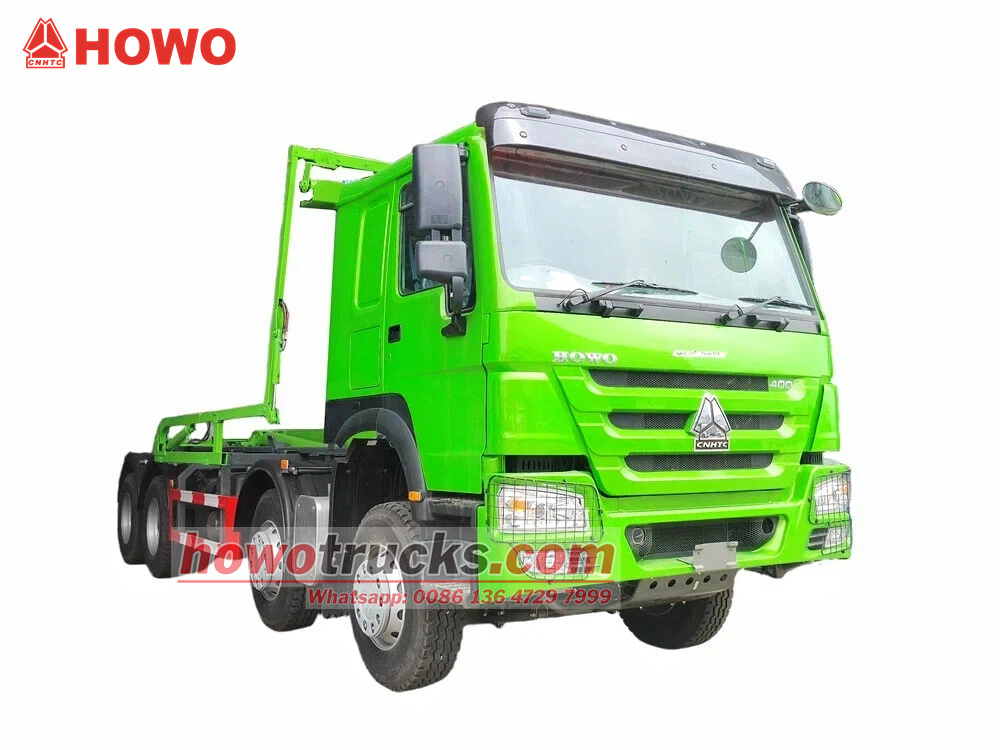

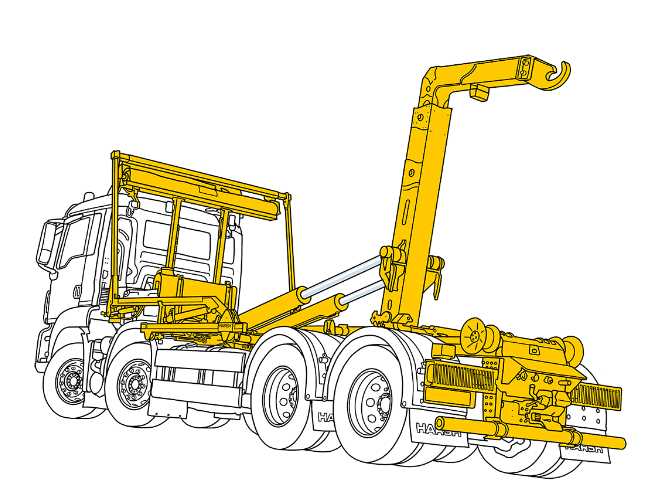

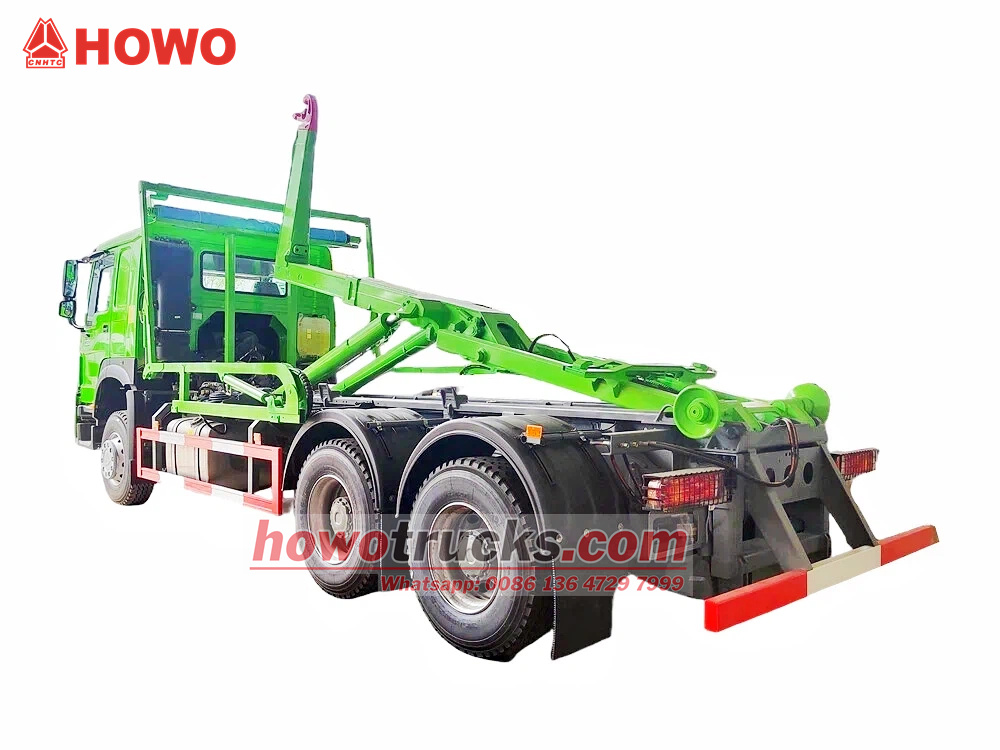

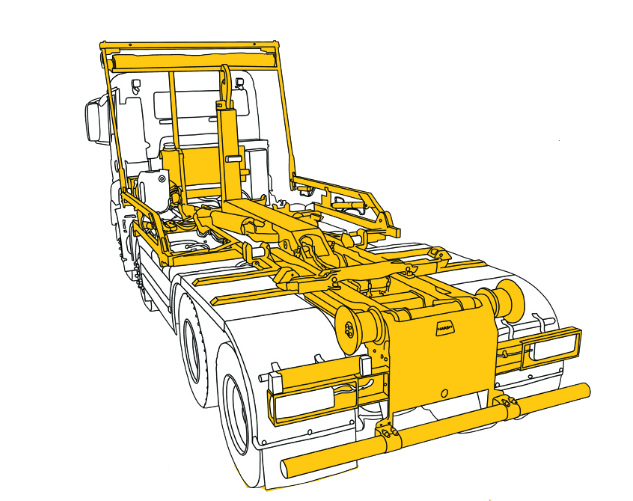

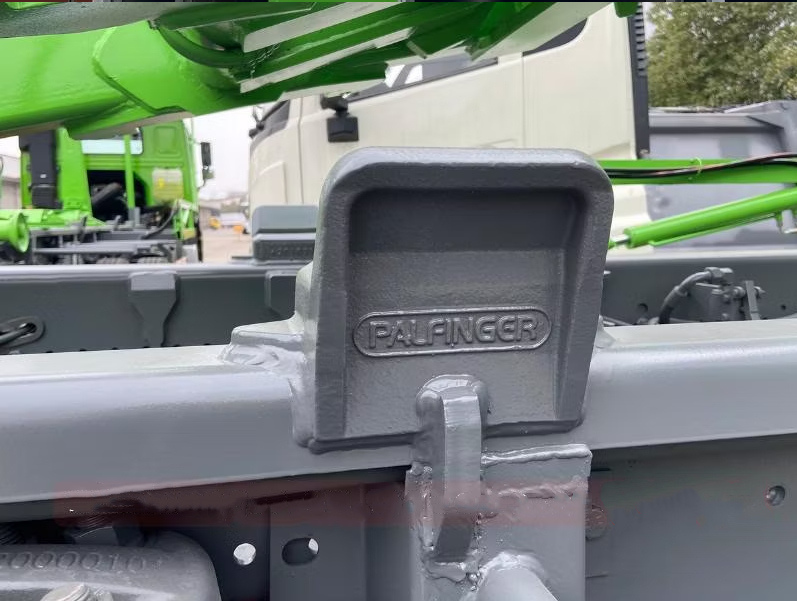

The HOWO 8x4 26-ton hooklift garbage truck with sheeting System uses a Sinotruk HOWO 8x4 heavy-duty truck chassis with a wheelbase of 1950+3825+1350mm. It is equipped with a Weichai WP12.400E201 engine and a Sinotruk HW19710 transmission. The superstructure is a PALFINGER T26 26-ton hooklift unit, capable of carrying a carbon steel garbage bin with dimensions of 6500x2350x1500mm. The front of the hooklift unit features an automatic tarpaulin system that can cover the garbage bin from both the front and rear. This automatic tarpaulin system utilizes the well-known "telescopic rake" boom adjustment principle to achieve front and rear coverage.

This is a high performance Howo TX heavy garbage hooklift truck, highlighting the precision engineering design of modern urban sanitation vehicles. Equipped with Weichai WP8.350E62 6-cylinder diesel engine with a rated power of 350HP, it is not only powerful but also environmentally friendly. The total mass of 33000kg, a load capacity of 20 tons, and a maximum speed of 105km/h.
