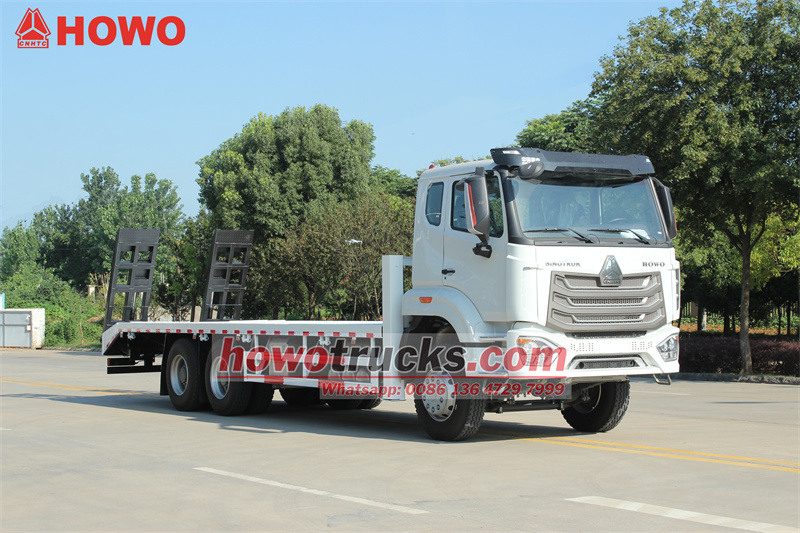

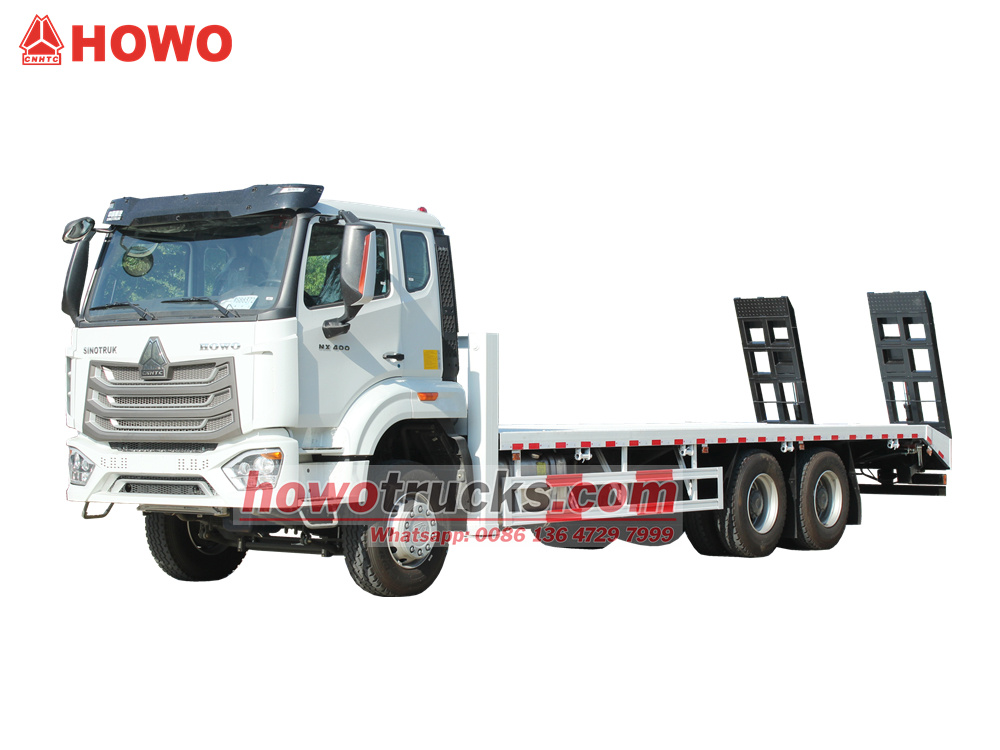

The HOWO NX 20 tons self loader truck is a specialized vehicle designed for transporting heavy equipment. Equipped with a specialized superstructure and hydraulic control system, it enables rapid loading and unloading and efficient transport. Powered by a Weichai 400-horsepower engine and a Sinotruk 10-speed transmission, it boasts powerful and reliable power. Its superstructure consists of a sturdy 7.5-meter-long, 8mm-thick checkered steel plate, providing exceptional load-bearing capacity. Key features include a 45-meter, 20-ton winch, front hydraulic outriggers, and a 2.2-meter mechanical spring ramp at the rear. The rear hydraulic outriggers are centrally controlled from the rear of the vehicle, ensuring high operational efficiency.

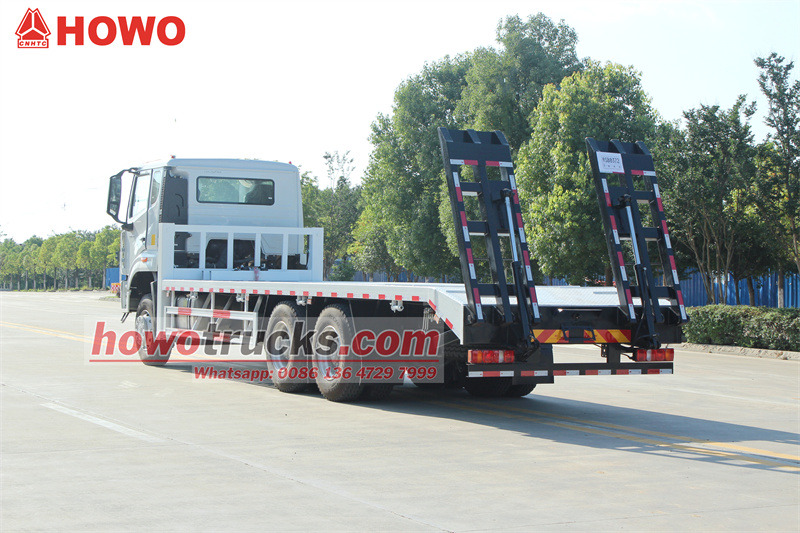

*HOWO NX 20 tons self loader truck

HOWO 6x4 flatbed trailer Truck*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED

Technical Highlights

1. Efficient Self-Loading and Unloading: The hydraulic outriggers, winch, and rear mechanical ramp significantly improve loading and unloading efficiency.

2. Durable Structure: The "heavy armor" combination of 8mm checkered plate and 120 GB square steel ensures long-term durability in harsh construction environments.

3. Easy Operation: The mechanical ramp features a heavy-duty reinforced design with three ribs and dual springs, and features rear outriggers for quick retraction and deployment.

4. Safety Features:

• The hydraulic system is equipped with a dual-circuit safety valve for automatic overload relief.

• Anti-slip feature on the ramp.

• The outriggers are equipped with a spirit level and automatic leveling.

» Ⅱ. Product Parameters for HOWO 20T self loader truck:

» Ⅲ. Product Details

Chassis Configuration

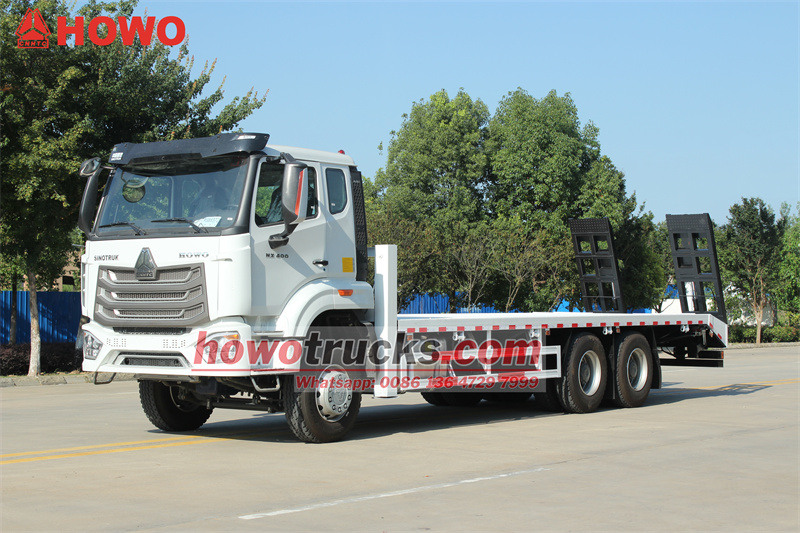

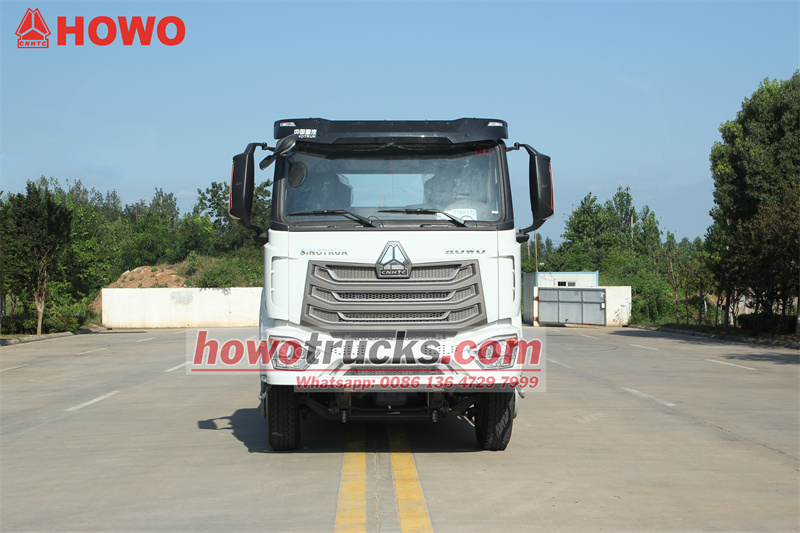

This vehicle is built on the Sinotruk HOWO NX400 series heavy-duty truck chassis, ensuring overall reliability and power.



• Chassis Model: HOWO NX400 6x4



• Engine: Weichai WP12.400E201

◇ Displacement: 11.6L, Euro 2 Emissions

◇ Maximum Power: 400 HP (294 kW), Peak Torque: 1920 Nm

◇ Powerful power, fuel economy, high reliability, and easy maintenance.



• Transmission: Sinotruk HW19710

◇ 10-speed manual transmission with a wide first gear ratio, excellent heavy-load starting and climbing capabilities, and sophisticated operation. It perfectly matches the WP12 engine and delivers high transmission efficiency.

Upper Structure and Configuration

The upper structure is the core value of this vehicle. Its design and materials directly determine its operational capabilities and service life.

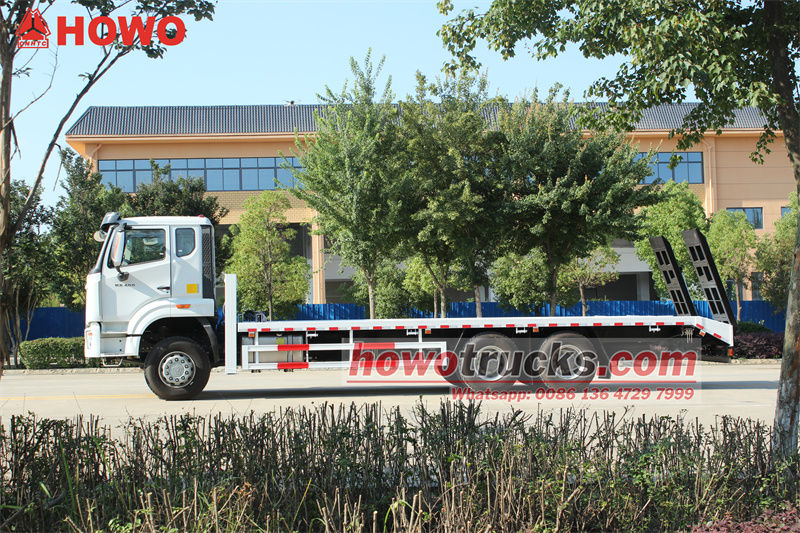

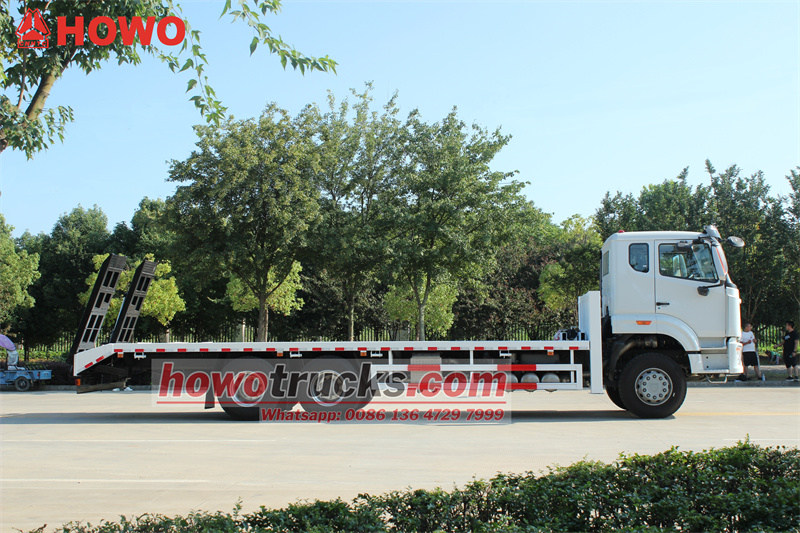

• Flatbed Dimensions: 7500mm (L) x 2500mm (W)

◇ The spacious loading platform easily accommodates various types of excavators, loaders, rollers, and other construction equipment up to 20 tons.

• Flatbed Materials:

◇ Panel: Utilizes 8mm thick, high-strength, anti-slip patterned steel plate. This thickness far exceeds that of ordinary flatbeds, significantly enhancing its resistance to impact and shock, allowing it to withstand the impact of sharp objects such as excavator tracks. The patterned design effectively increases friction, preventing the equipment from sliding during transport.



◇ Bottom Beam: Utilizes 120mm x 120mm x 5mm national standard square steel as the primary load-bearing framework. This standard square steel offers exceptional bending and torsional strength, providing solid support for the entire flatbed and ensuring it remains stable under heavy loads.





• Self-Loading and Unloading System:

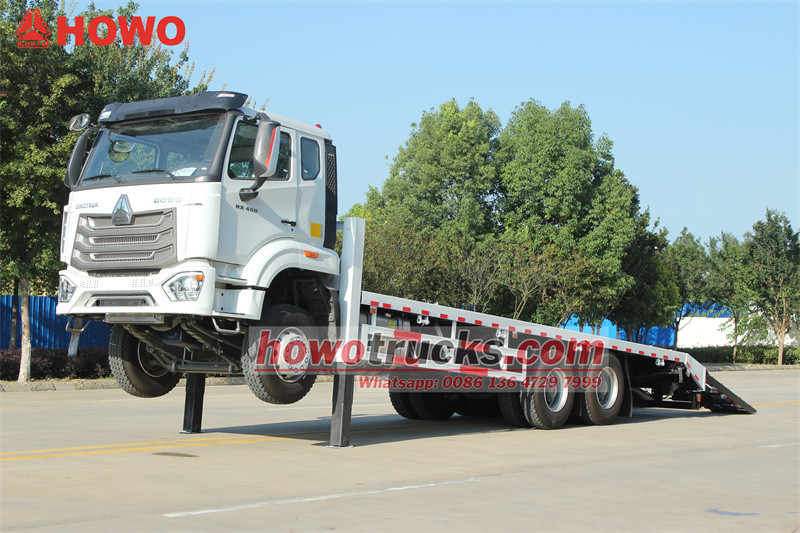

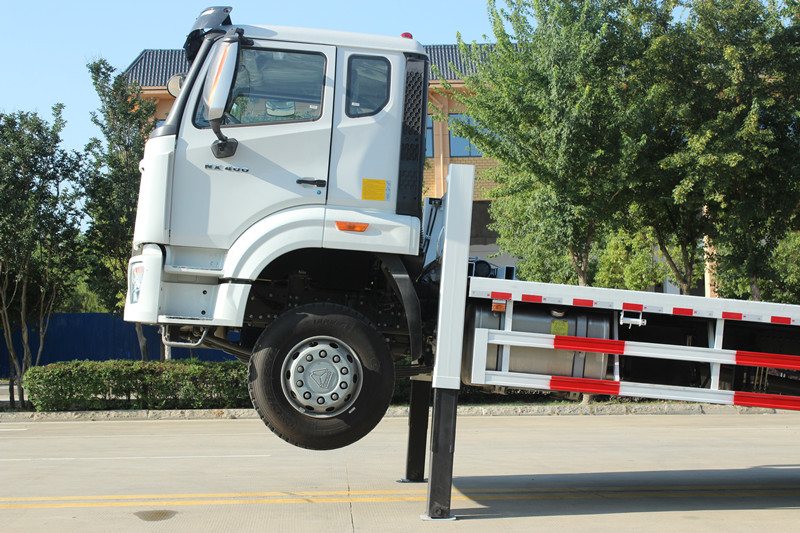

◇ Hydraulic Outriggers: The vehicle is equipped with two large-capacity hydraulic outriggers at the front. They are lowered during loading and unloading operations to provide stable front support for the vehicle, preventing the front of the vehicle from tilting and ensuring a safe and smooth loading and unloading process.



◇ 20-ton Hydraulic Winch: The 45-meter-long wire rope provides up to 20 tons of pulling force. This wire rope pulls heavy equipment smoothly onto and off the platform, providing the core power source for self-loading and unloading.

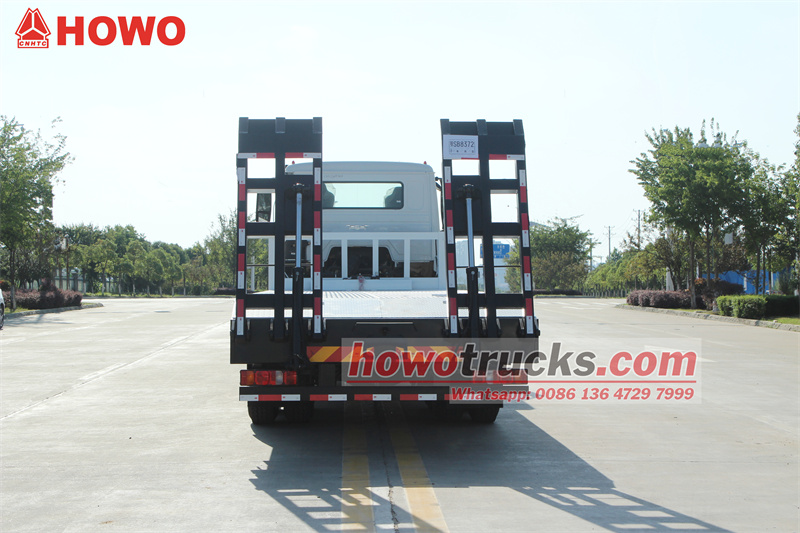

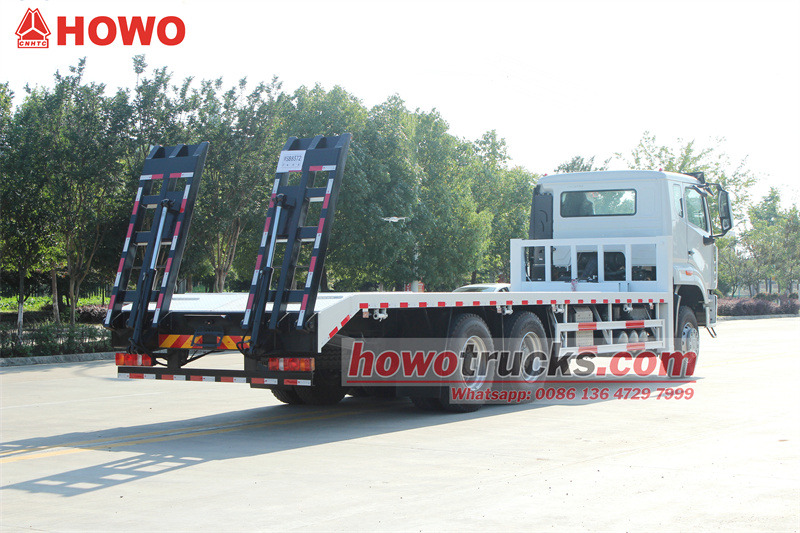

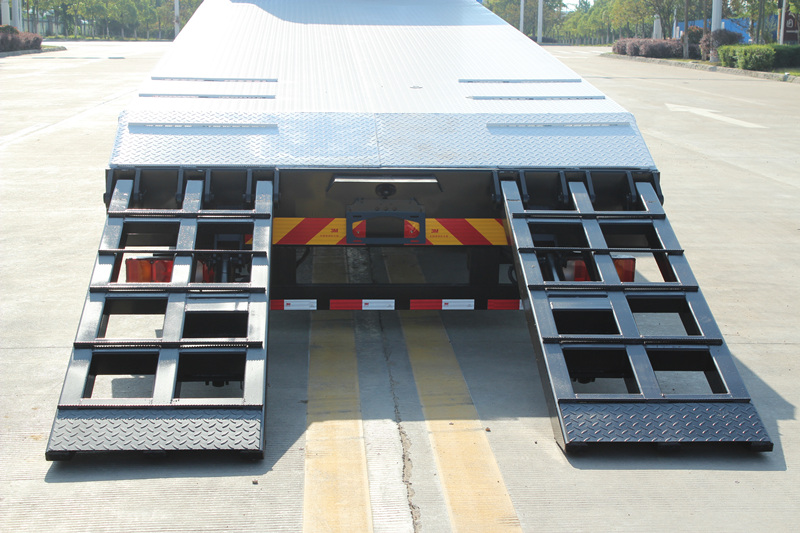

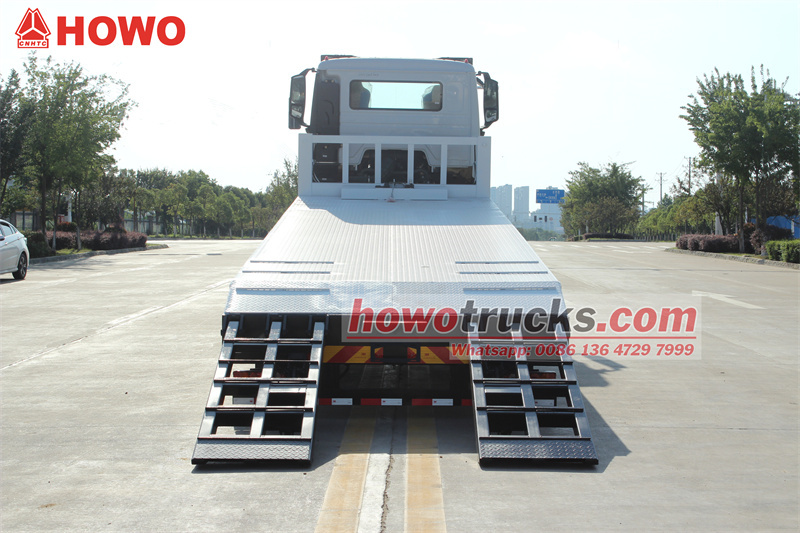

◇ Mechanical Spring-Loaded All-Steel Ramp: The rear of the vehicle is equipped with a 2.2-meter-long all-steel ramp. Assisted by a mechanical spring, the ramp is effortless and convenient to retract and extend. The high-strength ramp provides a convenient way for equipment to be raised and lowered automatically or pulled up by a winch.

• Operation:

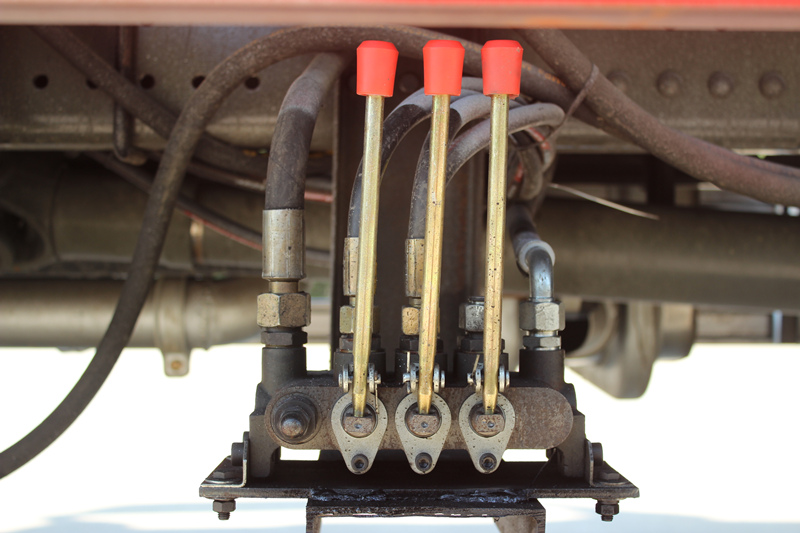

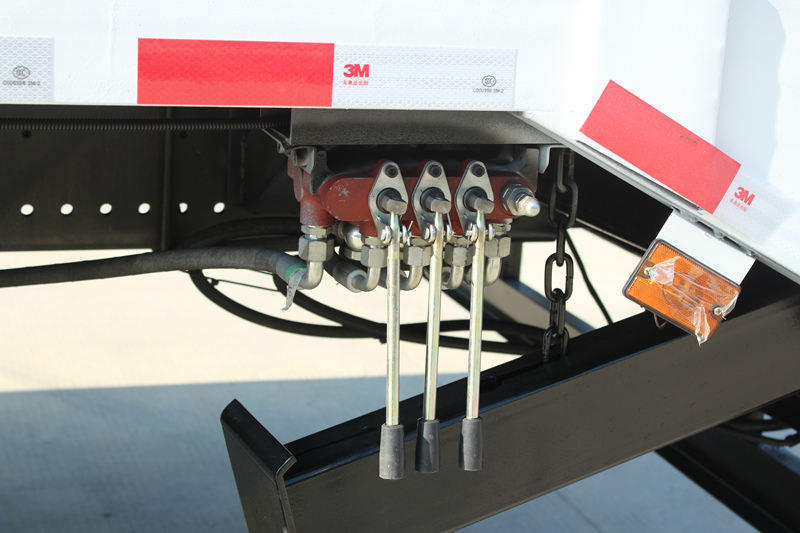

All functions (hydraulic outrigger extension/retraction, winch release/retraction, and ramp lowering/retraction) are controlled from control boxes located on the left and right sides of the rear of the vehicle. The operator can clearly observe the entire loading and unloading process from the rear of the vehicle, allowing one person to complete all loading and unloading operations efficiently and safely.





» Ⅳ. Application Scenarios

• Construction Machinery Rental Companies: Used for the delivery and recovery of various types of equipment, including excavators, small milling machines, and drilling rigs.

• Construction Sites: Used for the transfer of machinery and equipment within the construction site.

• Logistics and Transportation Companies: Used for the transportation of large, non-removable heavy equipment.

• Agricultural Cooperatives: Used for the transportation of large agricultural machinery, such as tractors and harvesters.

• Emergency Rescue: Used for the rapid delivery of emergency equipment to the front lines.
