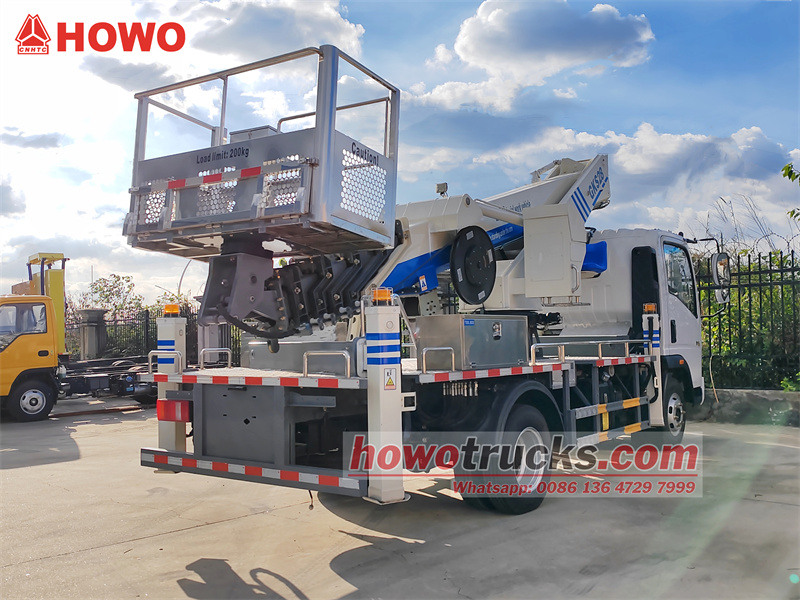

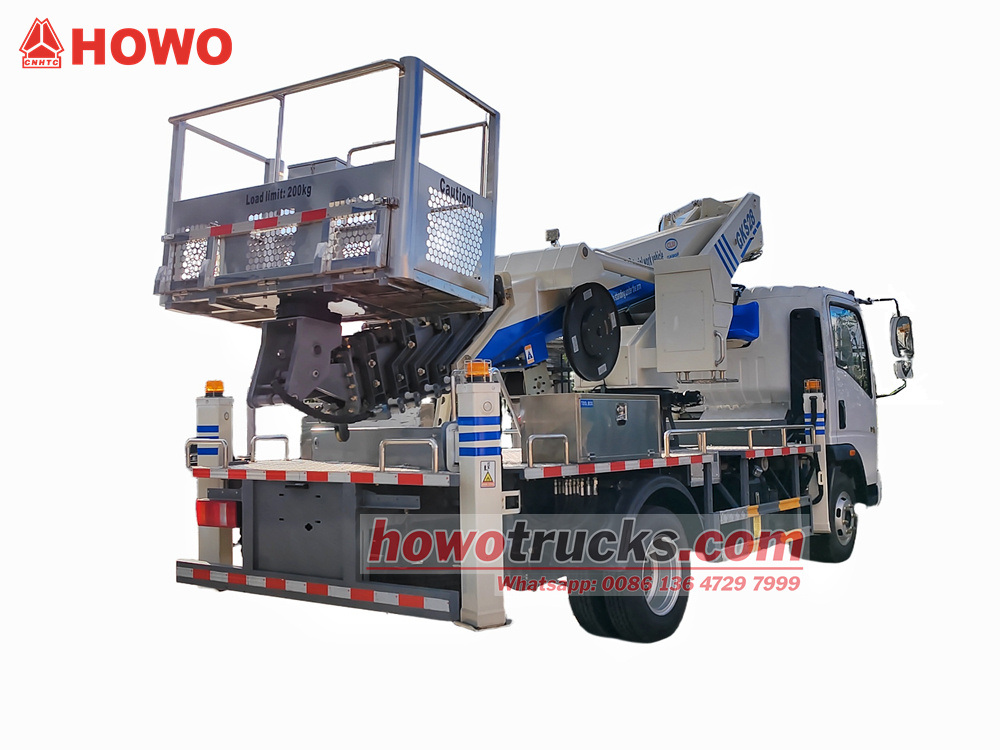

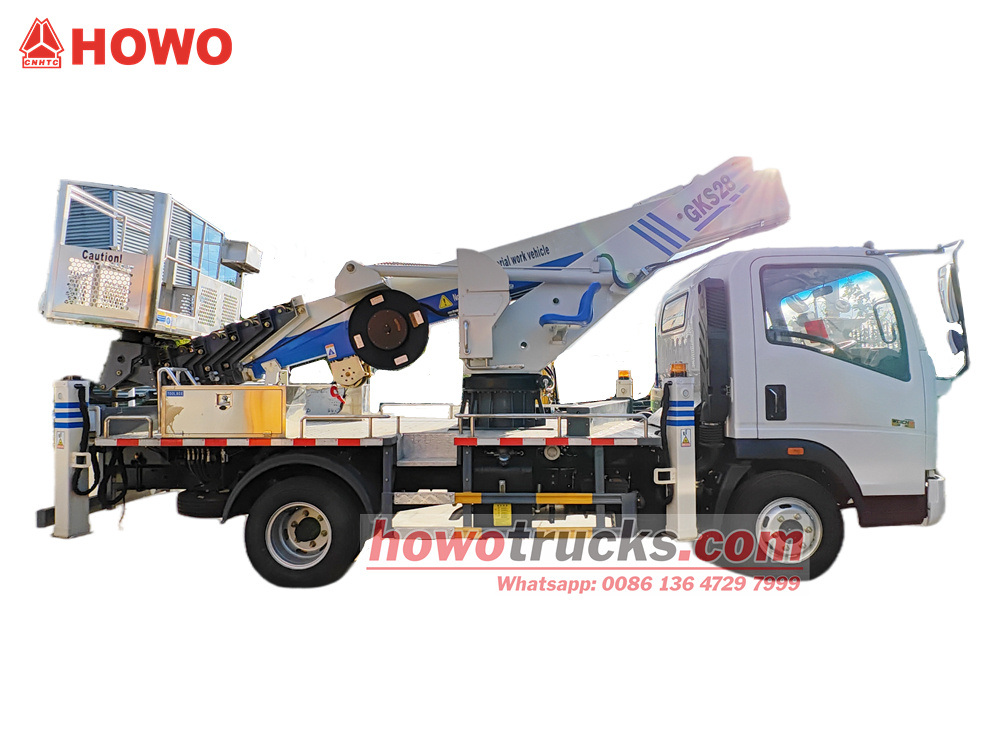

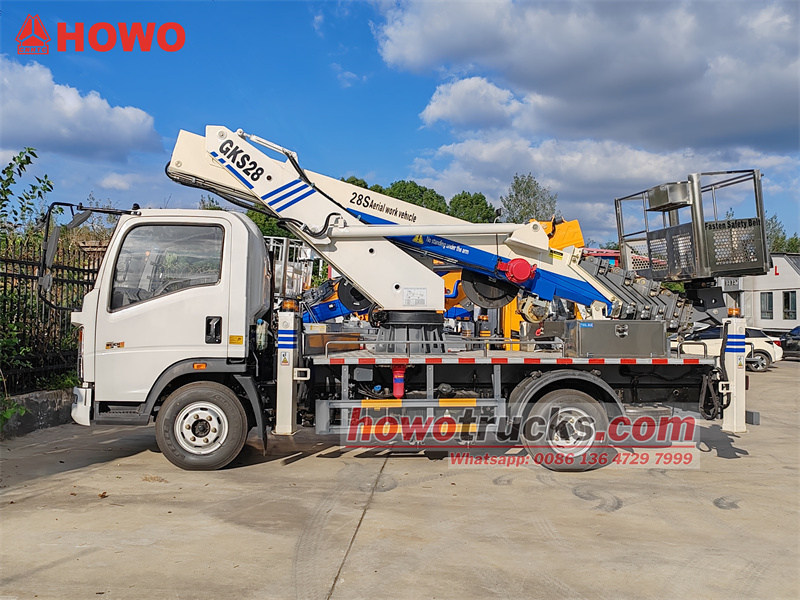

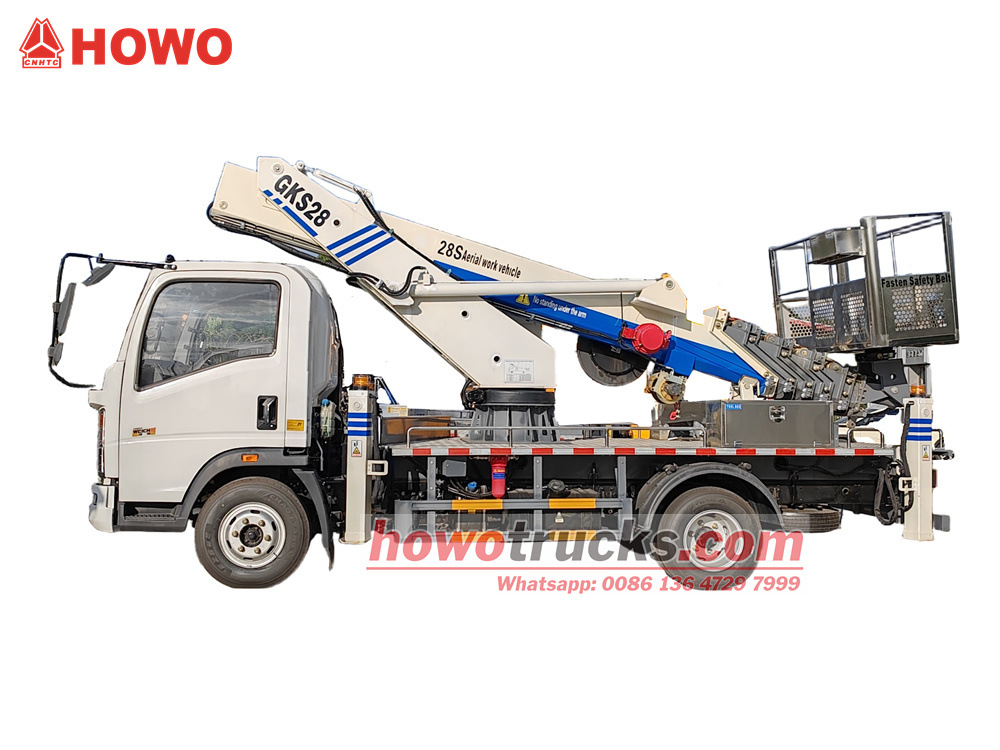

This RHD Sinotruk aerial work platform truck features a HOWO RHD light truck chassis with a 4500mm wheelbase. It's equipped with a Weichai WP2.3Q140E62 engine and a WLY6TS55 transmission.The upperbody features a 6-section telescopic boom, operated from a ground and turntable control box or by remote control. It can rotate 360 degrees, has four hydraulic outriggers, a maximum bucket load capacity of 200kg, aluminum alloy panels, and a patterned anti-skid walkway. It also includes nighttime operating lights.
Working capacity :
28mCabin type :
Howo RHD cabinDimension (mm ) :
7825x2350x2950mmDrive system :
4x2,LHDWheelbase ( mm) :
4500Engine specific :
140HP/WP2.3Q140E62Gear box :
WLY6TS55 transmission,6-speed,manualFront axle ( Kg ) :
3200Rear axle ( Kg ) :
7000Remark :
6-section telescopic boom
Manufacturer:CS TRUCKS GROUP LIMITED.
We are a professional manufacturer of special vehicles,
Brand-New and 100% Quality guaranteed.
▶Ⅰ. Product Introduction:

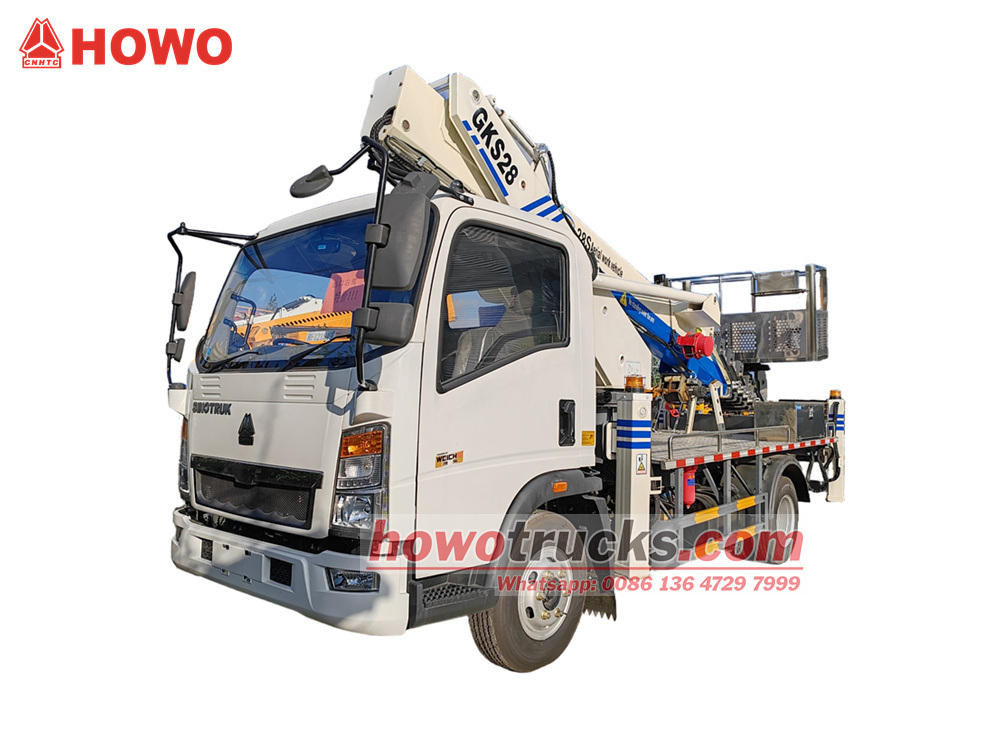

The Right Drive 28M HOWO Aerial Work Truck combines efficiency, safety, and intelligence, specifically designed for aerial work scenarios. It utilizes a Sinotruk right-hand-drive light truck chassis with a 4,500mm wheelbase for superior adaptability. The Weichai China VI engine and 6-speed transmission combine for powerful and environmentally friendly performance. The six-section telescopic boom supports 360° rotation, and the ground control box, turntable, and remote control offer flexible and convenient operation. The mechanical self-balancing work platform ensures operational stability. Four hydraulic outriggers (front X-shaped and rear H-shaped) independently adjust to adapt to complex terrain and prevent beam deformation.
Nighttime operating lights, an intelligent linkage system, and real-time working status display enhance safety and efficiency. Core components are imported from renowned domestic brands, and equipped with safety features such as two-way hydraulic locks and counterbalance valves, making it an efficient and reliable choice for applications in municipal administration, construction, and emergency rescue.
▶Ⅱ. Product Advantages:1. High Adaptability: Right-hand drive design, reasonable wheelbase, and high-performance chassis.
2. Intelligent Operation: Linked control system and real-time monitoring enhance efficiency and safety.
3. Optimized Structure: Hexagonal boom and independent outrigger adjustment adapt to complex terrain.
4. Quality Assurance: Imported core components, stable and reliable hydraulic system, and low maintenance costs.
▶Ⅱ. Product Specifications:
|
HOWO 28m Aerial Work Truck |
|||||
|
Vehicle Description |
|||||
|
Vehicle model |
Platform Truck |
Overall dimensions |
7825x2350x2950mm |
||
|
GVW |
9890kg |
Working height |
28m |
||
|
Curb weight |
6280kg |
Max. Speed |
95km/h |
||
|
Chassis Description |
|||||
|
Chassis brand |
ISUZU |
||||
|
Cab |

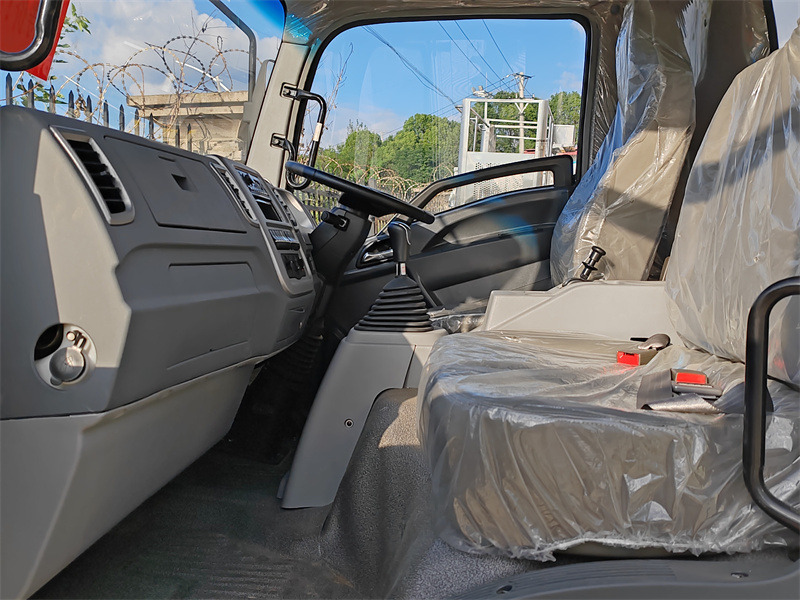

HOWO RHD light cab,2 seats, with A/C |
||||
|
Wheel base |
4500mm |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
3.2T |
|||
|
Rear axle |
8T |
||||
|
Front/rear wheel track |
1798 /1764mm |
||||
|
Front/rear overhang |
1240 /2085mm |
||||
|
Traction system |
4x2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Air brake |
||||
|
Transmission |
WLY6TS55 transmission,6-speed,manual |
||||
|
Tire specification |
8.25R20 |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
WEICHAI ENGINE |
||||
|
Engine model |
WP2.3Q140E62 |
||||
|
Horse power |
140HP/103kW @3200rpm |
||||
|
Type |
Water-cooled four-stroke, 4 cylinder inline, supercharged inter-cooling,diesel |
||||
|
Max torque |
320N·m@ 1400-2400rpm |
||||
|
Displacement |
2289ml |
||||
|
Emission standard |
Euro 6 |
||||
|
Up-parts Description |
|||||
|
Working condition |
|||||
|
Boom type |
6-section synchronous telescopic boom |
||||
|
Rotation Angle |
Bidirectional 360 º continuous rotation, hanging basket 360 º rotation |
||||
|
Max. working height |
28m |
||||
|
Max. working radius |
14.5m |
||||
|
Operating position |
Turntable, control box, wireless remote control |
||||
|
Control mode |
ZYK bus control system, electro-hydraulic proportional control system, to achieve stepless speed regulation |
||||
|
Hoardings and walkways |
Aluminum plate, aluminum checkered plate |
||||
|
Bucket |
|||||
|
Rated loading |
200kg,anti-slip floor |
||||
|
Size |
1000*750*1100 mm |
||||
|
Material |
Stainless steel |
||||
|
Adjusting balance mode |
Hydrostatic Leveling System |
||||
|
Safety belt |
1 set |
||||
|
Outrigger |
|||||
|
Type |
Front V type / Rear H type |
||||
|
Number |
4 |
||||
|
Adjustment |
Adjusted separately, or controlled in a coordinated manner |
||||
|
Supporting leg Control mode |
Manual hydraulic operation |
||||
|
Hydraulic lock |
Two-way hydraulic lock for four legs |
||||
|
Strobe light on legs |
Yellow lights |
||||
|
Front outrigger horizontal span |
4370mm |
||||
|
Rear outrigger horizontal span |
4150mm |
||||
|
Security configuration |
|||||
|
Automatic interlock device for different operating position |
Prevent the risk of misoperation |
||||
|
Hand-operated emergency pump |
When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state |
||||
|
Emergency stop device for working platform |
Used for emergency stop operation and restricted boom operation |
||||
|
Automatically limit work range |
When the working range reaches the specified value, the dangerous direction is automatically restricted. |
||||
|
Leakage protection device |
Equipped with leakage protector to ensure the safety of power supply and power tools |
||||
▶Ⅲ. Product Details:

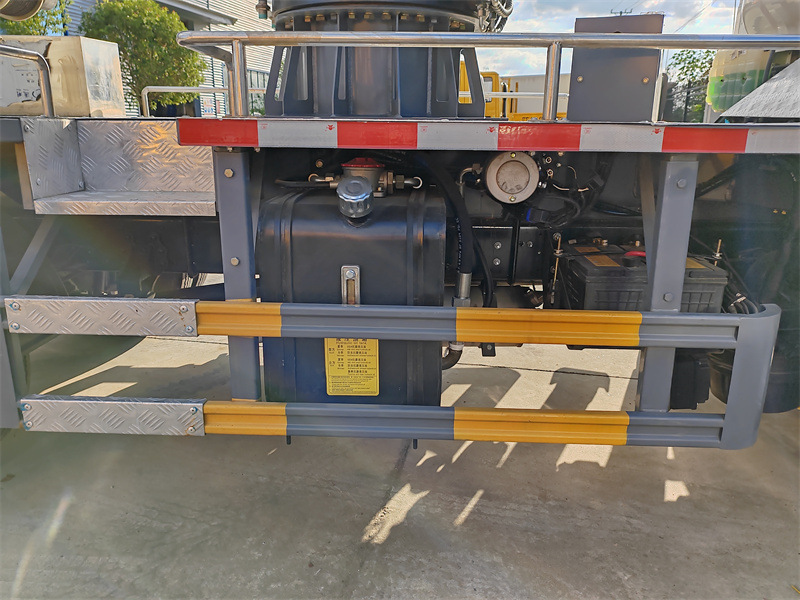

Chassis Configuration
• Chassis: Utilizes Sinotruk's proven and reliable right-hand-drive light truck chassis, ensuring guaranteed quality.
• Wheelbase: 4500mm, providing excellent driving stability and ample space for the upper bodywork.
• Powertrain: Equipped with the Weichai WP2.3Q140E62 high-performance engine, 2.3L displacement, 140 horsepower, and meeting Euro VI emission standards.
• Transmission: Matched to the WLY6TS55 six-speed transmission.

Upper Body Structure:

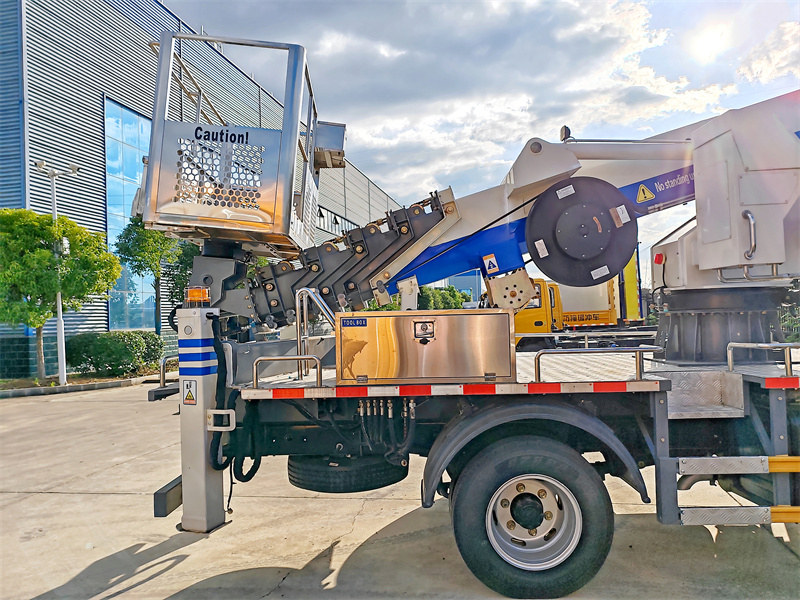

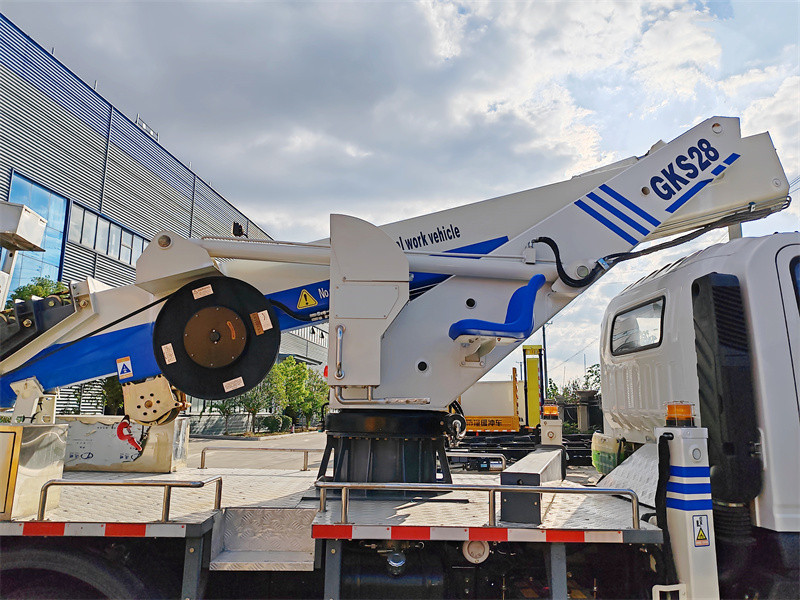

• Working Boom: The five-section, high-strength telescopic boom features a hexagonal design for high structural strength, synchronized extension and retraction, smooth movement, and a wide working range.Max. working height 28m,Max. working radius 14.5m

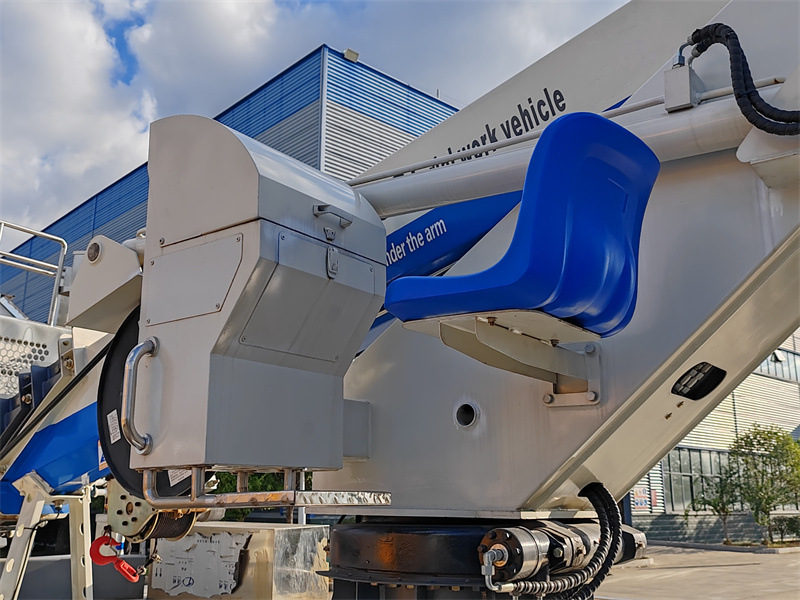

• Rotation System: The turntable rotates 360 degrees continuously, providing flexible operation and eliminating blind spots.

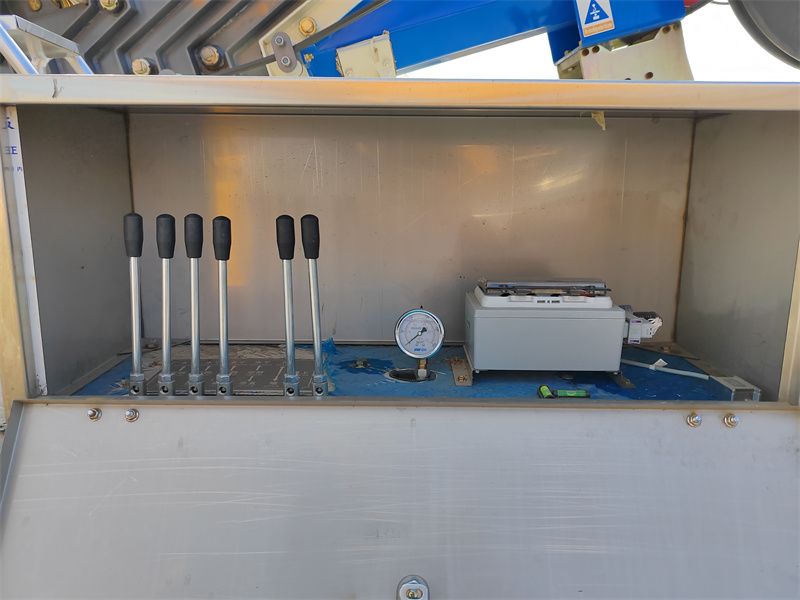

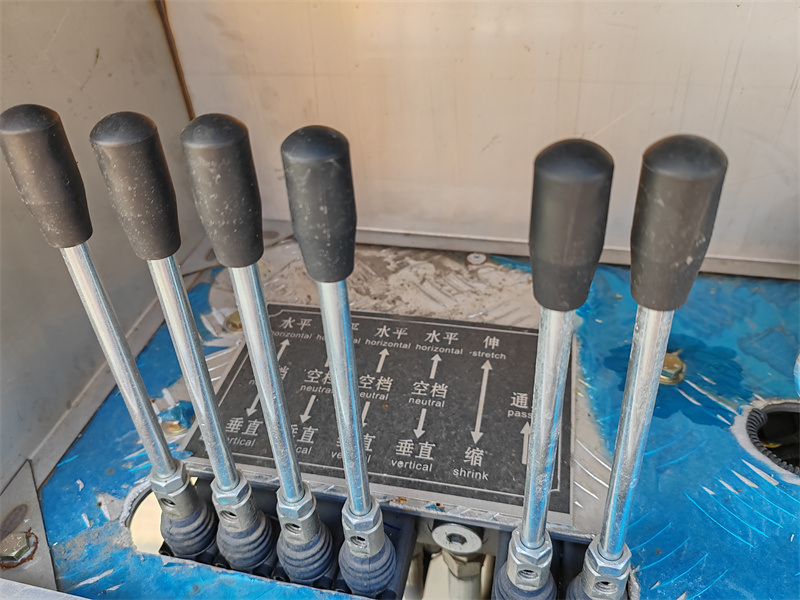

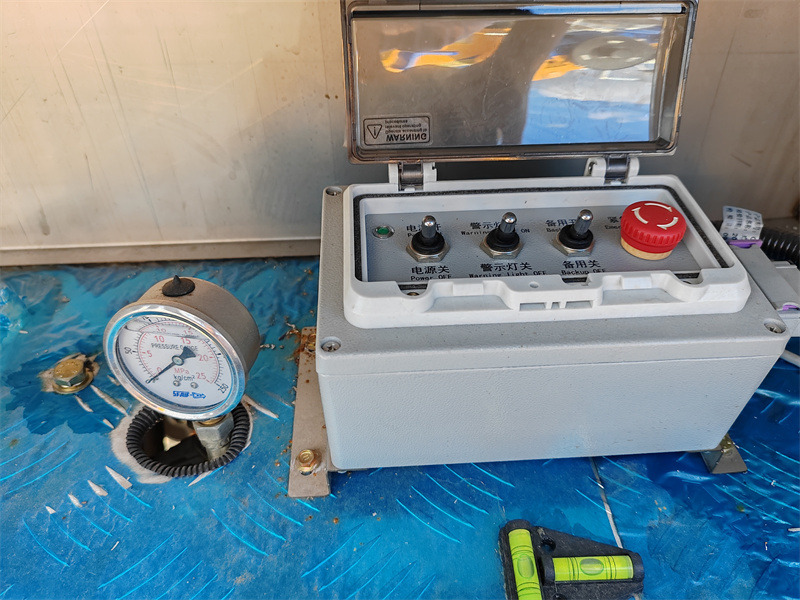

• Operation: The operator can choose the optimal operating position based on the site conditions by operating the turntable directly, using the ground control box, or using a wireless remote control.

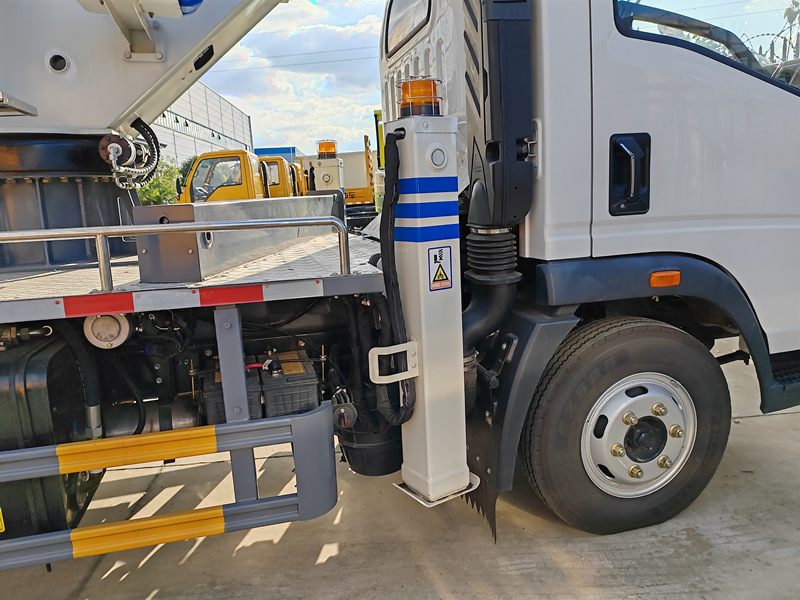

• Outrigger System: Equipped with four hydraulic outriggers in a front-X-rear H-shaped configuration, the outriggers provide a large support surface and excellent vehicle stability. The outriggers are individually adjustable to perfectly adapt to uneven surfaces and can also be controlled in conjunction. Work lights are installed on the outriggers.

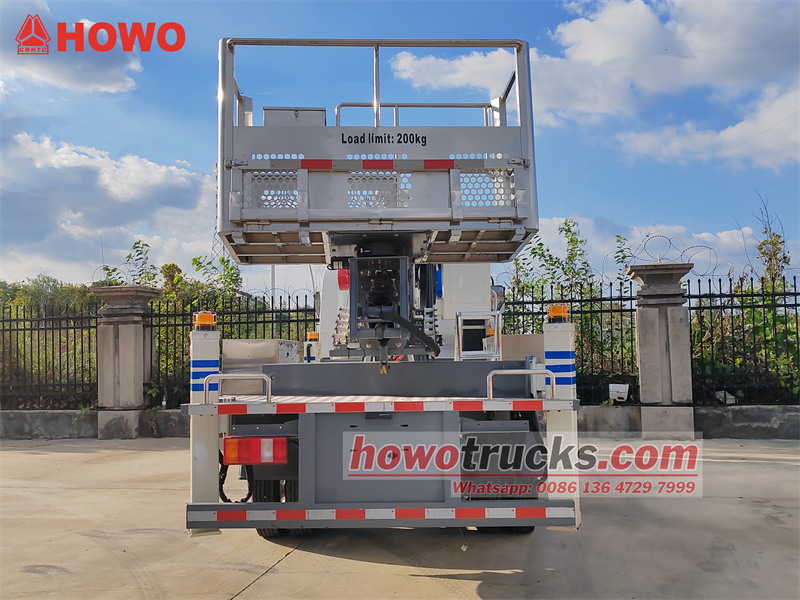

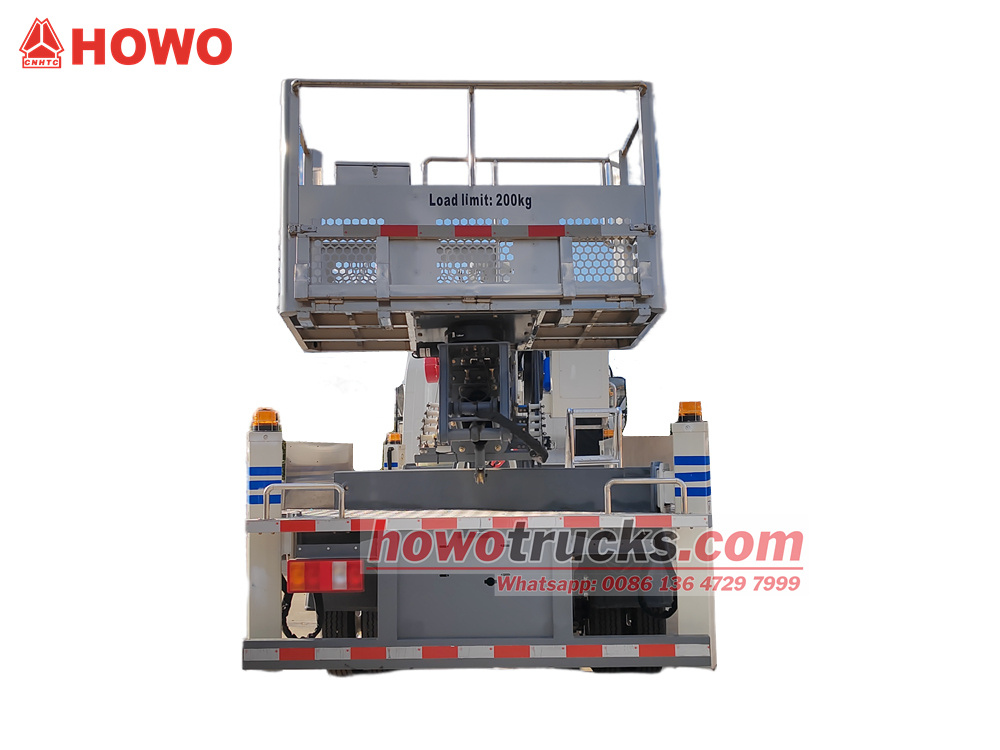

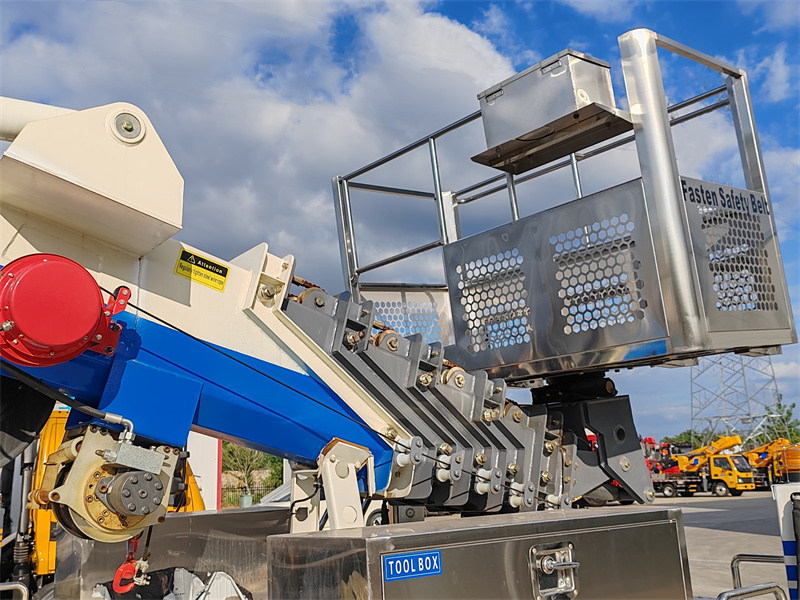

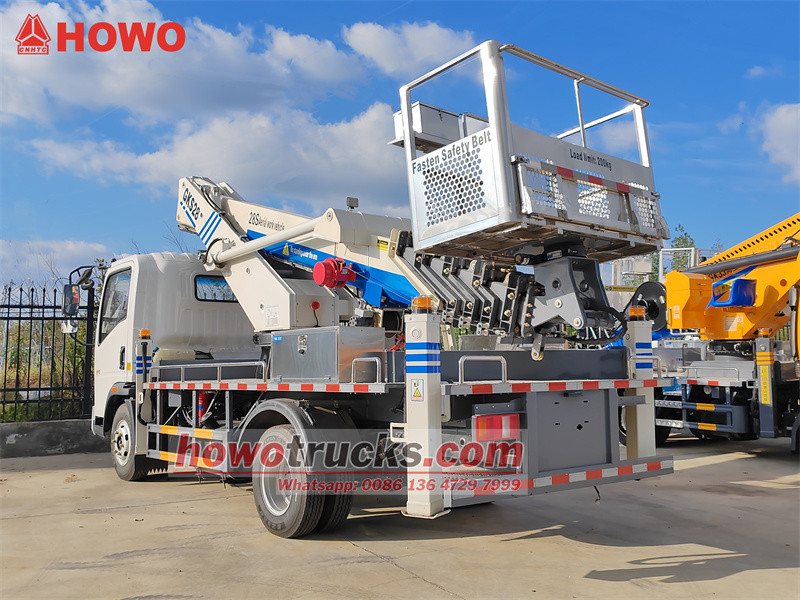

• Working Platform:
o A mechanical self-leveling design ensures the platform remains level during operation, ensuring operator safety and comfort.
o The platform has a maximum load capacity of 200 kg.
o The jib has a maximum extension angle of 80°, allowing for easy adjustment to the optimal working position.
o Aluminum alloy panels and patterned anti-skid walkways are used, which are lightweight, safe and non-slip.

Comprehensive Safety System
1. Intelligent Interlock and Alarm:
Outrigger and boom interlock: Ensures the boom cannot move unless the outriggers are fully supported and secure, fundamentally preventing misoperation.
Computer-controlled automatic amplitude limiting: The system automatically monitors the operating amplitude, automatically limits movement when the limit is exceeded, and issues a dangerous operation alarm.
Outrigger soft leg protection and tilt alarm: The system automatically alarms when the outriggers are not supported or tilt.

2. Multiple Hydraulic System Safety Features:
All vertical outrigger cylinders, upper and lower boom cylinders, and forearm cylinders are equipped with two-way hydraulic locks, which reliably lock the cylinders in any position to prevent accidental drops.
The boom is equipped with a two-way counterbalance valve for smooth and impact-free boom operation.
Core hydraulic components (such as hydraulic locks, counterbalance valves, and wave valves) are from renowned domestic and international brands, and key components are imported to ensure system reliability.

3. Real-time Operating Condition Monitoring:
The four-in-one operating system integrates linkage control for high efficiency. Displays on both the off-board operating console and the remote control provide real-time visibility of the vehicle's operating status, allowing the operator to clearly understand the equipment's status.
4. Emergency Safety:
Equipped with an engine start-stop emergency pump, this pump can retract the boom and outriggers in the event of an engine stall or malfunction, ensuring safe evacuation in an emergency.
5. Nighttime Operation Light:
Optional lighting can be installed on the operating console to ensure clear visibility and enhance safety during nighttime operations.
▶Ⅳ. Application Scenarios:

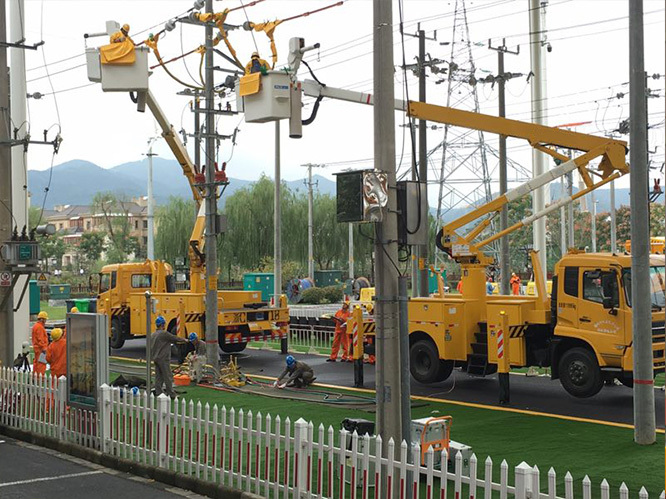

• Municipal Engineering: Streetlight maintenance, traffic signal installation.

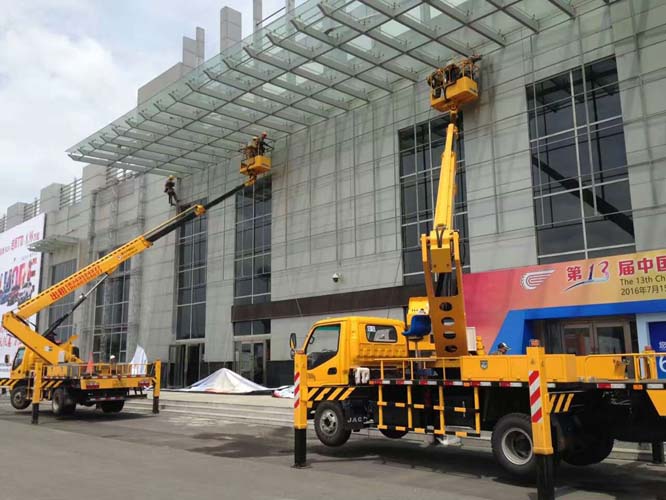

• Building Maintenance: Exterior wall cleaning, glass curtain wall inspection.
• Emergency Rescue: High-altitude rescue, disaster relief.
• Nighttime Construction: Bridge inspection, billboard installation.
