The great advantage of HOWO 4x4 off road skip loader

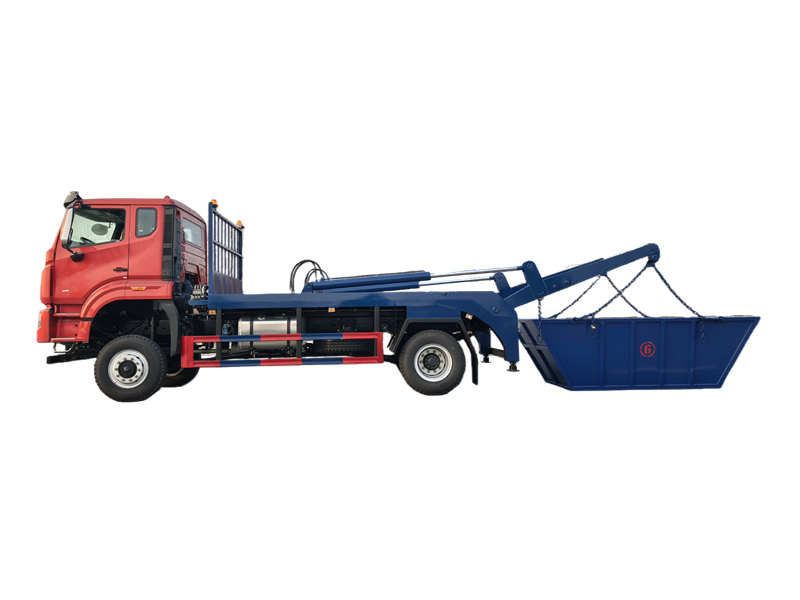

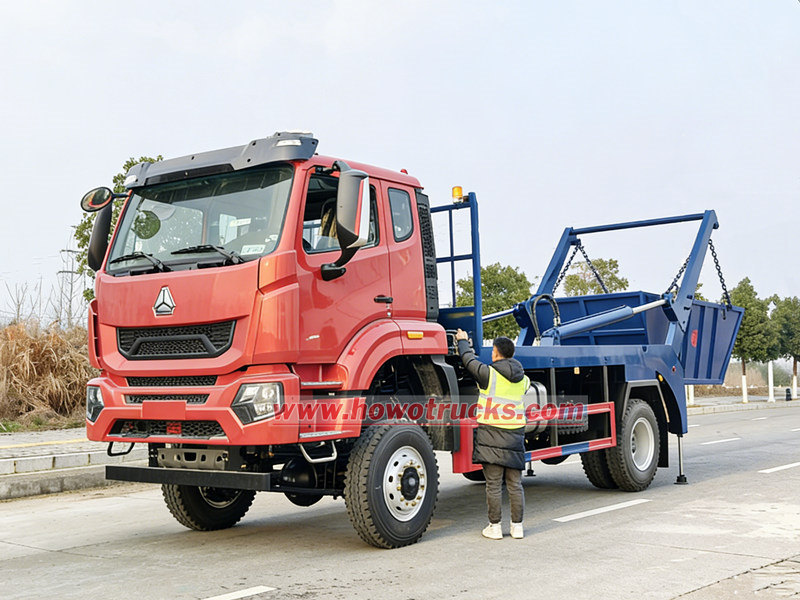

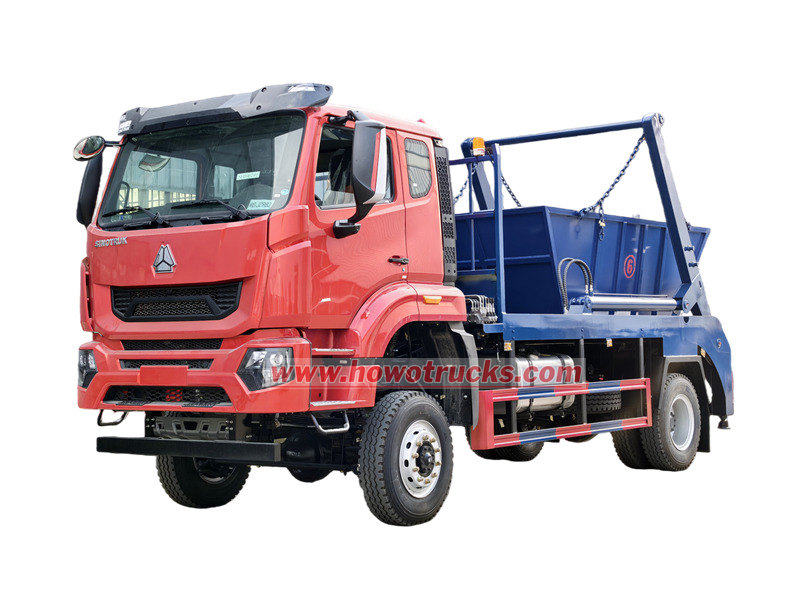

What is HOWO 4×4 skip loader truck?

The HOWO 4×4 skip loader garbage truck is manufactured by installing a platform and a hydraulic lifting system on the HOWO 4×4 all-wheel drive chassis. Its core feature is a liftable swing arm mechanism, controlled by a hydraulic system, which can easily load and transfer standard garbage containers. This design allows for flexible operation even on narrow streets, making it particularly suitable for confined spaces such as residential communities and commercial areas.

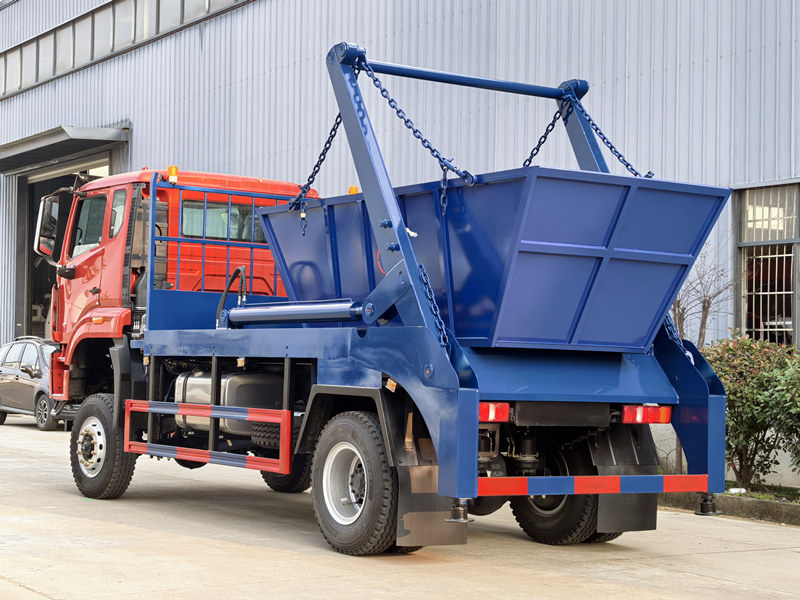

HOWO 6CBM Skip Bin Truck Specifications

Chassis	HOWO 4×4, WP12.400E50, 400HP
Container volume	6 CBM
Material	Carbon steel Q235; wall: 3mm; floor: 4mm
Payload	6~8 tons
Swing angle	145°
Working recycle time	60S (loading + unloading)

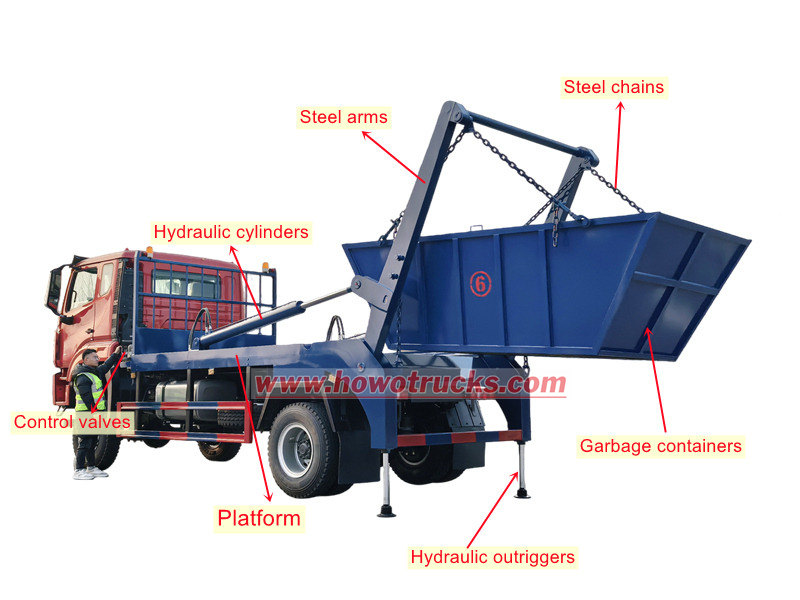

HOWO skip loader structure



HOWO skip loader garbage truck consists of:



1. HOWO 4×4 chassis
2. Platform
3. Swing arm with chains
4. Hydraulic cylinders
5. Outriggers
6. Control valves
7. Garbage container

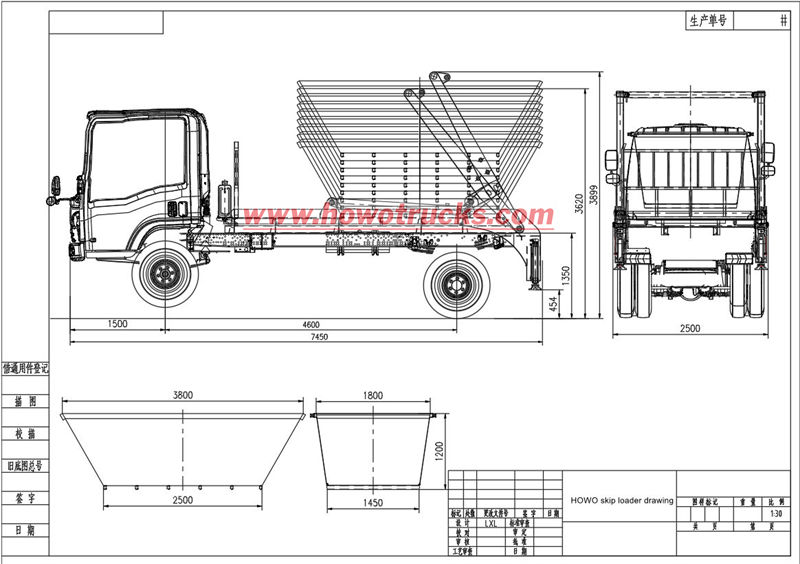

HOWO 4×4 skip loader drawing

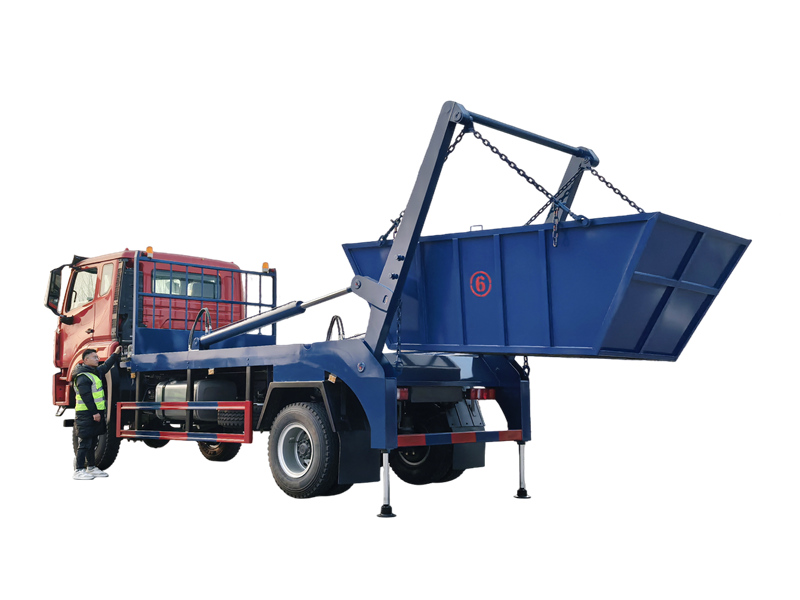

Working principle of HOWO skip bin lifter truck

The HOWO 6CBM skip bin loader is a specialized sanitation vehicle which has a separate truck and several garbage containers. Its core feature is using a hydraulic swing-arm mechanism to achieve rapid loading and unloading of the garbage container and dumping. It supports one truck with multiple containers and cyclical operation, and is especially suitable for short-distance garbage collection in urban areas.

HOWO 4×4 hook lift bin lorry applications

HOWO 6CBM skip loader trucks can be used in the following scenarios:

1. City streets

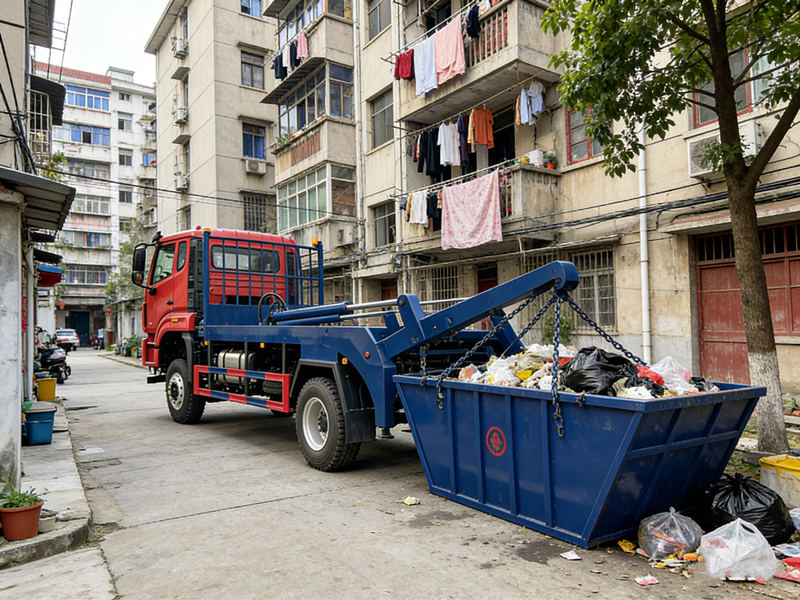

2. Residential communities
3. Public places such as schools, hospitals, parks, and scenic spots

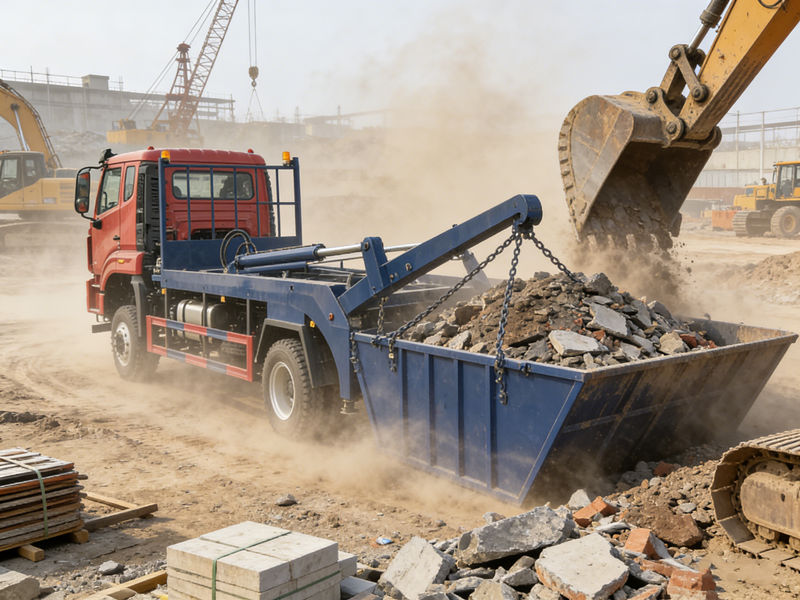

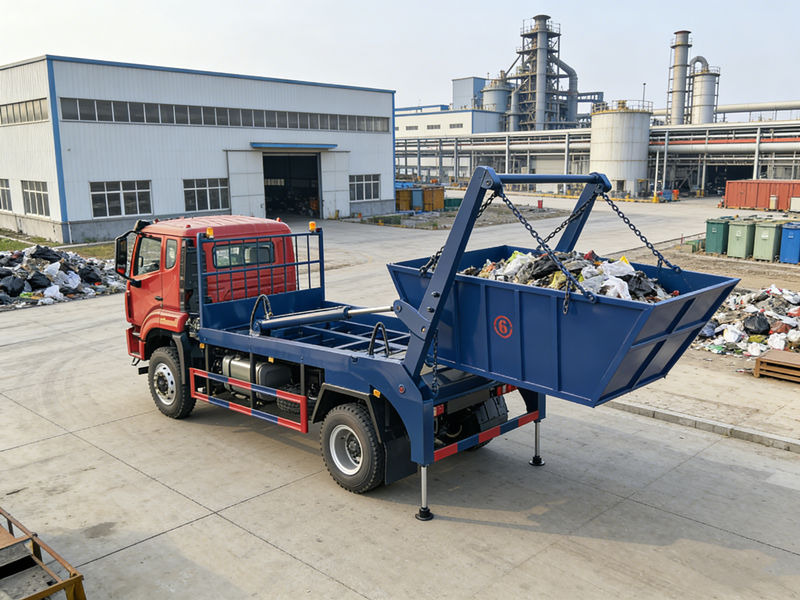

4. Commercial districts and industrial areas
