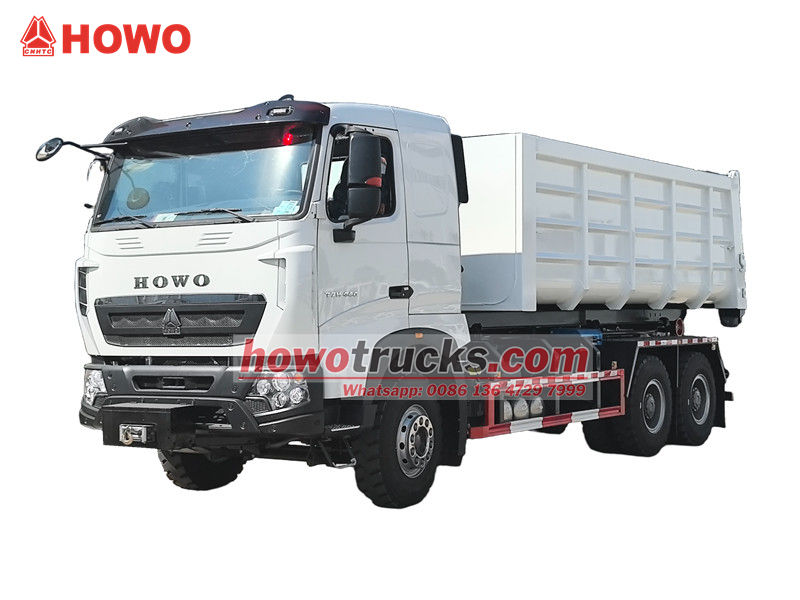

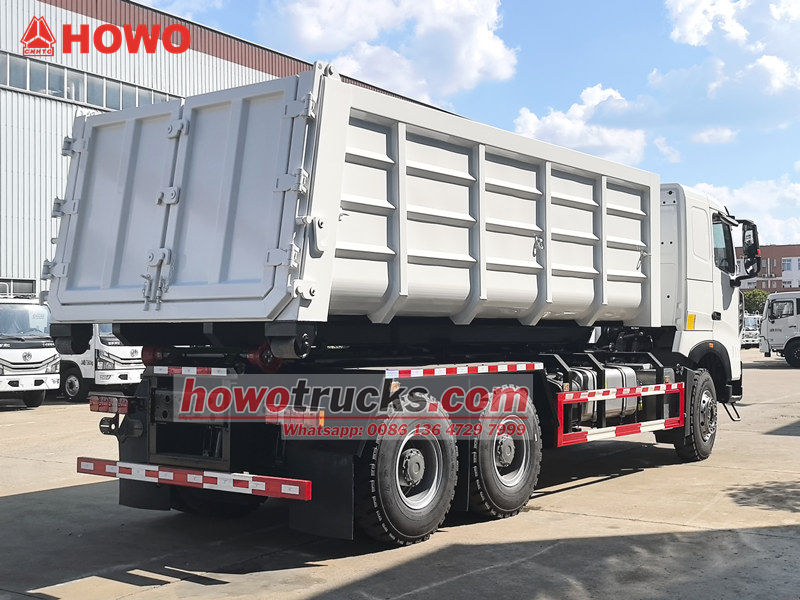

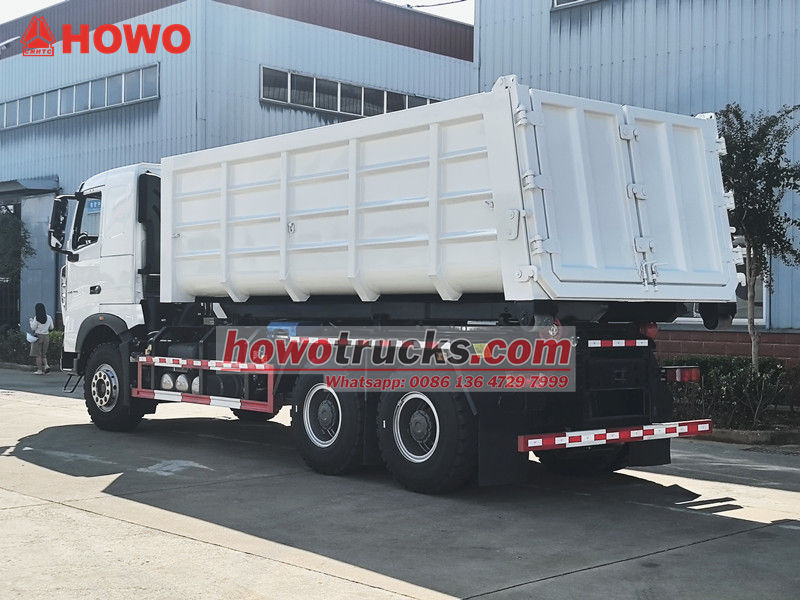

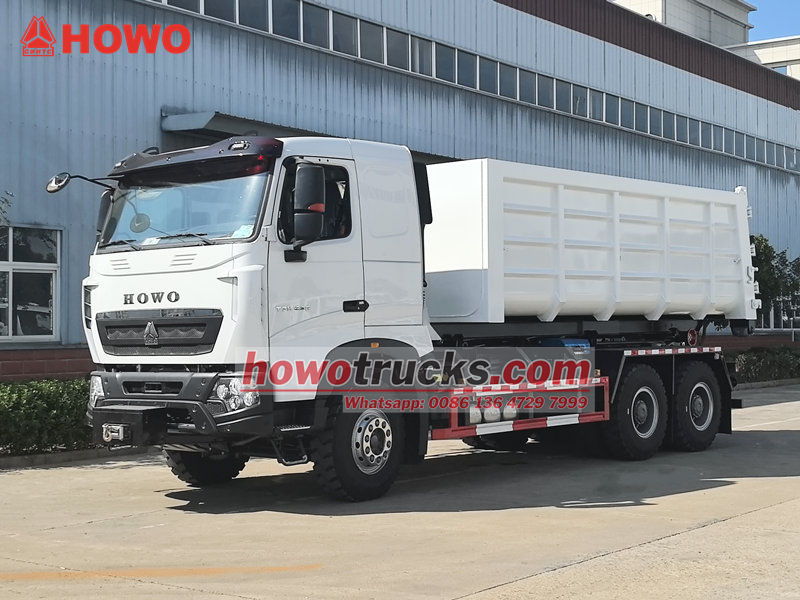

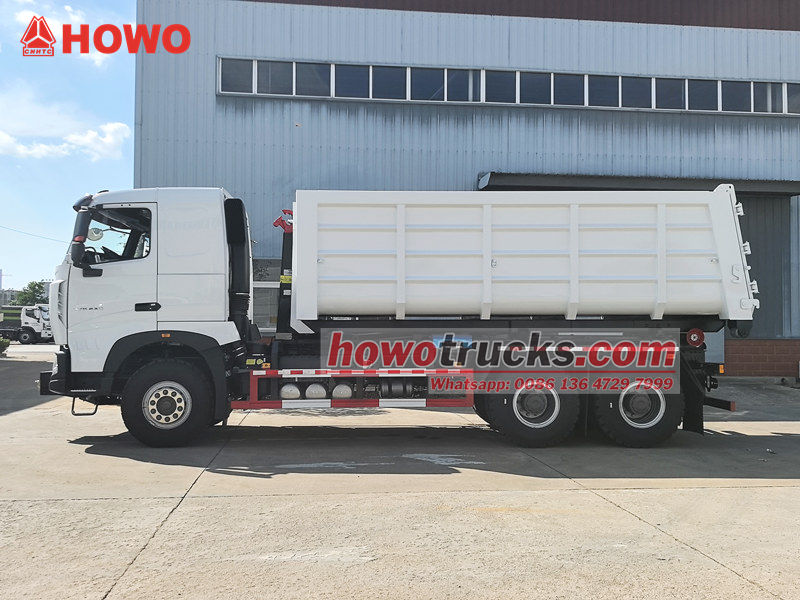

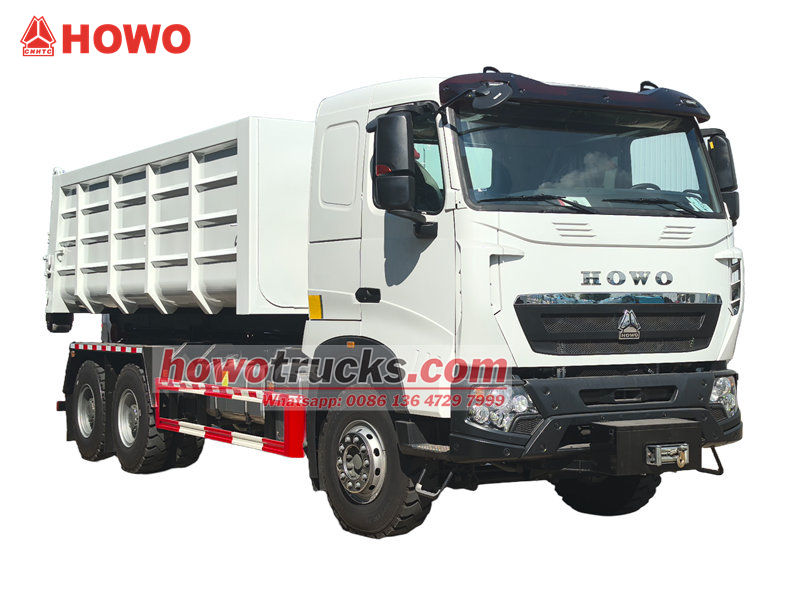

HOWO 20tons hook loader truck

The HOWO 20-ton hook loader truck is a specialized sanitation vehicle with a "multi-bin" function, primarily used for waste collection and transportation in cities, residential areas, factories, and construction sites. A hydraulic control system drives the hook arm, allowing for easy loading, transporting, and unloading of removable waste bins, significantly improving operational efficiency.

The HOWO hook loader truck boasts a rational design and flexible operation, enabling rapid replacement and turnover of waste bins, reducing idle travel and saving transportation costs. Its adaptability, efficiency, and ease of maintenance make it a highly effective tool for modern sanitation operations.

The HOWO 20tons hook loader truck is a highly efficient and reliable vehicle designed for urban and suburban waste management. With 4325+1350mm wheelbase with MC11.44-50 440hp diesel engine,10.518L emission. HW19710 transmission,10-forward gear, 2-reverse gear, 12.00R20 tires with totally 11 pcs, with A/C,USB,direction assistance,3 seats.The carriage and chassis adopt a separate structure. Through the hydraulic hook arm device at the rear of the vehicle, it can quickly hook up and transport standard garbage bins, realizing a "one vehicle, multiple bins" circulation operation mode.

The HOWO 20tons hook loader truck also called HOWO 6x4 Hook-arm garbage truck, HOWO 10 wheels roro hook lift truck, HOWO hook lifting truck, HOWO 440hp hook garbage truck, etc. The vehicle is modified on the HOWO 6x4 heavy-duty chassis chassis,equipped with a powerful MC11.44-50 diesel engine and HW19710 gearbox, powerful, smooth shifting, ensuring excellent driving performance and operating stability.It is widely used in various working environments such as urban roads, residential areas, factories and construction sites.

●The HOWO 20-ton hook loader truck primarily relies on a hydraulic system to drive the hook arm, completing the loading, unloading, and transport of waste bins.

●When the hydraulic cylinder pushes the hook arm to extend and retract, it hooks the waste bin and pulls it to the truck bed for secure loading. Once the operation is complete, the bin is hydraulically unloaded or dumped.

●The entire process is simple and efficient, and offers the advantage of "one truck, multiple bins" for recycling, significantly improving the flexibility and cost-effectiveness of waste collection and transportation.

» .Product Details & Advantages:

1. Reliable vehicle performance.

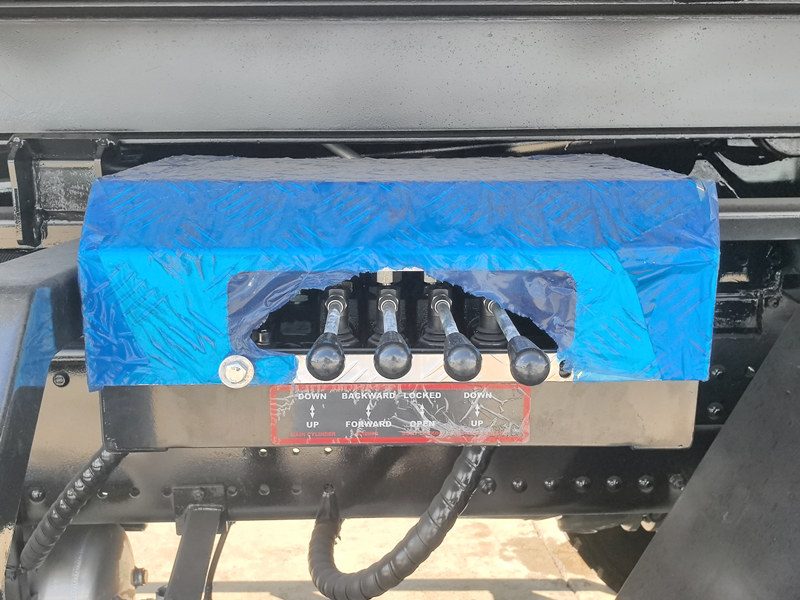

●The HOWO hook-arm garbage truck consists of a chassis, hydraulic system, hook arm mechanism, and removable garbage bin. The hydraulic system drives a cylinder to extend and retract the hook arm, enabling automatic loading, unloading, and dumping of the garbage bin.

●The entire process is simple and safe, reducing both labor and workload. The vehicle chassis can be configured as light, medium, or heavy duty to meet the needs of different garbage transportation scenarios.

2. High operational efficiency.

●The HOWO 20-ton hook lift truck's greatest advantage is its "multiple bins per vehicle" design, meaning it can be used with multiple garbage bins.

●While the truck is transporting garbage, the unused bins can be put back into use, eliminating waiting time and improving collection efficiency.

●Compared to fixed-bin garbage trucks, it effectively reduces idle travel, lowers fuel and maintenance costs, and offers high economic benefits.

3. Wide Range of Applications.

●The HOWO 20-ton hook loader truck is suitable for a variety of applications, including urban and rural waste collection, construction site waste transfer, and factory solid waste transportation.

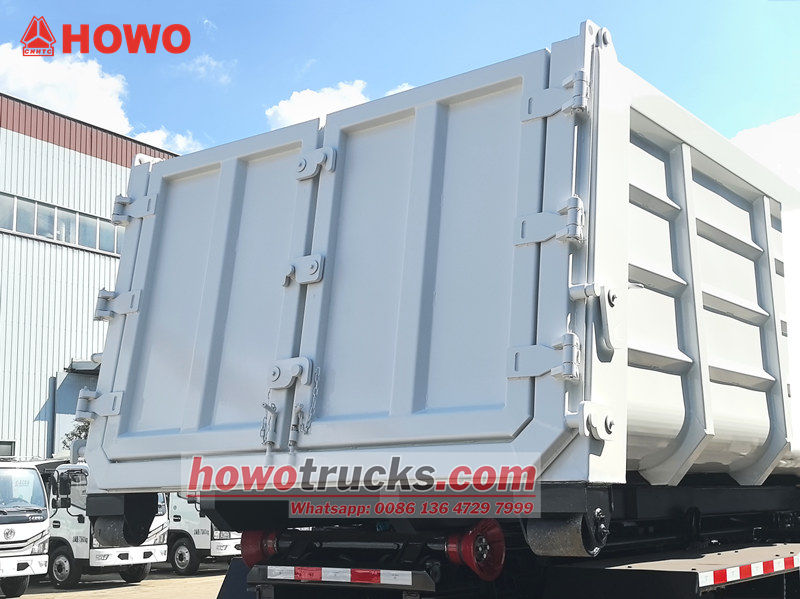

●The well-sealed trash bin prevents spillage and odor leakage during transportation, effectively preventing secondary pollution.

●The vehicle's flexible operation allows for efficient garbage collection in streets and residential areas, meeting sanitation needs in diverse environments and providing a strong foundation for improving urban sanitation and enhancing operational efficiency.



•
•
•
