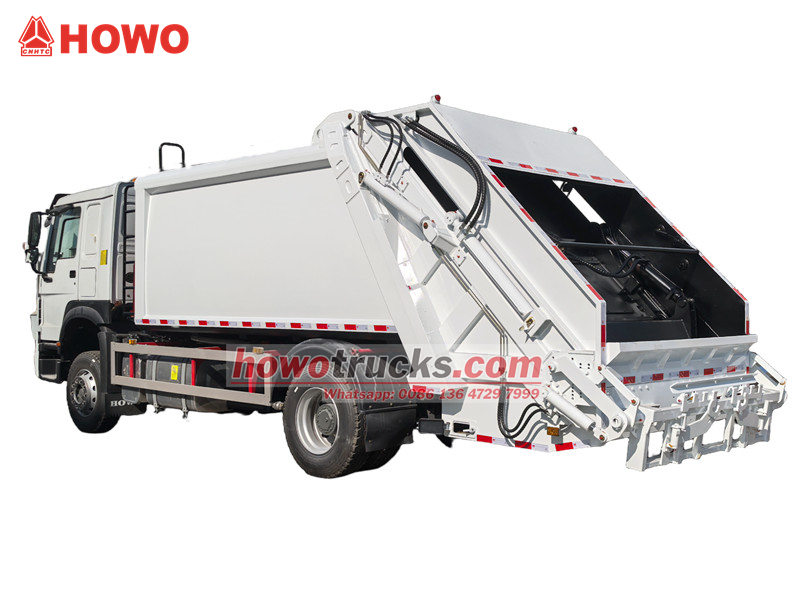

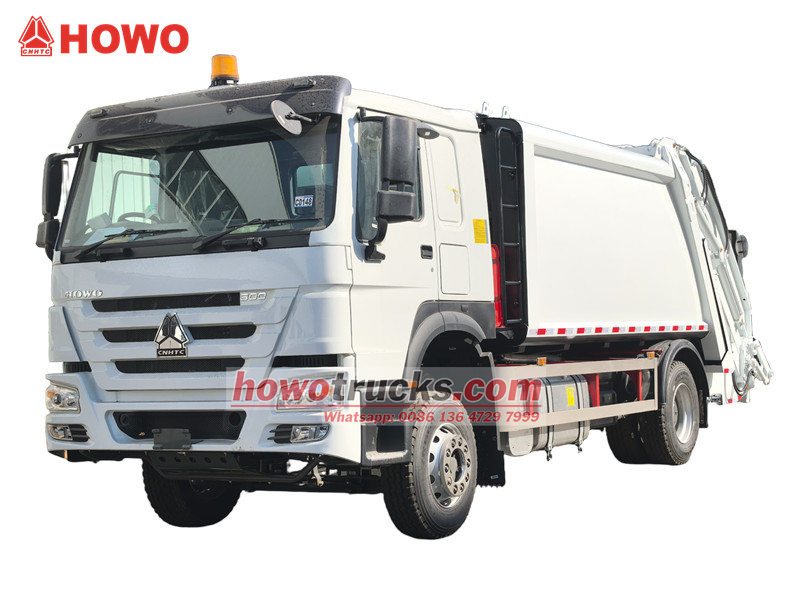

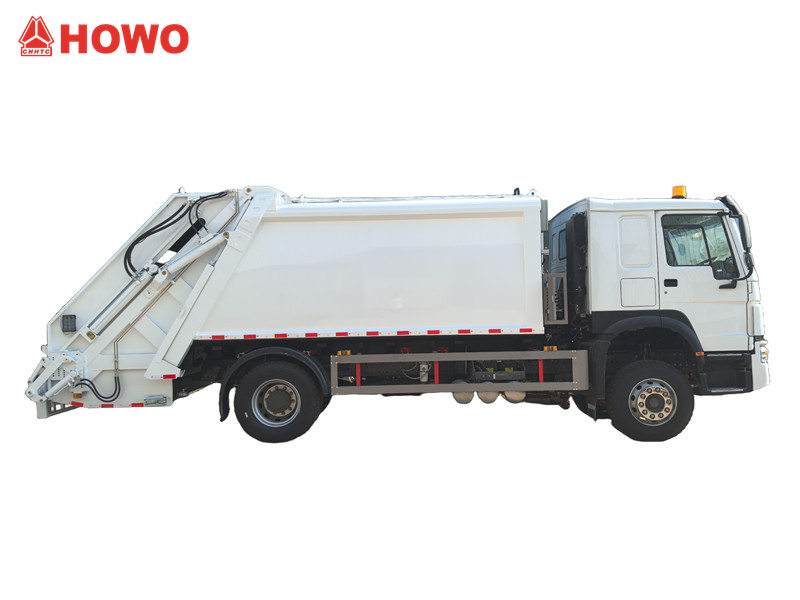

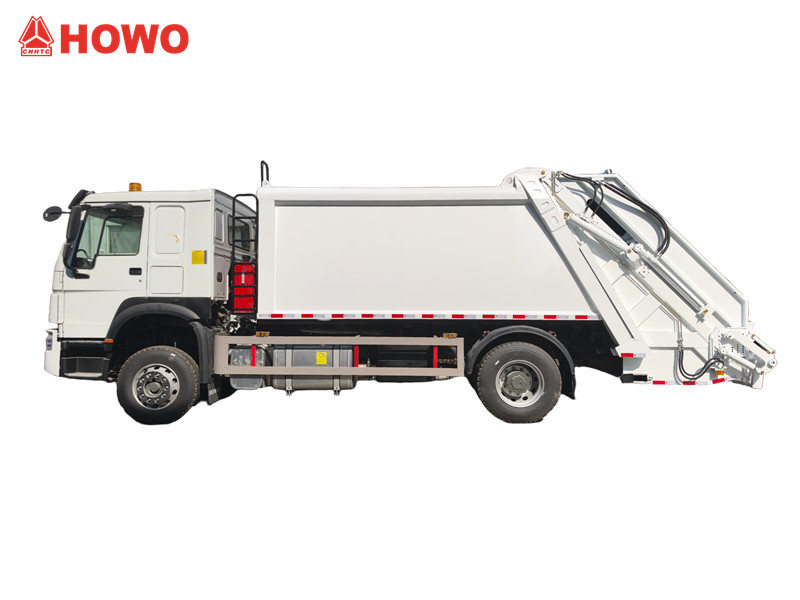

Howo RHD 14cbm garbage compactor truck

The Howo garbage compactor truck is a specialized vehicle used for urban sanitation operations, primarily for collecting, compressing, and transporting domestic waste.

The vehicle fully enclosed design prevents spillage and secondary contamination during transportation, maintaining a clean environment. Its simple operation system allows operators to complete operations safely and reliably, either automatically or manually. The Howo garbage compactor truck is widely used in urban streets, communities, residential areas, and industrial parks, and is an essential component of modern sanitation systems.

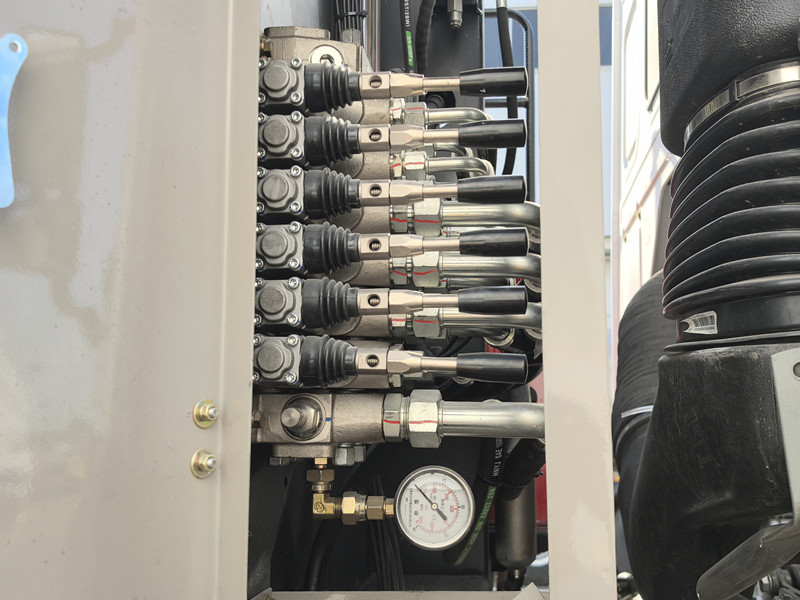

The Howo rear loader garbage truck utilizes electro-hydraulic control valves and a PLC programmable control system, combining the advantages of both electronic and hydraulic control. This combined electro-hydraulic control effectively resolves interface issues between the hydraulic and electrical systems, enhancing operational reliability.

The interface between the garbage bin and the loader is fitted with a custom rubber seal, compressed and sealed with a hydraulic locking mechanism for excellent sealing. A specially designed water collection trough underneath provides dual protection, effectively preventing wastewater leaks and secondary contamination.

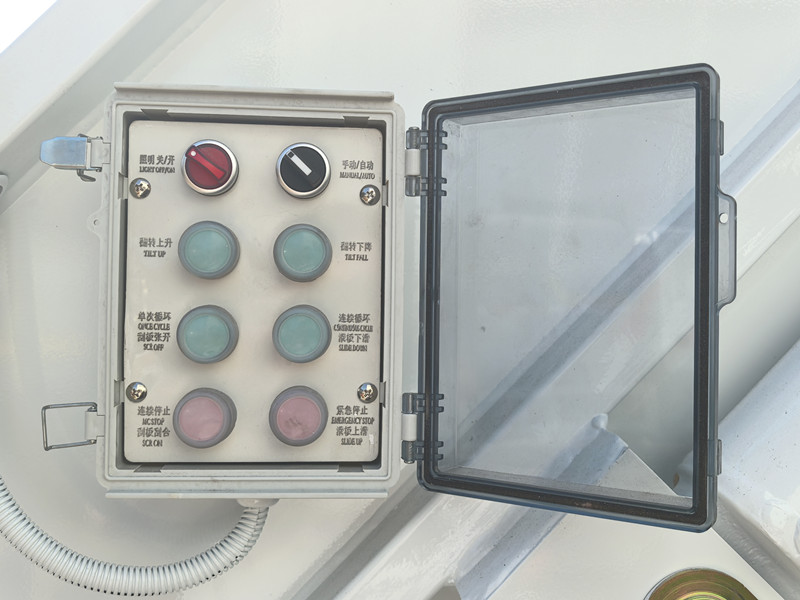

An emergency stop button is provided to halt the garbage compactor at any state or position, ensuring the safety of both operators and equipment.

The Howo 14cbm garbage compactor truck is a highly efficient and reliable vehicle designed for urban and suburban waste collection and transportation. The vehicle features a 4600mm wheelbase and is equipped with a WP10.300E22 300hp Euro III diesel engine with a displacement of 9.726L, an HW19710 transmission, and 295/80R22.5 tires. The cab is equipped with air conditioning, a USB port. The upper body is equipped with a 14cbm garbage container with a rear dump mechanism, supporting three operating modes for efficient loading and unloading of garbage, meeting the needs of various sanitation scenarios.

HOWO 14cbm rear loader compactor truck
Vehicle Description
Overall dimensions	9040X2500X3200mm
Curb weight	9850kg
Chassis brand	HOWO
Traction type	4x2; Right-hand drive
Up-parts Specification
Dustbin volume	14cbm
Sewage water tank	200L
Type of Rear garbage filler (Rear Turnover device)	Hanging trash bin flip mechanism
Control system	Electrically Controlled Hydraulic + Manual Hydraulic
Type of compactor	Fill, push and compression
PLC	Importation PLC (Programmable controller)
Chassis Description
Wheelbase	4600mm
Tire specification	295/80R22.5
Tire quantity	6+1 units
Engine	Model	WP10.300E22
	Emission level	Euro 3
	Displacement/output	9.726L/220KW
	Horse power	300HP
Gear box	Model	HW19710
Brake system	Full air brake



» .Product Details & Advantages:

1. Reasonable Structural Design

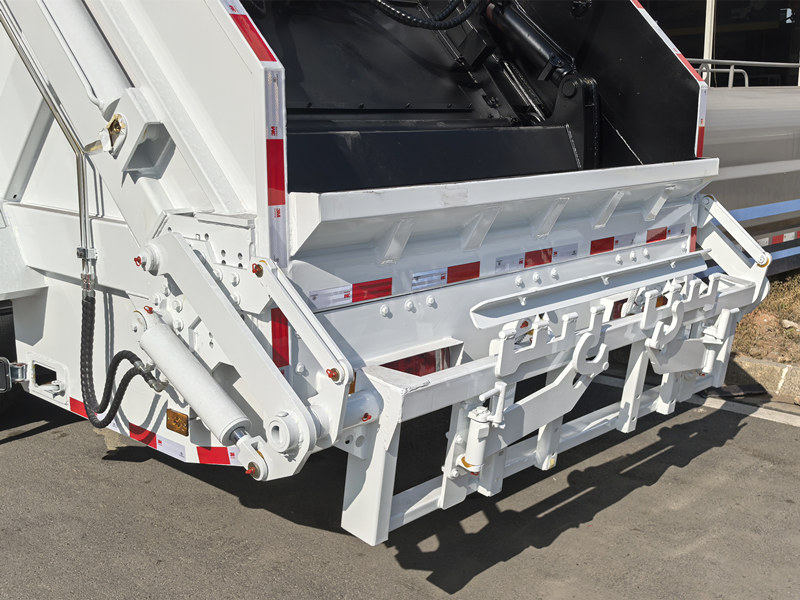

The Howo waste compaction truck consists of a chassis, a trash compartment, a hydraulic system, a control system, and a bucket-turning mechanism. The fully enclosed compartment effectively prevents trash from scattering and leaking during transportation, keeping roads clean. A bucket-turning mechanism or tipping device at the rear automatically dumps trash into the truck compartment, significantly reducing manual labor.

2. High Compression Efficiency

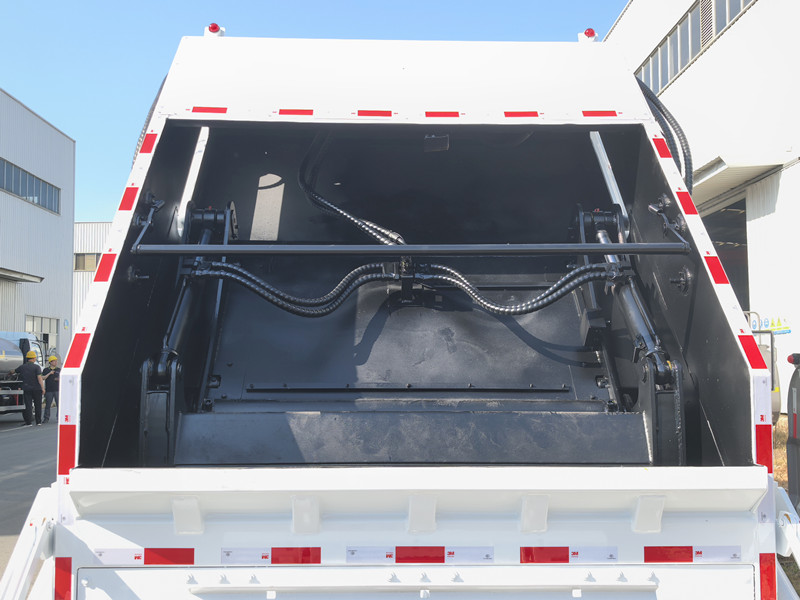

The Howo rear loader garbage truck's most notable feature is its powerful compression capability. Its hydraulic system can compress loose garbage to one-third or even one-quarter of its original volume, significantly increasing the truck's effective loading capacity. This not only reduces transport times, fuel and labor costs, but also improves overall sanitation efficiency. The truck's capacity ranges from small 6cbm and 8cbm to large 14cbm and 20cbm, meeting the needs of various road conditions and operating environments.

3. Safe and Environmentally Friendly, Easy to Operate

The Howo garbage compactor truck excels in environmental protection and safety. Its fully enclosed cabin and sealed design effectively control garbage odor and wastewater spillage, minimizing secondary environmental pollution.

The vehicle is equipped with nighttime lighting, warning lights, and reflective markings to enhance safety during nighttime and challenging operations. The operator's cab features an electronic control system, allowing operators to easily perform compacting, unloading, and dumping operations using buttons or a remote control. Operation is simple and labor-intensive.



•
•
•
