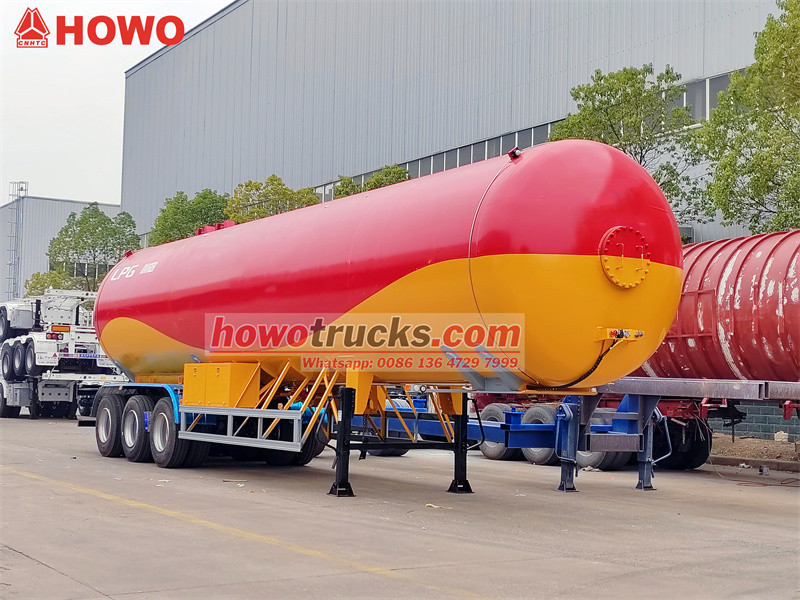

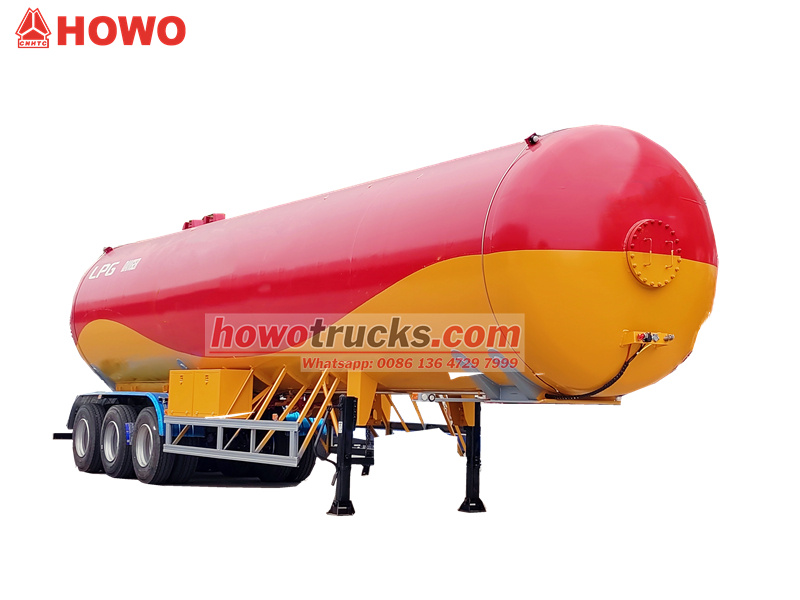

The New 3 axle 50,000-liter LPG Storage Tank Trialer is made of Q370R material, has a design pressure of 1.61MPa and a shell and end plate thickness of 8.0mm, complying with the latest manufacturing standards. It is equipped with a variety of safety valves, liquid level gauges, pressure gauges and other components to ensure safety during transportation. In addition, it is also equipped with BPW bridges, JOST traction pins, JOST legs and other configurations, which can meet the transportation needs in different environments and road conditions. It is a high-performance and high-safety LPG Storage Tank Trailer.

*New 3 axle 50000L LPG tanker trailer*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

Product Definition and Introduction « « «

Features:

1. Designing pressure: 1.61MPa Designing temperature: -20C-50C

2. The various types fuel tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.

3. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radio graphic test, C and D type of welding seam pass the examination of level one radio graphic test.

4. There are domestic or imported safety accessories with high quality, its matching is complete.

5.The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on.





The LPG Storage Tank Trailer is a truck specially designed for transporting liquefied petroleum gas. High-strength and pressure-resistant materials are used in the manufacturing process to ensure safety and stability during transportation. Its tank body has excellent sealing performance, which can effectively prevent gas leakage and improve transportation efficiency and safety. LPG Storage Tank Trailer is widely used in the petrochemical industry and is used in long-distance, urban gas supply and other fields. It is an efficient and reliable transportation tool.



Product Parameter For 50000L LPG Storage Tank Trailer « « «

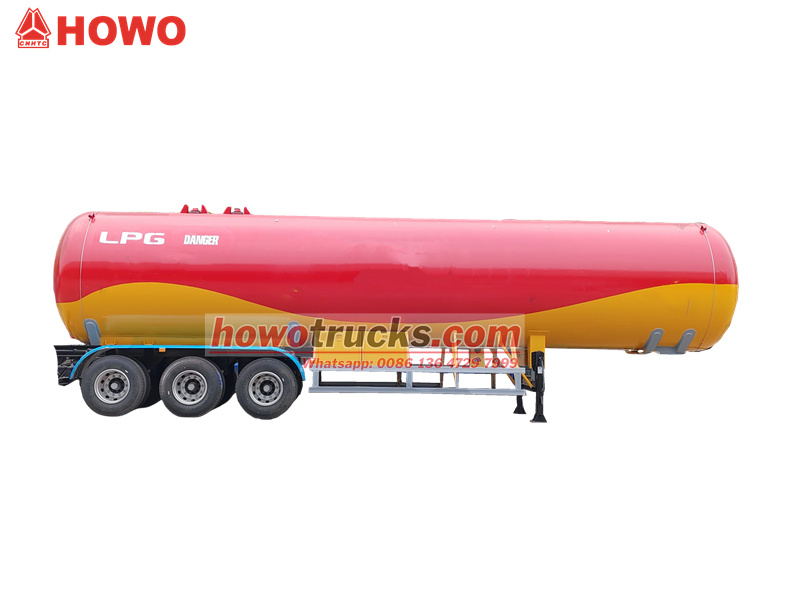

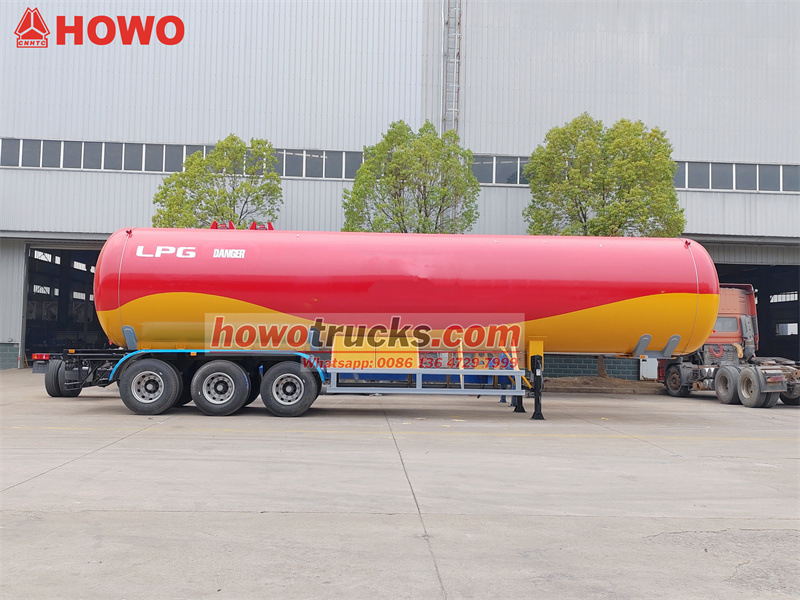

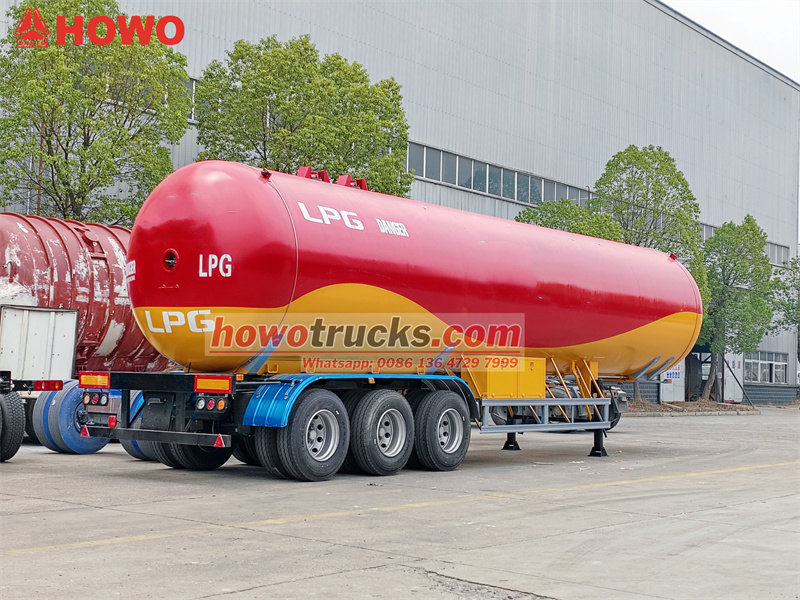

Heavy Duty 3 Axle 50000L LPG Tank Trailer
Volume of Tank (cbm)	38-50cbm
Overall Dimensions(L*W*H)(mm)	11324*2500*3730
Tank Dimensions(L*W*H)(mm)	11044*2200*1200
Estimated Tare Weight (kg)	13415
Payload(kg)	17010
Total Weight(kg)	30425
Wheelbase(mm)	6720+1320
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(ºC)	50ºC
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345,12mm,
	End plate:Q345R,12mm
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection	100% Flaw detection
Test Pressure(MPa)	1.61
Hydraulic Test(MPa)	2.1
Magnaflux Inspection	Aim at welding place that flaw detection can not cover

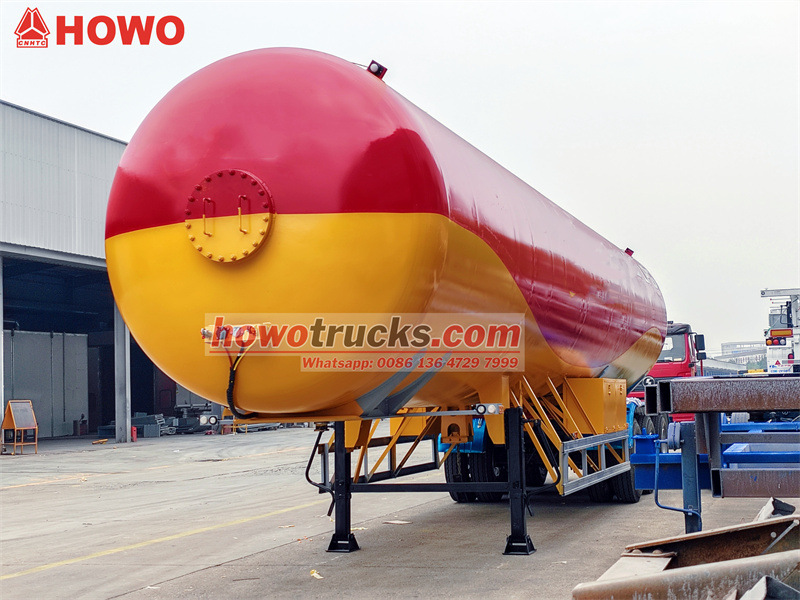

Manhole (As Customer's Requirement)
Quantity	1 piece ;on top
Size	DN450
Safety Valve(As Customer's Requirement)
Quantity	2
Location	On the top of tanker
Size	DN80
Level Gauge
Type	Manuel Switch type
Location	At the rear of the end dish
Running System
Axles	2*13T BPW
Tire	12R22.5 Tubeless tire ,8 with one spare tire
Landing leg	JOST
King Pin	#50 or #90

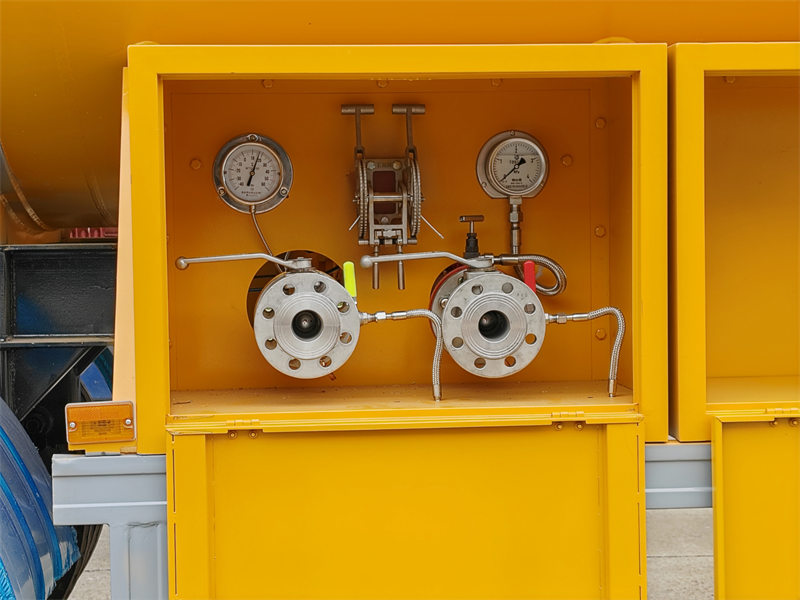

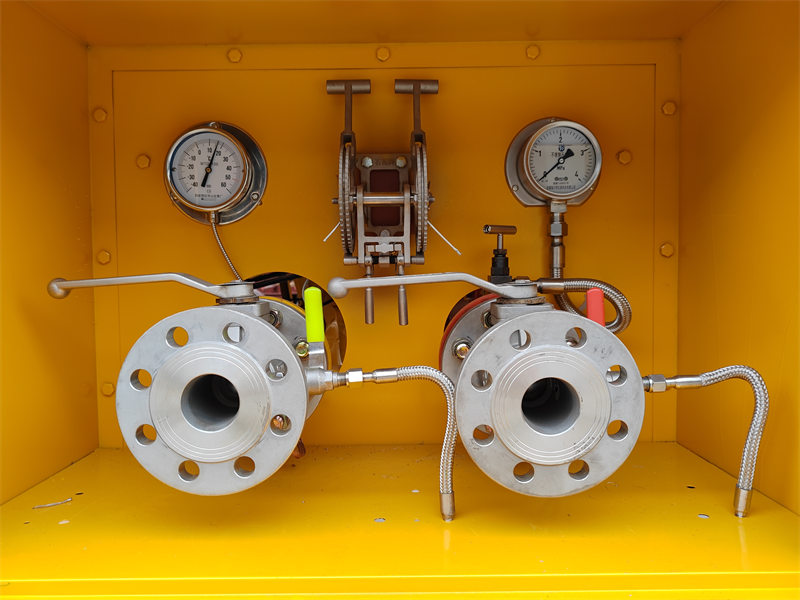

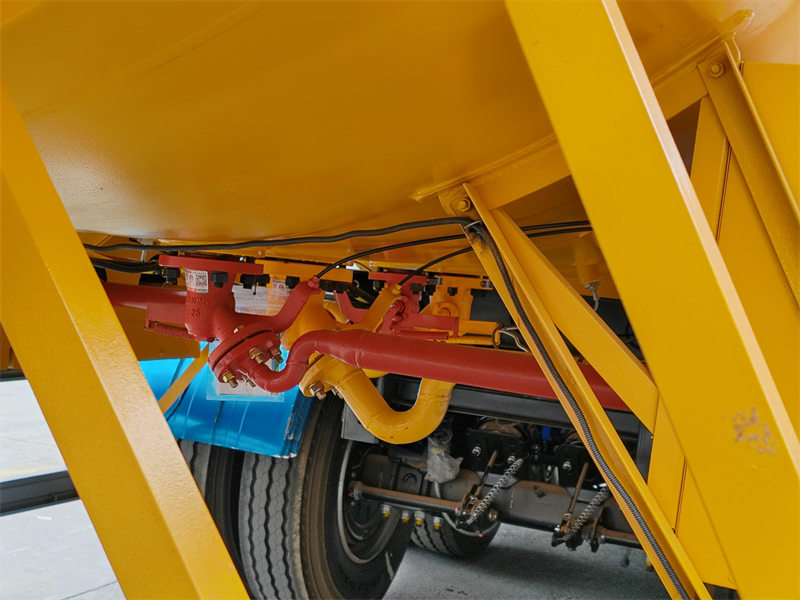

Control System
Emergency Cut-off Valves	2 or 3
Ball Valve	4 or 6
Liquid Gauge	1
Pressure Indicating Thermometer	1
Pressure Gage	1





----- Tank Material: Carbon steel, stainless steel, aluminum alloy

-----Axle:  BPW bridges, JOST traction pins, JOST legs and other configurations

-----Optional: Telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.



Main Advantage Of The Heavy Duty 3 Axle 50000L LPG Tank Trailer « « «



1. Tank material:



♦ Q370R is a low-alloy high-strength steel with a yield strength of 370MPa, which is specially used for pressure vessels.

♦ It has excellent strength, good plasticity and toughness, excellent welding performance and cold crack resistance.

♦ Compared with the commonly used Q345R, it can reduce weight at the same design pressure (or withstand higher pressure at the same thickness) and improve structural efficiency. This directly improves the pressure bearing capacity (1.61MPa) .



2. Design pressure (1.61MPa):



♦ This design pressure is at a relatively high level among mobile tank trucks. It is much higher than the normal working pressure required for diesel transportation (usually far below 1MPa), which provides a huge safety margin.



♦ When the pressure in the tank increases instantly due to abnormal conditions (such as high temperature exposure, rapid loading and unloading, and accidental impact), it can effectively ensure that the tank will not fail.



3. Steel thickness (8.0mm):



♦ 8.0mm steel thickness combined with Q370R material is reasonable and robust for 40CBM tank under 1.61MPa design pressure.



♦ Accurate strength calculation (including static pressure, dynamic pressure, external pressure stability, etc.)



♦ While ensuring strength, this thickness also takes into account manufacturing processability (such as rolling, welding) and a certain corrosion allowance.
