The New 3 axle 40000L fuel tank trailer is made of Q370R material, has a design pressure of 1.61MPa and a shell and end plate thickness of 8.0mm, complying with the latest manufacturing standards. It is equipped with a variety of safety valves, liquid level gauges, pressure gauges and other components to ensure safety during transportation. In addition, it is also equipped with BPW bridges, JOST traction pins, JOST legs and other configurations, which can meet the transportation needs in different environments and road conditions. It is a high-performance and high-safety mobile diesel fuel tank trailer.

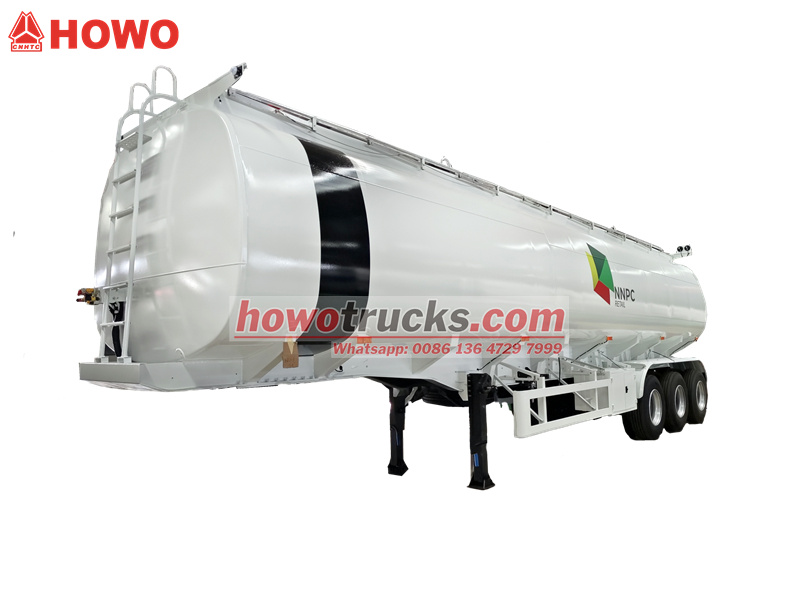

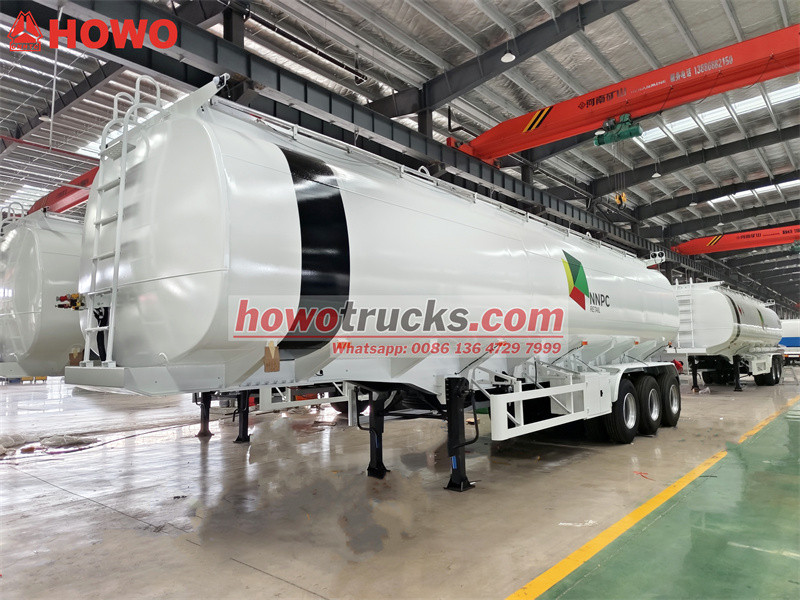

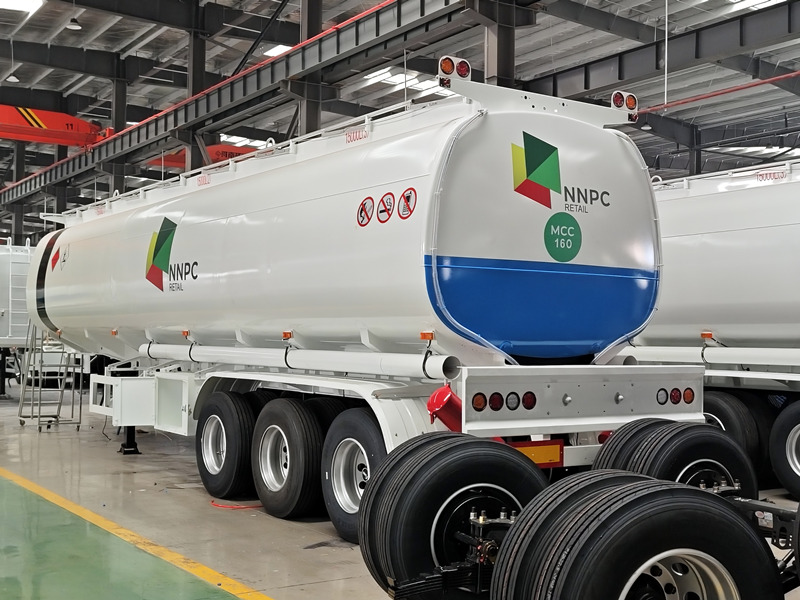

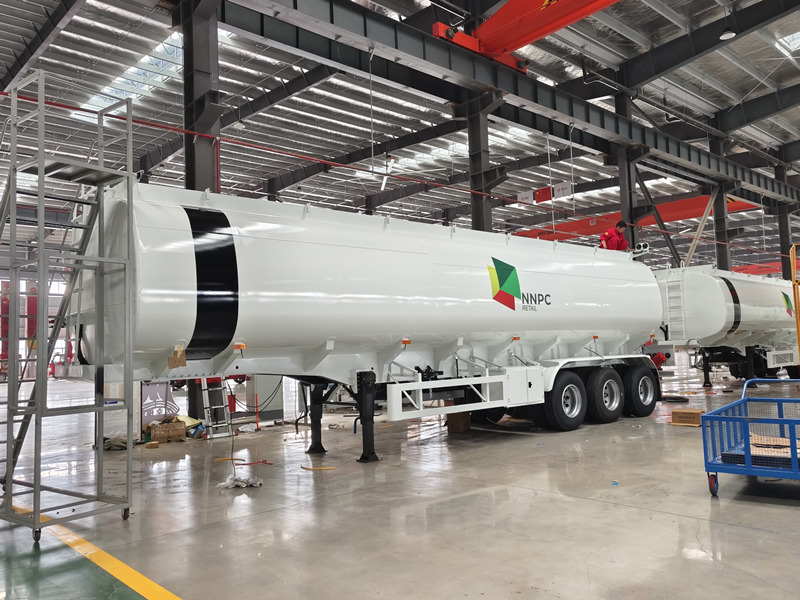

*New 3 axle 40000L fuel tanker trailer*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

Product Definition and Introduction « « «

Features:

1. Designing pressure: 1.61MPa Designing temperature: -20C-50C

2. The various types fuel tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.

3. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radio graphic test, C and D type of welding seam pass the examination of level one radio graphic test.

4. There are domestic or imported safety accessories with high quality, its matching is complete.





The mobile 40000L fuel tank semi-trailer is a truck specially designed for transporting diesel fuel. High-strength and pressure-resistant materials are used in the manufacturing process to ensure safety and stability during transportation. Its tank body has excellent sealing performance, which can effectively prevent liquid leakage and improve transportation efficiency and safety. The mobile diesel oil tank trailer is widely used in the petrochemical industry and is used in long-distance, urban gas supply and other fields. It is an efficient and reliable transportation tool.



Product Parameter For New 3 axle 40000L fuel tanker trailer

 « « «

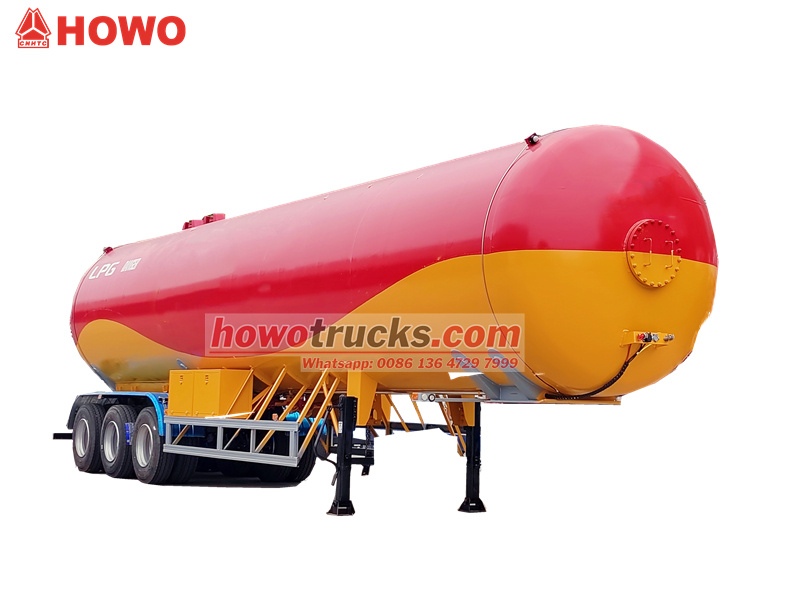

China manufacture New 3 Axle 50000L LPG Tank Trailer for sale
Condition	New condition
Semi Trailer	Curb weight(kg)	13000
	Wheelbase(mm)	7230+1310+1310
	External Dimensions(mm)	11350*2550*3995
	Design the limited velocity	Straight road	80 Km/h
		Turning	20 Km/h
Tank	Capacity(m³)	50
	Design pressure(MPa)	1.61
	Filling medium	Desiel fuel
	Tank material	Q370R
	Corrosion allowance(mm)	1.0
	Hydraulic test pressure(Mpa)	1.0
	Thickness of Shell (mm)	8.0
	Thickness of End plate (mm)	8.0
	Filling Coefficient	0.42
	Shape of End Plate	Round

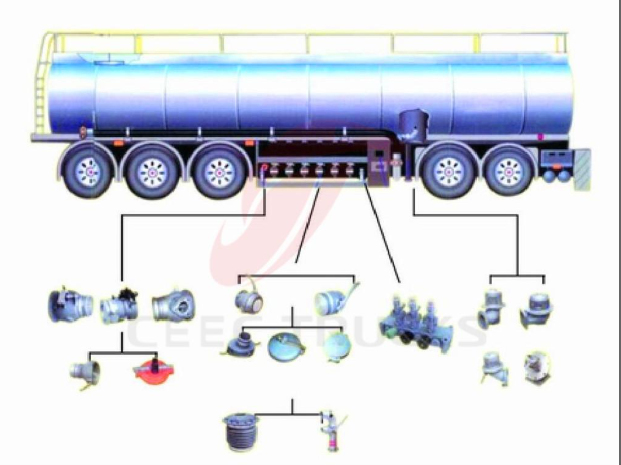

Main Part of Tank	Item	Specification		Quantity(pc)
	Drain hole	DN50		1
	Liquid outlet	DN25		1
	Liquid inlet	DN25		1
	Manhole	DN450		1
	Empty valve	DN50		1
	Gas phase balance pipes	DN25		1
	Safe valve	DN100(Inner full lift)		2
	Horizontal liquid level gauge Interface	DN25		1
	Pressure meter Interface	M20x1.5		2
	Emergence cutting valve	PN2.5MPa		2

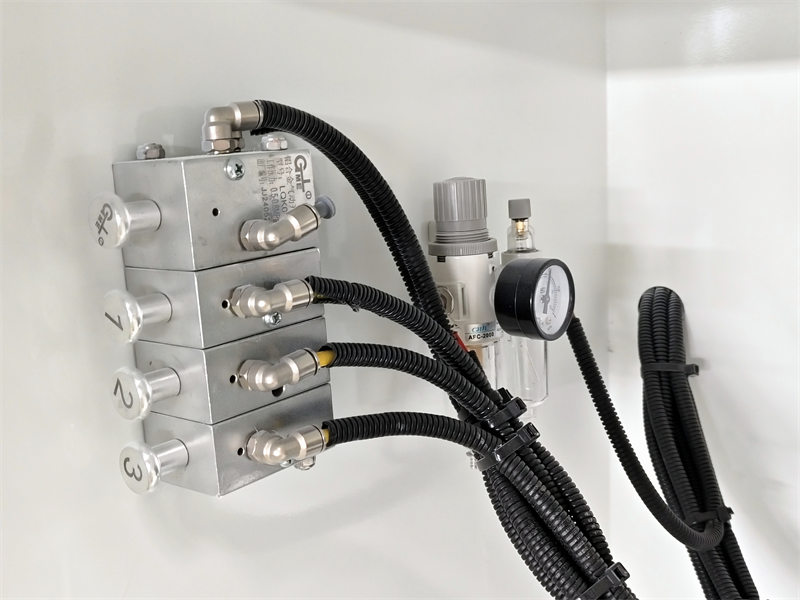

Standard Configuration	3 axles with BPW bridge (13T),12R22.5 12PR(13 pcs), JOST king pin,JOST leg(25T),mechanic liquid level meters,double pressure meter,double thermometer,double emergency cutting valve ,four ball valve,double safe valve,two tool boxes, single outlet ,double loading and unloading system,aluminum sunshade protection,2 sets 9kg fire extinguishers type ABC,1 set 2kg fire extinguisher type CO2,3 sets danger sign plate,2 sets orange numbered plate,flow meter with printer





----- Tank Material: Carbon steel, stainless steel, aluminum alloy

-----Axle:  BPW bridges, JOST traction pins, JOST legs and other configurations

-----Optional: Telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.



Main Advantage Of The New 3 axle 40000L fuel tanker trailer

  « « «



1. Tank material:



♦ Q370R is a low-alloy high-strength steel with a yield strength of 370MPa, which is specially used for pressure vessels.

♦ It has excellent strength, good plasticity and toughness, excellent welding performance and cold crack resistance.

♦ Compared with the commonly used Q345R, it can reduce weight at the same design pressure (or withstand higher pressure at the same thickness) and improve structural efficiency. This directly improves the pressure bearing capacity (1.61MPa) .



2. Design pressure (1.61MPa):



♦ This design pressure is at a relatively high level among mobile tank trucks. It is much higher than the normal working pressure required for diesel transportation (usually far below 1MPa), which provides a huge safety margin.



♦ When the pressure in the tank increases instantly due to abnormal conditions (such as high temperature exposure, rapid loading and unloading, and accidental impact), it can effectively ensure that the tank will not fail.



3. Steel thickness (8.0mm):



♦ 8.0mm steel thickness combined with Q370R material is reasonable and robust for 40CBM tank under 1.61MPa design pressure.



♦ Accurate strength calculation (including static pressure, dynamic pressure, external pressure stability, etc.)



♦ While ensuring strength, this thickness also takes into account manufacturing processability (such as rolling, welding) and a certain corrosion allowance.
