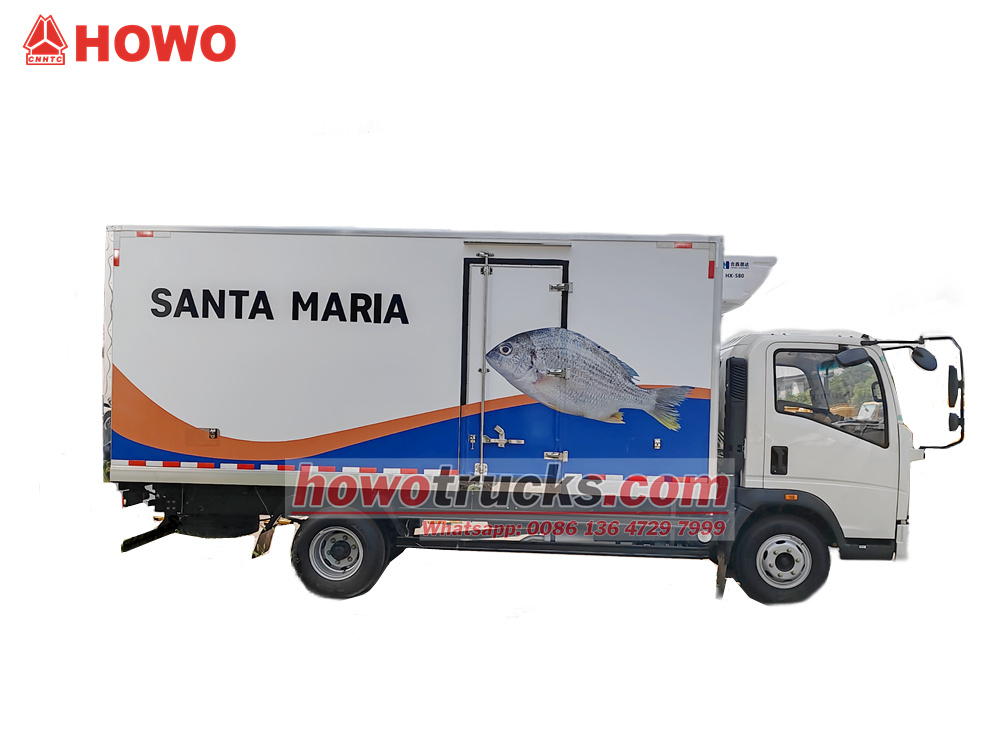

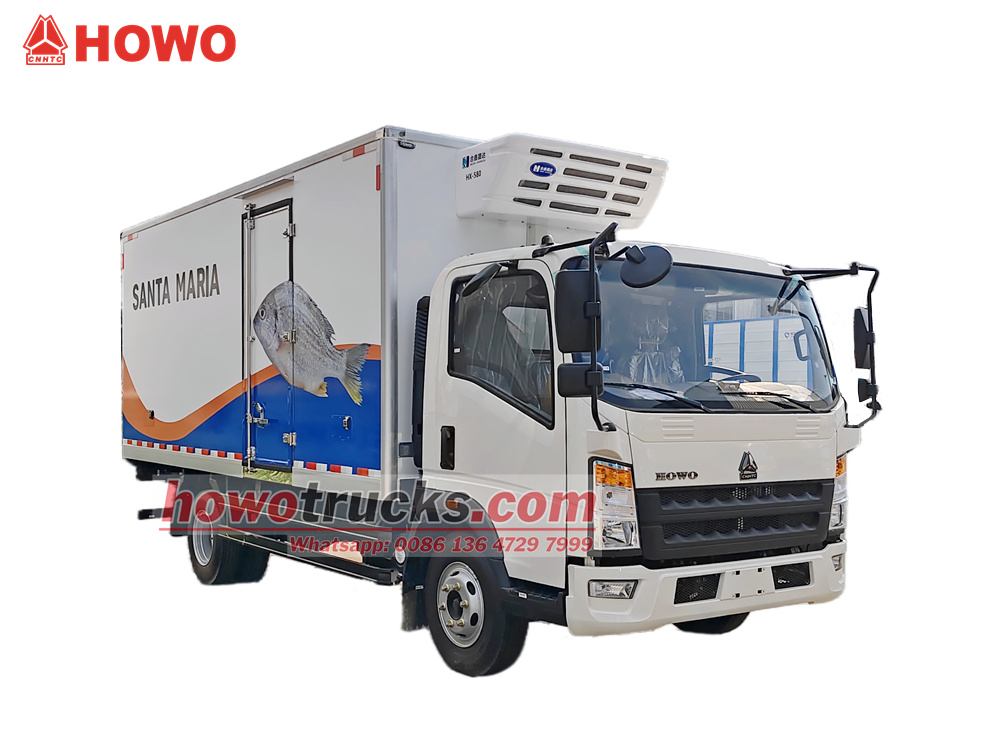

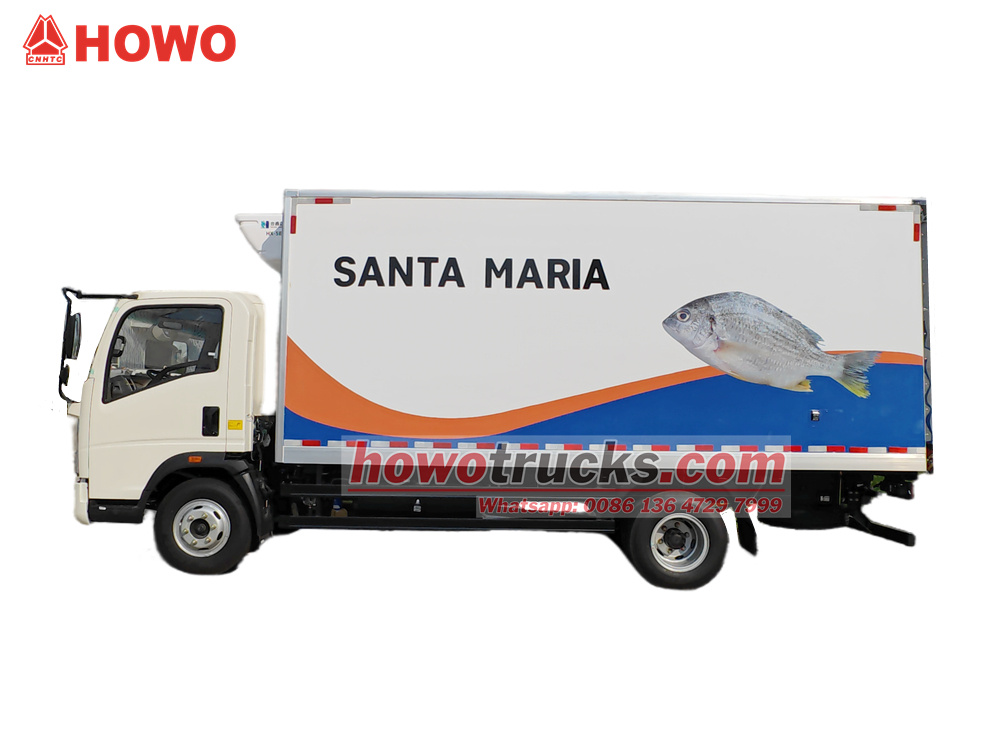

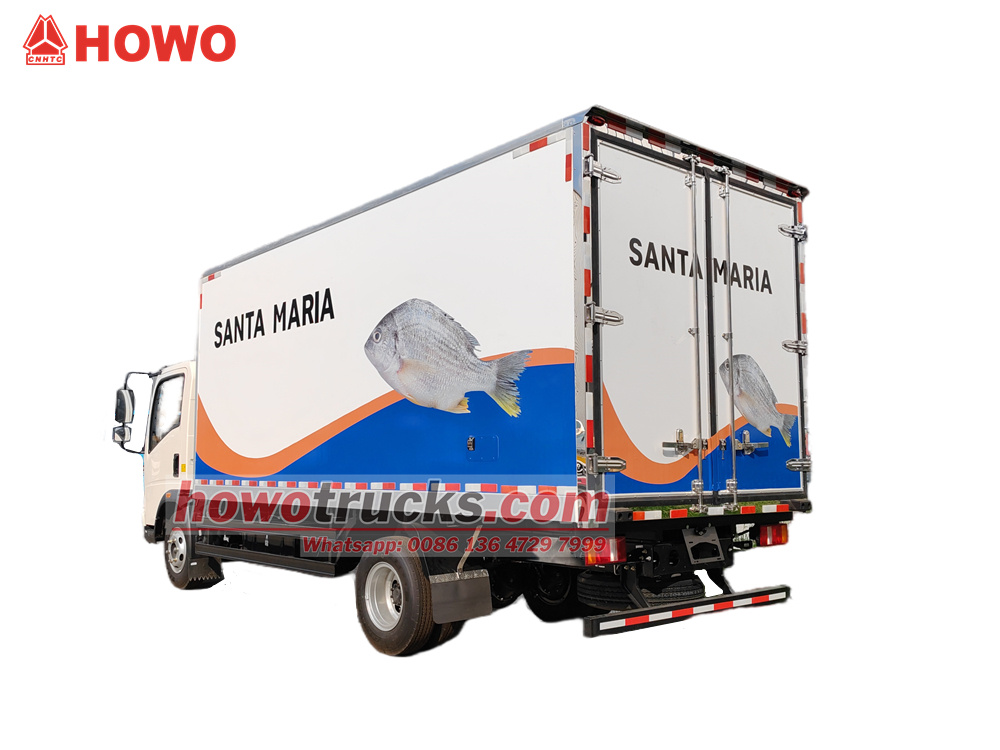

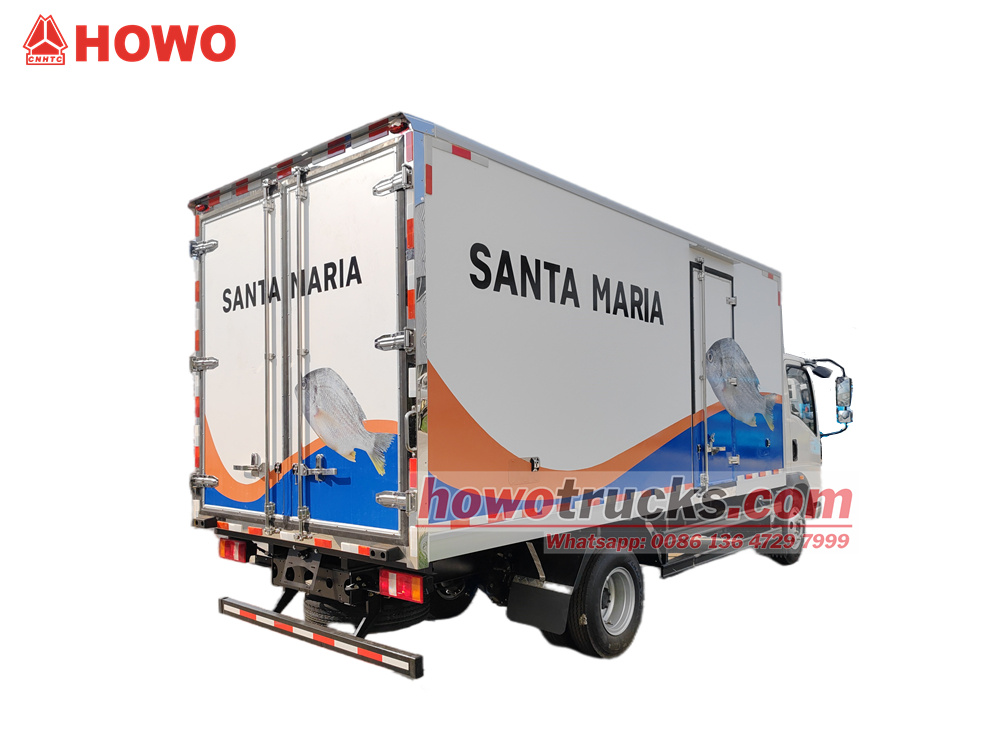

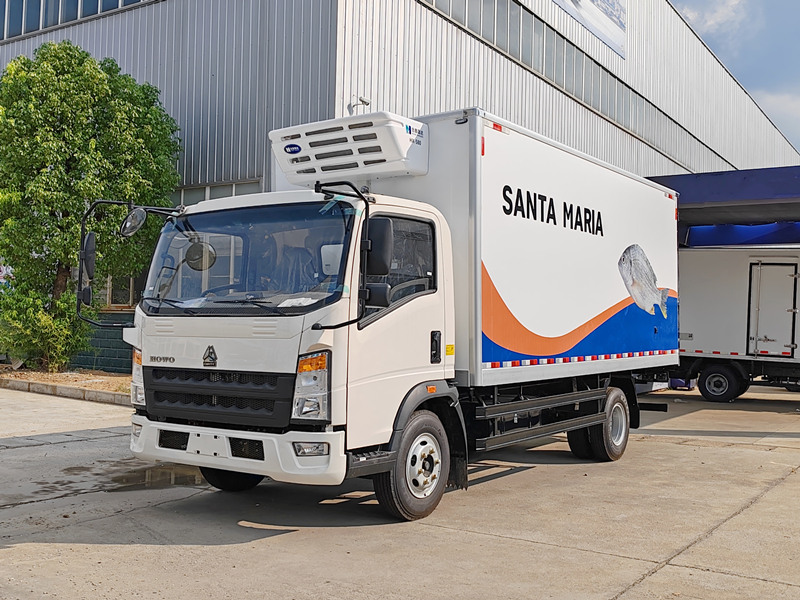

The HOWO 4x2 refrigerated truck adopts HOWO light truck chassis, 3360mm wheelbase.Equipped with a Cummins ISF3.8s4R154 154 horsepower engine and a WLY6TS55 6-speed gearbox. The upper refrigerated box measures 4200×2200×2050mm and is made of fiberglass, FRP + PU foam + FRP 105mm panel material, fully enclosed sandwich panel, right-side door, full-size double rear door, non-slip and wear-resistant floor, and uses the HX-580 refrigeration unit. The box can carry 5 tons of cargo and is mainly used for cold chain transportation of seafood.
Working capacity :
4.2mCabin type :
HOWO 2080 light cabinDrive system :
4x2,LHDWheelbase ( mm) :
3360Engine specific :
154HP / Cummins ISF3.8s4R154Gear box :
WLY6TS55,6-speed,manualFront axle ( Kg ) :
2700Rear axle ( Kg ) :

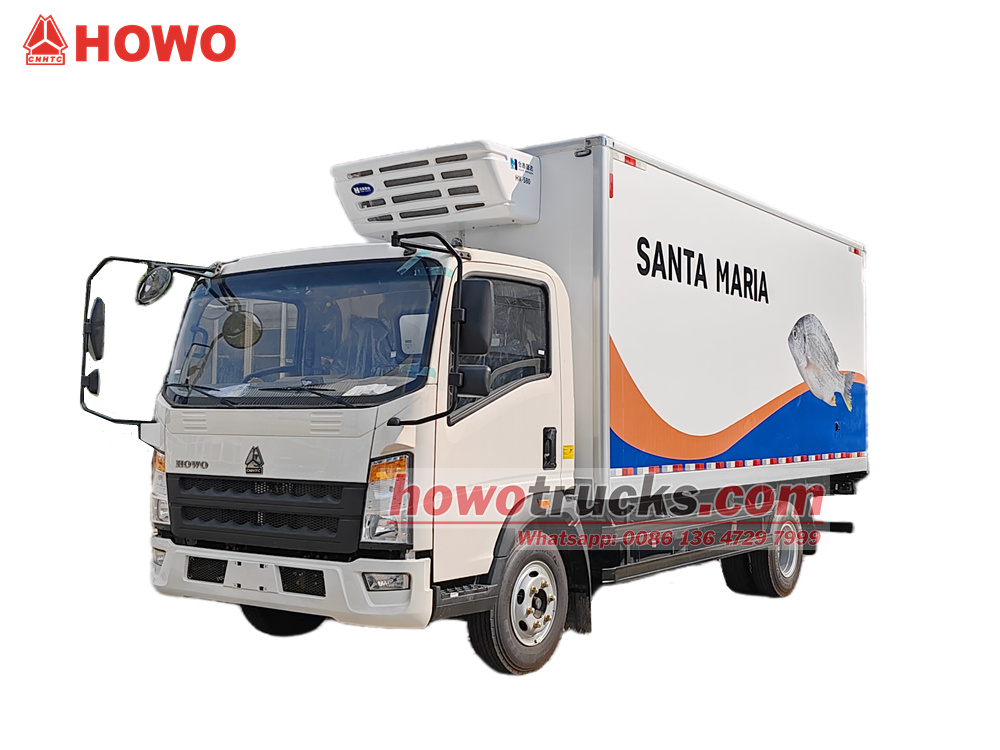

7200The 5Ton Seafood Refrigerated Truck Howo s a specialized cold chain transport vehicle, equipped with a Cummins ISF3.8s4R154 engine and a Wanliyang six-speed transmission, delivering powerful power and excellent fuel efficiency. The refrigerated compartment features a 105mm thick three-layer composite structure of FRP, PU foam, and FRP, offering excellent thermal insulation. Equipped with an HX-580 refrigeration unit, the unit offers a temperature control range of -18°C to +30°C, meeting diverse cold chain transport needs. Designed with practicality in mind, the vehicle features a single door on the right and double doors at the rear for easy loading and unloading. Primarily used for cold chain transport of seafood, the truck is customizable with regard to compartment size and refrigeration unit.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Performance Features
1. Powerful: Equipped with a Cummins ISF3.8s4R154 engine, delivering 154 horsepower and 500 Nm of torque, it's suitable for heavy-load cold chain transport and offers excellent fuel economy.
2. Professional Refrigerated Cabinet: 19m³ volume, featuring a fiberglass reinforced plastic (FRP) + 105mm polyurethane foam + FRP sandwich structure for superior thermal insulation.
3. Precision Refrigeration: The HX-580 non-independent unit offers a temperature control accuracy of ±0.5°C, supporting low-temperature transportation down to -18°C, ensuring fresh seafood.
4. High-Load Design: With a rated load capacity of 5 tons and non-slip, wear-resistant flooring, it's easy to clean and suitable for bulk transport.
5. Customizable: Customizable cabin dimensions, refrigeration units, and more are available.
» Ⅱ. Product Parameter for HOWO 4x2 refrigerated truck:
|
HOWO 4x2 seafood freezer truck |
||
|
General |
||
|
Chassis Brand |
Sinotruk HOWO |
|
|
Model |
CS5080GXH |
|
|
Condition |
New |
|
|
Overall Dimensions (L x W x H) |
6250×2300×3050mm |
|
|
GVW/Curb Weight |
8280/3680kg |
|
|
Front/Rear Track |
1825/1595 mm |
|
|
Front /Rear Overhang |
1160/1730mm |
|
|
Axle loading |
2.7/7.2T |
|
|
Max Speed |
95km/h |
|
|
Chassis |
||
|
Cab |
SINOTRUK HOWO 2080 single row cab, 3 seats,with A/C,USB,direction assistance |
|
|
Wheelbase |
3360mm |
|
|
Drive Type |
4X2,LHD |
|
|
Engine
|
Type |
Inline 4-cylinder, direct injection, water-cooled, four-stroke, supercharged and intercooled, electronically controlled high-pressure common rail |
|
Model |
Cummins ISF3.8s4R154 |
|
|
Horsepower |
154HP/ 115kW |
|
|
Rated Speed |
2600rpm |
|
|
Max Torque |
500N.m |
|
|
Max torque speed |
1200-1900rpm |
|
|
Fuel Type |
Diesel, 120L aluminum alloy fuel tank |
|
|
Displacement |
3.76L |
|
|
Emission Standard |
Euro 4 |
|
|
Gearbox |
WLY6TS55,6-speed,manual |
|
|
Tire |
7.50R16LT 8PR,6+1 |
|
|
Upper Structure |
||
|
Box Dimensions (L x W x H) |
4200×2200×2050mm |
|
|
Material |
Fiberglass material, FRP + PU foam + FRP 105 mm panel material, fully enclosed sandwich panel |
|
|
Door/floor |
Right side door, full size double rear door, non-slip and wear-resistant floor |
|
|
Refrigeration unit |
Model |
HX-580 |
|
Cooling capacity |
5300W (0'C/+38℃) |
|
|
2950W (-18°C/+38°C) |
||
|
Air volume |
2400 m³/h |
|
|
Temperature Range |
-18°C~+30°C |
|
|
Unit voltage |
DC12V/24V |
|
|
Defrost method |
Hot air defrost |
|
|
Refrigerant and charge quantity |
R404a/2.1kg |
|
|
Compressor |
Model |
TM16/TM21 |
|
Displacement |
168cc/r;210cc/r |
|
|
Condenser |
Core Type |
Parallel Flow |
|
Number of Fans |
2Pcs |
|
|
Evaporator |
Core Type |
Internal thread copper tube hydrophilic aluminum foil |
|
Number of Fans |
2Pcs |
|
|
Application |
Use for seafood transport |
|
» Ⅲ. Product Detailed introduction

Chassis and Powertrain
The HOWO 4×2 refrigerated truck is built on a dedicated HOWO light truck chassis, offering strong load-carrying capacity and suiting urban and suburban cold chain transportation scenarios.
• Wheelbase: 3360mm
• Engine: Equipped with a Cummin ISF3.8s4R154 four-cylinder diesel engine with a displacement of 3.8L, a maximum output of 154 horsepower (115kW), and a peak torque of 500N·m, meeting Euro IV emission standards and delivering powerful power.
• Transmission: Equipped with a WLY6TS55 six-speed manual transmission, it features smooth shifting, a wide first gear ratio, and strong gradeability, accommodating both high-speed cruising and low-speed heavy-load requirements.

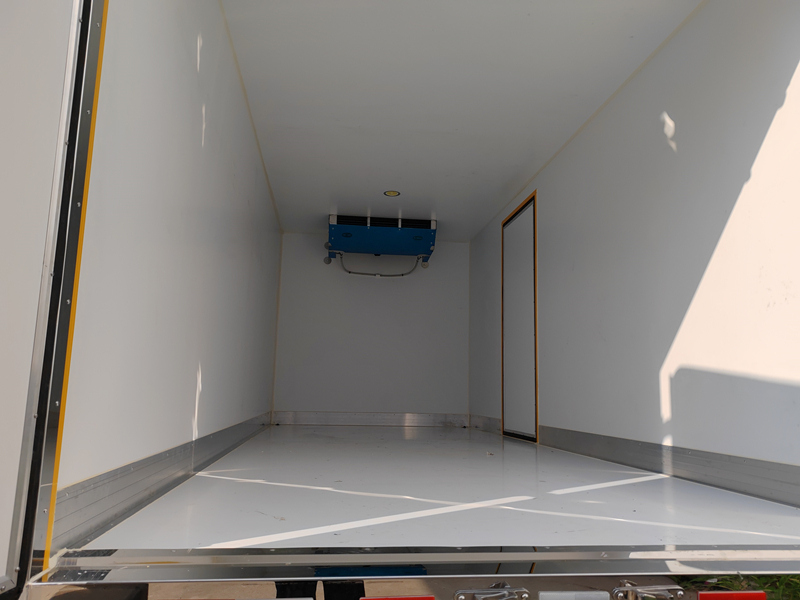

Refrigerated Container: Efficient Insulation and Large Capacity
The upper section utilizes a professional refrigerated container, custom-designed for seafood transportation, ensuring precise temperature control throughout the entire process.
• Dimensions: 4200mm (length) × 2200mm (width) × 2050mm (height), with a volume of approximately 19 cubic meters, capable of accommodating 5 tons of seafood, meeting bulk transport needs.
• Materials and Structure:
◇ Panel: Sandwich composite structure, fiberglass reinforced plastic (FRP) + polyurethane (PU) foam + fiberglass reinforced plastic (FRP), creating a fully enclosed interlayer with excellent thermal insulation.
◇ Floor: Non-slip and wear-resistant board, easy to clean, preventing seafood residue and bacterial growth.

• Door Design:
◇ Single-door design on the right side facilitates quick loading and unloading of cargo on one side.

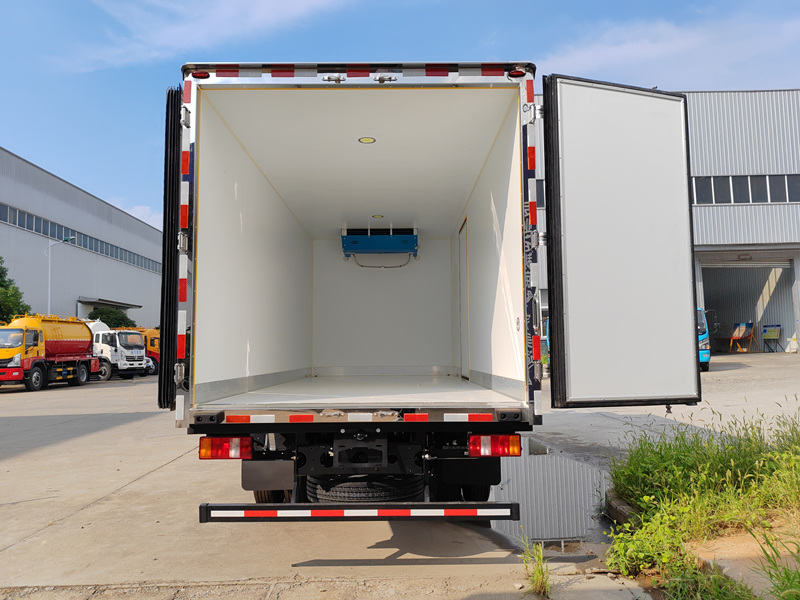

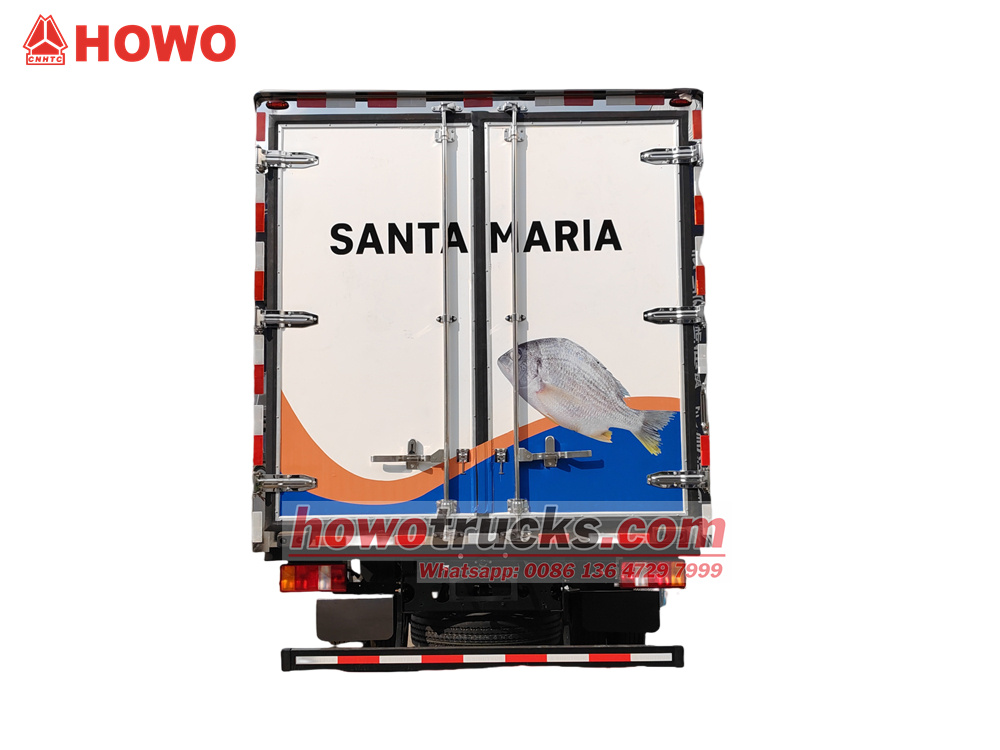

◇ Full-size double-door at the rear supports forklift access, improving loading and unloading efficiency. • Loading Capacity: Capable of carrying 5 tons of seafood, suitable for bulk transportation in fishing ports, wholesale markets, and other locations.

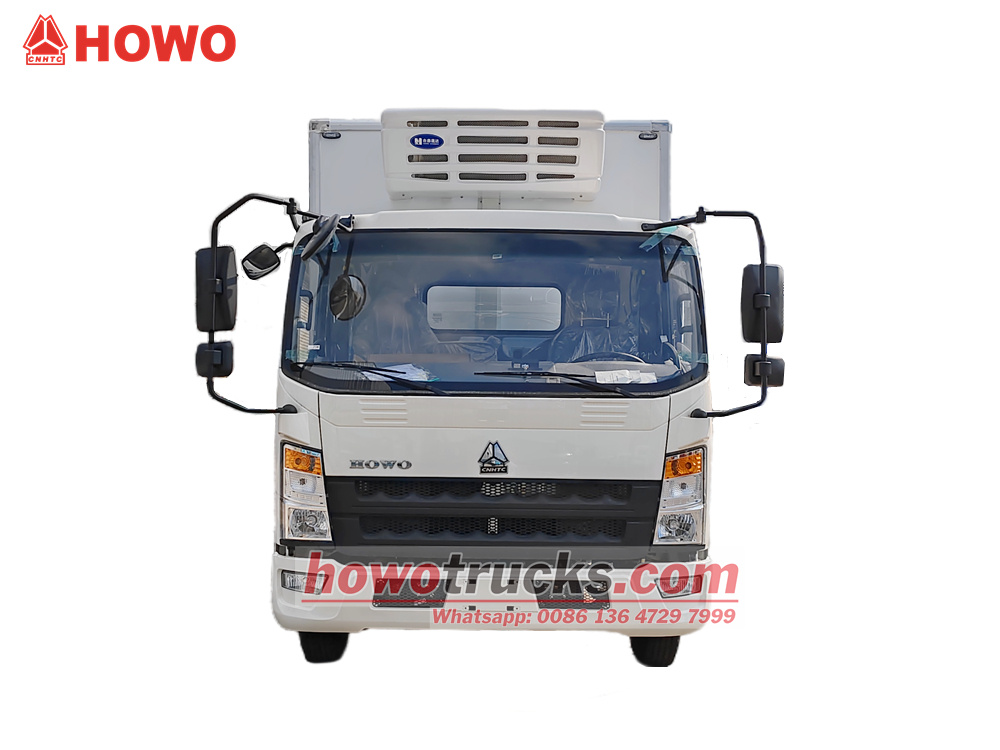

Refrigeration System: HX-580 Professional Refrigeration Unit
• Unit Model: HX-580 non-independent refrigeration unit, with a temperature control range of -18°C to +30°C and a cooling capacity of 295W (at -18°C), it can quickly reduce the temperature inside the container to -18°C, meeting the ultra-low temperature requirements for high-value seafood such as deep-sea fish, shrimp, and crabs.
• Temperature Control Accuracy: ±0.5°C. Equipped with an intelligent temperature recorder, the unit provides traceable monitoring data throughout the entire process, meeting cold chain standards.
» Ⅳ. Application
Professionally suitable for cold chain logistics transportation such as seafood and frozen food.
