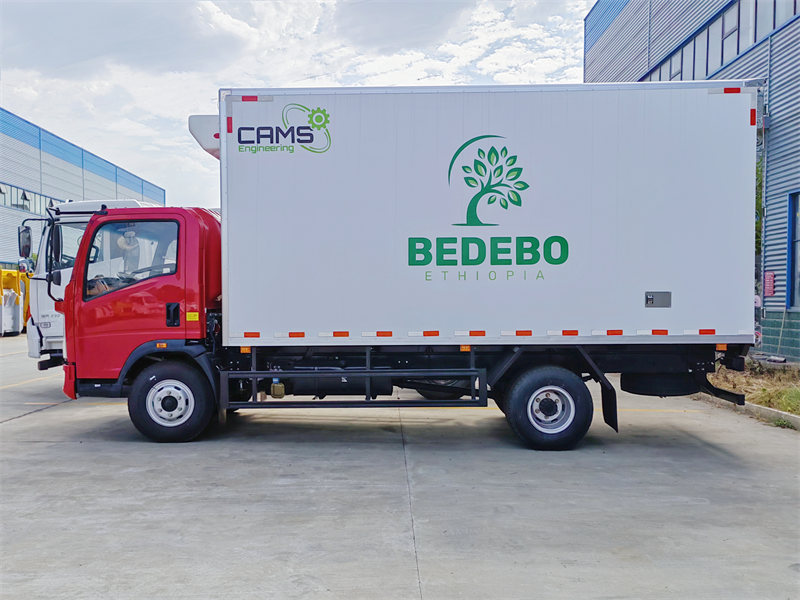

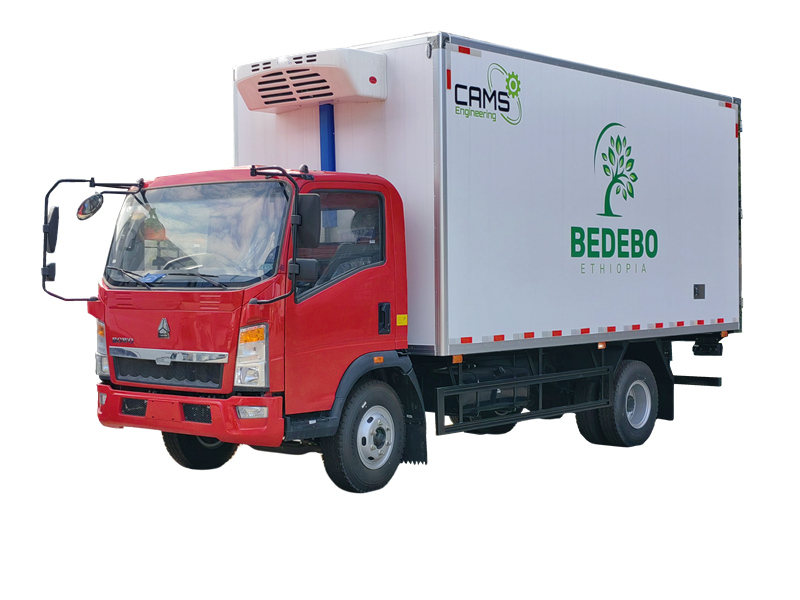

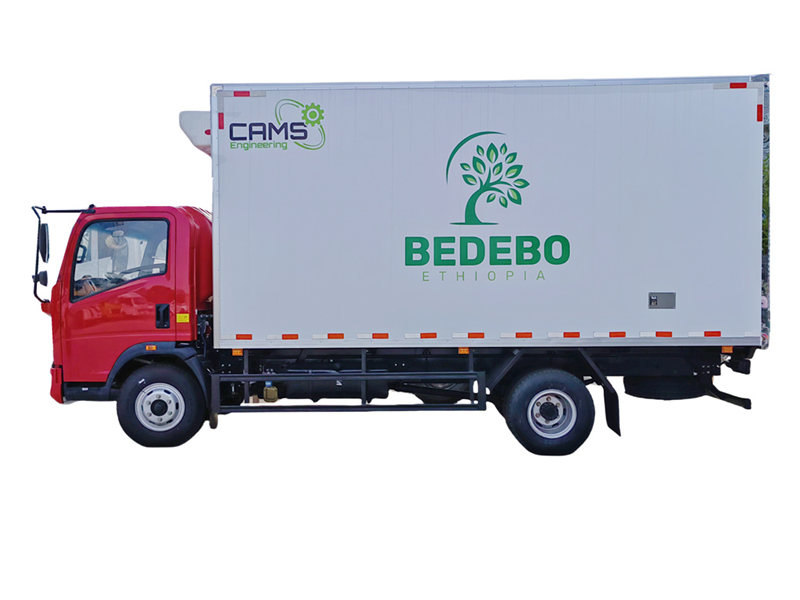

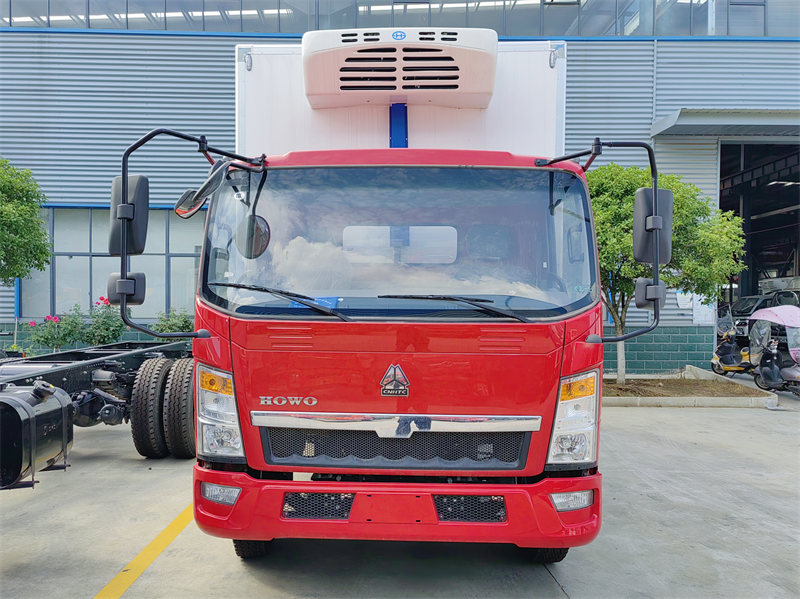

The Howo 6 tons refrigerated truck is a vehicle specifically designed for long-distance cold chain transportation.It is equipped with an Yuchai 140HP 4 cylinder engine, providing robust and stable power output to ensure efficient transportation efficiency under various road conditions.The Howo heavy freezer van truck is paired with the KX 550 refrigeration unit, can automatically adjust the refrigeration power based on the internal temperature and cargo type, capable of precisely controlling the temperature inside the vehicle to meet the refrigeration needs of different goods. This unit adopts advanced refrigeration technology and an efficient cooling system, able to quickly reduce the temperature inside the vehicle and maintain stability, ensuring that the goods remain in the optimal temperature state during transportation.
Working capacity :
8 CBMCabin type :
HOWO 1880 light cabinDrive system :
4x2,LHD/RHDWheelbase ( mm) :
3800Engine specific :
140HP / YC4E140-33Gear box :
WLY6TS55,6-speed,manualFront axle ( Kg ) :
3500Rear axle ( Kg ) :
7000The Howo 6 tons refrigerated truck is a vehicle specifically designed for long-distance cold chain transportation.It is equipped with an Yuchai 140HP 4 cylinder engine, providing robust and stable power output to ensure efficient transportation efficiency under various road conditions.
The Howo heavy freezer van truck is paired with the KX 550 refrigeration unit, can automatically adjust the refrigeration power based on the internal temperature and cargo type, capable of precisely controlling the temperature inside the vehicle to meet the refrigeration needs of different goods. This unit adopts advanced refrigeration technology and an efficient cooling system, able to quickly reduce the temperature inside the vehicle and maintain stability, ensuring that the goods remain in the optimal temperature state during transportation.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Defination and Introduction «««
Manufacturer: CS TRUCKS GROUP LIMITED
Performance Features
1. Powerful: Equipped with a YC4E140-33 engine, delivering 140 HP and 540 Nm of torque, it's suitable for heavy load cold chain transport and offers excellent fuel economy.
2. Professional Refrigerated Cabinet: 8m³ volume, featuring a fiberglass reinforced plastic (FRP) + 105mm polyurethane foam + FRP sandwich structure for superior thermal insulation.
3. Precision Refrigeration: The KX 550 top China brand independent unit offers a temperature control accuracy of ±0.5°C, supporting low-temperature transportation down to -18°C, ensuring fresh seafood.
4. High-Load Design: With a rated load capacity of 10 tons and non slip, wear-resistant flooring, it's easy to clean and suitable for bulk transport.
5. Customizable: Customizable cabin dimensions, refrigeration units, and more are available.

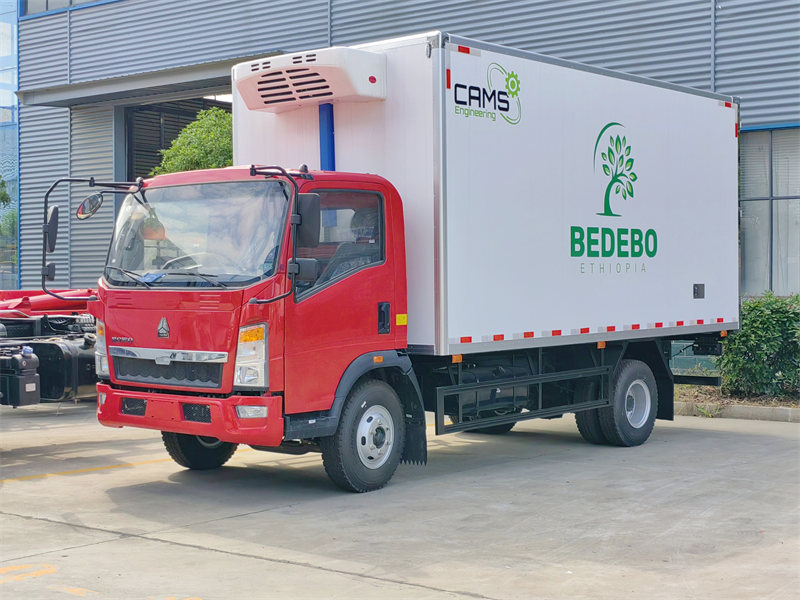

Product Parameter for Howo light refrigerated truck «««
|
Howo Light 6 tons Freezer Van Truck |
||
|
Vehicle Model |
CSC50903GXQ |
|
|
Basic Information |
Drive Type |
4x2 |
|
Vehicle Dimensions |
6600x2500x3150 mm |
|
|
Wheelbase |
3800 mm |
|
|
Tire model |
8.25R20 |
|
|
Maximum Speed |
95 km/h |
|
|
Curb Weight |
4800 kg |
|
|
Gross Vehicle Weight |
9600 kg |
|
|
Engine Parameters |
Engine Model |
YC4E140-33 |
|
Maximum Horsepower |
140HP |
|
|
Displacement |
4.257L |
|
|
Emission Standard |
Euro 3 |
|
|
Fuel Type |
Diesel |
|
|
Cooling performance |
Cargo Body Size |
4300*2350*2500 |
|
Panel Material |
FRP + PU Foam + FRP 105mm |
|
|
Panel Structure |
All Closed Sandwich |
|
|

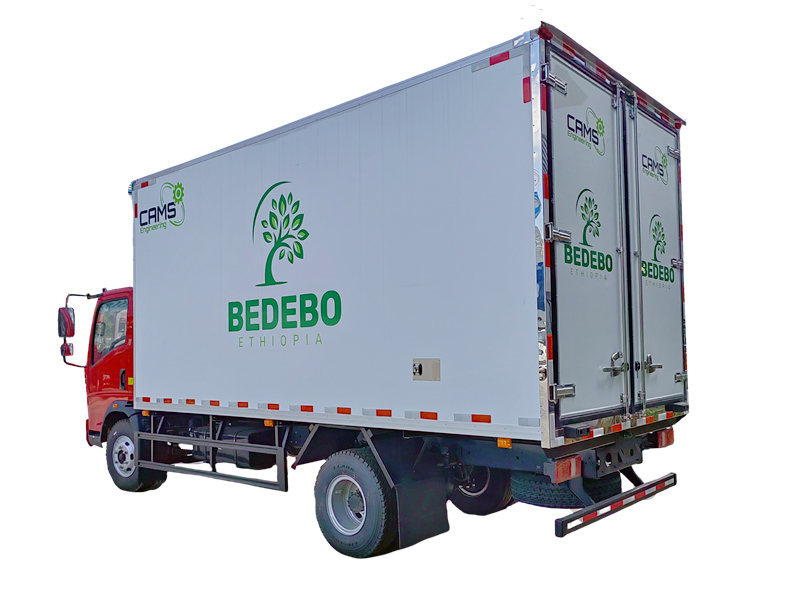

Rear Door Type |
Full Size Double Opening Rear Door |
|
|
Flooring |
Antiskid and abrasion resistant |
|
|
Refrigeration Unit |
KX 550 |
|
|
Body Space Temp |
-15 degree~ +20 degree |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Color & LOGO |
According to wish |
|
|
Optional Equipment |
1, Refrigeration brand: KAIXUE, Carrier, Thermoking, DAIKIN (with any brand) 2, Rear vision camera 3, Aluminium flooring, Hanging system 4, Optional Dual temperature, multi compartment
|
|
Van Box Manufacturing Process «««
♦ High-Quality Materials:
--- Inner and outer skins are constructed of high-quality fiberglass reinforced plastic (FRP) or pre-coated aluminum panels, offering exceptional corrosion, rust, and weather resistance.
--- The core material is fluorine-free, environmentally friendly, low-K (low thermal conductivity) polyurethane foam, injected through high-pressure foaming to achieve uniform density and excellent thermal insulation.
♦ Sandwich Panel Bonding:
--- A high-strength adhesive combined with mechanical pressing is used, rather than simple screw fastening.
--- The panels are securely connected and sealed, eliminating thermal bridges and ensuring the overall thermal insulation performance of the body.
--- High-strength alloy corner guards are installed at the four corners of the body to enhance overall structural integrity.

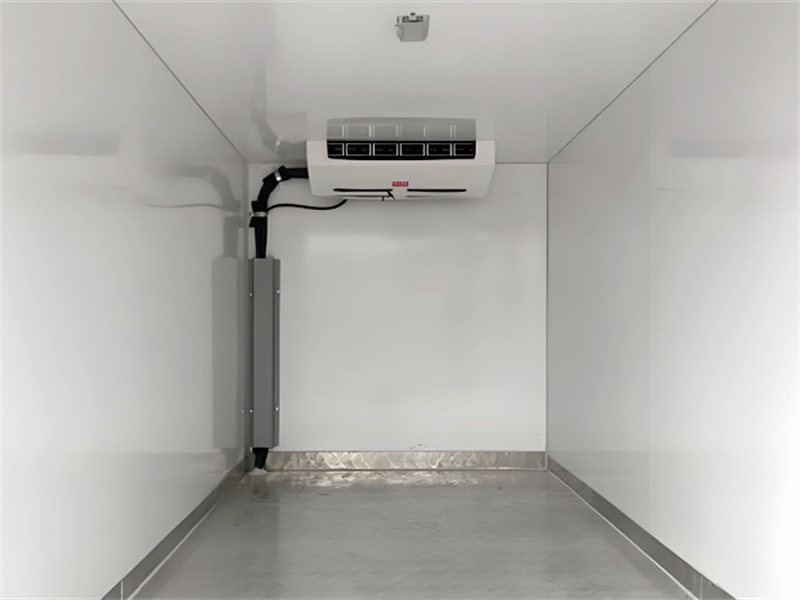

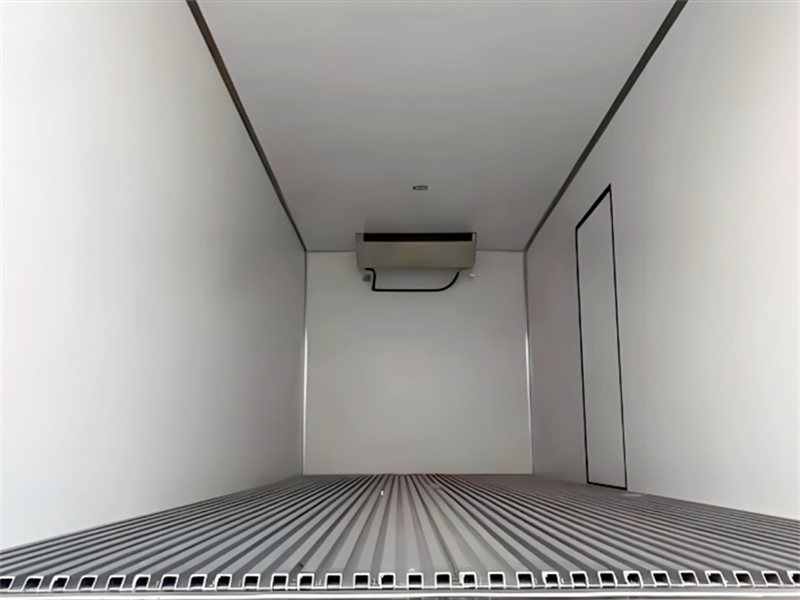

♦ Floor Structure:
--- A 3-5 cm high-strength profile (such as aluminum) is used as the frame, filled with insulation material.
--- The upper surface is clad with non-slip, corrosion-resistant aluminum patterned plate or composite material, designed to withstand the impact and wear of forklift operations and heavy cargo.
Efficient Powertrain & Economy High-horsepower
♦ High-torque engine: Ensures the vehicle maintains excellent acceleration and gradeability even under heavy loads, ensuring timely delivery.
♦ Low-drag design: The streamlined design of the cab and body, as well as aerodynamic features such as side skirts, effectively reduce wind resistance at high speeds, saving fuel.
♦ Unit fuel consumption: Independent diesel refrigeration units should also have a high energy efficiency ratio, minimizing fuel consumption while ensuring cooling output.

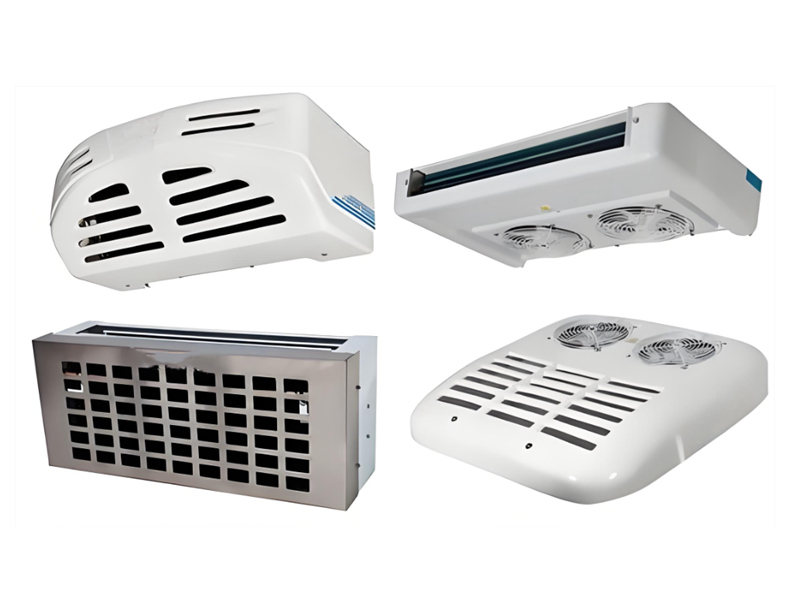

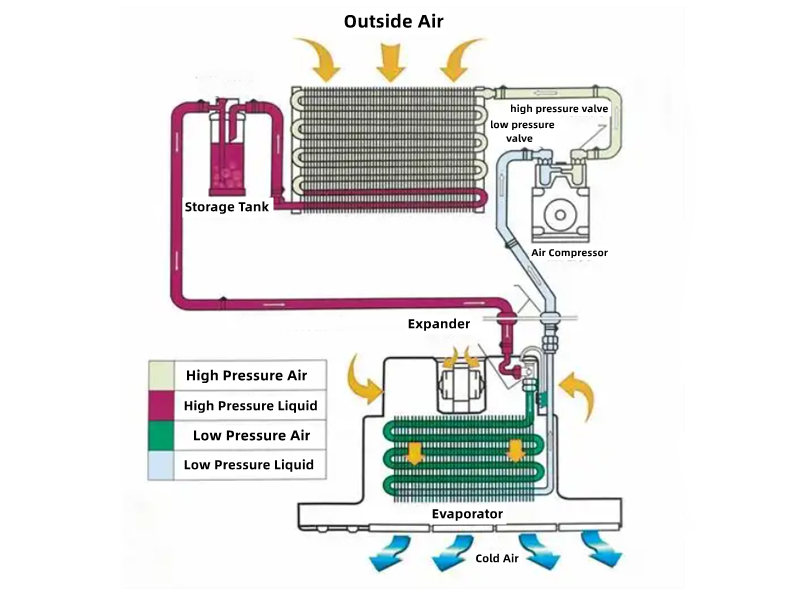

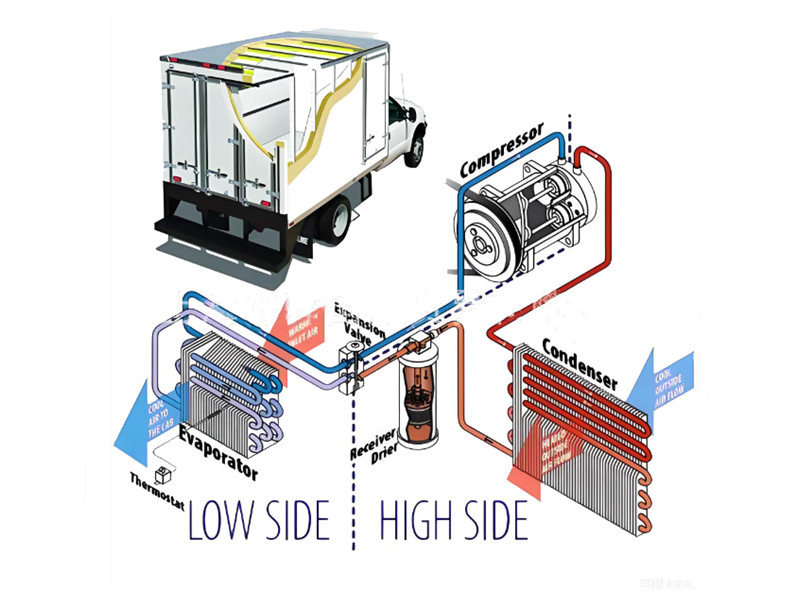

Refrigeration Unit «««♦ The freezer van is a portable, controllable low-temperature environment.
♦ The van body only provides insulation, while the refrigeration unit is the sole active and precise "cold capacity production and regulation center."
♦ Its functions of refrigeration, heating, dehumidification, and ventilation can withstand varying external climates, solar radiation, and heat loads from opening and closing doors.
♦ It meets the stringent temperature requirements of biological products and high-end foods.
♦ Furthermore, it can record and upload temperature data in real time, making it a key piece of equipment for achieving full traceability and meeting the requirements of pharmaceutical GSP and food HACCP.
Advantage Feature:
♦ Powerful Heat Exchange Capacity: Advanced condenser and evaporator design with optimized fin structure ensures high heat dissipation efficiency and minimizes cooling loss even at high temperatures (above 45°C).
♦ All-Area Environmental Adaptability: Key components (compressor, controller, sensors) undergo rigorous high and low temperature, vibration, and salt spray testing to ensure long-term stable operation in extreme climates and complex road conditions.
♦ Intelligent Fault Diagnosis and Early Warning: Equipped with a comprehensive self-diagnostic system, it provides early warnings of potential faults (such as filter blockage or sensor malfunction) rather than reactive alarms.
● China best freezer van truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service
⇒ Products--100% Customized Level One!
⇒ Transportation--100% Safety, Convenience, Efficient!
⇒ Services--7days + 24hours Safetify Service!
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
The HOWO 4x2 refrigerated truck adopts HOWO light truck chassis, 3360mm wheelbase.Equipped with a Cummins ISF3.8s4R154 154 horsepower engine and a WLY6TS55 6-speed gearbox. The upper refrigerated box measures 4200×2200×2050mm and is made of fiberglass, FRP + PU foam + FRP 105mm panel material, fully enclosed sandwich panel, right-side door, full-size double rear door, non-slip and wear-resistant floor, and uses the HX-580 refrigeration unit. The box can carry 5 tons of cargo and is mainly used for cold chain transportation of seafood.
