In the global specialized transport and off-road freight sector, the Howo 6WD 20tons cargo truck, with its robust all-terrain capability, reliable heavy-duty performance, and flexible adaptability, has become the preferred equipment for extreme conditions such as mountain exploration, mine resupply, and emergency rescue. In the African market, its adaptability and cost-effectiveness have become particularly prominent, making it a vital force in supporting infrastructure construction and material transportation in Africa.
Working capacity :
20 tonsCabin type :
Howo single cabin, with one sleeperDrive system :
6x6Wheelbase ( mm) :
4500+1350Engine specific :
WP12S400E201Gear box :
HW19710C, 10 forwards & 2 reversesFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000*2The Sinotruk 6x6 all-wheel-drive cargo truck is a hardcore piece of equipment tailored for extreme off road and heavy-duty transportation scenarios. Its core positioning is "all-terrain, high reliability, and high load capacity," capable of withstanding heavy-load impacts while controlling the vehicle's weight to ensure a balance between transportation efficiency and fuel economy.
In terms of the powertrain, the truck is equipped with a Sinotruk WP12S400E201 (or WD615.95C) inline 6 cylinder engine, delivering up to 400 horsepower and a peak torque of 1490 N·m. Maximum power is available in the low-speed range of 1200-1500 rpm, perfectly suited for core needs such as heavy-load climbing and starting on complex road conditions.
The drive system is its core advantage, employing an STR cast steering drive axle and an ST16 dual-reduction rear axle, coupled with multiple differential locks, to achieve even torque distribution. This completely eliminates slippage on low-traction surfaces such as mud and gravel, giving the vehicle exceptional off-road capability and allowing it to easily traverse obstacles such as ditches and steep slopes.

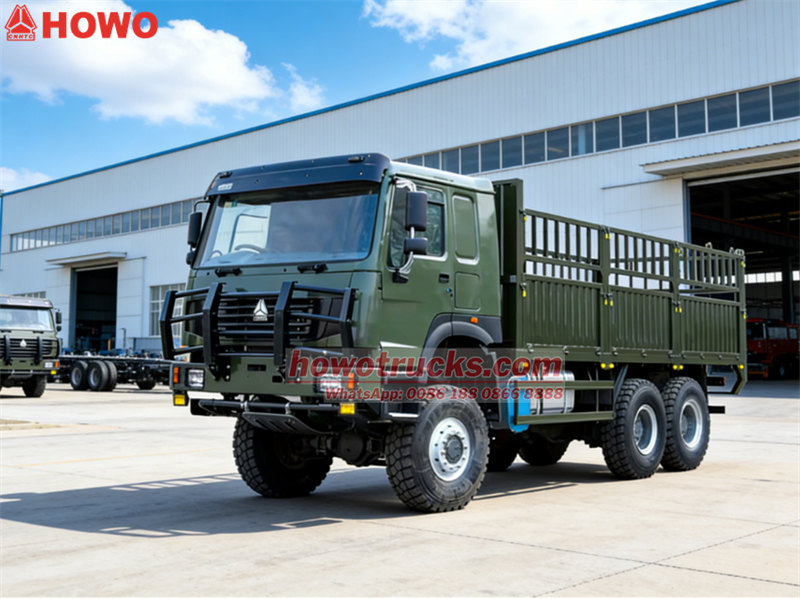

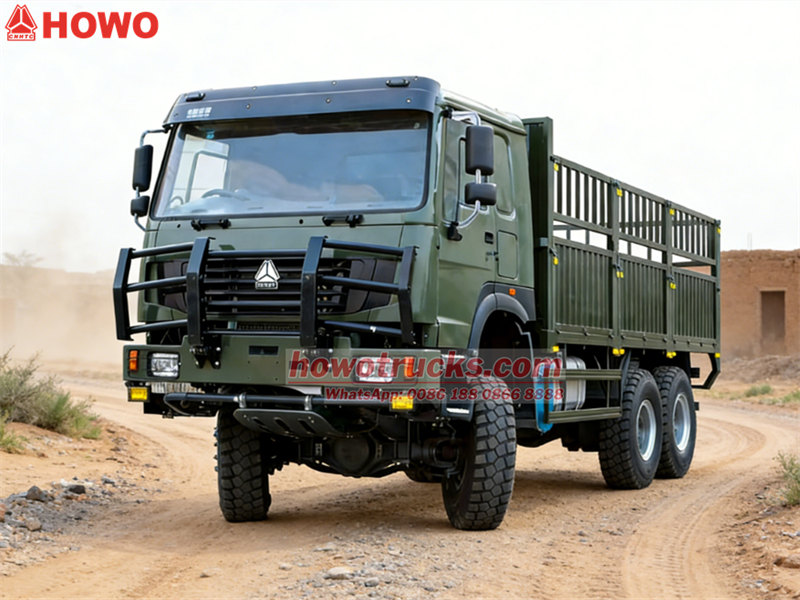

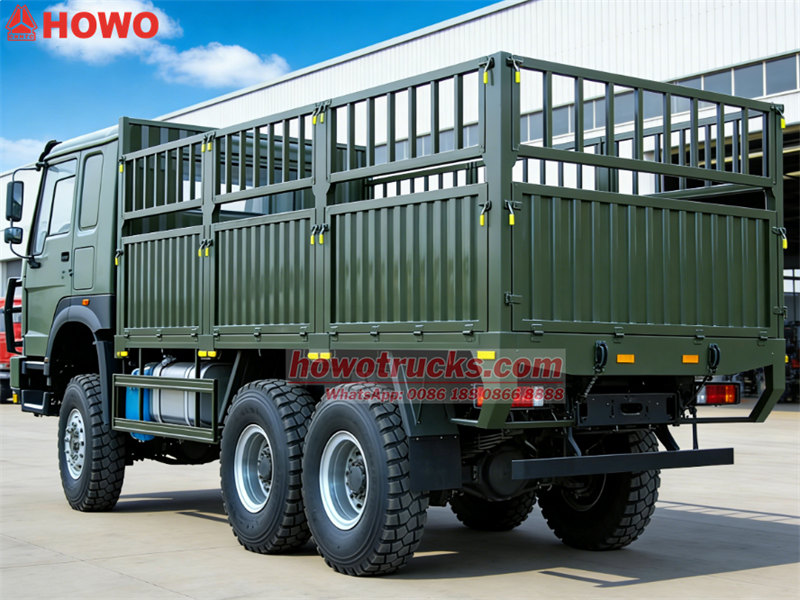

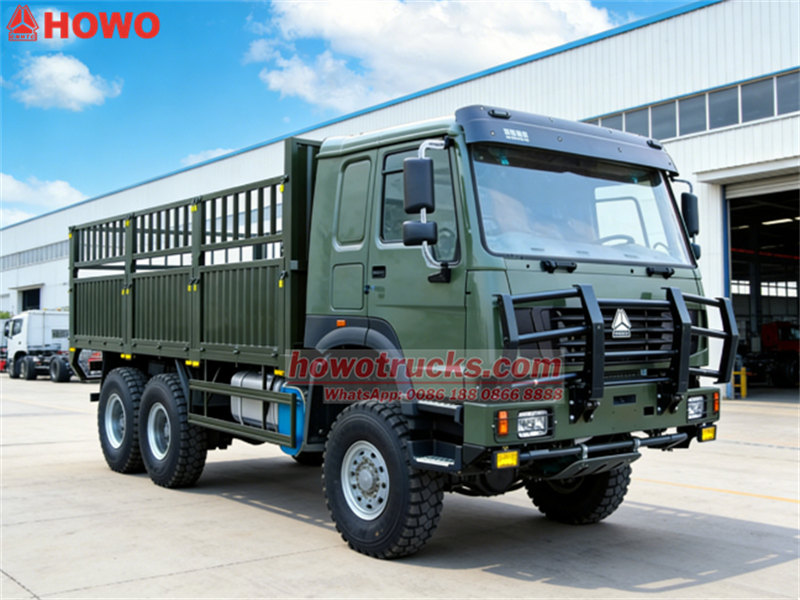

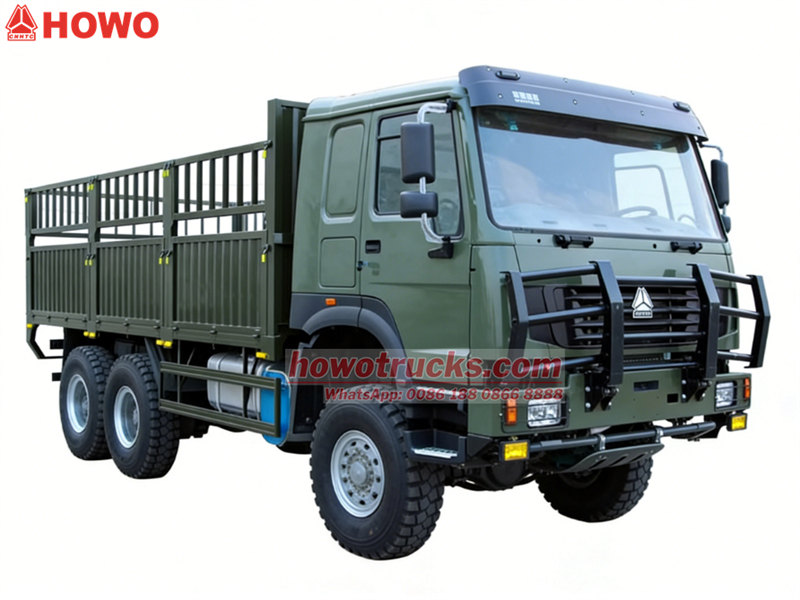

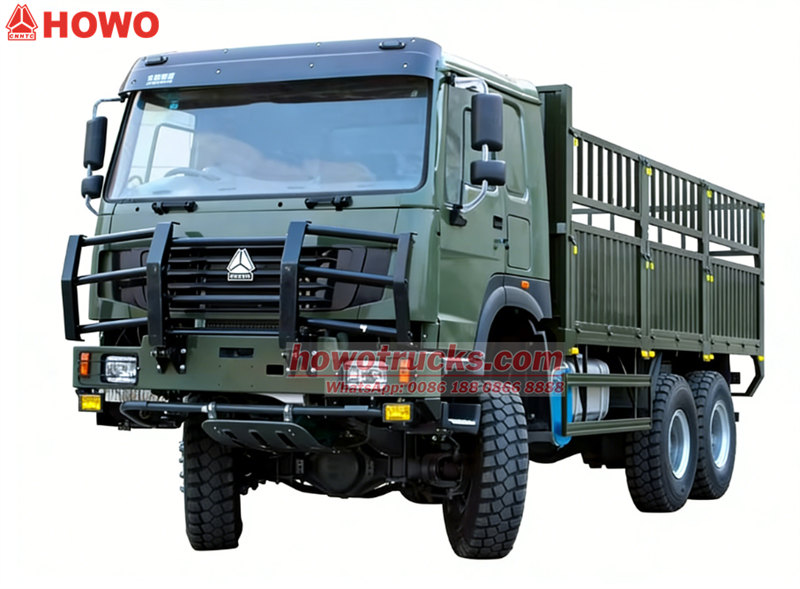

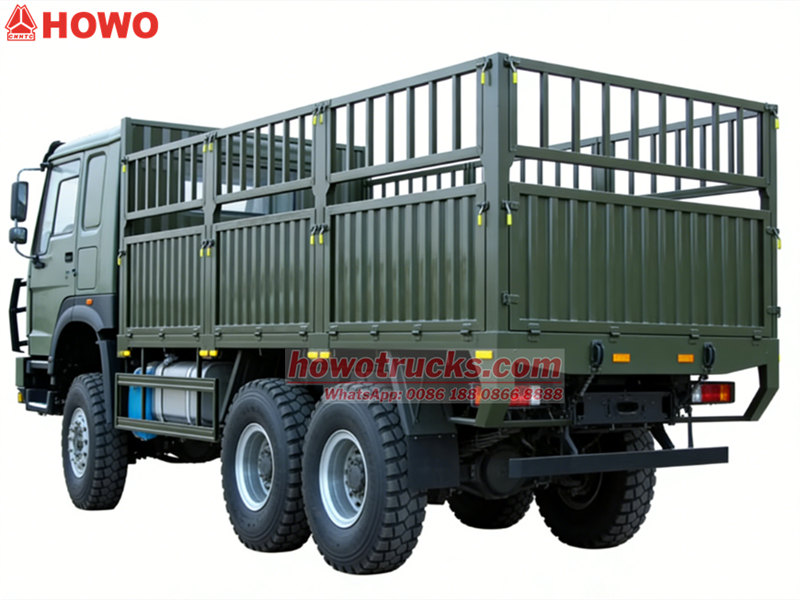

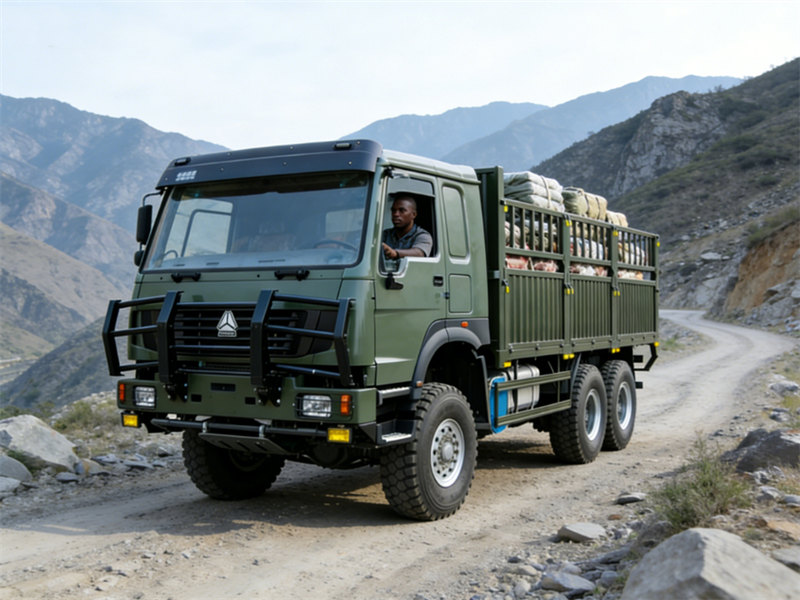

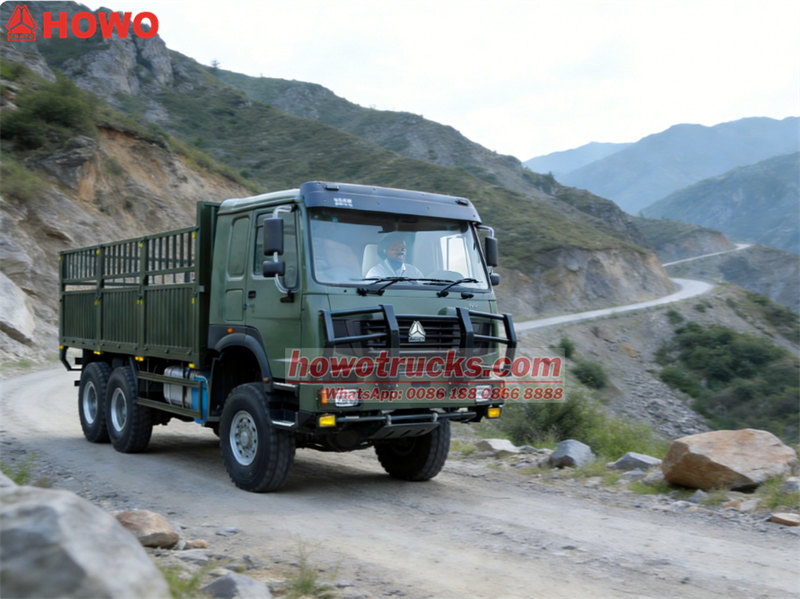

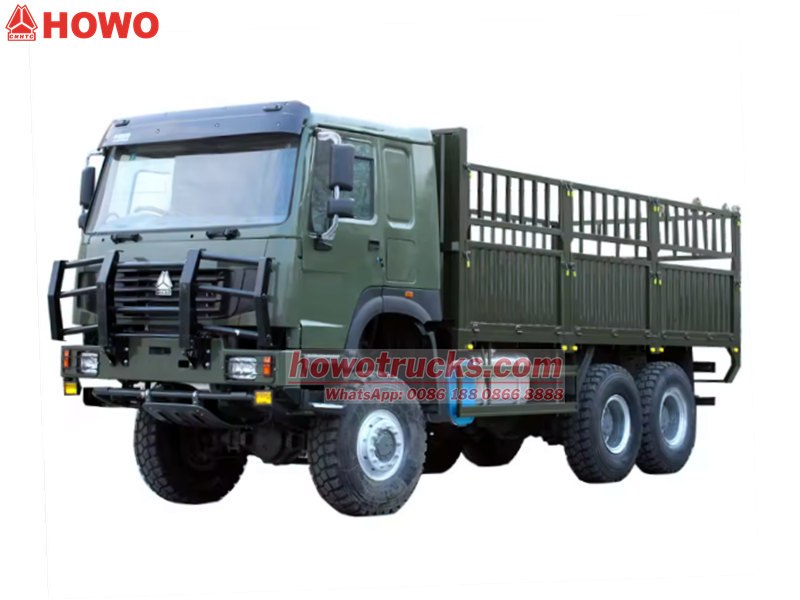

*Howo Heavy 6x6 Cargo Lorry Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Howo truck chassis, 4x4,6X6 model，WP model with 400HP and emission 12L.
▶ Cargo material: 5mm thick high-quality steel for prolonged service lier carbon steel, aluminum alloy or stainless steel can be choose.
▶ Optional design: such as telescopic boom, knuckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs.
✦ Ⅱ.Product Parameter For Howo 4WD Truck « « «
|
Howo 6x6 CARGO TRUCK SPECIFICATIONS |
||
|
Truck Model |
CSC52530QHC |
|
|
Truck Brand |
Howo |
|
|
Dimension (LxWxH) (unloaded)mm |
10350×2550×3250 |
|
|
Cargo body size(mm) |
6800X2400X650 |
|
|
Steel thickness of Carriage(mm) |
Floor:4mm/Side:3mm |
|
|
Approaching angle/ Departure angel (°) |
16/15 |
|
|
Overhang (front/rear) (mm) |
1530/2107 |
|
|
Wheel base (mm) |
4500+1350 |
|
|
Max. Driving speed (km/h) |
105 |
|
|
Front axle loading capacity (kg) |
7500 |
|
|
Rear axle loading capacity(kg) |
13000*2 |
|
|
Curb weight (kg) |
9800 |
|
|
Gross vehicle weight |
25000 |
|
|
Cab Model |
Howo cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|
|
Engine Model |
Model |
WP12S400E201 |
|
Power |
400 hp |
|
|
Euro Ⅱ emission standard |
||
|
Brake system
|
Service brake |
Dual circuit compaction air brake |
|
Parking Brake (emergency brake) |
Spring energy, compressed |
|
|
Steering system |
Model |
HW 10 speed Steering Gear Box ,hydraulic steering with power assistance. (Left/Right hand driving) |
|
Tire |
12.00R20 6pcs tyre with 1 Spare tire |
|
|
Electrical system |
Electrics Operating voltage |
24V,negative grounded |
|
Starter |
24V,7.5 Kw |
|
|
Alternator |
3 phase,28V,1500 W |
|
|
Batteries |
2x12 V,165 Ah |
|
|
horn,headlamps,fog lights,brake lights,indicators and reverse light. |
||
|
Oil Tank |
Square type 400L Aluminum alloy fuel tank |
|
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
|
Cargo Box |
carbon steel material |
|
|
Capacity |
20tons |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
✦ Ⅲ.Feature For Howo Off Road 10tons Truck « « «
1.All-Wheel Drive System Integration Technology:
♦ Howo's all-wheel drive system utilizes its independently developed "transfer case + multiple differential locks + dedicated drive axle" integrated technology.
♦ The transfer case employs a high-strength casting process, enabling flexible power distribution between the front and rear axles, switching between high-speed two-wheel drive, high-speed four-wheel drive, and low-speed four-wheel drive modes to adapt to different road conditions.
♦ Multiple differential locks (including a central differential lock, front axle differential lock, and rear axle differential lock) automatically adjust torque distribution based on road surface adhesion, achieving 100% locking functionality and ensuring the vehicle's ability to escape from extreme road conditions such as mud and sand.
2. High-Strength Chassis and Body Manufacturing Technology:
♦ Targeting extreme off road and heavy-duty requirements, Howo employs high-strength chassis manufacturing technology. The chassis frame is welded from high-strength steel plates.
♦ After shot blasting and cathodic electrophoresis for rust prevention, its corrosion resistance is enhanced.
♦ Simultaneously, the frame structure design is optimized, increasing the crossbeam density and improving the chassis's load-bearing capacity and torsional resistance.
♦ The chassis uses a 4-point support fully floating suspension and shock absorbers with lateral stabilizers, effectively buffering road bumps, reducing body vibration, and improving ride comfort and vehicle stability.
3. Superior Cab Design:
♦ The cab features an all-steel forward-tilting design with a 55° hydraulic tilting mechanism for easy maintenance and repair.
♦ The cab has undergone rigorous crash testing and utilizes a collapsible structure, along with safety features such as seat belts and airbags to enhance occupant safety.
♦ The cab is equipped with a heating and ventilation system, air conditioning, and adjustable seats to optimize the driving experience and meet the demands of long-term field operations.
4. Fuel Economy and Range, Adapting to Africa's Energy Situation:
♦ The Howo 6x6 cargo truck effectively reduces fuel consumption through powertrain optimization and lightweight design.
♦ Equipped with a large 400L aluminum alloy fuel tank, its range can reach over 800 kilometers, meeting the needs of long-distance transportation in Africa and reducing refueling frequency.
♦ The Howo 6WD fuel tank truck is highly adaptable to fuel quality, compatible with different octane ratings of fuel, adapting to the varying fuel quality in some parts of Africa and avoiding vehicle malfunctions due to fuel issues.
✦ Ⅳ.Manufacturing Process For Howo 4WD Cargo Truck « « «
⇒ The body welding utilizes robotic welding technology, resulting in high welding precision and uniform welds, enhancing body strength and sealing.
⇒ The chassis welding employs a gantry welding robot, ensuring high-quality chassis welding and reducing welding defects.
⇒ Core components such as the engine and transmission are manufactured using precision machining equipment, achieving micron-level precision, improving component fit and reducing wear.
⇒ Advanced coating processes such as cathodic electrophoresis and powder coating enhance the corrosion resistance of the body and chassis, meeting the demands of harsh outdoor environments.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
