The Sinotruk 6x6 all-wheel-drive cargo truck is a hardcore piece of equipment tailored for extreme off road and heavy-duty transportation scenarios. Its core positioning is "all-terrain, high reliability, and high load capacity," capable of withstanding heavy-load impacts while controlling the vehicle's weight to ensure a balance between transportation efficiency and fuel economy.In terms of the powertrain, the truck is equipped with a Sinotruk WP12S400E201 (or WD615.95C) inline 6 cylinder engine, delivering up to 400 horsepower and a peak torque of 1490 N·m. Maximum power is available in the low-speed range of 1200-1500 rpm, perfectly suited for core needs such as heavy-load climbing and starting on complex road conditions.
Working capacity :
20 tonsCabin type :
Howo single cabin, with one sleeperDrive system :
6x6Wheelbase ( mm) :
4500+1350Engine specific :
WP12S400E201Gear box :
HW19710C, 10 forwards & 2 reversesFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000*2The Howo 6WD cargo lorry truck, with its powerful all-wheel drive and highly capable chassis, can easily handle complex road conditions such as mountainous and mining areas, ensuring stable transportation of engineering materials. Its outstanding off-road performance and reliability enable rapid response to emergency rescue and disaster relief needs, quickly reaching remote disaster areas to deliver supplies.It is also adaptable to harsh environments such as high temperatures and high altitudes, exhibiting strong durability and perfectly suited for long-distance transportation tasks in overseas infrastructure projects in Africa and Southeast Asia, making it a core piece of equipment for transportation support in complex environments.

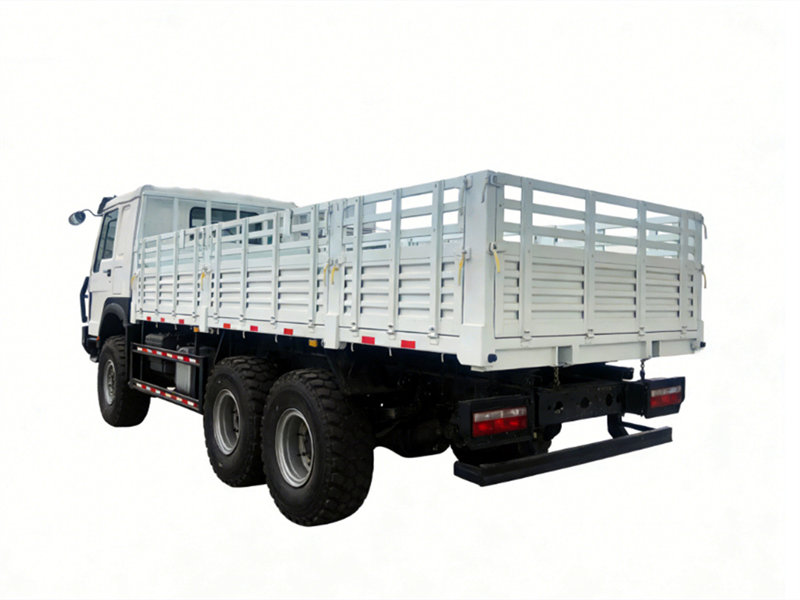

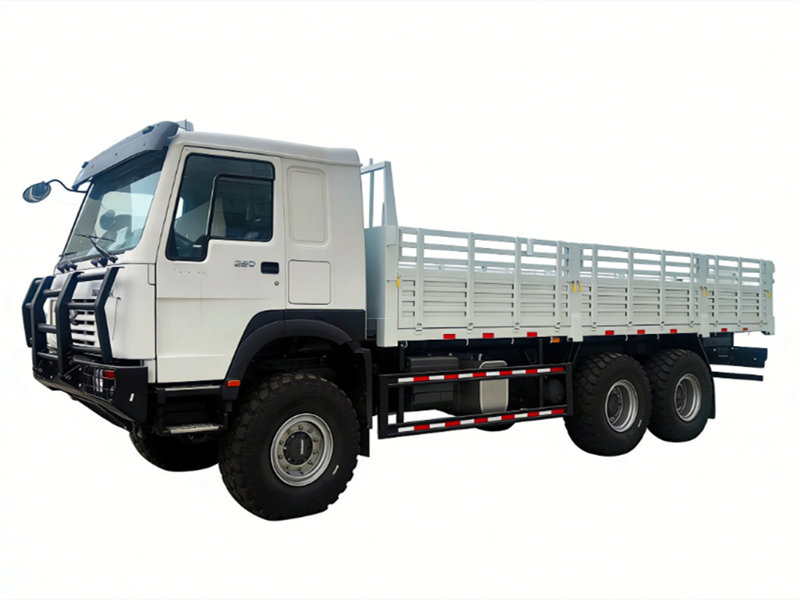

*Sinotruk 6WD Cargo Lorry Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Howo truck chassis, 4x4,6X6 model，WP model with 400HP and emission 12L.
▶ Cargo material: 5mm thick high-quality steel for prolonged service lier carbon steel, aluminum alloy or stainless steel can be choose.
▶ Optional design: such as telescopic boom, knuckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs.
✦ Ⅱ.Product Parameter For Howo 6WD Truck « « «
|
Howo 6x6 CARGO TRUCK SPECIFICATIONS |
||
|
Truck Model |
CSC52530QHC |
|
|
Truck Brand |
Howo |
|
|
Dimension (LxWxH) (unloaded)mm |
10350×2550×3250 |
|
|
Cargo body size(mm) |
6800X2400X650 |
|
|
Steel thickness of Carriage(mm) |
Floor:4mm/Side:3mm |
|
|
Approaching angle/ Departure angel (°) |
16/15 |
|
|
Overhang (front/rear) (mm) |
1530/2107 |
|
|
Wheel base (mm) |
4500+1350 |
|
|
Max. Driving speed (km/h) |
105 |
|
|
Front axle loading capacity (kg) |
7500 |
|
|
Rear axle loading capacity(kg) |
13000*2 |
|
|
Curb weight (kg) |
9800 |
|
|
Gross vehicle weight |
25000 |
|
|
Cab Model |
Howo cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|
|
Engine Model |
Model |
WP12S400E201 |
|
Power |
400 hp |
|
|
Euro Ⅱ emission standard |
||
|
Brake system
|
Service brake |
Dual circuit compaction air brake |
|
Parking Brake (emergency brake) |
Spring energy, compressed |
|
|
Steering system |
Model |
HW 10 speed Steering Gear Box ,hydraulic steering with power assistance. (Left/Right hand driving) |
|
Tire |
12.00R20 6pcs tyre with 1 Spare tire |
|
|
Electrical system |
Electrics Operating voltage |
24V,negative grounded |
|
Starter |
24V,7.5 Kw |
|
|
Alternator |
3 phase,28V,1500 W |
|
|
Batteries |
2x12 V,165 Ah |
|
|
horn,headlamps,fog lights,brake lights,indicators and reverse light. |
||
|
Oil Tank |
Square type 400L Aluminum alloy fuel tank |
|
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
|
Cargo Box |
carbon steel material |
|
|
Capacity |
20tons |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
✦ Ⅲ.Feature For Howo Off Road 20tons Truck « « «
1. Powerful load capacity:
♦ Howo 6x6 flatbed cargo truck can carry up to 20 tons of cargo.
♦ This makes it ideal for handling large cargo and important supplies.
♦ Whether it's construction materials, heavy equipment or other heavy cargo, it can handle it with ease.
2. Stable and reliable driving performance:
♦ This Howo 6x6 flatbed cargo truck is equipped with a powerful and efficient engine that can provide enough power to drive the vehicle.
♦ The Howo 6x6 flatbed cargo truck has excellent acceleration performance and stable driving performance, and can maintain good stability even in various complex road conditions.
3. Economical and efficient fuel consumption:
♦ Howo all drive flatbed cargo truck adopts an advanced fuel management system to effectively control fuel consumption.
♦ Its fuel economy enables businesses to reduce operating costs and contribute to environmental protection.
4. Comfortable driving experience:
♦ The manufacturer fully considered the driver's comfort and driving experience when designing the Howo 6x6 flatbed cargo truck.
♦ The spacious and comfortable cab and user friendly control system reduce the fatigue of long term driving, and the assisted driving system provides additional safety.
✦ Ⅳ.Application For Howo 6WD Cargo Truck « « «

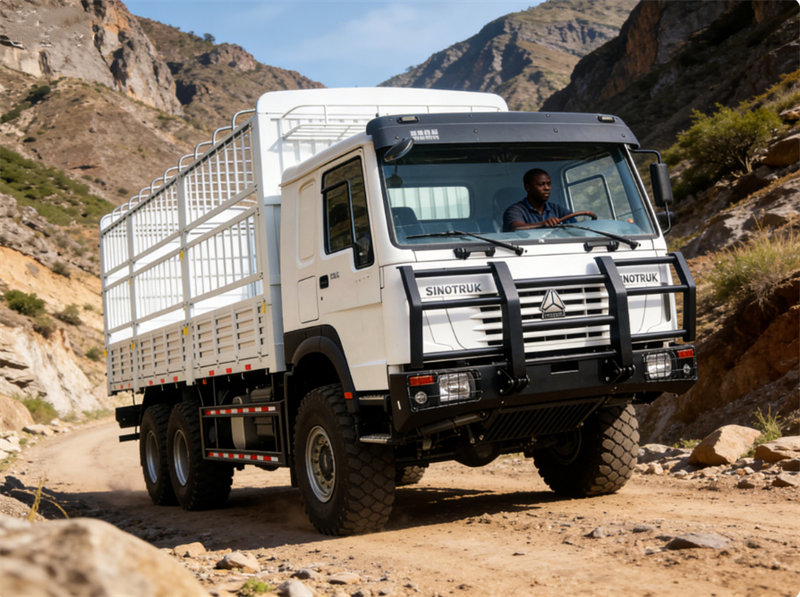

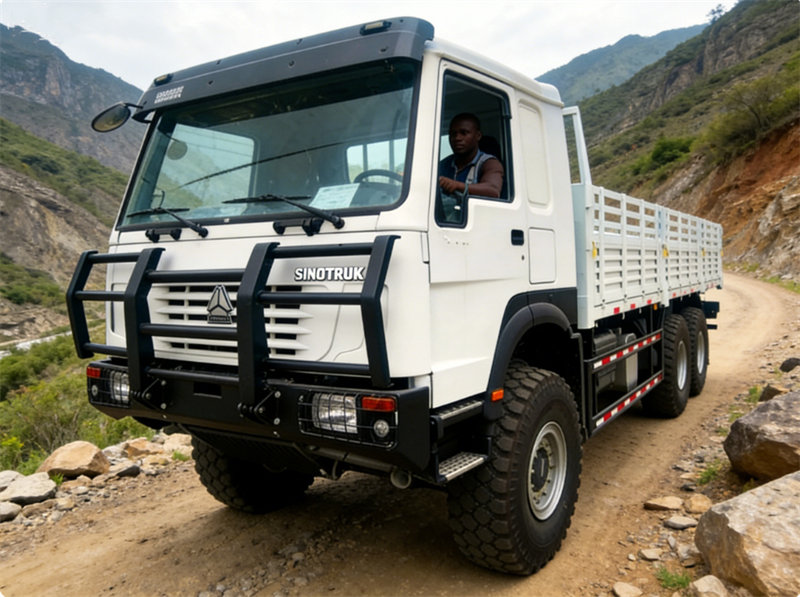

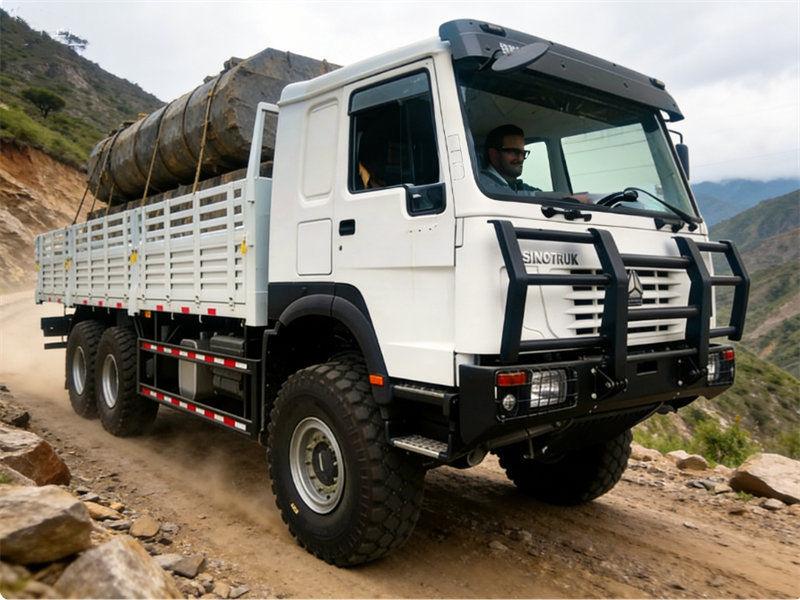

1. Strong All-Terrain Capability: Equipped with large off-road tires and an all-wheel-drive system, the vehicle can stably navigate unpaved surfaces such as mud, gravel, and steep slopes, as shown in the mountain dirt road image.
2. Reliable Heavy-Duty Transport Capacity: The vehicle's robust cargo box and chassis design can reliably carry large quantities of heavy loads, such as timber, meeting the demands of high-intensity transport.
3. Durability for Harsh Environments: Featuring a military-green paint job and reinforced protective design, the vehicle can operate for extended periods in the field, resisting the harshness of complex environments.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
In the global specialized transport and off-road freight sector, the Howo 6WD 20tons cargo truck, with its robust all-terrain capability, reliable heavy-duty performance, and flexible adaptability, has become the preferred equipment for extreme conditions such as mountain exploration, mine resupply, and emergency rescue. In the African market, its adaptability and cost-effectiveness have become particularly prominent, making it a vital force in supporting infrastructure construction and material transportation in Africa.
