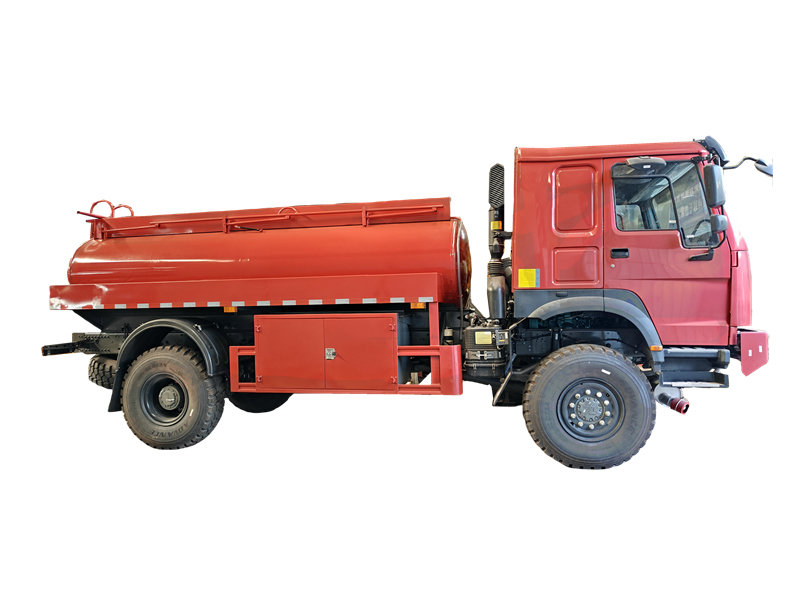

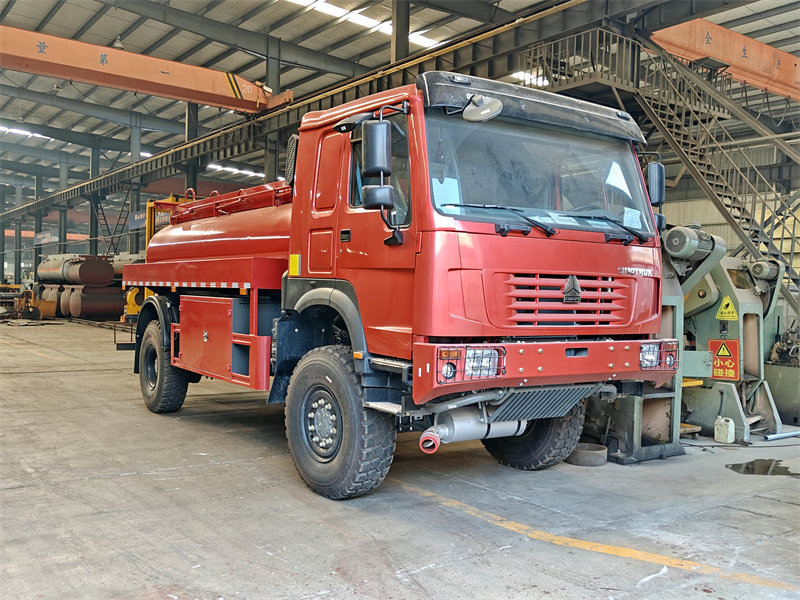

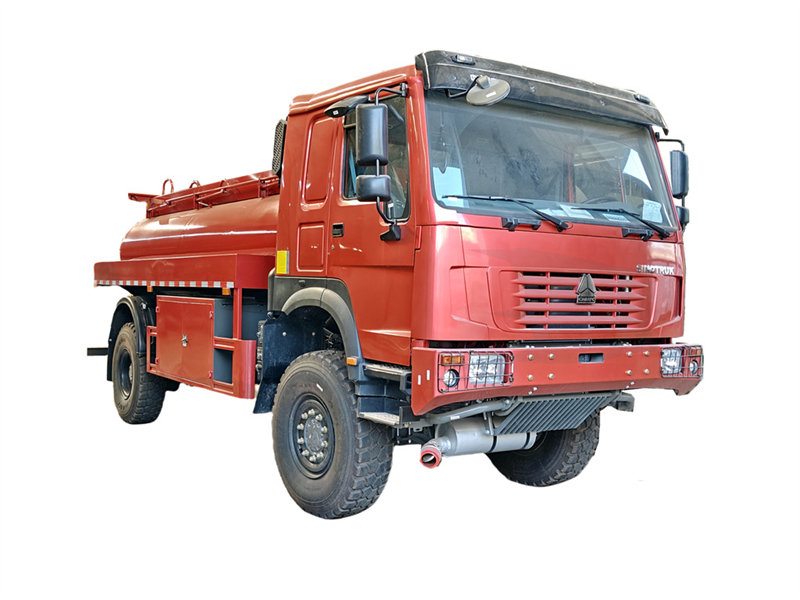

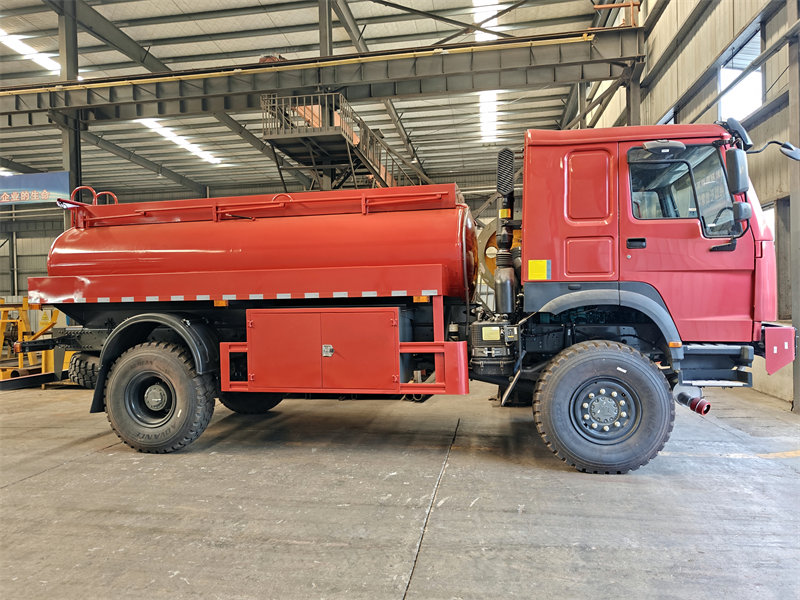

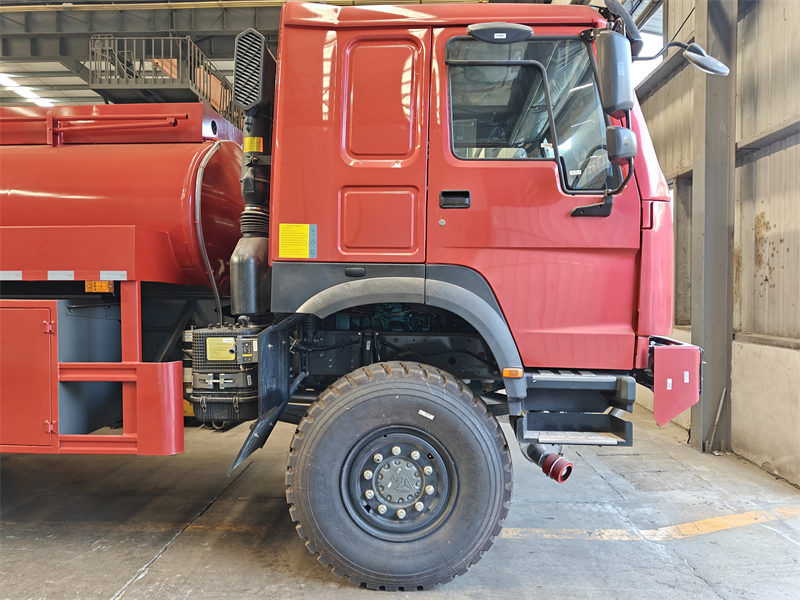

The Howo off road mining oil tanker is equipped with a WP12S400E201 inline 6 cylinder, 4 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400HP and a maximum torque of 2000 N.m, available at 1400 rpm and rated at 1800 rpm, ensuring the Howo all drive mining water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.
Working capacity :
10000 litersCabin type :
HOWO single cabin with sleeper and A/CDrive system :
4×4Wheelbase ( mm) :
9300*2580*3250mmEngine specific :
400HP/WP12S400E201Gear box :
HW19710Front axle ( Kg ) :
7.5TRear axle ( Kg ) :
13 TThe Howo off road mining oil tanker is equipped with a WP12S400E201 inline 6 cylinder, 4 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400HP and a maximum torque of 2000 N.m, available at 1400 rpm and rated at 1800 rpm, ensuring the Howo all drive mining water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

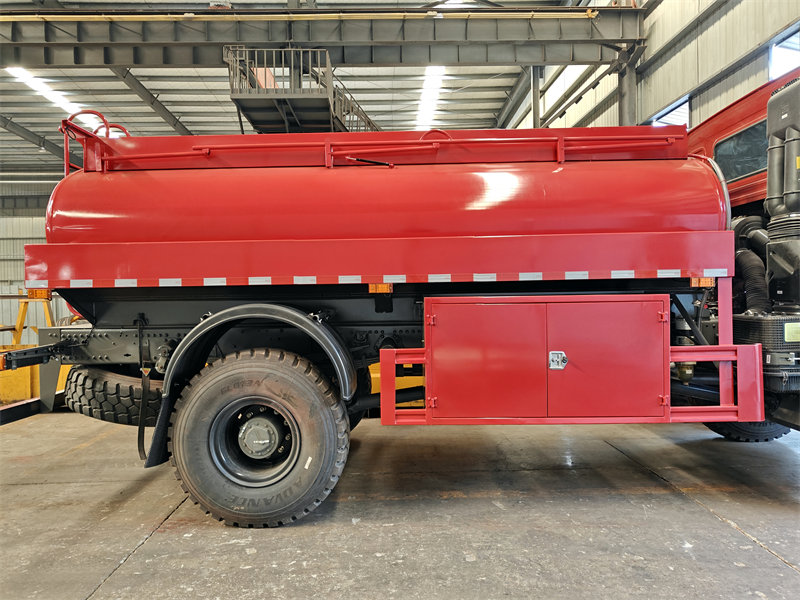

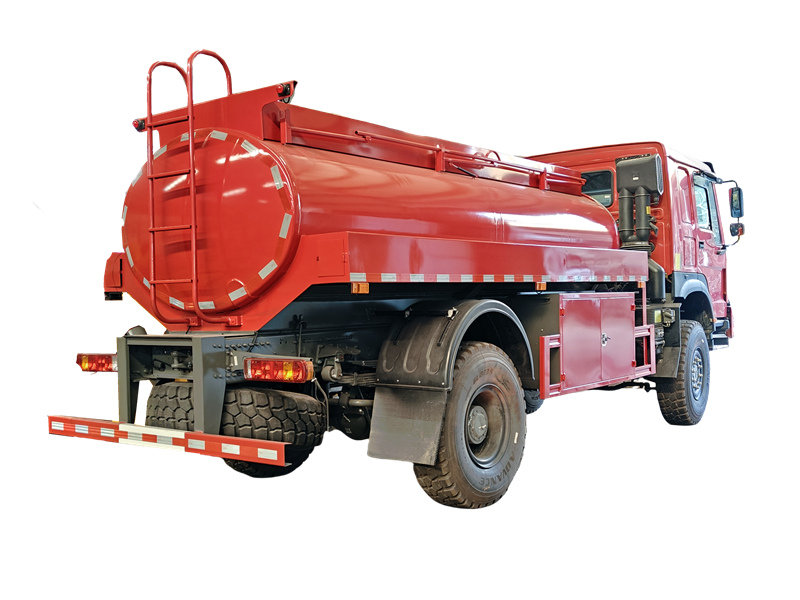

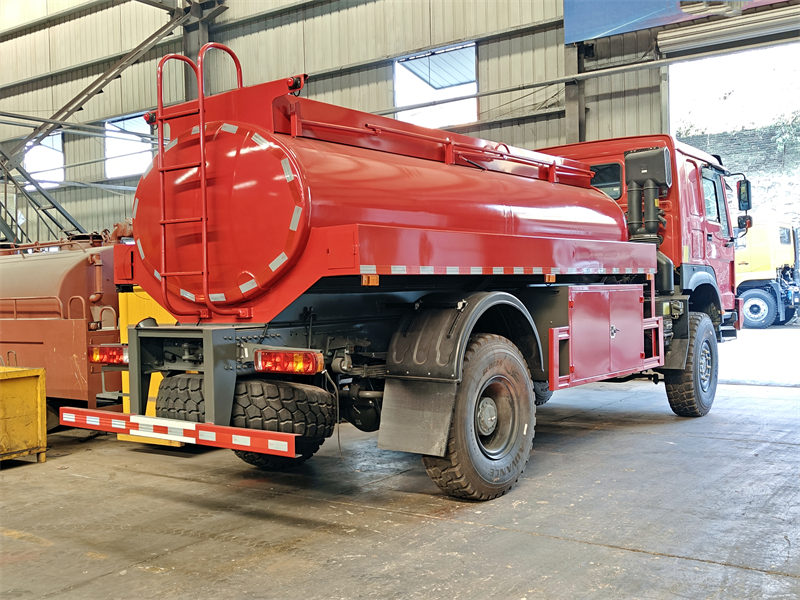

The actual volume of the oil tank is 10,000 liters. Q235 carbon steel is used as the protective material. The tank body is made of carbon steel with a thickness of not less than 5 mm. The Howo fuel tank truck is equipped with Chinese famous brand pumps, valves and pipes, as well as a set of fuel distributors. The oil tank is equipped with a ladder for easy operation, and can be designed into multiple compartments according to needs.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
✦ Ⅰ.Product Defination and Introduction « « «
Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: Howo heavy truck chassis, 4X4 model
WP model with 400HP and Euro 2,3,4
2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose
3. Gear Pump: Equipped with Chian TOP brand fuel pump and refueling equipment
✦ Ⅱ.Product Parameter For Howo 4WD Fuel Truck « « «
|
Howo 4x4 Fuel Tank Truck |
||
|
Drive system |
All drive |
|
|
Chassis |
Howo |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
8600*2385*2850 |
|
Wheel base (mm) |
4600 |
|
|
Overhang (front/rear) (mm) |
1280/1820 |
|
|
Wheel track (front/rear) (mm) |
1831/1640 |
|
|
Approach/Departure angle(°) |
19/10 |
|
|
Weight in KGS |
Curb Weight |
8800 |
|
GVW. |
18000 |
|
|
Max. driving speed(km/h) |
105 |
|
|
Engine |
Model |
WP12S400E201 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
400 HP |
|
|
Emission standard |
Euro 2 |
|
|
Gearbox |
HW19710, 10 forwards & 2 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
400L |
|
|
Tire |
295/80R22.5 6 pcs+1 spare tire |
|
|
UPPER Body |
||
|
Fact cubage |
10000Liters |
|
|
Protective material |
Q235 carbon steel |
|
|
Tank meterial |
<5mm> carbon steel |
|
|
Equipment |
1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser |
|
✦ Ⅲ.Feature For Howo Off Road Fuel Truck « « «
1. Production Advantages:
♦The Howo off-road chassis can handle various rough road conditions, making it crucial for refueling missions requiring access to remote construction sites, mining areas, or unpaved roads.
♦The WP12S400E201 400HP engine provides smooth, reliable, and economical power output across various terrains.
♦The Howo fuel tanker features a highly customizable and integrated design, flexibly adapting to diverse customer needs and forming an independent, efficient fuel delivery unit.
2.Safety Protection Devices:
♦The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.
♦A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank.
♦This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.
♦To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.
3. Off Road Drive System:
♦ Conquer muddy and soft roads:
In spoil dumps and mining areas after rain, where ground adhesion is extremely low, the 4x4 drivie system ensures that as long as one wheel has traction, the vehicle can escape, reducing the risk of getting stuck.
♦ Tackling steep slopes and heavy loads:
When driving uphill with a heavy load, the center of gravity shifts rearward, reducing front wheel adhesion. The 4x4 drivie system provides enhanced climbing ability and driving stability, eliminating the risk of the vehicle rolling due to rear wheel spin.
♦ Enhanced traction on rough roads:
On uneven roads, wheels often become suspended or lack adhesion. The Off-Road Drive system ensures that a wheel always receives power to propel the vehicle forward.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
