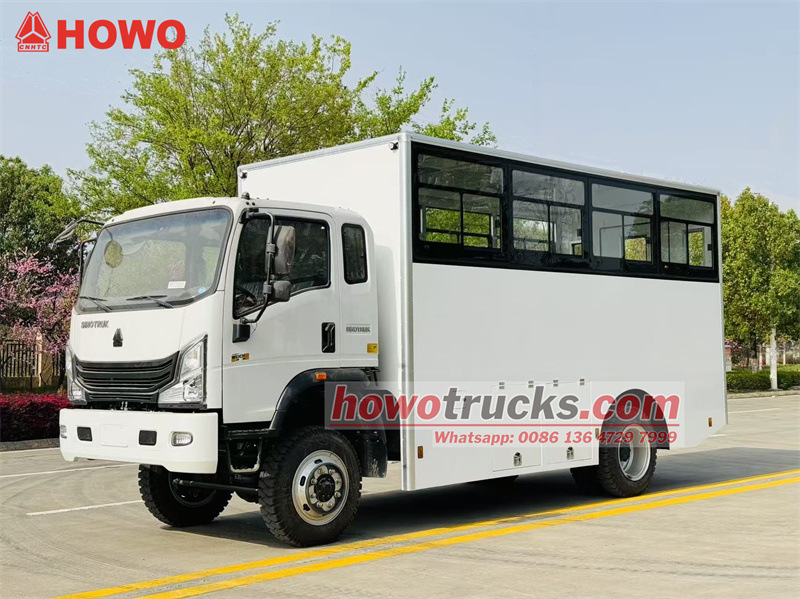

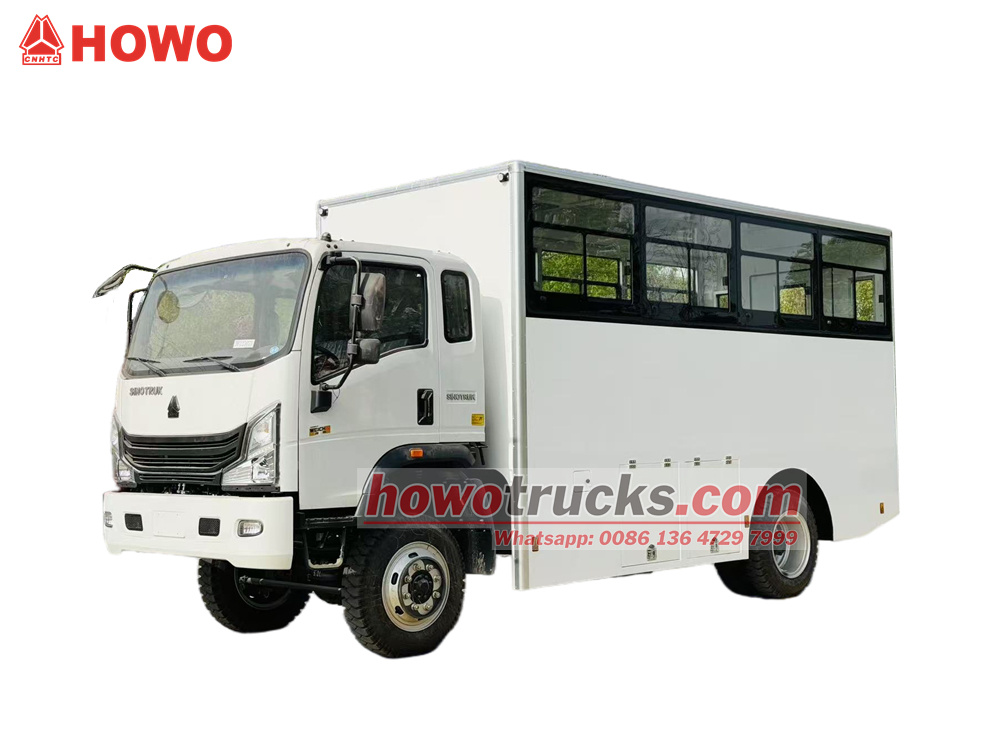

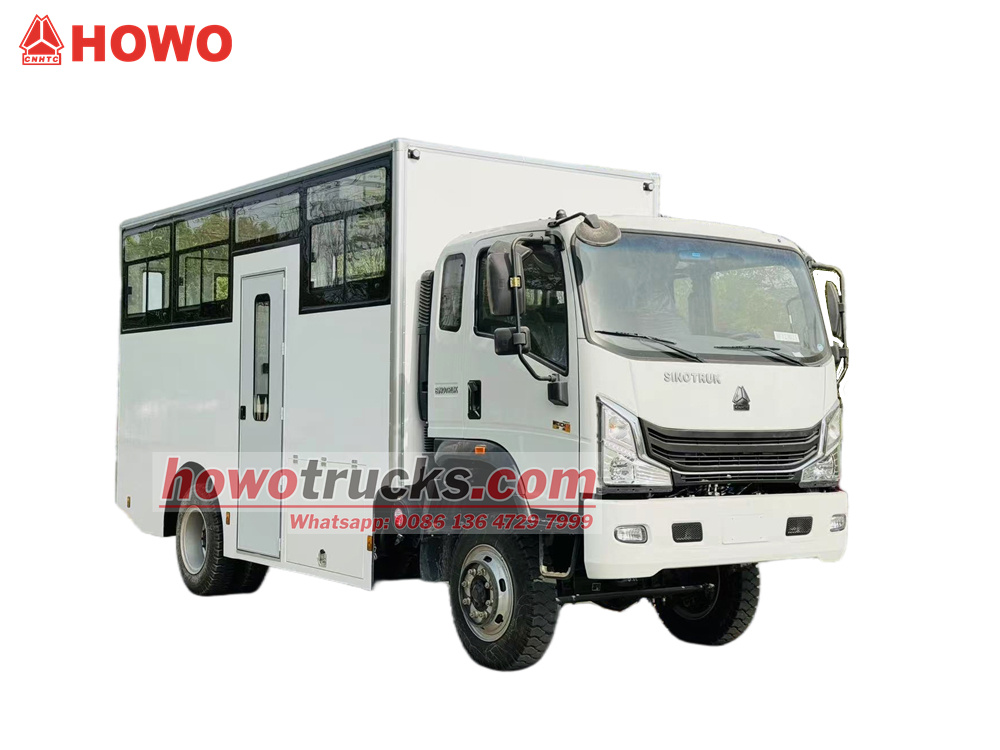

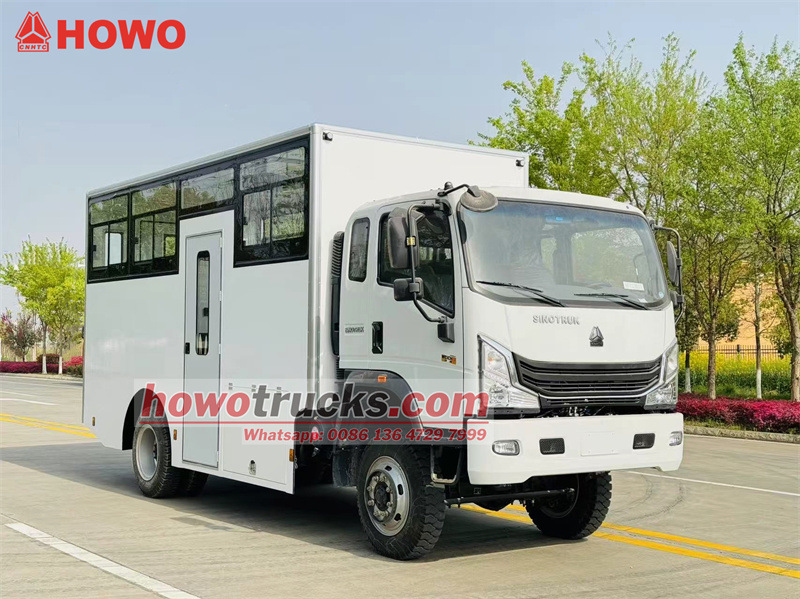

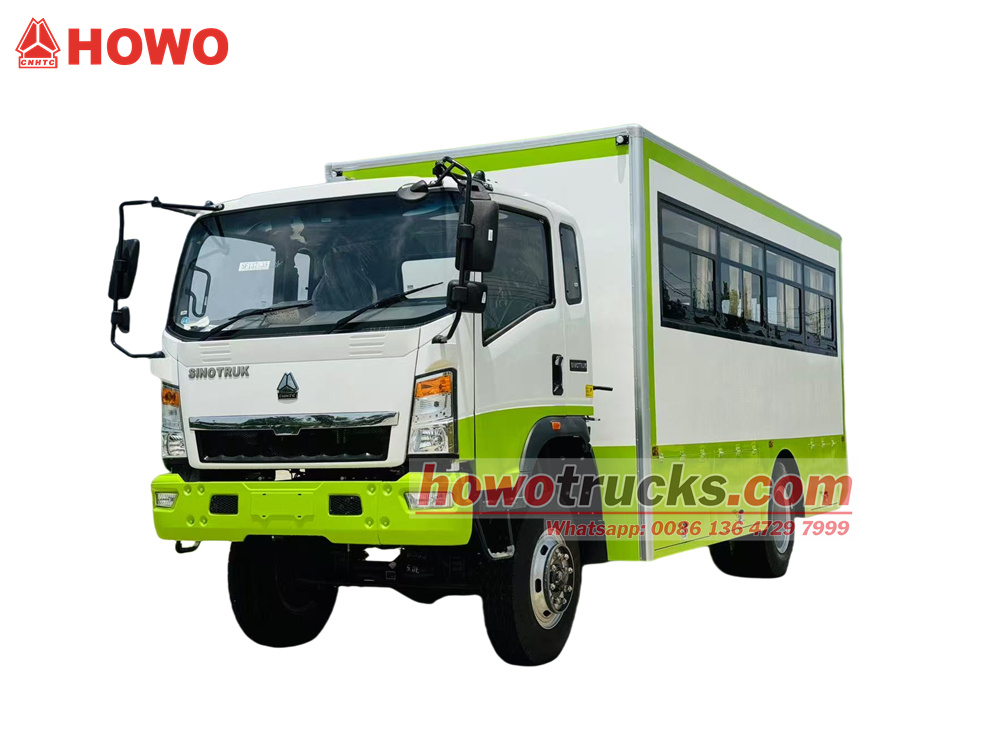

The HOWO 4x4 all-wheel drive troop carrier truck is modified on the HOWO light truck 1880 row semi-all-wheel drive chassis, with a wheelbase of 3360mm, equipped with a Weichai WP3NQ140E50 engine and a WLY6G120 gearbox. The upper body is a box with two rows of long seats that can accommodate 15 soldiers. There are long windows on both sides of the vehicle and a small window on the tailgate. There is also a single door on the right side of the vehicle and a double door on the tailgate for getting on and off. The car is equipped with air conditioning.
Working capacity :
15 passengersCabin type :
Howo light 1880 one and half row cabinDrive system :
4x4,LHDWheelbase ( mm) :
3360 mmEngine specific :
140 HP / Sinotruk WP3NQ140E50Gear box :
WLY6G120, 6-speed, manualFront axle ( Kg ) :
2400Rear axle ( Kg ) :
4200In the field of military transportation and emergency support, a troop carrier with excellent performance and strong adaptability is key to ensuring the smooth execution of the mission. The Howo 4x4 drive soldier troop carrier truck is such a powerful equipment. It has extremely strong adaptability, and its all-wheel drive system is matched with a solid chassis, which can easily handle complex road conditions such as rugged mountain roads and muddy swamps. The Weichai engine is powerful and perfectly matched with the high-quality gearbox to ensure efficient transportation. It is comfortable and spacious with two rows of ergonomic bench seats and air conditioning. It is safe and reliable, with a multi-window design that provides a wide field of view and a high-strength body that is resistant to pressure and impact. It is very convenient, with a single door on the right and a double door on the tailgate, which allows personnel to quickly get on and off the vehicle and quickly complete assembly in an emergency.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
This HOWO troop carrier truck, modified based on the HOWO 4x4 all-wheel drive chassis, is a tactical service vehicle with balanced performance and a clear purpose.
Its core advantages as follows:
1. High maneuverability: Its all-wheel drive enables it to reach many areas inaccessible to conventional vehicles.
2. Large passenger capacity: It can transport a full combat squad (15 people) at a time.
3. High practicality: Its multiple doors, wide visibility, and essential air conditioning fully consider the passenger's practical riding experience.
4. High reliability: Utilizing HOWO's proven commercial vehicle assembly, it offers easy maintenance and high availability.
It is ideally suited for units such as the armed police, border defense, oilfield security, and engineering rescue operations that need to transport personnel to remote or complex locations.

» Ⅱ. Product Parameters for HOWO 4X4 troop carrier truck:
|
HOWO 4x4 troop carrier truck |
|||
|
Vehicle parameters |
|||
|
Vehicle Model |
CS5070GXM |
Vehicle Brand |
CS TRUCKS |
|
Overall dimensions |
6150 x 2200 x 2760mm |
Van dimensions |
4250 x 2100 x 1800mm |
|
Total mass |
6600kg |
Curb weight |
3520kg |
|
Chassis parameters |
|||
|
Chassis brand |
howo |
Wheel base |
3360mm |
|
Front/rear wheel track |
1605/1545mm |
Front/rear suspension |
1160/1630mm |
|
Drive type |
4x4,LHD |
Maximum speed |
115 km/h |
|
Cab |
Configuration |
HOWO 2080 one and half row cab,allowable 3 passengers, air conditioner, USB. |
|
|
Color |
White,other color is optional |
||
|
Engine |
Model |
WEICHAI WP3NQ140E50 |
|
|
Emission |
Euro 5 |
||
|
Type |
Inline 4-cylinder, 4-stroke, supercharged, intercooled, water-cooled,diesel |
||
|
Power |
103kW / 140HP |
||
|
Rated speed |
3000rpm |
||
|
Max torque |
380N.m |
||
|
Max torque speed |
1400-2400rpm |
||
|
Displacement |
2.97L |
||
|
Tire |
Size |
7.50R16 |
|
|
Number |
6+1 nos |
||
|
Front axle |
2.4T |
||
|
Rear axle |
4.2T |
||
|
Suspension |
Multi leaf springs |
||
|
Rated voltage |
24V,DC |
||
|
Transmissions |
WLY6G120 6-speed transmission,6 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Van body structure parameters |
|||
|
Van dimensions |
4250 x 2100 x 1800mm |
Loading capacity |
Long rows of seats for 15 soldiers |
|
Van material |
Q235 steel |
Air conditioner |
Equipped |
|
Windows |
Two sides and rear |
Door |
Single side door and rear double doors |
» Ⅲ. Product Details

Chassis: A robust and reliable off-road platform
• Chassis: Sinotruk HOWO light truck 1880 semi-row all-wheel drive chassis.
◇ Semi-row cab: Accommodates three people comfortably in the cab.
◇ All-wheel drive: Provides strong off-road capabilities and high roadworthiness in harsh conditions.
• Wheelbase: 3360mm. This moderate wheelbase ensures vehicle agility while providing stable support for the superstructure, ensuring a smooth ride.

Core Powertrain: Efficient power and stable transmission
• Engine: Equipped with the Weichai WP3NQ140E50 engine.
◇ This is a 2.97-liter inline four-cylinder, high-pressure common rail, turbocharged Euro 5 diesel engine.
◇ With a maximum power of 140 horsepower/103 kW, the vehicle boasts ample power reserve, ensuring excellent acceleration and climbing performance even when fully loaded.
• Transmission: Matched with Wanliyang WLY6G120 transmission, 6 forward gears, 1 reverse gear, smooth shifting.

Upper and Lower Cabin: Designed for Troop Transport
• Overall Structure: The upper cabin is a sturdy rectangular cabin.

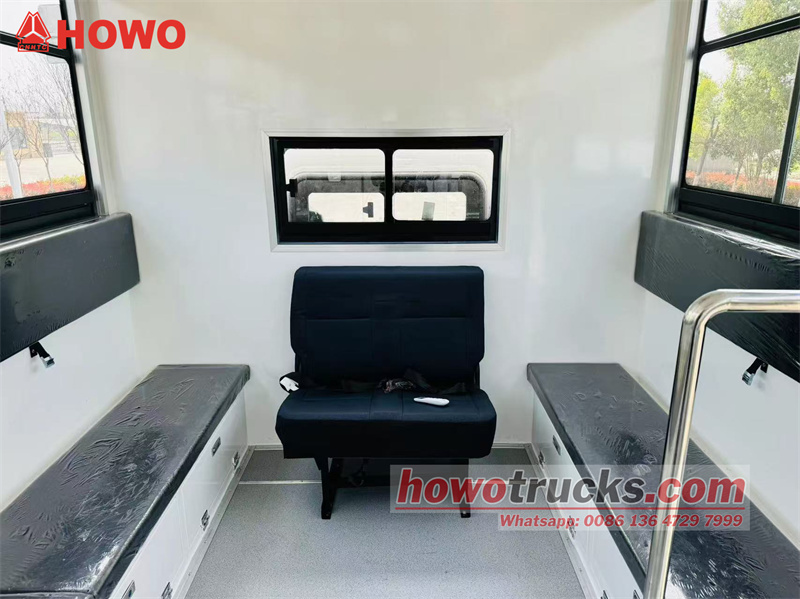

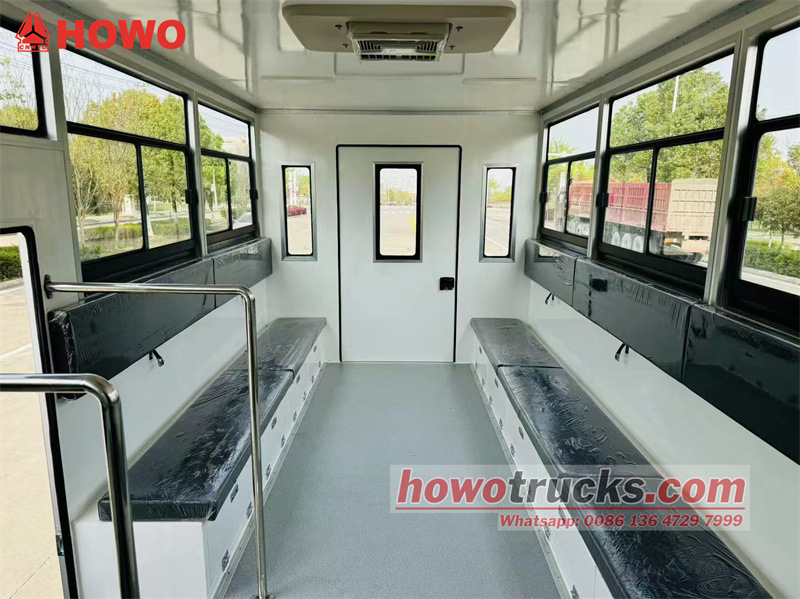

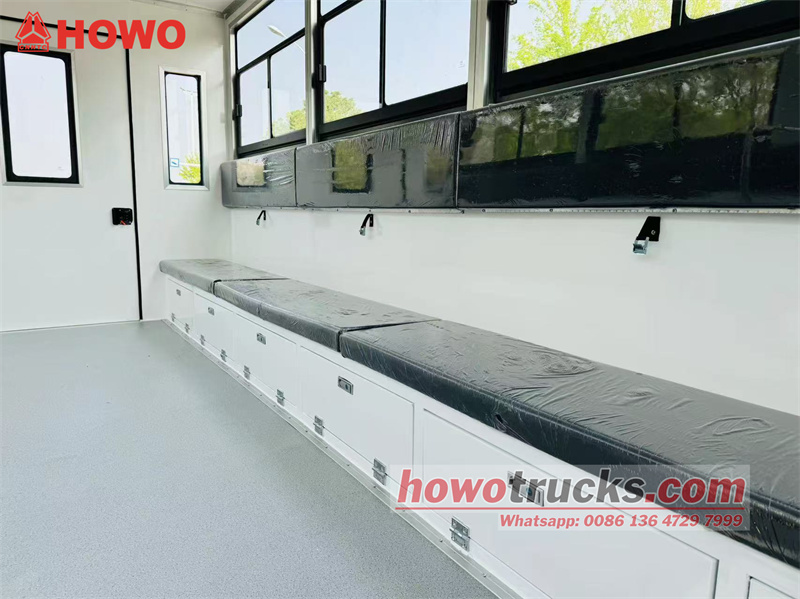

• Load Capacity: The cabin features two rows of long, opposite-facing leather seats.
◇ This layout maximizes interior space, allowing for a standard passenger capacity of 15 soldiers, all comfortably seated.

• Access Passages:

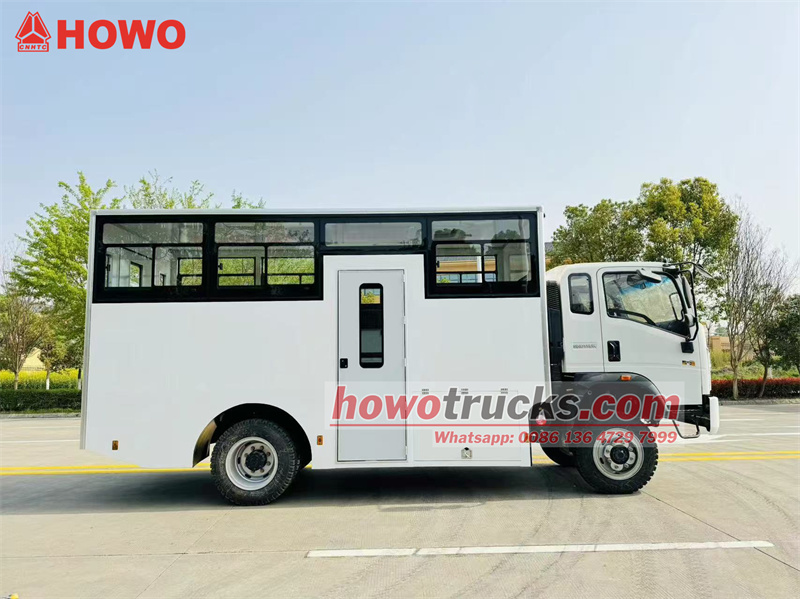

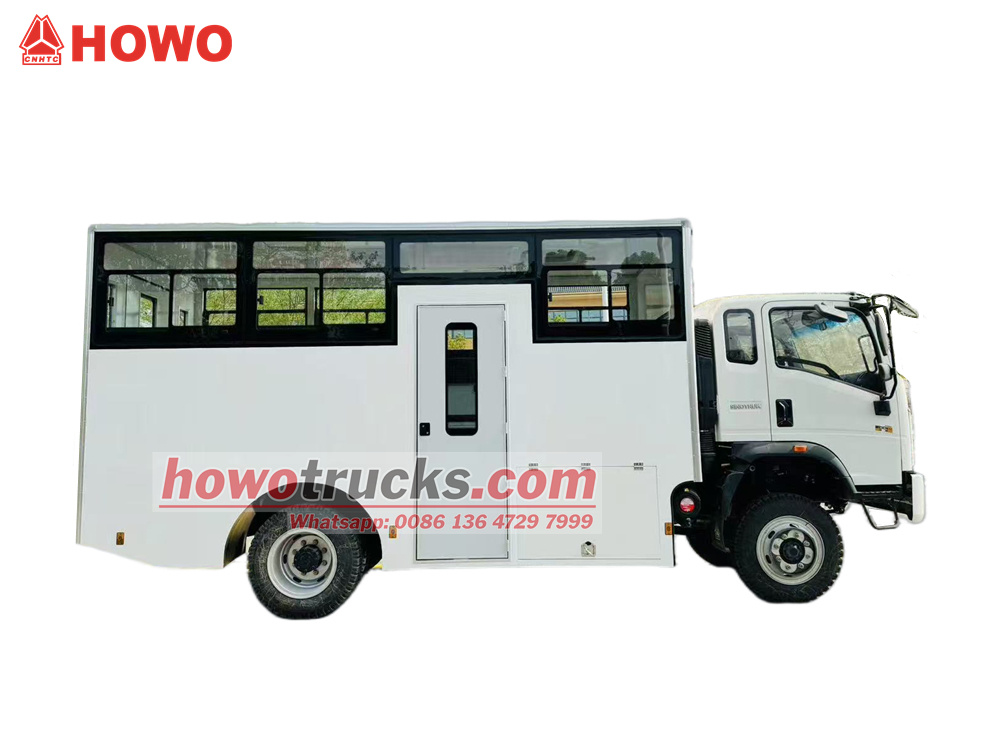

◇ Single door on the right: Allows passengers to quickly and safely enter and exit the vehicle from the side of the road.

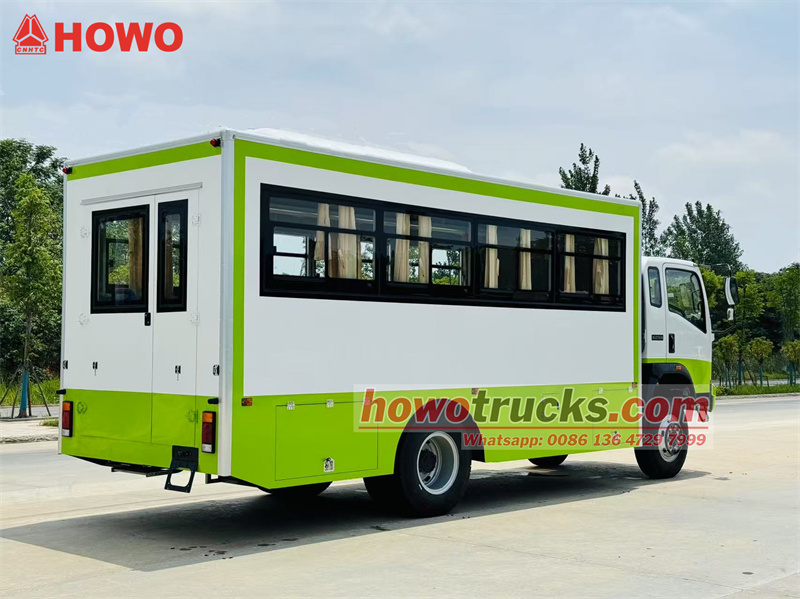

◇ Double doors at the rear: Provides maximum access, enabling rapid evacuation and assembly in emergencies, improving operational or emergency response efficiency.

• Visibility and Lighting:
◇ Full-length windows on both upper sides of the cabin not only provide ample natural light, creating a bright and airy interior, but also allow soldiers to observe the surroundings while driving, enhancing safety.

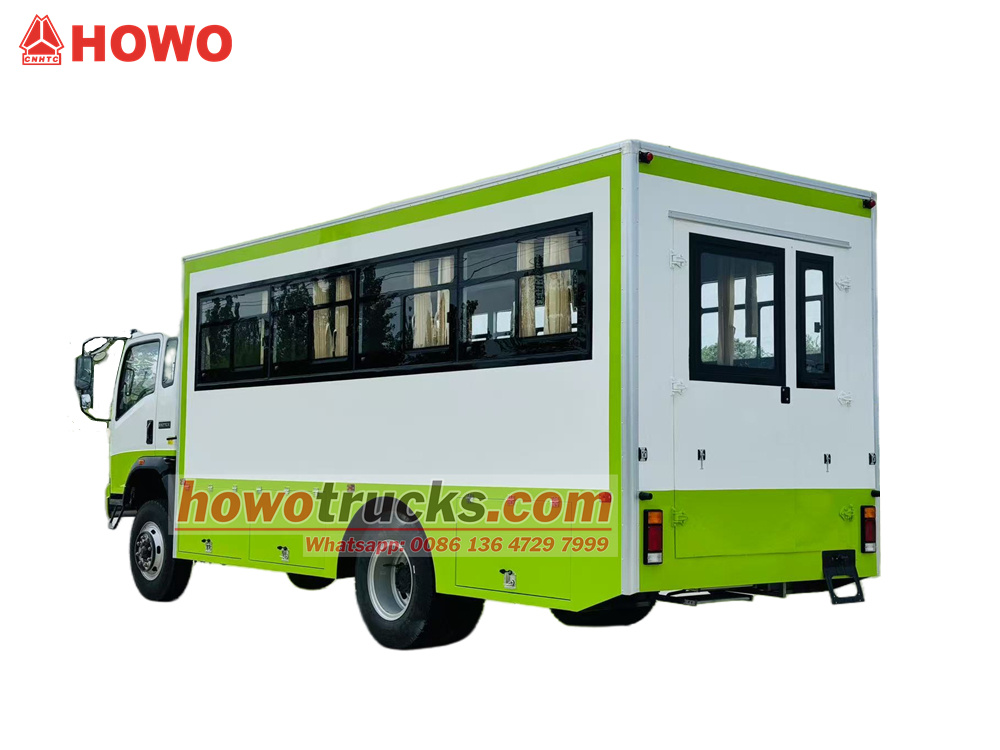

◇ A small window in the tailgate also provides rearward visibility, enhancing driving safety.

• Environmental Comfort:
◇ The standard air conditioning system provides passengers with a comfortable temperature environment, ensuring comfort during long journeys in both freezing and scorching weather, significantly enhancing their combat effectiveness.
