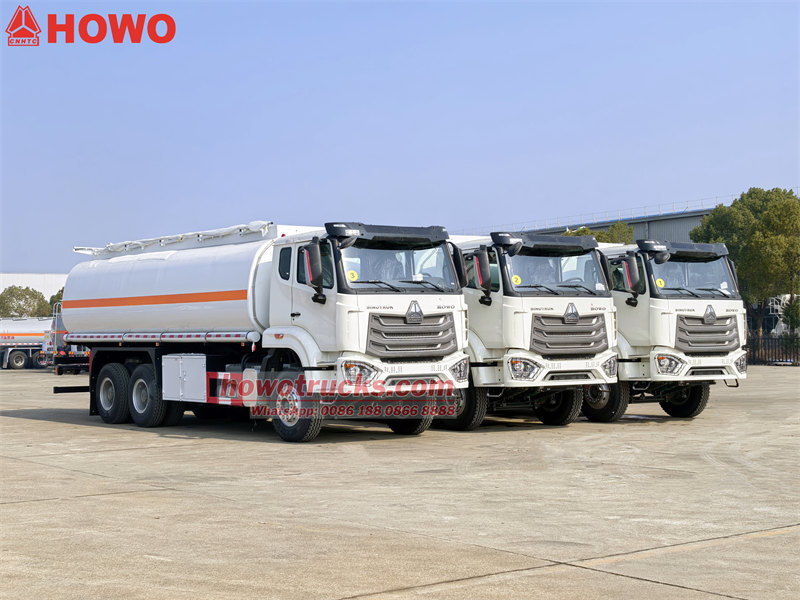

Ethiopia HOWO NX 25000L fuel pump truck

Ethiopia HOWO NX 25000L fuel pump truck

This is the Howo heavy 25000L mobile city special fuel tank truck. The Howo fuel tanker equipped with a WD model cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 370HP. The gearbox is 10 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tanker has strong power and good controllability, suitable for various road conditions oil transportation work.

  • Working capacity :

    25000L
  • Cabin type :

    Howo NX single cabin, with one sleeper
  • Drive system :

    6x4
  • Wheelbase ( mm) :

    4600+1350
  • Engine specific :

    WD615.47
  • Gear box :

    HW19710C, 10 forwards & 2 reverses
  • Front axle ( Kg ) :

    7500
  • Rear axle ( Kg ) :

    13000*2
New Products

The Howo fuel tanker truck equipped with a WD model cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 371HP. The gearbox is 10 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tanker has strong power and good controllability, suitable for various road conditions oil transportation work.



The actual volume of the oil tank is 25,000 liters.The Q235 carbon steel is used as the protective material. The tank body is made of carbon steel with a thickness of not less than 5 mm. The Howo fuel tank truck is equipped with Chinese famous brand pumps, valves and pipes, as well as a set of fuel distributors. The oil tank is equipped with a ladder for easy operation, and can be designed into multiple compartments according to needs.

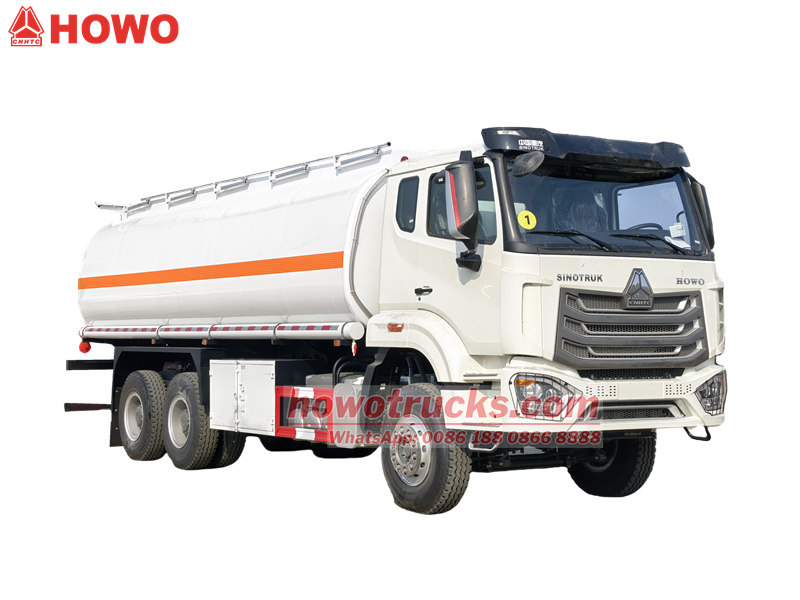

 HOWO 6x4 fuel tank truck

*Howo Heavy 6x4 Fuel Pump Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:

 Truck Chassis: Sinotruk Howo truck chassis,6x4, 6x6 model, WD model with 300HP,340HP,371HP,380HP,400HP... Euro 2,3



 Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.



 Professional Compartment:The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.

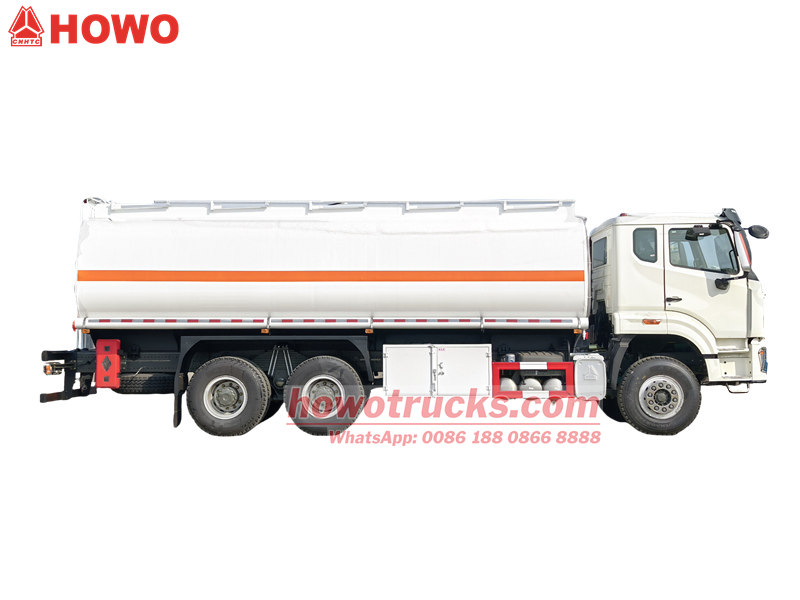

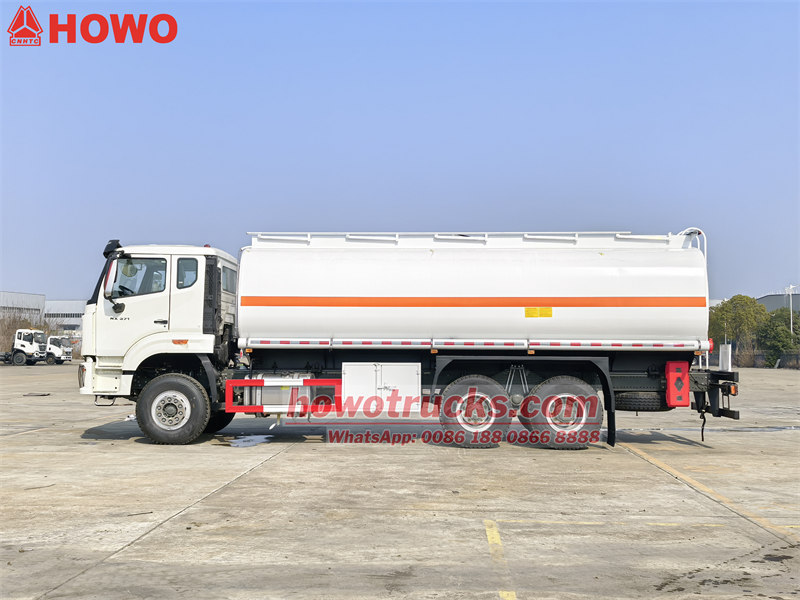

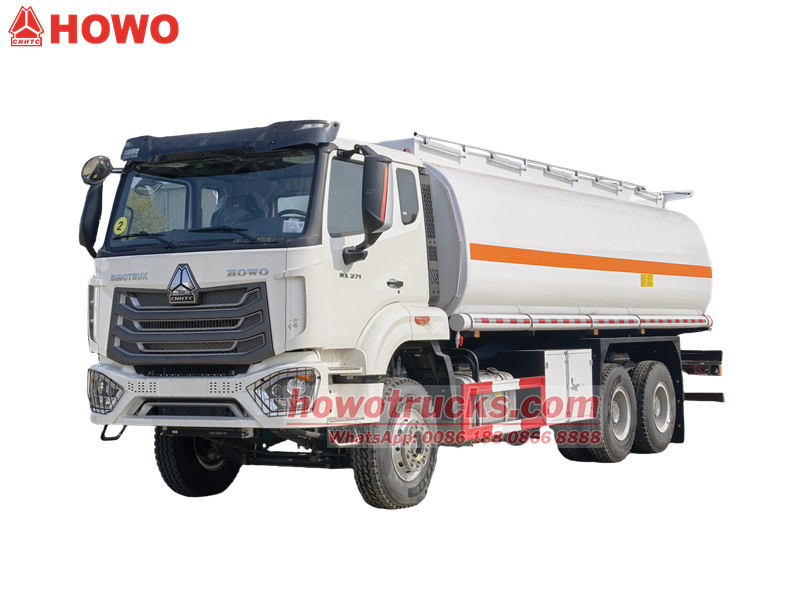

Howo NX heavy 25000L fuel pump truck



Ⅱ.Product Parameter For Howo NX Diesel Pump Truck  « « «

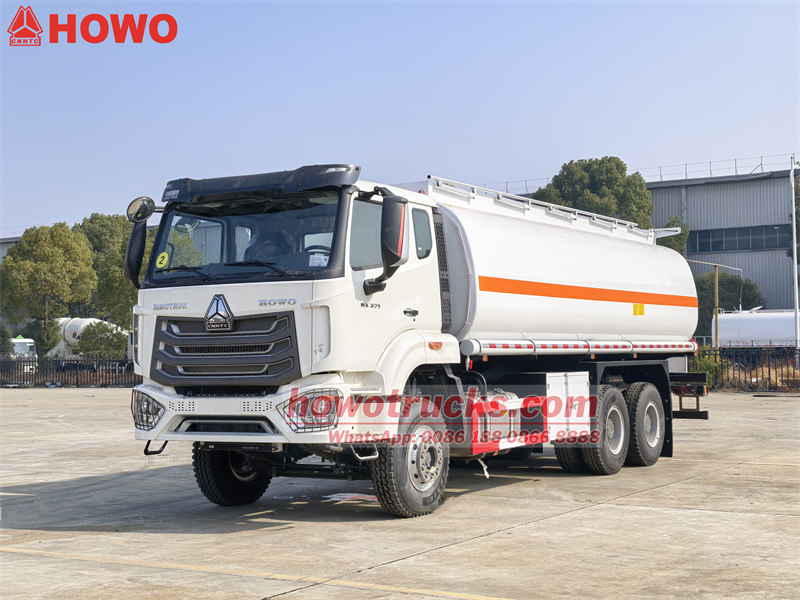

 HOWO 6x4 fuel pump truck



Howo NX 6x4 Fuel Tank Truck

Drive system

6X4

Chassis

Howo

Vehicle Main Dimensions

Dimensions(L x W x H)mm

11300*2350*2950

Wheel base (mm)

4600+1370

Overhang (front/rear) (mm)

1380/1820

Approach/Departure angle(°)

22/17

Weight in KGS

Curb Weight

14500

GVW.

25000

Max. driving speed(km/h)

105

Engine

Model

WD615.47

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

371 HP

Emission standard

Euro 2

Gearbox

HW19710, 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

100L

Tire

12.00R20  10 pcs+1 spare tire

Upper Body

Fact cubage

25000Liters

Protective material

Q235 carbon steel

Tank meterial

<5mm> carbon steel

Equipment

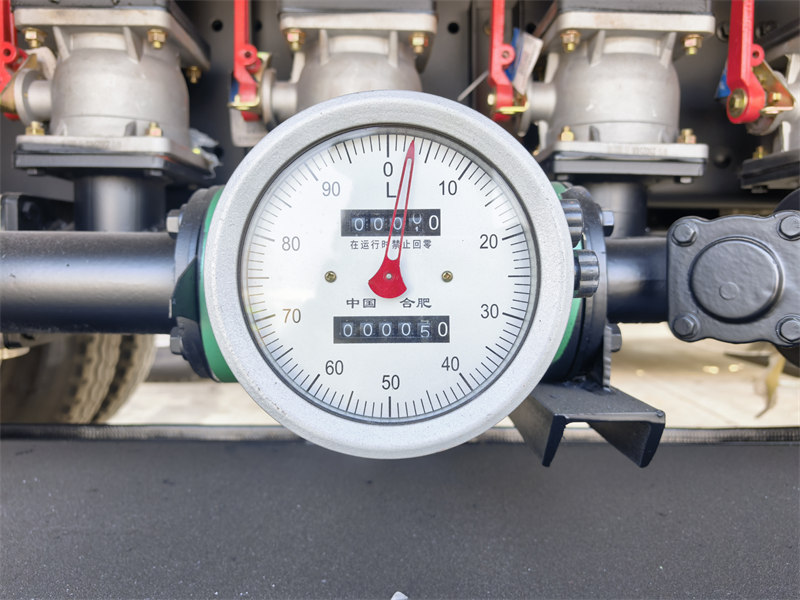

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser
2.Equipped  with a ladder on tank
3.It can be design to have several compartments according to your requirements
4.Equipped with speed limiter. The speed limit of 95 km/h



Ⅲ. Howo NX Heavy 25000L Fuel Pump Truck  « « «

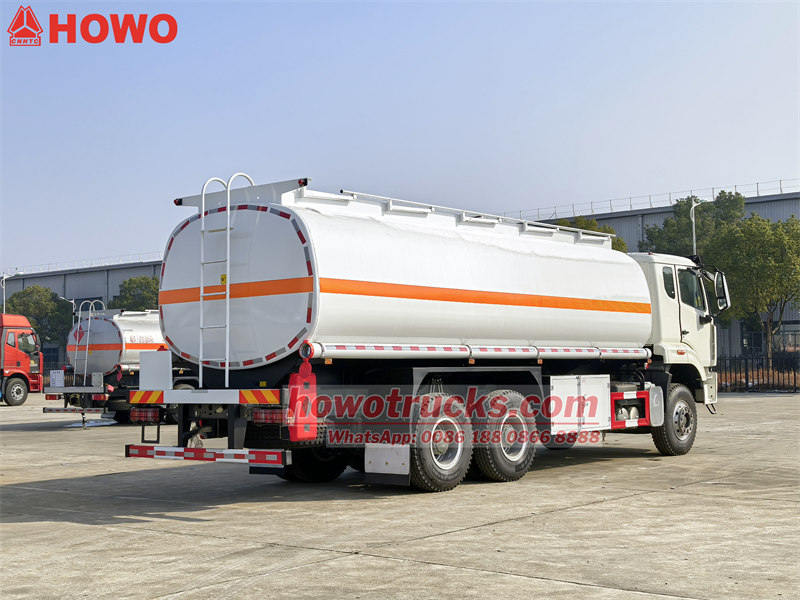

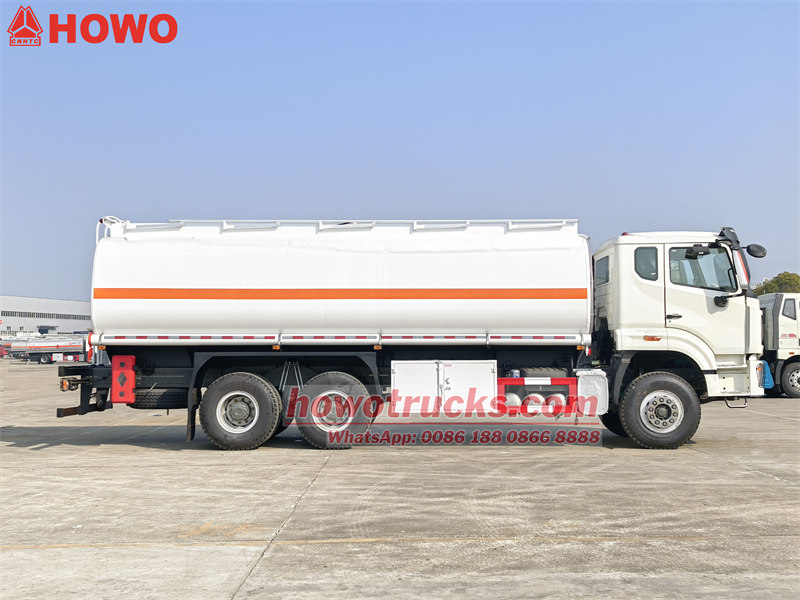

Howo fuel tank truck

♦ The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.

♦ The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.

♦ The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

♦ The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.



Howo fuel tank truck

♦ The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.

♦ The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.

♦ The tank opening is a φ500 diameter hole for maintenance and repair.

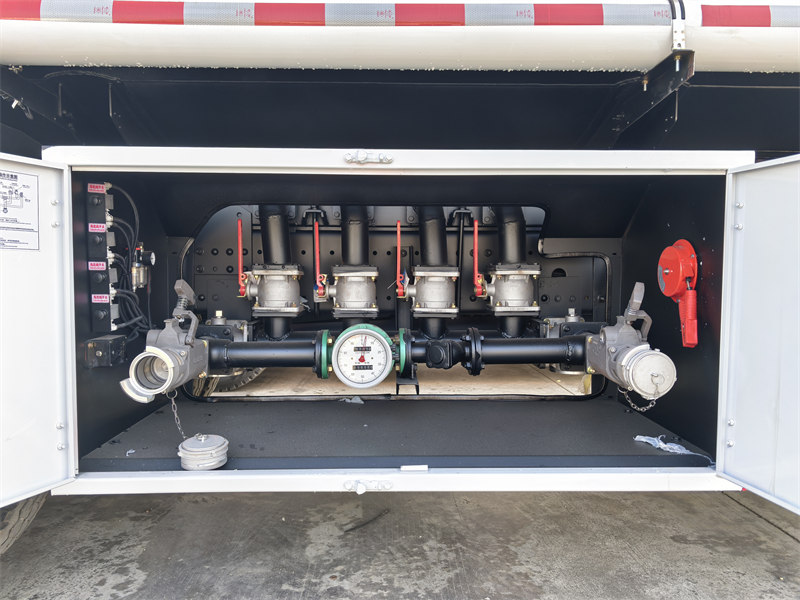

Ⅳ.Howo Heavy Fuel Tank Truck Details « « «

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.



fuel pump fuel pump

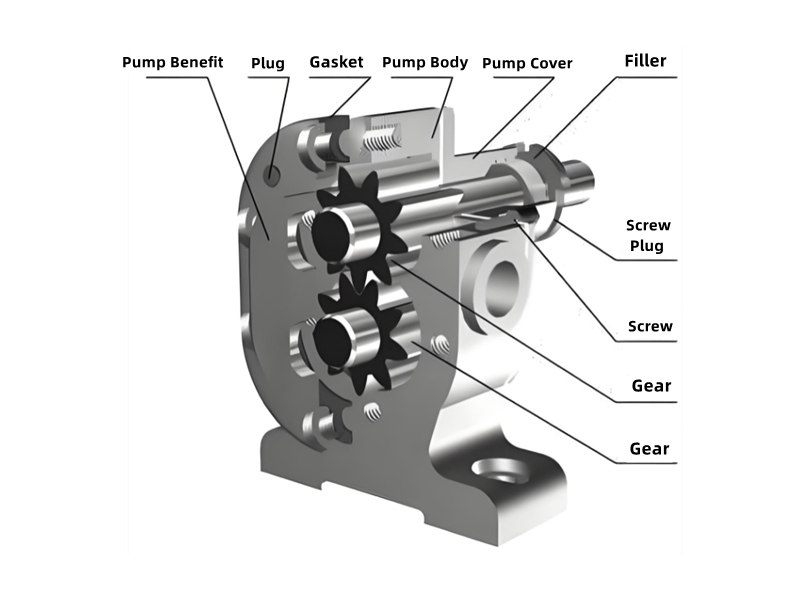

♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.



fuel pump

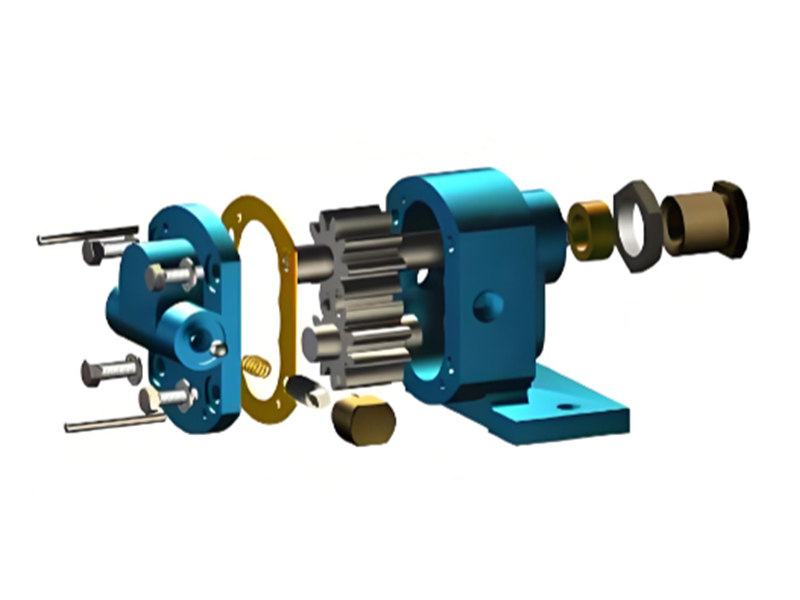

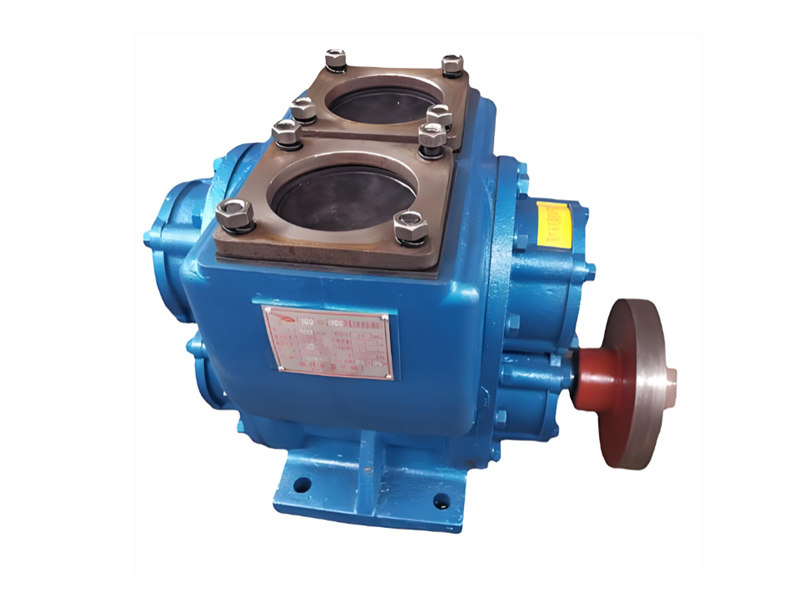

Circular Arc Gear Oil Pump

Model

80YHCB-60

Pressure

0.6 MPa

Flow

60 m³/h

Power Supplied

11 KW

Rotational Speed

970 r/min

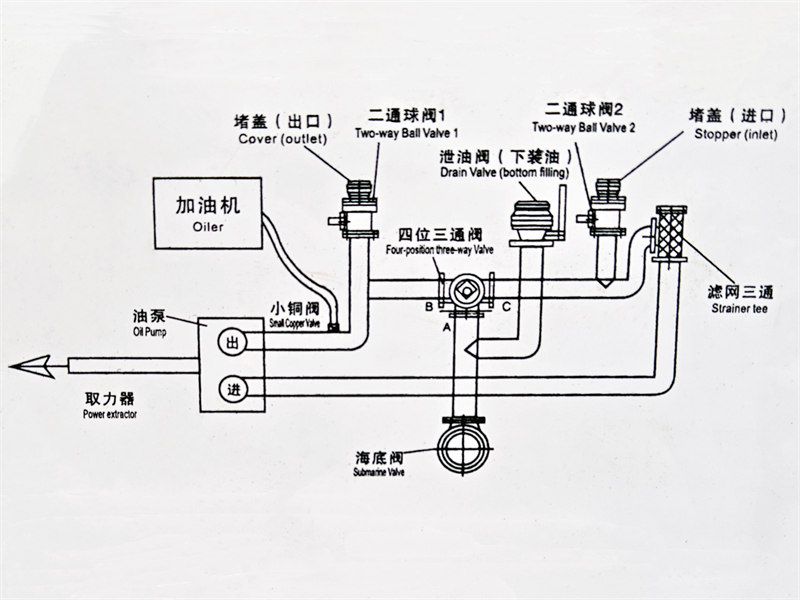

    Ⅴ.Howo Fuel Truck Pipeline Operation Diagram « « «







     Pump out:

    (1) Turn the four-position three-way ball valve mark point to the direction of forward B);

          Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other

    (2) Open two-way Ball Valve 1to pump oil;

    (3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be       achieved refueling refueling machine.



    Howo fuel tank truck

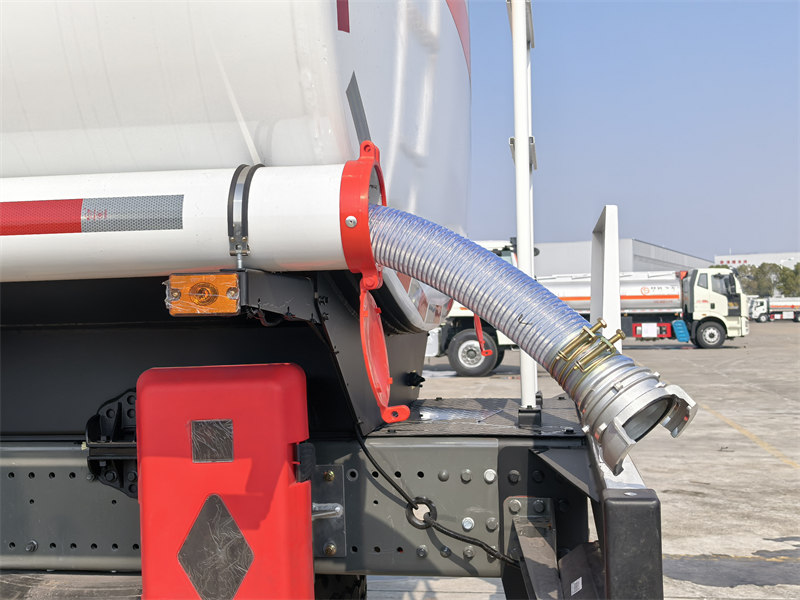

    ♦ Pump in:

    (1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;

    (2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.

    (3) Other functions:The user can adjust and realize various functions according to the oll circult principle.



    • fuel tank truck
    • fuel tank truck
    • fuel tank truck



    Ⅵ.Howo Fuel Truck Safety Protection Devices « « «

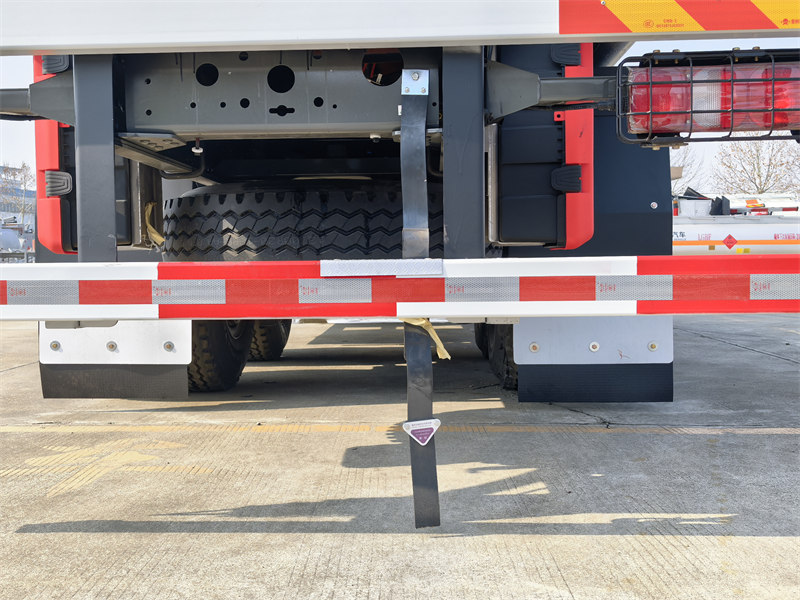

     The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

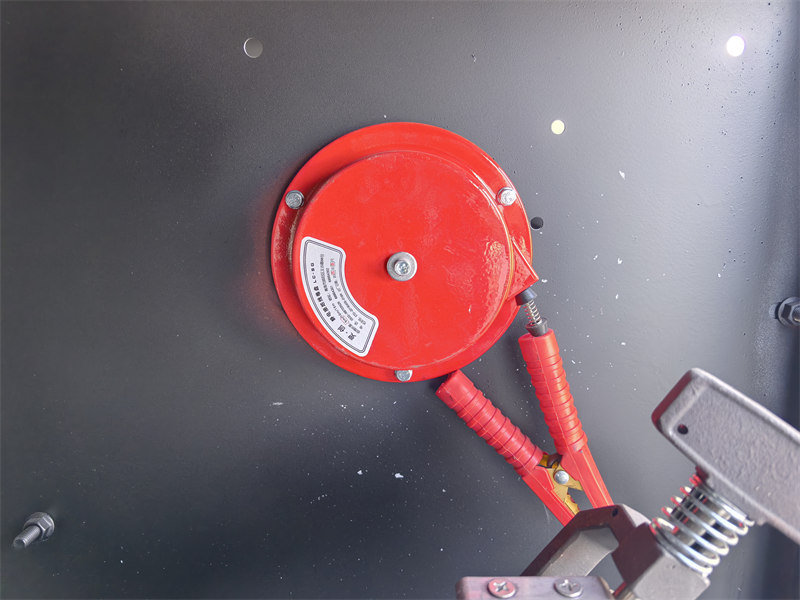

     A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

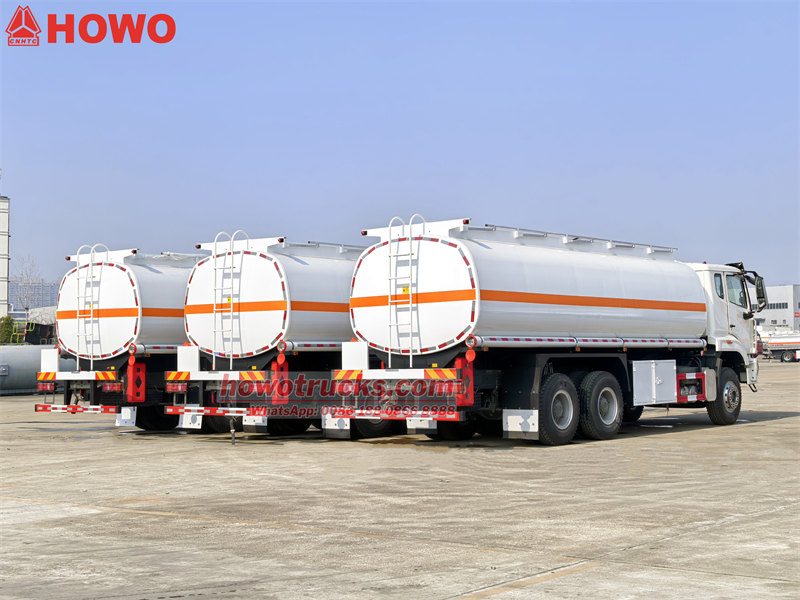

    • Howo heavy 25000L fuel tank truck
    • Howo heavy 25000L fuel tank truck
    • Howo 20ton crane truck



     To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

     Fire extinguishers are provided on both sides of the oil tank.

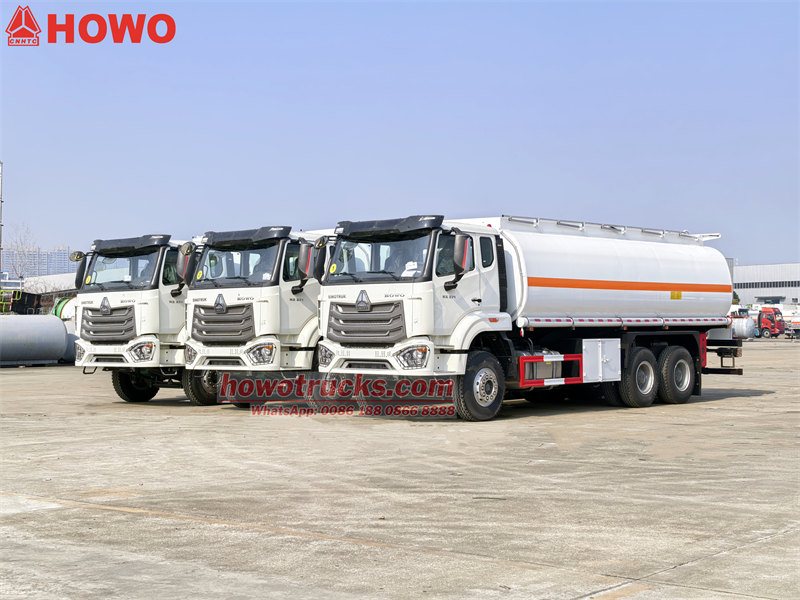

    Howo heavy 25000L fuel tank truck




    ● More than 30 years professional manufacturer experience
    ● Be designed according to your requirements
    ● Professional sales team which will help you to choose suitable truck
    ● We can offer your a good after-sale service

    ⇒ Products--100% Customized Level One!
    ⇒ Transportation--100% Safety, Convenience, Efficient!
    ⇒ Services--7days + 24hours Safetify Service!


    »»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



    China professional Howo fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



    ♦ Maximize save your sea freight.

    ♦ Professional guidance on your importing documents.

    ♦ Safety, Quickly, Timely



    Howo heavy 25000L fuel tank truck



    Howo heavy 25000L fuel tank truck
