HOWO off road mining fuel delivery trucks

HOWO off road mining fuel delivery trucks

The Howo off road 10000L mobile fuel bowser is the mining special refueling tank truck. The Howo fuel tanker using 4X4 drive system and its equipped with a WP12S400E201 model 6-cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 400HP. The gearbox is 10 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tnaker has strong power and good controllability, suitable for various road conditions oil transportation work.

  • Working capacity :

    10000L
  • Cabin type :

    Howo mining cabin, with two seats and one bed
  • Drive system :

    4x4
  • Wheelbase ( mm) :

    4600 mm
  • Engine specific :

    WP12S400E201 / 400HP
  • Gear box :

    HW19710, 10 forwards & 2 reverses
  • Front axle ( Kg ) :

    4500
  • Rear axle ( Kg ) :

    8000
New Products

The Howo off road 10000L mobile fuel bowser is the mining special refueling tank truck. The Howo fuel tanker using 4X4 drive system and its equipped with a WP12S400E201 model 6-cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 400HP. The gearbox is 10 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tnaker has strong power and good controllability, suitable for various road conditions oil transportation work.



The actual volume of the oil tank is 10,000 liters. Q235 carbon steel is used as the protective material. The tank body is made of carbon steel with a thickness of not less than 5 mm. The Howo fuel tank truck is equipped with Chinese famous brand pumps, valves and pipes, as well as a set of fuel distributors. The oil tank is equipped with a ladder for easy operation, and can be designed into multiple compartments according to needs.

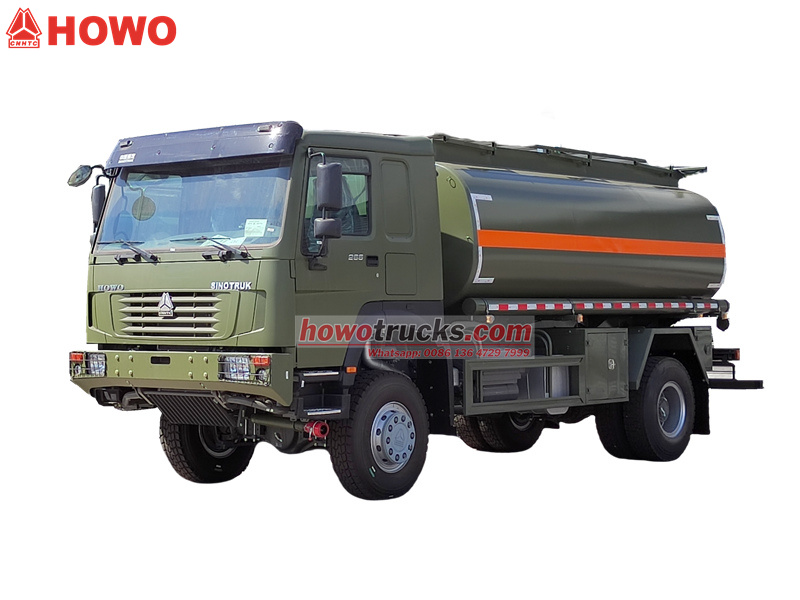

HOWO off-road Fuel Delivery Trucks

*Howo Off Road 10000 Liters Fuel Tank Truck

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4X4,6x4 model

                              WP model with 300HP,340HP,371HP,380HP,400HP... Euro 2,3



2. Tank material: 6mm thick high-quality steel for prolonged service lier
                               carbon steel, aluminum alloy or stainless steel can be choose.



3. Professional Compartment:The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.

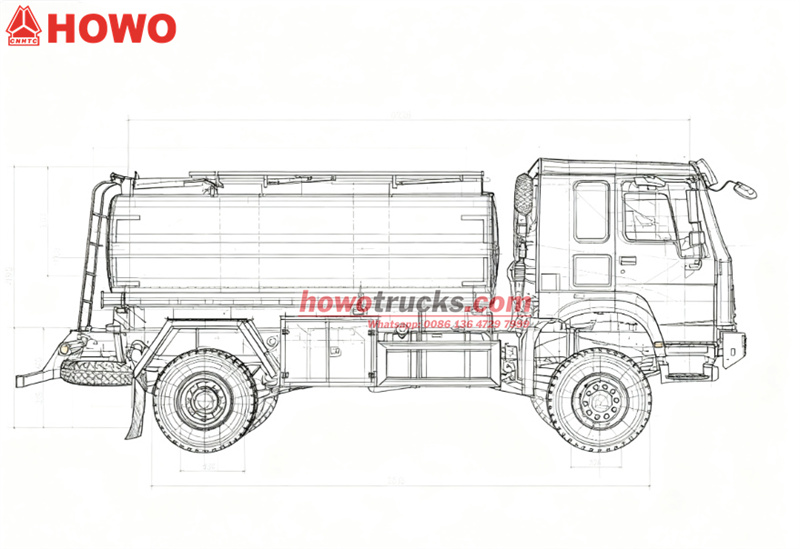

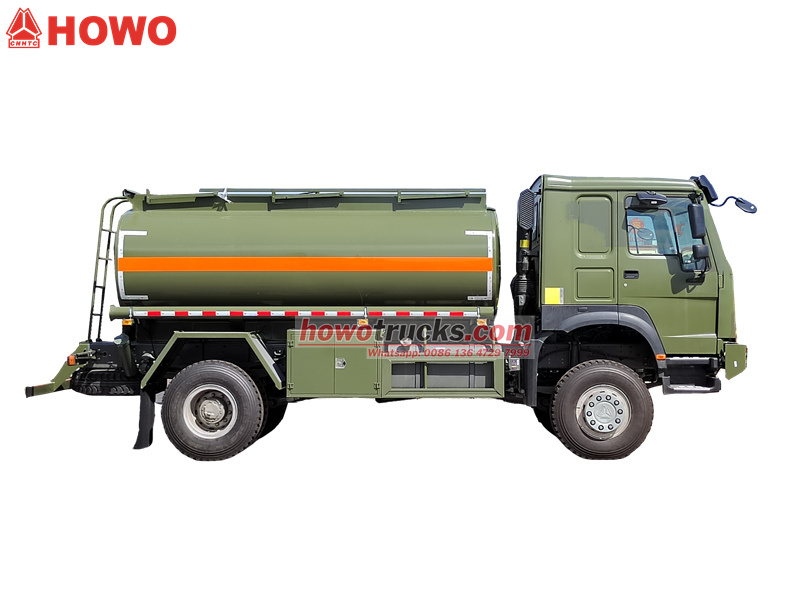

Howo off road fuel tank truck

Product Parameter For Howo 4x4 diesel bowser truck « « «


Howo off road fuel tank truck

Howo 4x4 Fuel Tank Truck

Drive system

4X4

Chassis

Howo

Vehicle Main Dimensions

Dimensions(L x W x H)mm

8600*2385*2850

Wheel base (mm)

4600

Overhang (front/rear) (mm)

1180/2020

Wheel track (front/rear) (mm)

1831/1640

Approach/Departure angle(°)

19/10

Weight in KGS

Curb Weight

8800

GVW.

18000

Max. driving speed(km/h)

105

Engine

Model

WP12S400E201

Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

400 HP

Emission standard

Euro 2

Gearbox

HW19710, 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

400L

Tire

295/80R22.5 6 pcs+1 spare tire

 UPPER

Fact cubage

10000Liters

Protective material

Q235 carbon steel

Tank meterial

<5mm> carbon steel

Equipment

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser
2.Equipped  with a ladder on tank
3.It can be design to have several compartments according to your requirements
4.Equipped with speed limiter. The speed limit of 95 km/h

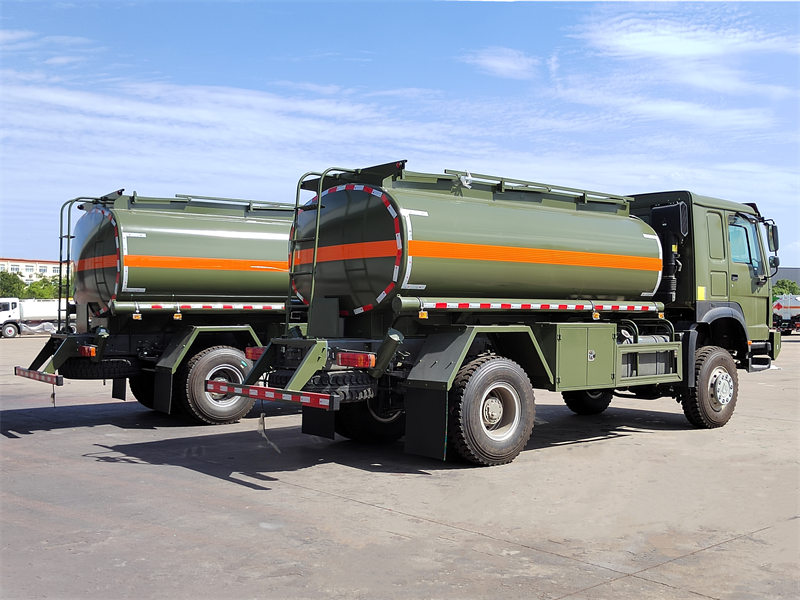

Howo off road fuel tank truck


Product Definition and Introduction « « «




HOWO off road fuel delivery truck

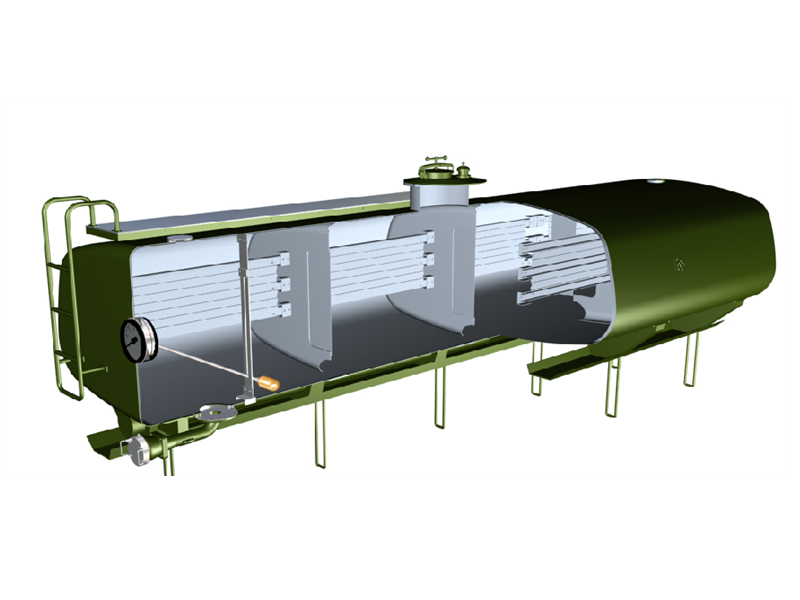

1. Tank Body:

The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.

The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.

The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.

The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.

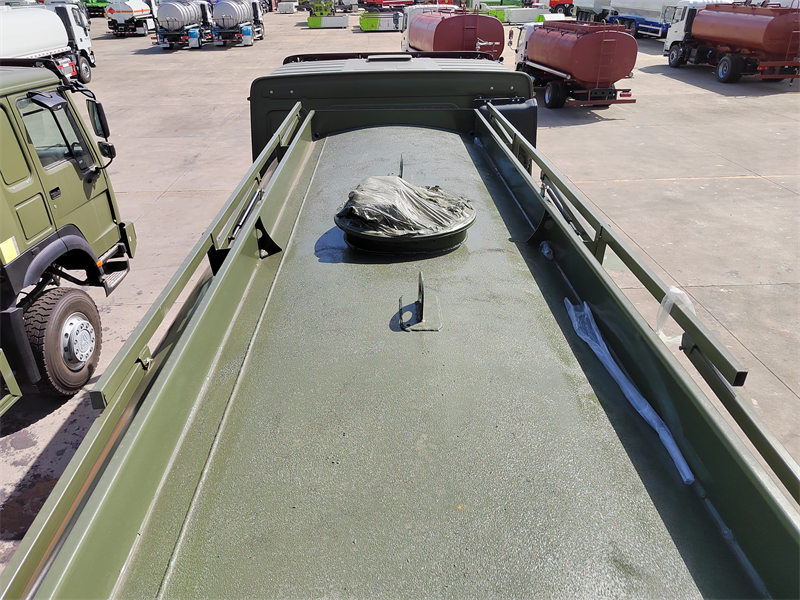

The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.

The tank opening is a φ500 diameter hole for maintenance and repair.

Howo fuel tank truck

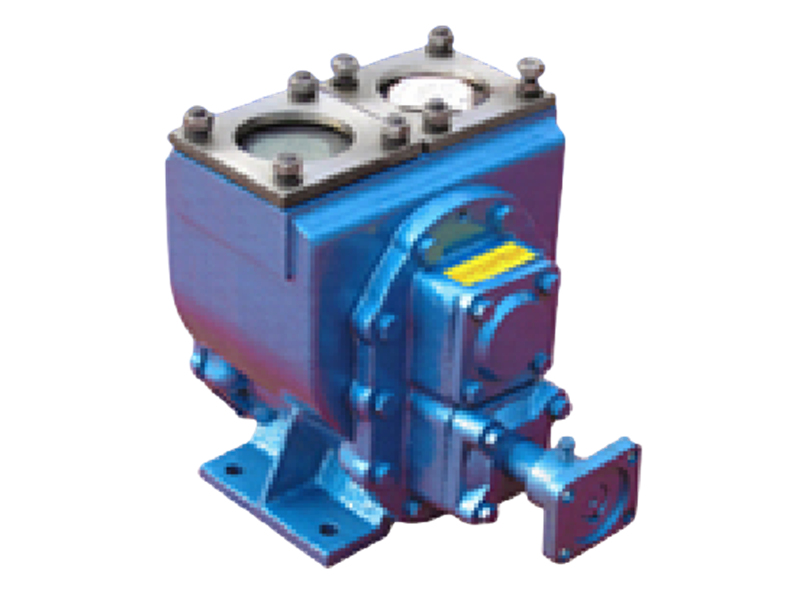

2. Oil Pump Section:

The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

The oil pump is connected to the chassis via a pump mounting bracket.

Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.

HOWO off road refined fuel delivery truck

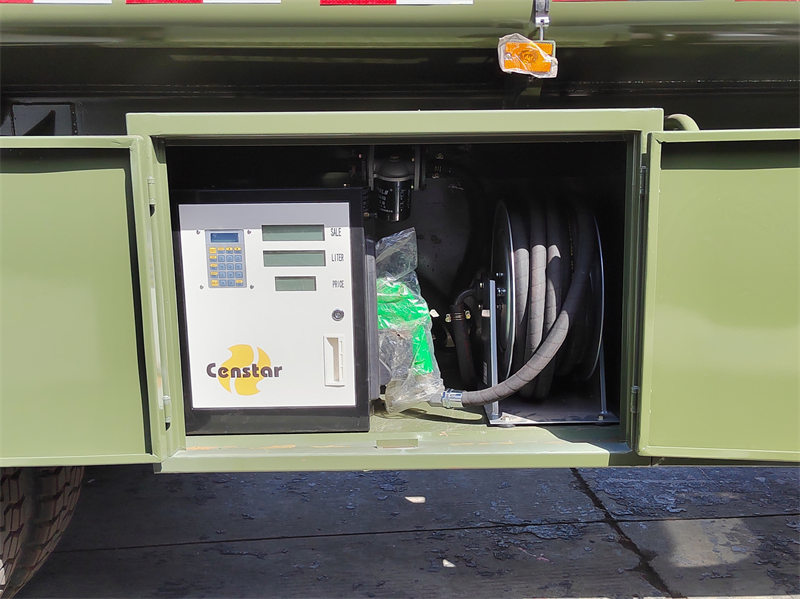

3. Control System:

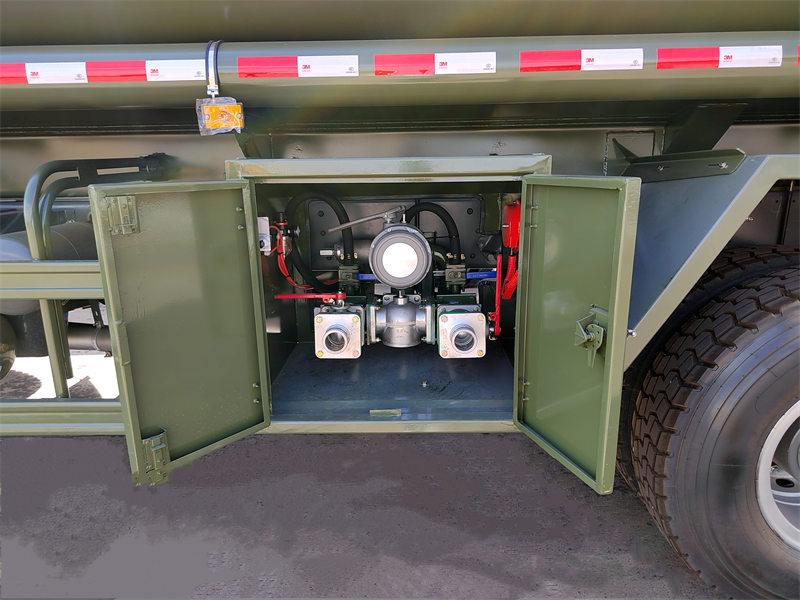

A control box is typically located on the lower side of the tank, containing a three-way ball valve, flow meter, coarse and fine filters, CRJ quick connectors, pressure gauges, vacuum gauges, and other accessories.

The oil pump inlet vacuum gauge and oil pump outlet pressure gauge allow for reading the vacuum level in the pipeline before the oil pump and the pressure in the pipeline when the oil pump is operating, ensuring the oil system is in normal working condition.

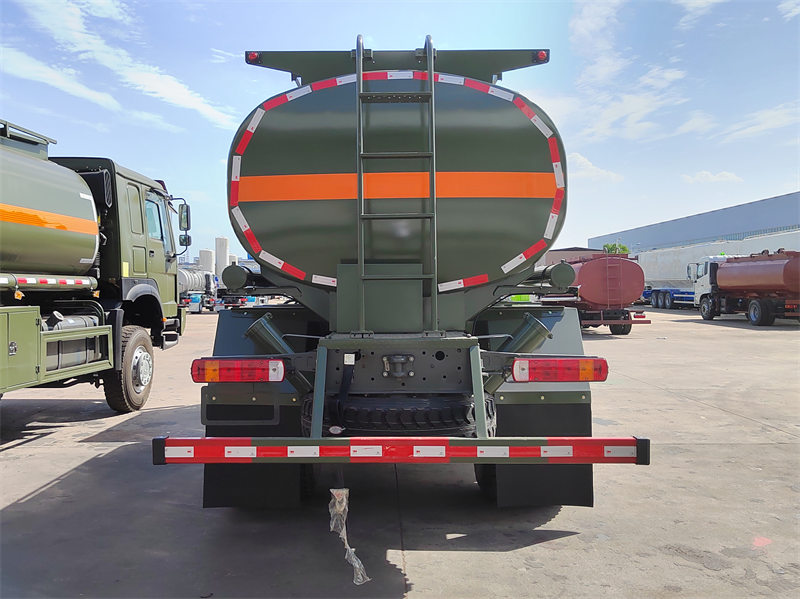

HOWO off road heavy duty diesel bowser truck

4.Safety Protection Devices:

The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank.

This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

Fire extinguishers are provided on both sides of the oil tank.

-------------------------------------------------------------------------------------------------------
  • HOWO 8X4 heavy duty diesel bowser truck
  • HOWO 25000 liters refined fuel delivery truck
  • HOWO off road diesel oil transport truck



Application Feature « « «

The Howo off-road chassis can handle various rough road conditions, making it crucial for refueling missions requiring access to remote construction sites, mining areas, or unpaved roads.

The WP12S400E201 400HP engine provides smooth, reliable, and economical power output across various terrains.

The Howo fuel tanker features a highly customizable and integrated design, flexibly adapting to diverse customer needs and forming an independent, efficient fuel delivery unit.



Sinotruk HOWO 4X4 Fuel Tank Truck for Sale



Howo off road fuel tank truck



------------------------------------------------------------------------------------------------------------------------------------------



China best fuel tank truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service

⇒ Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
