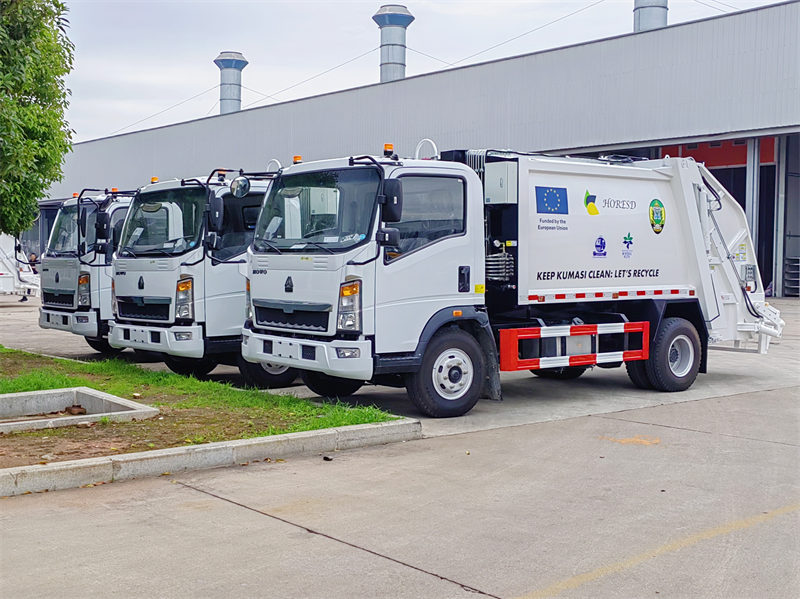

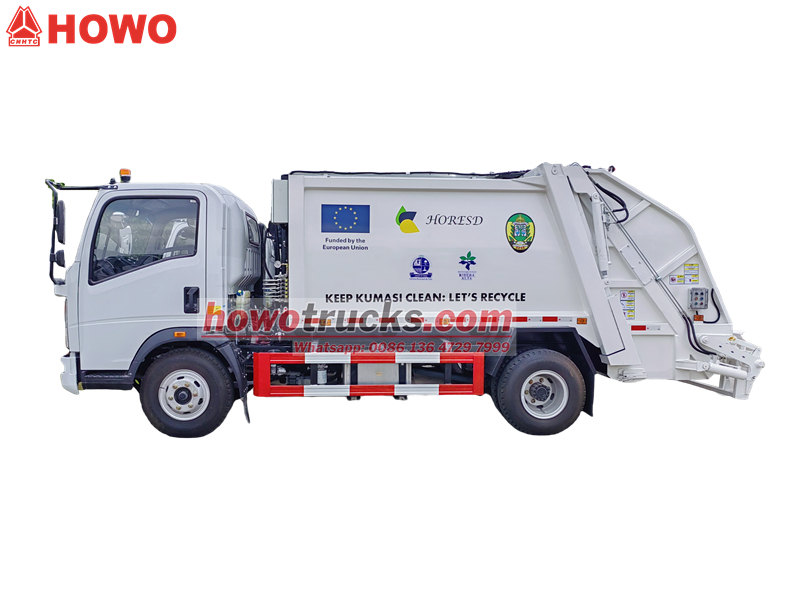

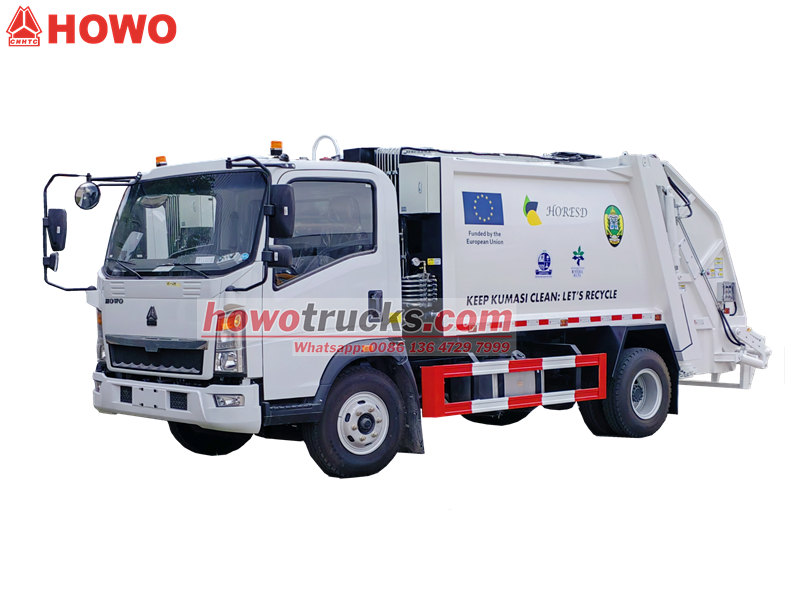

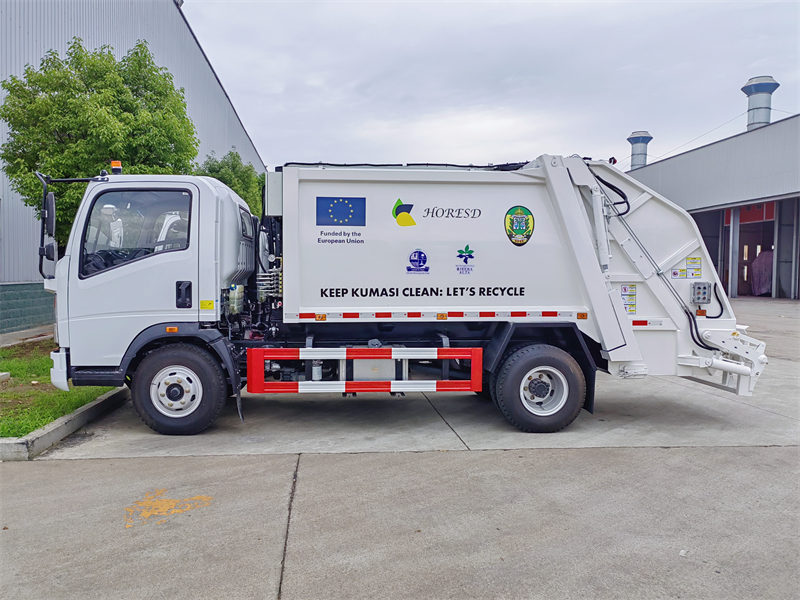

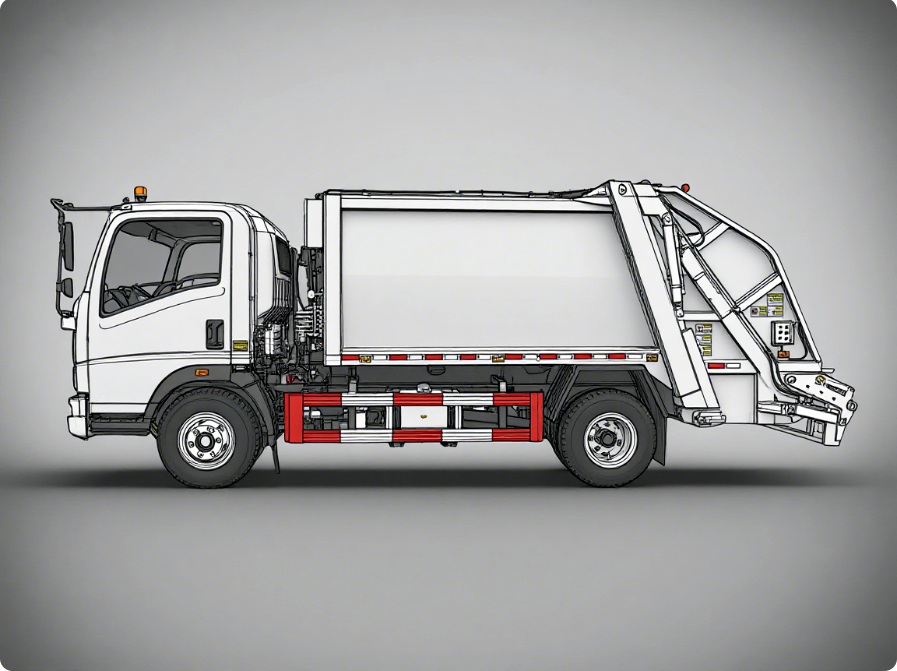

The Howo 6CBM garbage rear loader truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo light chassis, the garbage rear loader is equipped with a 116HP Euro 3 engine and WLY 5-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo 6CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.
Working capacity :
6CBMCabin type :
Howo 1810 single cabin, with sleeperDrive system :
4x2Wheelbase ( mm) :
3300 mmEngine specific :
YN4102QBZL model 1160HP, Euro 3Gear box :
WLY, manual 5F and 1RFront axle ( Kg ) :
3500Rear axle ( Kg ) :
6000The Howo 6CBM garbage rear loader is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo light chassis, the garbage rear loader is equipped with a 116HP Euro 3 engine and WLY 5-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo 6CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

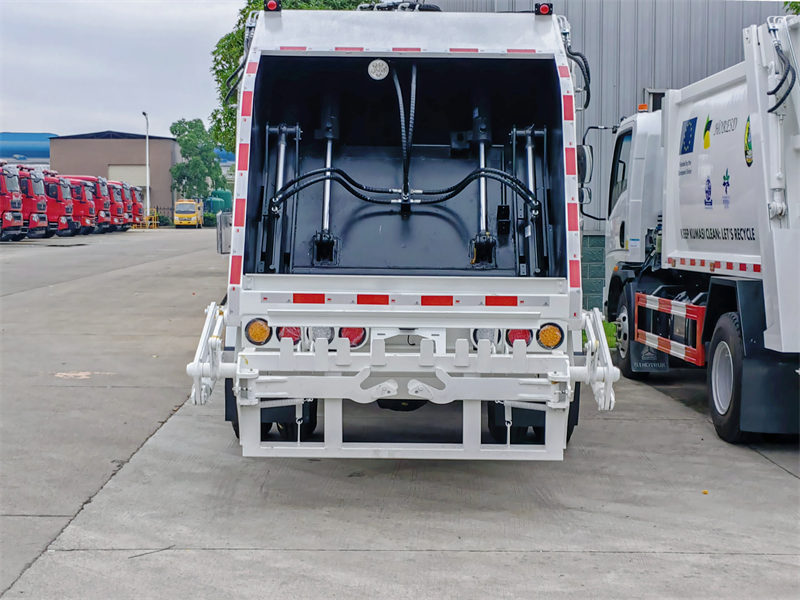

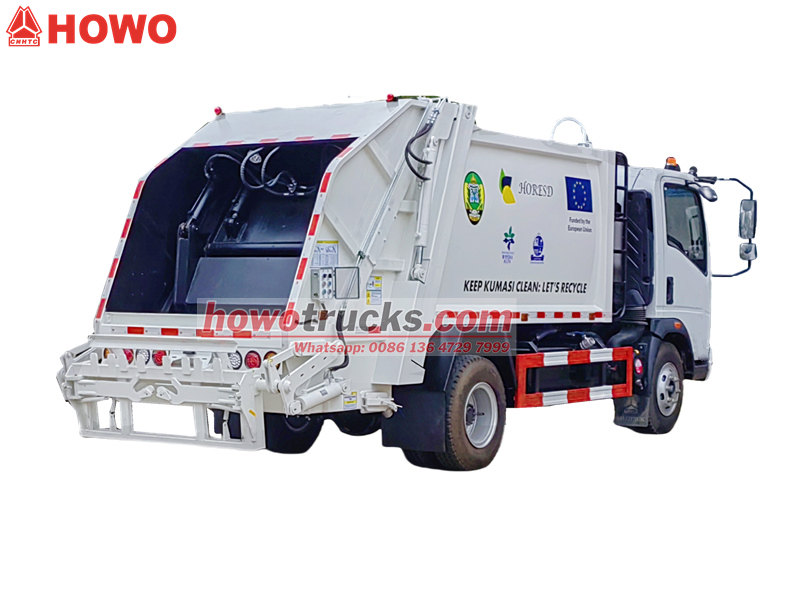

*SINOTRUK HOWO Light Rear Loader
6CBM Refuse Compactor Truck
HOWO 4x2 Rear Loader Garbage Truck*
-----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 4x2 and 4x4 model
YUCHAI model with 116HP, 140HP, 160HP or 180HP
Optional EURO 2/3/4/5 emission for different market
2. Tank material: Q235 material 5mm thick carbon steel for durable service
Q355, T420, HARDOX material can be choose
3. Tanker body: Customized for 6CBM compactor body, curved shape, stronger

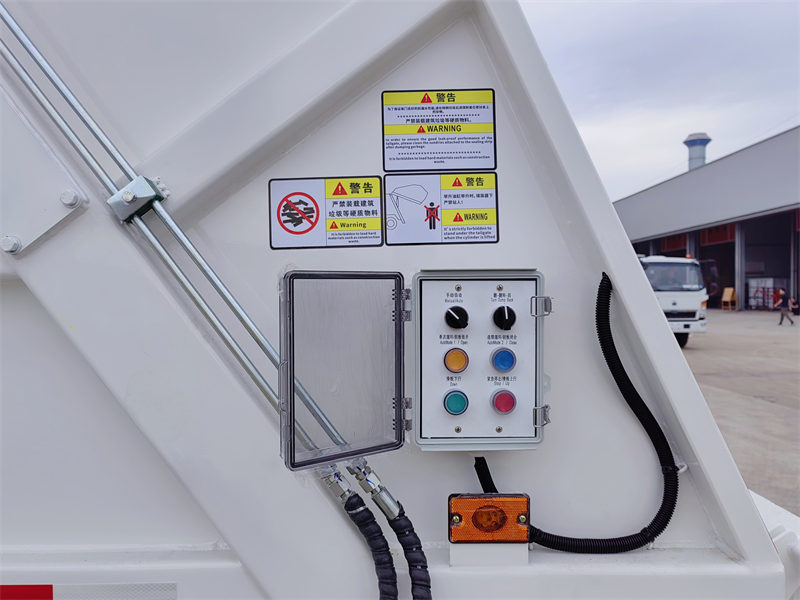

4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation
Also matched hydraulic control valve for emergency usage

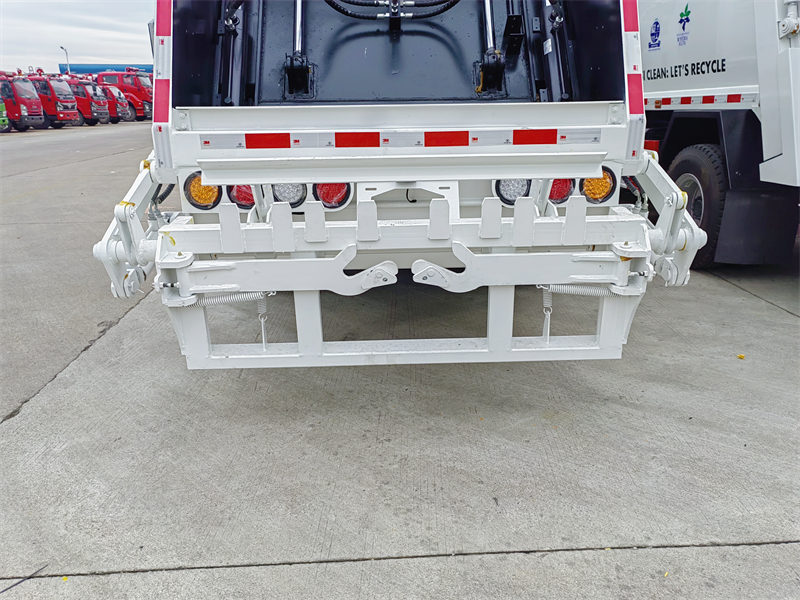

5. Rear Tilting Device: Customized model for lifting 220L,660L and 1100L metal bins
6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m
Product Parameter for HOWO Light garbage Rear Loader truck:
|

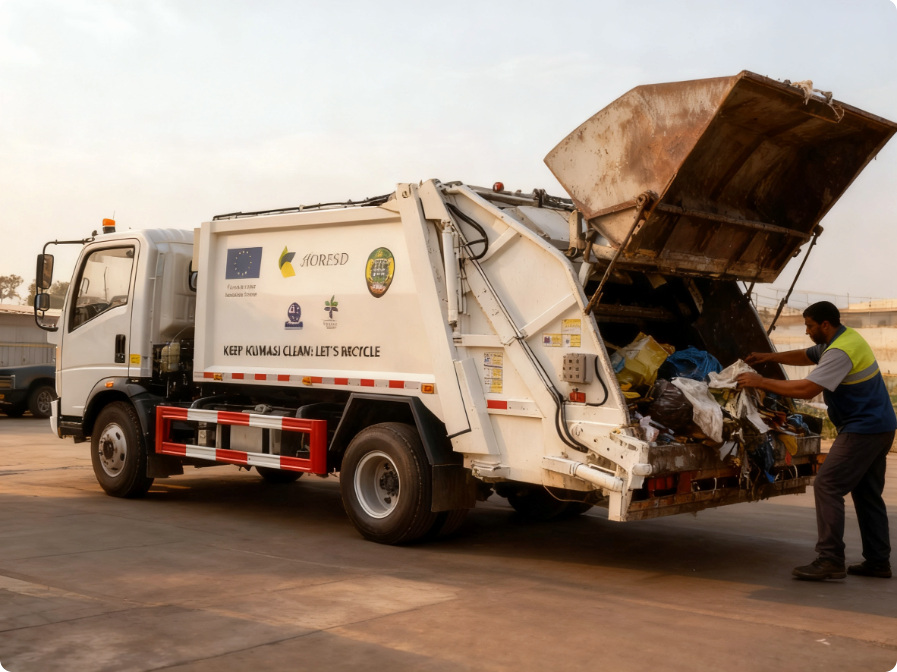

Howo REAR LOAD GARBAGE TRUCK SPECIFICATIONS |
||
|
Engine |
Make: Yuchai |
|
|
Diesel 4-stroke direct injection diesel engine |
||
|
Engine model:YN4102QBZL, Euro 3 emission standard |
||
|
4-cylinder in-line with water cooled, turbocharged and intercooler |
||
|
Maximum output: 116HP/85KW |
||
|
Maximum torque: 290 N.m |
||
|
Displacement: 3.76 L |
||
|
Transmission |
WLY, 5 forwards and 1 reverse, manual |
|
|
Drive system |
Left hand drive |
|
|
Chassis |
Frame: U-profile parallel ladder frame and reinforced subframe |
|
|
Front suspension:8 pcs semi-elliptic leaf spring |
||
|
Rear suspension:10 pcs semi-elliptic lea spring |
||
|
Fuel tank: 100 L capacity with locking fuel cap |
||
|
Steering |
Power steering, hydraulic steering with power assitance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
||
|
ABS |
||
|
Wheels & Tyres |
Tire: 7 pcs 700R16 |
|
|
Optional:750R16 |
||
|
Driver's Cab |
Howo 1810 wide cab, with three seats, A/C, electric glass, central lock |
|
|
Dimensions mm |
Wheel base |
3360 MM |
|
Overall length |
6300 MM |
|
|
Overall width |
2250 MM |
|
|
Overall height |
2570 MM |
|
|
Weight kg |
Curb weight |
6900 KG |
|
Rated Loading Capacity |
4000 KG |
|
|
Gross vehicle weight(GVW) |
8500 KG |
|
|
Front axle loading capacity |
2500 KG |
|
|
Rear axle loading capacity |
4500 KG |
|
|
Compactor Body |
Volume of body(m3) |
8 |
|
Volume of filler(m3) |
2 |
|
|
Time of one filling cycle(s) |
≤25 |
|
|
Lifting time of filler (s) |
8-10 |
|
|
Time of discharge (s) |
≤40 |
|
|
Pressure of hydraulic system (Mpa) |
18 |
|
|
Front/rear sewage capacity (L) |
250+150 |
|
|
Control system |
CAN-bus (electrical) and manual (hydraulic) |
|
What is the best HOWO light waste compactor truck:
►Loading mechanism
♦ High efficiency: no-load cycle time ≤35 seconds, accurate positioning of the garbage bin, and no residue when dumping garbage.
♦ Reliability: It can be started and stopped at any position under load conditions, and it runs smoothly without jamming.
►Compactor mechanism
♦ Strong compactor: cycle time ≤30 seconds, no shaking or abnormal noise during compression, and no permanent deformation of the mechanism.
♦ Durability: Passed 12,000 compression cycle tests to ensure long-term stable operation.
►Unloading mechanism
♦ Complete unloading: The unloading cycle is completed within 60 seconds, and there is no residue in the garbage bin.
♦ Anti-leakage design: The unloading door is reliably locked, and there is no risk of opening it automatically during driving.
►Zero leakage of sewage
♦ Sealing test: The garbage bin is filled with 30-50mm of water and there is no leakage after standing for 60 minutes.
♦ Anti-corrosion treatment: The inner wall of the box is made of anti-corrosion material to extend the service life.
►Hydraulic system
♦ No leakage verification: No oil leakage in hydraulic pipelines and joints under rated pressure.
♦ Cleanliness control: The solid contamination of hydraulic oil meets the standard limit to ensure long-term operation of the system.
►Ultra-long durability test
♦ 12,000 cycles for the feeding and compactor mechanisms and 1,000 cycles for the unloading mechanism to simulate a high-intensity working environment.
♦ Reliability ≥ 80%, the failure rate is extremely low, and the average trouble-free working time is leading in the industry.
►Fault classification management
♦ Adopt four-level fault classification (fatal/serious/general/minor), strictly record and optimize the design to ensure worry-free use for users.
Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
( 4 units Howo light garbage compactor truck export Ghana )
Famous Chinese brand Sinotruk HOWO Rear Loader Garbage Truck is specially customized designed and produced heavy garbage collection vehicle. HOWO heavy duty refuse compactor truck equipped with 22cbm compactor body, all based on international St52 material, equal to Q355 material, thickness for side and floor 5mm. Also truck equipped with CAN Electric Control System and Hydraulic Joystick Control System, matched with rear tilting device for 770L and 1100L metal bins, suitable for Middle East market requirement, including Saudi Arabia, Dubai, Oman, Yemen, Jordan, etc. The brand newly customized HOWO rear loader mainly used for garbage collection, compression and transportation, and the working aerial can be city street, factory, community and other areas of need.
