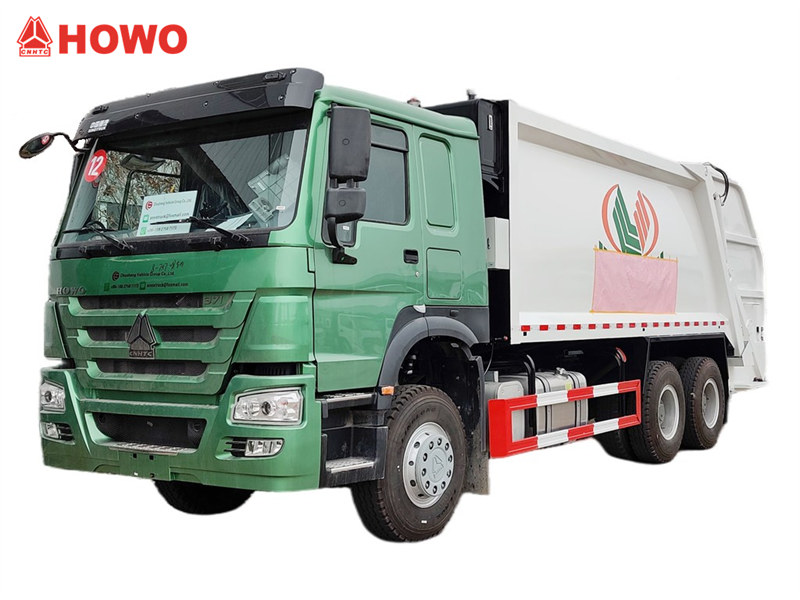

Sinotruk HOWO Garbage Compactor Truck is specially customized heavy duty model garbage collection vehicle. HOWO 6x4 heavy duty rear loader truck equipped with 22cbm compactor body, which is a reliable and efficient solution for waste management operations. Howo trash compressor truck are powerful engine, large capacity, hydraulic and compression system. Automatically loading and discharging system, solid construction, easy operation. Matched with rear tilting device for 770L and 1100L metal bins. The brand newly customized HOWO rear loader garbage truck lorry mainly used for garbage collection, compression and transportation, and the working aerial can be city street, factory, community and other areas of need.
Working capacity :
23CBMCabin type :
HW76 flat roof cabin, with sleeperDrive system :
6x4Wheelbase ( mm) :
4600+1350 mmEngine specific :
WP10.380E22 model 380HP, Euro 2Gear box :
HW19710, manual 10F and 2RFront axle ( Kg ) :
9000Rear axle ( Kg ) :
16000+16000Africa customer purchased Sinotruk HOWO 23cbm Rear Loader Truck is an ideal equipment for garbage collection, compression and transportation. HOWO is fully rely on the advanced features of heavy duty HOWO 6x4 truck chassis, equipped with WEICHAI 280KW / 380HP diesel engine, emission 9726cc, matched with HW19710 manual gearbox, 10 forward and 2 reverse, lower fuel consumption and reliable performance. HOWO 23CBM refuse compactor truck equipped with CAN BUS electric control box and Hydraulic control box, with its large capacity, powerful engine, efficient compression system, durable construction, large waste water tanker, rear tailgate hopper, automatic loading and unloading system, eco-friendliness, maneuverability, and safety features, which all make the Howo 6×4 Compression Garbage Truck a reliable choice. The HOWO heavy duty rear loader truck are customized lifting 770L and 1100L metal bins, also can be customized for any type rear tilting device for different bins.
*HOWO 6x4 heavy duty Rear Loader Refuse Compactor
23CBM Trash Compressor Vehicle
HOWO 6x4 Rear Loader Garbage Truck*
-----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Introduction
Manufacturer: CS TRUCKS
Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 4x2, 6x4 and 8x4 model
WEICHAI model with 300HP, 340HP, 380HP or 400HP
Optional EURO 2/3/4/5/6 emission for different market
2. Tank material: St52 material 5mm thick carbon steel for durable service
Q355, T420, HARDOX material can be choose
3. Tanker body: Customized for 23CBM compactor body, curved shape, stronger
4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation
Also matched hydraulic control valve for emergency usage
5. Rear Tilting Device: Customized model for lifting 770L and 1100L metal bins
6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m
Product Parameter for HOWO 23CBM Garbage Compactor Truck
| Cabin | Driving type 6×4 LHD | |
| HW76 Cab, with A/C and two seats, one bed, 70°hydraulically tillable to the front | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10500×2500×3290 |
| Wheel base (mm) | 4600+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Weight in KGS | Tare Weight | 15000 |
| Front axles loading capacity | 1×9000 | |
| Rear axles loading capacity | 2×16000 | |
| Max. driving speed（km/h） | 90 | |
| Engine | Brand | SINOTRUK |
| Model | WP10.380E22 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 380 HP | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10-speed forward and 2-reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering | German ZF8098, power steering, hydraulic steering with power assistance | |
| Oil tank | 400 L | |
| Tire | 12R22.5 tubeless tire, 11pcs including one spare tire | |
| Specialized Device for Garbage Compactor Upper Body Kit | ||
| Boday volume | 23 CBM | |
| Filler volume | 2 CBM | |
| Cycle Time of Filling | ≤25 S | |
| Lifting Time of Filler | 10 S | |
| Max.Compression Force | 25MPA | |
| Garbage container volume(CBM) | About 23M3 |
| Garbage container shape | New style arc-shaped |
| The garbage container material | Q355 Mn steel |
| Garbage container plate thickness(mm) | Side floor:5mm,End floor:5mm |
| Compression ratio | >=2.5 |
| Filler/Hopper effective volume(M3) | About 2 M3 |
| Loading/unloading cycle time(s) | <=40s |
| Feeding cycle time(s) | <=15s |
| Garbage upload/discharge cycle time(s) | <=40s |
| Control model | Automated and manual |
| Hydraulic system pressure(Mpa) | 18Mpa |
| Multiple directional control valve | Made in China famous brand |
| Hydraulic oil pump | Made in China famous brand |
| Power take off | Made in China famous brand |
| Counterbalance valve | Made in China famous brand |
| Sewage tank | 2 sewage tanks to collect waste water |
| Hydraulic oil cylinder | China famous brand--Fujian Longyan cylinder |
| Electrical control system(PLC) | SIEMENS PLC |
| LCD monitor | 360 degree LCD monitor in the cab |
| Lighting | With working lamp and rear position lamp |

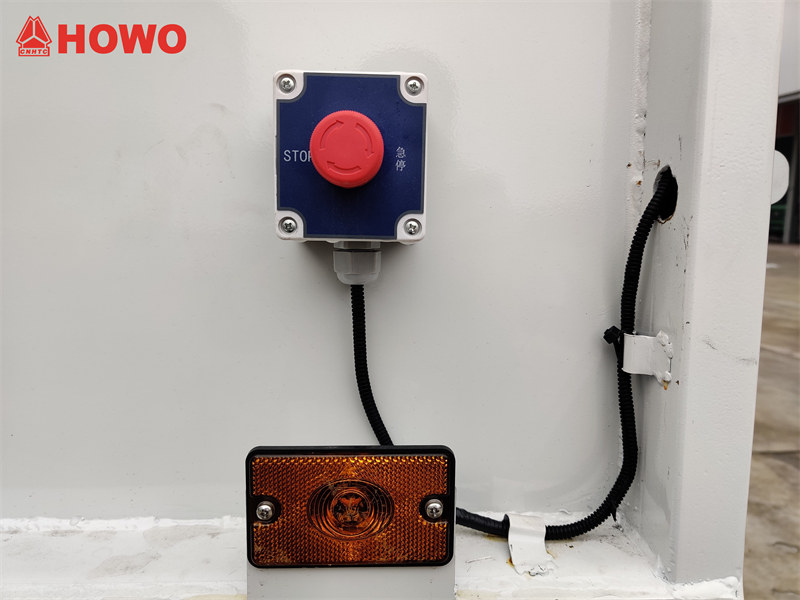

| Emergency switch | With emergency cut off button on each side |
| Washing device | With hand washing device |
| My company special designed patents | |
|
1.New breakable scraper 6. Rear Tilting Device for 770L and 1100L metal bins, matched working with hydraulic towing winch |
|
Product Advantages

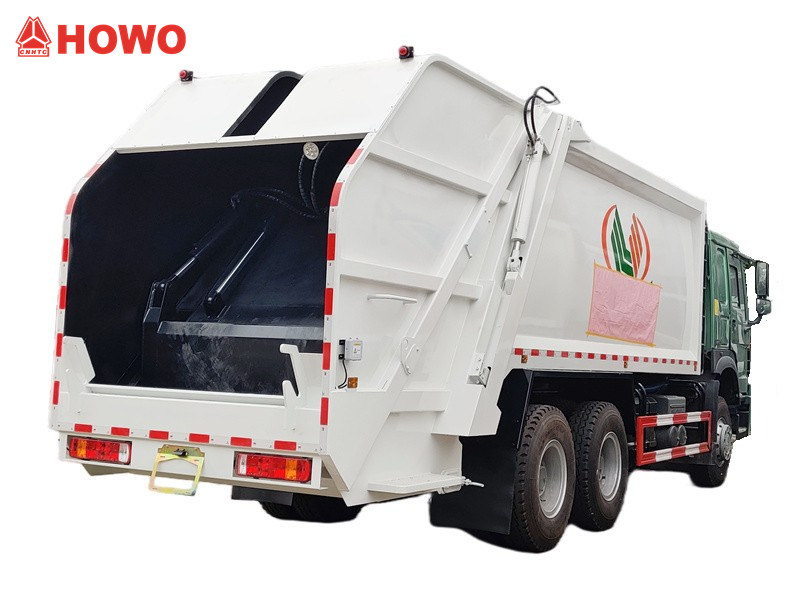

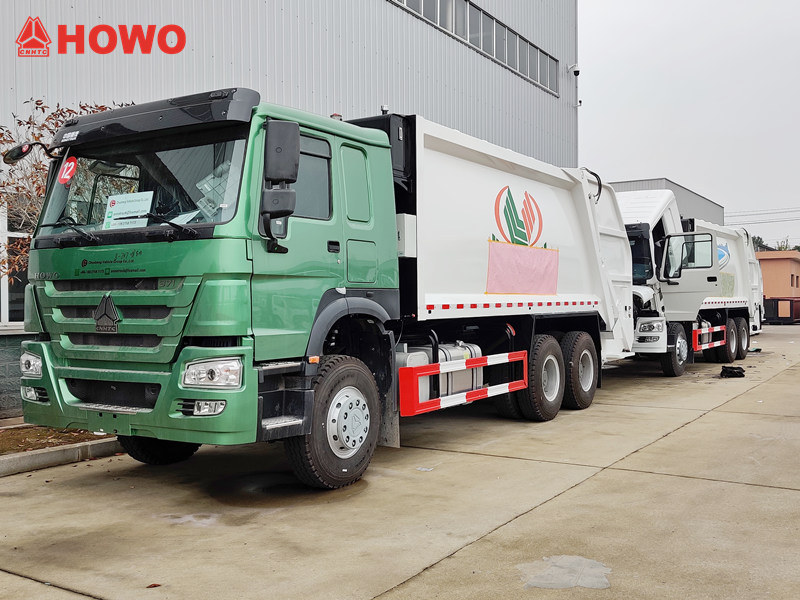

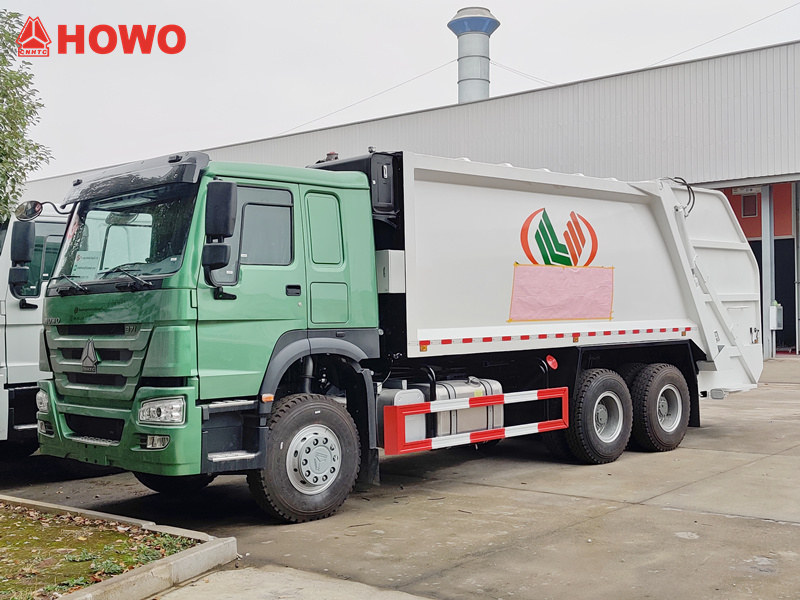

1. HOWO Rear Loader truck
Heavy duty HOWO 6x4 rear loader garbage truck, HW76 classical cabin, optional color, manual tilting device, working angle can be over 70°, safety and convenient

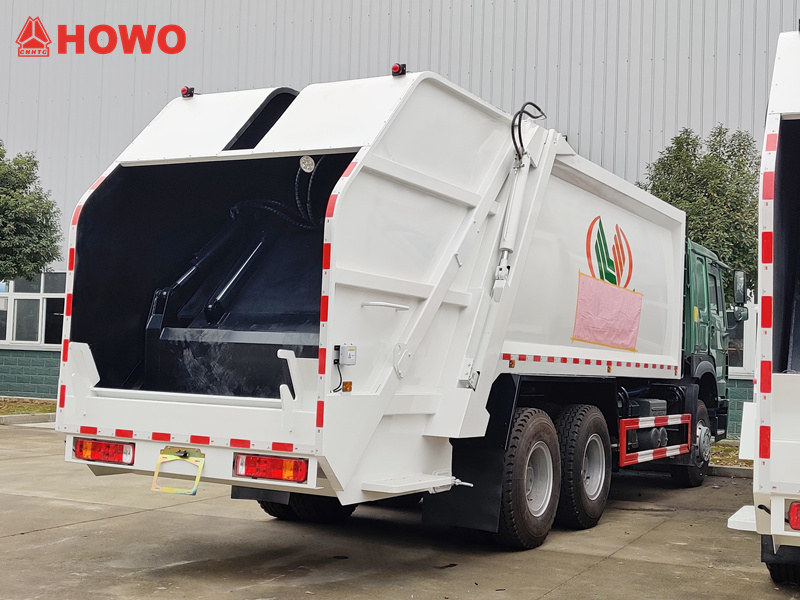

2. Howo refuse compactor tanker body
Curve shape 22CBM compactor body, with material St52, thickness for side 5mm, floor 5mm, reliable and durable, matched 200L waste water tanker

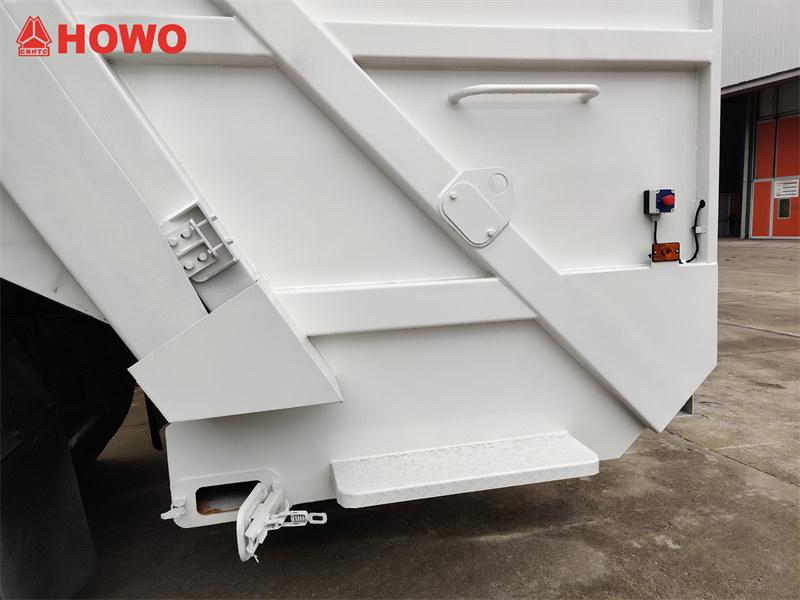

3. Side mounted foot panel and handle
HOWO rear loader tailgate mounted with food panel and handle, convenient for worker stand and garbage collection

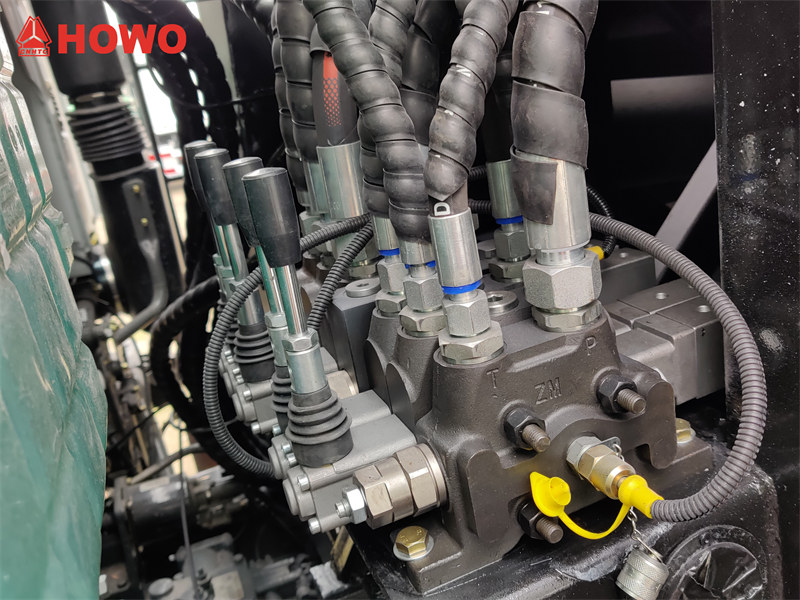

4. CE Hydraulic Control Valve
Front mounted hydraulic control valve, ISO and CE certified, matched with English operation guidance, safety and durable, CE standard gauge

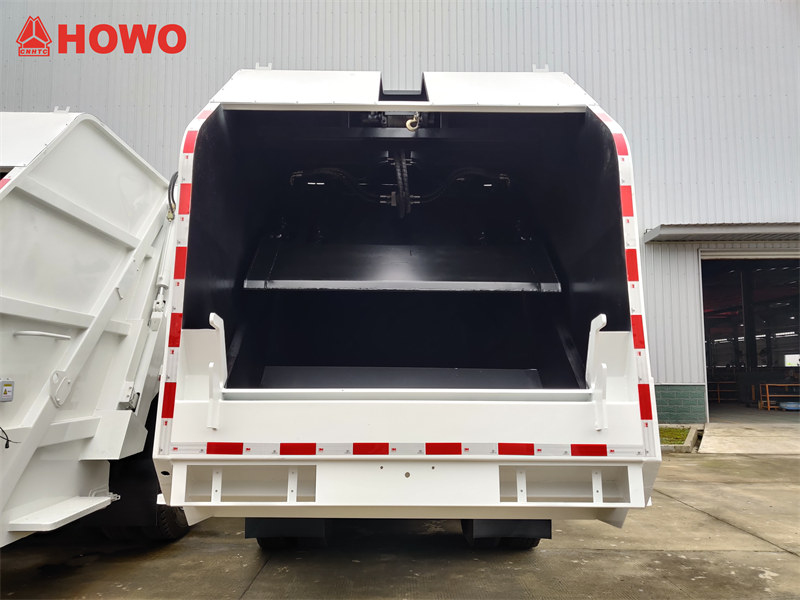

5. Tailgate assembly and Rear tilting decice
Tailgate device, matched with slide plate and scraper, top mounted LED light for safety working and driving. also customized towing winch for lifting 770L and 1100L metal bins
Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
HOWO 22cbm rear loader refuse compactor trucks ready for shipment to Middle East Country
Famous Chinese brand Sinotruk HOWO Rear Loader Garbage Truck is specially customized designed and produced heavy garbage collection vehicle. HOWO heavy duty refuse compactor truck equipped with 22cbm compactor body, all based on international St52 material, equal to Q355 material, thickness for side and floor 5mm. Also truck equipped with CAN Electric Control System and Hydraulic Joystick Control System, matched with rear tilting device for 770L and 1100L metal bins, suitable for Middle East market requirement, including Saudi Arabia, Dubai, Oman, Yemen, Jordan, etc. The brand newly customized HOWO rear loader mainly used for garbage collection, compression and transportation, and the working aerial can be city street, factory, community and other areas of need.
