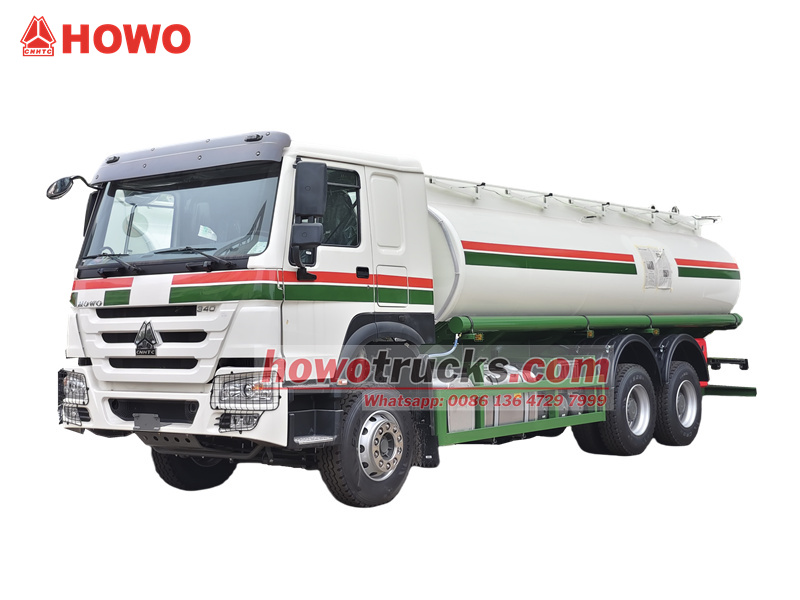

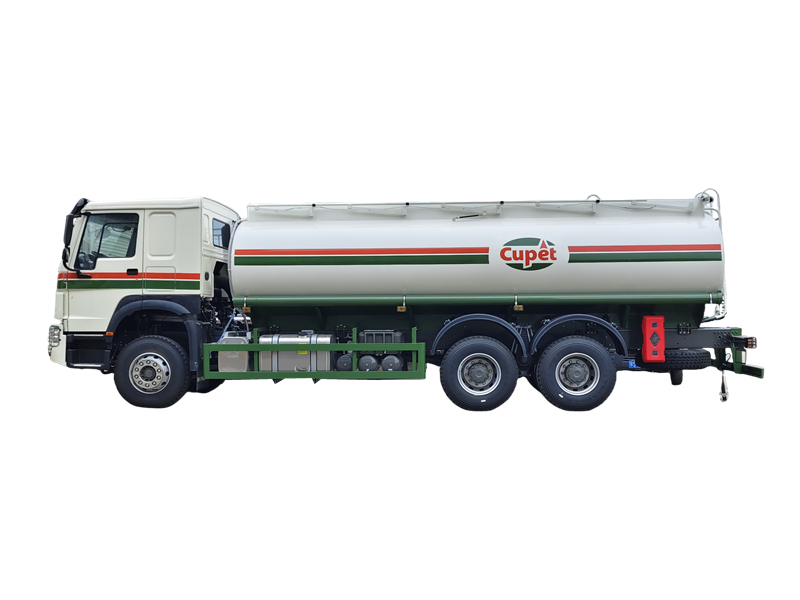

HOWO 20,000-liter fuel tanker is built on a 6x4 heavy-duty chassis and equipped with a robust 340-horsepower Weichai engine, delivering powerful performance. Its 20,000-liter carbon steel tank is welded with internal baffles and is divided into two compartments, enabling the safe and efficient transportation of two different types of fuel. Integrating both transport and refueling capabilities, the vehicle comes with a high-flow fuel pump and a dispenser, making it an ideal choice for medium-to-long-distance fuel distribution and on-site refueling applications.
Working capacity :
20000 litersCabin type :
HOWO HW76Drive system :
6×4Wheelbase ( mm) :
4600+1350Engine specific :
340HP/WP10.340E22Gear box :
HW19710Front axle ( Kg ) :
7000Rear axle ( Kg ) :
13000+13000HOWO fuel tanker truck, manufactured by CS TRUCKS, consists of a HOWO 6×4 chassis, a tank body, a pipeline system, and refueling equipment. It is primarily designed for transporting fuels such as kerosene, gasoline, and diesel. The tank has a capacity of 20,000 liters and is made of high-strength carbon steel plates, with longitudinal and transverse anti-wave baffles welded inside to minimize liquid impact during transit. The tank is divided into two independent compartments, allowing for the simultaneous transportation and separate discharge of two different types of fuel (e.g., diesel and gasoline). It is equipped with comprehensive features, including a European-standard manhole cover, an emergency shut-off valve, and a fuel pump with a flow rate of 60 m³/h.
Combining transport and refueling functions, the HOWO fuel bowser truck can not only professionally transport fuels like kerosene, gasoline, and diesel but also provide on-site refueling for other vehicles or equipment via its pumping and dispensing system. The vehicle’s design emphasizes practicality and safety, with a non-slip walkway on the top and standard safety accessories such as a tool kit and fire extinguisher. The HW76 cab is equipped with air conditioning and a sleeper berth, offering basic comfort for long-distance driving. It is a versatile commercial vehicle suitable for medium-to-long-distance fuel distribution.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
★ Based on HOWO 6×4 heavy duty chassis, equipped with WEICHAI 340HP/380HP/400HP diesel engine
★ Fuel tank made of 6mm thick high-quality carbon steel material, with baffle walls inside, aluminum alloy and stainless steel tank is optional
★ The tank capacity is up to 20000 liters, divided into 2 compartments for different types of fuel
★ Equipped with a well-known brand fuel pump and refueling equipment
※ Ⅱ. Product Parameter for HOWO diesel tanker truck:
|
HOWO 20000L fuel tanker truck specifications |
|||
|
Cabin |
Driving type |
6x4 left hand drive |
|
|
Cabin model |
HOWO HW76 |
||
|
Number of seats |
2 seats, one sleeper bed |
||
|
Air-conditioning |
Equipped |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H): |
10300*2500*3300 mm |
|
|
Wheel base |
4600+1350 mm |
||
|
Overhang (front/rear) |
1500/2625 mm |
||
|
Front track |
2015 mm |
||
|
Rear track |
1830/1830 mm |
||
|
Weight |
Gross vehicle weight |
25000 kg |
|
|
Curb weight |
13500 kg |
||
|
Max. driving speed |
90 km/h |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP10.340E22 |
||
|
Number of cylinders |
6 |
||
|
Power(HP) |
340HP (250KW) |
||
|
Emission |
Euro II |
||
|
Displacement |
9726 ml |
||
|
Rated speed |
2200 rpm |
||
|
Max. torque |
1250 N.m |
||
|
Speed at max. torque |
1400-1600 rpm |
||
|
Gearbox |
HW19710, 10 forwards gear and 2 rear gear |
||
|
PTO |
HW70 |
||
|
Axle |
Front axle HF7 7t, rear axle 2×13t |
||
|
Tire |
12.00R20, 10 tires+1 spare tire |
||
|
Steering Gear |
ZF 8098, power steering, hydraulic steering with power assistance |
||
|
Leaf spring |
10/12 |
||
|
Accessory |
One tool box ,Two spare tire carrier, Two fire extinguisher |
||
|
ABS |
No ABS |
||
|
Exhaust pipe |
In the front |
||
|
Color and logo |
Depends on the customer's requirement |
||
|
Upper parameters |
|||
|
Fuel tank |
Tank capacity |
20000 liters |
|
|
Tank material |
Carbon steel |
||
|
Thickness of the fuel tank |
6mm |
||
|
Compartment |
2 |
||
|
Fuel pump |
Model |
80YHCB60 |
|
|
Flow rate |
60 m3/h |
||
|
Working pressure |
0.6 Mpa |
||
|
Speed |
900 rpm |
||
|
Self-suction height |
6 m |
||
|
Manhole cover |
Aluminum alloy European standard with breath valve, oil-gas recycle valve, dip hatch, anti-overflow valve, 2 pcs |
||
|
Bottom valve |
Aluminum alloy material, 2 pieces |
||
|
Discharge valve |
2 set (every compartment has one set discharge valve) |
||
|
Discharging Pipe |
4" rubber hose,2 pcs,6m/each |
||
|
Walkway in the top |
Aluminum diamond plate walkway |
||
|
Loading system |
Up loading system |
||

※ Ⅲ. Product Details & Fucntions:

HOWO Chassis
Built on SIONTRUK HOWO 6×4 chassis, with strong power, outstanding load-bearing capacity and solid and durable structure

Tank Body
The tank body is made of high quality carbon steel with 6mm thick. The tank volume and compartments is designed as customer requirement.

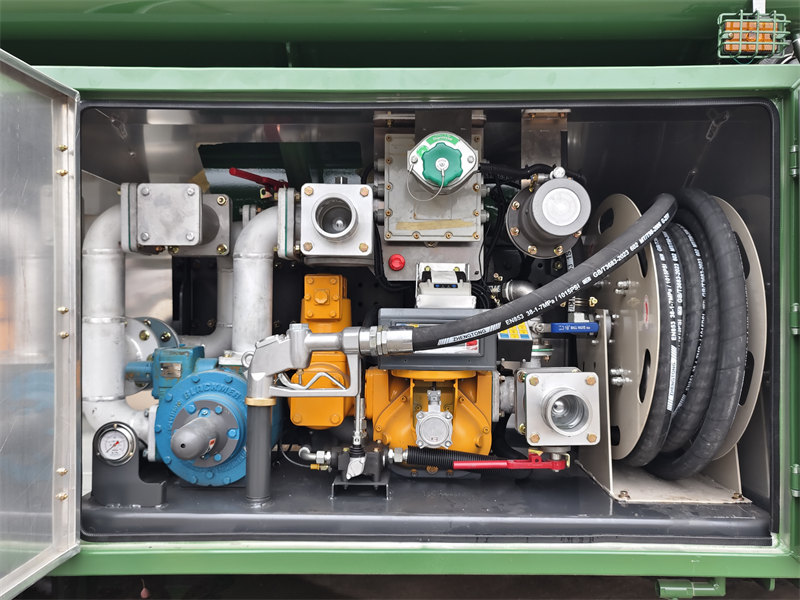

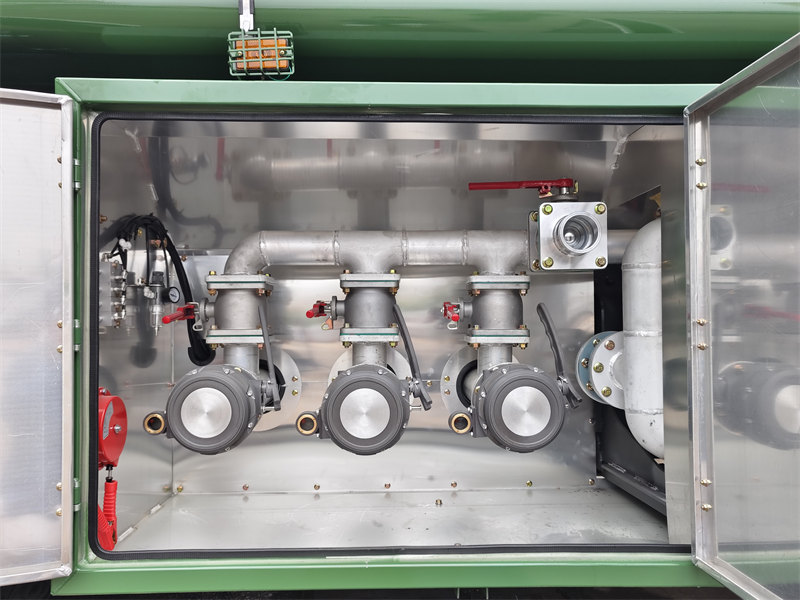

Refueling equipment
Equipped with hose reel and refueling gun with large flow.

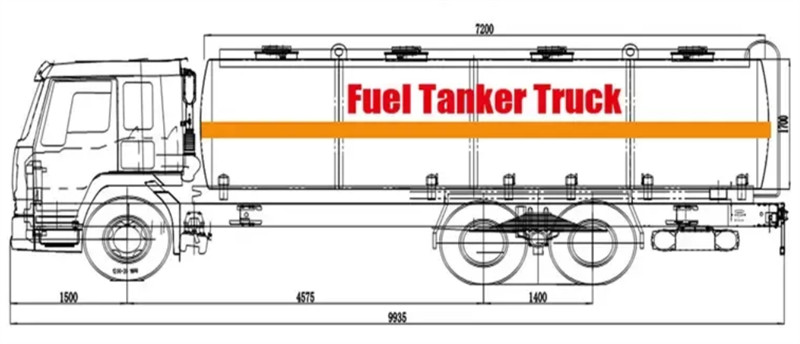

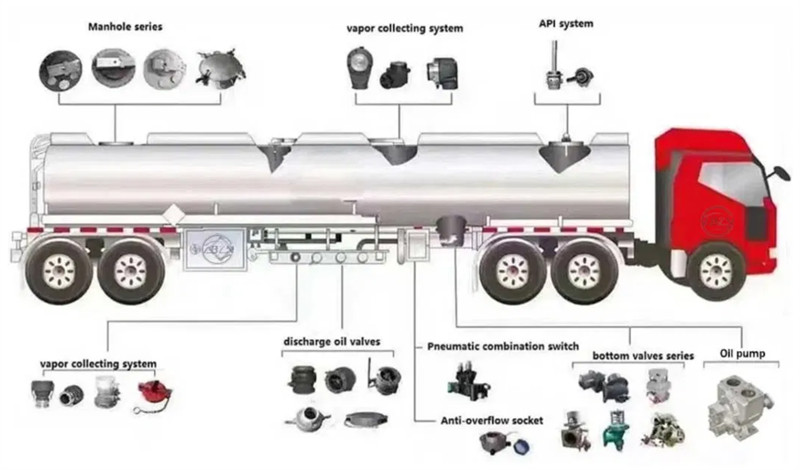

※ Ⅳ. Product Drawing:


1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

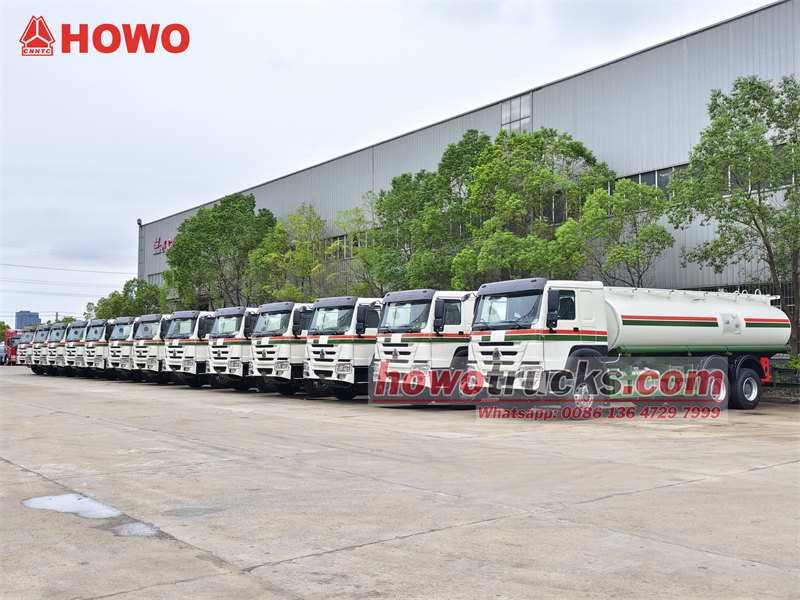

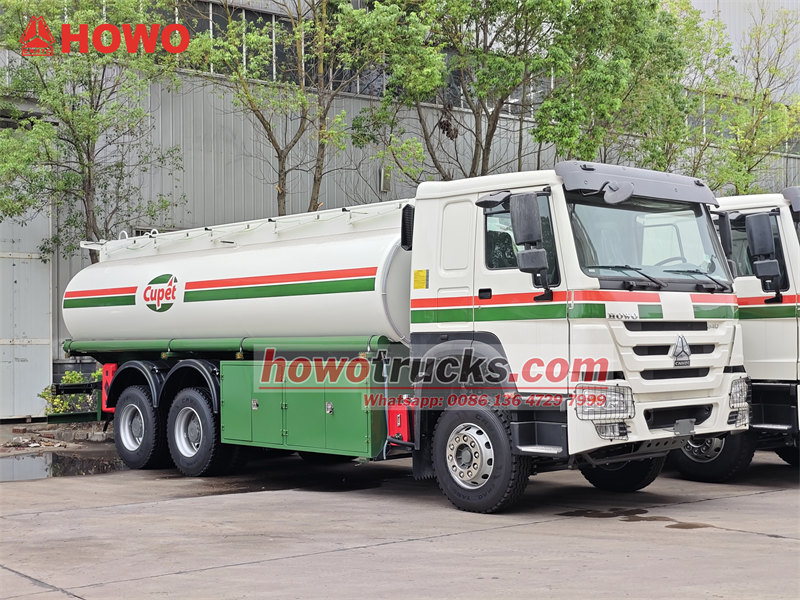

SINOTRUK HOWO fuel tank trucks for export

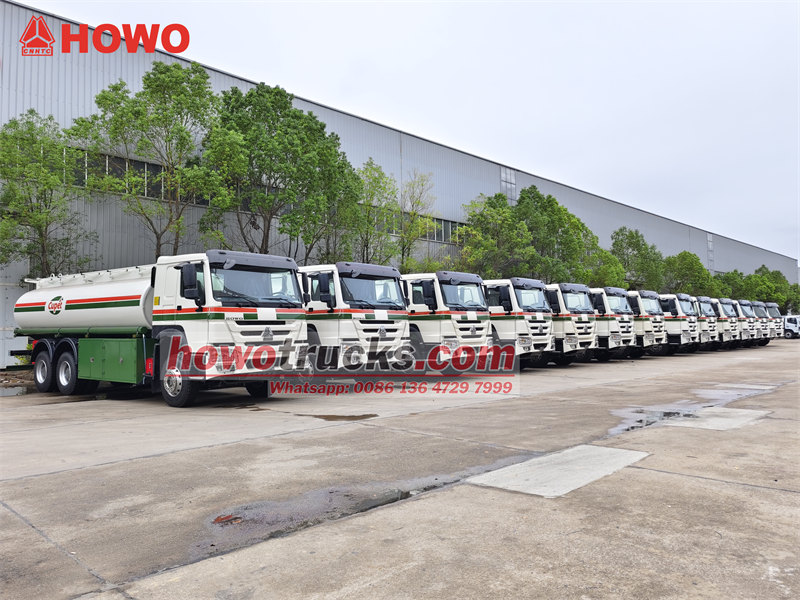

SINOTRUK HOWO fuel trucks ready for delivery
