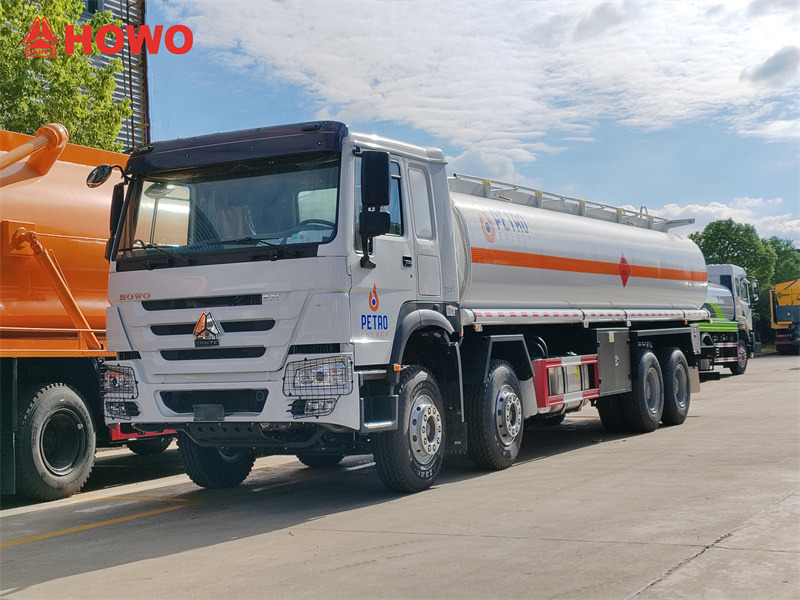

Sinotruk HOWO 8x4 25 CBM oil tanker truck, it uses Sinotruk HW76 cab chassis, 8x4 drive, 1800+4625+1350 mm wheelbase, equipped with Sinotruk WD615.47 engine, HW19710 gearbox, the upper part is a 25 cubic meter carbon steel oil tank, with 6 compartments, accommodating 3, 4, 4, 4, 5, 5 cubic meters respectively, each equipped with a European standard manhole, bottom valve, oil unloading valve, top walkway, handrail, 1 emergency valve, 2 oil unloading pipes.
Working capacity :
25cbmCabin type :
HW76 Long Cabin, with two seats and one bedDrive system :
8x4Wheelbase ( mm) :
1800+4625+1350 mmEngine specific :
Sinotruk WD615.47 / 371HPGear box :
HW19710, 10 forwards & 2 reversesFront axle ( Kg ) :
6500/7000Rear axle ( Kg ) :

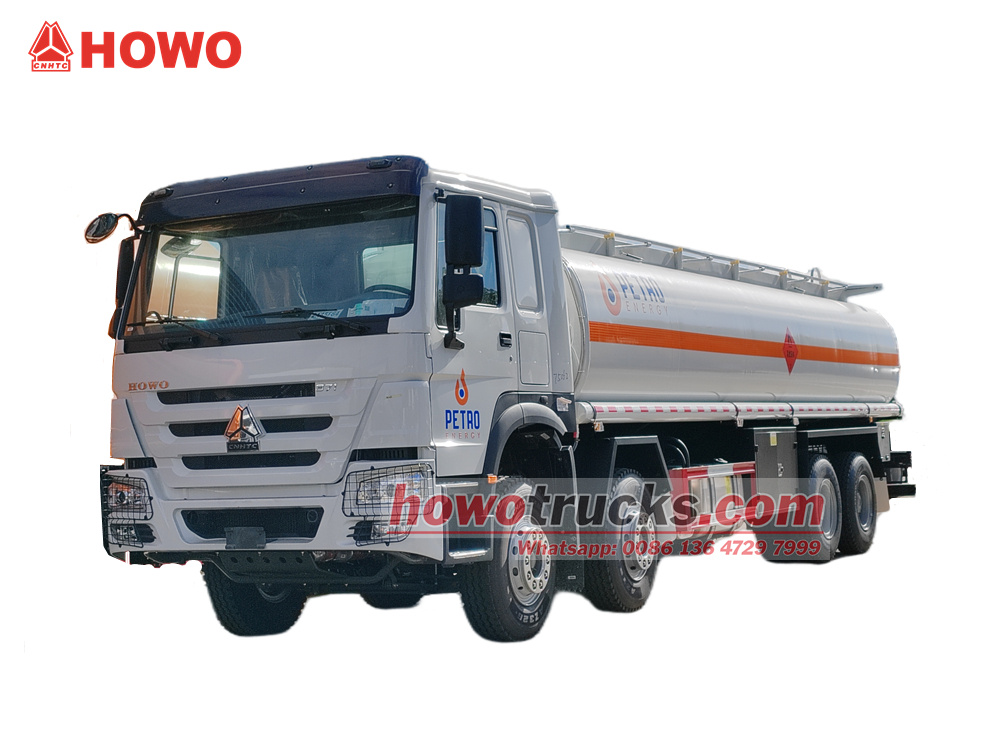

17500(2 axles)This 6500 Gallons HOWO Fuel Delivery Trucks is a heavy-duty, specialized vehicle designed for fuel transportation. Equipped with the proven WD615.47 engine and HW19710 gearbox, it offers reliable power and robust load-bearing capabilities. Its core structure is a 25-cubic-meter carbon steel tank. Its biggest highlight is the design of six independent compartments, which can simultaneously transport different oil products, greatly improving operational efficiency and flexibility. In terms of safety and operation, each compartment is equipped with a European-standard manhole cover, bottom valve, and oil unloading valve to ensure sealing and loading and unloading safety. The tank roof is equipped with a non-slip walkway and handrails, an emergency shut-off valve, and two oil unloading pipes. This vehicle combines multi-compartment transport, safety, reliability, efficiency, and compliance, making it an ideal choice for gas station distribution and industrial and mining oil supply.

*Howo 8x4 25000 Liters Fuel Tank Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,6X4,8x4 model
WP model with 300HP,340HP,371HP,380HP,400HP... Euro 2,3
2. Tank material: 6mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.
3. Professional Compartment: The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories
to avoid cross contamination and meet the transportation needs of multiple categories.
Product Parameter For Howo 8x4 heavy duty diesel bowser truck « « «
|
Technical Parameters |
||||
|
Product Name |

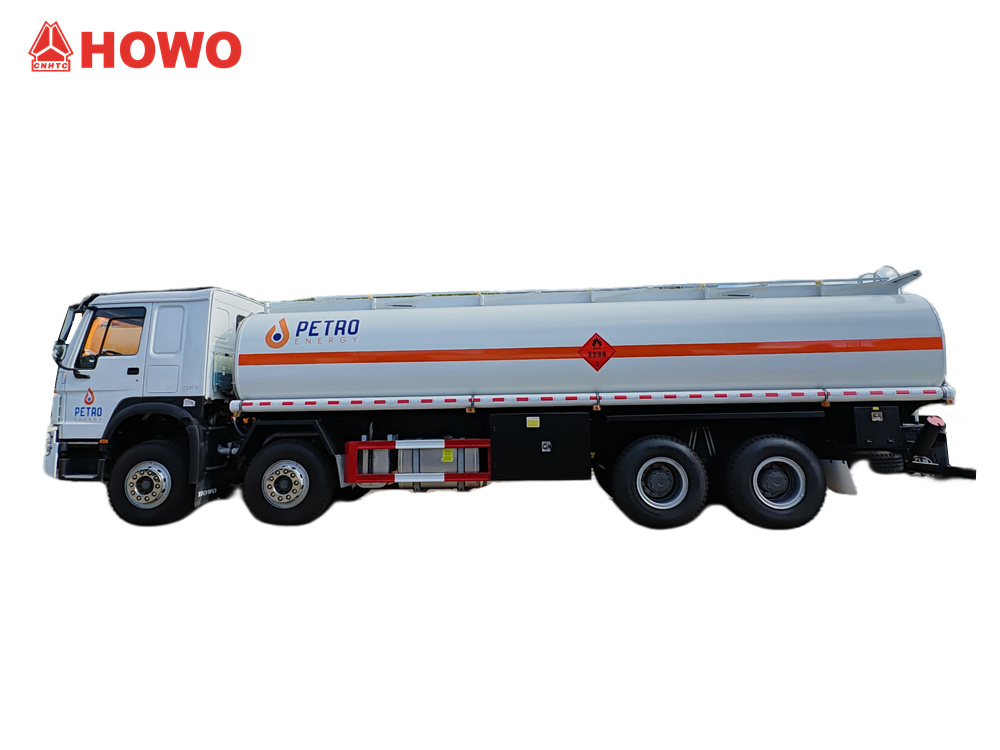

HOWO 25,000 liters fuel bowser truck |
Product Model |
CS5310GXW |
|
|
Chassis Brand |
Sinotruk HOWO |
Vehicle Brand |
CS TRUCKS |
|
|
Overall Dimension |
12350*2500*3250 mm |
Gross Vehicle Weight |
31000kg |
|
|
Curb Weight |
14850kg |
Wheel Base |
1800+4625+1350 mm |
|
|
Chassis Specification |
||||
|
Chassis parameters |
Chassis Brand |
Sinotruk HOWO |
||
|
Cabin |
HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window. |
|||
|
Engine |
Power |
371HP/ 273kW |
||
|
Model |
Sinotruk WD615.47 |
|||
|
Type |
Inline six-cylinder, water-cooled, four-stroke, turbocharged, intercooled, direct injection |
|||
|
Rated speed |
2200rpm |
|||
|
Max torque |
1500N.m |
|||
|
Max torque speed |
1100-1600rpm |
|||
|
Emission standard |
EURO 2 |
|||
|
Displacement |
9.726L |
|||
|
Fuel type |
Diesel,400L |
|||
|
Gearbox |
HW19710, 10 speeds forward and 2 speeds reverse. |
|||
|
Axle loading |
6500/7000/17500(2 axles) kg |
|||
|
Brake System |
Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
|||
|
Steering Gear |
ZF8118, Hydraulic steering with power assistance |
|||
|
Tire |
12.00R20,12+1 |
|||
|
Maximum speed |
90(km/h) |
|||
|
Superstructure |
||||
|
Fuel Tanker |
Tank Volume |
25000 Liters |
||
|
Tank Material |
Q235B Carbon Steel,side 5mm,bottom 6mm |
|||
|
Tank Shape |
Oval shape |
|||
|
Transport oil type |
Diesel/Petrol |
|||
|
Nos of Compartment |
6 |
|||
|
Compartment capacity |
3+4+4+4+5+5 m³ |
|||
|
Refueling system |
Oil Pump |
flow: 60m3 /h, arc gear pump |
||
|
Loading system |
Top filling from manhole or pump fuel into tank body from oil inlet valve. |
|||
|
Manhole cover |
Aluminium alloy European standard |
|||
|
Discharging system |
Gravity discharge or pump fuel out from tank body. |
|||
|
Bottom valve |
Aluminium alloy material,6 pieces (one compartment has one bottom valve) |
|||
|
Discharge valve |
European standard, 6 pcs |
|||
|
Emergency valve |
One (1) pcs with pneumatically operated |
|||
|
Walkway on the top |
Carbon steel material, with diamond antiskid plate |
|||
|
Handrail |
Stainless steel material, could be folded |
|||
|
Discharging Pipe |
4inch rubber hose, 2 pcs, 6m/each |
|||

Product Definition and Introduction « « «

Chassis Configuration
• Vehicle: Sinotruk HOWO

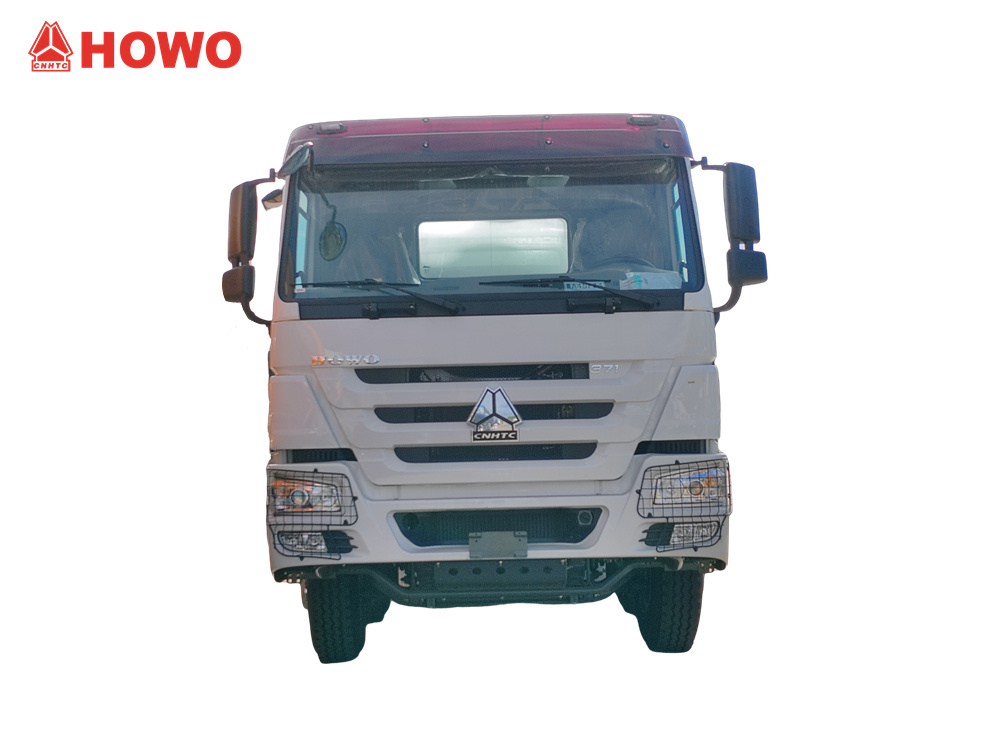

• Cabin: HW76 cab, spacious and comfortable, with excellent sealing, providing a pleasant driving environment.
• Drivetrain: 8x4, strong load capacity and good road adaptability.
• Wheelbase: 1800+4625+1350 mm, rationally designed wheelbase
• Engine: Equipped with the Sinotruk WD615.47 371-horsepower engine, featuring mature technology, strong power, ample torque reserve, and excellent fuel economy.
• Transmission: Equipped with the HW19710 manual transmission, with 10 forward gears and 2 reverse gears. The first gear has a large ratio, providing strong climbing ability, and the gear ratio distribution is well-balanced, adaptable to complex road conditions.

Upper Configuration
• Tank Volume: Total capacity 25 cubic meters.
• Tank Material: Made of high-quality carbon steel, it is sturdy and durable, with excellent corrosion resistance and pressure-bearing capacity.
• Compartment Design: Scientifically divided into six independent compartments, with capacities of 3+4+4+4+5+5 cubic meters.
• Advantages: The multi-compartment design allows for the simultaneous transport of different types and grades of fuel (such as diesel, gasoline, kerosene, etc.), enabling multiple uses of one vehicle, improving operational efficiency, and effectively preventing oil mix-ups.

Standard Operating and Safety Systems

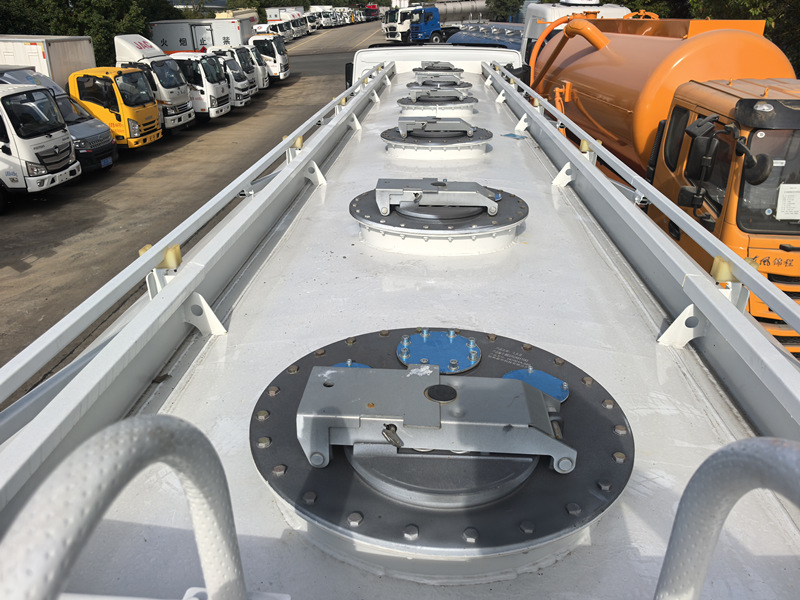

• Manhole Cover: Each sub-tank is equipped with a European-standard manhole cover with excellent sealing performance and fire and explosion-proof devices to ensure safe transportation.

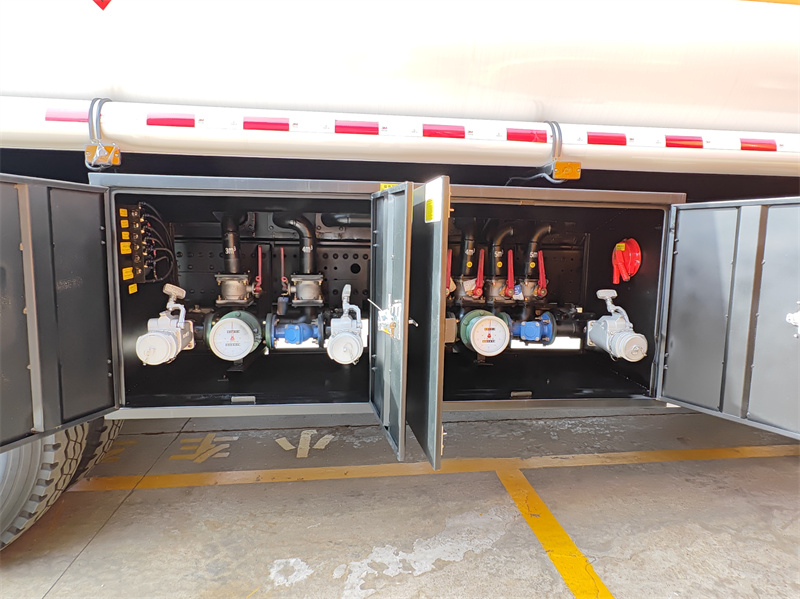

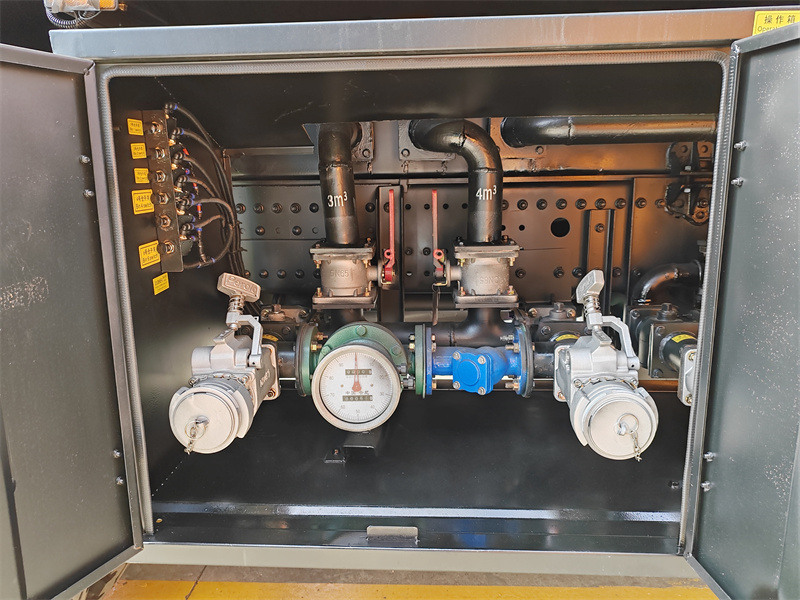

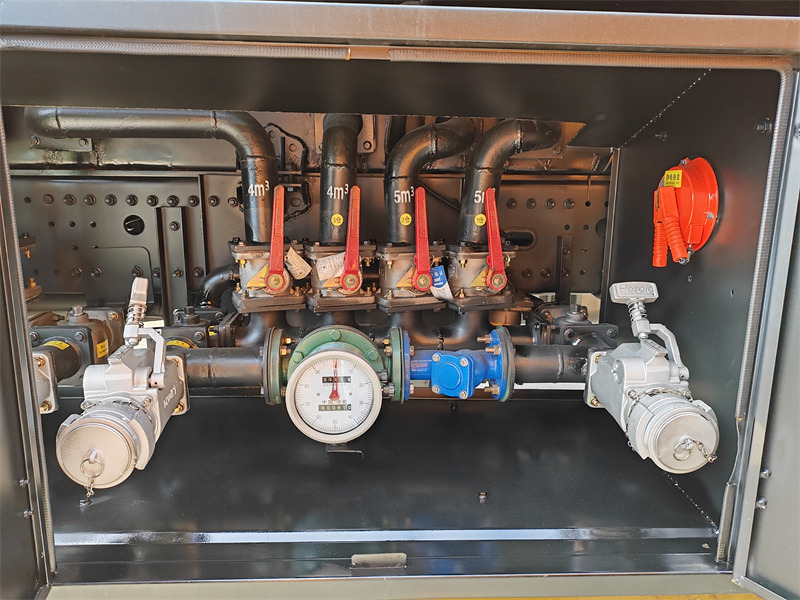

• Loading and Unloading System:
o Bottom Valve: Each sub-tank is equipped with a bottom valve (submarine valve) as the first line of defense. In the event of an accidental overturning, it automatically shuts off the oil line to prevent oil leaks.
o Unloading Valve: Each sub-tank has an unloading valve, typically a DN50 or DN80 pneumatic or manual ball valve, to control the discharge of oil.

• Roof Installation:
o Roof Walkway: A non-slip walkway is installed on the tank roof to facilitate safe operation and inspection.
o Handrail: Sturdy handrails are installed on both sides of the walkway to further ensure safety during high-altitude operations.
• Safety Equipment:
o Emergency Valve: An emergency shut-off valve is installed, typically installed in the pump or piping system, to quickly shut off the power source and oil line in an emergency. o Oil Unloading Pipes: Two pressure-resistant oil unloading pipes are provided with the vehicle to connect the unloading valve to the customer's oil storage equipment. The length and diameter can be customized according to actual needs.
o Fire Extinguisher: Essential firefighting equipment.
o Warning Signs: Reflective signs such as "Dangerous Goods" and "Flammable" are also included.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
Application Scenarios « « «
• Oil Companies: End-users requiring multi-category oil product distribution.
• Logistics Companies: Operators undertaking third-party oil product transportation services.
• Engineering Units: Mines, construction sites, and other locations requiring mobile oil supply.
• Regional Distributors: Wholesale distribution to gas stations, agricultural machinery cooperatives, and other customers.
