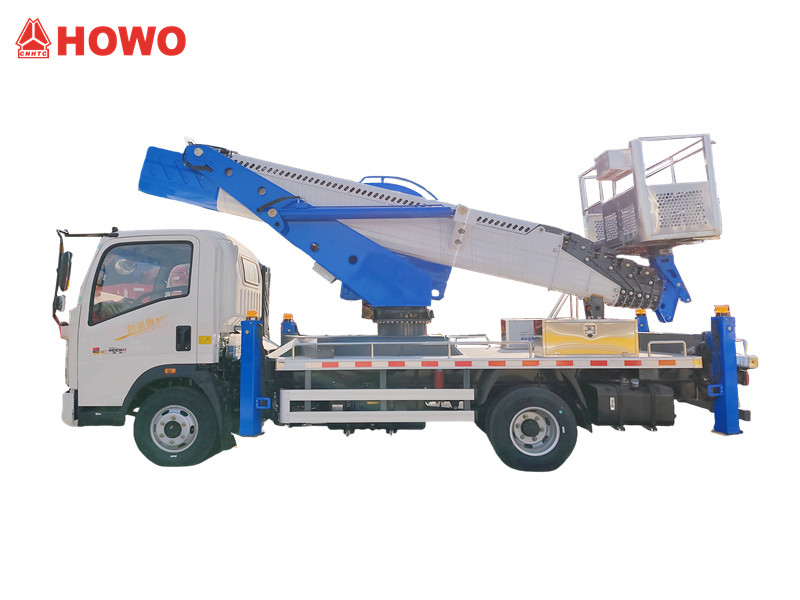

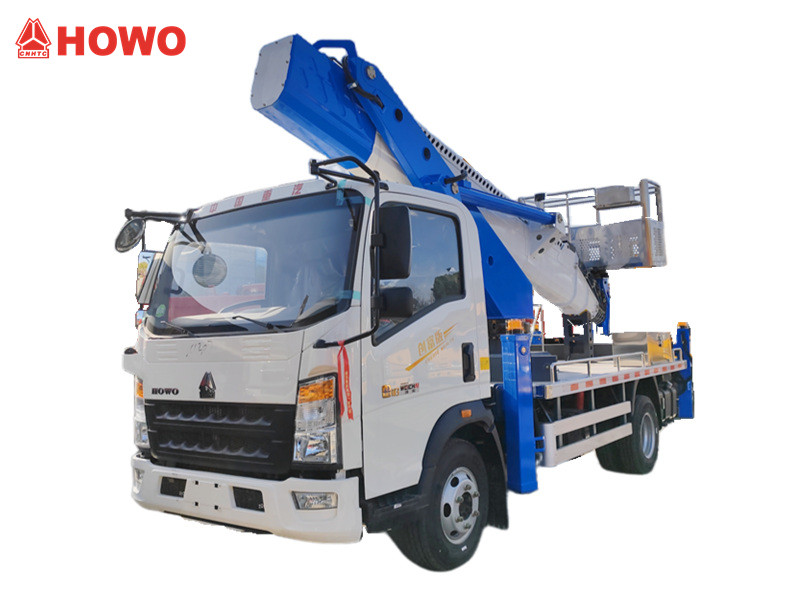

HOWO 28-meter aerial work platform is built on a HOWO 4×2 light-duty chassis, powered by a 110-horsepower Yunnei diesel engine, offering excellent mobility. Its five-section synchronized telescopic boom achieves a maximum working height of 28 meters, supported by four V-shaped hydraulic outriggers for enhanced stability. The 360° rotatable platform has a load capacity of 200 kg and supports three operation modes: wireless remote control, platform control, and ground control, along with emergency safety devices. It is widely used in municipal, power maintenance, and other high-altitude operations, ensuring safety and efficiency.
Working capacity :
28 metersCabin type :
HOWO 1880 single row cabin, with A/CDrive system :
4×2, left hand driveWheelbase ( mm) :
3360Engine specific :
110HP/YN4100QBZLGear box :
WLY, 6 Forward & 1 ReverseFront axle ( Kg ) :
2000Rear axle ( Kg ) :
3500HOWO 28-meter aerial work platform is one of the popular models in the CS TRUCKS aerial work vehicle series. Built on a HOWO 4×2 light-duty chassis, the vehicle measures 5995 × 2090 × 3080 mm and is equipped with a Yunnei YN4100QBZL diesel engine delivering 110 hp, ensuring excellent mobility and stability. The single-row cab accommodates two people, while the compact chassis design, with a 3600 mm wheelbase and an air braking system, makes it well-suited for urban road conditions.
With a maximum working height of 28 meters, the vehicle features a five-section synchronized telescopic boom and four V-shaped hydraulic outriggers, providing a leg span of 4200 mm for superior stability during operation. The stainless-steel platform has a 200 kg load capacity, supports 360° continuous rotation, and allows dual-direction operation. It is equipped with three control systems (ground, platform, and wireless remote) and emergency safety devices. Known for its high efficiency and flexible operation, this HOWO manlift truck is widely used in municipal maintenance, power line inspection, advertising installation, and other high-altitude operations, combining safety with versatility.

CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.
»» Ⅰ Product Defination and Introduction
Manufacturer: CS TRUCKS
Features of HOWO 28m Manlifter Truck:
• Five-Section Boom with Four-Section Synchronized Telescoping: Simple structure and high operational efficiency.
• Built-in Telescoping Cylinder: Enhanced protection and durability.
• Standard 1600mm Large Work Platform: Spacious and comfortable working area.
• Standard Wireless Remote Control: Enables remote operation within a 100-meter range for better visibility and flexibility.

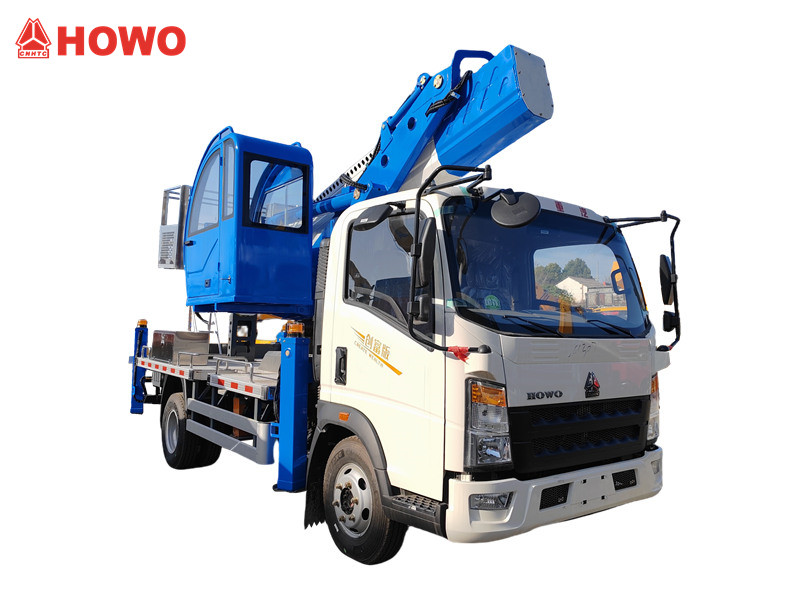

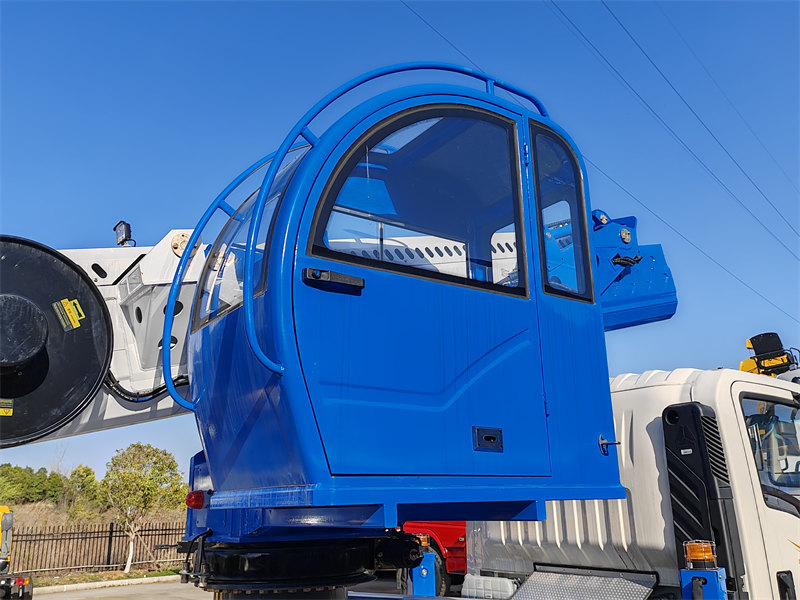

• Panoramic Operator’s Cabin: Provides a wide field of vision and improved safety protection.
»» Ⅱ Product Parameter for HOWO bucket lift truck
|
Items |
Descriptions |
Specifications |
|
Vehicle |
Vehicle name |
HOWO aerial platform truck |
|
Chassis brand |
HOWO |
|
|
Cabin |
HOWO, single row |
|
|
Seats in cab |
2 |
|
|
Drive Type |
4×2 |
|
|
Overall Dimensions (L*W*H) |
5995×2090×3080(mm) |
|
|
Gross weight |
5500(Kg) |
|
|
wheelbase |
3600(mm) |
|
|
Front/Rear suspension |
1130/1000(mm) |
|
|
Approaching/Departure Angle |
18/14(°) |
|
|
Max speed |
90 (km/h) |
|
|
Engine |
Brand |
YUNNEI |
|
Model |
YN4100QBZL |
|
|
Power |
81 (Kw) |
|
|
Horsepower |
110 (HP) |
|
|
Displacement |
3.298 (L) |
|
|
Fuel type |
Diesel |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
3200 rpm |
|
|
Max. torque |
285 N.m |
|
|
Axles |
Front axle loading |
2T |
|
Rear axle loading |
3.5T |
|
|
Tire type/number |
7.00R16/6+1 PCS |
|
|
Brake |
Air brake |
|
|
Color |
As required |
|
|
Upper body configurations |
Max. Working Height |
28 meters |
|
Boom type |
Five-section arm, synchronous telescopic |
|
|
Outriggers |
4 pcs, front V + rear V type hydraulic outriggers |
|
|
Outrigger span |
4200mm horizontal, 4900mm vertical |
|
|
Bucket size |
1600×700×1000 mm |
|
|
Bucket load |
200 kg |
|
|
Bucket material |
Stainless steel, fiber glass is optional |
|
|
Slewing device |
Two-way 360° continuous slewing, 360°slewing basket |
|
|
Operating system |
Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating |
|
|
Emergency device |
Yes |
|

»» Ⅲ Product Details & Advantages

Chassis: HOWO light-duty chassis, 4×2 left hand drive, 4×4 and right hand drive can be customized
Engine: YUNNEI 110HP diesel engine, CUMMINS, YUCHAI, WEICHAI engine for option
Cabin: HOWO 1880 single row cabin, 2 seats. HOWO 2880 cabin with 3 seats for option

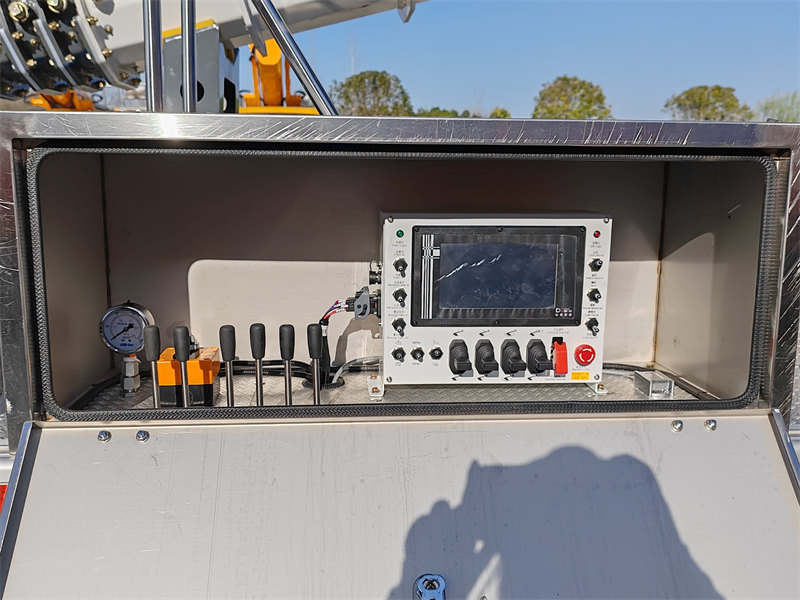

Advanced Control System:
Equipped with intelligent functions such as auto-positioning of the boom, real-time monitoring, and smart alarm systems, enabling precise operation and instant status tracking for enhanced safety and efficiency.

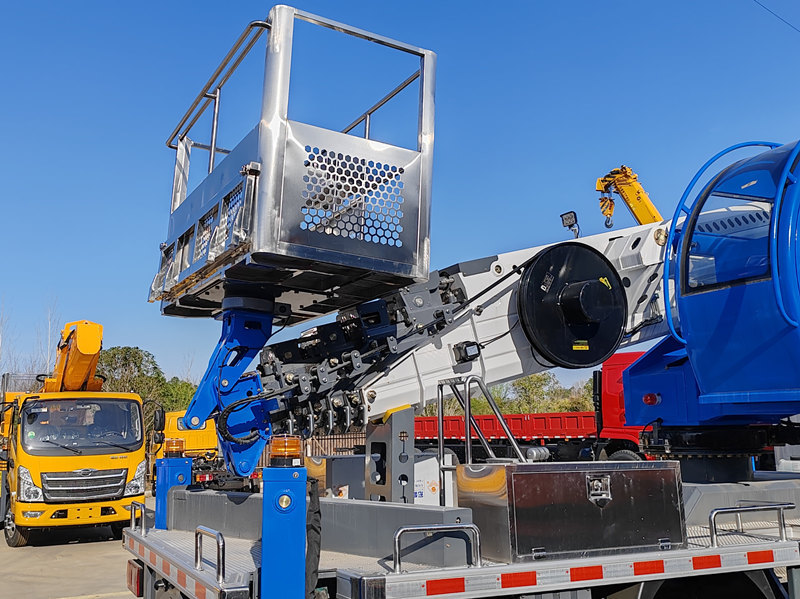

Aerial work bucket:
Equipped with a stainless-steel bucket, high strength, corrosion and rust resistance, with a spacious working area inside the bucket. The mechanical self-balancing structure ensures consistent stability across the full height range.

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

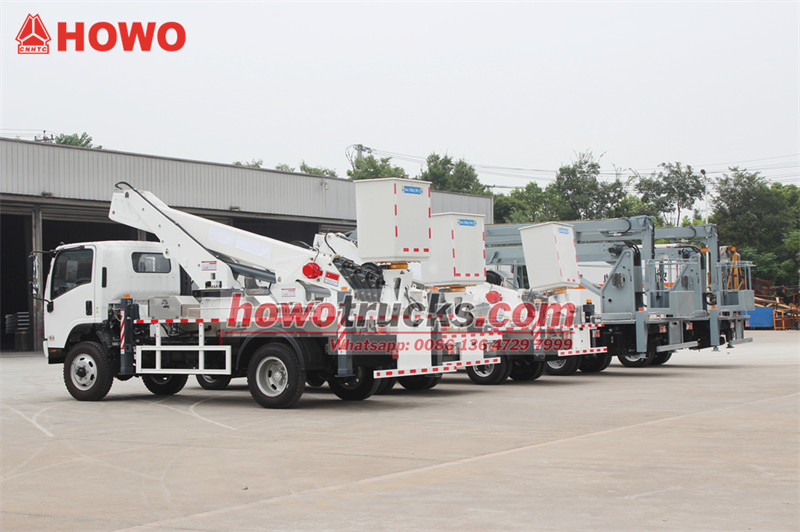

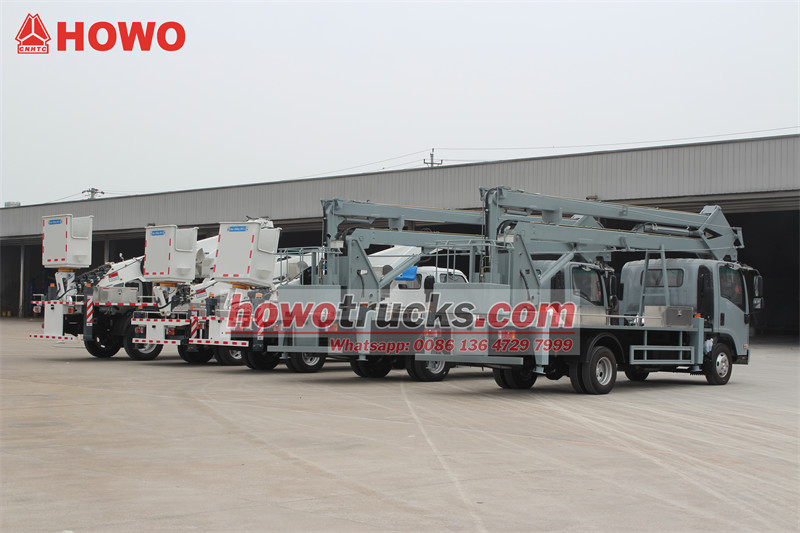

SINOTRUK HOWO aerial work platform trucks ready for delivery

SINOTRUK HOWO manlift trucks exported to Philippines
