HOWO 30000 liters towable water bowser with sprinkler

HOWO 30000 liters towable water bowser with sprinkler

The HOWO TX 8x4  towable water bowser with sprinkler is a high-performance, multi-functional dust control and water spraying solution tailor-built for harsh and complex urban operating conditions. Primarily designed to eliminate dust pollution generated during city transportation processes, this versatile vehicle also efficiently covers on-site road cleaning, equipment cooling and other auxiliary operational demands, serving as an all-in-one workhorse for city site maintenance.

  • Working capacity :

    20000 liters
  • Cabin type :

    HOWO single cabin with sleeper and A/C
  • Drive system :

    8×4
  • Wheelbase ( mm) :

    13300*2580*3350 mm
  • Engine specific :

    350HP/WP8.350E62
  • Gear box :

    HW19710, 10 Forward & 2Reverse
  • Front axle ( Kg ) :

    7.5T*2
  • Rear axle ( Kg ) :

    13 T*2
New Products

The HOWO TX 8x4  towable water bowser with sprinkler is a high-performance, multi-functional dust control and water spraying solution tailor-built for harsh and complex urban operating conditions. Primarily designed to eliminate dust pollution generated during city transportation processes, this versatile vehicle also efficiently covers on-site road cleaning, equipment cooling and other auxiliary operational demands, serving as an all-in-one workhorse for city site maintenance.

Built on a heavy-duty 8×4 drive chassis, this tanker outperforms standard sanitation sprinkler trucks by a significant margin in cross-country capability and heavy-load stability, delivering reliable performance on rough, uneven roads. Fitted with a large 20,000-liter water tank and a full set of integrated spraying systems, it supports comprehensive, multi-scenario spraying and dust suppression operations. It is a must-have heavy-duty specialized vehicle for professional city environmental protection and site management.

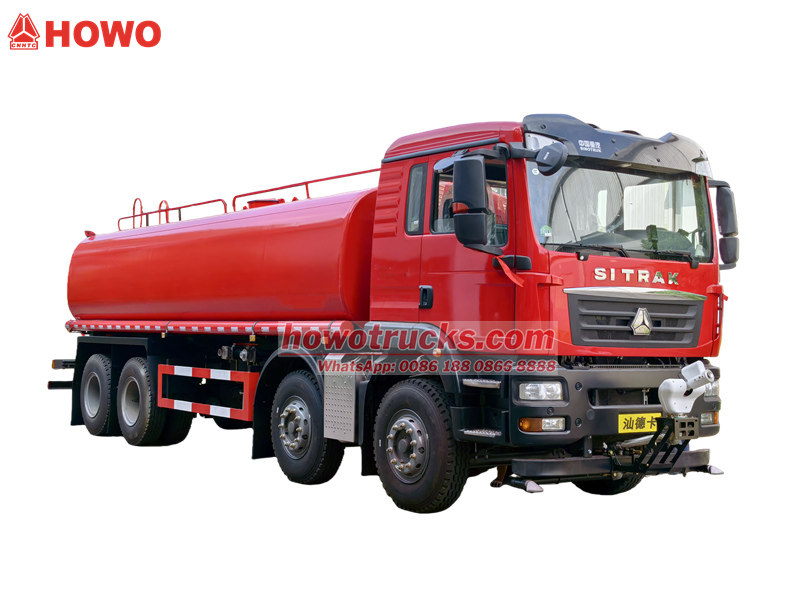

HOWO 8x4 water truck



*HOWO TX 8x4 Water Tanker Truck

 Sinotruk HOWO Towable Water Truck With Sprinkler*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.





Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: Howo heavy truck chassis, 8X4 or 8x8 model

                              Wd model with 350HP and Euro 2,3,4,5



2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose



3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
                           Optional famous Imported
pump

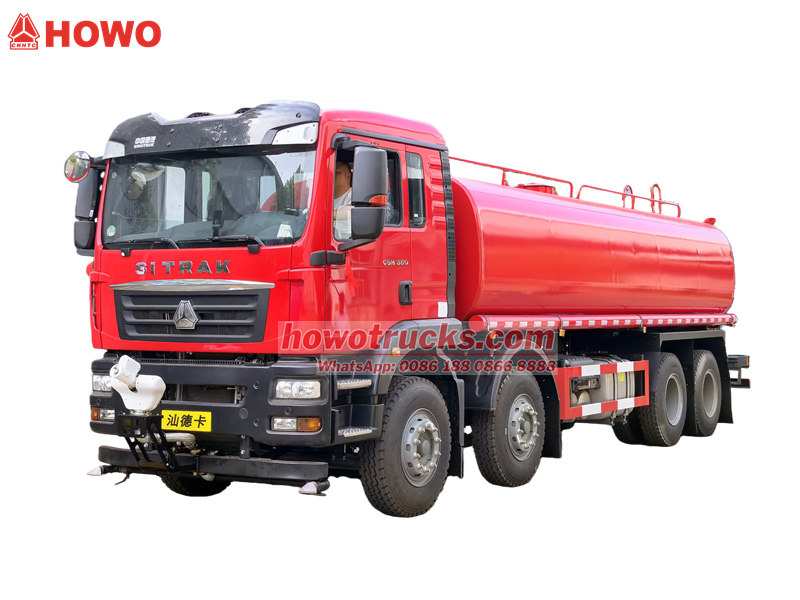

HOWO TX 8x4 water tank truck



Ⅱ.Parameter for HOWO TX Water Bowser Truck «««

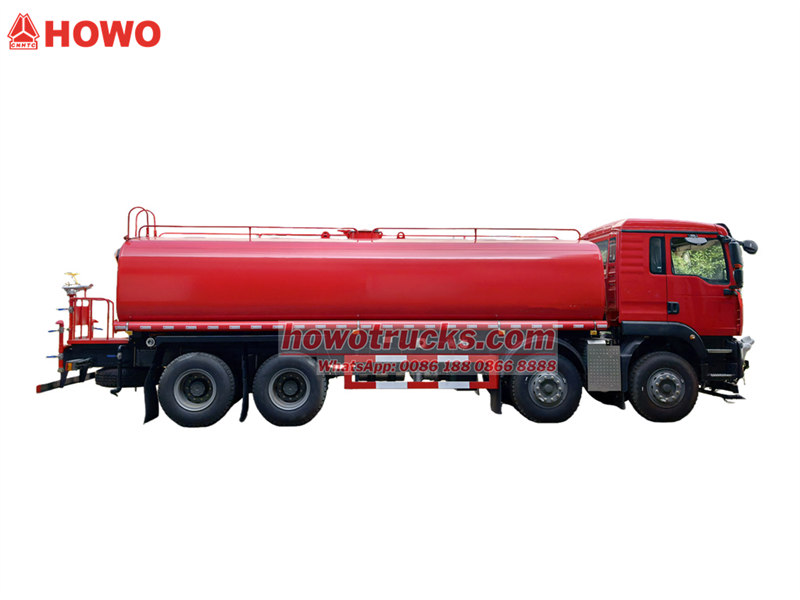

HOWO TX 8x4 heavy water tank truck



HOWO TX 8x4 20000L Water Tank Truck

Main parameter

Overall dimension(LxWxH)

13300*2580*3350 mm

Wheel base(mm)

1750+4600+1350 mm

Driving Type

8×4,left hand drive

Color

White,blue,green,color can choose

Front/rear overhang

1535/2215

Max speed

100 km/h

Weight in KGS

GVW

28000 kg

Curb weight

11500 kg

Loading capacity

20 tons

Front axles loading capacity

7.5T*2

Rear axles loading capacity

13 T*2

Engine

Engine model

WP8.350E62

Engine type

Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled

Horsepower

350 HP

Max. output (kw)

257 Kw

Rated speed

1600rpm

Maximum Torque

1400N.m

Displacement(L)

7.8 L

Emission standard

Euro 3

Transmission

HW19710,10 forward ,2 reserve

Tire

12.00R20 standard tire,10 tires+1 spare tire

Brake

Air brake

Steering

Power steering

Body

Capacity

20000L

Structure

TANK MATERAIL

6mm,Q235 stee

Pipe

Galvanized pipe

Discharge nozzle

SS,at side bottom of tank,quick coupling

Discharge nozzle option

Stainless steel faucet

Water pump

Model

WEILONG 80QZF-60/90S pump

Flow rate(L/m):

60m3/h

Head of delivery(m)

90m

Self-priming function(min/4m)

1.5

Efficiency(%)

95%

Related rotate speed(r/min)

1180

Matched power(kw)

22

Water sprinkler system

Front sprinkler jet

14m

Rear sprinkler jet

13m

Rear sprinkler nozzle range

12m

Water cannon range

45m

Water time

5 minutes

Working condition

Flow≥60L/m, 1.55Mpa

Max working pressure

≥0.9Mpa






Ⅲ.Advantage for Howo Heavy Chassis «««



HOWO 20000L water tank truck

1. Robust & Dependable Powertrain:

Fitted with WP8.350E62 inline-six 4-stroke turbo intercooled water-cooled diesel engine.

Peak output: 257kW (350HP),max torque: 1400N·m, delivering abundant reserve power.

Paired with HW19710 transmission (10 forward + 2 reverse speeds) for seamless shifts and superior drive efficiency.

This vehicle speed is tunable for long-haul transit or short-range onsite spraying to optimize productivity and fuel savings.



HOWO 20000L water tank truck

2. High-Efficiency Full-Function Operation System:

Features a 20,000L elliptical tank fabricated from 6mm Q235 steel for superior structural strength, anti-collision and anti-corrosion performance against mine rubble abrasion.

Internal baffles suppress liquid surging to boost driving stability.

Comes with WEILONG 80QZF-60/90S water pump: max flow 60m³/h, lift 50m, self-priming in 1.5min per 4m³, supporting fast large-scale dust suppression.



HOWO TX water tank truck

3.All-Round Spraying Configuration:

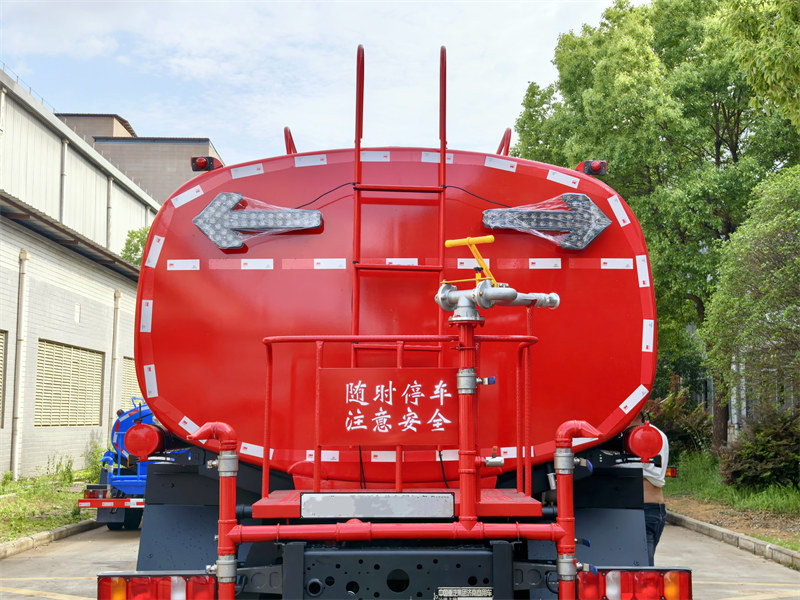

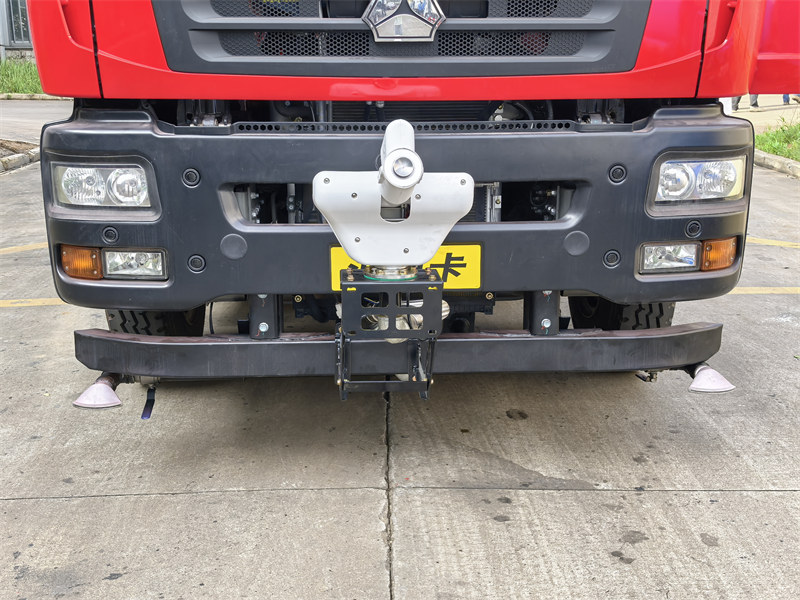

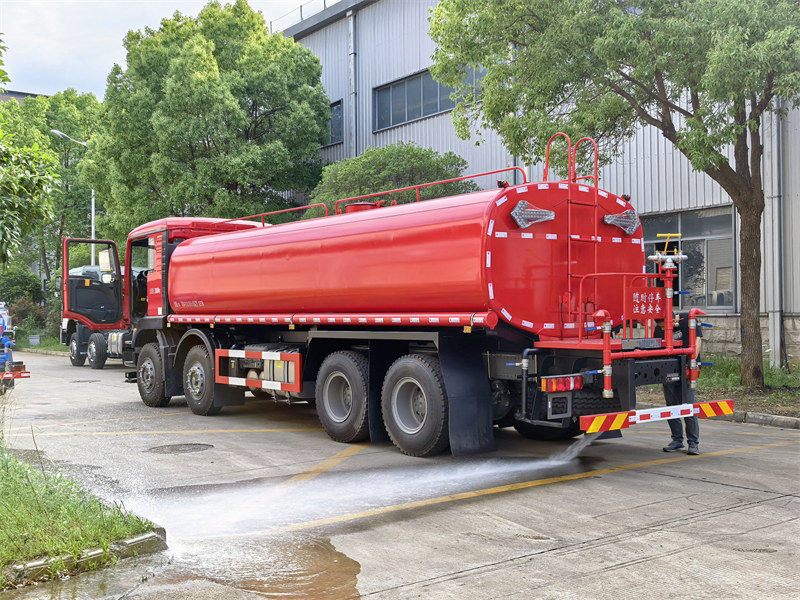

Outfitted with front/rear spray nozzles, high-pressure water cannon and rear operating platform for full-coverage dust control with zero blind spots.

Front spray: 14m | Rear spray:13m | Rear nozzle:12m | Water cannon: max 45m

Suits large-scale city road dust suppression and targeted equipment washing.

Option galvanized pipelines plus stainless steel nozzles feature superb wear & corrosion resistance against mine dust to prolong service lifespan.



✦Ⅳ. Design Draw of Howo Water Sprinkler «««



CS TRUCKS professional Engineer Department and skilled engineers will thoroughly checking customer requirement, then prepare official technical drawing, also the 3D drawing to realize all clients request function, after clients confirmed the designed drawing, we will start production as request. Which can make the whole communication and discussion more efficiently. Below are 3D drawing for HOWO 350HP 20cbm water sprinkler vehicle tanker body kit for checking:



HOWO TX 20000L water tank truck

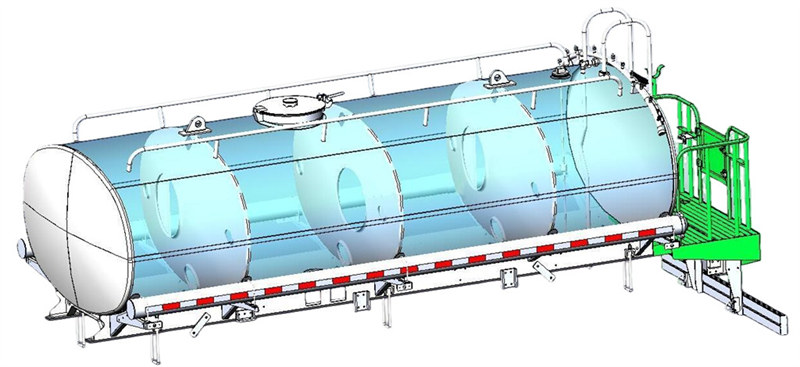

CS TRUCKS water tanker upper body kit drawing with baffles inside, also rear platform

HOWO TX 20000L water tank truck

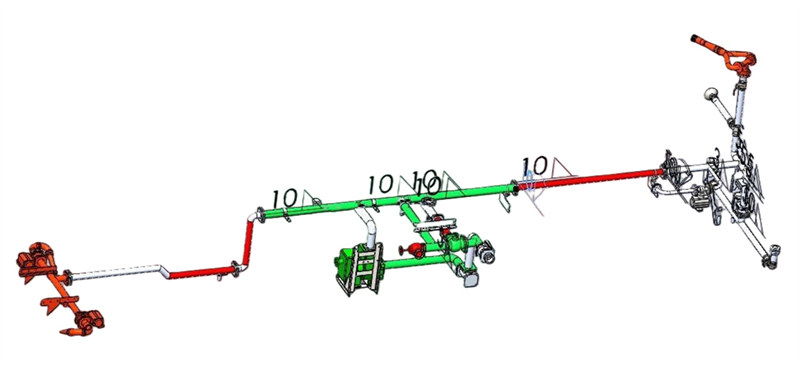

CS TRUCKS water tanker truck tanker pipeline system and spraying nozzles assembly



✦Ⅴ.Water Pump of Howo Heavy Water Sprinkler Truck «««



WEILONG water pumps offer advantages such as strong self-priming capability and high head, enabling rapid water filling and reducing waiting time. They also provide stable water delivery, preventing leaks and insufficient pressure, ensuring continuous operation.

Furthermore, the piping is galvanized, the discharge nozzle is stainless steel, and quick-connect fittings are included. Optional stainless steel faucets are also available. These features enhance corrosion resistance and ease of maintenance, further extending the lifespan of the operating system.

  • Howo 20000L water tank truck
  • Howo 20000L water tank truck
  • Howo 20000L water tank truck



Model

Flow rate (m³/h)

Head (m)

Speed (r/min)

Shaft power (KW)

NPSHr (m)

Self-priming time (min/4m)

Efficiency (%)

80QZBF-60/90N(S)

60

90

1180

22.5

4.5

1.5

70

65QZ-40/45N(S)

40

45

1450

9.25

4.5

1.5

72

65QZ-50/50N

50

50

1180

10.5

4.5

1.5

70

65QZBF-50/110N(S)

50

110

1450

24

-

-

70





.Application of Howo Water Sprinkler Truck «««



Howo TX heavy 20000L water tank truck

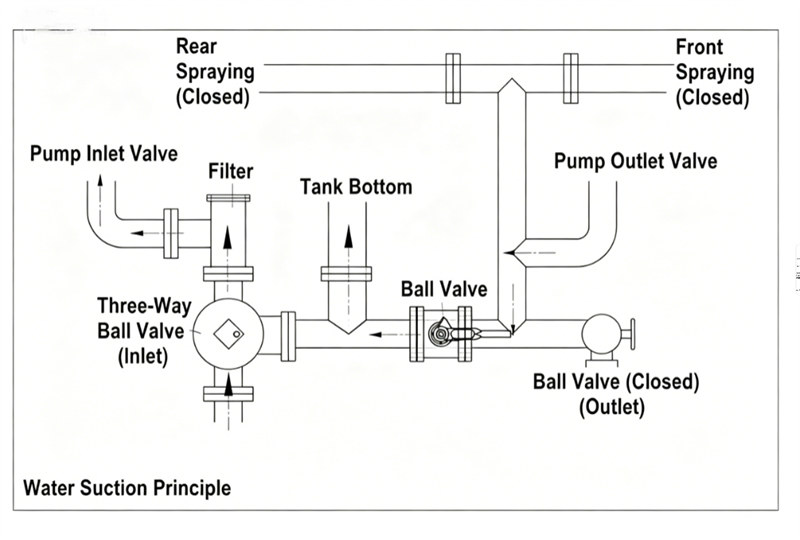

1.Water pump in process (Suction):

 Close Pump Out Valve A, open Valve B & Pump In Valve C, make sure Valve B is RIGHT OPEN, connect the pipeline with Valve C, the other side of pipeline be in pond, river, etc, then the pump start working and water go into the tank through Inlet Valve C, details showing as below chart.



Howo TX heavy 20000L water tank truck

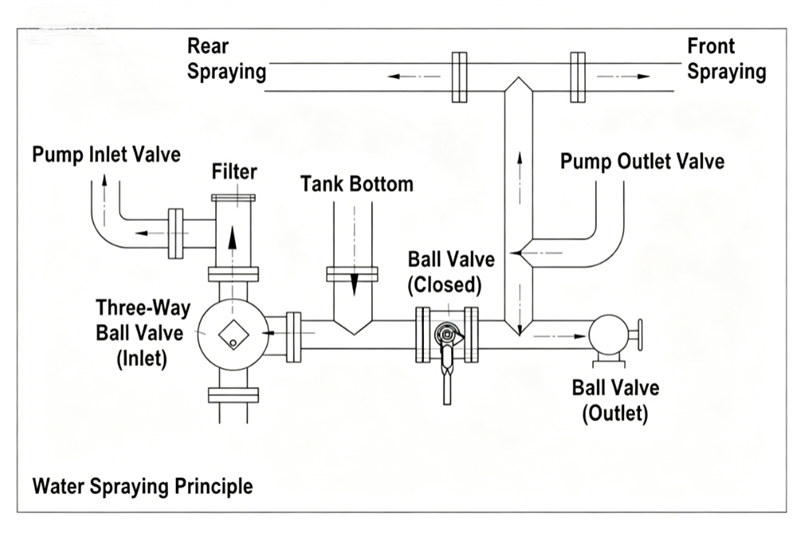

2.Water pump out process (Spraying):

Open Pump Out Valve A, close Valve B & Pump In Valve C, then the pump start working and water go out of the tank through Outlet Valve A, details showing as below chart.

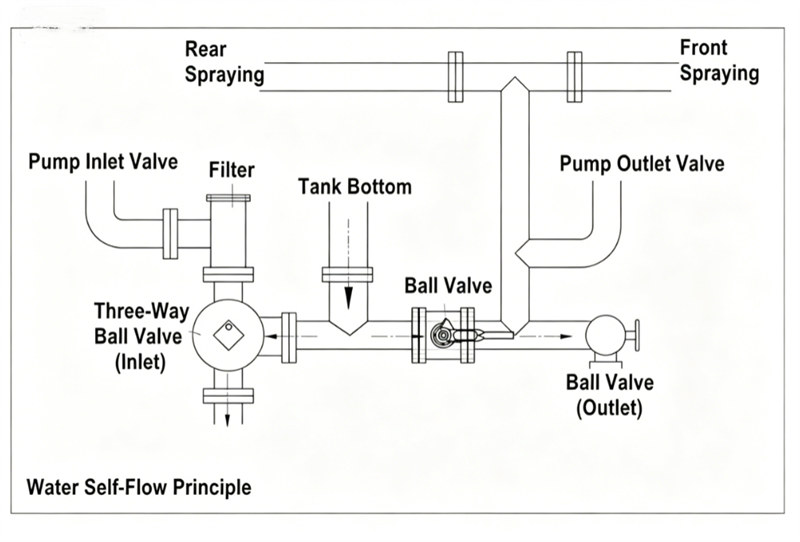

3.Automatically self discharge by gravity:

Close Pump In Valve C, open Pump Out Valve A & Valve B, then the water flow out of the tank automatically by self-gravity, details showing as below chart.






The production capacity of over 4,000 trucks every year.



Over 100 countries worldwide.



Complete after-sales service system.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO TX heavy 20000L water tank truck



HOWO TX heavy 20000L water tank truck
