Howo 4x2 drive water delivery tanker bowser

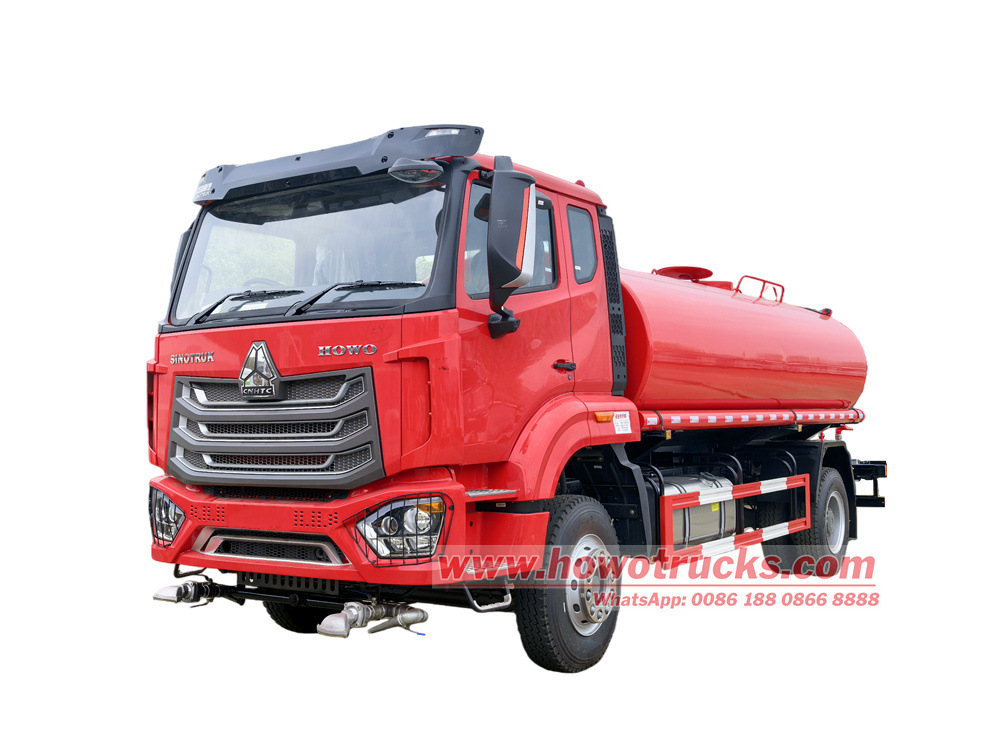

Howo 4x2 drive water delivery tanker bowser

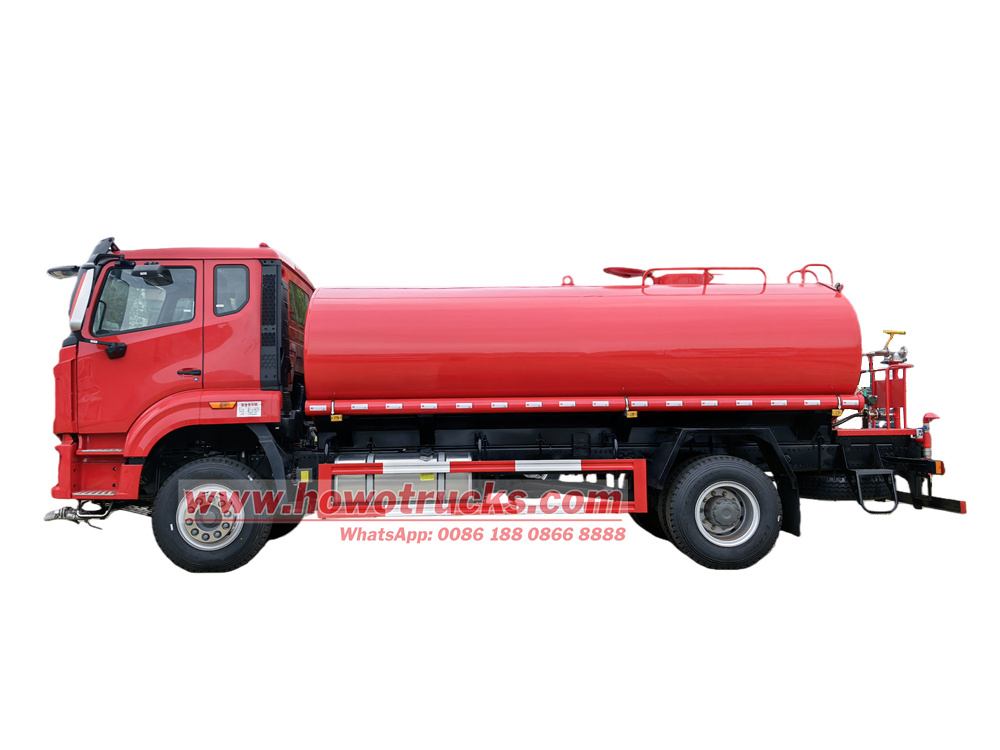

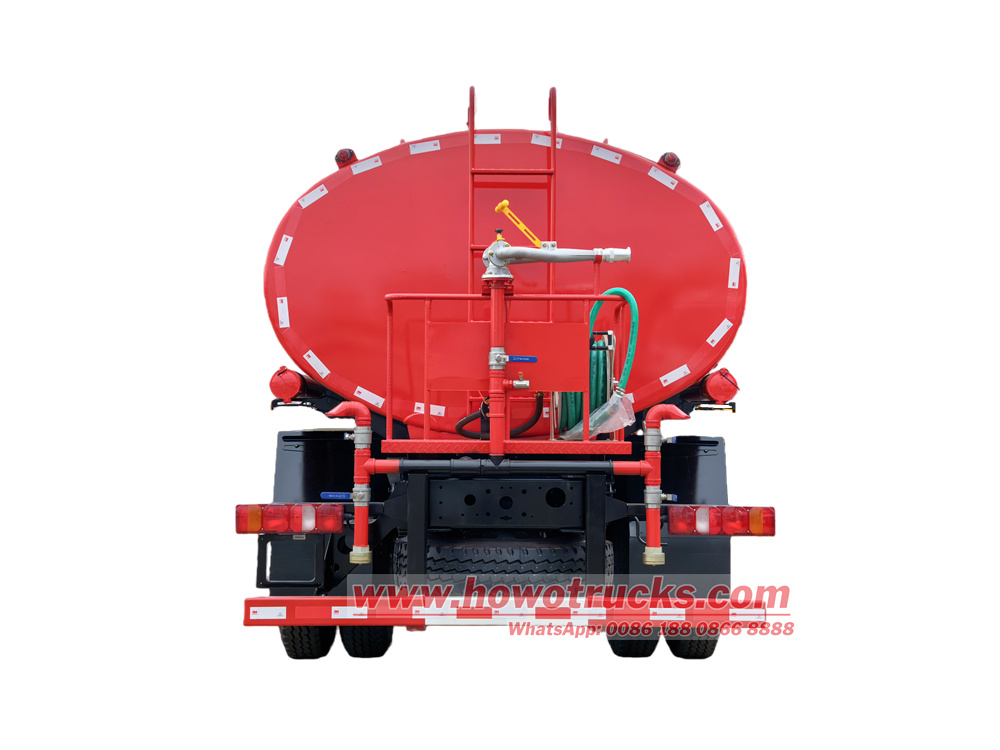

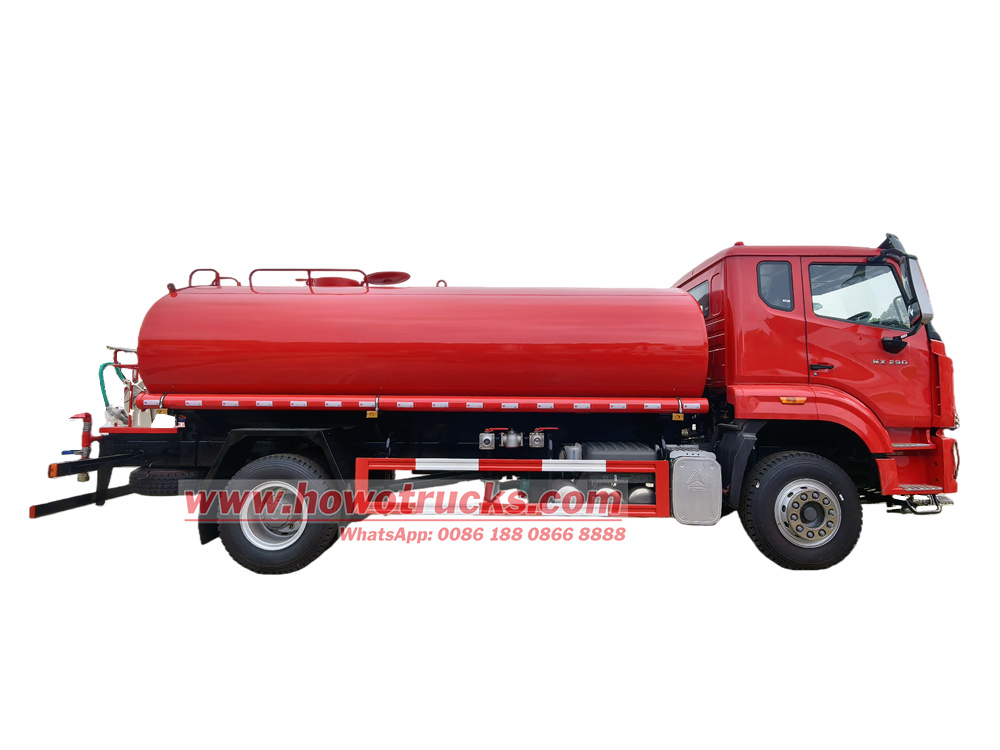

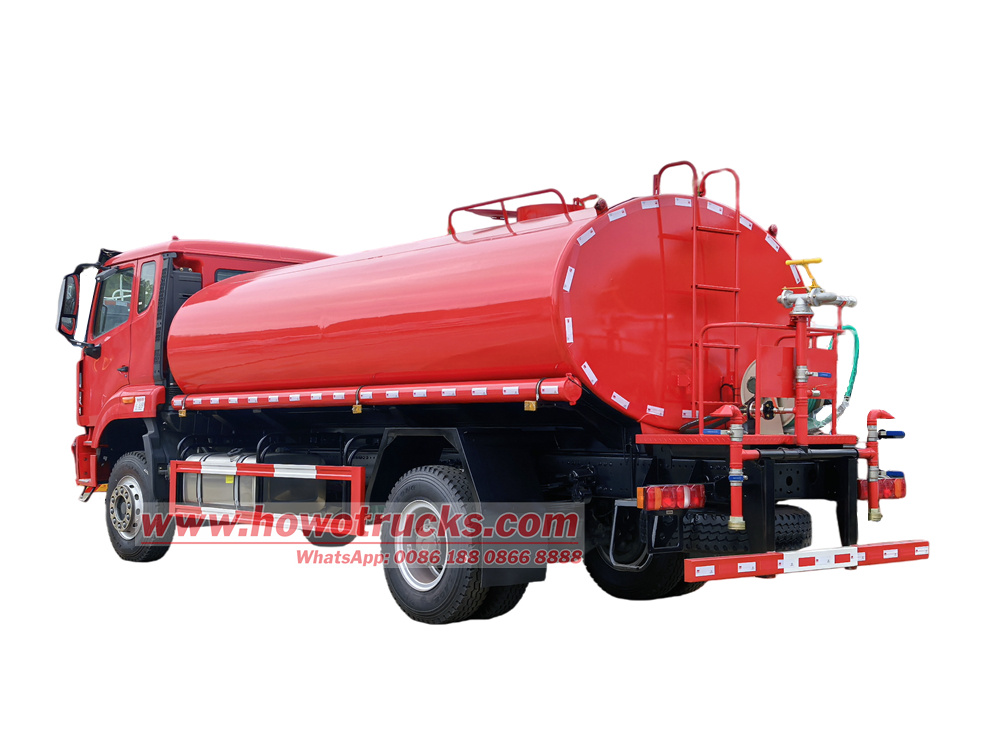

The Howo 12 cbm water sprinkler truck features a Howo NX right-hand drive cab, a 4500mm wheelbase, a Sinotruk MC07.29-60 engine, an 8-speed gearbox, a 12 cubic meter carbon steel water tank (5mm thick), a Weilong 80QZF-60/90 water pump with a flow rate of 60 m³/h, and is equipped with front spray, rear platform side spray, rear sprinkler, water cannon, hose reel, pump inlet and outlet valves, storage tanks on both sides of the tank, and a ladder.

  • Working capacity :

    12000 liters
  • Cabin type :

    Howo NX one and half row cabin
  • Drive system :

    4x2,RHD
  • Wheelbase ( mm) :

    4500 mm
  • Engine specific :

    290 HP / Sinotruk MC07.29-60
  • Gear box :

    Sinotruk 8-speed, manual
  • Front axle ( Kg ) :

    6500
  • Rear axle ( Kg ) :

    11500
New Products

The Howo 4x2 drive water delivery tanker bowser uses a Sinotruk NX series chassis and is specifically developed for the right-hand drive market. The vehicle is equipped with a Sinotruk high-efficiency powertrain and a 12-cubic-meter large-capacity carbon steel tank, a high-flow water pump, and features front spray, rear side spray, high-pressure water gun, and hose reel. It can be used for road washing, dust suppression, garden irrigation, and emergency firefighting.



*HOWO 12000L RHD Water Tank Truck

-----------------------------------------------------------------

Howo 4x2 drive water delivery tanker bowser



 Product Technological Parameters:

Product name

HOWO NX 12cbm water tanker truck

Vehicle Dimensions, Weights & Capacities

Chassis brand

HOWO NX290

Overall dimension (L*W*H)

7800x2500x3150mm

Wheelbase

4500mm

Curb weight

8970kg

Gross weight

18000kg

Axles loading

6500/11500kg

Chassis

Drive mode

4x2,RHD

Tires specification

10.00R20

Gear box

Sinotruk 8-speedmanual

Engine

Engine model

Sinotruk MC07.29-60

Fuel and engine Type

Diesel, 6 cylinders in-line

Horse power

290 HP/ 213kW

Displacement

6.87L

Max torque

1150N·m

Rated speed

2200rpm

Emission standard

Euro 6

Tops Parameters

Volume of Water Tank

12000 Liters

Tanker material

Carbon steel, Tanker thinckness : 5mm.

Spray

Front and rear side spray nozzle, rear water cannon

The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze

Sprinkling width

≥14m

Water cannon spray width

28m

Equipment

Ladder,tool box,side pipe storage, Pump in and out valve

Artesian valve,flter, distribution valve, sprinkler head, with self-suction and discharge function, hose reel.

Water pump

Model

WEILONG 80QZF-60/90 centrifugal pump

Flow rate

60 m3/h

Lift

90 m

Head

6.5 m

Input speed

1180 r/min

Self-priming performance

1.5 min/4m

Equipped power

22.5 kW

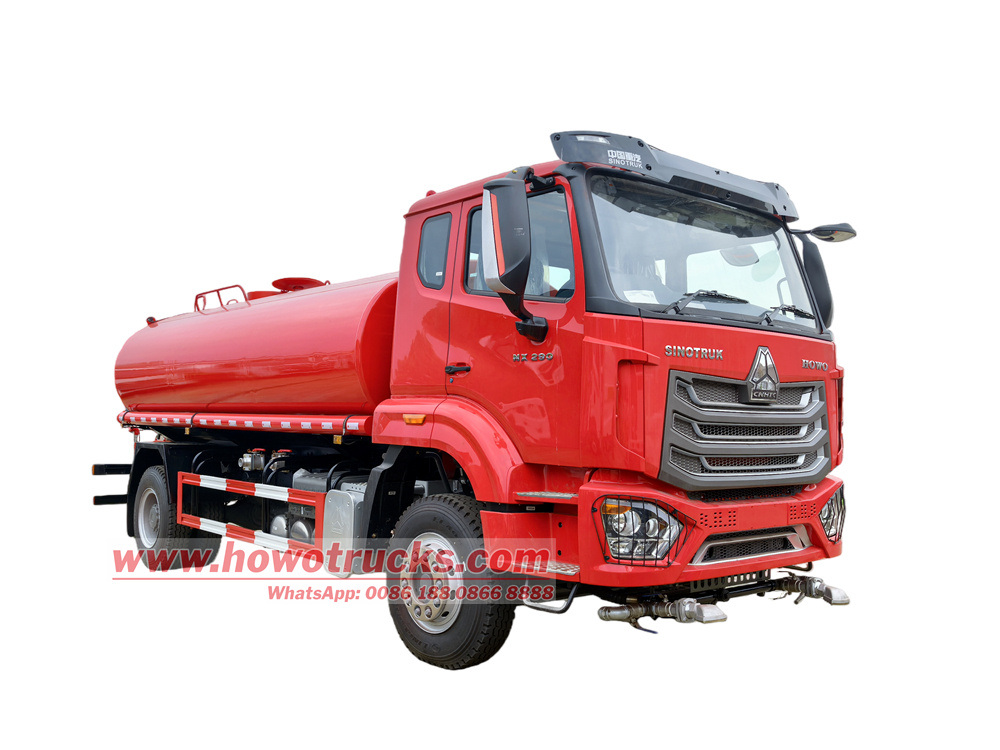

HOWO 4X2 12CBM water sprayer truck

 Chassis:

• Cab: Howo NX right-hand drive cab.

• Wheelbase: 4500mm.

• Engine: Sinotruk MC07.29-60 China VI emission standard engine. Inline 6-cylinder, 6.87L displacement, 290 horsepower; torque reaches 1150 N·m, with significant low-speed, high-torque characteristics.

• Transmission: Sinotruk 8-speed transmission.



 Upper Structure Configuration:

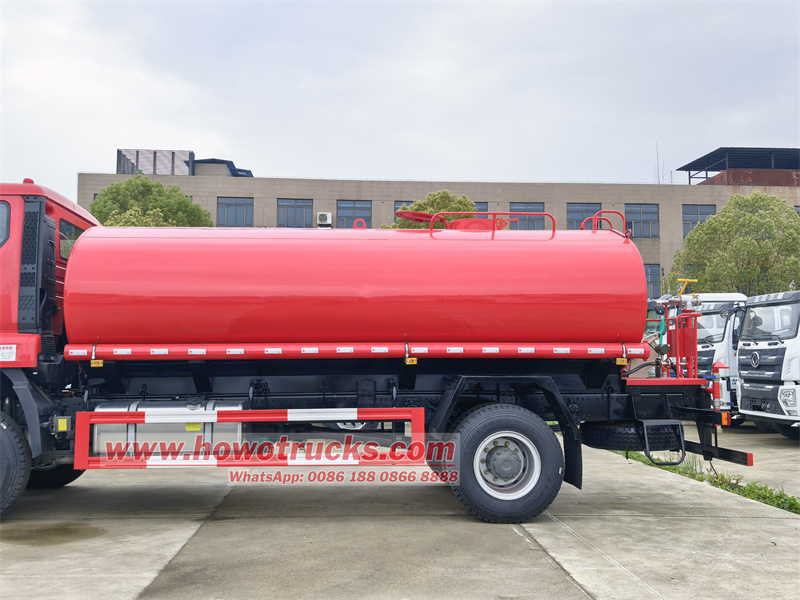

 Water Tank: 12 cubic meter carbon steel water tank, welded from 5mm thick high-strength steel plate, corrosion-resistant and impact-resistant. Internal baffle design reduces water flow impact, ensuring driving safety.



 Water Pump: Matched with Weilong 80QZF-60/90 dedicated water pump, with a flow rate of up to 60m³/h, high head and large suction lift, enabling rapid pumping and drainage operations.



 Piping System: Pump inlet and outlet valve design, supporting self-priming and self-draining functions.

HOWO NX RHD 12000L water sprinkler truck Operating Equipment:

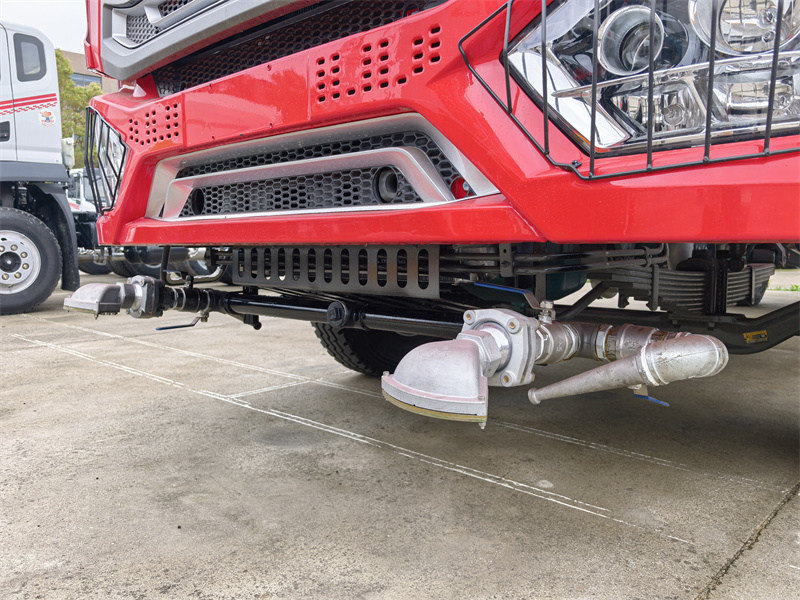

• Front Flushing Device: Dual-nozzle design, spray width up to 14 meters, suitable for rapid road washing and dust suppression.

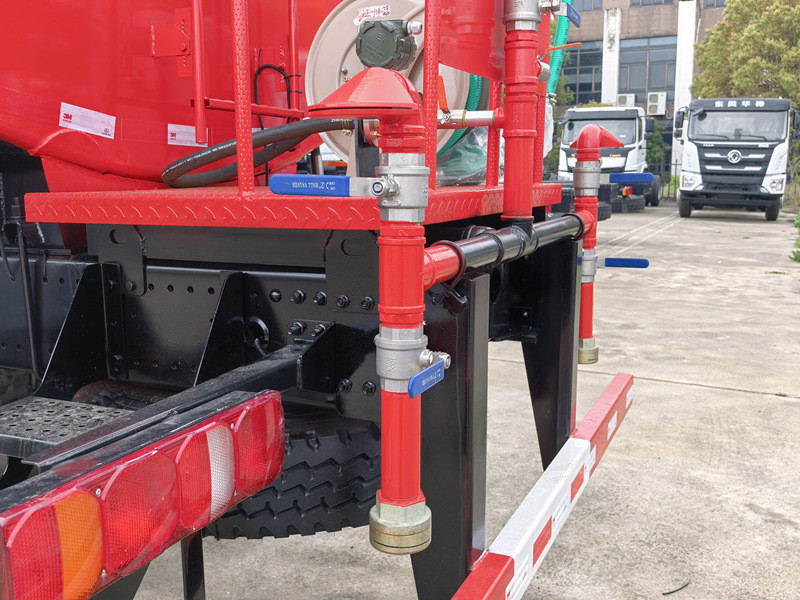

• Rear Platform Side Spray: Duckbill nozzles, suitable for watering roadside green belts, providing a large spray area and dispersed water flow.

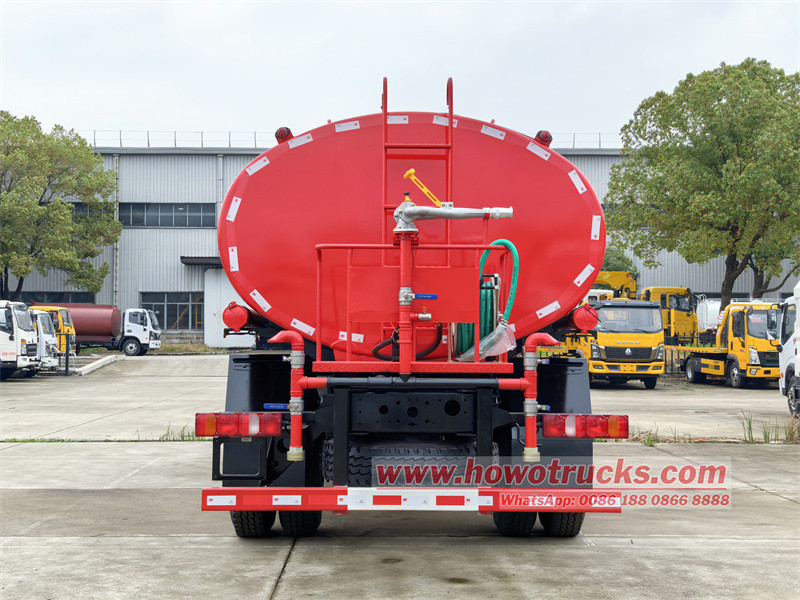

• Rear Platform Rear Sprayer: Primarily used for engineering road surfaces, dust suppression on newly paved roads, and watering maintenance. The operating angle can be adjusted as needed.

  • • Front Flushing Device
  • Rear Platform Side Spray:

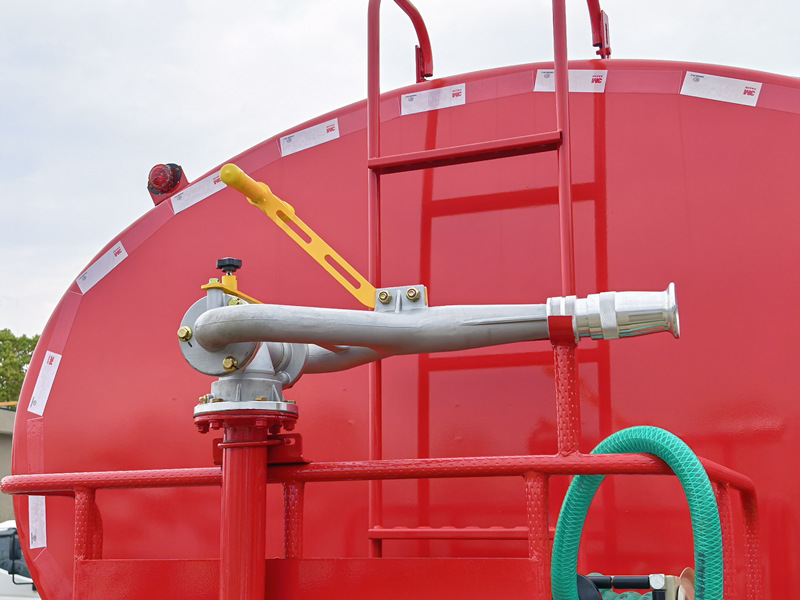

  • water cannon





• High-Pressure Water Cannon: Adjustable to jet, rain, and mist spray patterns, with a spray width exceeding 28 meters. It achieves all the functions of rear and side spraying and can also be used for firefighting.



• Rear Platform Hoist: Suitable for long-distance green belt irrigation and firefighting.

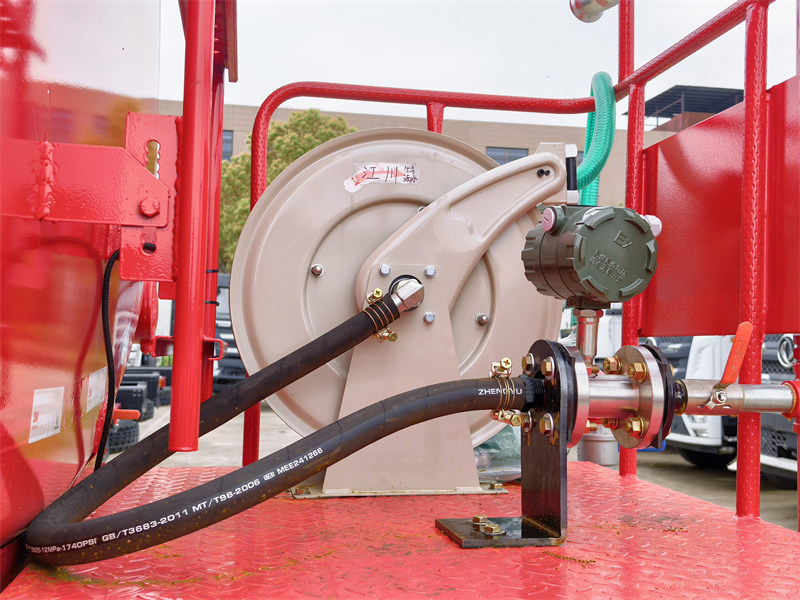

hose reel



 Other features:

Include storage boxes on both sides of the tank for storing suction hoses; a rear ladder; a manhole; and safety railings.

Piping Layout Diagram



Piping Layout Diagram



 Applicable Scenarios:



1. Municipal Sanitation: Cleaning and watering to suppress dust on urban roads, national highways, and expressways.



2. Construction Sites: Suppressing construction dust and curing concrete.



3. Landscaping: Remotely irrigating green belts using water cannons or side-spraying devices.



4. Emergency Firefighting: Can be used for fire extinguishing.

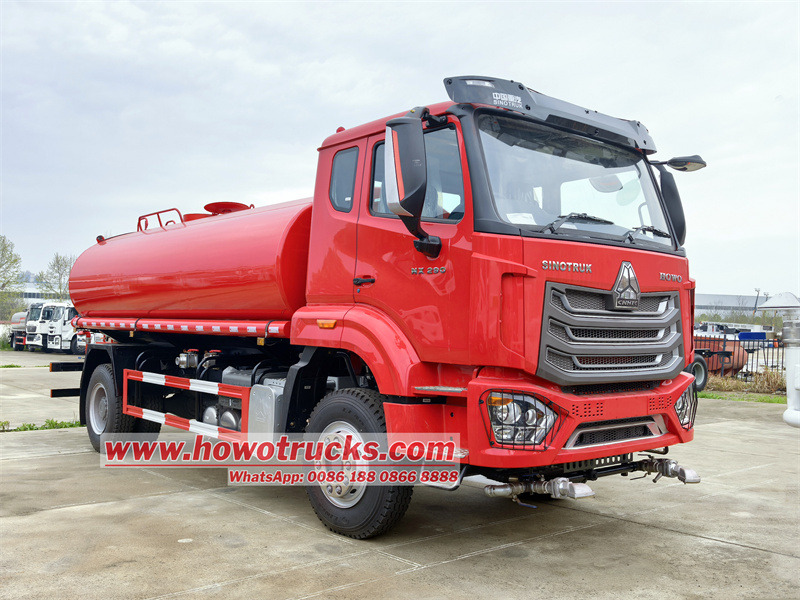

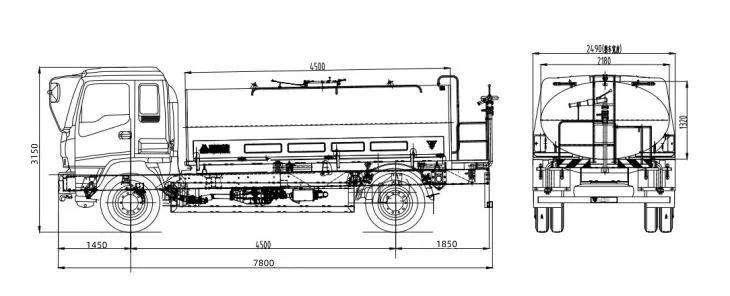

technical drawing of HOWO NX 12cbm water tank truck HOWO NX 12cbm water tank truck
