HOWO 4x2 double row cargo van truck

HOWO 4x2 double row cargo van truck

HOWO 4x2 van box truck is an efficient and reliable logistics transportation vehicle. Equipped with a 300HP engine and a 10-speed transmission, it has a load capacity up to 15 tons and a sealed cargo van more than 32 cubic meters. Its fully enclosed all-steel structure provides excellent protection against rain, moisture, and theft, ensuring comprehensive cargo safety. Suitable for various transportation scenarios such as express less-than-truckload (LTL), cold chain fresh goods, and medical supplies, it is an ideal choice for modern urban and intercity logistics.

  • Working capacity :

    15 tons
  • Cabin type :

    HOWO HW76 cabin, doulbe row, with A/C,
  • Drive system :

    4×2, left hand drive
  • Wheelbase ( mm) :

    4500
  • Engine specific :

    300HP/WP10.300E22
  • Gear box :

    HW19710, 10 Forward & 2 Reverse
  • Front axle ( Kg ) :

    6500
  • Rear axle ( Kg ) :

    11500
New Products

SINOTRUK HOWO cargo van truck is a high-performance enclosed logistics vehicle built on HOWO 6 wheeler heavy duty chassis with double row cabin. It has a gross vehicle weight of 18,000 kg and maximum payload up to 15 tons. With overall dimensions of 7300×2550×3650 mm and a wheelbase of 4500 mm, it has the advantages of both urban maneuverability and highway stability. Its core features are the fully enclosed all-steel cargo compartment, which offers excellent rain, moisture, and theft resistance, effectively ensuring the safety and integrity of goods. Equipped with a 300HP Weichai engine and a 10-speed transmission, combined with a dual-cab design, it fully meets diverse logistics needs such as commercial distribution and material transportation.

The cargo van of the HOWO box truck features a spacious design of 5200×2500×2500 mm, providing an internal volume of 32.5 cubic meters. The body is made of high-strength carbon steel, and the rear dual-door design ensures loading and unloading efficiency. This vehicle can meet the demands of general cargo transportation, including LTL logistics and home appliance delivery, and can also be customized for specialized fields such as medical supplies and fresh cold chain logistics. It is an efficient transportation solution in the modern logistics industry, combining strong carrying capacity with excellent sealing performance.

HOWO 4×2 cargo box truck



*HOWO 4×2 Double Row Van Truck

 SINOTRUK HOWO Heavy-duty Cargo Van Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.



»»Ⅰ Product Defination and Introduction



Manufacturer: CS TRUCKS



Features of HOWO Double Cabin Cargo Van:

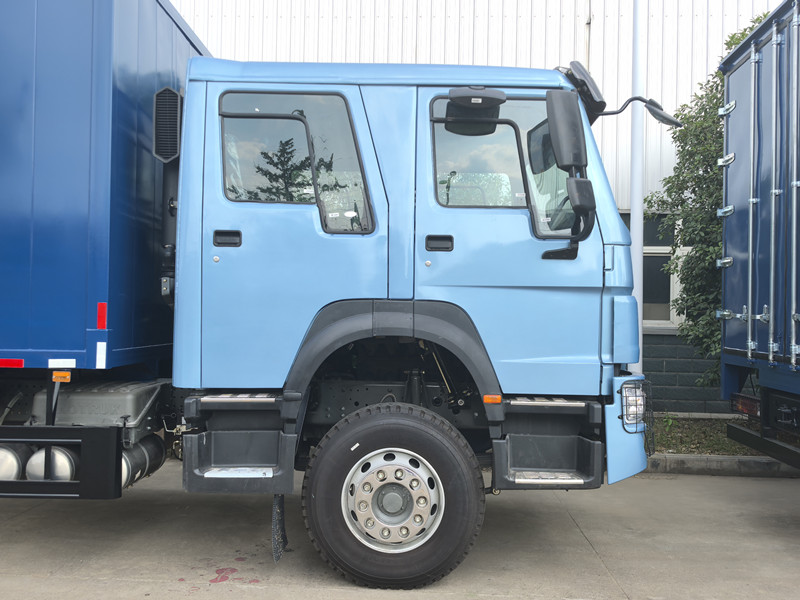

Double Row Cabin: Original SINOTRUK HOWO dual-row cabin with 2+3 seats and luxury interior.
Powerful Engine: China top brand WEICHAI diesel engine, 300HP output, easily handles various road conditions.
Customizable Dimensions: Flexible exterior sizes to meet specific requirements of different customers.
Durable Cargo Van: High structural strength meets heavy-duty transportation needs.
Maximum Load Capacity: Up to 15 tons, fulfilling heavy-load demands.



»» Ⅱ Product Parameters for HOWO cargo van truck


SINOTRUK HOWO 4x2 VAN TRUCK SPECIFICATIONS

Truck Model

CS5180XXY

Truck Brand

SINOTRUK HOWO

Dimension (LxWxH) mm

7300×2550×3650

Approaching angle/ Departure angel (°)

19/17

Overhang (front/rear) (mm)

1430/1920

Wheel base (mm)

4500

Max. Driving speed (km/h)

95

Front axle loading capacity (kg)

6500

Rear axle loading capacity(kg)

11500

Curb weight (kg)

7500

Gross vehicle weight (kg)

18000

Cab Model

SINOTRUK HW76 double row cab, single bunk, all steel forward control, 55° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, left hand driving.

Engine

Model

WP10.300E22

Type

6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Max. output power

221 KW

Rated speed

1900 rpm

Hose power

300HP

Displacement

9726 ml

Emission standard

Euro 3

Max. torque

1390 N.m

Speed at max. torque

1200-1500rpm

Clutch

SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance

Transmission

Model

SINOTRUK HW19710 transmission ,10 forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking Brake

(emergency brake)

Spring energy, compressed

Steering system

Model

ZF8118 Steering Gear Box, hydraulic steering with power assistance.

(Left hand driving)

Front axle

SINOTRUK 6500 kg front axle with drum brakes.

Rear axle

SINOTRUK 11500 kg

Tires

10.00R20 radial tire, 6pcs with 1 spare tire.

Electrical system

Electrics Operating voltage

24V, negative grounded

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

horn, headlamps, fog lights, brake lights, indicators and reverse light.

Oil Tank

Square type-400L Aluminum alloy fuel tank

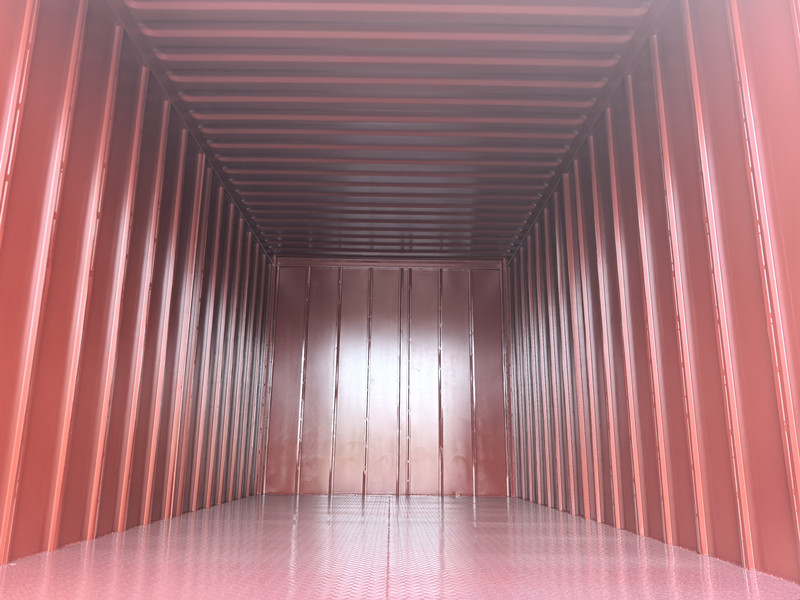

Van body

Size

5200×2500×2500

Material

High quality carbon steel

Thickness

Floor: 3mm; Walls:2mm

Door

2 doors at rear

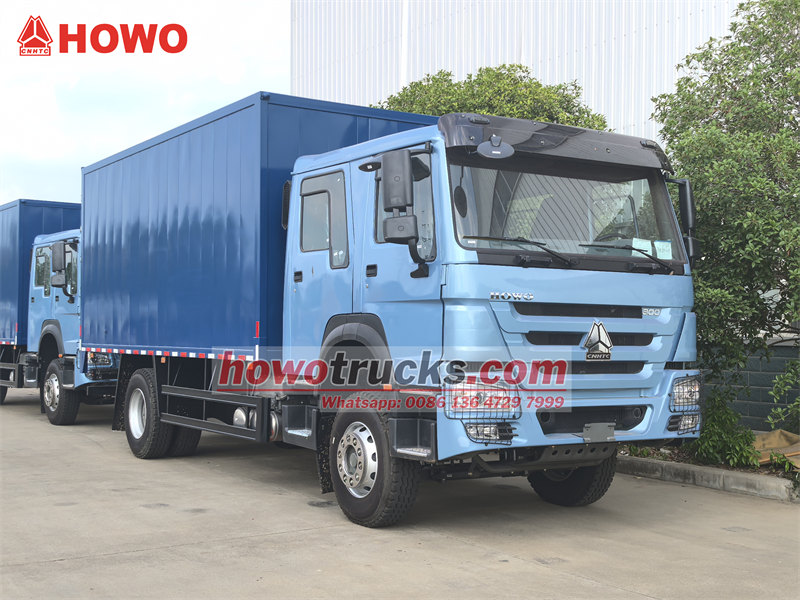

HOWO 6 wheeler heavy duty van truck









»» Ⅲ Product Features

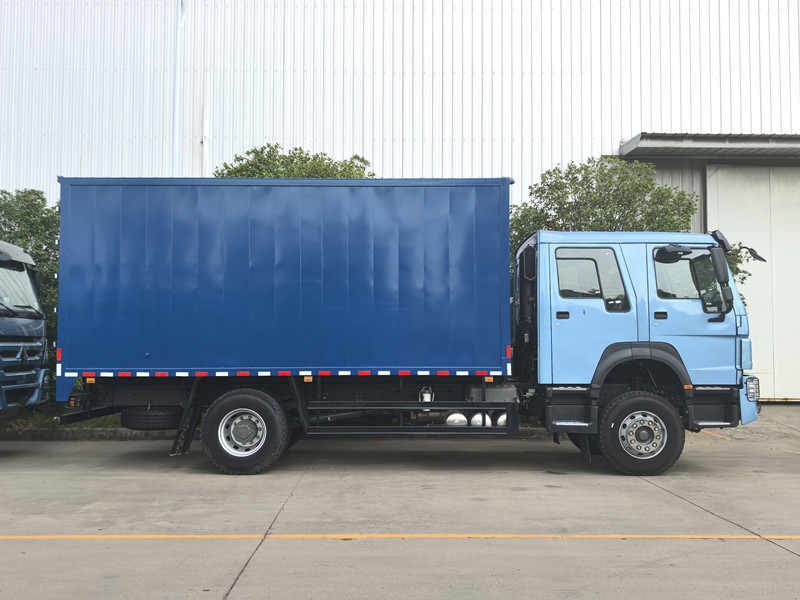

HOWO 15 ton cargo van truck

▶  Strong loading capacity: Capable of carrying heavy and large-volume cargo.

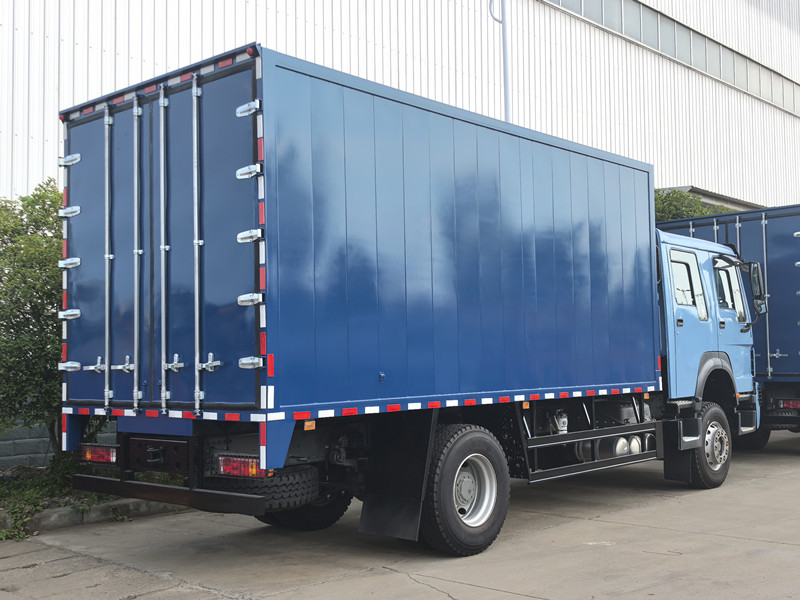

HOWO 4×2 double row cargo box truck

▶ Enclosed Van Body: Features an enclosed van body structure, providing a sealed cargo space.

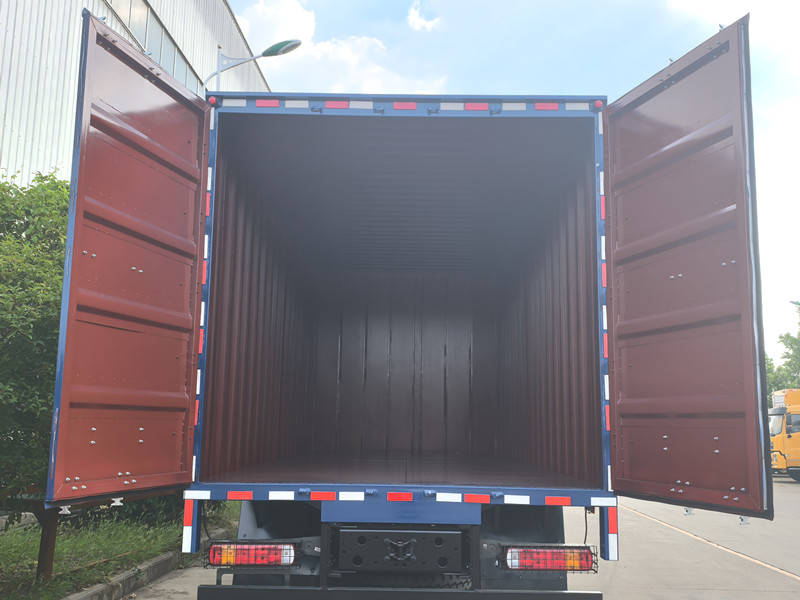

SINOTRUK HOWO cargo box van

▶ Sturdy and durable Van: Van body with high structural strength meets the demands of heavy-duty transportation.

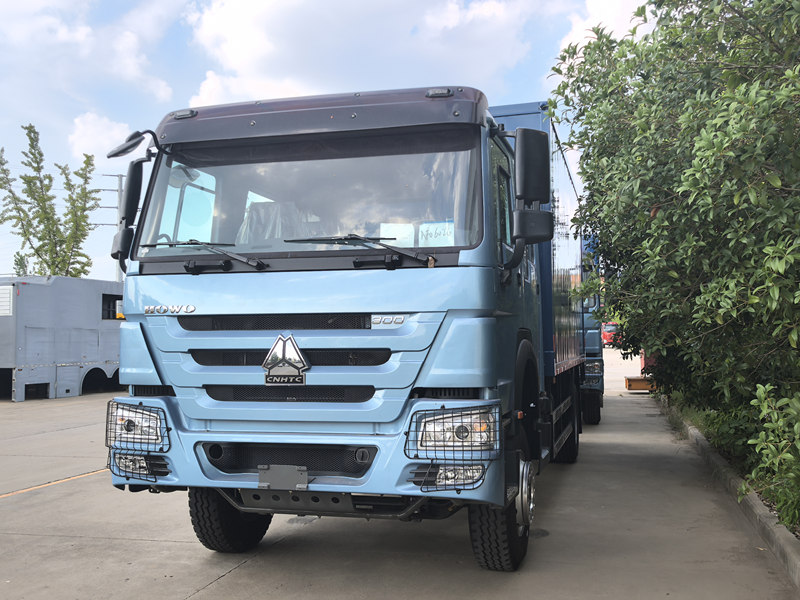

HOWO 4×2 cargo box van truck

▶ Reliable chassis: The chassis is equipped with a powerful engine and an excellent suspension system.







»» Ⅳ Product Applications

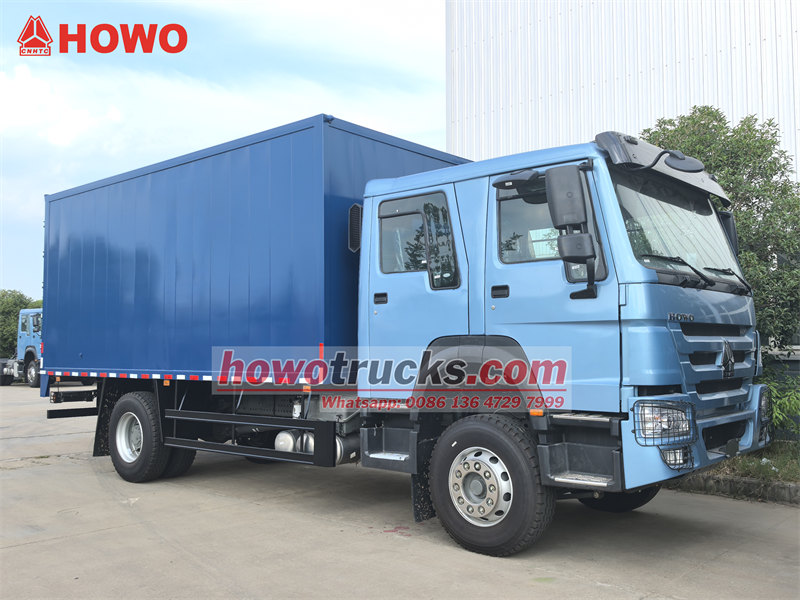

HOWO van box truck for sale

※ Logistics Transportation: Used for transporting various types of goods.

※ Industrial Transport: Used for the transportation of heavy industrial supplies.

※ Long-Distance Transport: Capable of carrying goods over extended distances.




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

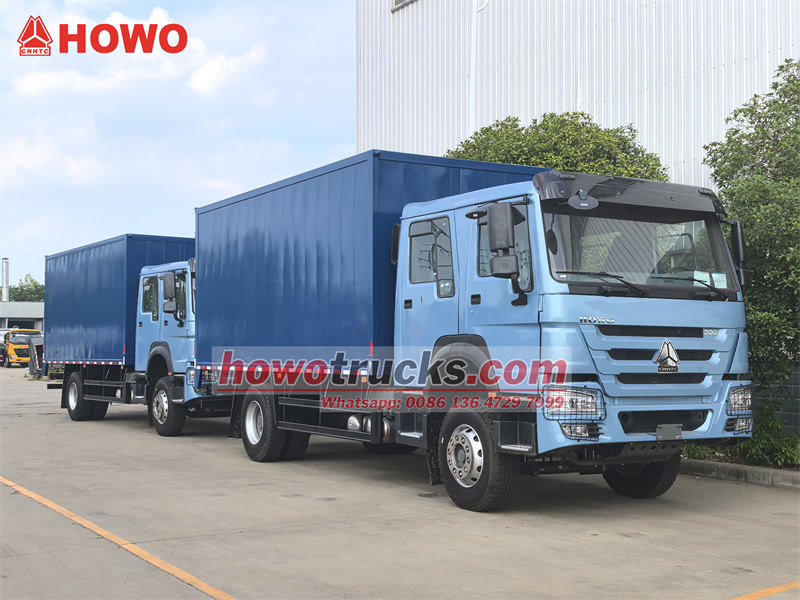

HOWO heavy duty enclosed box truck for export

HOWO heavy duty cargo box trucks ready for shipment

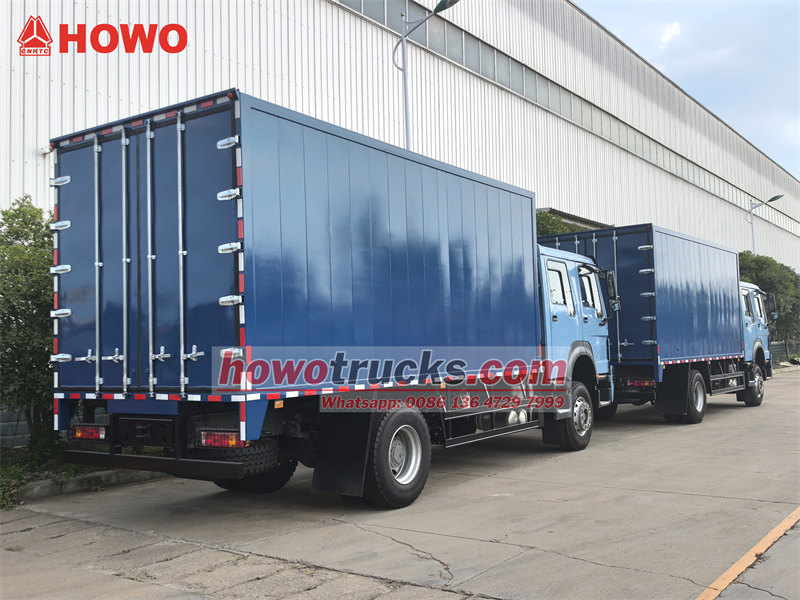

HOWO cargo van trucks for sale

SINOTRUK HOWO enclosed box trucks exported to Africa
