Newly designed and produced HOWO TX 6×4 Water Bowser Truck is a heavy duty are widely export to Africa countries. Which is produced for transportation, spraying and distribution clean water, with mounted water pump and multiple pipeline system for front water spraying, middle and rear water spraying, also rear platform to be mounted with water cannon for water jetting, mainly used for road cleaning and watering. HOWO water sprinkler truck is equipped with WEICHAI WP10.340E22 model diesel engine, with efficiently engine power 250KW and 340HP, emission is 9726cc to meet EURO 2 standard and suitable for Africa market. HW19710 manual gearbox with 10 forward and 2 reverse, which is the golden partner with WEICHAI diesel engine to guarantee lower fuel consumption and powerful output. Germany MAN technology axles for front and rear part, the front axle capacity is 9000kg and rear axle capacity is 16000kg, double axles for stonger loading.

Howo 5800 gallons water sprinkler trucks are customized to be equipped with with 22000 liters oval shape water tanker, with electrophoretic painting to avoid rust and extend long lifer service. Mounted on HOWO TX series 6x4 model truck chassis for efficiently working. HOWO 22cbm water wagon truck is equipped with front water spraying jetting nozzles, middle watering nozzles, rear platform nozzles, empowered by a large-capacity water tanker 22000liters, robust water pump 80QZB-60/90, corrosion-resistant body structure, it ensures powerful water performance, smooth operations, and effortless control. This water truck is engineered for heavy duty use, delivering exceptional productivity, stable driving, and lasting durability across varied terrains and demanding environments. All working together to make the truck suitable for city sanitation project.

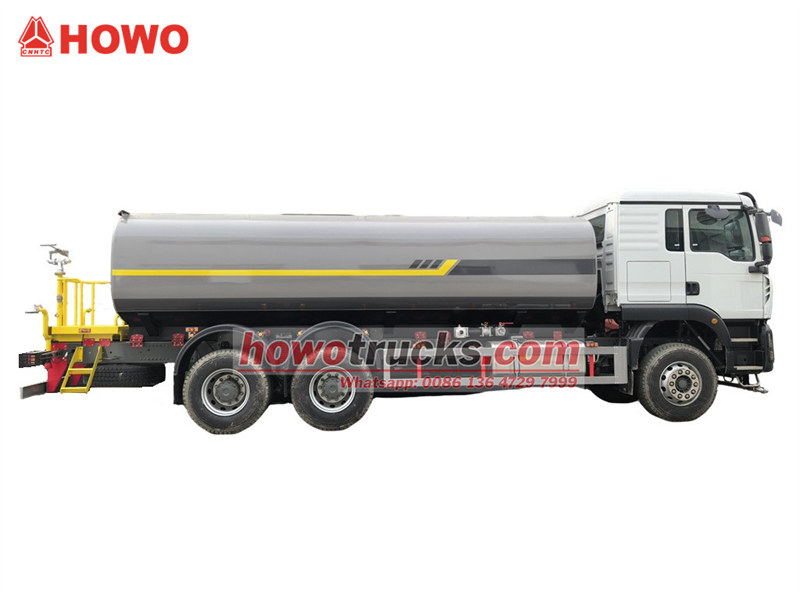

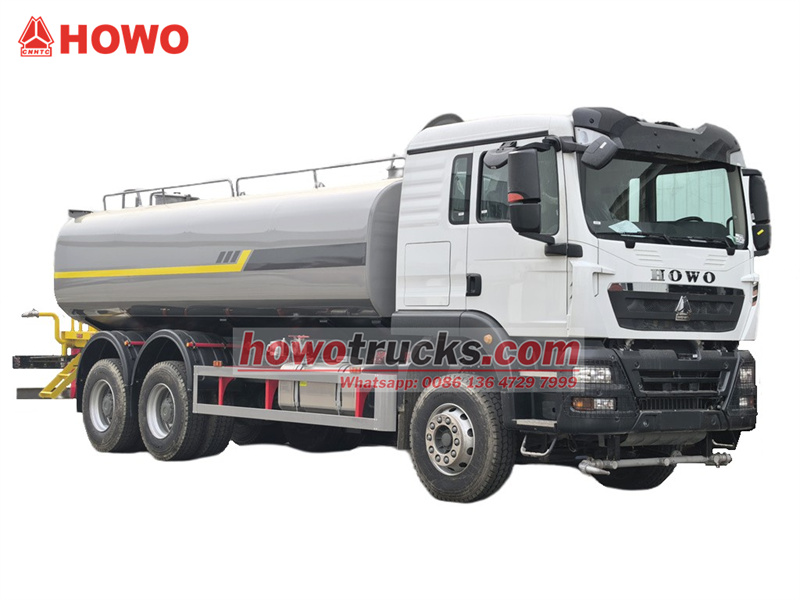

*SINOTRUK HOWO 6×4 Water Sprinkler Tanker Truck

HOWO TX 22000Liter Water Bowser*

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

※ Ⅰ.Product Defination and Design:

Manufacturer: CS TRUCKS

Product Features

★ Built on HOWO 6×4 heavy duty TX series truck chassis, with WP10.340E32 model 340HP powerful diesel engine.

★ HW19710 10-speed gearbox. Golden partner with WEICHAI diesel engine to make lower fuel consumption.

★ Equipped with 12.00R20 wide tires, which are suitable for harsh road conditions.

★ The water tank body is made of high quality carbon steel, with volume up to 22,000 liters.

★ Equippied with China top brand water pump with large flow rate.

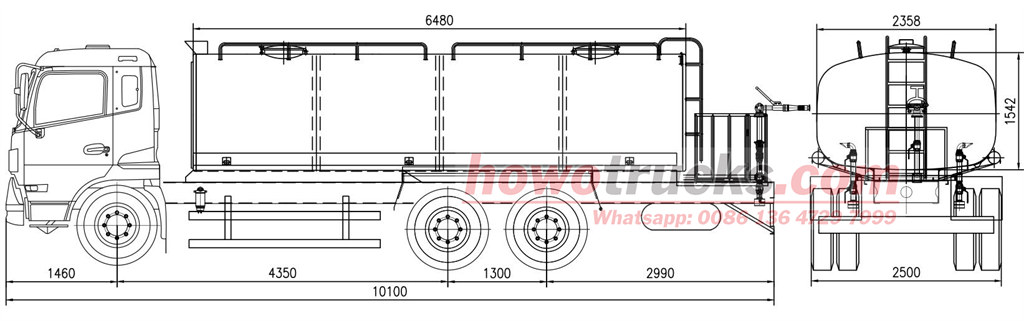

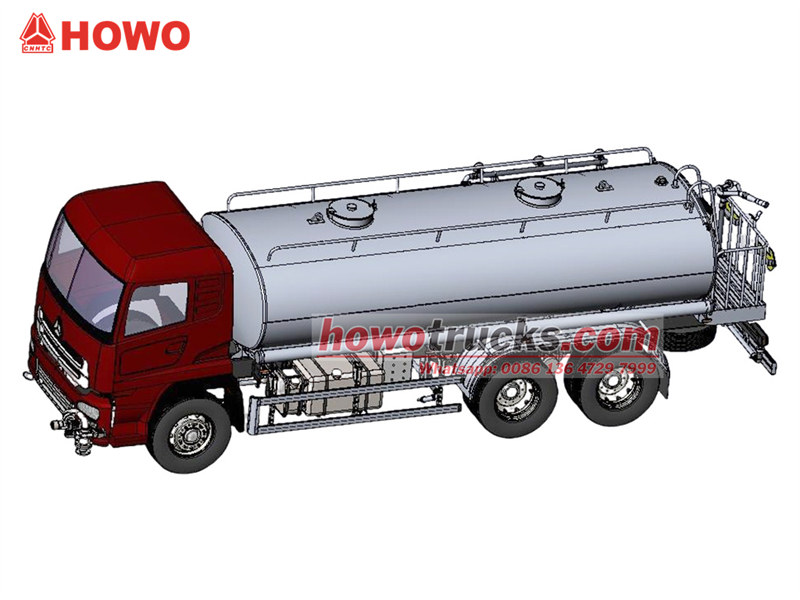

CS TRUCKS technical 3D drawing for water wagon

To guarantee CS TRUCKS produced and export water tanker trucks suitable for customer requirement, we R&D Department professional engineers will prepare the 3D technical drawing based on the requirement truck chassis, send for customer checking and confirmed, modify each details to make the drawing 100% meet clients needs, then can start for production. Also this process can make the delivery time much shorter.

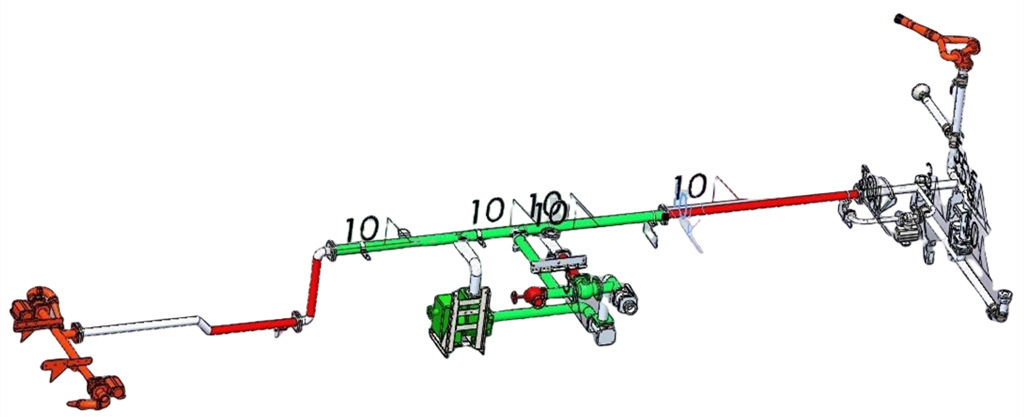

CS TRUCKS water tanker truck tanker pipeline system

Pipeline system is truly important to water tanker trucks, which is same as blood vessel to human. Which matched working with water pump, front, middle and rear spraying nozzles to realize all functions of water jetting and spraying process.



※ Ⅱ. Product Parameter for HOWO 22CBM water bowser truck:

※ Ⅲ. Product Advanced Details & Features:

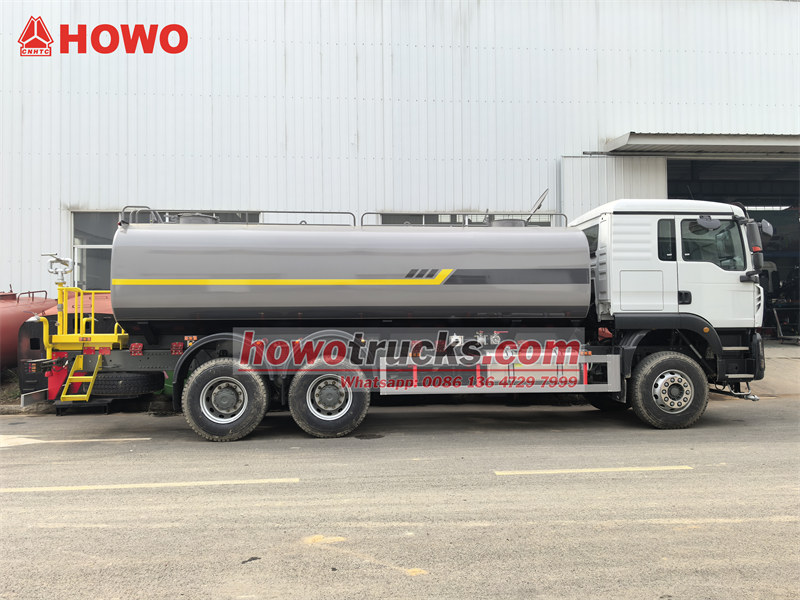

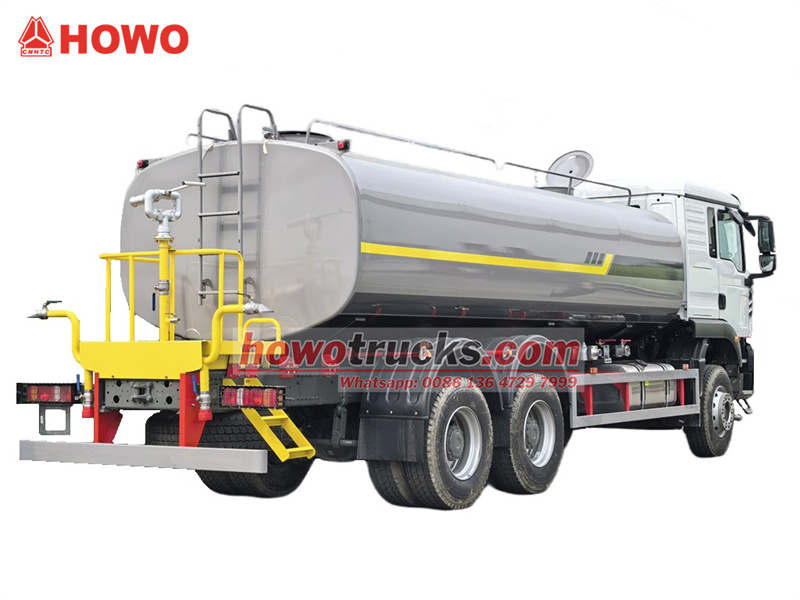

Water bowser on HOWO TX truck



Howo TX series water tanker truck is based on high level TX series truck chassis, equipped with WEICHAI WP10.340E22 model 340 horsepower engine and working with HW19710 manual transmission gearbox, it ensures stable power output and excellent fuel economy. Front axle capacity 9000kg and rear double axles with capacity 16000kg+16000kg, wiith a gross vehicle weight for load capacity 25 tons, very stonger for heavy 22000Liters water tanker loading and transporting.

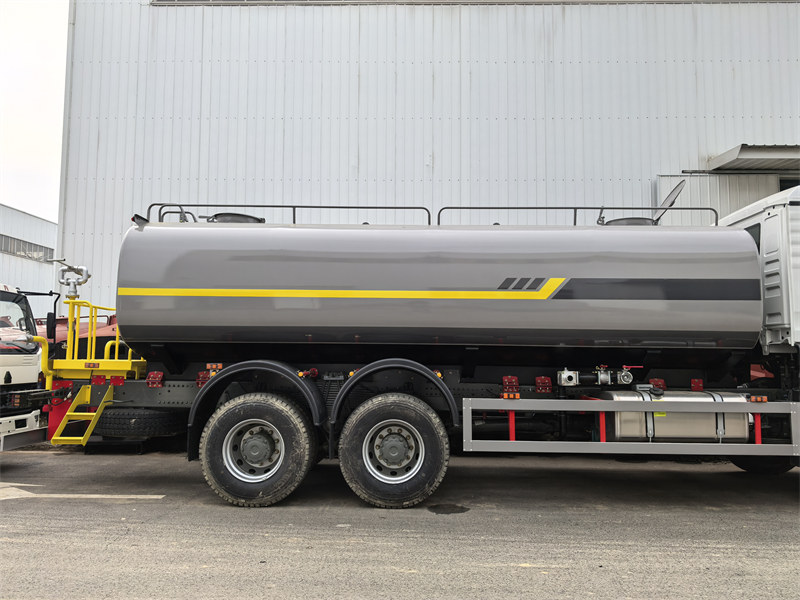

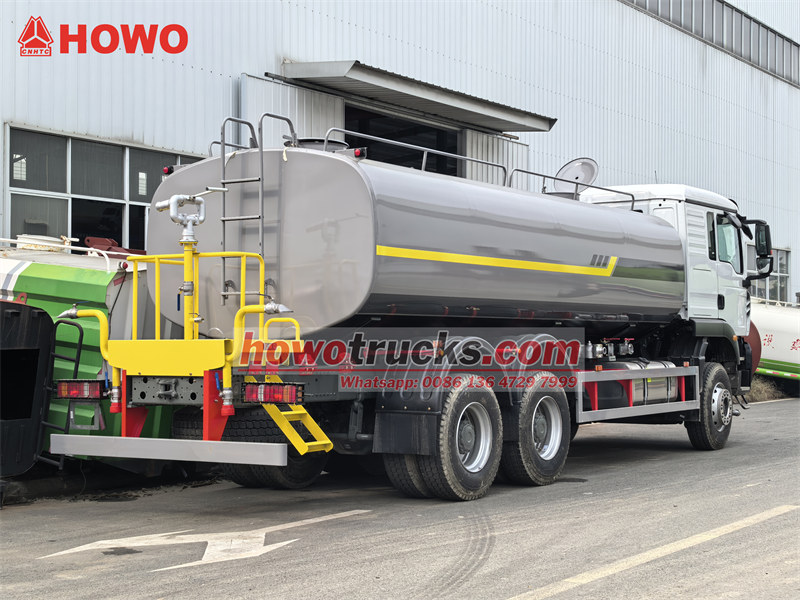

22000L water sprinkler tanker truck and rear platform



Water tanker truck body is manufactured through a series of automated welding processes, mounted on an oval shape water tanker with capacity can be up to 5800 gallons, rear mounted with platform and high altitude water cannon for water jetting, sometime also available for fire extinguishing process. There are also mounted with 4 sets water spraying nozzles for plant watering, road cleaning and dust suppression.

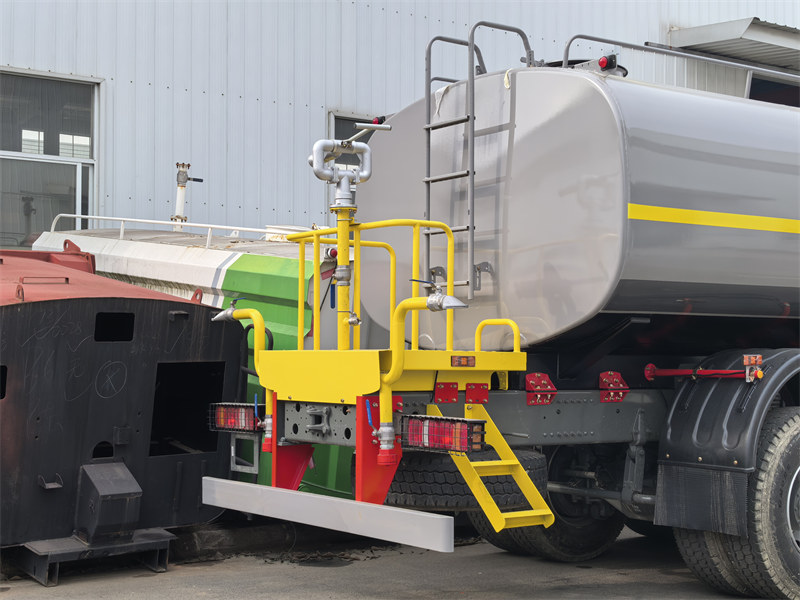

Water hauler rear platform



Howo Water Sprinkler Tanker truck mounted with water cannon is installed on the rear work platform of the tank, with a spraying range of no less than 28~35 meters. It can be adjusted to various modes, including heavy rain, moderate rain, drizzle, and mist. And detailed water spraying nozzles as below showing.



•

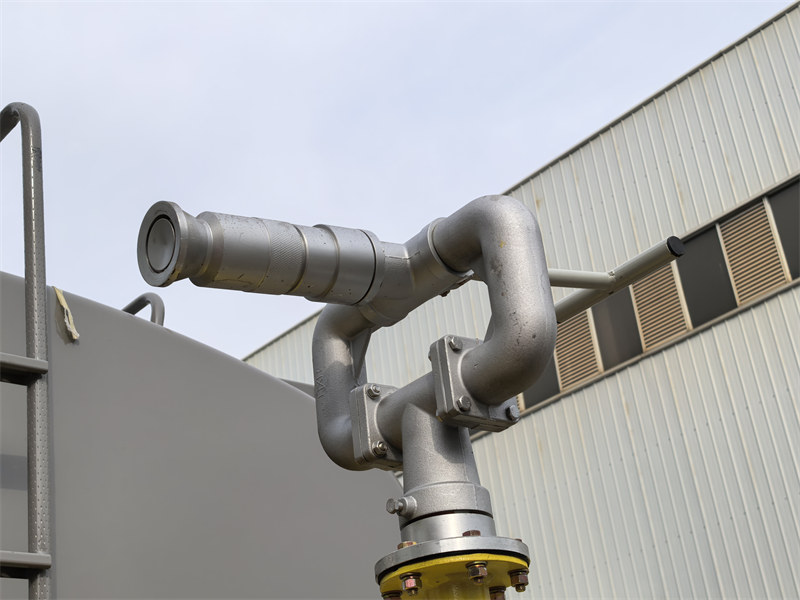

  Rear platform mounted water cannon
•

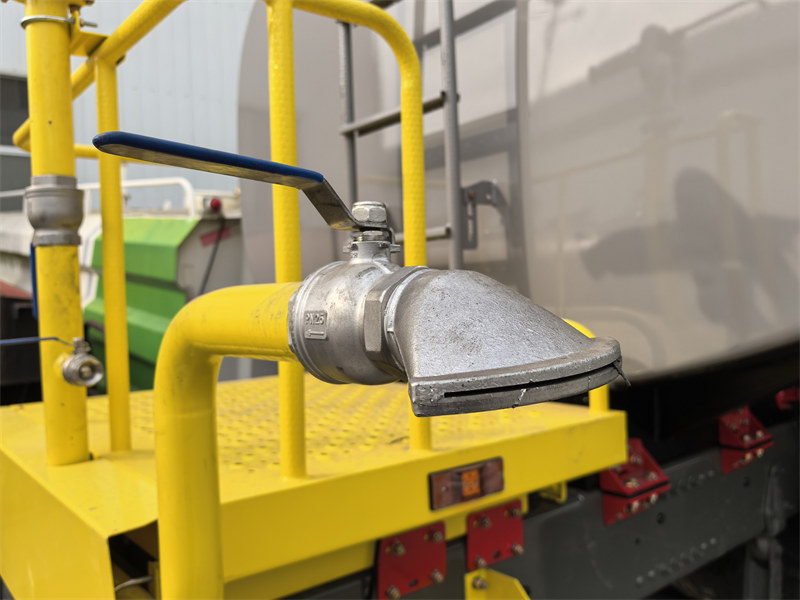

  Rear platform mounted higher water sprinkler nozzle
•

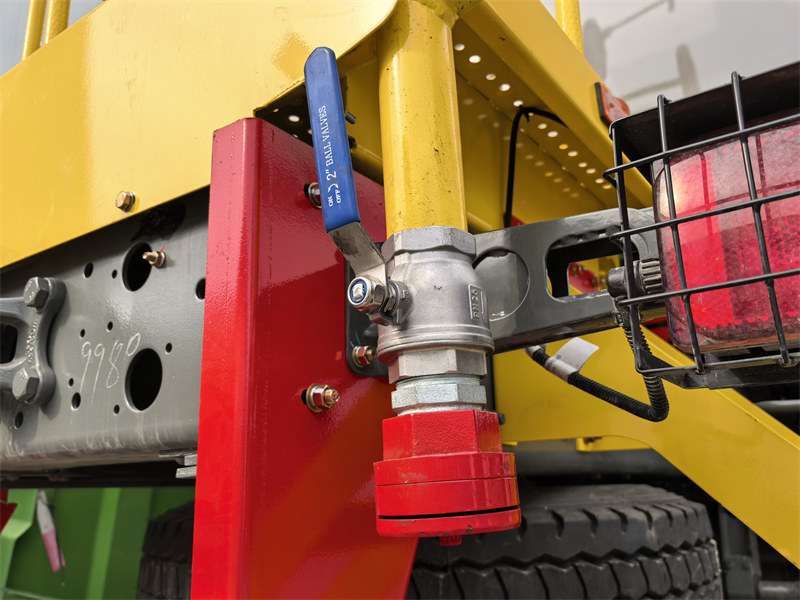

  Rear platform mounted lower water spraying nozzle

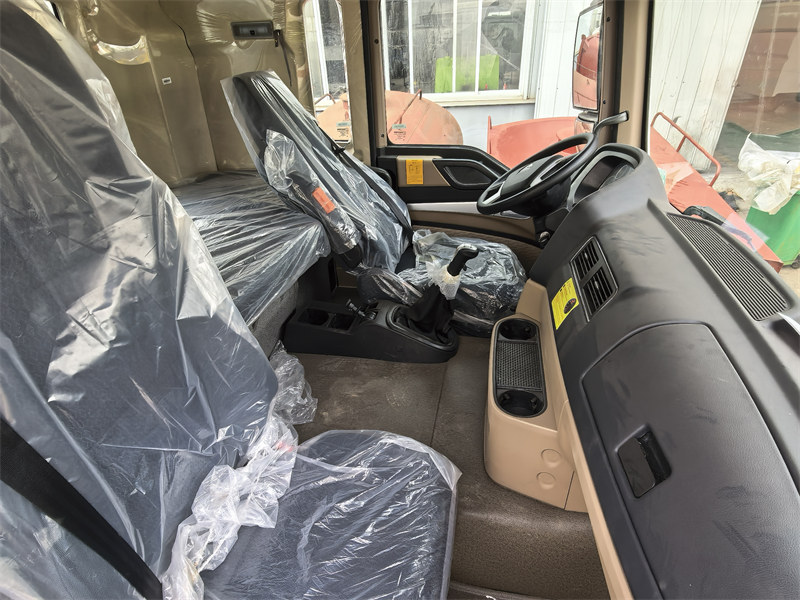

HOWO TX water truck cabinet



As the top series of HOWO truck, the TX series 5800 gallons Water tanker trucks are mounted with luxury cabinet, left hand drive model LHD, Air conditional for warm and cooling wind for comfortable driving.

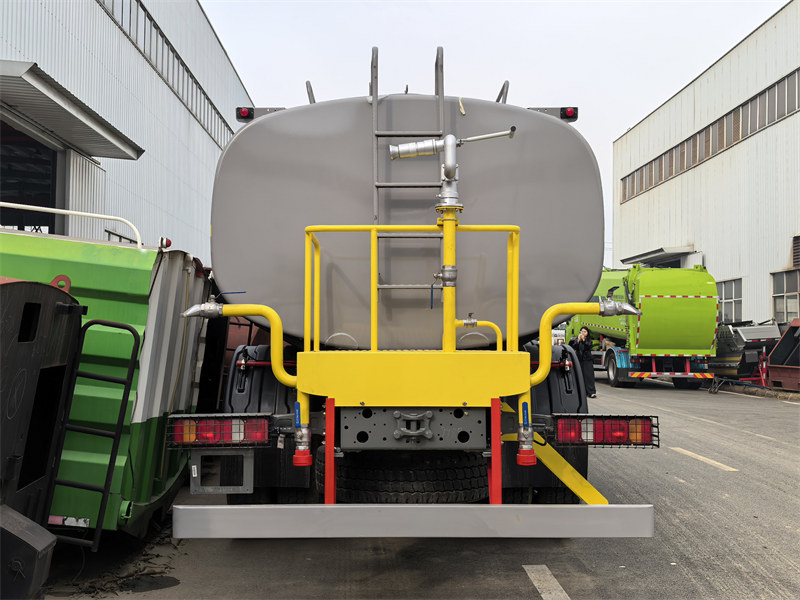

HOWO 22cbm Water Sprinkler Truck rear platform



Howo Water Sprinkler Tanker truck mounted with rear platform for convenient working and usage. Matched with multiple water spraying nozzles for water jetting and spraying.



※ IV . HOWO Water Bowser Truck with Water Pump:

Specifications for common used water pump

Model	Flow rate (m³/h)	Head (m)	Speed (r/min)	Shaft power (KW)	NPSHr (m)	Self-priming time (min/4m)	Efficiency (%)
80QZBF-60/90N(S)	60	90	1180	22.5	4.5	1.5	70
65QZ-40/45N(S)	40	45	1450	9.25	4.5	1.5	72
65QZ-50/50N	50	50	1180	10.5	4.5	1.5	70
65QZBF-50/110N(S)	50	110	1450	24	-	-	70

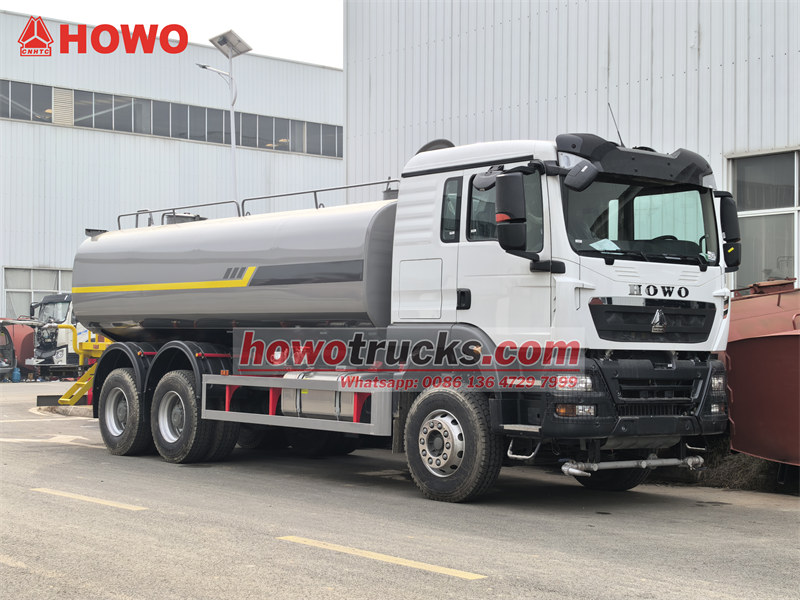

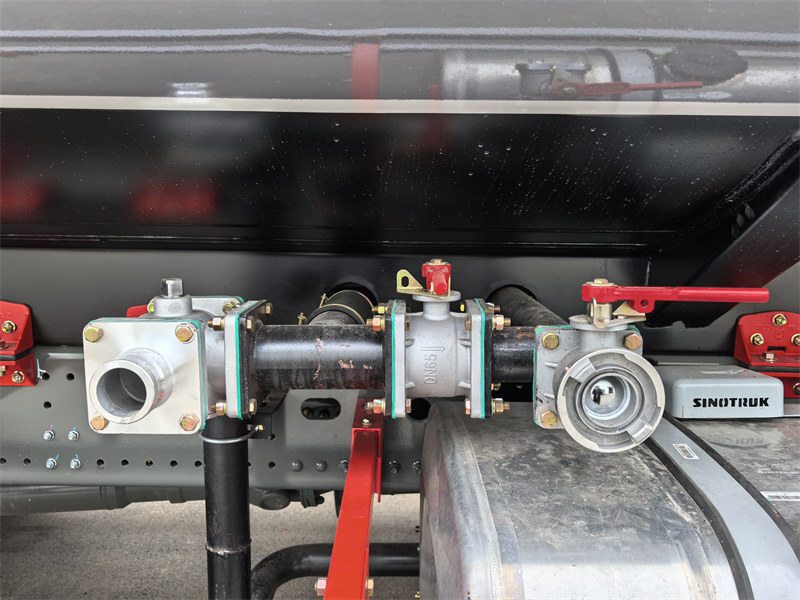

HOWO water bowser truck with Pump in and Pump out function

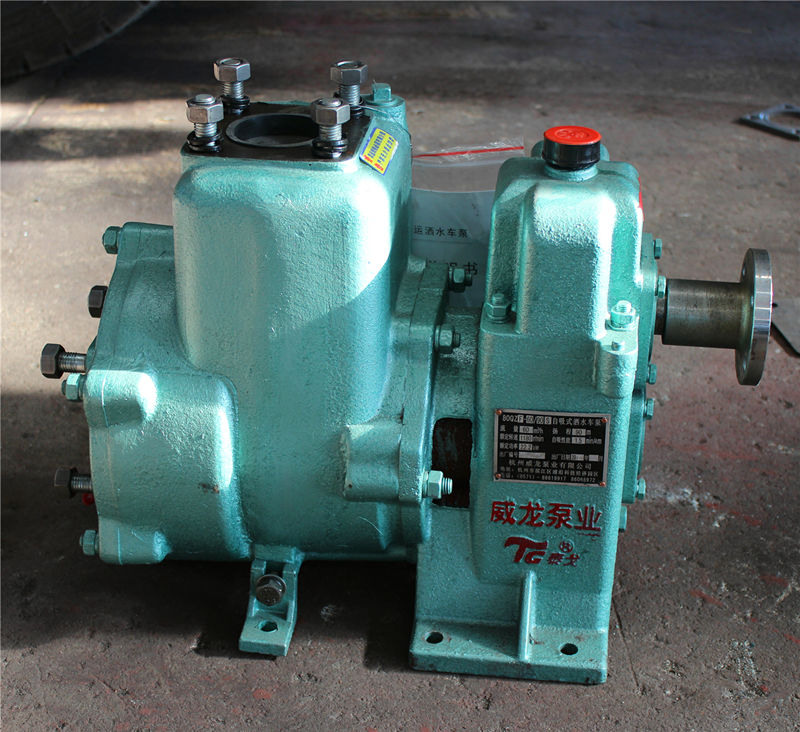

HOWO 5800 gallons water sprinkler truck is equipped with Top Chinese brand WEILONG 80QZB-60/90 water pump, matched with Aluminum alloy material ball valves to realize Pump in and Pump out function:

Flow rate: 60 m³/h (1000 L/min)
Head: 90 m
Power: 22.2 kW
Self-priming height: 6.5 m
Overall efficiency: 90%
Weight: 80 kg

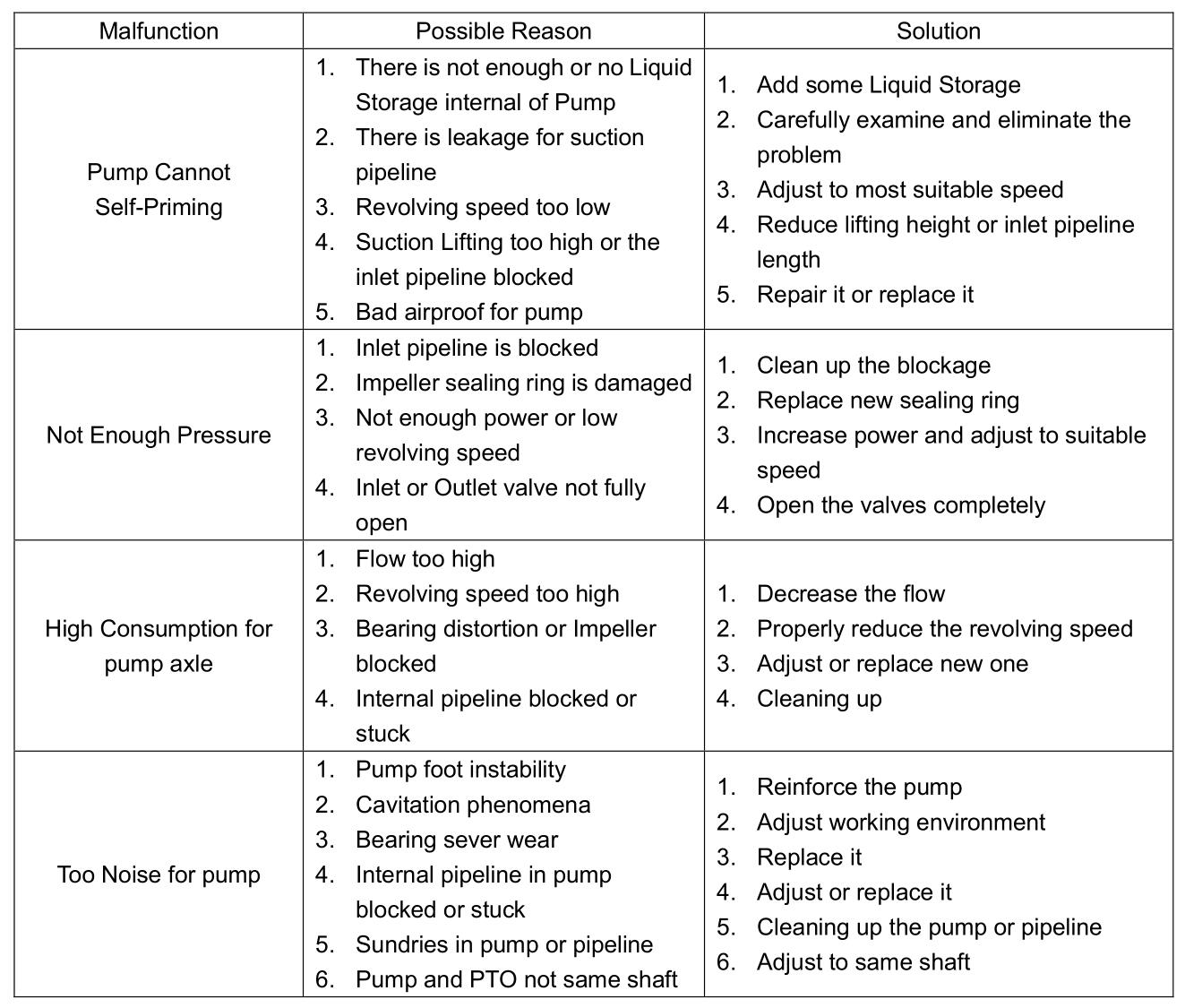

WEILONG water pump trouble shooting

To guarantee HOWO TX 5800 gallons water tanker truck well performed and extend long life service, regular maintenance for below trouble shooting is necessary and important.
