HOWO 6x6 off road water bowser

HOWO 6x6 off road water bowser

The HOWO 6×6 Water Truck is an off-road vehicle specifically designed for harsh road conditions. It features a 6×6 all-wheel drive system, a 400-horsepower engine, and a large 18,000-liter water tank, providing exceptional off-road capability and load-bearing capacity. Equipped with an efficient water pump and a multi-functional spraying system, it supports various operation modes such as front flushing, rear sprinkling, and high-cannon spraying. This makes it an ideal choice for field operations in mining areas, forests, and other challenging environments.

  • Working capacity :

    18000 liters
  • Cabin type :

    HOWO TX
  • Drive system :

    6×6
  • Wheelbase ( mm) :

    4500+1400
  • Engine specific :

    400HP/WP12.400E32
  • Gear box :

    HW19710 10-speed
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    18000
New Products

The HOWO 6×6 Water Truck is a heavy-duty off-road vehicle engineered for complex terrains, with its core strengths lying in its robust off-road performance and high operational efficiency. It adopts a 6×6 all-wheel drive system, along with an inter-axle differential lock and 12.00R24 off-road tires, enabling it to easily conquer harsh road conditions such as mountainous areas, forests, and deserts. Powered by a 400-horsepower diesel engine and equipped with an 18,000-liter large-capacity water tank, it ensures strong power and sustained operational capability, allowing the HOWO 6×6 Water Bowser Truck to perform reliably in various field operations.





In terms of professional functionality, the vehicle integrates an efficient centrifugal pump and a multi-functional spraying system. The water pump delivers a flow rate of 60 m³/h and a self-priming capability of 4 meters, supporting rapid water intake and drainage operations. Through an adjustable spray gun, it can achieve multiple spraying modes, including front flushing, rear sprinkling, and high-cannon spraying, meeting diverse needs ranging from road cleaning to emergency firefighting. These specialized configurations make the HOWO 6×6 Water Tanker Truck an ideal choice for outdoor operations in sectors such as mining and oil fields.

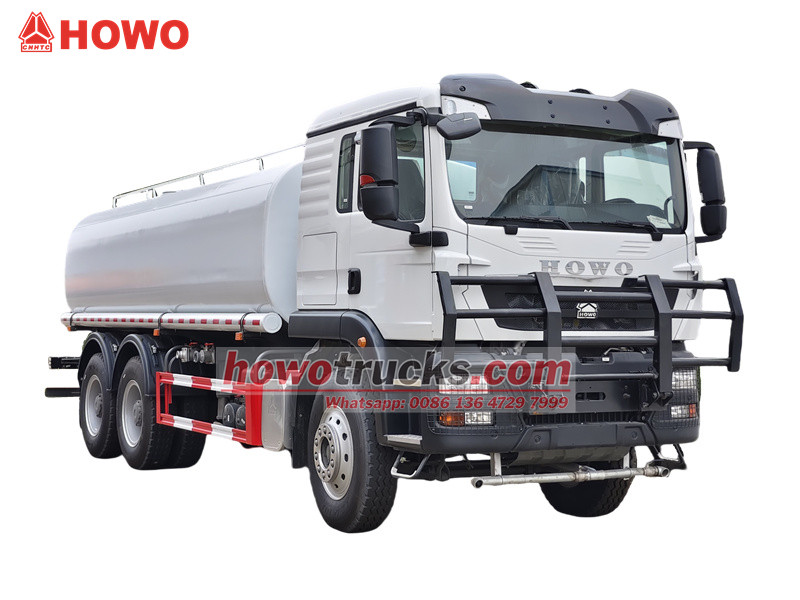

HOWO 6×6 AWD water truck



*HOWO 6×6 Off-road Water Truck

HOWO 6×6 All-Wheel-Drive Water Bowser*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

★ Built on HOWO 6×6 6WD chassis, with 400HP powerful diesel engine and HW19710 10-speed gearbox.

★ Equppied with 12.00R24 wide tires, which are suitable for harsh road conditions.

★ The tank body is made of high quality carbon steel, with volume up to 18000 liters.

★ Equippied with China top brand water pump with large flow rate.



Ⅱ. Product Parameter for HOWO 6WD water tanker truck:



Product name

HOWO TX 6x6 water tanker truck

Vehicle Parameters

Chassis brand

HOWO TX

Overall dimension (L*W*H)

9900x2550x3280mm

Wheelbase

4500+1400mm

Curb weight

12550kg

Gross weight

25000kg

Axles loading

7000/18000(2 axles)kg

Max speed

102km/h

Chassis

Drive mode

6x6

Cabin type

HOWO TX 6x6 cabin

Seats

2 seats

Sleeper berth

One

Steering

LHD

Tires

10+1

Tires specification

12.00R24

A/C

Air conditioning

Gear box

HW19710 10 -speed, manual

Engine

Engine model

WEICHAI WP12.400E32

Fuel and engine Type

Diesel, 6 cylinders in-line

Horse power

400HP/294kW

Displacement

11596 ml

Max torque

1780 N.m

Rated speed

2100rpm

Max torque speed

1200-1500rpm

Emission standard

Euro 3

Fuel tank

400L

Upper-body Parameters

Volume of Water Tank

18,000 Liters

Tanker material

Carbon steel, Tanker thickness : 5mm.

Body material

High performance wear-resisting carbon steel with anti-corrosion treatment paint, SS304 stainless steel for option

Manhole

DN500

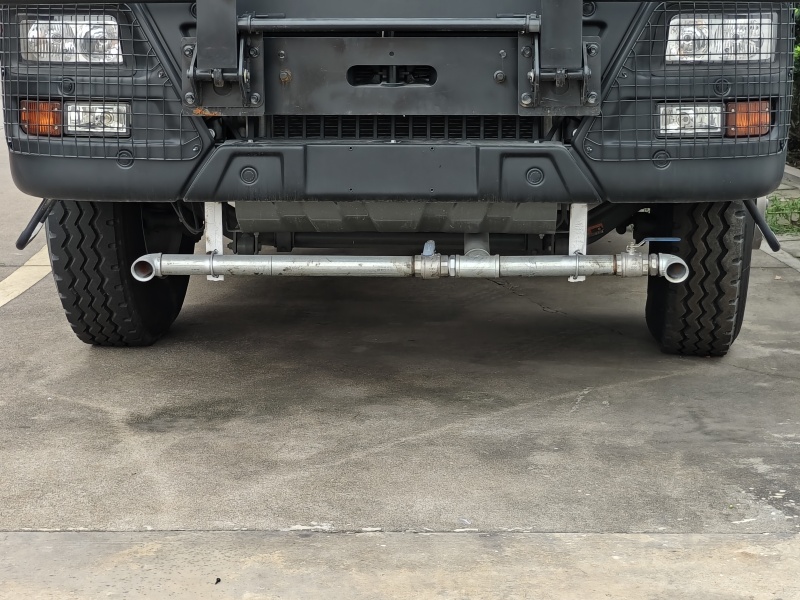

Spray

Front and rear side spray nozzle, rear water cannon

The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze

Sprinkling width

≥14m

Water cannon spray width

≥28m

Equipment

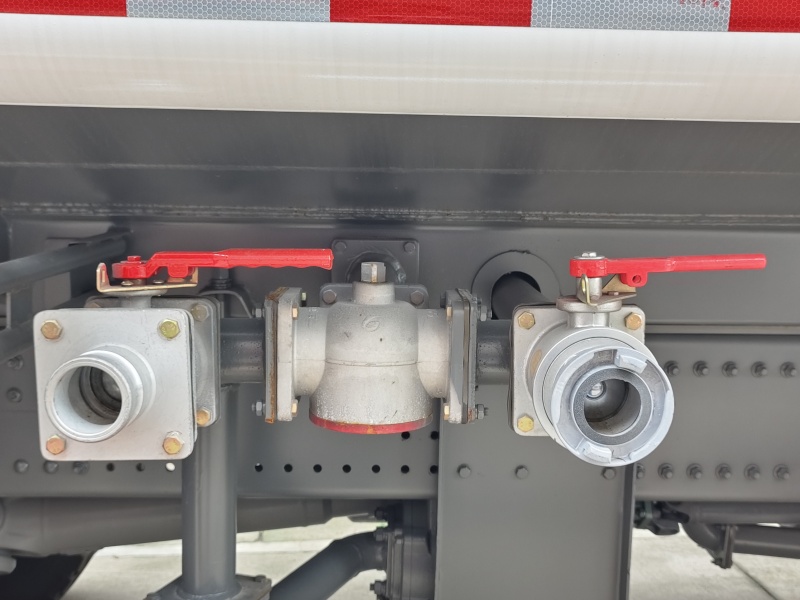

Ladder,tool box,side pipe storage, Pump in and out valve

Artesian valve,flter, distribution valve, sprinklerhead, with self-suction and discharge function

Water pump

Model

WEILONG 80QZBF-60/90 centrifugal pump

Flow rate

60 m3/h

Lift

90 m

Head

6.5 m

Input speed

1180 r/min

Self-priming performance

1.5 min/4m

Equipped power

22.5 kW



HOWO 6WD off-road water bowser





Ⅲ. Product Details & Features:

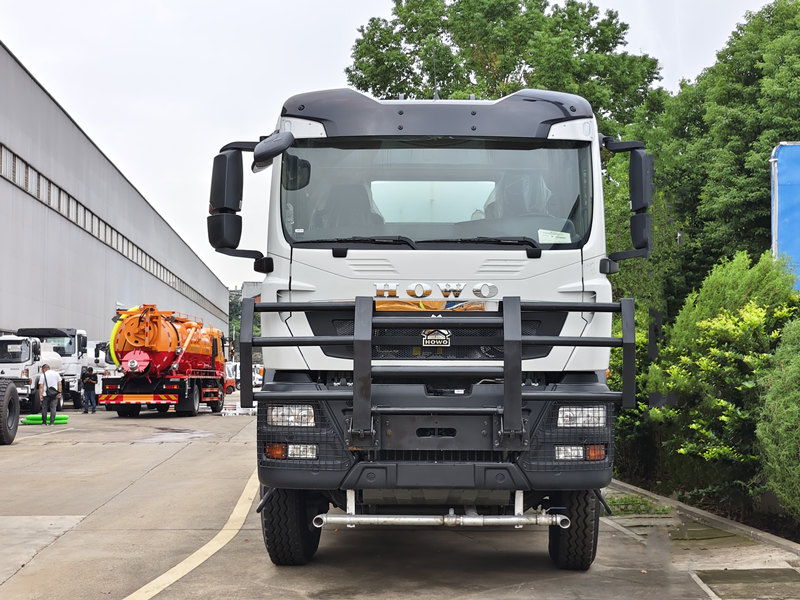

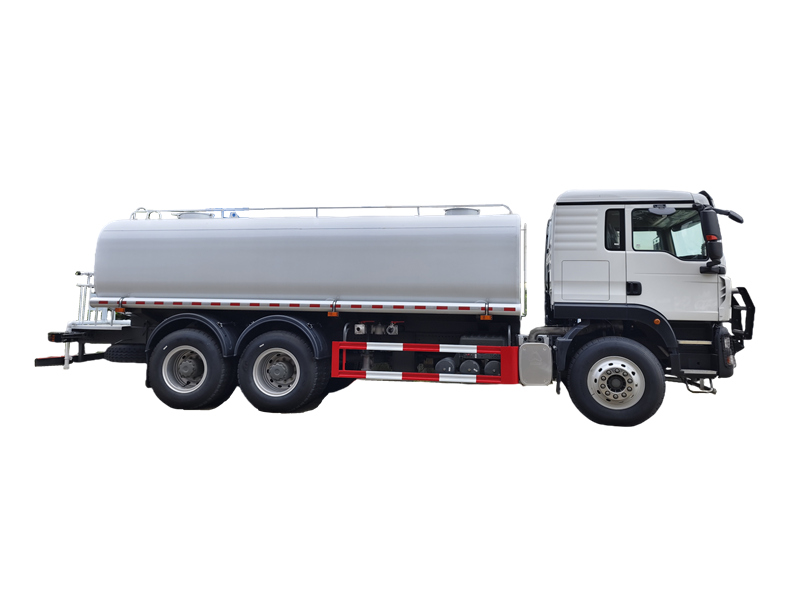

HOWO TX 6×6 water truck

HOWO 6×6 Chassis

6×6 Drive System

Featuring a 6-wheel all-drive system, it delivers enhanced traction and off-road capability, making it suitable for challenging terrains such as deserts, marshes, and mountainous areas.

Powerful Engine

Equipped with a 400-horsepower engine and paired with an HW19710 transmission, it ensures stable power output and excellent fuel economy.

High Load Capacity

With a maximum load capacity of 25 tons, it is fitted with a 7,000 kg front axle and an 18,000 kg rear axle (both equipped with self-adjusting arms), combined with a 5.33 gear ratio, to enhance stability under heavy-load conditions.

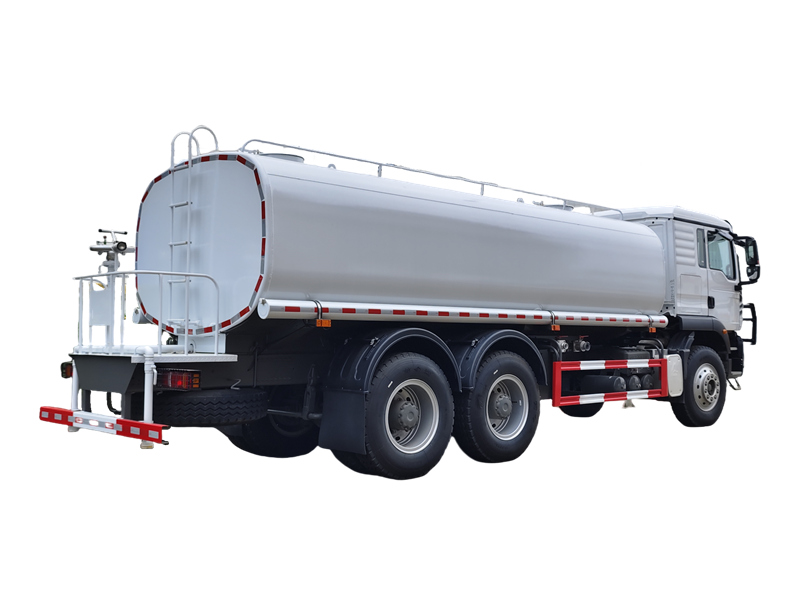

HOWO 6WD water spray truck

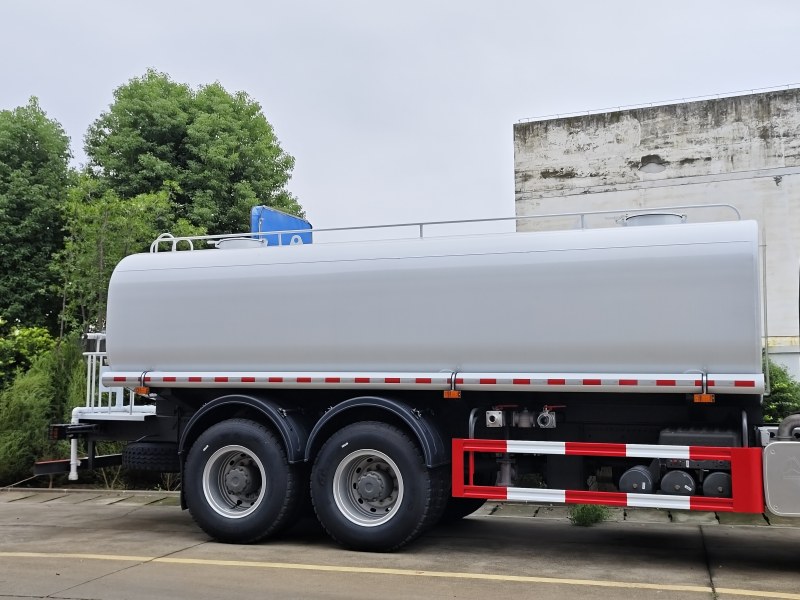

Water tank

The tank body is manufactured through a series of automated processes, including spliced welding of steel plates, rolling them into cylindrical sections, spinning the end caps into shape, and butt-welding the shells to the heads. Additionally, anti-surge baffles are installed inside the tank.

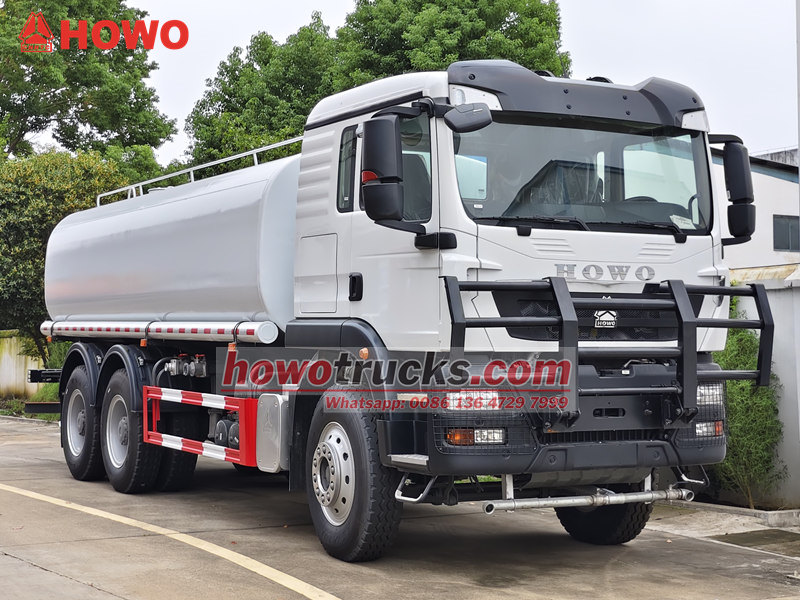

HOWO 6WD off-road water bowser for sale

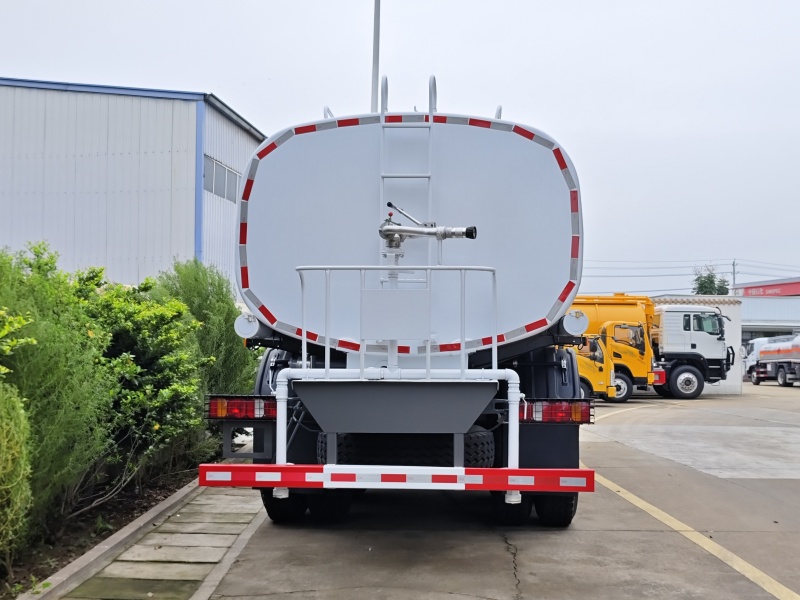

Water Cannon

A water cannon is installed on the rear work platform of the tank, with a spraying range of no less than 28 meters. It can be adjusted to various modes, including heavy rain, moderate rain, drizzle, and mist.





IV . Water Pump:

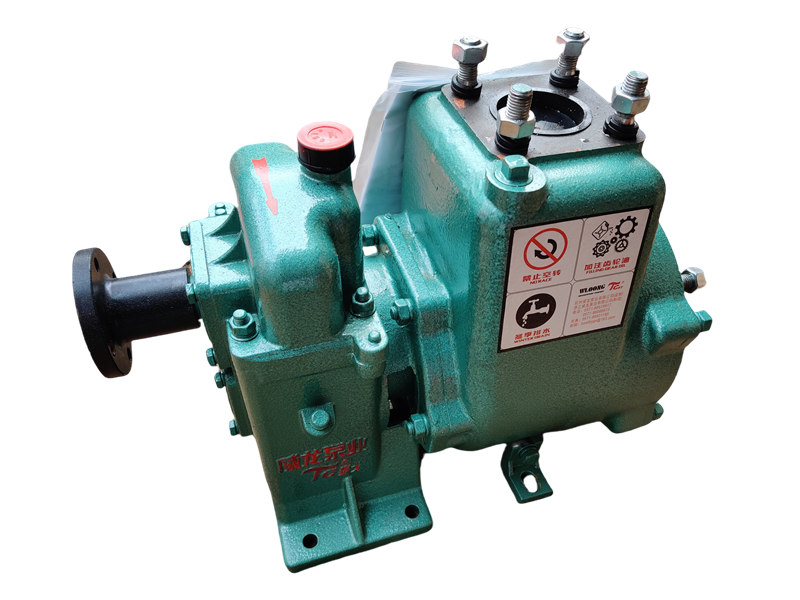

Water pump for HOWO water bowser

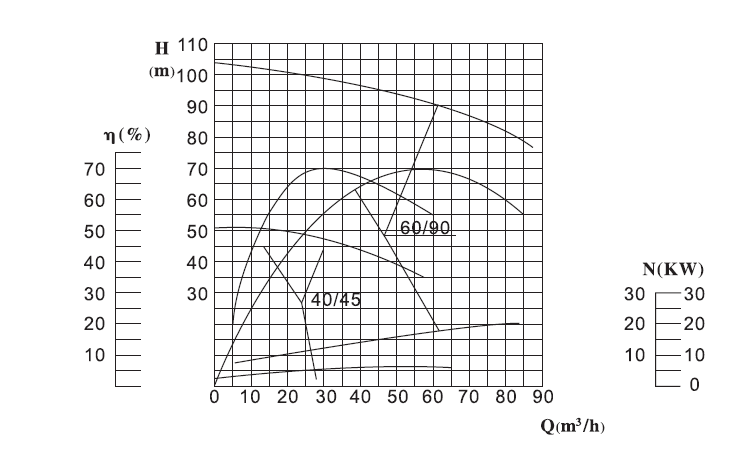

HOWO water truck pump diagram



Specifications for common used water pump

Model

Flow rate (m³/h)

Head (m)

Speed (r/min)

Shaft power (KW)

NPSHr (m)

Self-priming time (min/4m)

Efficiency (%)

80QZBF-60/90N(S)

60

90

1180

22.5

4.5

1.5

70

65QZ-40/45N(S)

40

45

1450

9.25

4.5

1.5

72

65QZ-50/50N

50

50

1180

10.5

4.5

1.5

70

65QZBF-50/110N(S)

50

110

1450

24

-

-

70



※ Ⅴ. Product Drawing:

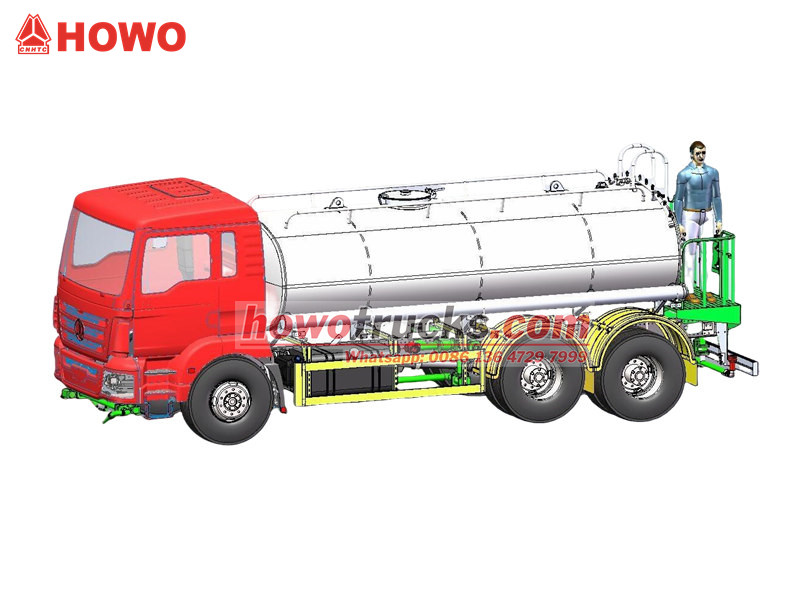

  • HOWO water tank truck drawing

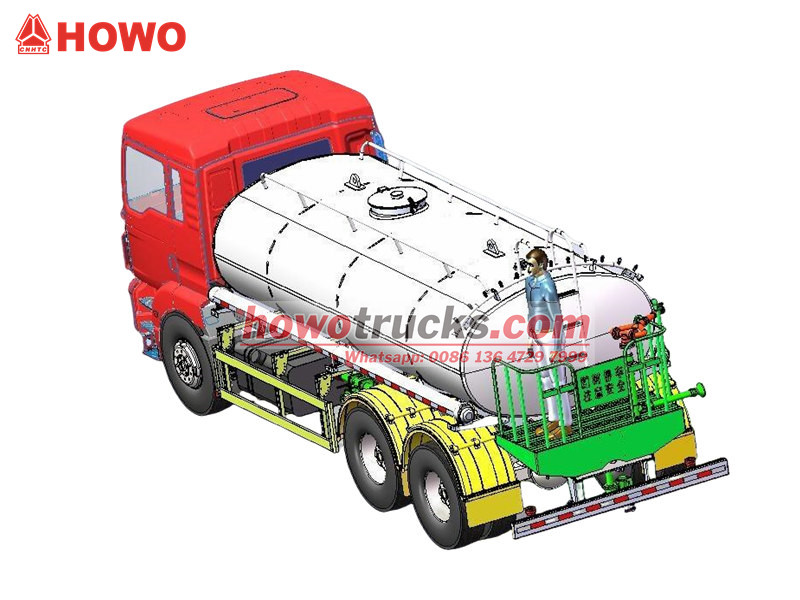

  • HOWO water bowser drawing

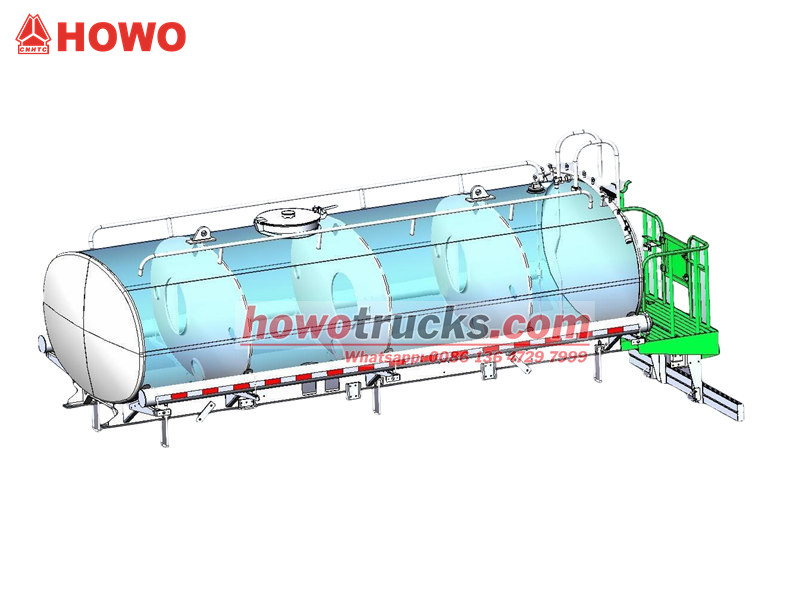

  • HOWO water tanker drawing






Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

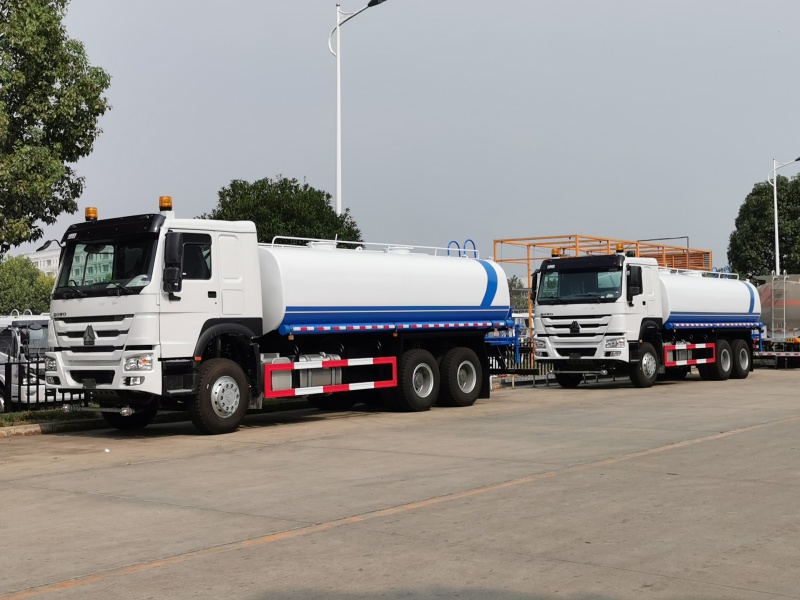

HOWO heavy duty water tank trucks for export

SINOTRUK HOWO water spray trucks for export

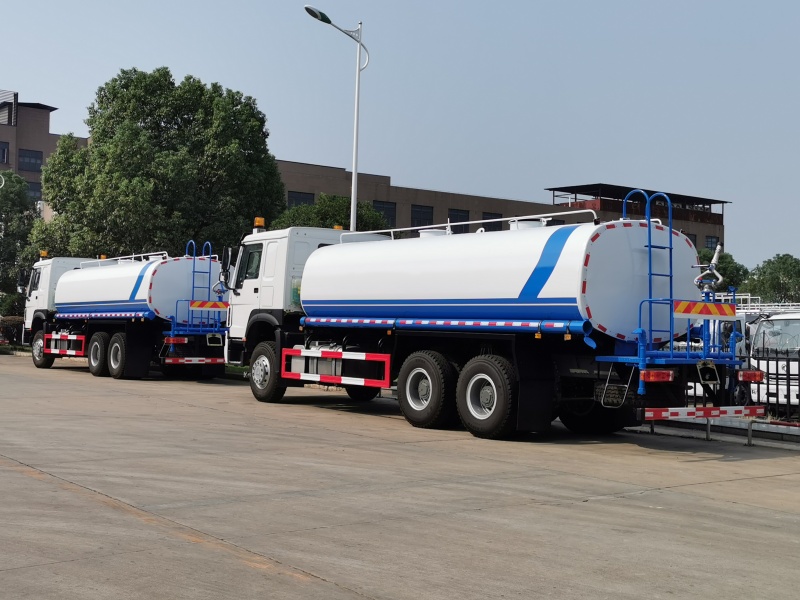

SINOTRUK HOWO water bowser for export

SINOTRUK HOWO water tanker trucks ready for delivery
