The HOWO TX dry vacuum tank truck is a versatile vehicle designed for transporting powdered and granular materials. Equipped with a 350-horsepower Sinotruk MC07H engine and an HW15710L transmission, the truck has a total tank capacity of 25 cubic meters and transports fly ash with a density of 0.48 tons per cubic meter. The truck is equipped with a tank, vacuum pump, air compressor, lifting cylinder, filtration system, hydraulic outriggers, suction and discharge piping, and other specialized equipment.

It utilizes a dual-mode vacuum suction and pressure discharge system, utilizing negative pressure suction from the vacuum pump and positive pressure discharge from the screw compressor for efficient material transport. The truck's upper body features a dual filtration system consisting of a multi-layer bag filter and a cyclone separator, achieving a dust removal efficiency of 99.9%. An electronic control box at the rear controls operations and monitors the pressure gauge and tachometer. It is suitable for transporting powdered materials such as cement and fly ash, as well as for collecting industrial waste.

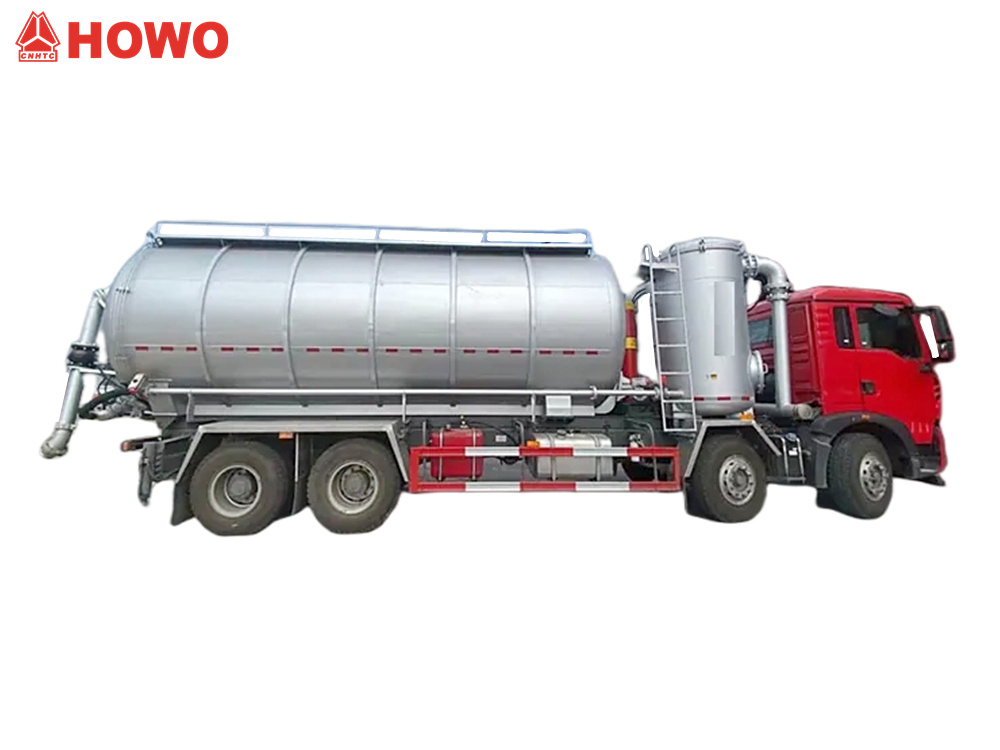

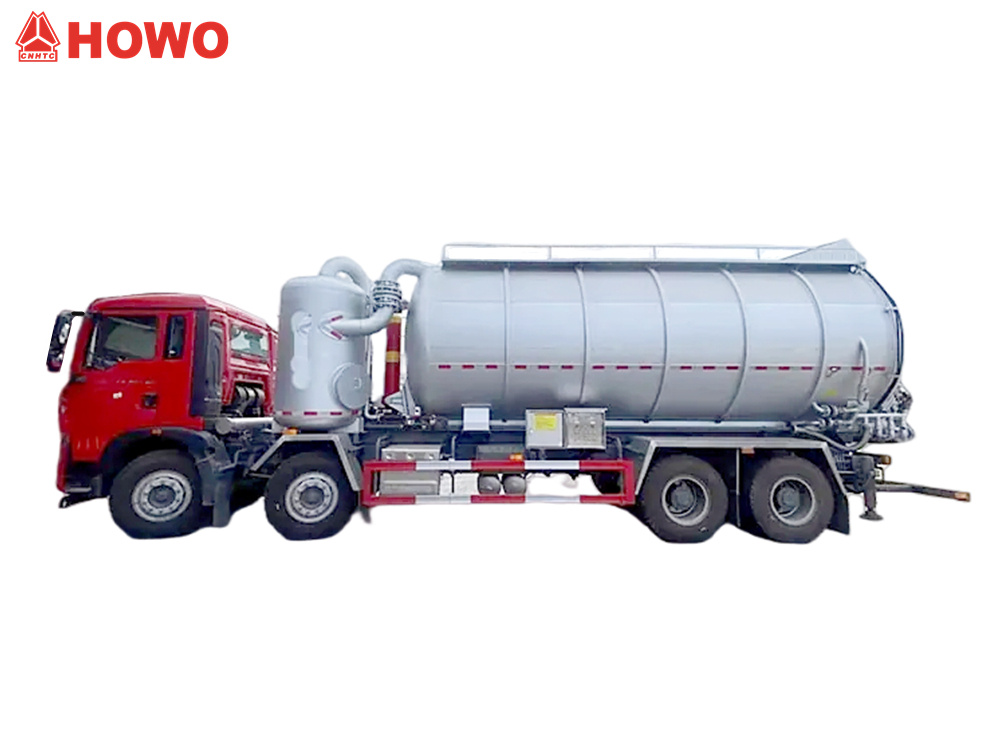

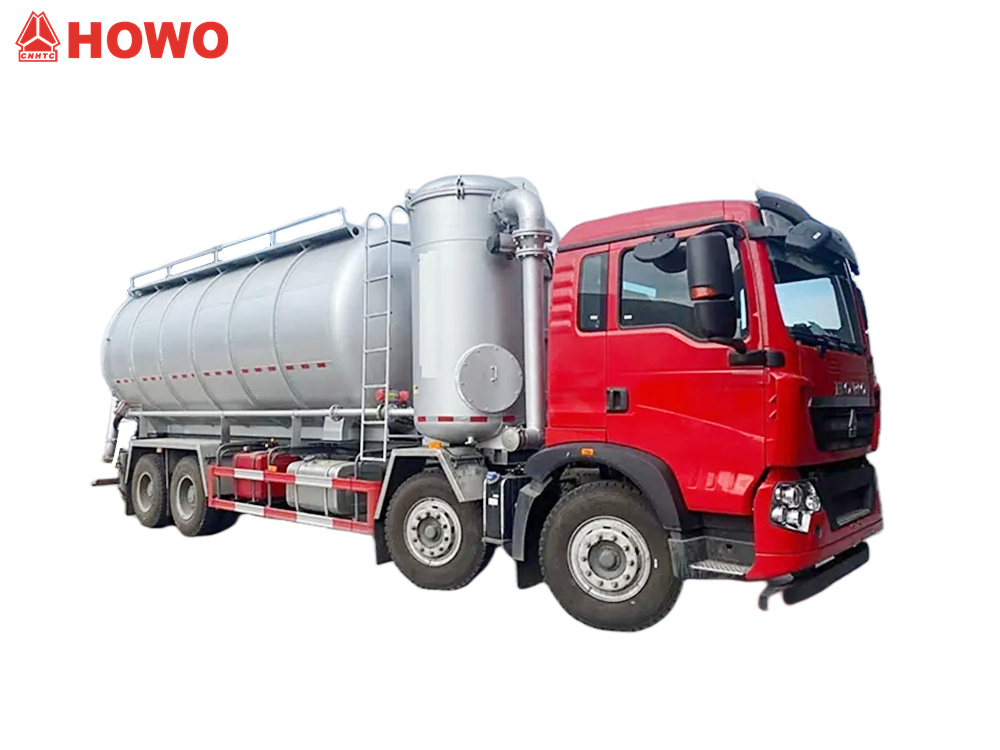

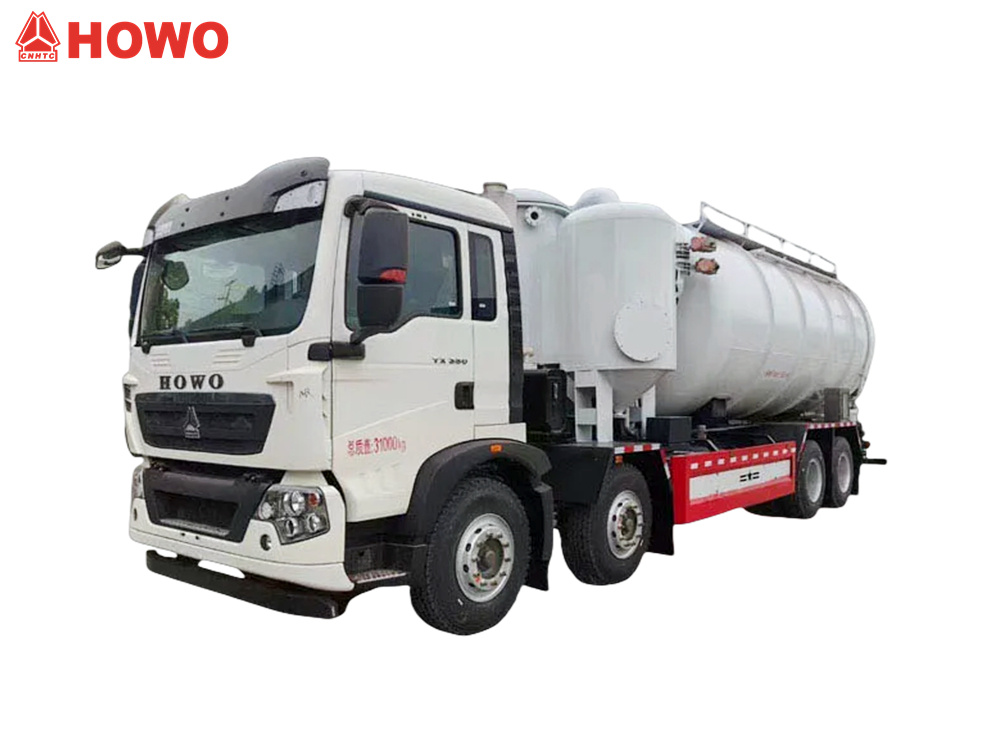

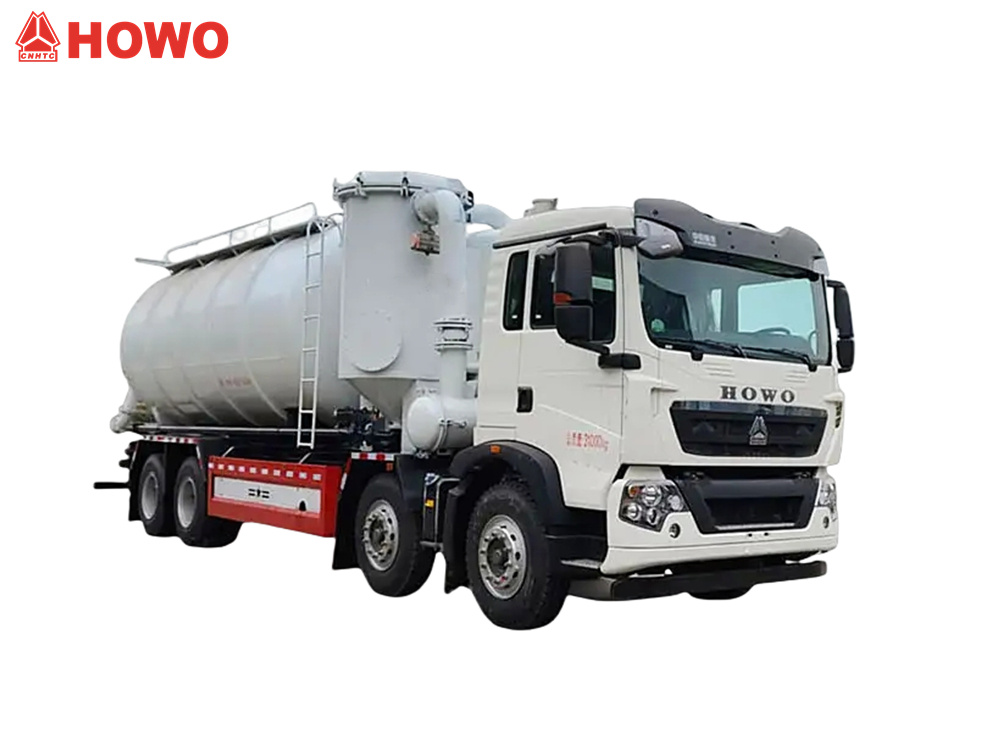

*HOWO 8x4 25000L Dry Vacuum Suction Truck

Sewage Vacuum Pressure Conveying Truck*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED

Suction and pressure conveyor trucks, also known as suction and discharge trucks, are suitable for use in industries such as metallurgy, chemical engineering, energy, building materials, coal, mining, and port transportation. They are used to collect, transfer, and transport nearly a hundred types of dust and powdery materials under various working conditions. They can transport dusty materials such as ironmaking, steelmaking, sintering, coking, raw materials, smelting desiliconization, aluminum powder, cement, mineral powder, limestone dust, and mixed dust.

» Ⅱ. Product Parameter for HOWO 25CBM dry vacuum suction truck:

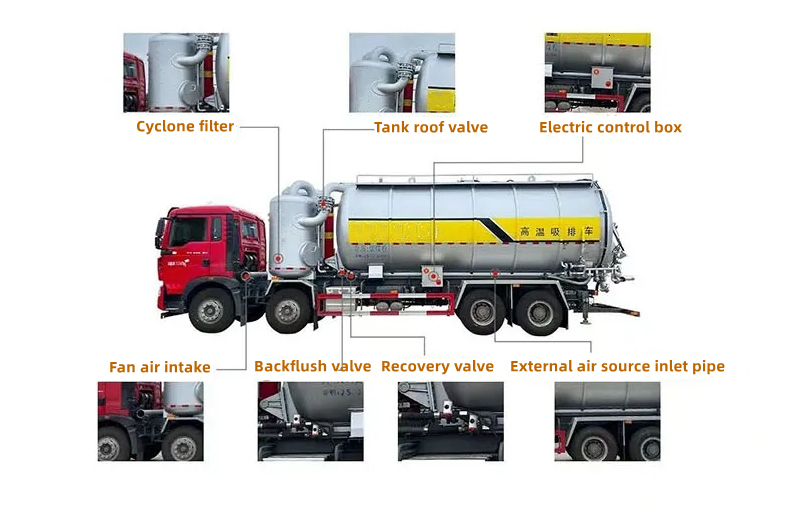

» Ⅲ. Product Details

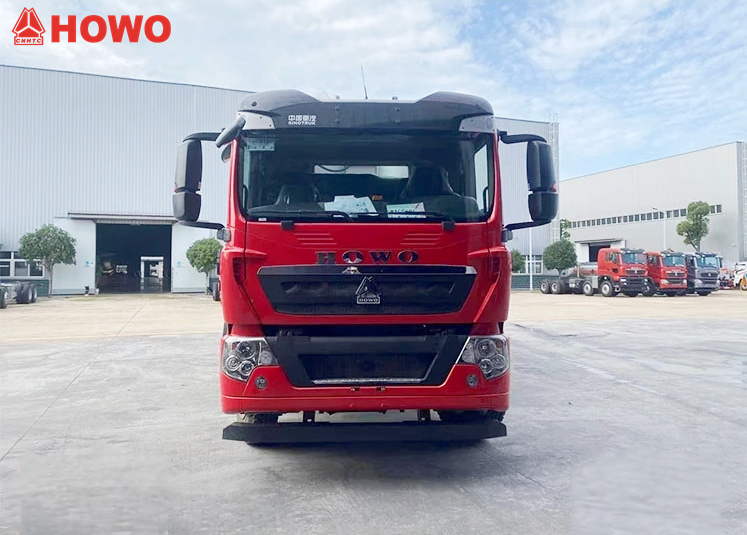

Chassis Configuration

1. Base Chassis: Modified from the HOWO TX350 8×4 heavy-duty truck chassis



2. Wheelbase: 1800mm, 4600mm, and 1350mm three-axle, ultra-long wheelbase design



3. Powertrain:

• Engine: Sinotruk MC07H.35-60 diesel engine

• Rated Power: 350 hp/257 kW

• Emissions: 7.36 L, Euro VI emission standard



4. Transmission: HW15710L 10-speed manual transmission

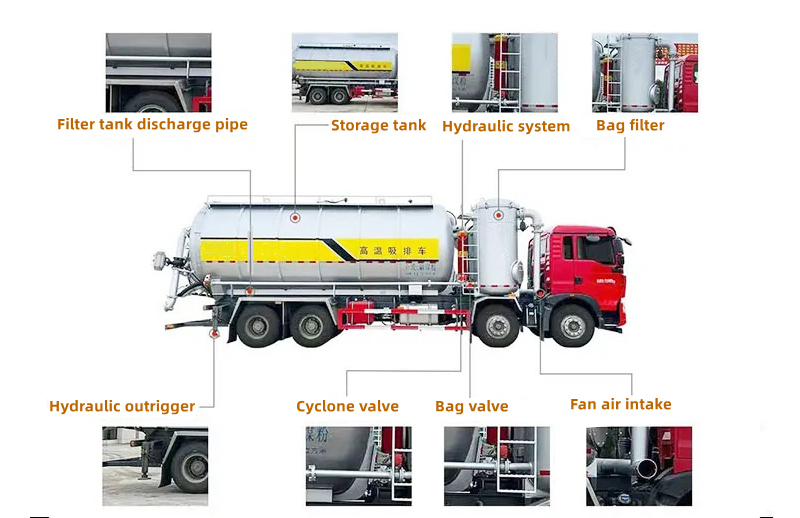

Upper-mounted System

1. Tank System

• Effective Volume: 25 cubic meters (separate design with front vacuum suction chamber and rear pressure discharge chamber)



• Operating Modes:

 Vacuum Suction: Negative pressure suction achieved by an SK-15 vacuum pump (maximum vacuum -0.093 MPa)

 Pressure Discharge: Positive pressure discharge achieved by a BDW-10/2 screw air compressor (rated pressure 0.2 MPa)

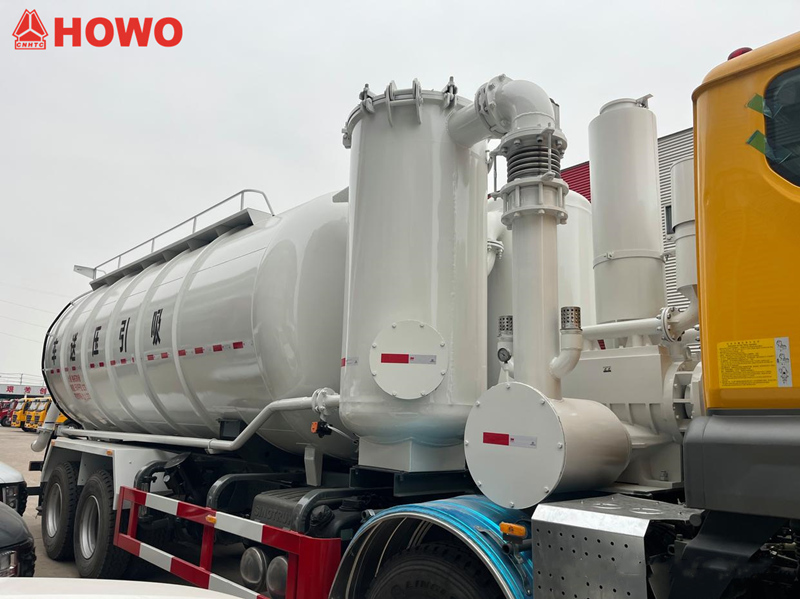

2. Filtration System

•  Bag Filter: Fully top-mounted, covered bag filter with a filtration accuracy of ≥5 μm

•  Backflush: Equipped with a pulse backflush valve, supporting automatic and manual cleaning modes



3. Hydraulic and Auxiliary Systems

•  Hydraulic Outriggers: Four-point hydraulically stabilized outriggers

•  Air System: Equipped with an external air supply inlet pipe

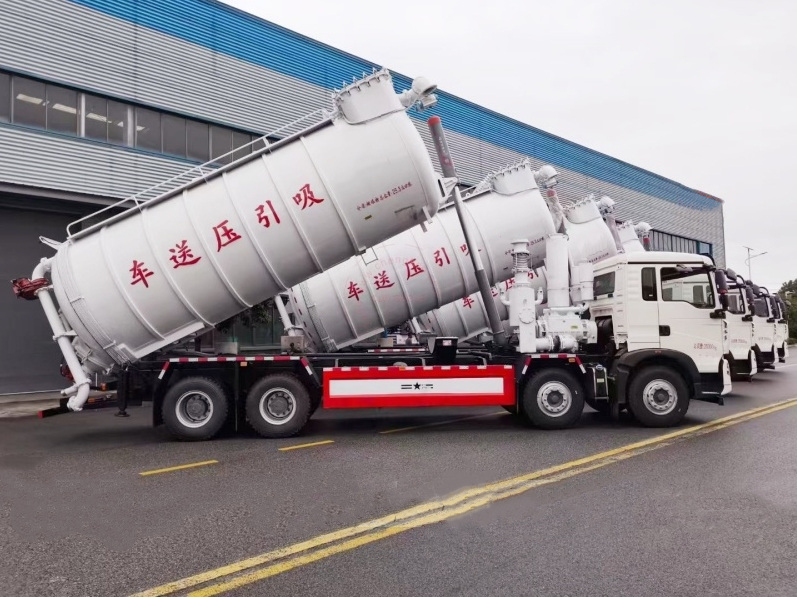

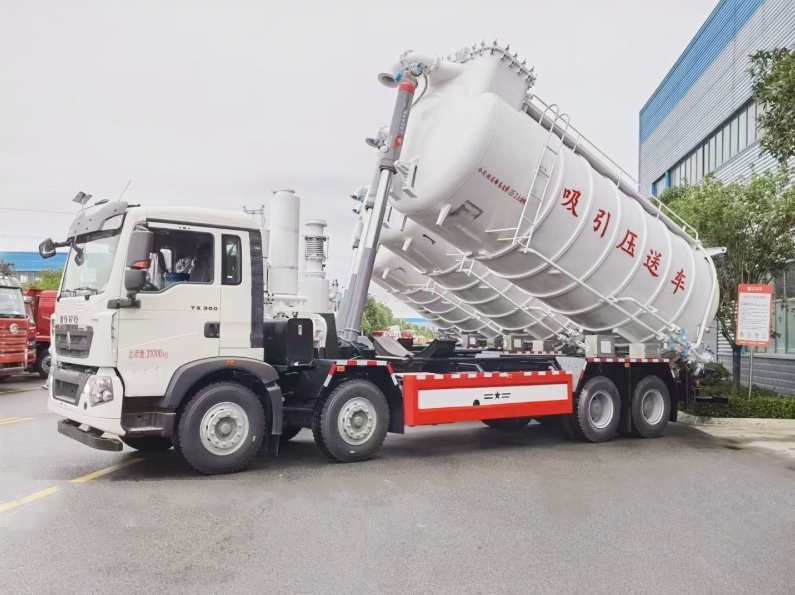

•  Lifting Mechanism: Tank lift driven by a hydraulic cylinder (maximum lift angle 55°)

•  Cooling System: Independent water-cooling circulation system for the vacuum pump and air compressor

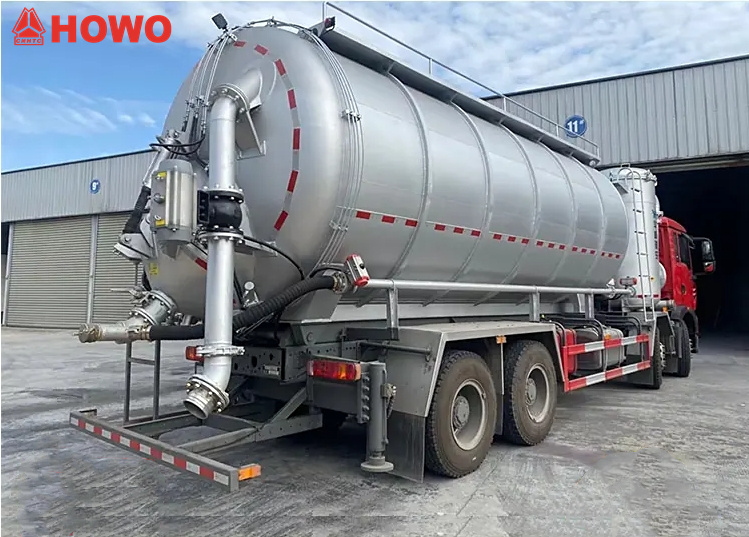

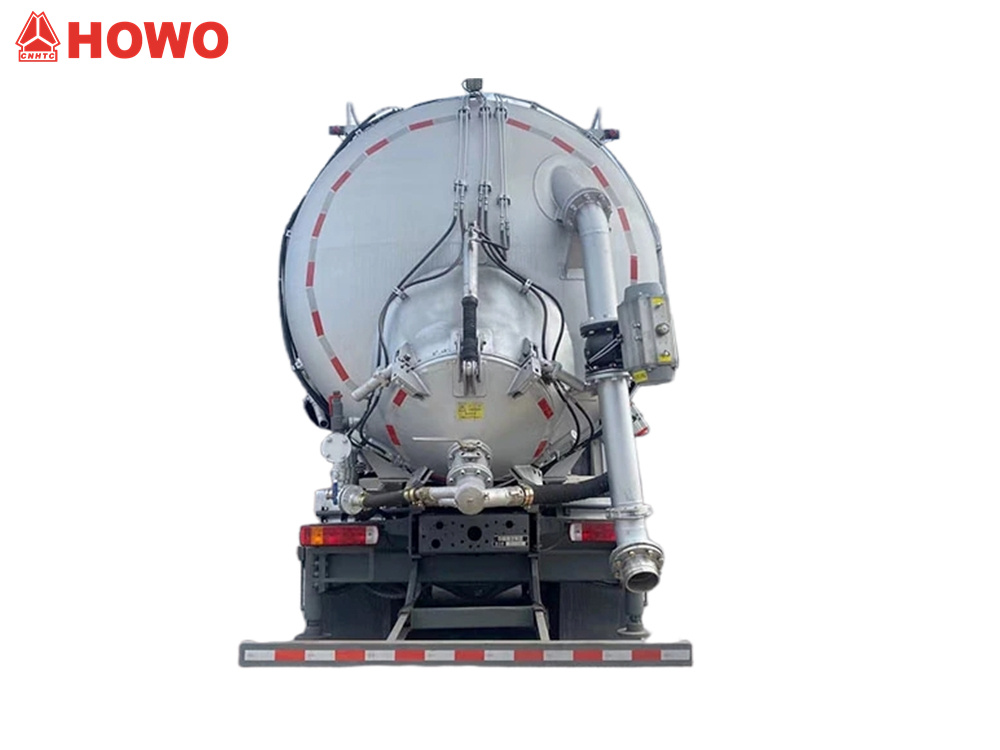

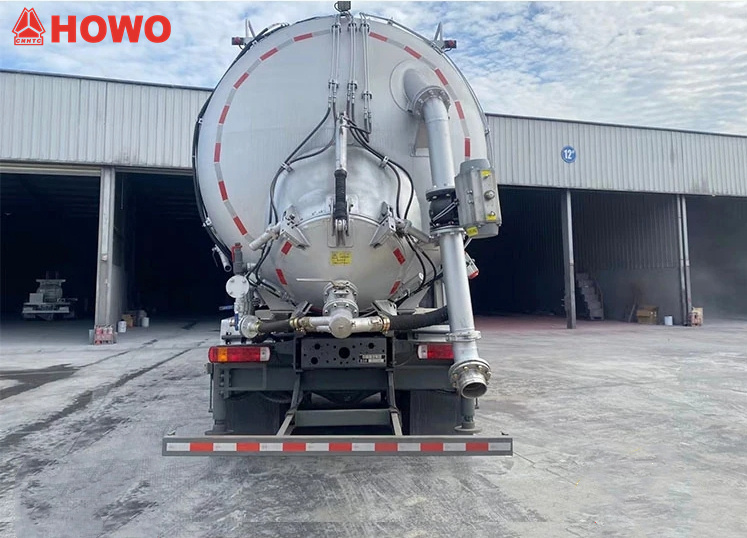

4. Piping System

Suction and Discharge Piping: DN150 wear-resistant rubber hose suction pipe (6m length, with quick connector); N100 carbon steel rigid pipe (with butterfly valve control) discharge pipe



Safety Devices: Overpressure relief valve, vacuum circuit breaker

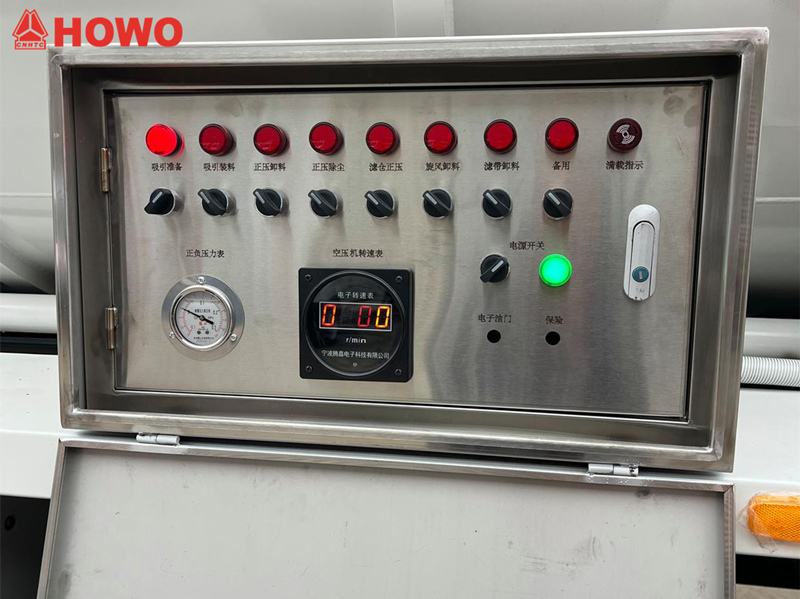

5. Electronic Control System

The HOWO 8×4 25-cubic-meter suction and pressure conveyor is equipped with an intelligent electronic control panel, integrating multiple function buttons and display instruments for precise operational control.



1. Function Button Area: Suction Preparation, Suction Loading, Positive Pressure Discharge, Positive Pressure Dust Removal, Filter Chamber Positive Pressure, Cyclone Discharge, Filter Belt Discharge, Standby Button, Electronic Throttle



2. Status Indicator Area: Full Load Indicator





3. Instrument Display Area: Positive and Negative Pressure Gauges, Compressor Tachometer

» Ⅳ. Working Principle

The vehicle utilizes the vacuum pump to generate negative pressure to vacuum-tightly draw powdered and granular materials into the tank. A dust removal and filtration system separates and removes the mixed airflow of secondary pollutants. After the tank is lifted, the air compressor generates positive pressure during discharge, discharging the secondary pollutants into a dedicated storage container through a closed, high-pressure discharge method. The entire operation is carried out in a closed state to avoid contamination of the atmosphere. The top of the tank is sealed and cannot be slotted, and the rear cannot be opened.







» Ⅴ. Technical Highlights



1. Negative-Positive Pressure Combined Operation: Combines vacuum pump rapid loading + air compressor high-pressure unloading, improving efficiency by 40%



2. Modular Design: The filtration system, tank, and power unit can be independently disassembled for maintenance



3. Intelligent Control: Equipped with a PLC control box, it supports one-touch operation of the suction and discharge processes

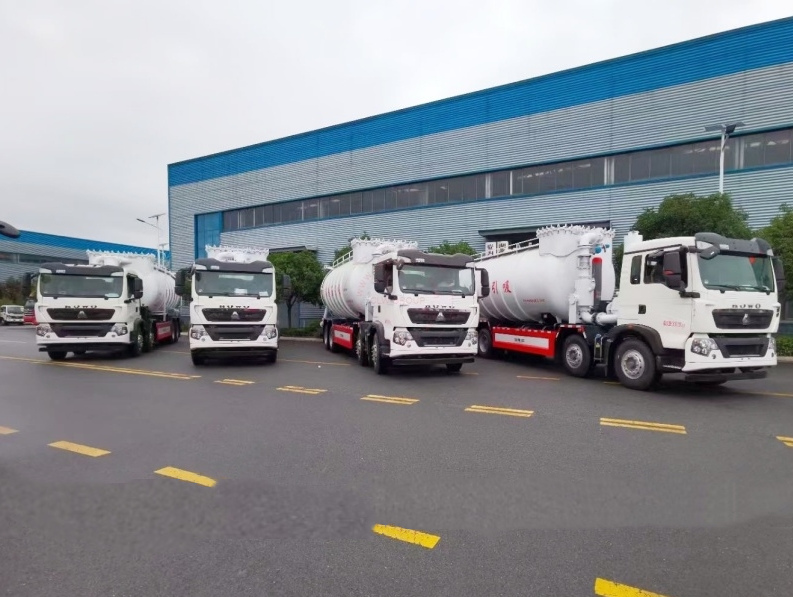

» Ⅵ. Bulk shipment
