40HQ shipping method for Rear Loader Garbage Compactor Body Kit

What is Garbage Compactor Body Kit?

Garbage compactor body kit also named as rear loader superstructure, which is designed based on customer local truck chassis, available for Howo, Isuzu, Mercedes Benz, Hino, Mitsubishi, Toyota, etc. Fully relay on the chassis advanced technology, design and produce the 100% matched compactor upper body kit, then can be used for waste collection, compression, transportation and discharge. Below are mainly component of the garbage compactor superstructure: Compactor Body Kit and Rear Hopper Kit.

Garbage Compactor Body Kit

Based on customer local FUSO series truck chassis designed 14cbm garbage compactor superstructure. T420 material with thickness for side and floor 5mm, both internal and external with anti-rust and anti-corrosion painting, and the surface blue painting is designed based on exactly color code RAL5015



Garbage compactor kit rear hopper

Which matched working with the compactor body kit, included Tilting device and Scraper for garbage collection and compression working. As for rear part, can be customized as tilting device or footstep.



As international professional garbage compactor superstructure manufacturer, we CS TRUCKS can not only design 100% suitable rear loader body kit for customer local truck chassis, but also available for container shipping to protect body kit and saving delivery cost.

How to shipping customized 14cbm garbage compactor body kit

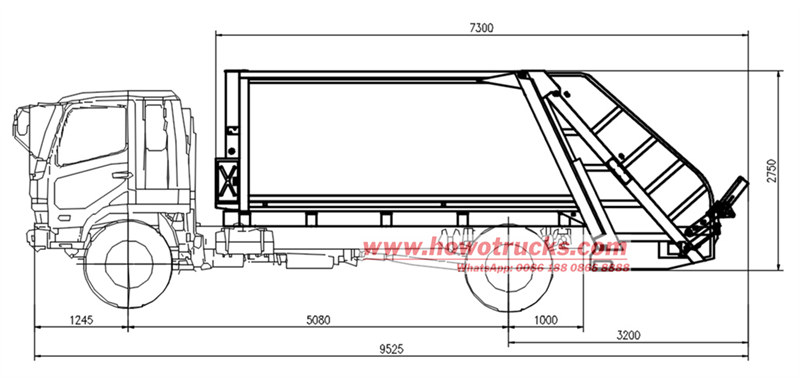

Loading method one: we shall fully know the whole size of the compactor superstructure, which is 7300x2250x2750mm, means one 40HQ container can loading 1 body kit, as below drawing showing:

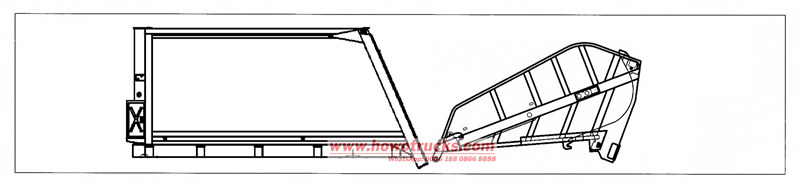

Loading method two: If customer purchased more than 1 unit, it is necessary to make garbage compactor body kit and rear hopper disassembly, fully notice each size as below:

Compactor body kit dimension: 5200*2200*2100 mm
Rear tailgate kit dimension: 3600x2200x2000 mm

Then we can choose to make the garbage compactor body kit loading separately, if need any more suggestion, please feel free to contact with us for professional support, detailed loading as below showing:

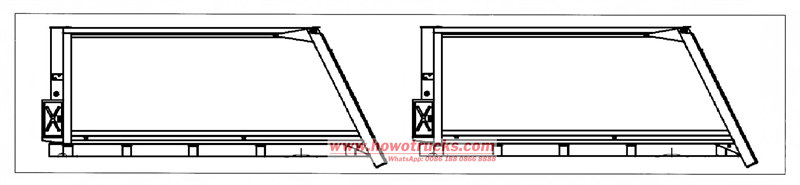

How to loading garbage compactor kit by 40HQ

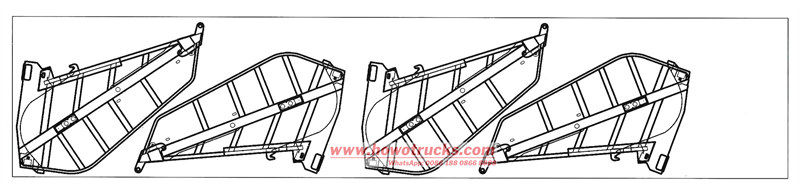

How to loading garbage compactor rear hopper by 40HQ

Garbage compactor body kit 10-25cbm kit loading method

Similar as above 14cbm garbage compactor superstructure loading method.

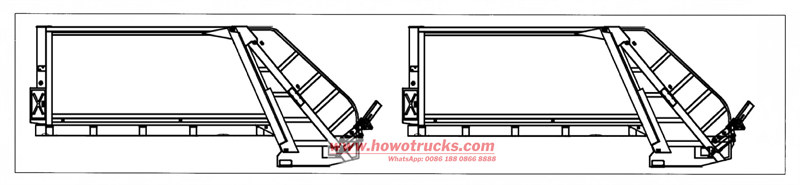

Rear loader compactor body kit 3-8cbm kit loading method

Which can be simple and convenient for loading, our skilled workers will welding 2 sets wheel roller in the front of auxiliary frame, to guarantee the loading process more convenient safety and convenient.
