Everything you need to know about HOWO flatbed self-loader truck

What is HOWO self loader truck?

HOWO self loader truck, also known as HOWO self-loading truck or HOWO flatbed truck, is a specialized vehicle designed for transporting non-dismantlable heavy machinery (such as excavators and loaders). It is widely used in infrastructure construction, factories, construction sites, and other locations.‌

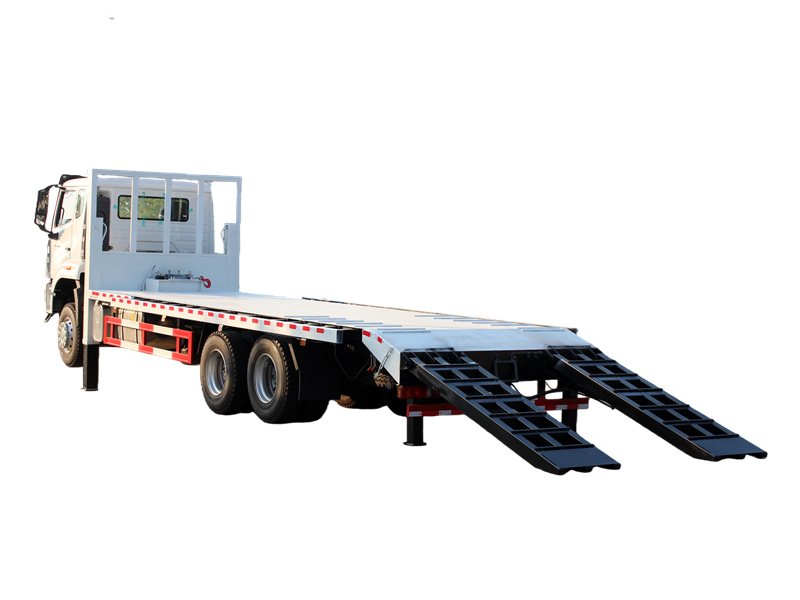

Main parameter of HOWO 10-wheeler self loader

Chassis	HOWO NX 6×4, WP12.400E50, 400HP
Flatbed size	8600×3000mm
Winch	Runva HWH080, 8-ton
Front outriggers	Telescopic, 20-ton lifting capacity
Rear ramp	Hydraulic, 2m length

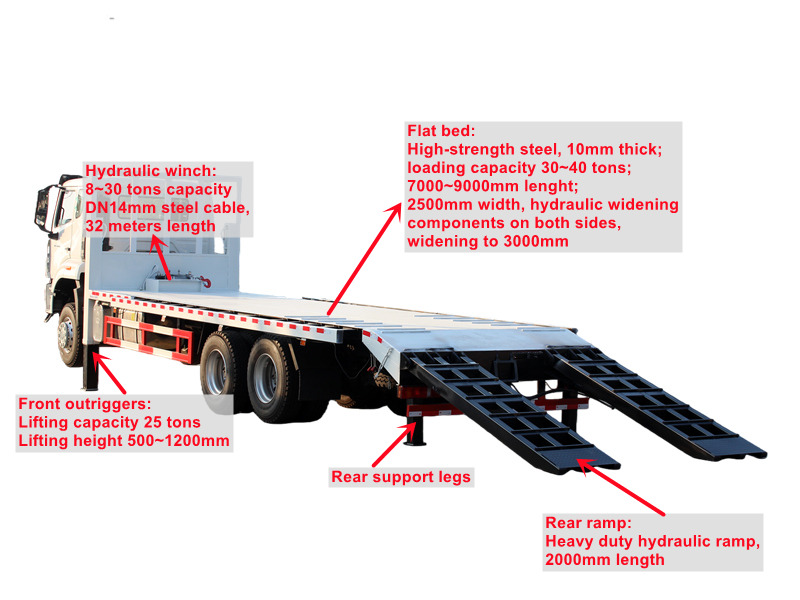

Structure of HOWO self loader truck

The HOWO flatbed self loader truck is built on the HOWO 6×4 chassis. Its upper structure mainly includes the flatbed, front outriggers, winch, rear ramps, and control valve.

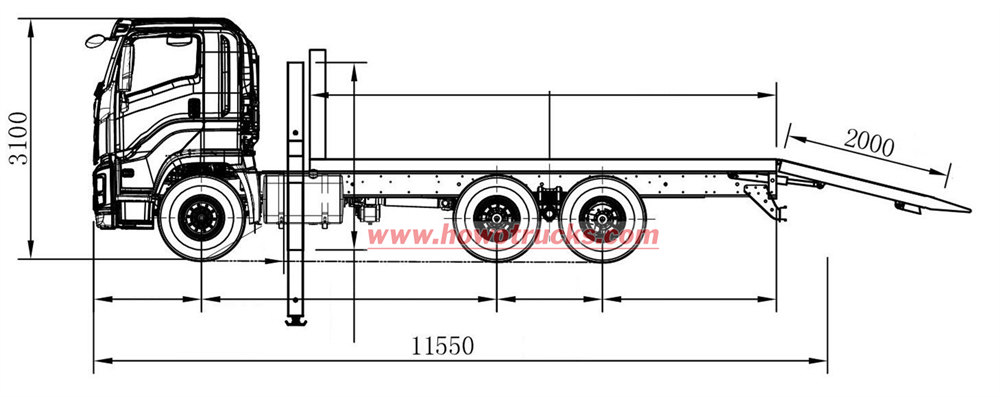

HOWO 6×4 flatbed self loading truck drawing:

Details of HOWO 10-wheeler self loader

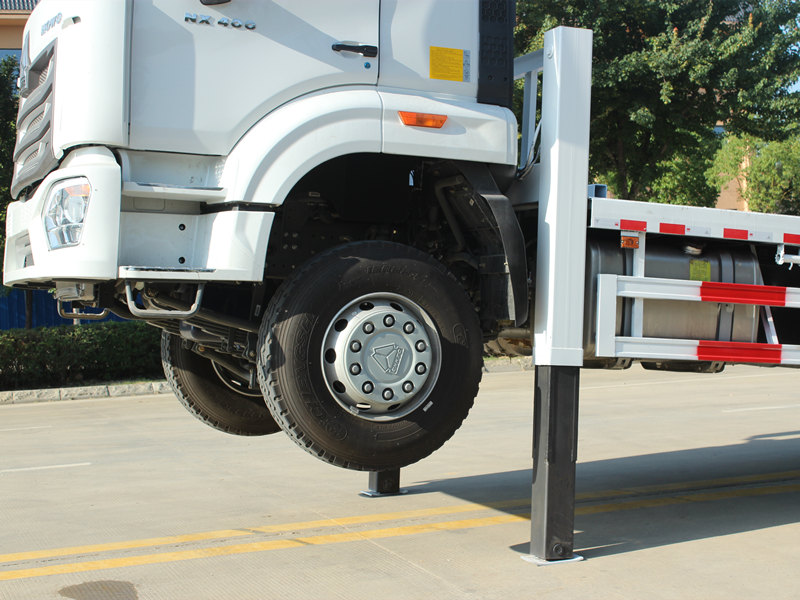

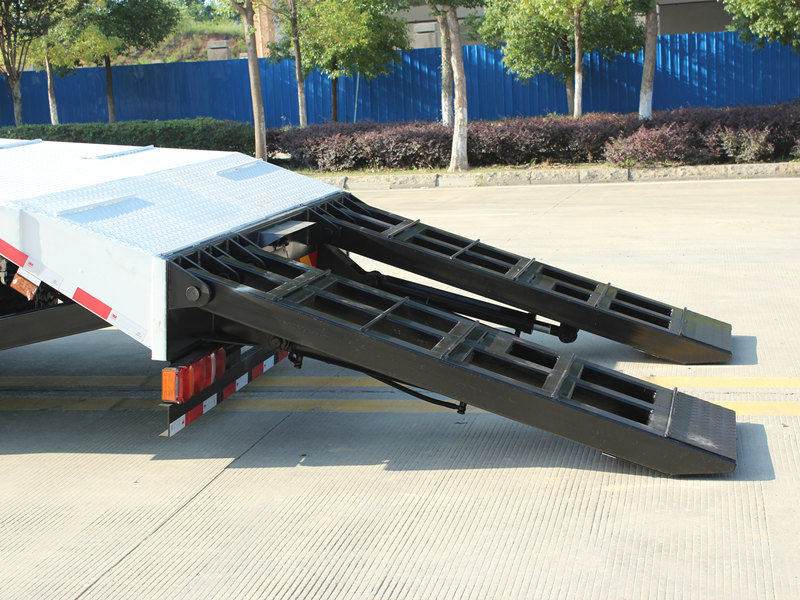

20-ton front outriggers	Hydraulic rear ramps

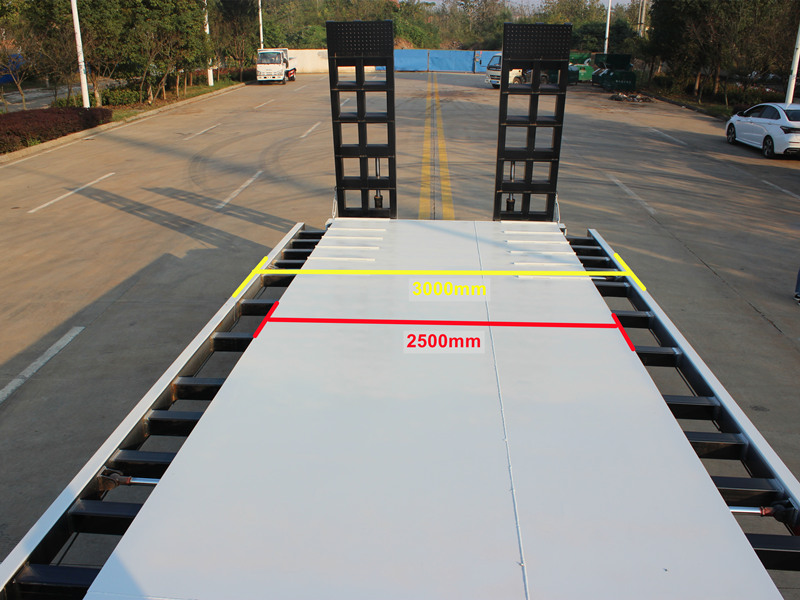

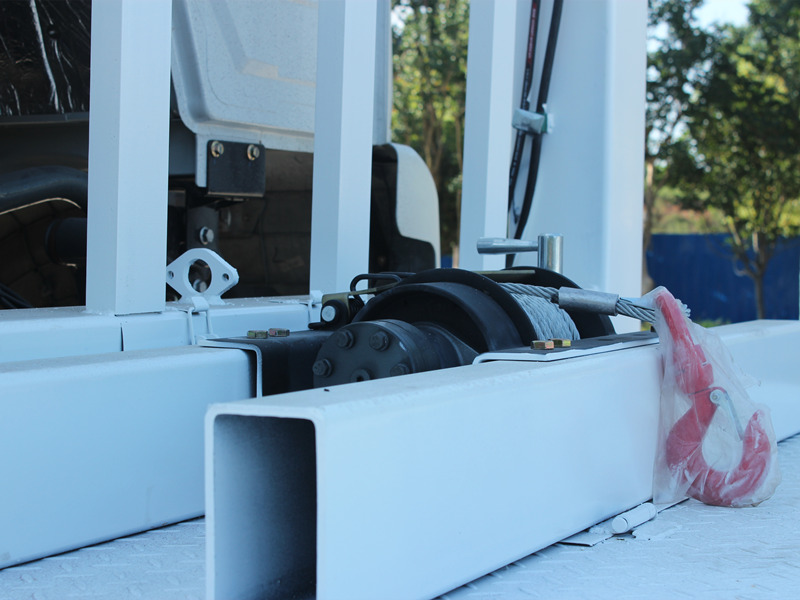

8-ton hydraulic winch	hydraulically widened flatbed

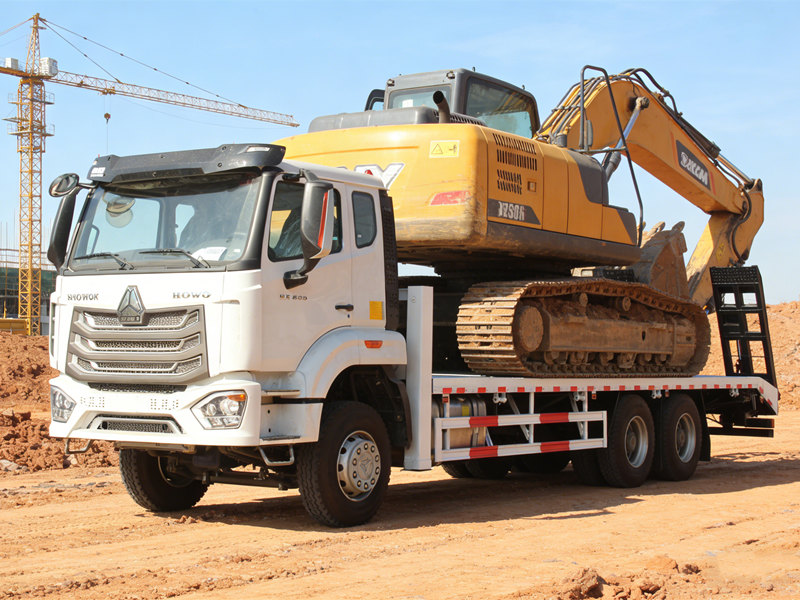

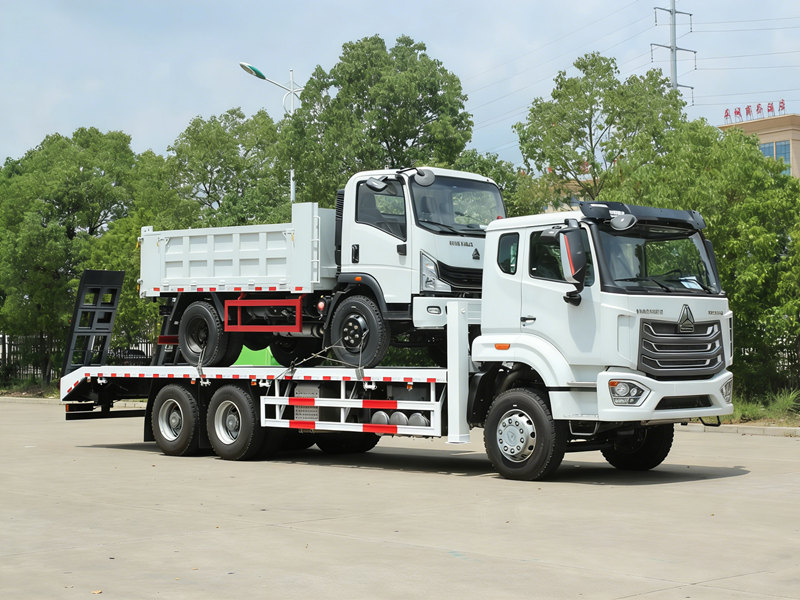

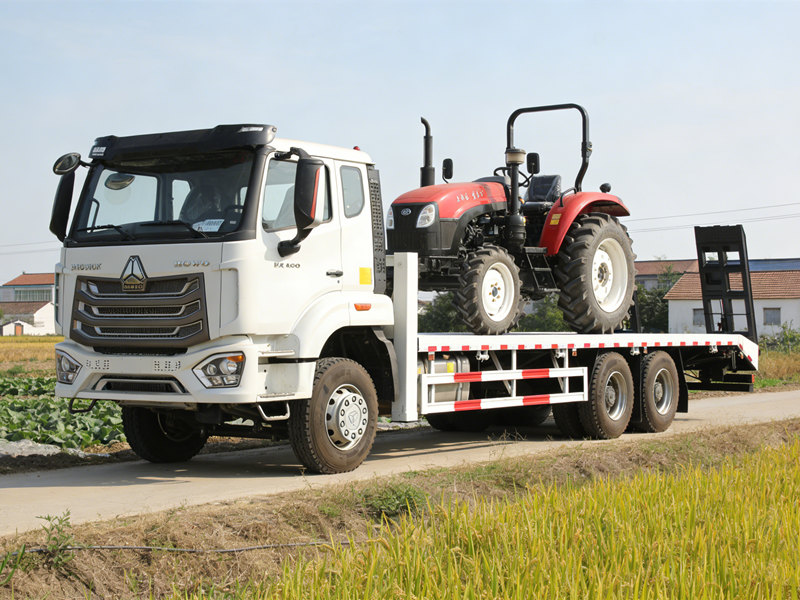

Common uses of HOWO 6x4 flatbed self-loading truck

Due to its strong load-bearing capacity, spacious working platform, and convenient loading and unloading, the HOWO flatbed self loader truck is widely used in the following fields:

1. Construction material transportation
2. Heavy equipment transportation (excavators, loaders, harvesters)
3. Vehicle transportation
4. Oversized cargo transportation
