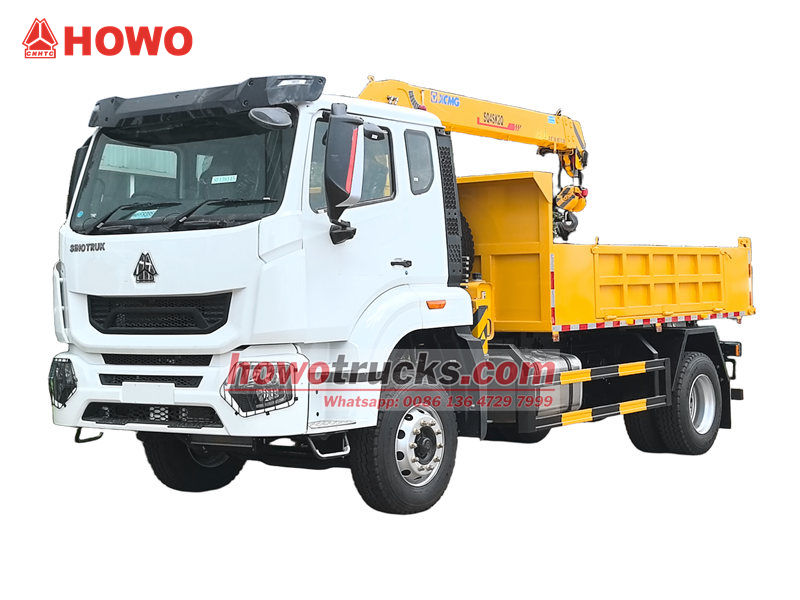

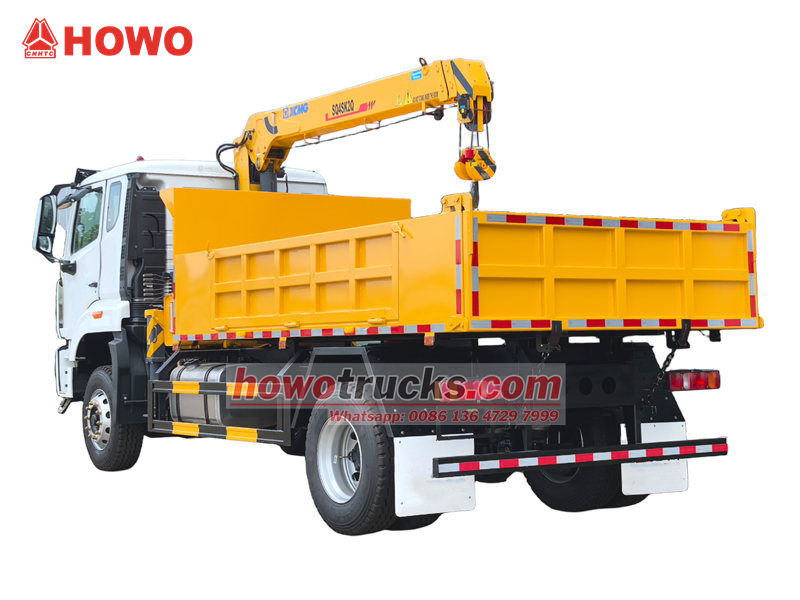

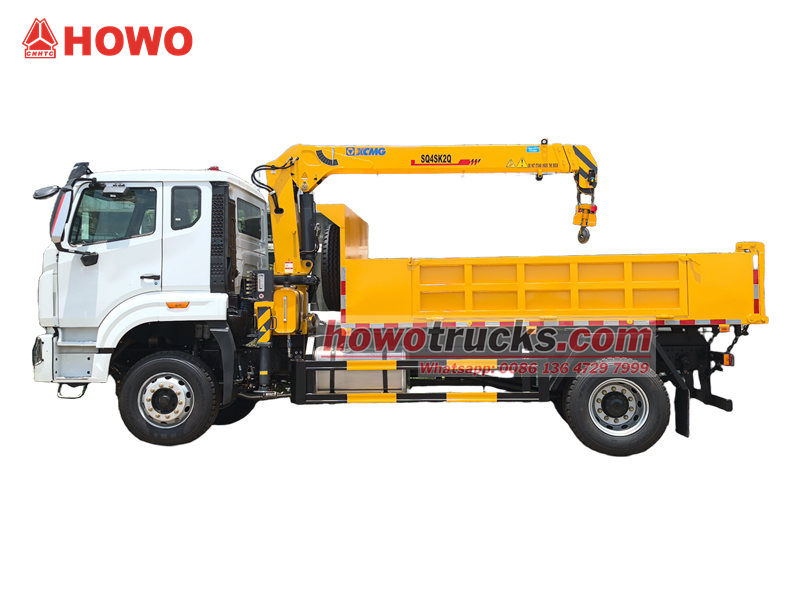

Howo RHD single axle 4 ton lift boom truck

The Howo single-axle 4-ton lift boom truck is a versatile construction vehicle. Equipped with a telescopic crane, it boasts a high lift height, a wide operating range, and flexible operation, making it easy to load, unload, and transport cargo. Furthermore, the truck bed features a self-dumping function, enabling rapid material dumping via a hydraulic system, significantly improving transport and unloading efficiency.

The Howo single-axle 4-ton lift boom truck boasts a compact structure and a wide range of applications. It can handle material handling on construction sites and is also suitable for transporting and unloading bulk materials such as sand, gravel, and earth. This versatile, economical and practical vehicle offers multiple uses.

The Howo truck with a 4-ton crane lift boasts exceptional load capacity and structural strength, with a maximum lift capacity of 4 tons and a lifting torque of 10 tonnes. Its hydraulic system boasts a flow rate of 25 L/min, a deadweight of 1,271 kg, and 360° rotation, enabling flexible operation in diverse environments, including construction sites and docks.

The vehicle is equipped with sturdy outriggers and a robust chassis, along with multiple safety features such as overload protection and limiters, ensuring simple, efficient operation and enhanced safety.

●The Howo single axle 4 ton lift boom truck is built on the HOWO 4×2 RHD chassis with a 4600mm wheelbase and fitted with seven 295/80R22.5 tires.

●It comes powered by a 300HP WEICHAI WP10.300E22 engine paired with a HW13710 10-speed transmission, delivering stable performance and reliability.

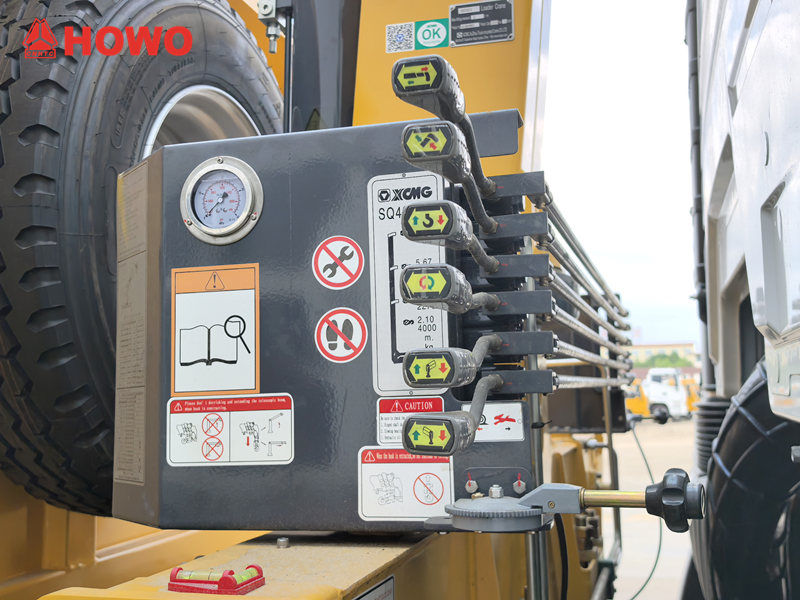

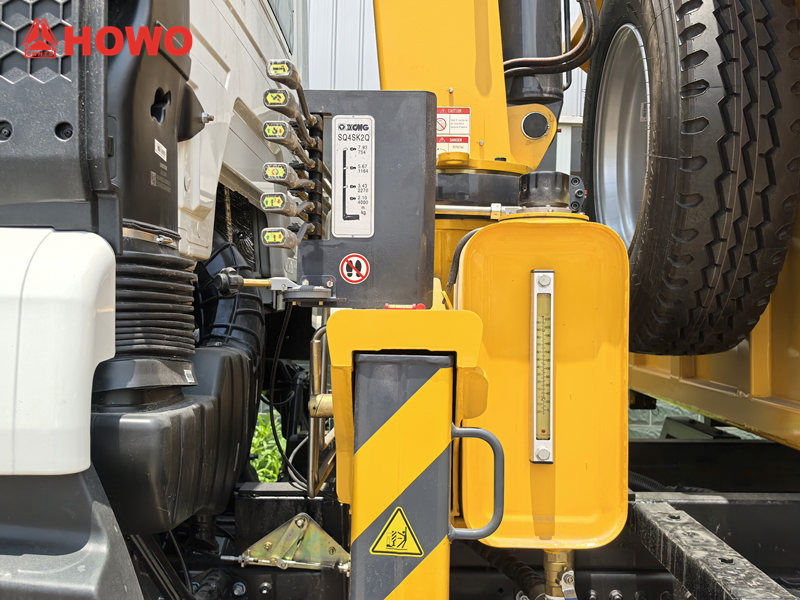

●The vehicle features a 3800×2400×450mm cargo body and is equipped with an XCMG SQ4SK2Q crane capable of lifting up to 4 tons. The crane is controlled via manual hydraulic levers located on both sides, allowing smooth operation of the outriggers as well as the extension, retraction, and rotation of the boom for efficient handling of loads.

HOWO single axle 4ton truck mounted crane
Overall Dimension		7200x2500x3350mm
Gross Vehicle Weight		18000(Kg)
Curb Weight		9500(Kg)
Chassis Specification
Chassis Brand		HOWO
Drive model		4x2,RHD

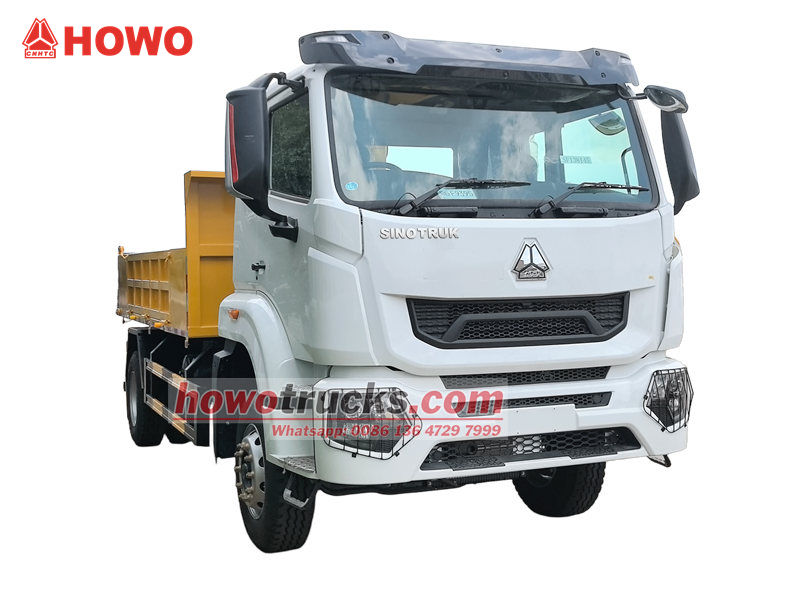

Cabin		HOWO NX cabin,2 seats with a sleeper, with air conditional
Engine	Model	4-stroke direct injection, 6-cylinder in-line turbocharger, inter-cooling
	Type	WEICHAI WP10.300E22
	Power	221KW/300HP
	Displacement	9.726L
	Rated speed	1900rpm
	Fuel type	Diesel
Gearbox		HW13710, 10 forward gears, 2 reverse gears
Brake System		Air brake
Wheel Base		4600mm
Tire		295/80R22.5, 6+1 pcs
Superstructure Specification
Cargo Body	Dimension		3800×2400×450mm
	Material		Q235 carbon steel
	Cargo Thickness		Side 3mm, Bottom 4mm
Working System	Boom Type		Straight 3-Arm telescopic boom

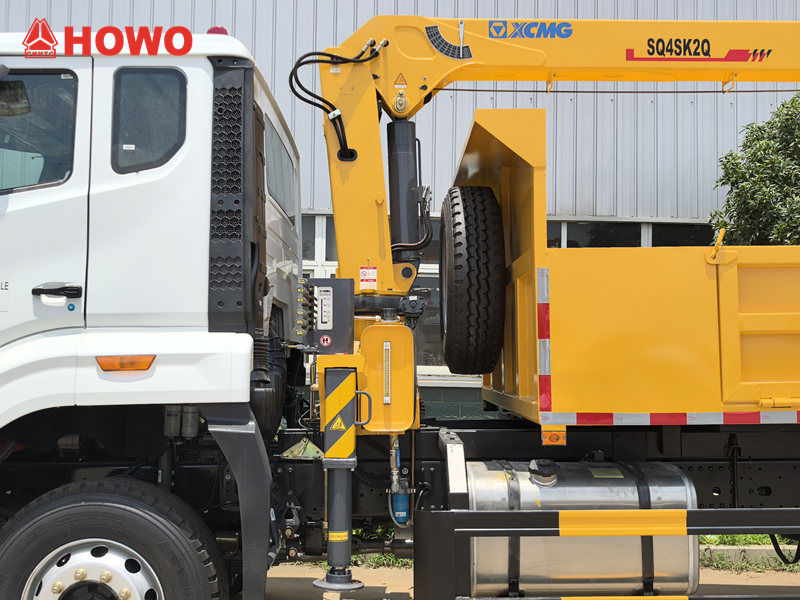

	Crane	Crane Brand	XCMG SQ4SK2Q
		Max Lifting Moment	10T.M
		Max Lifting Capacity	4000kg
		Maximum working radius	8.1m
		Max lifting height	10m
		Rotation angle	360°
		Installation space	850mm
		Maximum working pressure	20Mpa
		Crane weight	1271kg
	Oil tank capacity		30L



» .Product Details & Advantages:



1. Structure and Performance.

The Howo truck with a 4-ton crane lift features a telescopic boom crane with a large reach and wide operating radius, making it easy to lift a variety of heavy objects. Its built-in hydraulic system provides flexible operation, strong load capacity, and high lifting efficiency. The truck also features a dump function for quick material unloading, saving time and effort.



2. Materials and Safety Design.

The vehicle chassis is sturdy and durable, and the crane utilizes the XCMG SQ4SK2Q material, which offers excellent bending resistance and stability. Both the dump system and the hoisting system are equipped with overload protection and limiters to ensure safe and reliable operation. The stable outrigger structure effectively improves balance during operation, ensuring smooth loading and unloading.



3. Applications and Advantages.

The Howo single-axle 4-ton lift boom truck is particularly suitable for lifting steel, machinery, and bulk material at construction sites. It can also be used in municipal engineering, dock operations, and rural infrastructure development. Its "one vehicle, multiple uses" feature significantly improves vehicle utilization, meeting both cargo lifting needs and achieving efficient transportation and unloading, making it a truly economical and practical multi-functional work vehicle.

•
•
•
