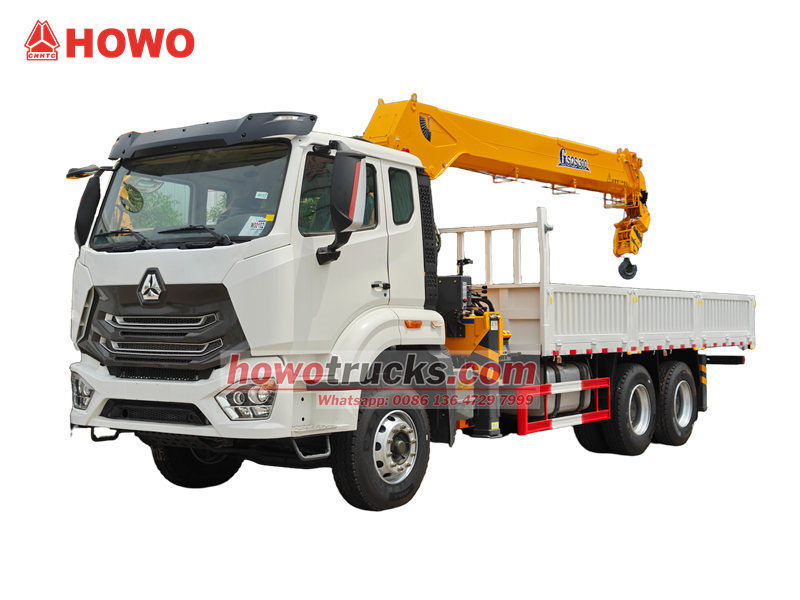

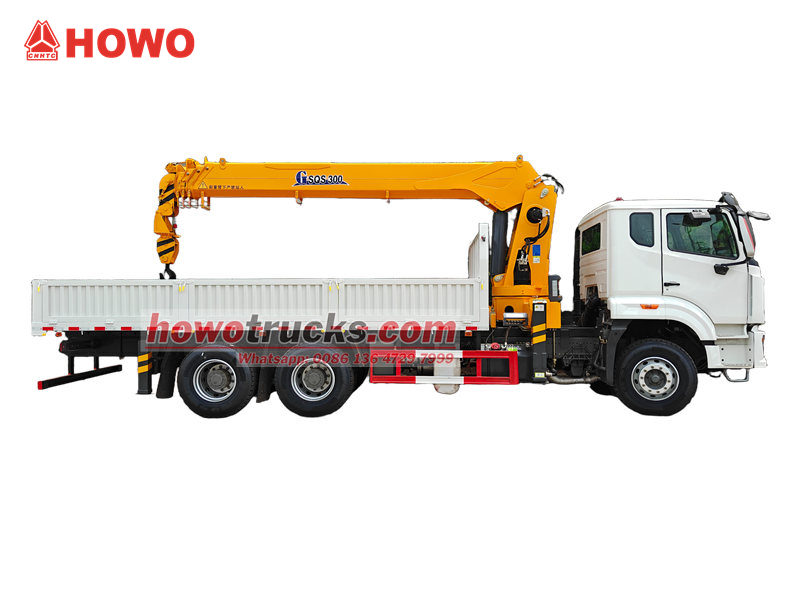

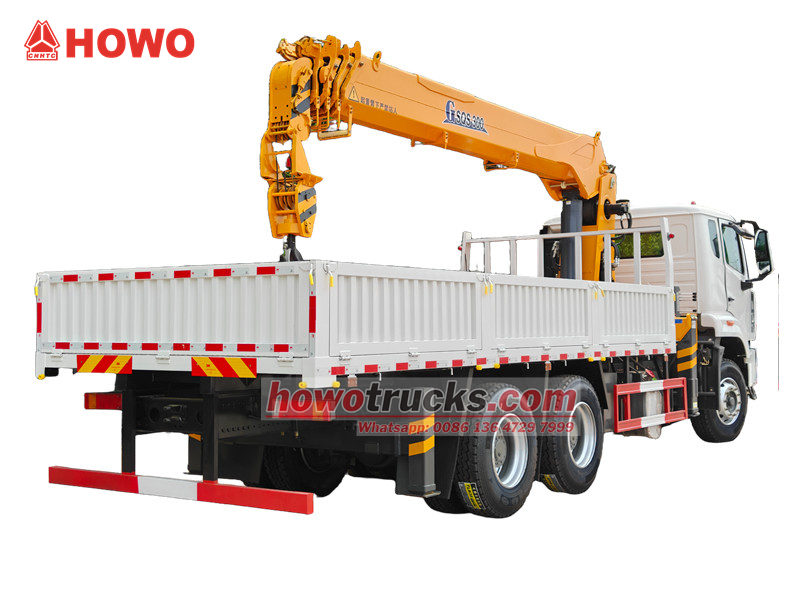

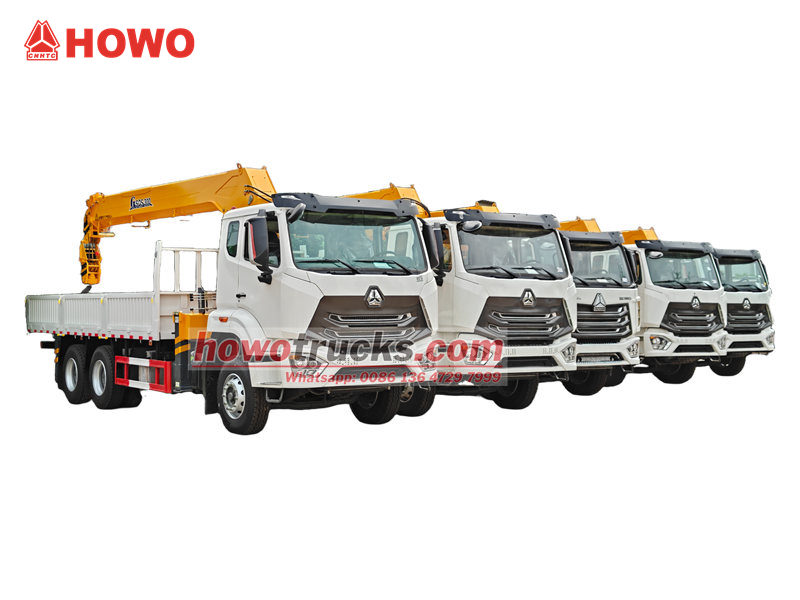

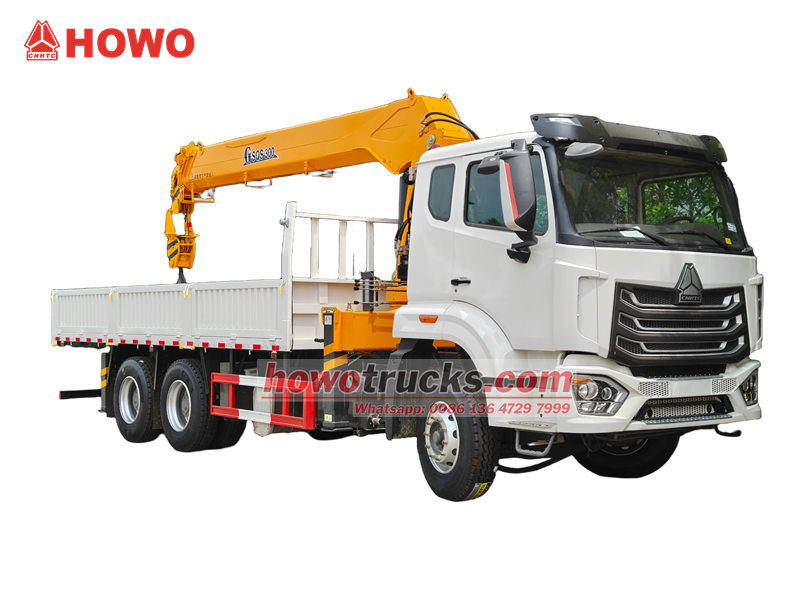

HOWO service truck with 20 tons crane

The HOWO service truck with a 20tons crane is a specialized vehicle that combines transport and lifting functions. Its telescopic boom features a large operating radius and strong lifting capacity, making it suitable for a variety of applications, including construction sites, logistics, and municipal engineering.

The HOWO service truck with a 20tons crane offers flexible loading and unloading, easy operation, and safety and reliability. It not only enables self-loading and unloading of cargo, but also meets short-distance lifting needs, significantly improving transportation and construction efficiency.

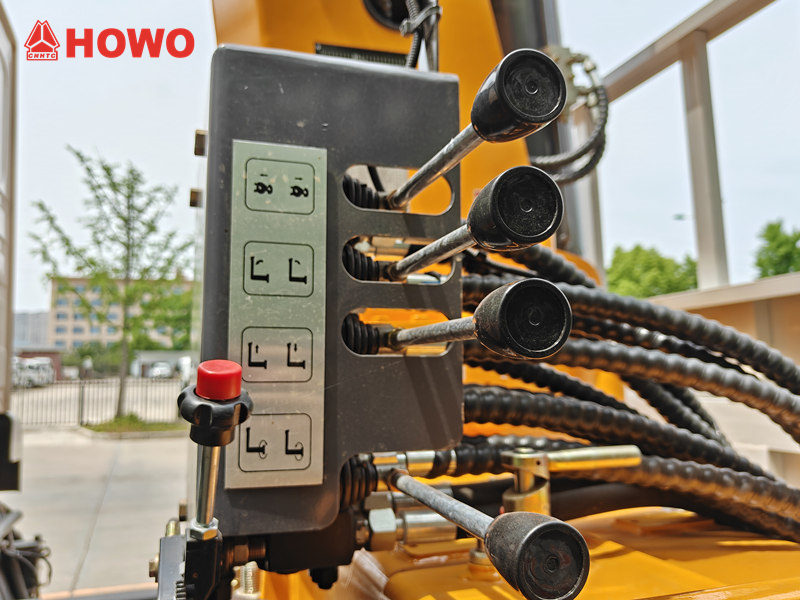

The HOWO service truck with 20 tons crane is modified on the HOWO NX chassis, wheelbase of 4600+1400mm, 12.00R20 tires with totally 11 pcs, It is equipped with a WEICHAI WP10.380E22 380HP engine and a HW19710 10-speed gearbox,ZF8118 steering gear. The upper part is a 6500×2300×450mm cargo box, It is equipped with a 20-ton crane, which can be operated by manual hydraulic levers on both sides to control the extension and retraction of the outriggers and the slewing of the crane.

HOWO service truck with 20 tons crane also called Howo truck with 20 Ton crane lift, Howo 10 wheels telescopic crane truck, Howo 6x4 hydraulic crane truck, Howo 20tons truck mounted crane, Howo lorry mounted crane,etc.

The optional tonnage of is 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, and 30 tons. The crane can For selection, you can choose a straight arm or a folding arm crane.

The Howo truck with a 20-ton crane lift consists of a boom, slewing platform, frame, and outriggers. Operations are accomplished through the coordination of mechanisms such as luffing, telescoping, slewing, and hoisting, enabling flexible and efficient lifting and hoisting operations.

The vehicle is equipped with intelligent safety systems, including overload protection, torque limiters, and a real-time monitoring display, effectively ensuring operational safety. Optional attachments, such as grabs and hanging baskets, are also available to adapt to diverse working conditions, enhancing the equipment's applicability and operational capabilities.

Howo truck with 12Ton crane lift
Overall Dimension		9850x2500x3350mm
Gross Vehicle Weight		25000(Kg)
Curb Weight		12500(Kg)
Chassis Specification
Chassis Brand		HOWO
Drive model		6x4,LHD
Cabin		HOWO NX cabin,2 seats with a sleeper, Left Hand Driving, with air conditional
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling
	Type	WEICHAI WP10.380E22
	Power	279KW/380HP
	Displacement	9.726L
	Max torque	1600N.m
	Rated speed	2200rpm
	Fuel type	Diesel
Gearbox		HW19710, 10 forward gears, 2 reverse gears
Brake System		Air brake
Wheel Base		4600+1400mm
Tire		12.00R20, 10+1 pcs
Superstructure Specification
Cargo Body	Dimension		6500×2300×450mm
	Material		Q235 carbon steel
	Cargo Thickness		Side 3mm, Bottom 4mm
Working System	Boom Type		Straight 5-Arm telescopic boom
	Crane	Crane Brand	SQS500
		Max Lifting Moment	50T.M
		Max Lifting Capacity	20000kg
		Maximum working radius	23.6m
		Max lifting height	25.6m
		Rotation angle	360°
		Installation space	1300mm
		Maximum working pressure	26Mpa
		Crane weight	7100kg
	Oil tank capacity		260L



» .Product Details & Advantages:

1. Sturdy Structure, Reliable Performance

●The HOWO service truck with a 20-ton crane consists primarily of a HOWO chassis, cargo box, and telescopic boom. The boom is constructed of high-strength steel, offering excellent bending and torsional resistance, ensuring stability even under high loads.

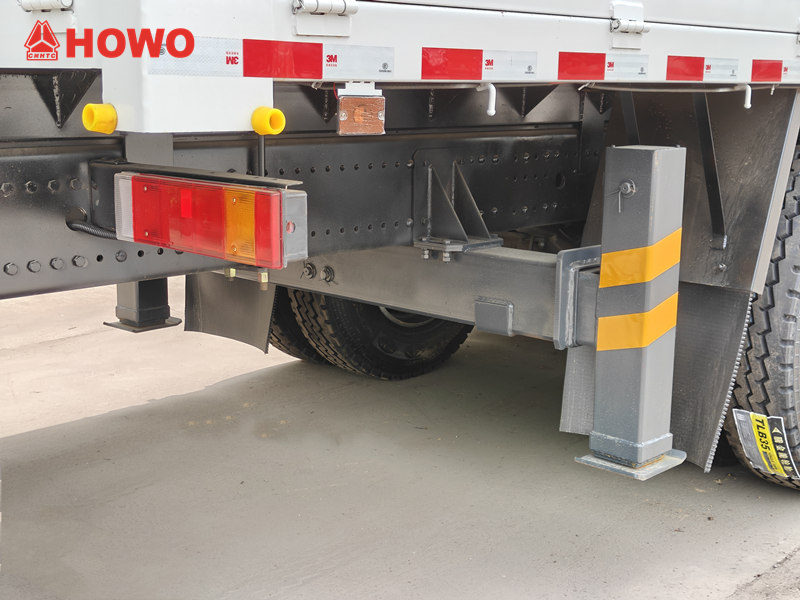

●The telescopic boom features a simple structure and smooth operation, offering a wide lifting radius and high lifting capacity, adapting to various height and distance requirements. Furthermore, the robust outrigger structure effectively enhances overall vehicle stability during operation, ensuring safe and reliable lifting.

2. Flexible Operation and High Safety

The Howo truck with a 20-ton crane lift utilizes a hydraulic system to extend, lower, and rotate the boom. Its operation is easy and responsive, allowing drivers or operators to master the process quickly. The truck is equipped with intelligent safety features such as overload protection, a torque limiter, and a real-time monitoring system that automatically detects operating status and issues warnings during operation to prevent potential hazards.

3. Wide Applications and Significant Economic Benefits

●The HOWO service truck with a 20-ton crane combines freight and lifting functions, enabling self-loading and unloading of cargo without the need for additional lifting equipment, significantly improving operational efficiency.

●It is highly effective in municipal construction, building material transportation, power maintenance, and emergency rescue operations.

●This model can be equipped with a variety of optional attachments, such as a grab bucket and hanging basket, to meet diverse operating conditions, expanding its scope of use.

•
•
•
