HOWO 30000 liters aviation refueler truck

HOWO 30000 liters aviation refueler truck

HOWO 30000L Aircraft Refueling Truck is a specialized aviation fuel support vehicle designed for airports. Built on an 8×4 heavy-duty chassis, it features a 30,000-liter aluminum alloy fuel tank and a 400-horsepower engine, enabling rapid mobility. Equipped with a self-priming centrifugal pump, hydraulic hose reel, and a precision flow control system, it efficiently performs aircraft refueling and fuel transfer operations. Suitable for both civil and military aircraft, the vehicle complies with aviation safety standards.

  • Working capacity :

    30000 liters
  • Cabin type :

    HOWO HW76 cabin, with A/C
  • Drive system :

    8×4
  • Wheelbase ( mm) :

    1800+3000+1400
  • Engine specific :

    400HP/WP12.400E32
  • Gear box :

    HW19710, 10 Forward & 2 Reverse
  • Front axle ( Kg ) :

    7000×2
  • Rear axle ( Kg ) :

    16000×2
New Products

HOWO Aircraft Refueling Truck is a specialized vehicle used at airports to provide fueling and defueling services for aircraft. Integrating refueling and fuel transport capabilities, it can move quickly across airport grounds. This refueling truck is built on a HOWO 8×4 chassis and, in addition to its rear-mounted 30,000-liter aviation fuel tank, features high-capacity fueling equipment capable of servicing both civilian and military aircraft.

As a versatile ground support unit, the HOWO Aircraft Refueling Truck is equipped with a DN65 hydraulic hose reel (flow rate: 850–1200 L/min) and a 50# fueling nozzle with a flow meter, allowing it to accommodate different aircraft models. Precision instruments such as hydraulic pressure gauges, differential pressure meters, and high-level control valves ensure accurate fuel delivery, meeting the stringent safety requirements of civil and military aviation. The vehicle also includes professional configurations like explosion-proof control boxes and closed-circuit samplers, adhering to the high standards of aviation fuel operations.

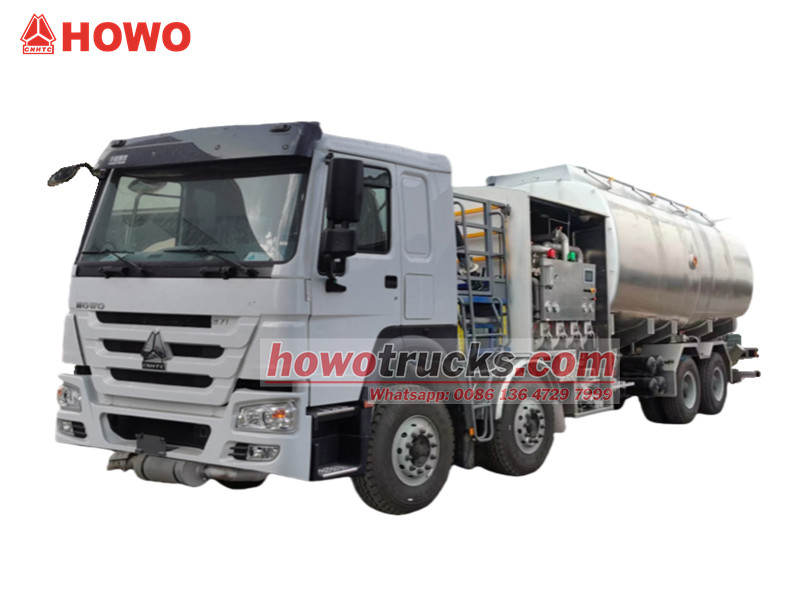

HOWO 12 wheeler aircraft refueling truck



*HOWO 8×4 Aircraft Refueler Truck

 SINOTRUK HOWO Aviation Refueling Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



☑ Ⅰ Product Defination and Introduction



Manufacturer: CS TRUCKS



Features of HOWO Aviation Refueler Truck:



★ Advanced, efficient, and safe refueling control operating system.
★ Reliable and comprehensive interlock protection system.
★ Stable hydraulic lifting platform with full emergency functionality.
★ Internationally certified critical components are used.
★ Precision metering instruments and fully optimized fuel pumping system.



☑ Ⅱ Product Parameter for HOWO aircraft jet refueler truck



HOWO 30000L Aviation Refueling Truck Specifications

Description

Howo Aircraft Refueling Truck

Drive Model

8×4, left hand drive

Fuel Type

Diesel oil

Cab

HOWO HW76 Cab

Total weight

35000kg

Axle

VGD95/MCP16ZG

Vehicle Main Dimensions

Dimensions (L x W x H) mm

12640x2580x3800

Wheelbase (mm)

1800+3000+1400

Max. driving speed

85 km/h

Engine

Model

WP12.400E201

Horse Power(HP)

400

Emission standard

Euro II

Transmission

HW19710, 10-speed forwards, 2-speed reverse

Tire

12.00R20, 12+1 pcs

Fuel tank

400L

Specification of upper body

Tank capacity

30000 liters

Tank material

Aluminum Alloy 5182

Tank Shape

Rectangular oval

Thickness of the tank

Tank 5.6mm/head 5.7mm/baffle 5.7mm

Tank Fittings

2 Units European Standard Inlet

Explosion proof lights

Coalescing separator (90F/hour)

Self-priming centrifugal pump (pump in and pump out) with auxiliary transmission shaft driving hydraulic station

6-inch float level gauge

HYJ-63X joint valve

Operating equipment box: remote magnetic switch

Hand throttle (including cylinder)

Venturi tube

High level control valve

Magnetic refueling controller

Dispenser Fittings

50# hydraulic reel 20m and gun (with flow meter); 500L/min

Special DN65 hydraulic reel 20 meters with aviation pressure stabilizing connector (with flow meter); 850-1200L/min

Four pressure gauges before (and after) filtering

Differential pressure meter

Venturi pressure gauge

Hydraulic pressure gauge

Others

Sampling before/after filter/effluent (closed circuit sampler); Sampling recovery cylinder; Protective net on tank roof; Movable guardrail; Ladder inside/outside the tank; Tool box/operation box; 2 pieces Mudguard





☑ Ⅲ Product Details & Features

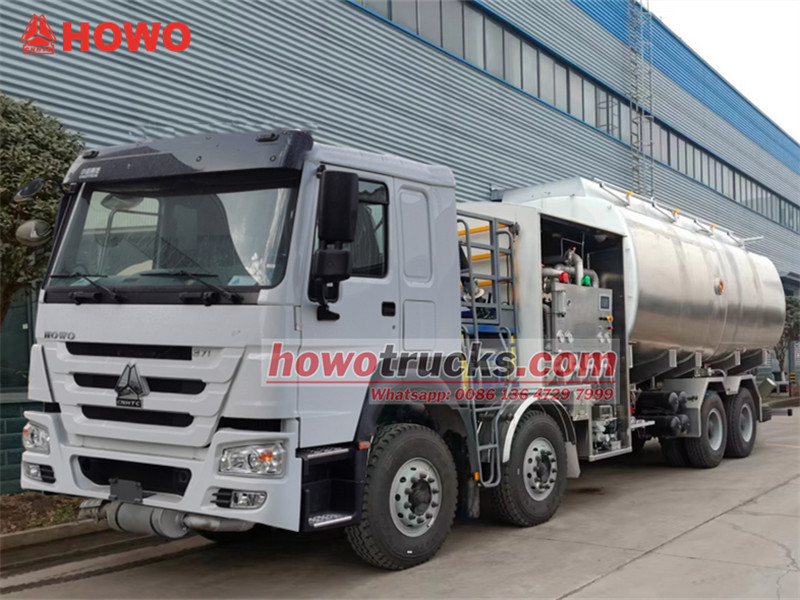

HOWO 30000L aviation refueling truck

Chassis: HOWO heavy-duty chassis, 8×4 left hand drive, 6×4, 6×6 and right hand drive is optional

Engine: WEICHAI 400HP diesel engine, Sinotruk WD615 series engine, 290HP, 340HP and 380HP for option

Cabin: HOWO HW76 classic cabin, 2 seats with one sleeper. HOWO NX, T7H, T5G cabin can be customized



HOWO 12 wheeler aviation jet refuler for sale

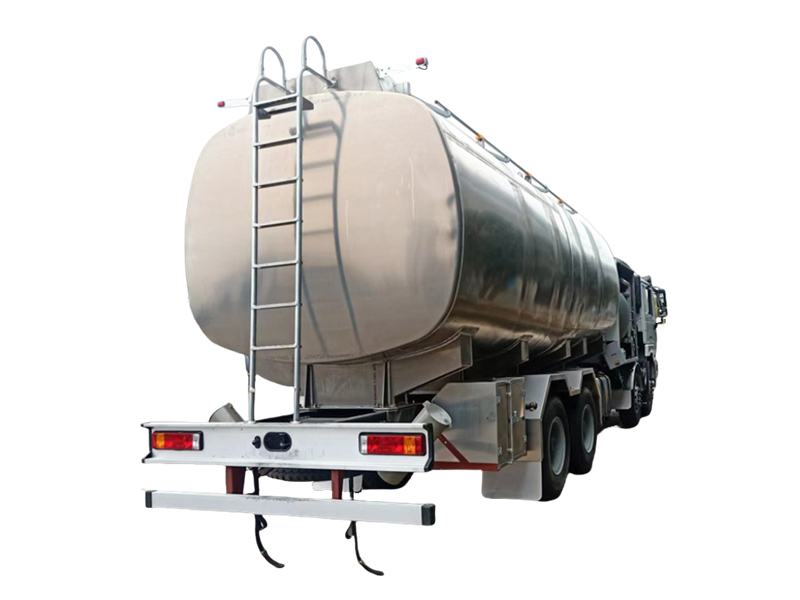

Tank body:

The tank is made of 5182 aluminum alloy, featuring lightweight design, large capacity, corrosion resistance, and pollution-free properties, ensuring high-quality fuel preservation.

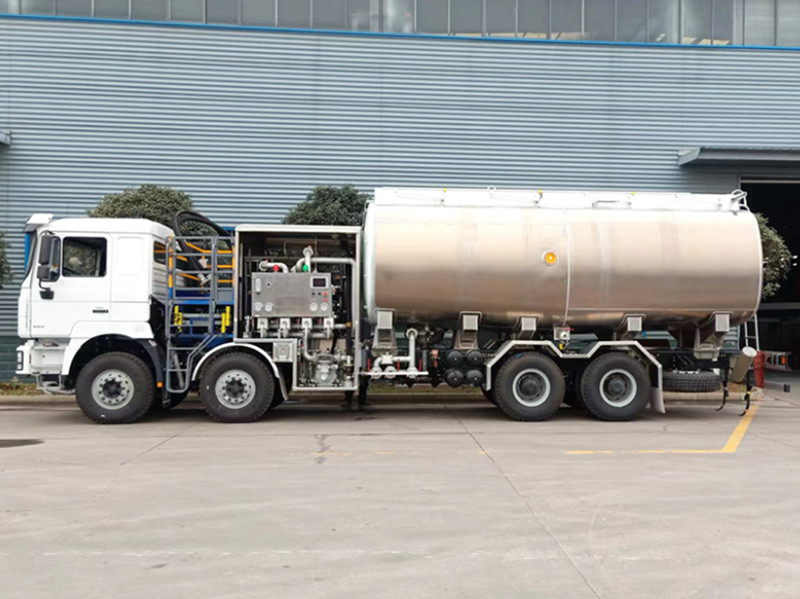

HOWO 6×4 aircraft refueler truck

Aluminum alloy manholes:

The fuel tank is equipped with two European-standard (EN) aluminum alloy explosion-proof manholes, ensuring enhanced safety, airtight integrity, and easy maintenance access.

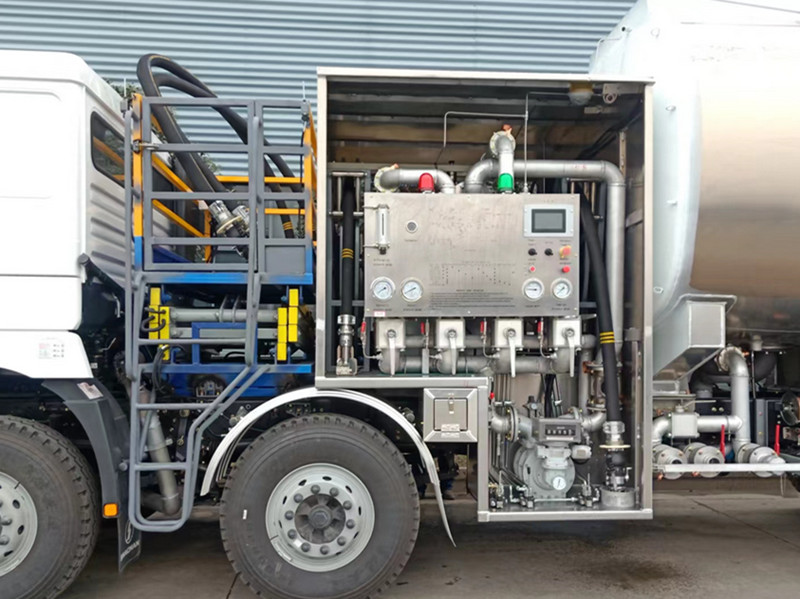

HOWO 8×4 jet fuel tanker truck for sale

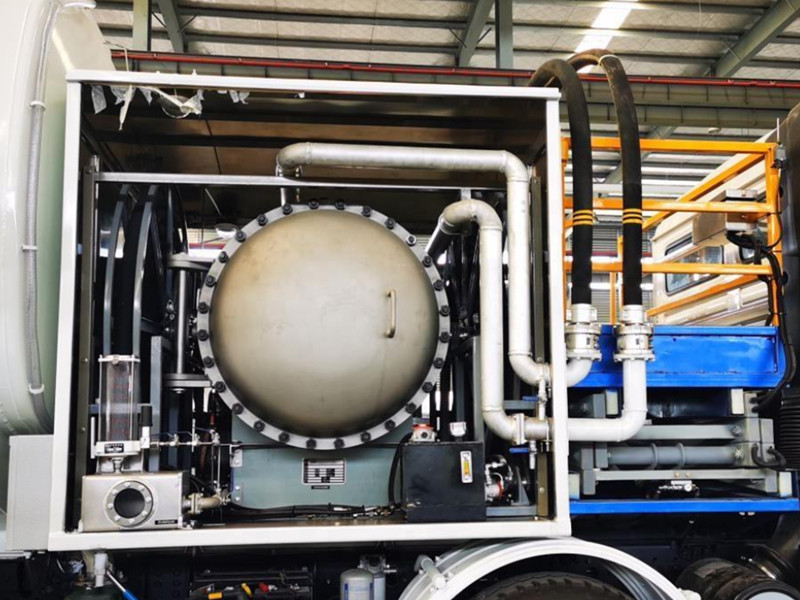

Operating system:

The HOWO aircraft refueling truck features an operating system integrated in an independent control room, where instrument indicators monitor the oil pump status, vacuum pressure, and fuel filtration efficiency. The hose reel with fueling nozzle delivers precise fuel injection into aircraft tanks through flexible hoses, while the pumping and filtration system enables circulating purification of the fuel.

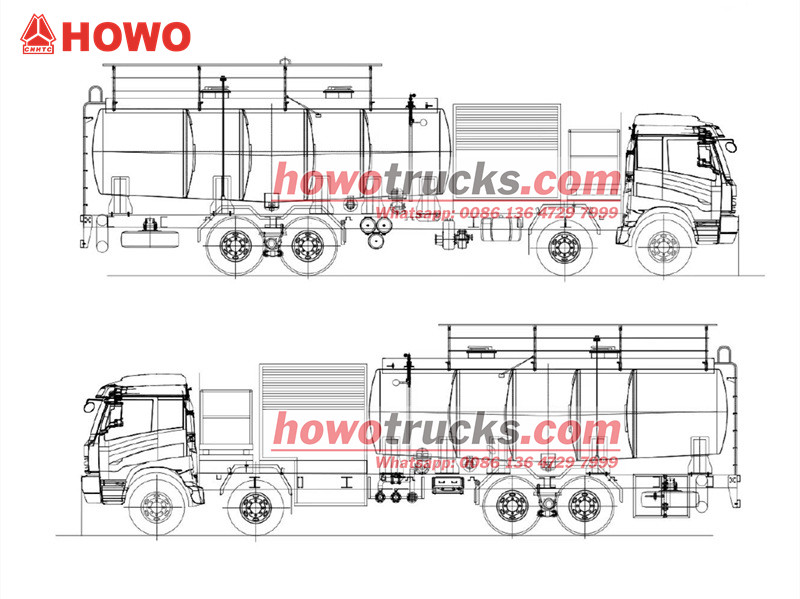

★ Product Drawing

HOWO aviation refueler truck drawing

Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

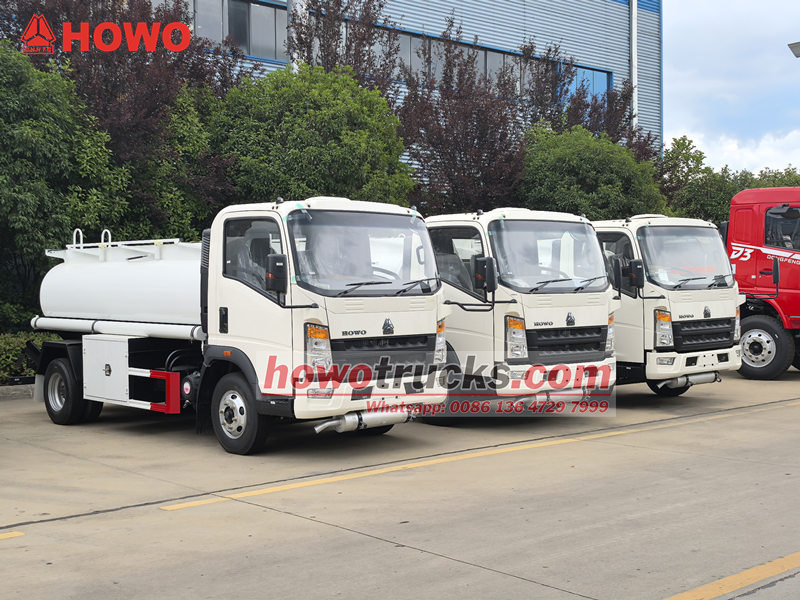

HOWO fuel tanker truck for export

SINOTRUK HOWO refueling trucks ready for delivery

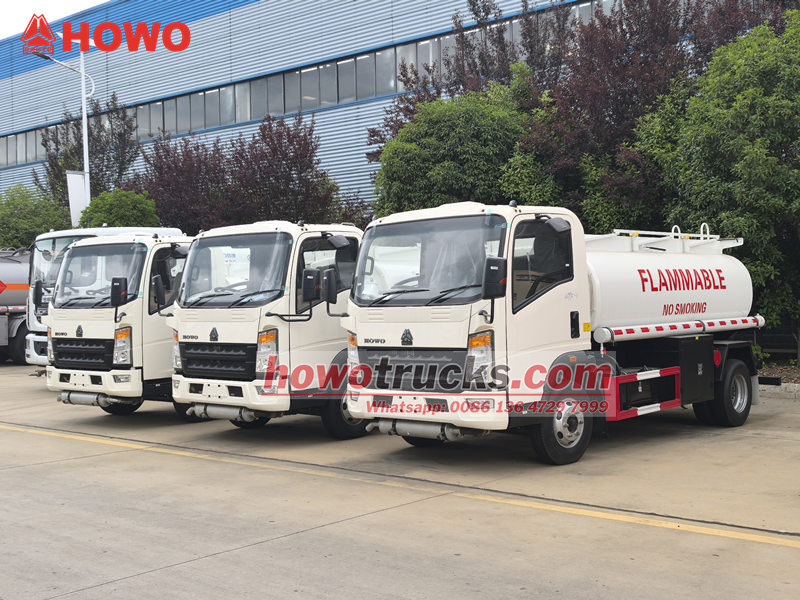

HOWO oil tanker trucks for sale

SINOTRUK HOWO refuel dispenser trucks for export
