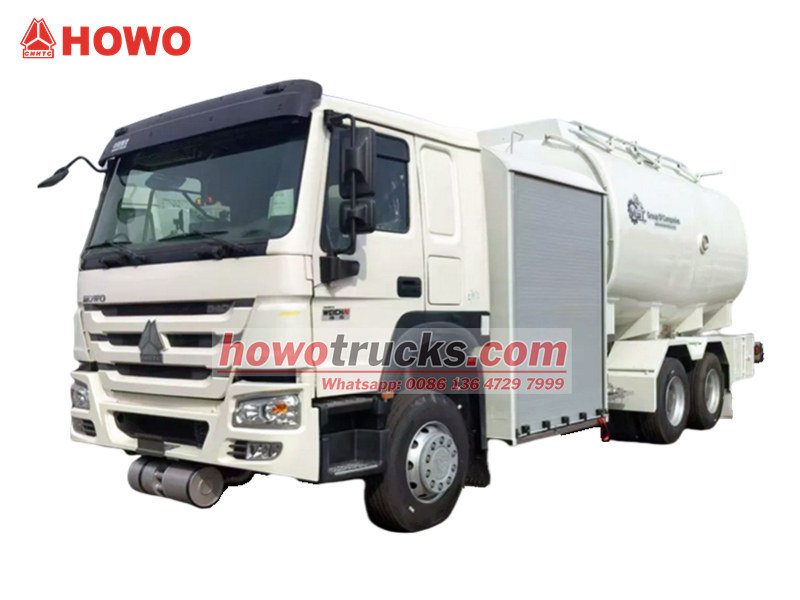

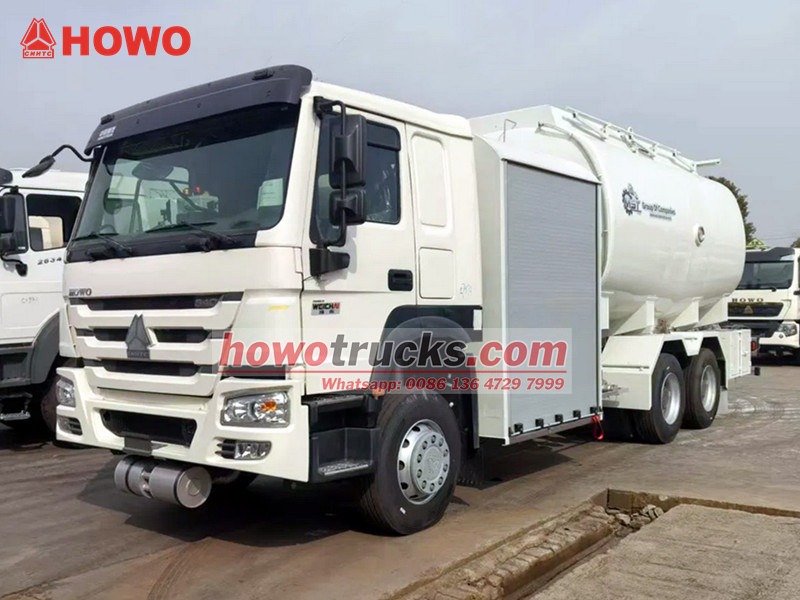

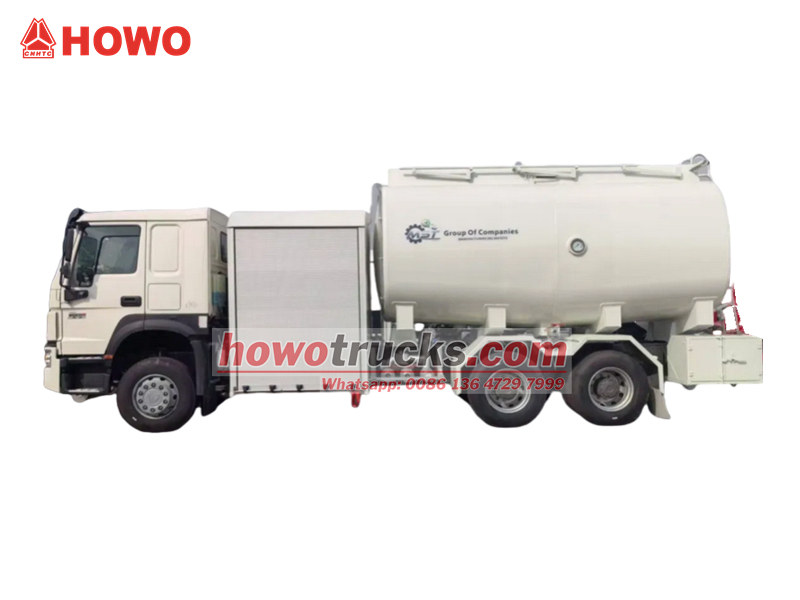

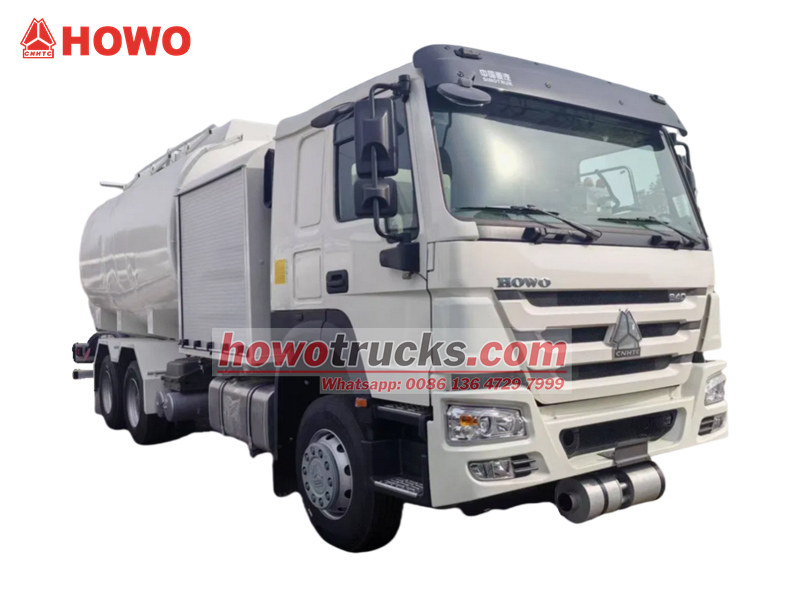

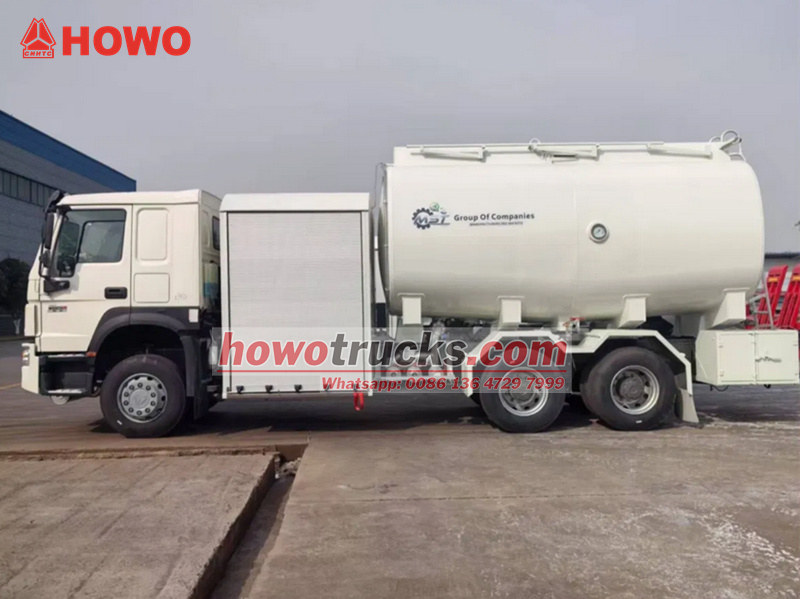

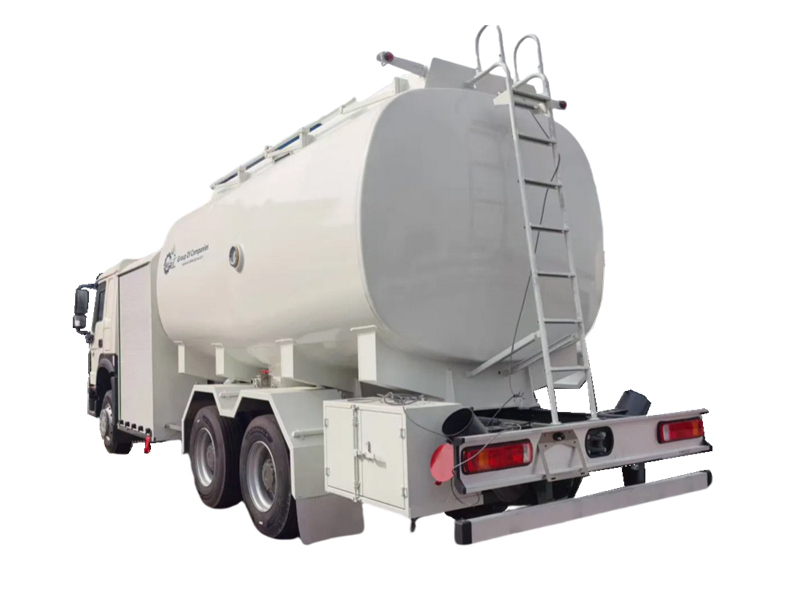

HOWO 20000L Aircraft Refueling Truck is a highly efficient and professional aviation ground support vehicle. Built on a robust HOWO 6×4 heavy-duty chassis and powered by a 400HP Weichai engine, it has strong and reliable performance. The upper structure features a 20-cubic-meter aluminum alloy fuel tank, equipped with a 1200-1500L/min self-priming centrifugal pump, a high-precision filtration system, and a dual-mode refueling system supporting both pressure refueling and gravity refueling. The intelligent control system, multi-layered safety protections, and explosion-proof design ensure safe and efficient aviation fuel delivery, meeting the stringent operational requirements of modern airports. It is an ideal choice for aviation fuel refueling operations.
Working capacity :
20000 litersCabin type :
HOWO HW76 cabin, with A/CDrive system :
6×4Wheelbase ( mm) :
4600+1350Engine specific :
400HP/WP12.400E32Gear box :
HW19710, 10 Forward & 2 ReverseFront axle ( Kg ) :
7000Rear axle ( Kg ) :
16000×2HOWO 20000L Aircraft Refueling Truck is a specialized aviation ground support vehicle built on HOWO 6×4 heavy-duty chassis. It is equipped with a 400HP Weichai engine and a 10-speed transmission, ensuring stable load-bearing capacity and maneuverability. The upper body consists of a 20-cubic-meter aluminum alloy fuel tank, equipped with a 1200-1500L/min self-priming centrifugal pump, a 5-micron filtration and separation system, and a dual-mode refueling system (pressure refueling by DN63 hydraulic hose reel and gravity refueling by DN38 fuel nozzle), enabling efficient aviation fuel delivery. The vehicle incorporates a Deadman control system, pressure control valves, and a magnetic-controlled refueling programmer, ensuring full-process safety management through aviation pressure-stabilized couplings, fuel vapor recovery interfaces, and explosion-proof electrical equipment.
As a modern airport-specific vehicle, the HOWO Aviation Refueling Truck integrates a mechanical-recording flow meter, visual liquid level instrumentation, and a three-stage purification system, supporting high-precision fuel measurement and impurity filtration. Additional features include a hydraulically driven hose reel, a four-way flexible hose, and front/rear sampling valves, complying with international API operational standards. Its modular design ensures stable pressurized fuel delivery and gravity replenishment, with a 25-meter pressurized hose and a 20-meter gravity nozzle catering to various aircraft service scenarios. The anti-static interlock system and firefighting equipment fully comply with the strict safety regulations for aviation fuel operations.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※※ Ⅰ Product Defination and Introduction
Manufacturer: CS TRUCKS
Key Features of HOWO Aircraft Refueling Truck:
▶ Stable Refueling Pressure – Equipped with pressure regulators, stabilizers, and precision pressure gauges on the fuel lines to ensure consistent and controlled refueling.
▶ High Fuel Purity – Features high-performance filtration systems (5-micron filtration/separation) and an aluminum alloy tank & piping to prevent contamination.
▶ Enhanced Safety – Includes anti-static devices, interlock control systems, explosion-proof electrical components, and fire extinguishers to meet strict aviation fuel safety standards.
▶ High-Precision, High-Flow Metering – Uses an accurate mechanical flow meter with large-capacity delivery (1200-1500L/min) for efficient and reliable fuel measurement.
▶ Large Fuel Capacity – The 20,000L aluminum tank allows for single-refueling operations, reducing downtime and improving efficiency.
※※ Ⅱ Product Parameter for HOWO diesel bowser truck
|
Product name |
Sinotruk HOWO 6*4 aircraft refueling truck |
|
|
Overall Dimensions (mm) |
9500*2500*3950 |
|
|
GVW (kg) |
25000 |
|
|
Tare Weight (kg) |
11500 |
|
|
Cab |
Sinotruk HOWO HW76, 2 seats and one sleeper bed, with A/C |
|
|
Driving mode |
6×4, left hand drive |
|
|
Front axle |
7 tons front axle |
|
|
Rear axle |
16 tons rear axle*2 |
|
|
Gearbox |
Sinotruk 10-speed gearbox |
|
|
Tires |
12.00R20, 11pcs with spare tire |
|
|
Front/rear overhang (mm) |
Front: 1500, rear: 2050 |
|
|
Leaf spring |
Front 10, rear 12 |
|
|
Number of axles |
3 |
|
|
Wheelbase (mm) |
4600+1350 |
|
|
Track (mm) |
Front: 2060, rear: 1860/1860 |
|
|
Engine model |
WP12.400E32 |
|
|
Emission standard |
Euro 3 |
|
|
Engine power |
400HP (294KW) |
|
|
Displacement |
11596 ml |
|
|
Fuel tank capacity |
400L |
|
|
Brakes |
Drum type |
|
|
Brake system |
Air brake |
|
|
Voltage |
24V |
|
|
Superstructure Specifications |
|
|
|
Number of compartments |
One compartment |
|
|
Tank |
Aluminum alloy 5182/head: 6mm, barrel: 6mm |
|
|
Tank volume |
20 cubic meters (20000 liters) |
|
|
Pipeline |
3-inch aluminum alloy pipe |
|
|
Wave-breaking plate |
3-4 pieces |
|
|
Loading and unloading safety valve |
3" loading and unloading safety valve/2 sets |
|
|
API interface |
Yes |
|
|
Emergency shut-off valve |
Yes |
|
|
Manhole cover |
With hatch/2 sets |
|
|
Breathing valve |
2 sets |
|
|
Lower oil loading device |
1 set |
|
|
Refueling pump |
Self-priming centrifugal pump (pump in and out) with auxiliary transmission shaft drive hydraulic station/1200-1500L/min |
|
|
Separate filter |
1 set/rated flow 1200-1500L/min, rated working pressure 1.0MPa, maximum allowable pressure difference 0.15 Mpa |
|
|
Filter element |
1-3 microns |
|
|
Control system |
Deadman control system/wired, 10 meters long |
|
|
Flow meter |
1500L/min /1 set/5-bit mechanical recorder |
|
|
Straight-through check valve |
1 set |
|
|
Venturi tube |
1 set |
|
|
Aviation pressure-stabilizing joint |
Pressure refueling/1 set/special DN63 hydraulic reel 25 meters with aviation pressure-stabilizing joint flow 1200-1500L/min |
|
|
Gravity refueling gun |
Gravity refueling/1 set/DN38 hydraulic reel 20 meters and gun flow 700L/min |
|
|
Differential pressure gauge |
1 set |
|
|
Pressure gauge |
4" /5 sets |
|
|
Drain valve |
3/4" retractable/6 sets |
|
|
Liter recorder |
1 set |
|
|
Display screen |
4" large red digital display/1 set |
|
|
Grounding device |
Static grounding rail with interlocking/2 sets |
|
|
Override system |
Override system inside and outside the cab |
|
|
Interlock signal light on control panel |
Yes |
|
|
PLC programmable logic control |
Yes |
|
|
Sensor |
Yes/16 |
|
|
Refueling reel |
Yes/2 sets/hydraulic chain drive |
|
|
Level gauge |
Stainless steel float in the tank, 3-inch aluminum alloy dial on the left side of the tank body, you can clearly observe the |
|
|
Connector valve |
(with oil and gas recovery connector, with four-position three-way) elastic soft connection |
|
|
Operating equipment box |
Remote magnetic control switch, hand throttle (including cylinder), pipe pressure control valve, venturi tube, high liquid level |
|
|
Sampler |
Sampling before/after filter/drainage (closed circuit sampler) |
|
|
Filter separator drain outlet sampling valve |
Yes |
|
|
Explosion-proof lamp |
Yes |
|
|
Walkway on top of tank |
Yes/longitudinal anti-slip |
|
|
Rainwater drainage device |
Yes |
|
|
Fire extinguisher |
Yes |
|
|
Ladder |
Yes/with anti-slip pedal |
|
|
Exhaust pipe |
Front |
|
|
Manhole |
1/DN500 |
|
※※ Ⅲ Product Details & Features

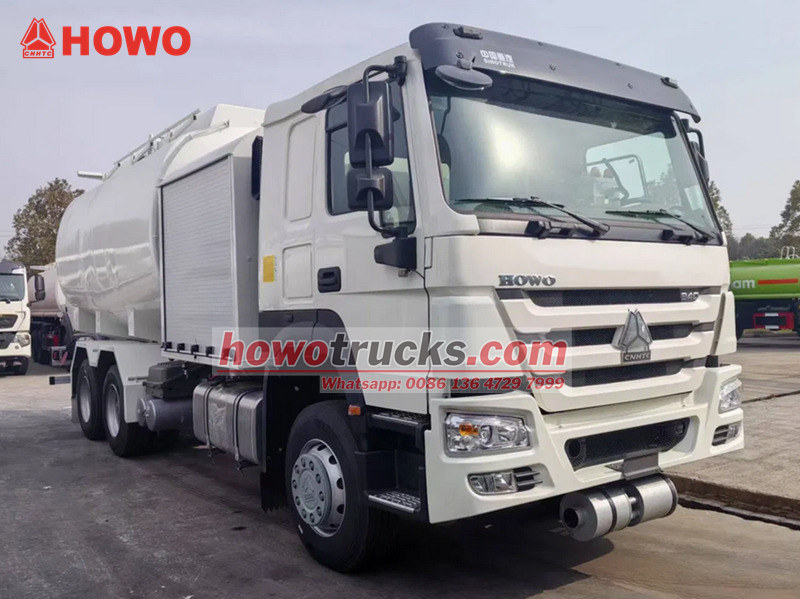

Chassis: SINOTRUK HOWO heavy-duty chassis, 6×4 left hand drive, 6×6 and right hand drive is optional
Engine: WEICHAI 400HP diesel engine, Sinotruk WD615 series engine, 290HP, 340HP and 380HP for option
Cabin: HOWO HW76 classic cabin, 2 seats with one sleeper. HOWO NX, T7H, T5G cabin can be customized

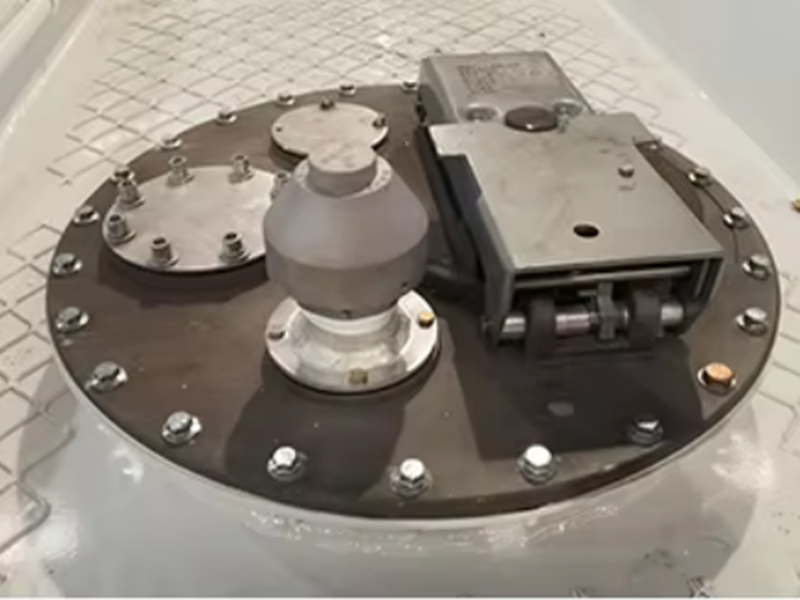

Aluminum alloy manholes:
The fuel tank is equipped with two European-standard (EN) aluminum alloy explosion-proof manholes, ensuring enhanced safety, airtight integrity, and easy maintenance access.

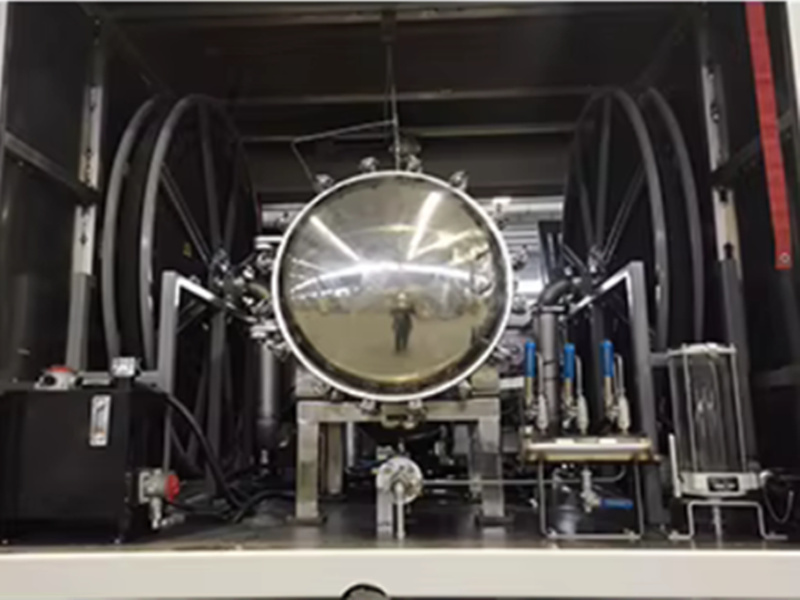

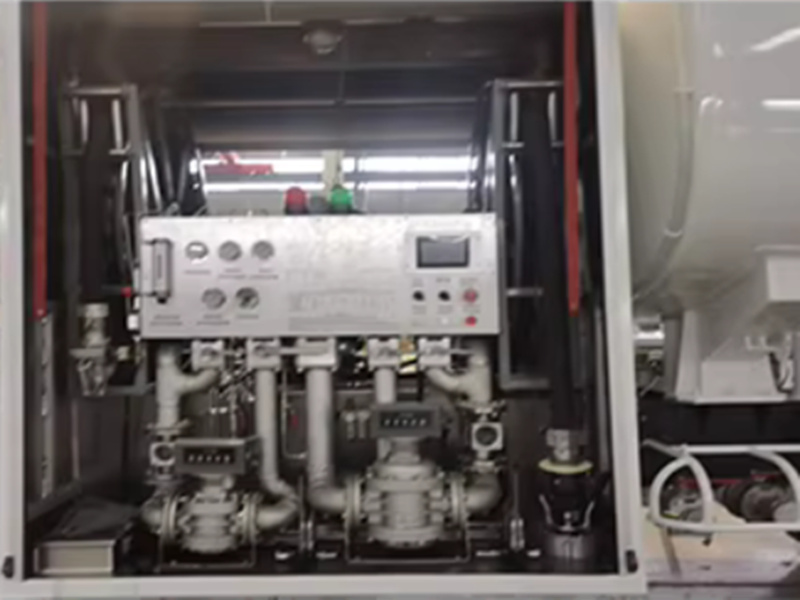

Operating system:
The HOWO aircraft refueler features an independent operation room with an integrated control system for safe and efficient refueling operations. The instrument indications include the pump inlet vacuum gauge, pump outlet pressure gauge, pump tachometer, and filter differential pressure gauge, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
