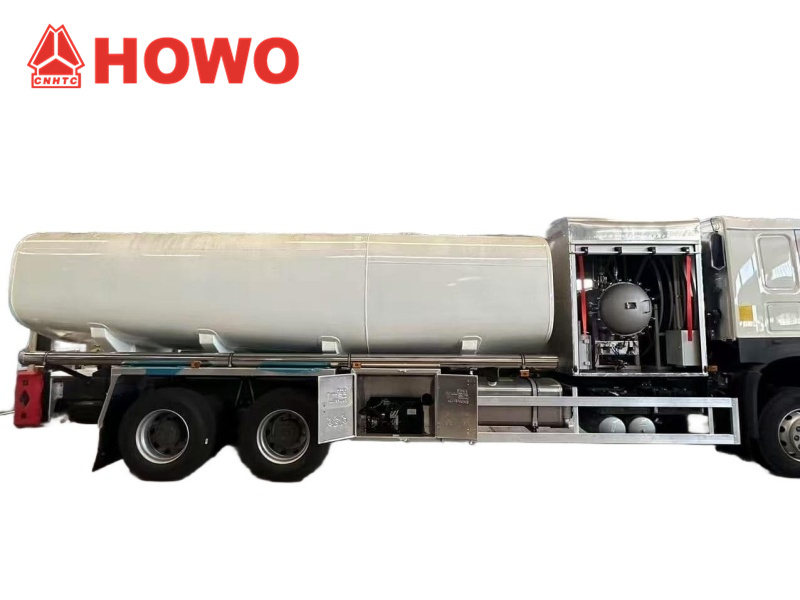

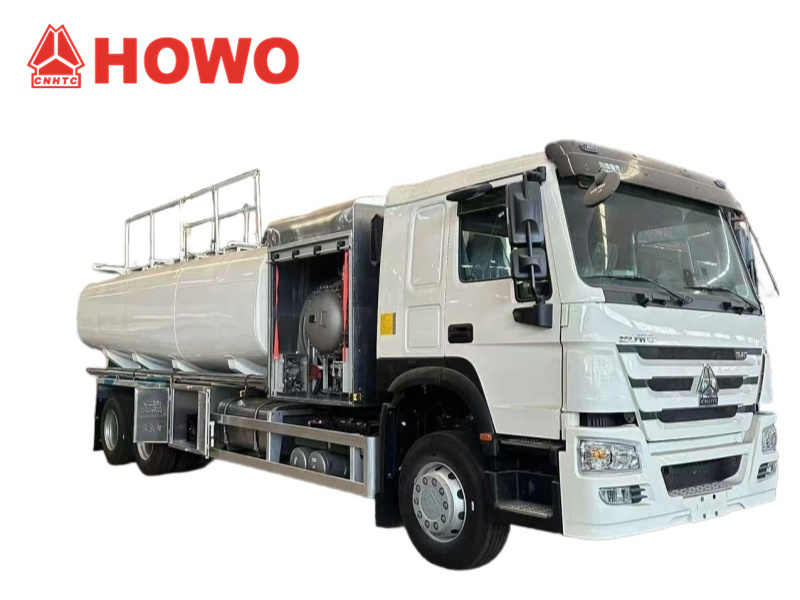

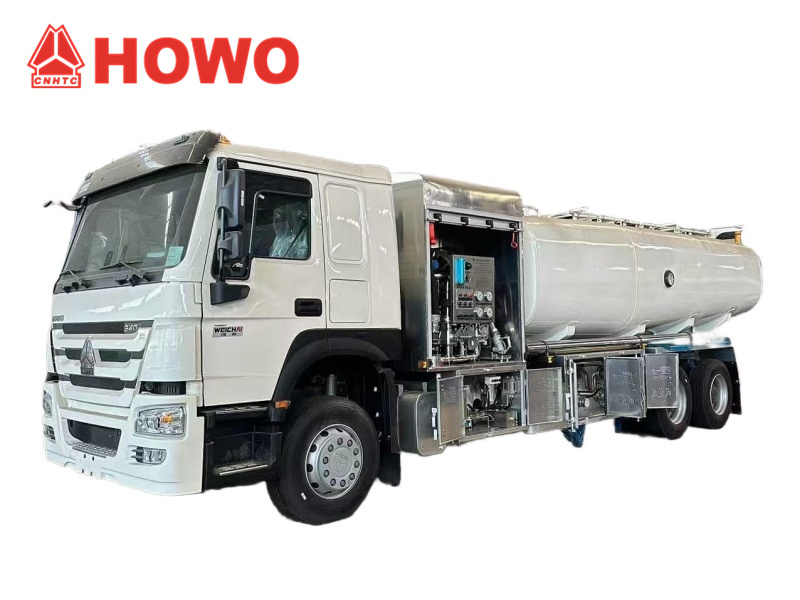

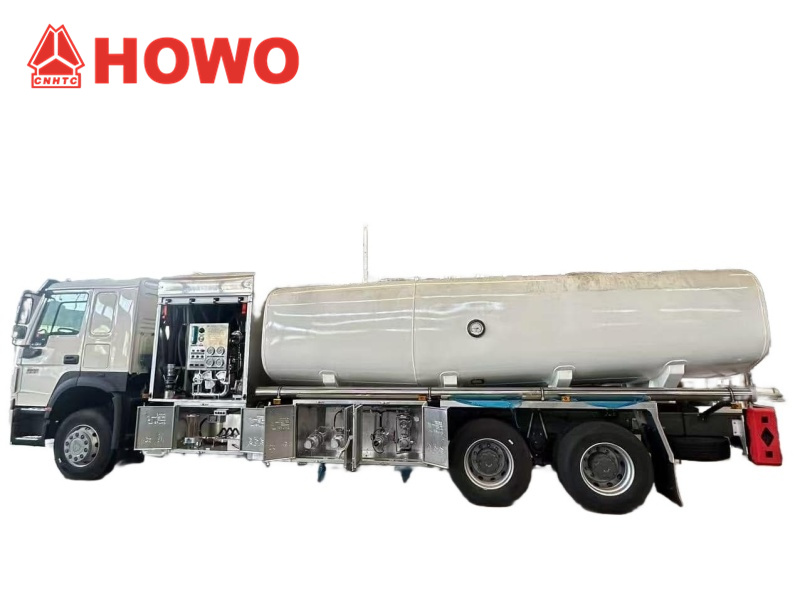

HOWO Jet A Refuelers Fuel Trucks

HOWO Jet A Refuelers Fuel Trucks, adopt Sinotruk HOWO HW76 new front face driving, flippable, with sleeper, high bumper (metal). VGD95 front axle (drum), MCX16ZG single rear axle (drum), speed ratio 4.803, HW19710 gearbox + HW70 flange type power take-off, Weichai 400HP engine.

All pipe networks and accessories of HOWO aircraft refueling trucks should be made of materials such as aluminum alloy, stainless steel, and low carbon steel whose inner surfaces are protected by hot-dip tin or lined with epoxy materials. Copper alloy, cadmium-plated, galvanized steel or plastic materials are not allowed to be used in the main pipeline. Other parts in contact with the fuel are not allowed to use copper-containing materials. Zinc, cadmium and their alloy materials containing more than 5% of zinc and cadmium are not used.

*HOWO 76 series 6x4 heavy duty dump Truck
HOWO 10 wheeler Rear Tipper Truck*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

»Ⅰ. Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED

Features

» Ⅱ. Product Parameter for HOWO 6x4 Jet A Fuel truck:

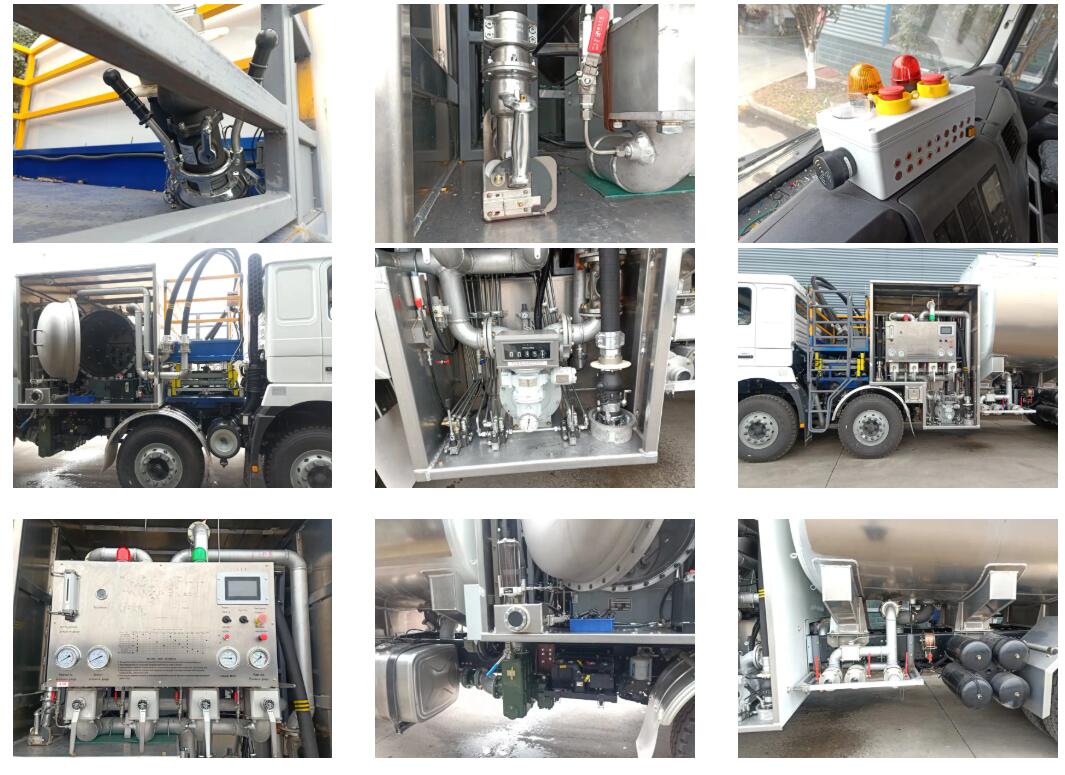

Upper configuration: Strictly made according to the announced volume of 8.4 cubic meters, made of Q235B board, with a cylinder thickness of 4.5mm, a head thickness of 5mm, a partition thickness of 4.5mm, a single compartment, one European standard tank mouth on the top of the tank, one subsea valve, equipped with a 76/40 dedicated oil pump (can pump in and out), a high flow refueling machine and a 15 meter thick reel and gun, a complete set of European standards, rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, made according to the new standard, standard for other manufacturers, providing chassis certificate, vehicle certificate, and customer invoice.

» Ⅲ. Product Details

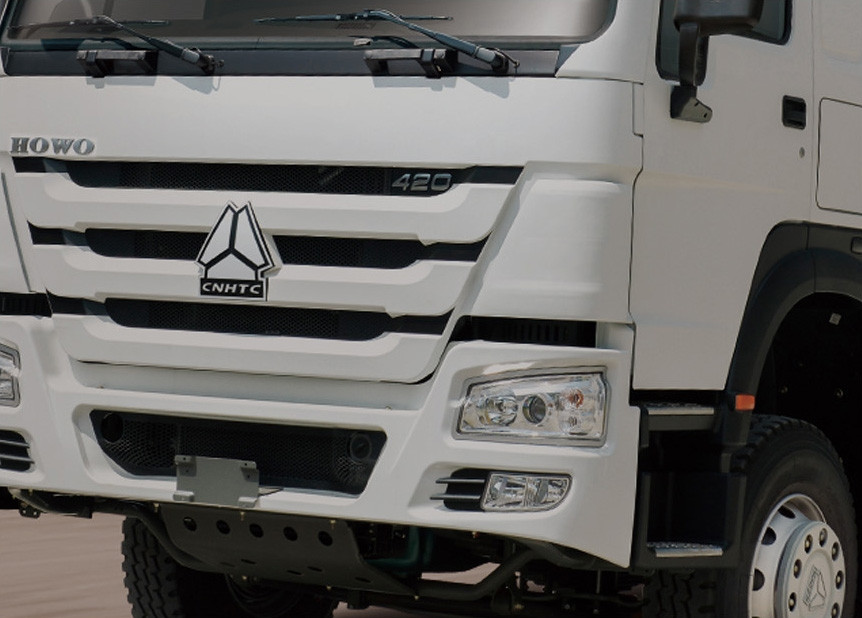

Cab

The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.



The three-level air intake grille makes the classic front mask more layered. Non-slip boarding pedals and 90° opening doors facilitate drivers getting on and off the vehicle.



Air Suspension Seat

The air suspension seat allows drivers to quickly find the optimal sitting position. The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver's feeling of suffocation caused by emergency braking during driving.

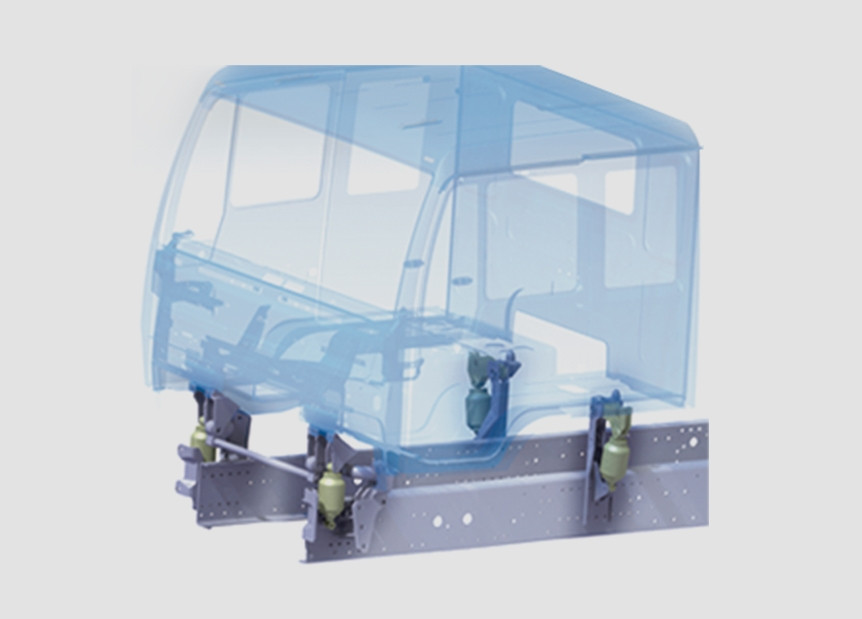

Four-Point Air Suspension

The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.

Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

» Ⅳ. Applicable Scenarios

HOWO Aviation fuel trucks (aerial refueling trucks howo) are critical ground equipment in the aviation sector, with applications spanning civil aviation, military aviation, and specialized scenarios, as follows:

1. Civil Aviation

Large Airports: Provide fuel refueling for passenger and cargo aircraft, efficiently operating through pressure refueling (approximately 1,500 liters per minute) to ensure normal takeoff and landing.

Small Airports/Temporary Operations: Small aerial refueling trucks provide flexible service for helicopters or light aircraft, suitable for remote areas without underground fuel pipelines.

2. Military Aviation

Military Airports: To meet the needs of rapid aircraft deployment, refueling trucks must operate reliably in complex environments. For example, the Kfz.385 refueling trucks used by the German Luftwaffe during World War II could simultaneously pump fuel for multiple aircraft.

Emergency Missions: Modified refueling trucks can provide fuel support for temporary military deployments.

3. Special Scenarios

Research/Exercises: Upon approval, refueling trucks may participate in aviation emergency drills or research projects. Temporary aviation operations: Small refueling trucks can provide fuel for temporary aircraft takeoffs and landings, such as during field exploration or disaster relief.

Technical Features and Expanded Applications

Large refueling trucks: Utilizing advanced chassis like the Mercedes-Benz Atego and equipped with a lane departure warning system, they are suitable for high-load operations.

Small refueling trucks: With their simple structure and flexible operation, they are suitable for mountainous or wilderness environments, offering low investment costs and high safety.

Although aviation fuel trucks are primarily used at airports, through technical adaptation and modification, their service scope has expanded to more scenarios, becoming a vital support for air transportation and emergency response.
