HOWO light 6000L fuel bowser truck

HOWO light 6000L fuel bowser truck

The Howo light 6000L mobile fuel bowser is the city special refueling tank truck. The Howo fuel tanker equipped with a YN4102QBZL model 4-cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 116HP. The gearbox is 5 front speeds and 1 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tnaker has strong power and good controllability, suitable for various road conditions oil transportation work.

  • Working capacity :

    6000 liters
  • Cabin type :

    HOWO 1880
  • Drive system :

    4×2
  • Wheelbase ( mm) :

    3500
  • Engine specific :

    116HP/YN4102QBZL
  • Gear box :

    WLY6TS55C
  • Front axle ( Kg ) :

    3600
  • Rear axle ( Kg ) :

    6000
New Products

The Howo light 6000L mobile fuel bowser is the city special refueling tank truck. The Howo fuel tanker equipped with a YN4102QBZL model 4-cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 116HP. The gearbox is 5 front speeds and 1 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tnaker has strong power and good controllability, suitable for various road conditions oil transportation work.



The actual volume of the oil tank is 6,000 liters. Q235 carbon steel is used as the protective material. The tank body is made of carbon steel with a thickness of not less than 4 mm. The Howo fuel tank truck is equipped with Chinese famous brand pumps, valves and pipes, as well as a set of fuel distributors. The oil tank is equipped with a ladder for easy operation, and can be designed into multiple compartments according to needs.

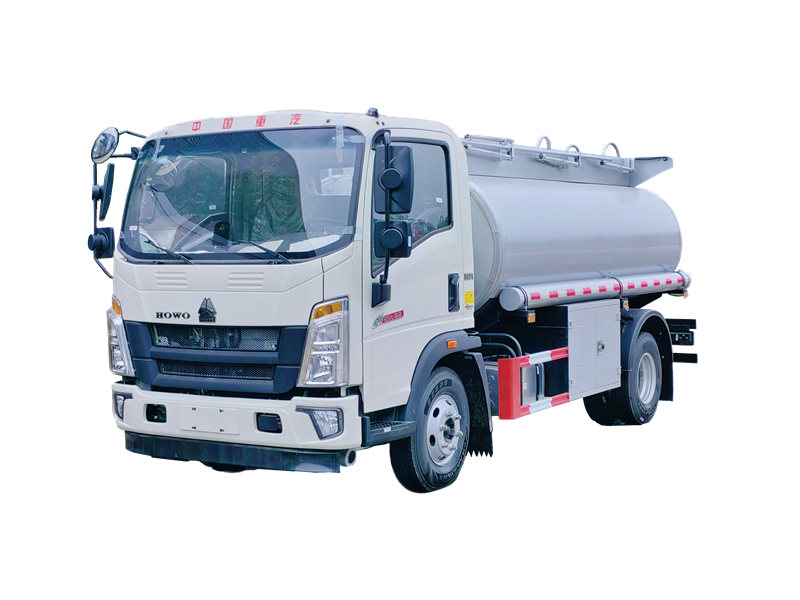

HOWO 4×2 fuel tank truck



*HOWO 4×2 Fuel Tanker Truck

 SINOTRUK HOWO 6000L Refueling Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS



Product Features

★ Based on HOWO light chassis, with high ground clearance and excellent of-road performance

★ Fuel tank made of high-quality carbon steel material, with baffle walls inside, aluminum alloy and stainless steel tank is optional

★ The tank body is equipped with full sets of safety equipment

★ Equipped with a well-known brand fuel pump and refueling equipment

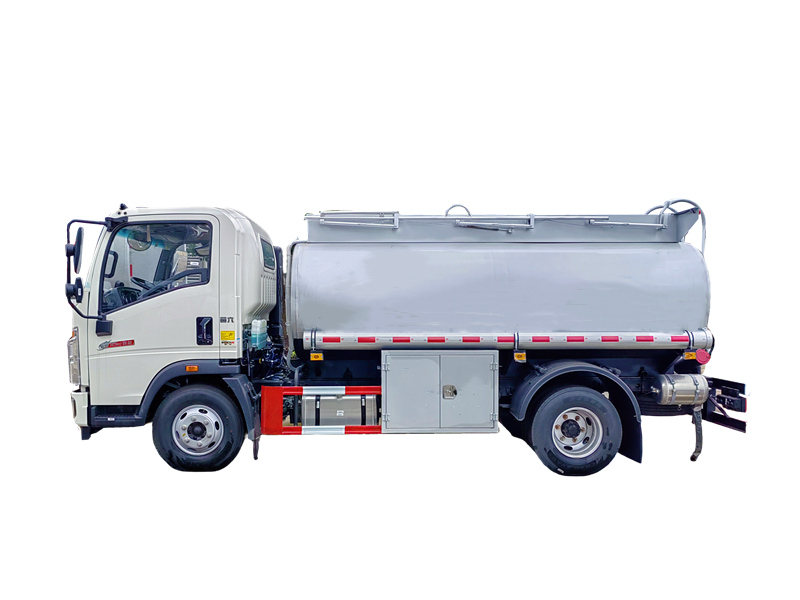

Howo light fuel tanker truck



Ⅱ. Product Parameter for HOWO 6000L fuel tanker truck:



Howo fuel tank truck



Howo Light 4x2 Fuel Tank Truck

Drive system

4X2

Chassis

Howo

Vehicle Main Dimensions

Dimensions(L x W x H)mm

6300*2285*2550

Wheel base (mm)

3360

Overhang (front/rear) (mm)

580/820

Wheel track (front/rear) (mm)

1531/1640

Approach/Departure angle(°)

19/10

Weight in KGS

Curb Weight

4500

GVW.

7300

Max. driving speed(km/h)

105

Engine

Model

YN4102QBZL

Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

116 HP

Emission standard

Euro 2

Gearbox

WLY6TS55C, 5 forwards & 1 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

70L

Tire

7.00R16  6 pcs+1 spare tire

 UPPER

Fact cubage

6000Liters

Protective material

Q235 carbon steel

Tank meterial

<4mm> carbon steel

Equipment

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser
2.Equipped  with a ladder on tank
3.It can be design to have several compartments according to your requirements
4.Equipped with speed limiter. The speed limit of 95 km/h



Howo fuel tank truck



HOWO oil tanker truck pipeline drawing



Ⅲ. Product Details & Advantages:

HOWO 6000L oil tank truck

1. Tank Body:

The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.

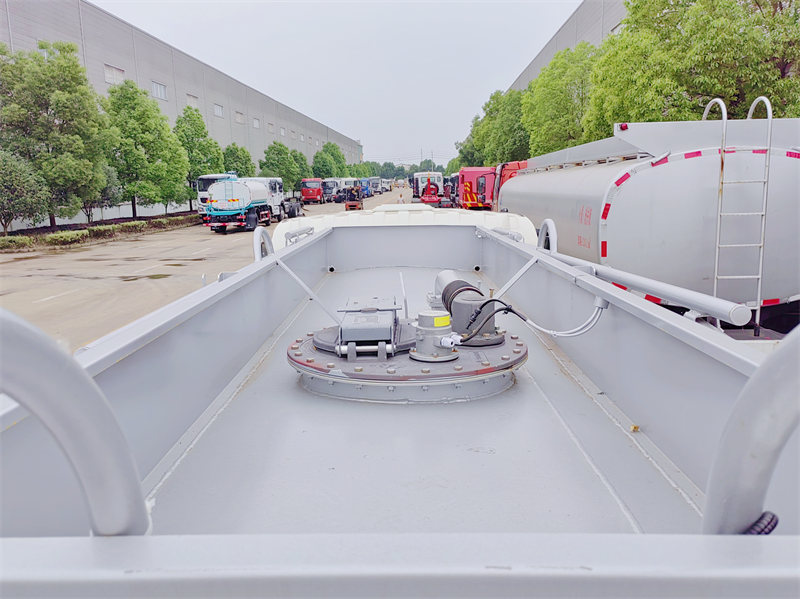

The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.

The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.

The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.

The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.

The tank opening is a φ500 diameter hole for maintenance and repair.

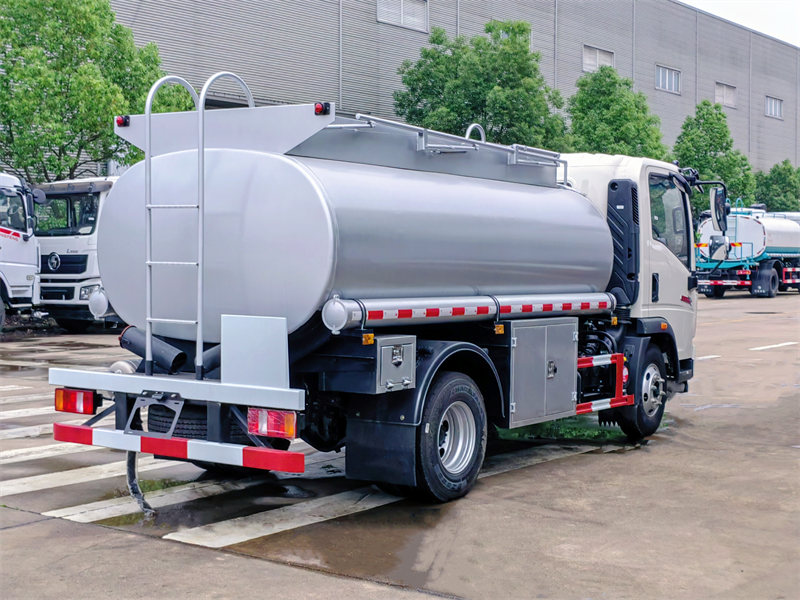

HOWO 6000 liters diesel bowser truck

2. Oil Pump Section:

The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

The oil pump is connected to the chassis via a pump mounting bracket.

Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.



HOWO 6000 liters diesel bowser truck

3.Control System:

A control box is typically located on the lower side of the tank, containing a three-way ball valve, flow meter, coarse and fine filters, CRJ quick connectors, pressure gauges, vacuum gauges, and other accessories.

The oil pump inlet vacuum gauge and oil pump outlet pressure gauge allow for reading the vacuum level in the pipeline before the oil pump and the pressure in the pipeline when the oil pump is operating, ensuring the oil system is in normal working condition.



Howo fuel bowser

4.Safety Protection Devices:

The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO diesel tank trucks for export

SINOTRUK HOWO fuel tank trucks for export



SINOTRUK HOWO fuel trucks for export

SINOTRUK HOWO refueling trucks ready for delivery
