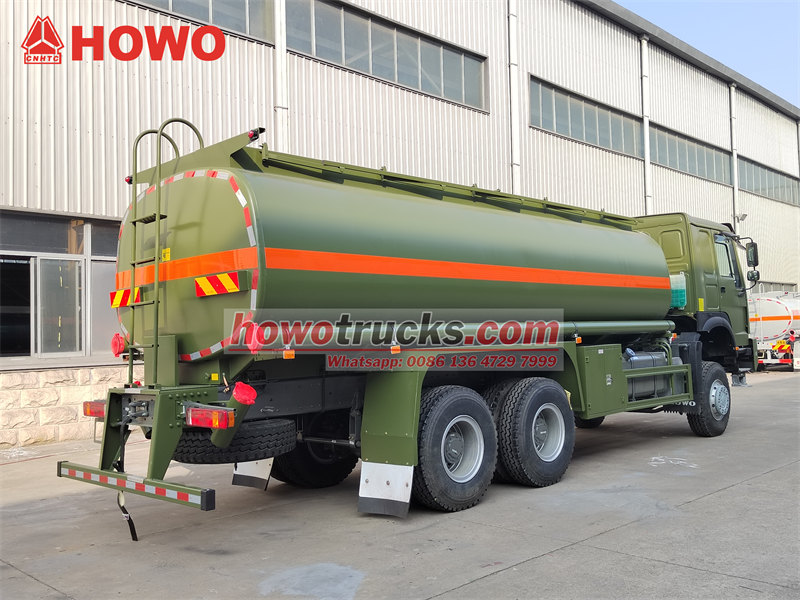

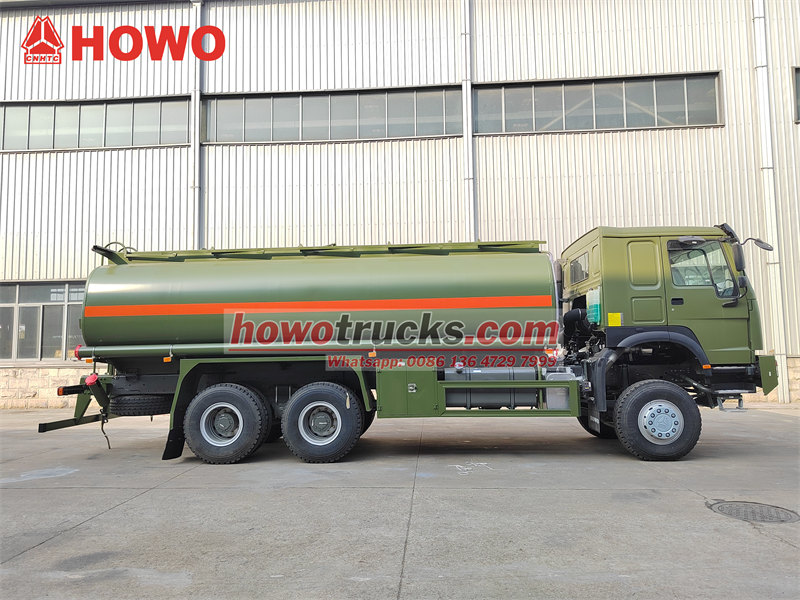

HOWO 6×6 off-road refueling truck is a high-performance fuel transport vehicle specifically designed for complex road conditions. Built on the ZZ2257N4657A chassis, it is powered by a 400-horsepower WP12.400E32 diesel engine compliant with Euro III emission standards, delivering robust and reliable performance. Equipped with a 6×6 all-wheel-drive system and a central differential lock, the vehicle boasts exceptional off-road capabilities. Combined with a 4.8 ratio drive axle and a heavy-duty suspension system, it effortlessly navigates rugged terrain.

The HOWO 6×6 fuel tanker truck has a tank capacity of 18,000 liters and is constructed from 4mm-thick carbon steel with an internal anti-corrosion coating to extend its service life. The tank is divided into two independent compartments, allowing simultaneous transportation of different fuel types for enhanced operational flexibility. It comes with a high-capacity 60m³/h fuel pump and a 60L/min Censtar fuel dispenser, along with a 15-meter-long hose reel, enabling rapid refueling operations. With its outstanding off-road performance and Euro III emission standard, this vehicle is highly favored by African customers, particularly for fuel distribution in harsh environments such as oil fields and mining areas.

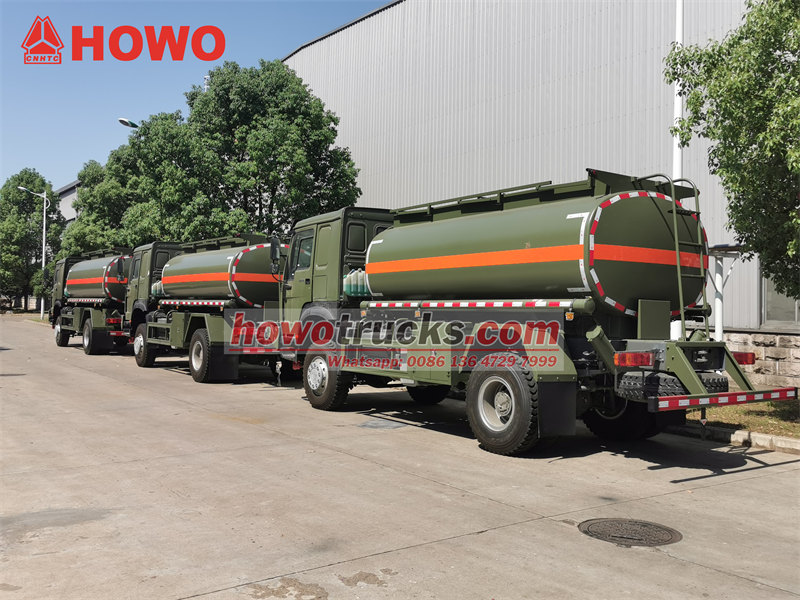

*SINOTRUK HOWO 6×6 Fuel Oil Tanker Truck

 HOWO AWD off-road mobile fuel bowser*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS

Product Features

★ Durable chassis : ◇ HOWO 6×6 all-wheel-drive chassis.
                                     ◇ With WEICHAI 400HP diesel engine, 6-cylinder, 11596ml displacement

★ Fuel tank: ◇ 4mm thick carbon steel fuel tank, with 2 compartments for storage and transportation different types of oil products

★ Pump : ◇ China top brand fuel pump with large flow rate, can pump in and pump out;

                        ◇ aluminum alloy fuel pump is optional.

★ Special design: ◇ can be designed to several compartments to transport different oil products

                                      ◇ can choose single fuel dispenser and double fuel dispenser

                                      ◇ the tank is equipped with anti-wave plates to guarantee the safe transportation

                                      ◇ stainless steel and aluminum alloy tank is optional.

» Ⅱ. Product Parameter for HOWO 6×6 fuel dispenser truck:

» Ⅲ. Product Details & Advantages:

Chassis performance

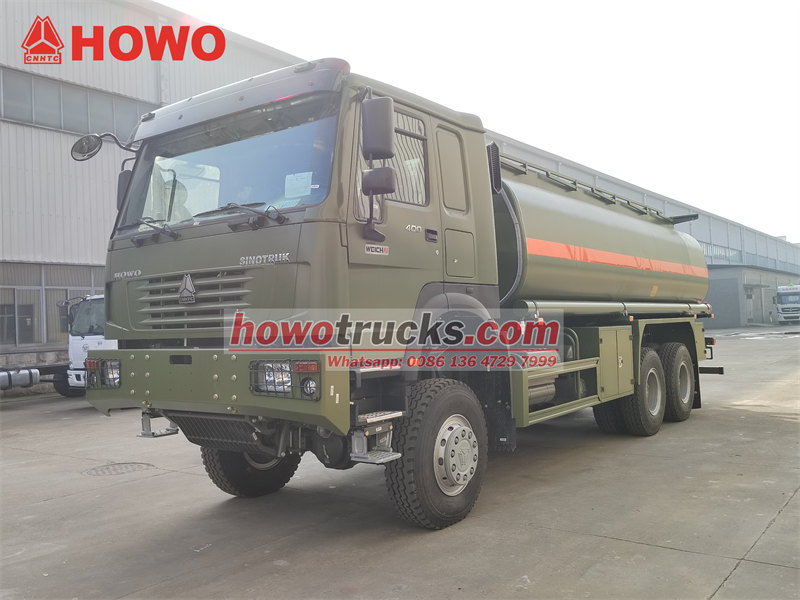

• Chassis: HOWO 6×6 all wheel drive chassis, GVW 25000kg, with HOWO HW76 long cabin



• Axles: HF9 front axle with loading capacity 9000kg, HC16 rear axle with differential locks



• Engine: WEICHAI WP12.400E32 diesel engine, China top brand, durable and reliable



• Gearbox: SINOTRUK HW19710 model, 10-speed forward and 2 reverse, manual.

Upper body

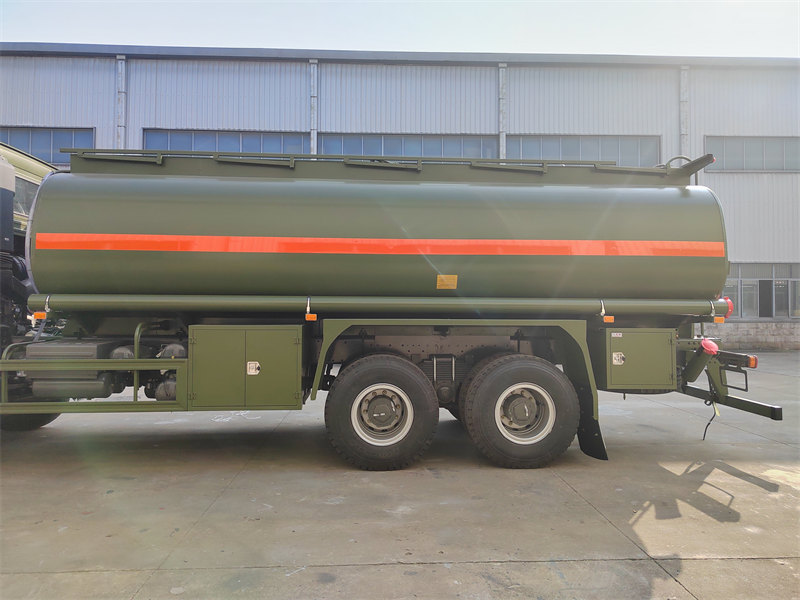

• Tank body: 18 cubic meters carbon steel (Q235B), 4mm thickness, 2 compartments, anti-corrosion treatment inside.

 • Safety system:

◇ European standard manhole cover: with breath valve and vapor system.



◇ Emergency Venting Device: This device can automatically vent gas in emergencies. When the pressure inside the tank reaches 21-35 kPa, the emergency venting device activates, effectively preventing explosion accidents in fuel tankers.



◇ Emergency Shut-off Valve: Installed at the bottom of the tank to prevent liquid leakage, significantly enhancing the safety of transportation.



◇ Overflow Prevention Device:It monitors the liquid level in real time to prevent oil spillage during loading and unloading operations. When the liquid level reaches a critical threshold, the valve automatically closes.



◇ Anti-static Device: It employs conductive rubber grounding straps, metal conductors, and other components to safely discharge static electricity through grounding connections.

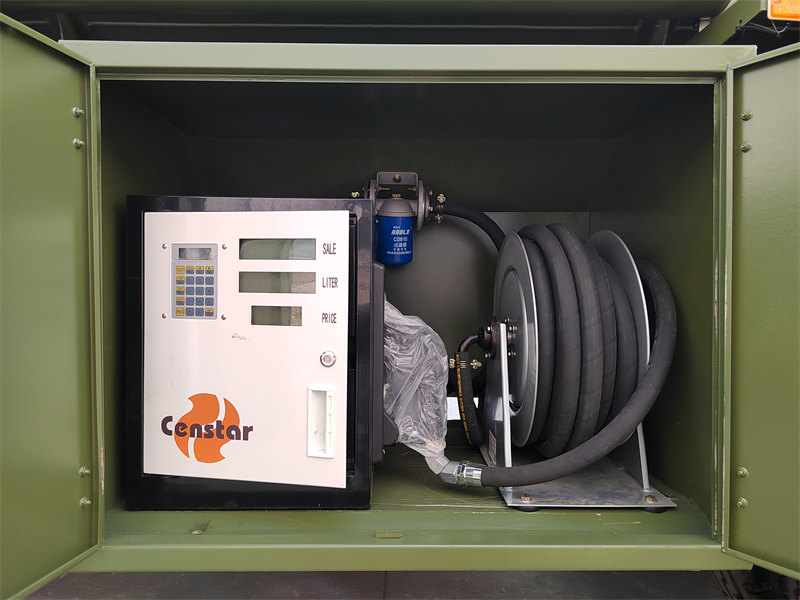

•  Fuel dispenser:

◇ Censtar refueling machine: China famous brand fuel dispenser



◇ High-Precision Metering: The Censtar fuel dispenser utilizes advanced metering technology to accurately measure the flow of every drop of fuel, ensuring precise and error-free refueling.



◇ Fast refueling: Equipped with an efficient flow control system, enabling faster fueling speeds and enhancing operational efficiency.



◇ Multi-functional Display: Features a multi-functional display screen that shows information such as fuel volume, transaction amount, and refueling receipt number, facilitating user operation and inquiry.

 » Ⅳ. Main application scenarios:

1. Oilfield Operations

Ideal for remote oilfields with rough terrain, its 6×6 drive ensures reliable fuel delivery to drilling rigs and generators.

2. Mining Fuel Supply

Handles rocky/muddy mining sites efficiently, refueling heavy equipment on-site to reduce downtime.

3. Construction Support

Provides mobile fueling for road/hydropower projects, serving dispersed machinery like bulldozers.

4. Disaster Relief

Delivers fuel through flood/earthquake zones to power emergency vehicles and relief operations.
