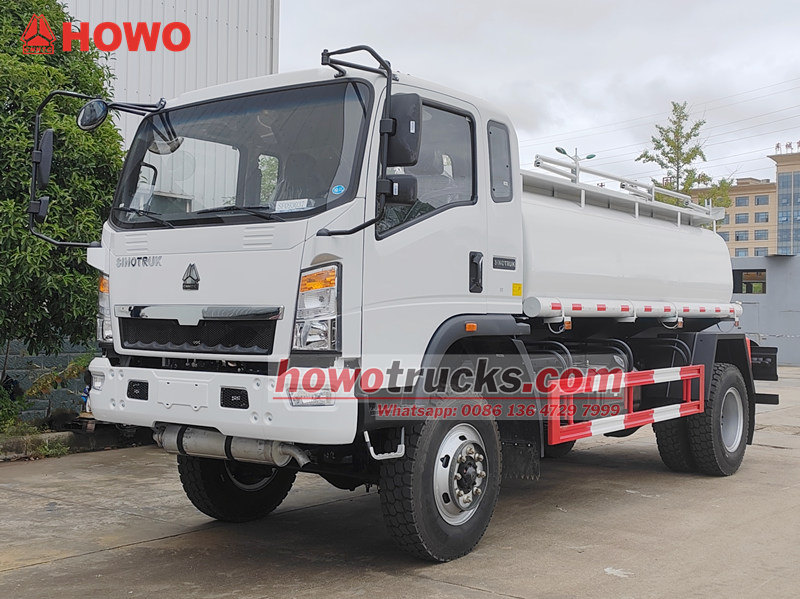

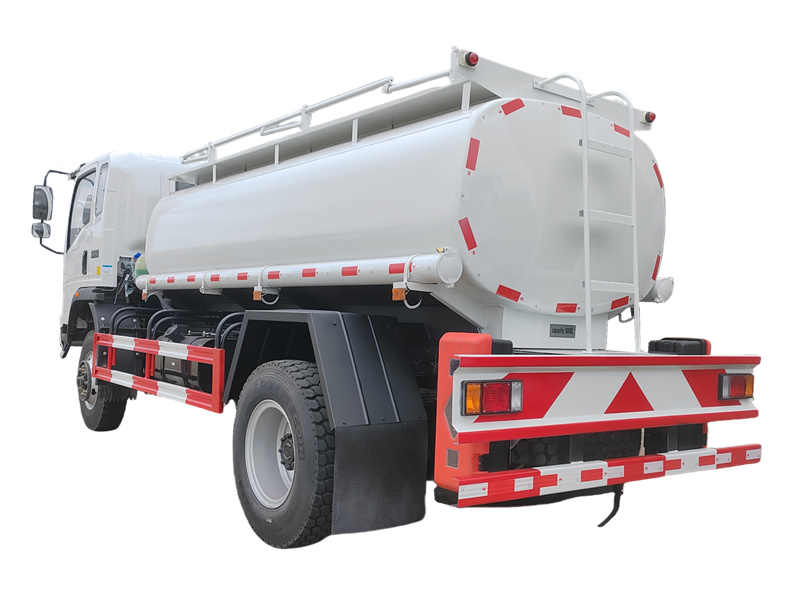

HOWO 4×4 refueling truck is a 6,000-liter mobile fuel tanker built on the HOWO 4WD chassis. It integrates fuel transportation and on-site refueling capabilities, equipped with a high-flow fuel pump and a 15-meter refueling hose, providing flexible fuel supply for vehicles and engineering machinery. Thanks to its four-wheel drive capability and compact design, this vehicle is particularly suitable for mobile refueling operations in challenging terrains such as construction sites and mining areas, offering an efficient mobile energy solution.
Working capacity :
6000 litersCabin type :
HOWO 2080Drive system :
4×4Wheelbase ( mm) :
3500Engine specific :
130HP/YC4D130-33Gear box :
8JS85FFront axle ( Kg ) :
3000Rear axle ( Kg ) :

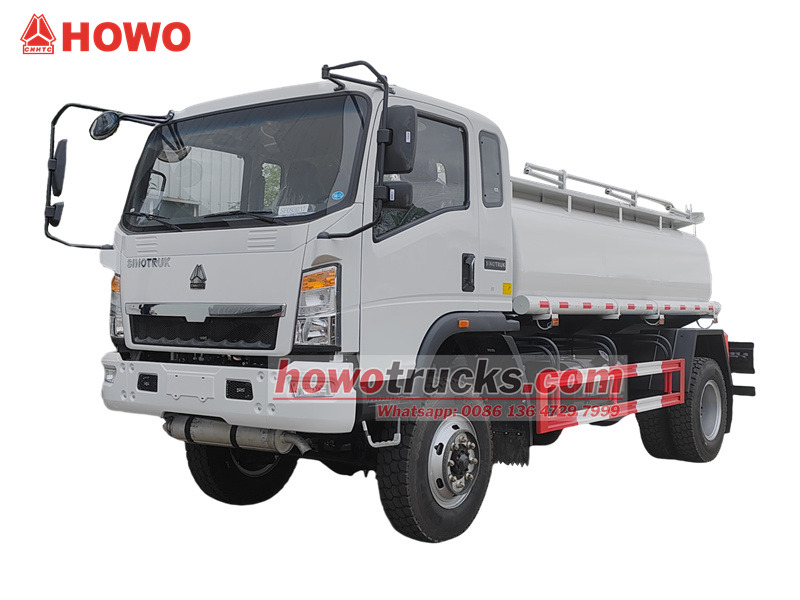

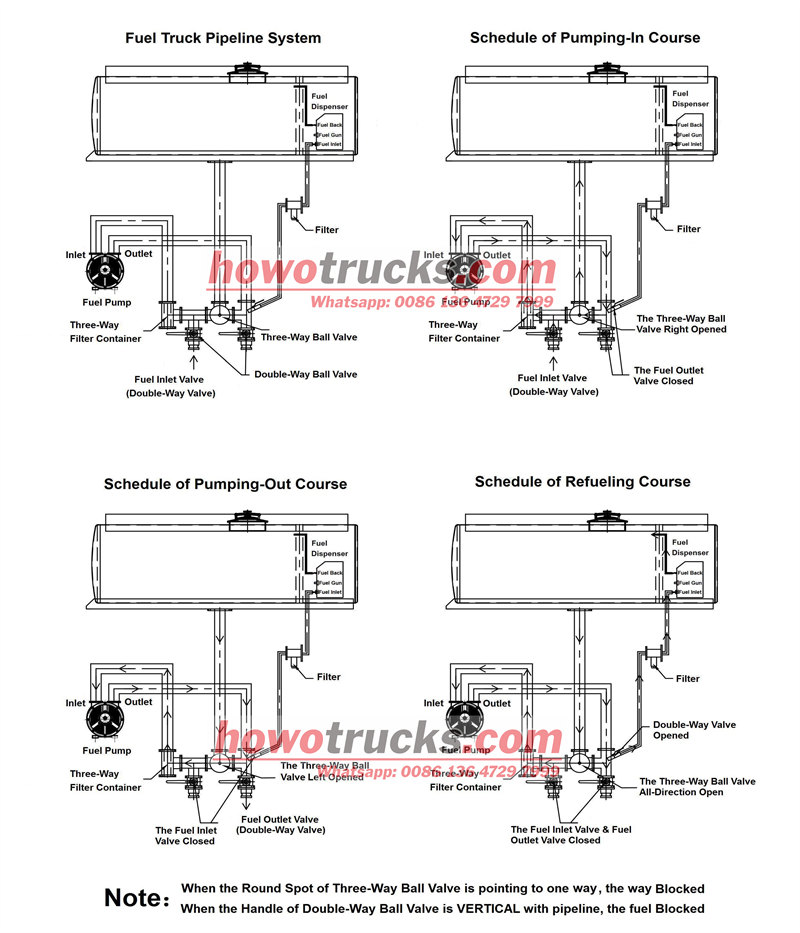

6000HOWO 4×4 fuel tank truck is a specialized mobile fuel vehicle modified from the SINOTRUK HOWO 4WD chassis, designed for both fuel transport and on-site refueling. Its core components include a carbon steel tank, pipeline system, anti-static device, and a fuel pump with a flow rate of 60 m³/h. The vehicle operates by using the onboard pump to draw fuel from the tank, which is then filtered and dispensed via a 15-meter refueling hose. It supports both self-priming and pump-driven modes, and its compact structure ensures adaptability in confined spaces.
Benefiting from its 4×4 drive configuration and high ground clearance, the vehicle delivers excellent off-road performance, enabling it to navigate complex terrains such as construction sites, mining areas, and mountainous regions. The 6,000-liter fuel tank is equipped with anti-wave baffles and a European-standard manhole cover, ensuring both safety and practicality. The HOWO 4×4 refueling truck is primarily used as a substitute for fixed fuel stations, providing temporary refueling services for vehicle fleets and engineering machinery. It serves as a highly flexible mobile energy support unit.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
★ Based on HOWO 4×4 off-road chassis, with high ground clearance and excellent of-road performance
★ Fuel tank made of high-quality carbon steel material, with baffle walls inside, aluminum alloy and stainless steel tank is optional
★ The tank body is equipped with full sets of safety equipment
★ Equipped with a well-known brand fuel pump and refueling equipment
※ Ⅱ. Product Parameter for HOWO 4WD fuel tanker truck:
|
HOWO 4×4 6000 liters refueling truck specifications |
||||
|
Chassis |
Brand |
SINOTRUK HOWO |
||
|
Drive type |
4×4 |
|||
|
Overall dimensions |
6000×2200×2650 mm |
|||
|
Gross vehicle weight(kg) |
9000 kg |
|||
|
Curb weight(kg) |
4200 kg |
|||
|
Wheelbase(mm) |
3500 mm |
|||
|
Front/Rear axle loading weight(kg) |
3000/6000 kg |
|||
|
Front/Rear overhang(mm) |
1160/1550 mm |
|||
|
Approach/Departure angle(°) |
18/12 |
|||
|
Max. driving speed(km/h) |
80 km/h |
|||
|
Clutch |
Reinforced diaphragm clutch |
|||
|
Brakes |
Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
|||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|||
|
Tire |
Quantity |
6pcs with one spare tire |
||
|
Specifications |
8.25R16 16PR |
|||
|
Number of leaf springs |
9/11+9 |
|||
|
Transmission |
FAST 8JS85F, Manual type, 8 Forwards and 2 reverses |
|||
|
Steering |
Power steering, hydraulic steering with power assistance |
|||
|
Cab |
It can accommodate three people, With Air conditioner |
|||
|
Engine |
Brand |
YUCHAI |
||
|
Model |
YC4D130-33 |
|||
|
Fuel type |
Diesel |
|||
|
Displacement(ml) |
4214 ml |
|||
|
Power(kw) |
96 kw |
|||
|
Horsepower (HP) |
130 HP |
|||
|
Emission standard |
Euro 2 |
|||
|
Rated speed |
2800 rpm |
|||
|
Max. torque |
420 N.m |
|||
|
Upper Body |
||||
|
Fuel tank |
Capacity |
6000 liters |
||
|
Tank material |
Carbon steel |
|||
|
Thickness |
4 mm |
|||
|
Compartment quantity(pcs) |
1 |
|||
|
Manhole cover |
1 unit, European standard |
|||
|
Transporting medium |
Gasoline/diesel/kerosene |
|||
|
Fuel pump |
Quantity (pcs) |
1 pcs |
||
|
Model |
80YHCB60 |
|||
|
Flow rate |
60m3/h |
|||
|
Speed |
970 rpm |
|||
|
Other configurations |
1. Aluminum alloy safety valve 1 pc |
|||

※ Ⅲ. Product Details & Advantages:

HOWO 4×4 Chassis
Built on SIONTRUK HOWO 4×4 chassis, with excellent off-road performance, outstanding load-bearing capacity and reliable structure

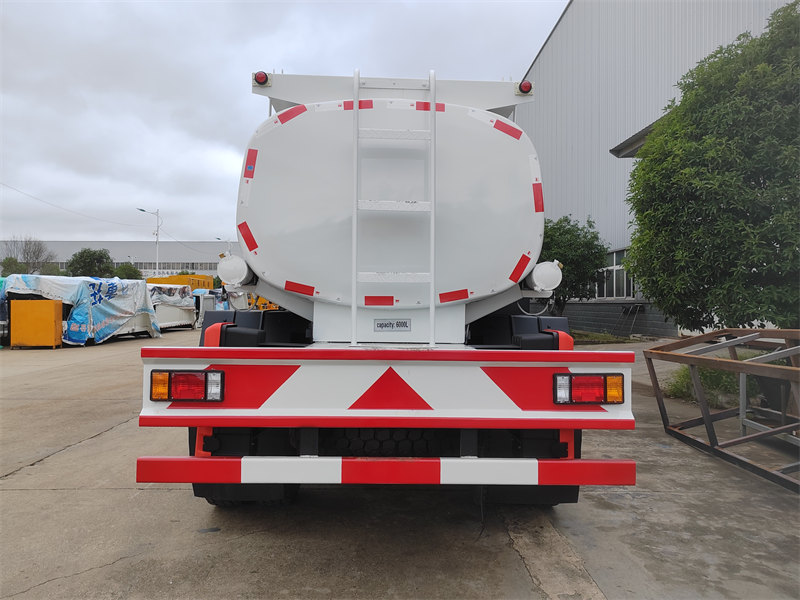

Tank Body
The tank body is formed through a single rolling process using high-quality carbon steel plates and automated gas-shielded welding, achieving a seamless structure. It undergoes rigorous testing including high-pressure gas leak tests, water pressure tests, and non-destructive inspections, ensuring high strength, a low center of gravity, and safe, stable transportation performance.

High Safety
Equipped with safety devices such as an overflow sensor, a vapor recovery system, a European-standard manhole cover with a breather valve, a safety valve, and an emergency shut-off valve to ensure operational safety.

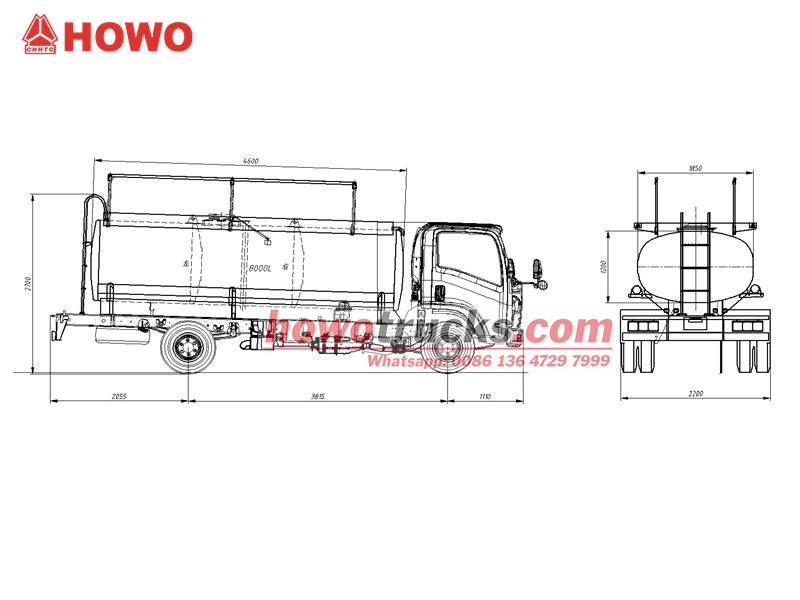

※ Ⅳ. Product Drawing:


1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

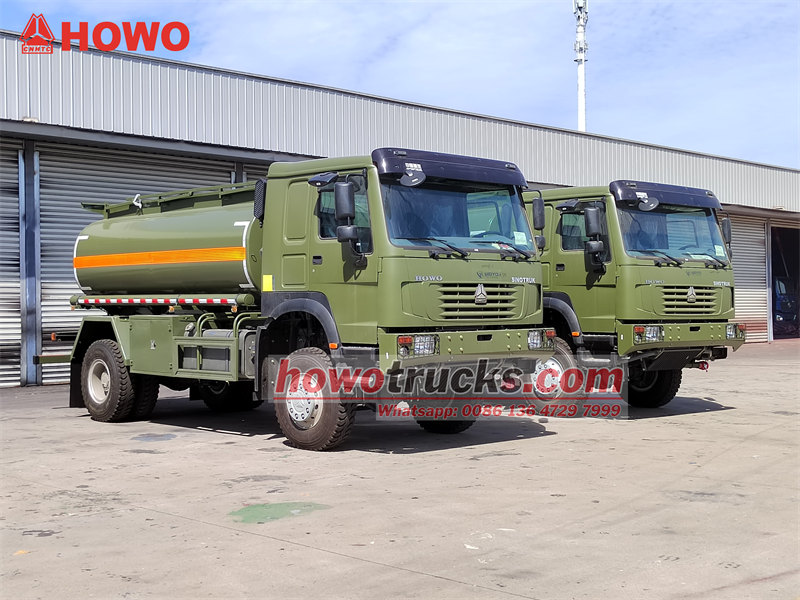

SINOTRUK HOWO 4×4 fuel tank trucks for export

SINOTRUK HOWO 4WD off-road refueling trucks ready for delivery
