The 8cbm garbage refuse truck bodies are characterized by their robust structure, excellent sealing performance, and high compression efficiency. Their bodies are constructed from high-quality, high-strength steel plates, offering corrosion resistance and wear resistance, making them suitable for various operating environments.

Equipped with an advanced hydraulic system, the 8cbm garbage refuse truck bodies achieve automatic garbage compression, pushing, and unloading. Operation is simple, safe, and reliable, and the fully sealed structure effectively prevents secondary pollution, ensuring urban environmental sanitation.

● China best garbage refuse truck bodies factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

*8cbm garbage refuse truck bodies

trash compactor truck upper body kit*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED

Product Features

●Robust Structure: Constructed from high-strength steel plates, corrosion-resistant and long-lasting.

●Highly Efficient Compression: Stable hydraulic system with a high compression ratio, increasing load capacity.

●Excellent Sealing: Fully enclosed housing design prevents sewage leakage and odor overflow.

●Easy Operation: Equipped with both electrical and manual operating systems, ensuring safe and reliable use.

8cbm garbage refuse truck bodies (also called 8cbm rear loader garbage truck upper body, waste compaction truck superstructure, rear loader watse collection truck kit, garbage compactor truck superstructure, trash compactor truck upper body kit, rear loader compactor truck upper body,etc.) is a new type of sanitation vehicle specially used for collecting, transferring and removing garbage, The upper body is a 8cbm garbage bin,rear is a bucket flip mechanism,there are 3 methods to operation the truck loading and unloading.

This vehicle adopts electro-hydraulic control valves and PLC programmable control technology, which integrates the advantages of electronic control and hydraulic control. Through electro-hydraulic integrated linkage, it effectively optimizes the coordination between the hydraulic system and the electrical system, and improves the reliability of use.

The working principle of a rear loader garbage truck upper body mainly consists of three stages: loading, compression, and unloading.

1. Garbage is fed into the loading port of the upper body through the rear tipping mechanism, and then pushed into the compression container by a pusher or scraper.

2. The hydraulic system activates the compression device, driving the compression plate back and forth via hydraulic cylinders. This powerfully compresses the garbage and pushes it into the storage container, significantly reducing its volume and increasing the loading capacity. The entire process is automated by an electro-hydraulic combined control system, with the electronic control system and hydraulic system working in coordination to ensure accurate, safe, and reliable operation.

3. When the truck is full, it arrives at the unloading point. The hydraulic system drives the pusher plate to move backward, pushing the compressed garbage out as a whole, completing the unloading process and achieving efficient and environmentally friendly garbage collection and transportation.

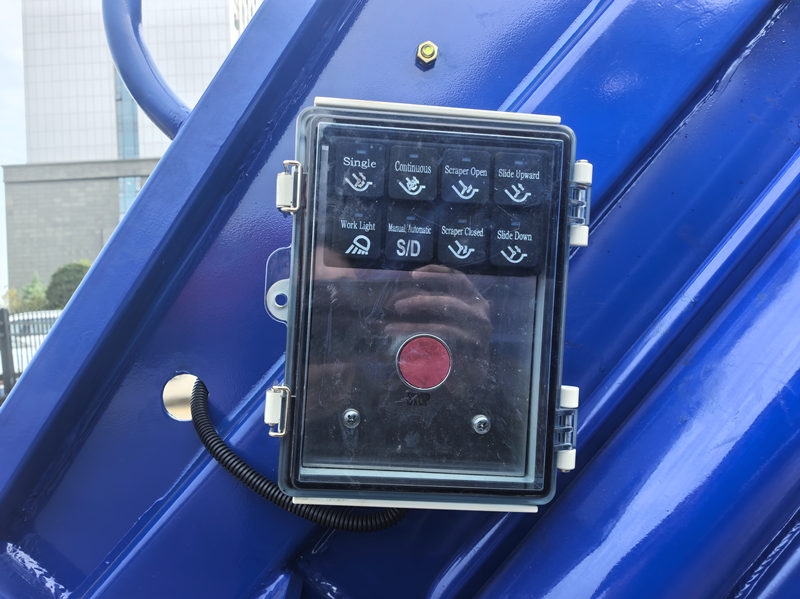

The operation control box is installed in the cab and at the rear of the vehicle.

The operation control box in the cab can control the pushing and unloading and select the operation mode (such as automatic or manual), and the operation control box at the rear of the vehicle controls the operation of the pressing and filling mechanism and the barrel turning mechanism. It is very convenient to use and operate. Especially in landfills, operators can complete unloading and sewage discharge without getting off the vehicle. Wired remote control devices can be installed according to user requirements.

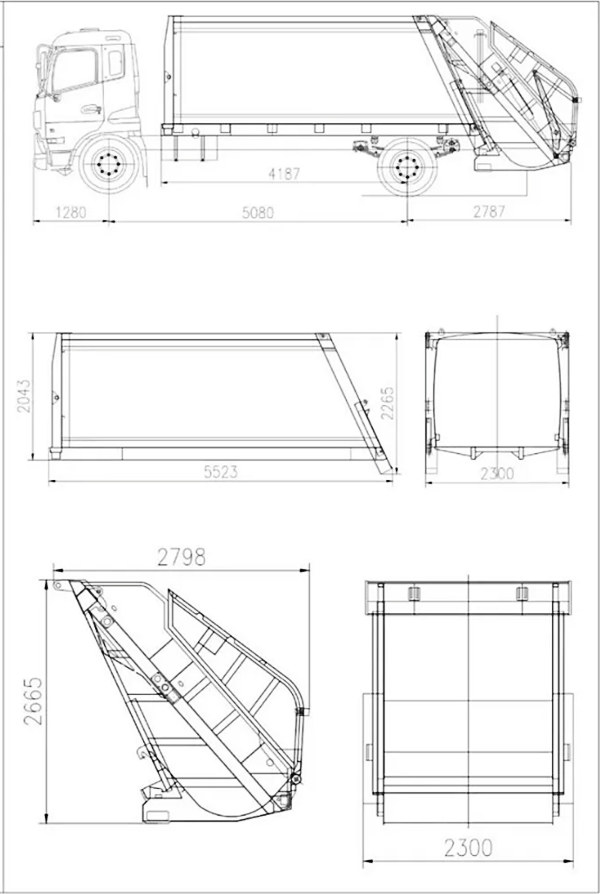

» Ⅱ. Product Parameter for 8cbm garbage refuse truck bodies:

» Ⅲ. Product Detailed introduction：

1. Robust Structure and Excellent Sealing Performance.

●The 8cbm garbage refuse truck bodies are welded from high-strength, corrosion-resistant steel plates, resulting in high overall strength, wear resistance, and durability.

●The container is a fully enclosed structure, equipped with sealing strips and a drainage channel design, effectively preventing sewage leakage and odor diffusion, maintaining a clean and hygienic working environment.

2. Highly efficient and intelligently reliable compression.

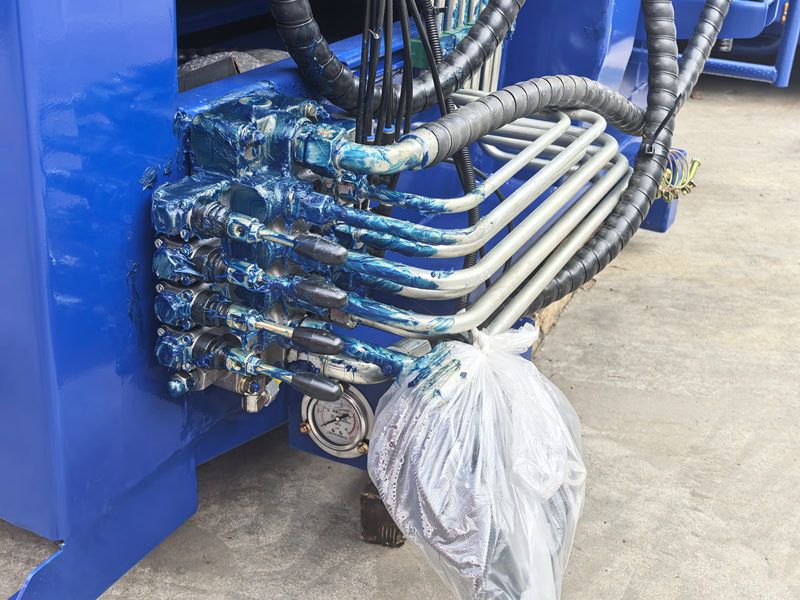

♦Adopting an advanced hydraulic transmission system and PLC programmable control technology, it achieves electro-hydraulic combined control.

♦The compression mechanism is driven by a hydraulic cylinder to move the pusher plate back and forth, forcefully compressing the waste into the container, increasing loading density, reducing the number of transport trips, and improving operational efficiency. Simultaneously, the system has an automated operation mode, which is simple, safe, and reliable.

3. Easy to operate and maintain.

➤The 8cbm garbage refuse truck body is equipped with both electronic and manual control systems to easily meet different operational needs.

➤An automatic tipping device at the rear allows for quick loading and unloading of garbage; key components are equipped with inspection ports and lubrication devices for easy daily maintenance and to ensure long-term stable operation of the vehicle.
