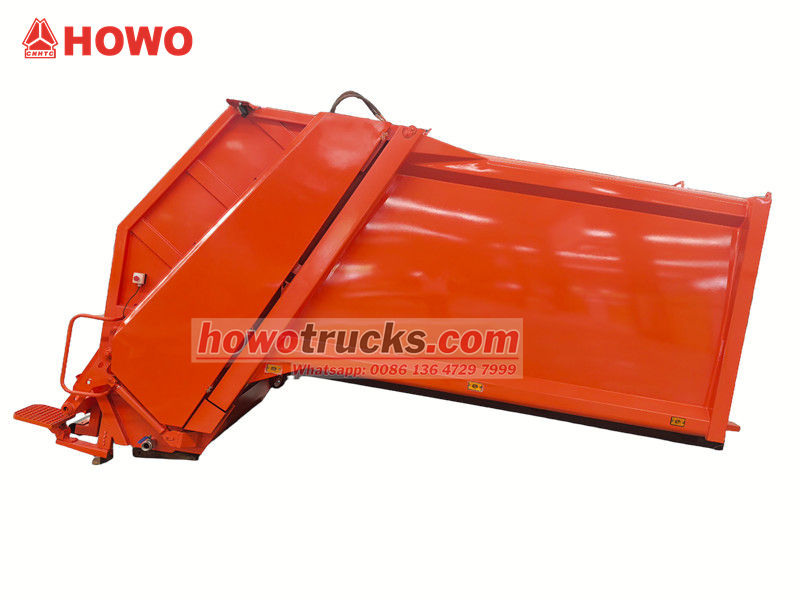

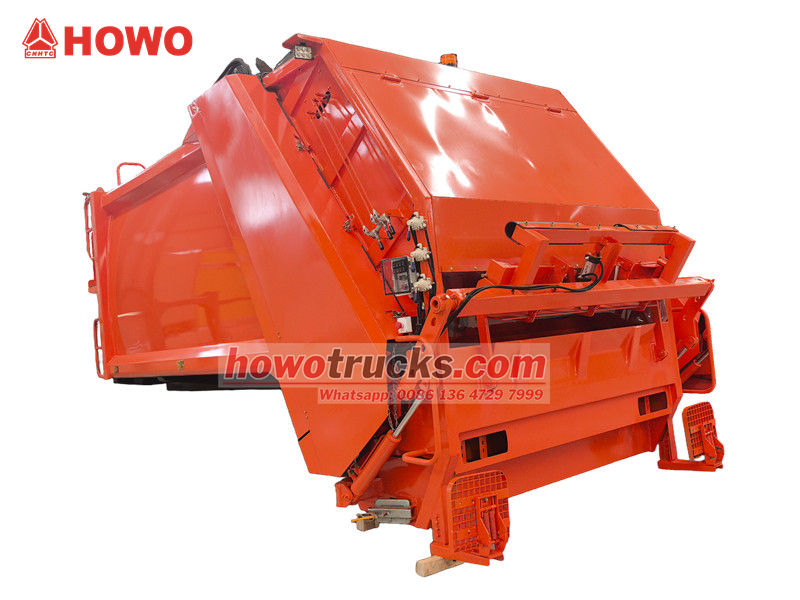

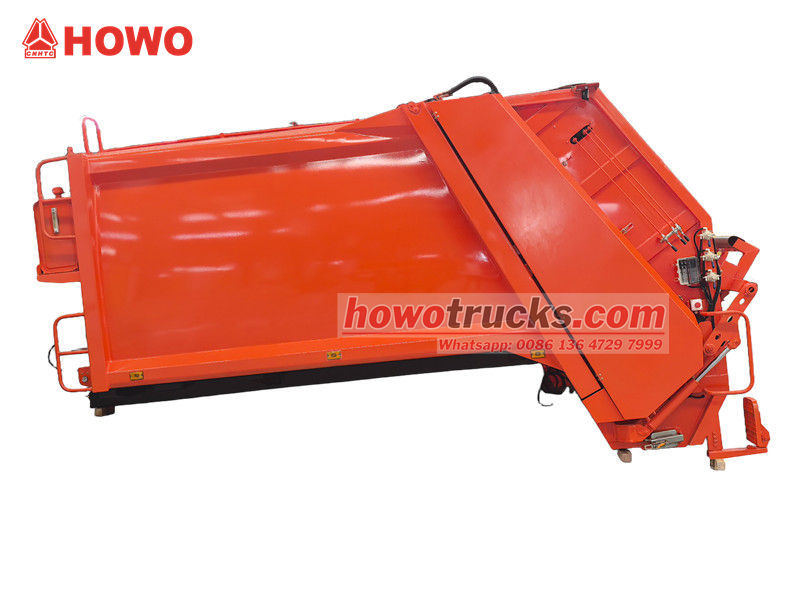

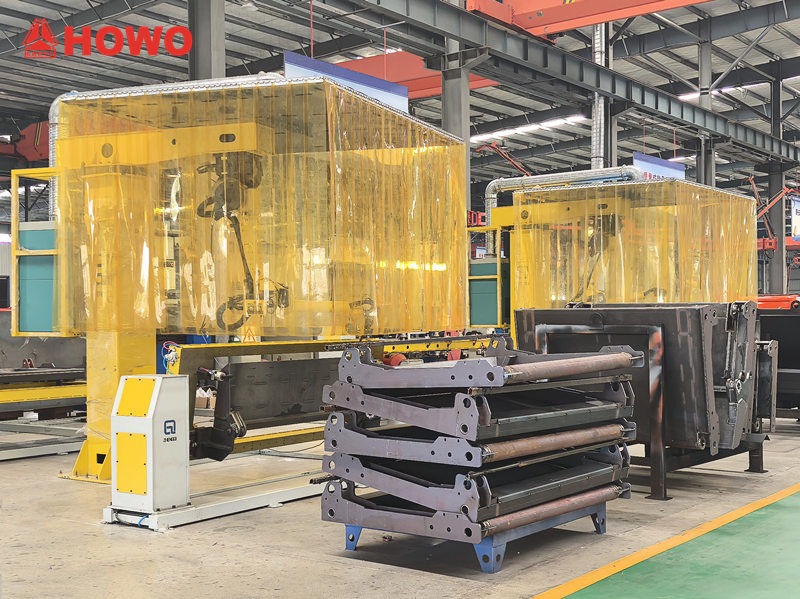

The customized Howo 10 CBM rear loader superstructure is constructed from welded high-strength steel plates, with side panels molded in a one-piece process, resulting in a sturdy exterior and exceptional durability. The interior of the box features a special rust-proof treatment, making it suitable for complex operating environments.

Equipped with a high-efficiency compression device, it significantly reduces waste volume and increases single-load capacity. The rear loader superstructure offers excellent sealing, effectively preventing waste leakage and odor spread. It also features three different loading and unloading modes to accommodate diverse operational needs.

● China best rear loader superstructure factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

*customized Howo 10 cbm rear loader superstructure

rear loader garbage truck upper body kit*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED

Product Features

●Efficient Compression: A hydraulic compression system achieves high waste volume reduction and significantly improves transportation efficiency.

●Sturdy Structure: The container is constructed of high-strength, corrosion-resistant steel, ensuring a long service life and adaptability to various operating environments.

●Excellent Sealing: A fully sealed design between the container and the loader prevents leakage and odor.

●Intelligent Control: Equipped with an integrated electro-hydraulic control system, it enables automated operation and safety monitoring.

customized Howo 10 cbm rear loader superstructure (also called 10cbm rear loader garbage truck upper body kit, waste compaction truck superstructure, back loader garbage truck upper body, 10cbm garbage compactor truck upper body kit, 10cbm trash compactor truck superstructure, side load garbage truck superstructure)  is a new type of sanitation specially used for collecting, transferring and removing garbage.

The joint surface between the box body and the filler is equipped with a special rubber sealing strip, and a hydraulic locking device is used for compression sealing, which has good sealing performance; the lower part is designed with a water receiving trough with a special structure, which provides double protection, effectively prevents sewage dripping, and eliminates secondary pollution.

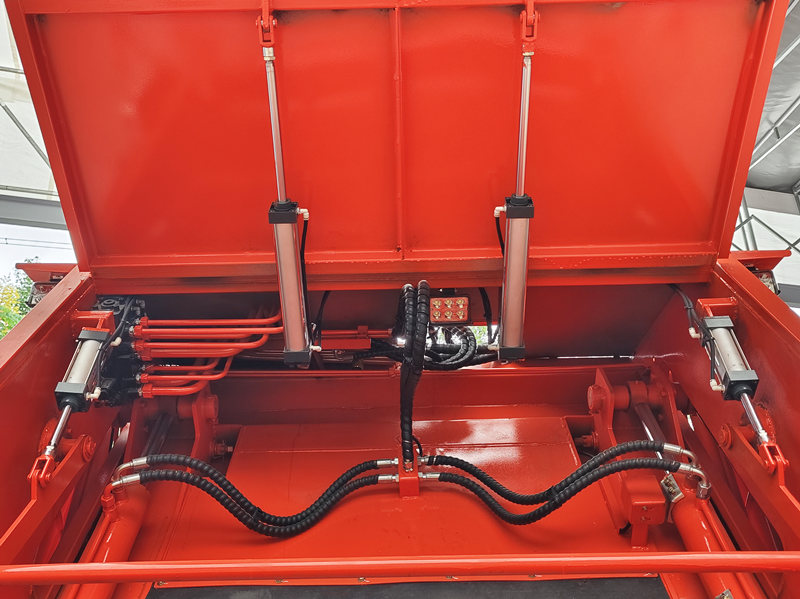

The hydraulic system of the 10 CBM rear loader superstructure is the "power core" of the operation. It consists of four main modules: power source, actuators, control components, and auxiliary components. These components work together to achieve compression, pushing, and unloading operations.

1. Power Source: Provides hydraulic power.

●Hydraulic Pump: The core power component, driven by the vehicle's engine through a power take-off (PTO), converts mechanical energy into hydraulic oil pressure energy, delivering high-pressure oil to the entire system.

●Hydraulic Oil Tank: Stores hydraulic oil and also dissipates heat, precipitates impurities, and separates air from the oil, ensuring hydraulic oil cleanliness and system stability.

2. Actuators: Convert hydraulic energy into mechanical energy.

Hydraulic cylinders: Directly drive the loading mechanism and are divided into three categories based on their function.

●Compression hydraulic cylinders: Push the compression plate to reduce the volume of the waste.

●Push plate hydraulic cylinders: Drive the push plate inside the chamber to compact and push the waste.

●Loading hydraulic cylinders: Control the tilting and closing of the loaders, assisting in the introduction of waste into the compression chamber.

3. Control Components: Regulates the pressure, direction, and flow of hydraulic oil.

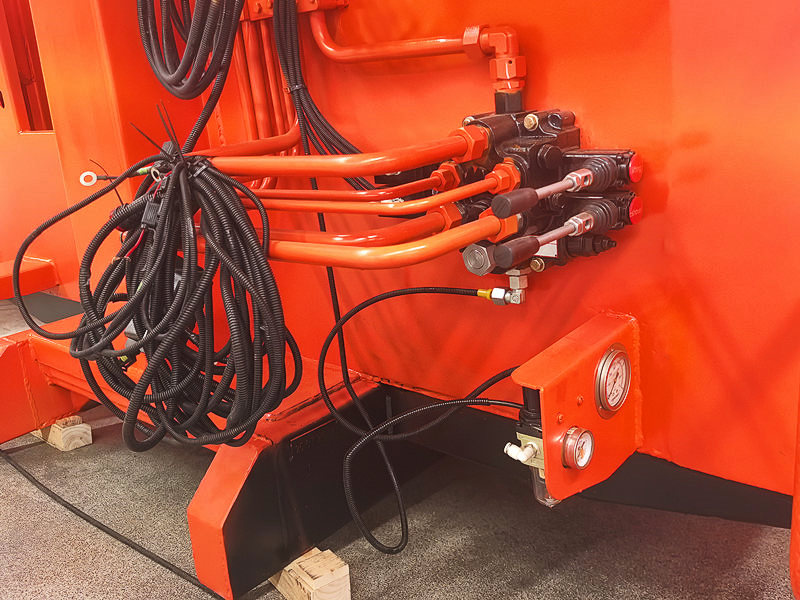

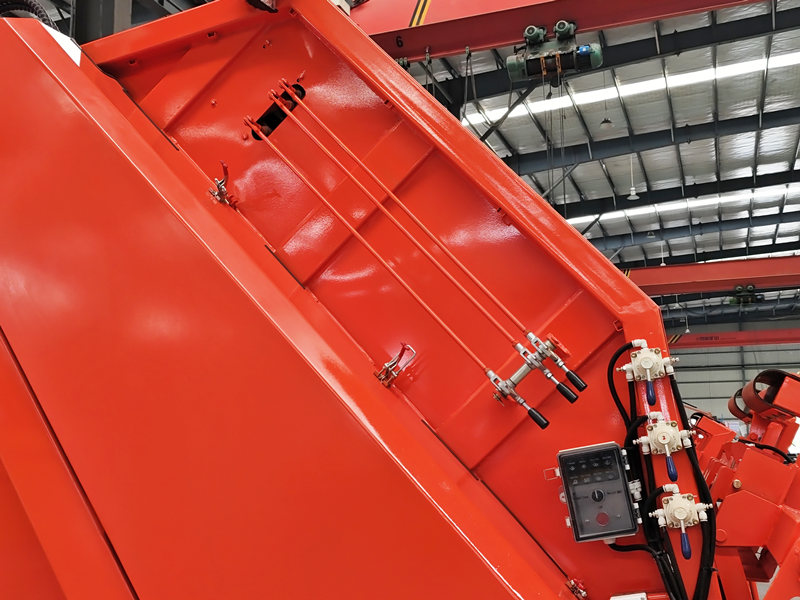

♦Directional Valve: Controls the flow of hydraulic oil, switching the direction of hydraulic cylinder extension and retraction, such as controlling the compression plate's "downward" or "reset" position, and the push plate's "forward" or "retract" position.

♦Relief Valve: Sets the maximum system pressure to prevent excessive pressure from damaging components and provides overload protection.

♦Throttle/Speed ​​Control Valve: Regulates the flow of hydraulic oil and controls the speed of the hydraulic cylinder, preventing excessive compression or thrust.

4. Auxiliary Components: Ensure stable system operation.

●Hydraulic oil hoses: Transport high-pressure hydraulic oil and connect various hydraulic components. High-pressure-resistant steel braided hoses are used.

●Hydraulic filters: Filter impurities from the hydraulic oil to prevent valve blockage and wear on the hydraulic cylinder, extending system life.

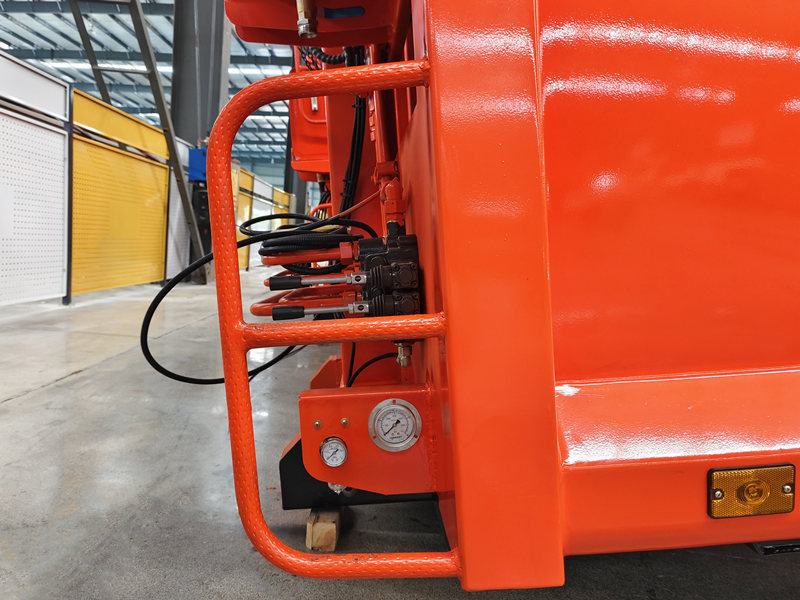

●Pressure gauges: Display real-time system pressure, allowing operators to monitor the hydraulic system's operating status and detect any anomalies promptly.

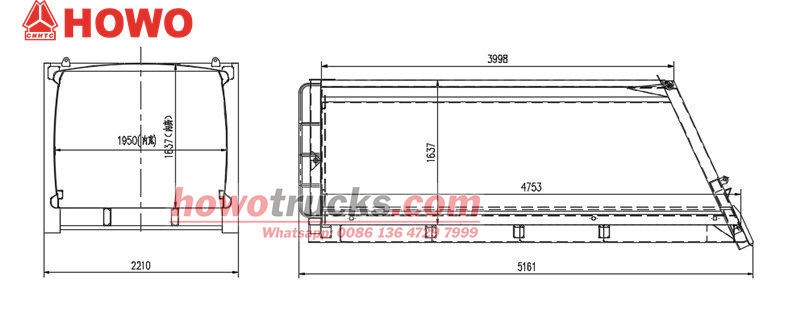

» Ⅱ. Product Parameter for 10 cbm rear loader superstructure:

» Ⅲ. Product Detailed introduction：

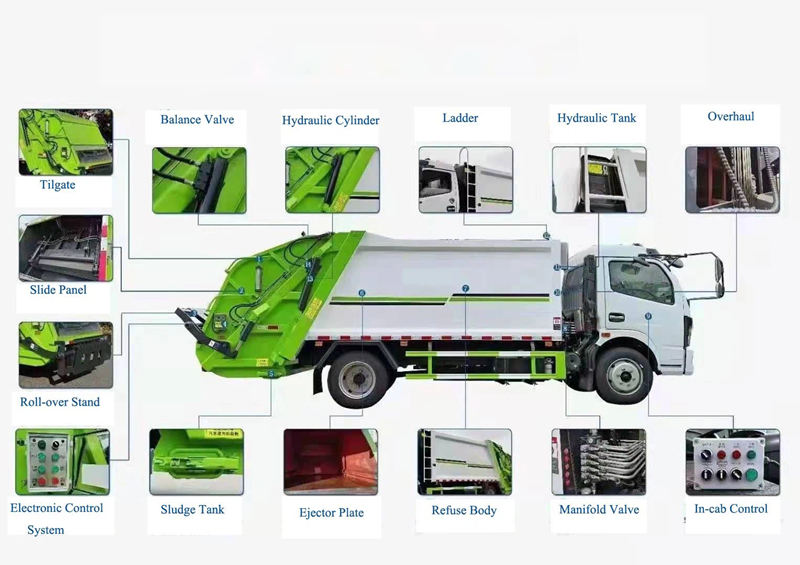

The customized 10 CBM rear loader superstructure is the core component of the vehicle, primarily used for the collection and transfer of municipal solid waste, community waste, and corporate solid waste. The superstructure utilizes high-strength steel for excellent sealing and corrosion resistance, effectively preventing leakage and odor, maintaining a clean urban environment.

1. High Compression Efficiency:

●The upper body utilizes advanced hydraulic compression technology, using a multi-stage push mechanism to compress waste in layers, achieving a volume reduction ratio exceeding 3:1.

●The compression process is smooth and efficient, and can be operated in multiple modes: automatic, semi-automatic, or manual. This significantly improves operational efficiency and reduces vehicle trips.

2. Reliable and Durable Structure:

●Major components, including the housing and loader, are welded from high-quality, high-strength, wear-resistant steel, resulting in a sturdy structure, strong impact resistance, and excellent corrosion resistance.

●Key areas are spray-coated and treated with anti-corrosion treatment to adapt to diverse operating environments and ensure long-term stable operation.

3. Intelligent and Highly Safe:

The upper body is equipped with an integrated electro-hydraulic control system, enabling both remote and local control. It features automatic reset, fault alarms, and safety interlocks, ensuring simple operation, safety, reliability, and easy maintenance.
